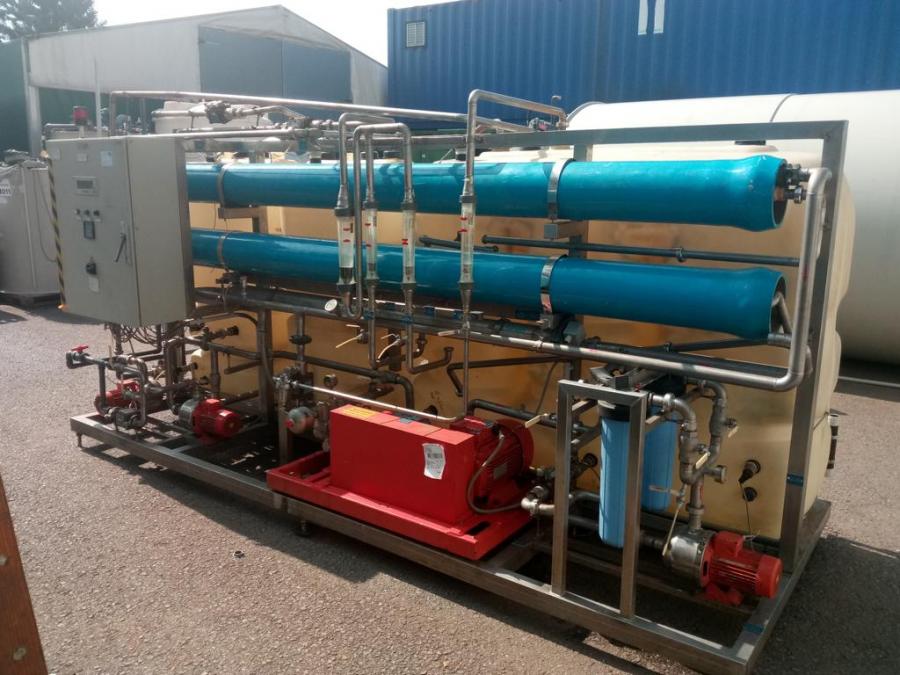

high pressure reverse osmosis plant built on a frame

details to article: 28651

description: 1-stage high-pressure reverse osmosis system for wastewater treatment plant and for recycling process baths, e.g. Do the washing up. Reverse osmosis system is in need of overhaul. (2 pumps and small parts have to be replaced)

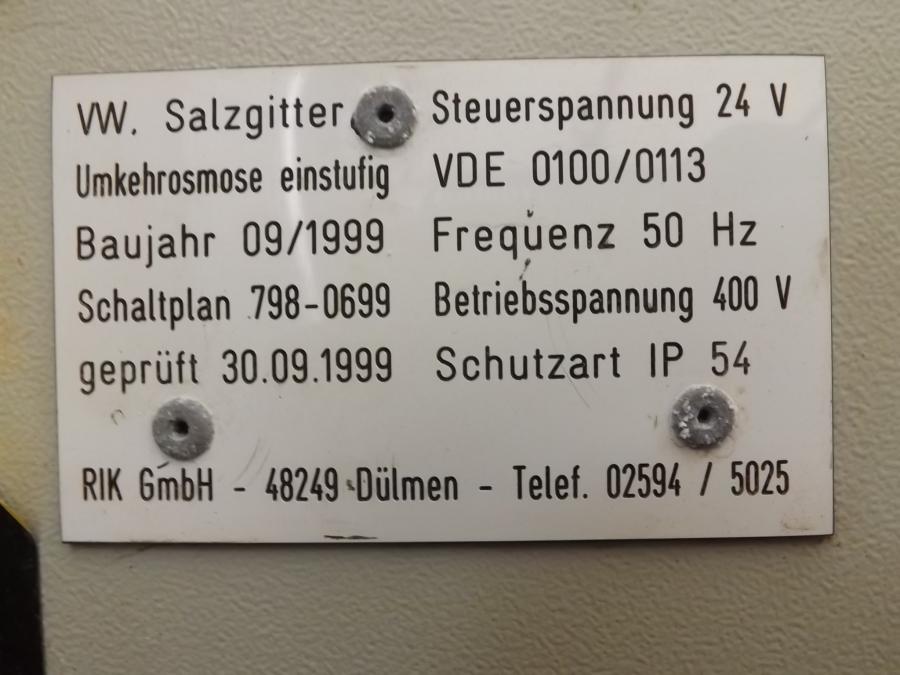

Producer:RIK GmbH
Year of manufacture:1999
Pieces:1



technical data

Delivery rate  3,6 m³/h (raw water)
Delivery rate  3 m³/h (permeate)
Delivery rate  0,6 m³/h (concentrate )
Delivery rate  13 m³/h (circulation)
Pressure  60 bar (total)
Temperature  30 °C (total)
Material  - (stainless steel and PVC pipe installation)

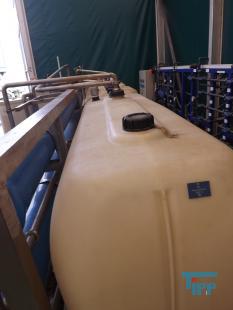

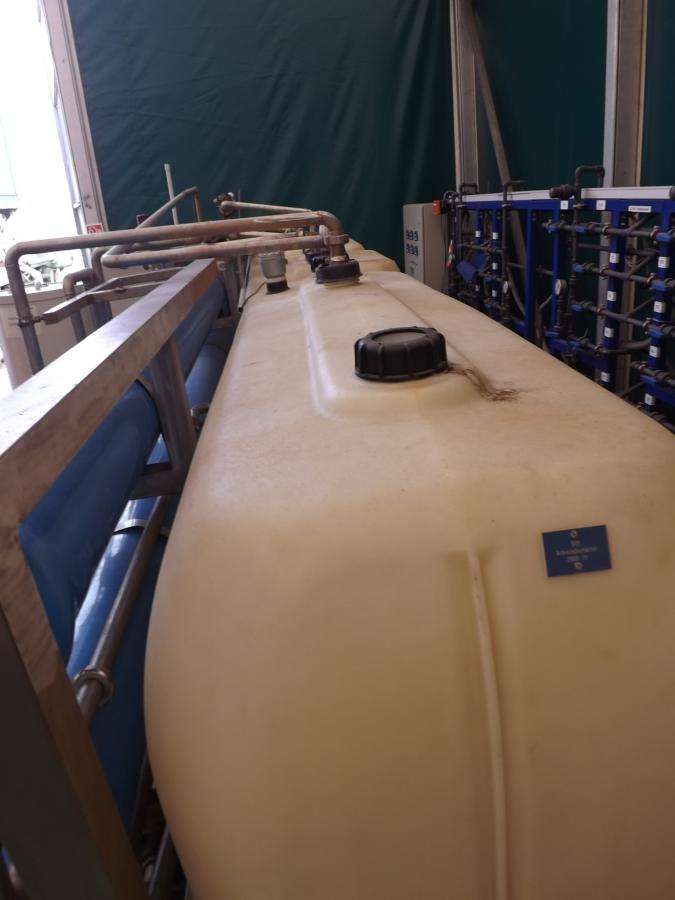

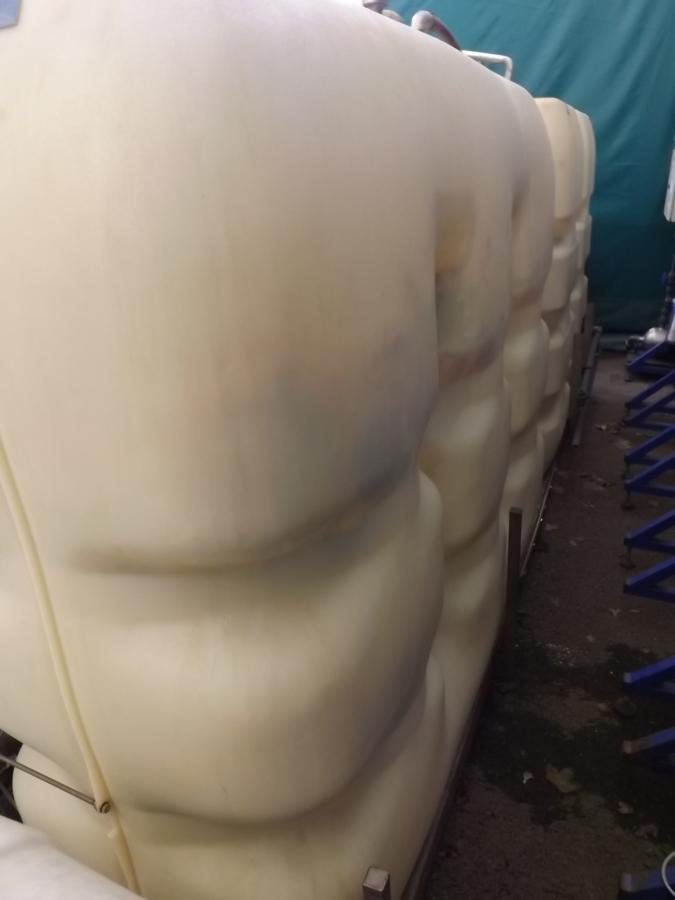

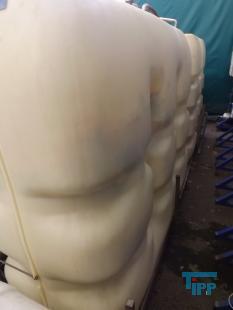

Accessories  (working tank)
Volume  2 m³
Material  PE
Accessories  (CIP-Tank)
Volume  0,8 m³
Material  PE
Accessories  (permeate tank)
Volume  1 m³
Material  PP

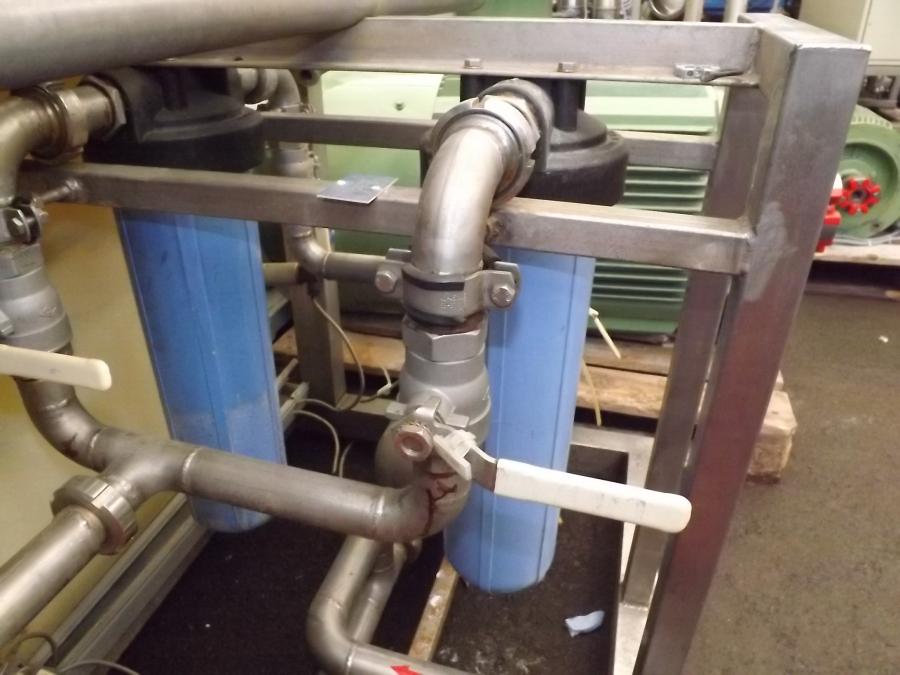

Accessories  (filter)

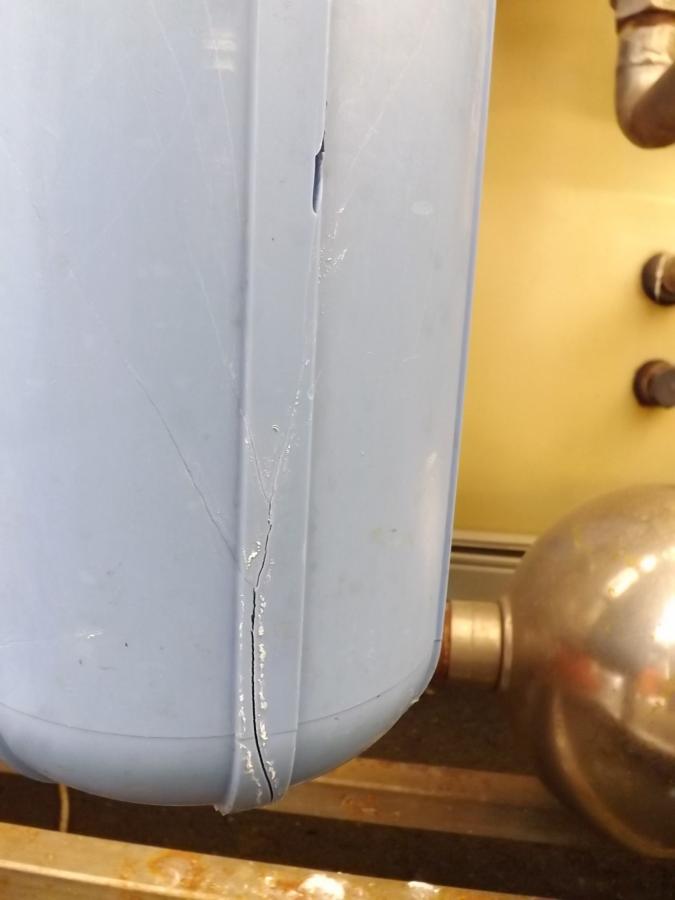

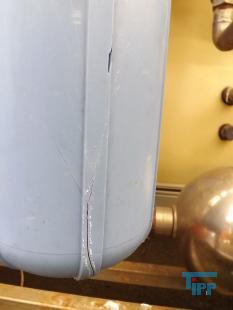

Length  20 `` (2X plastic filter housing (1 filter housing must be replaced))
Material  PP

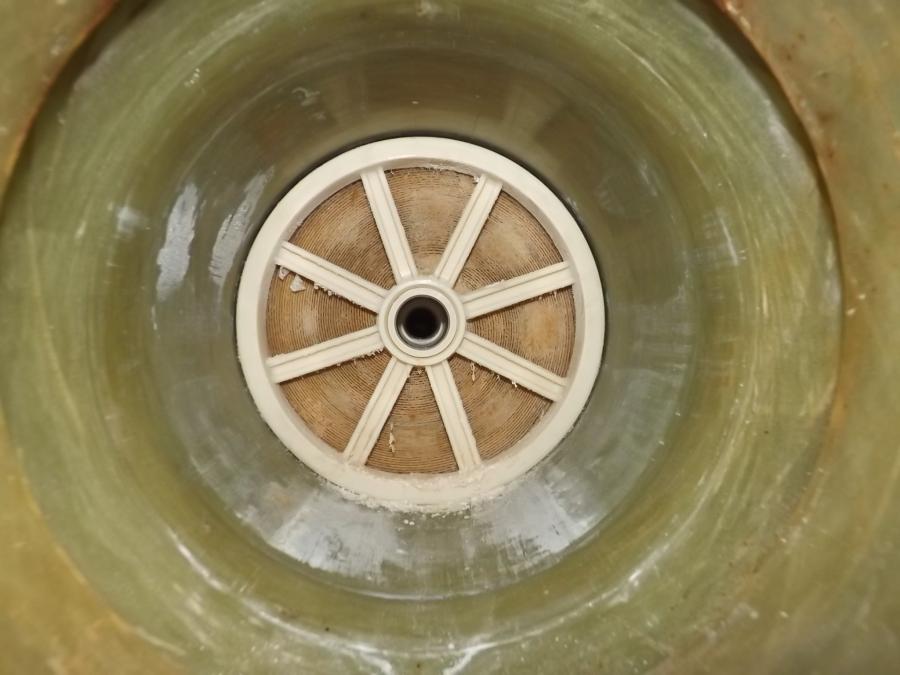

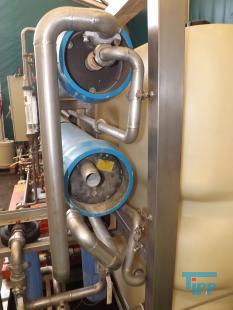

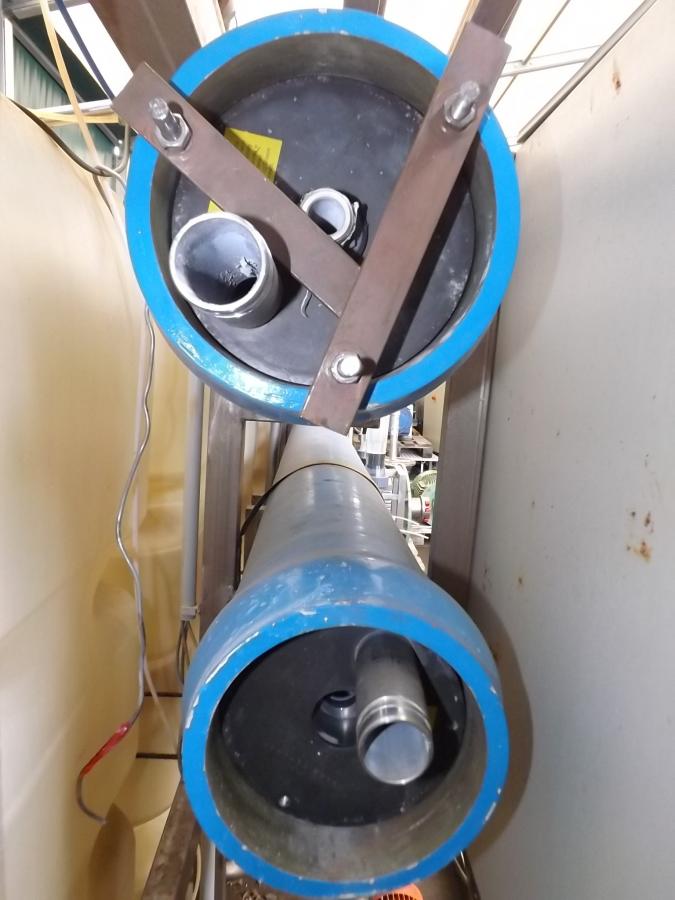

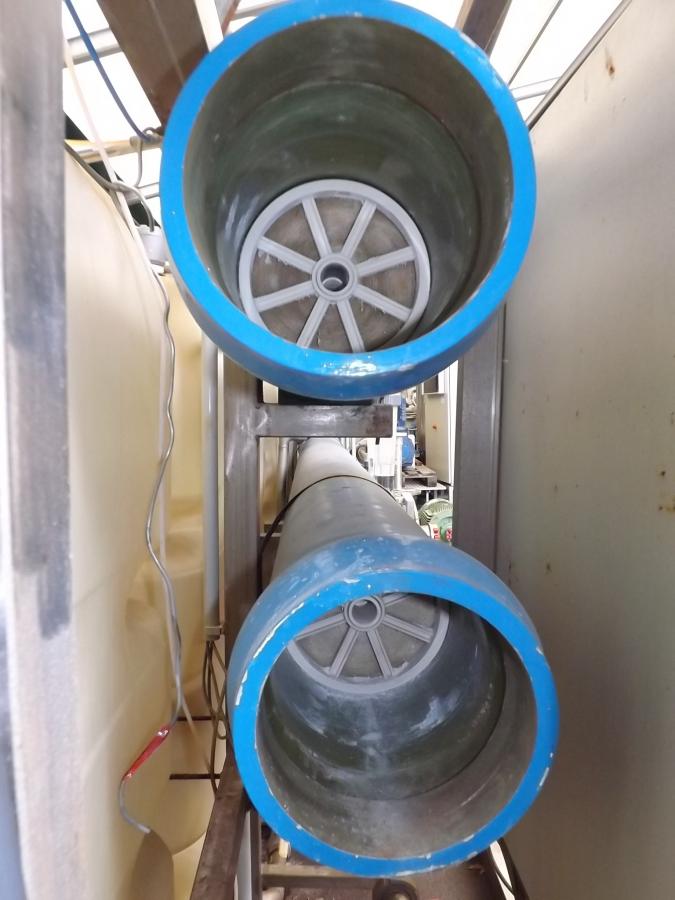

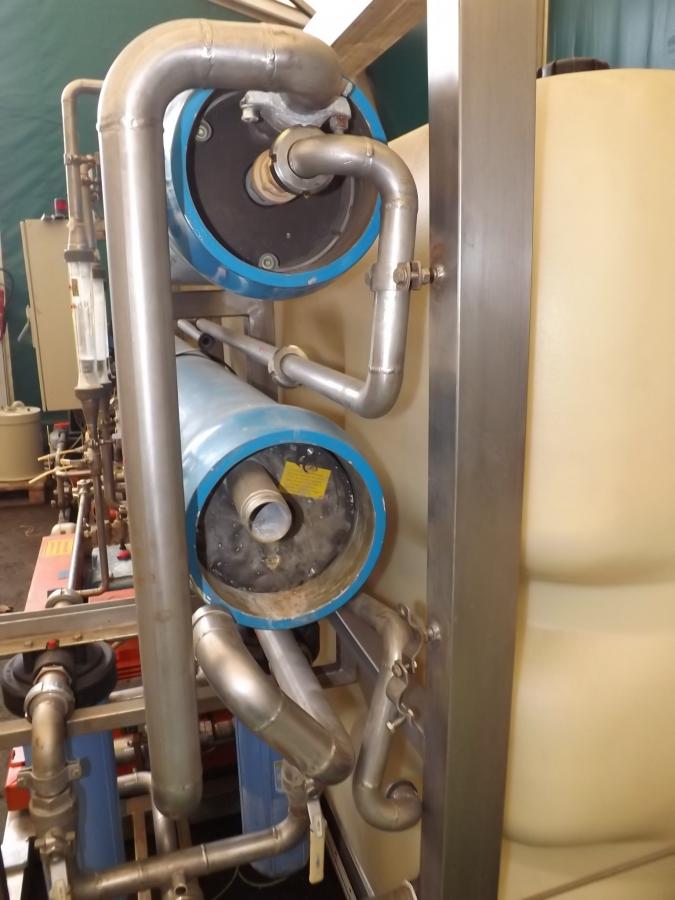

Accessories  (module)
Pressure  60 bar (operating pressure)
Material  - ()

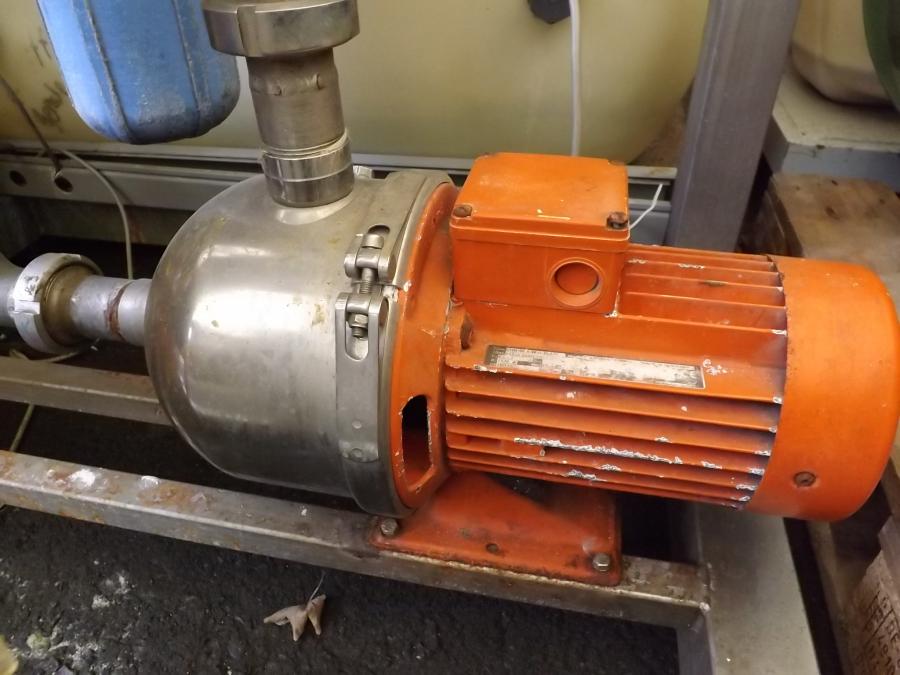

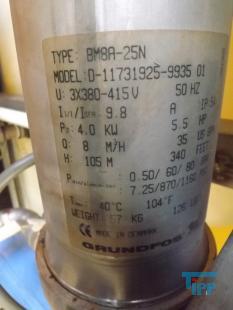

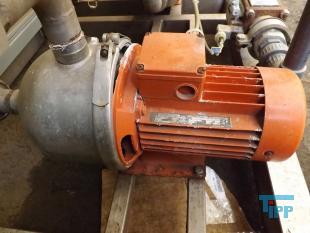

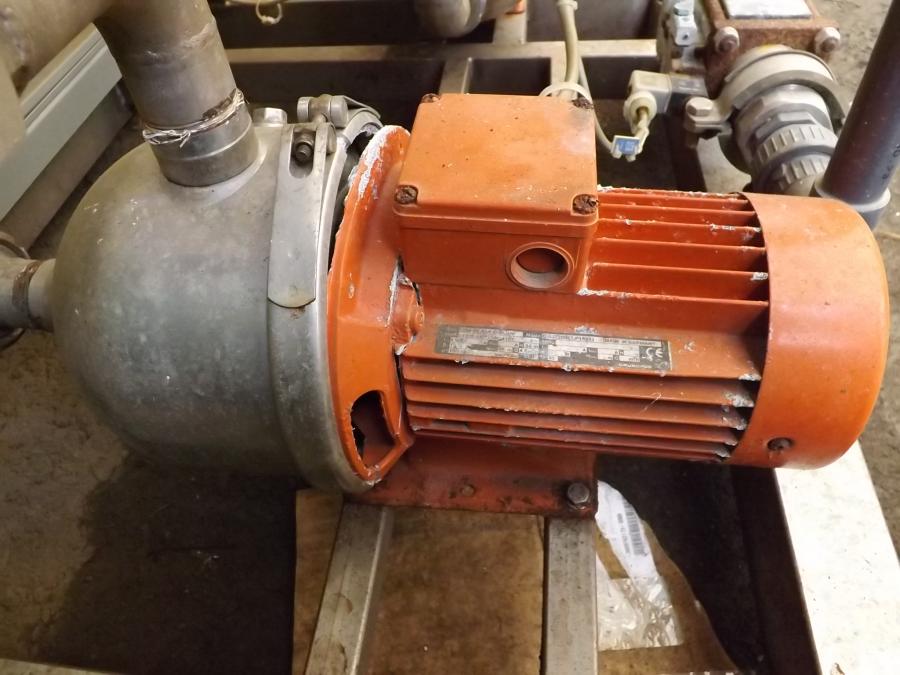

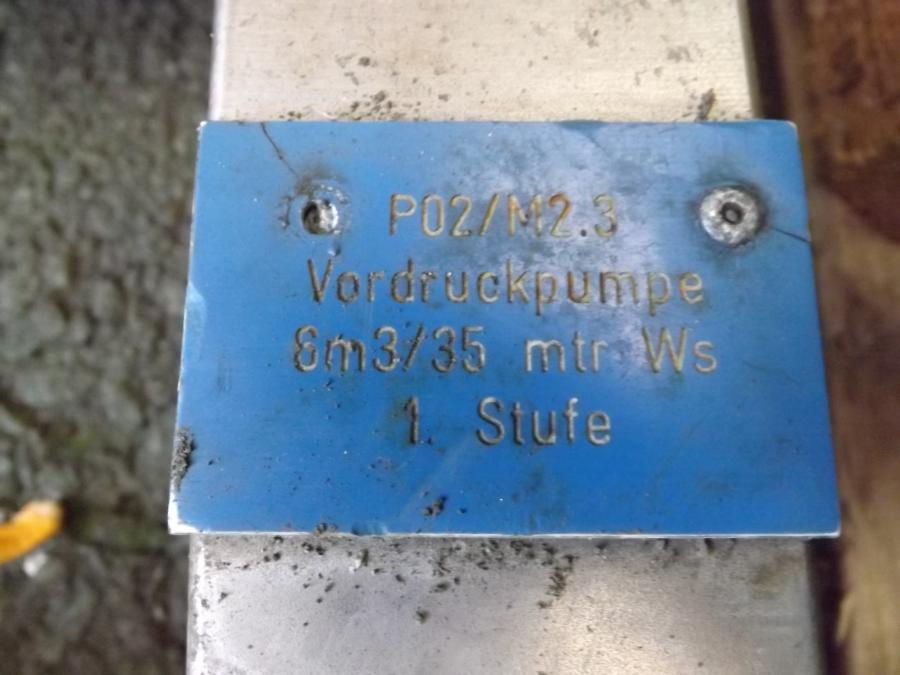

Accessories  (Grundfos pre-pressure pump (Technically OK))
Delivery rate  6 m³/h
Lifting height  35 m
Material  Edelstahl ()

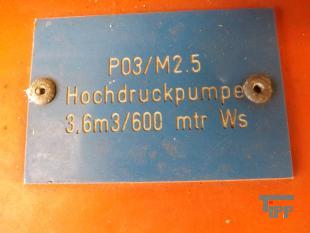

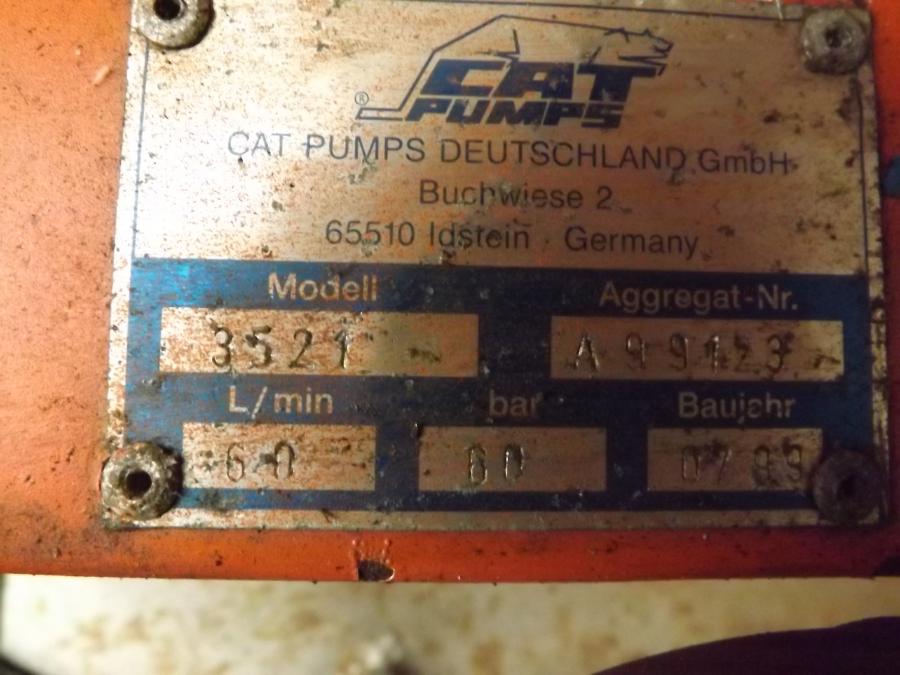

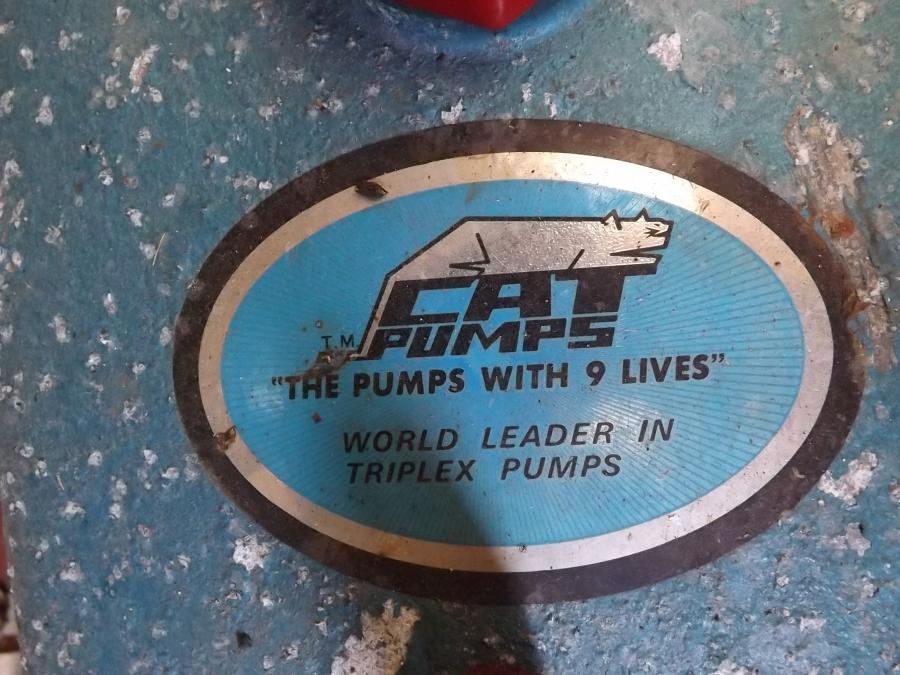

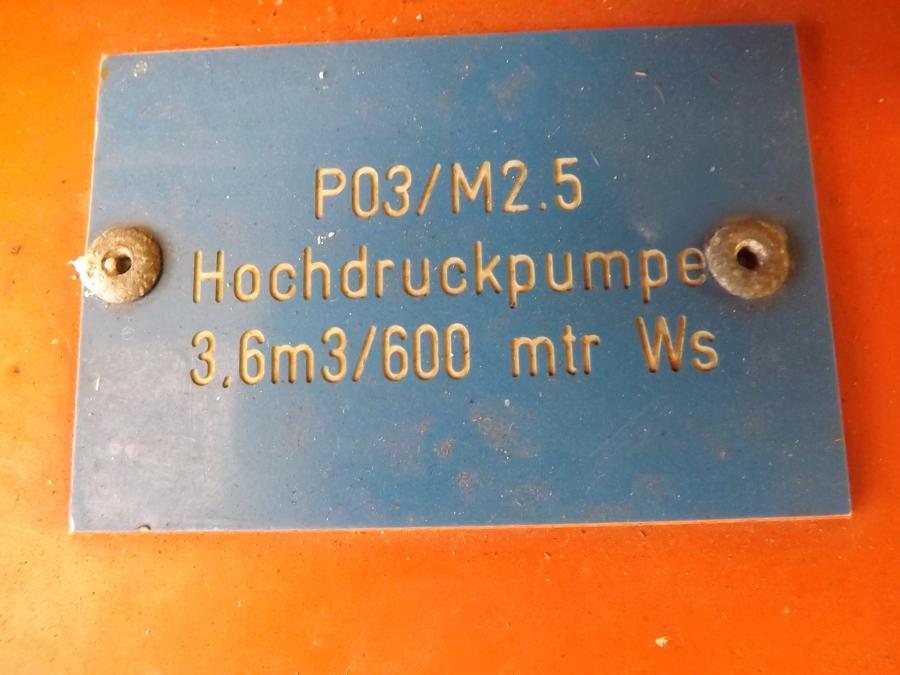

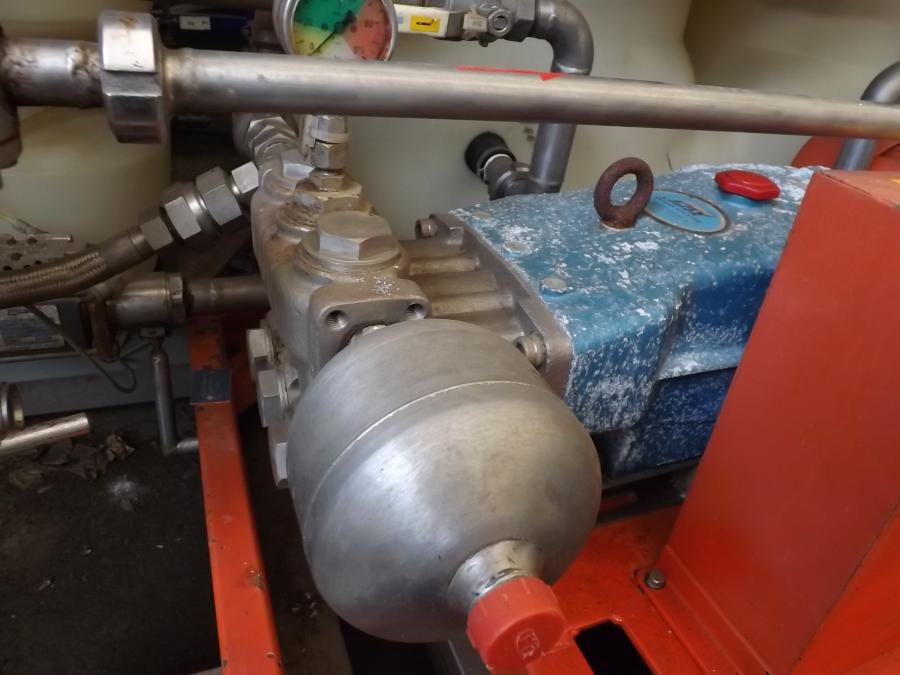

Accessories  (CAT high pressure pump (Technically OK))
Delivery rate  3,5 m³/h
Lifting height  600 m
Material  Edelstahl ()

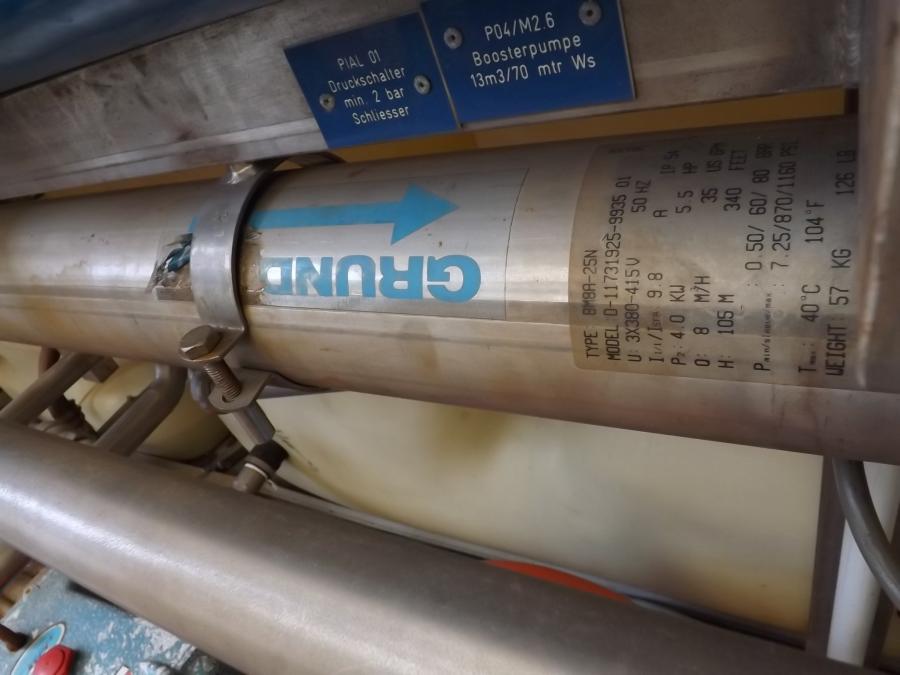

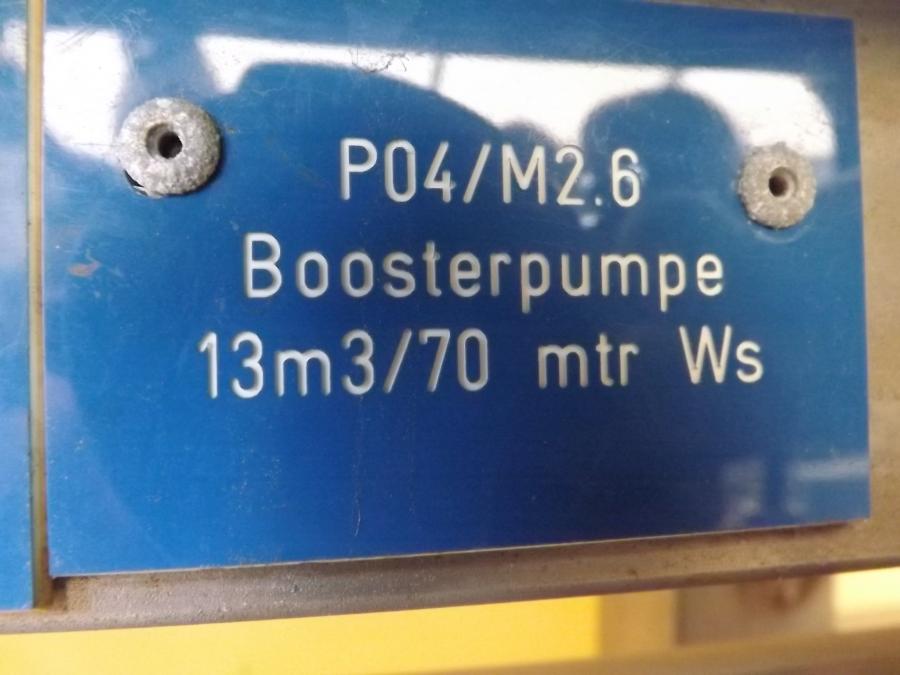

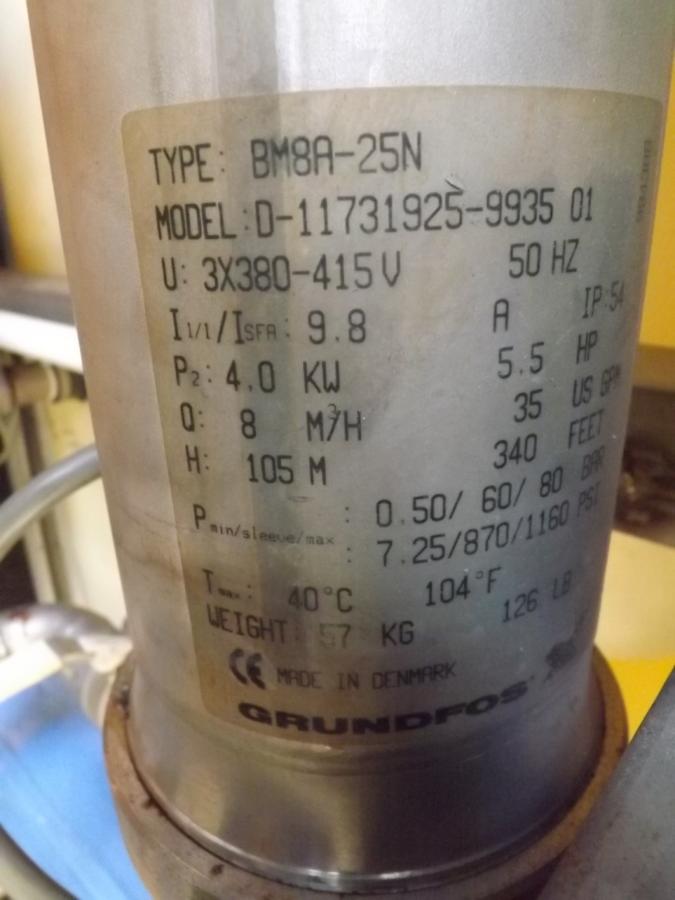

Accessories  (Grundfos Booster Pump (Technically OK))
Delivery rate  13 m³/h
Lifting height  70 m
Material  Edelstahl ()

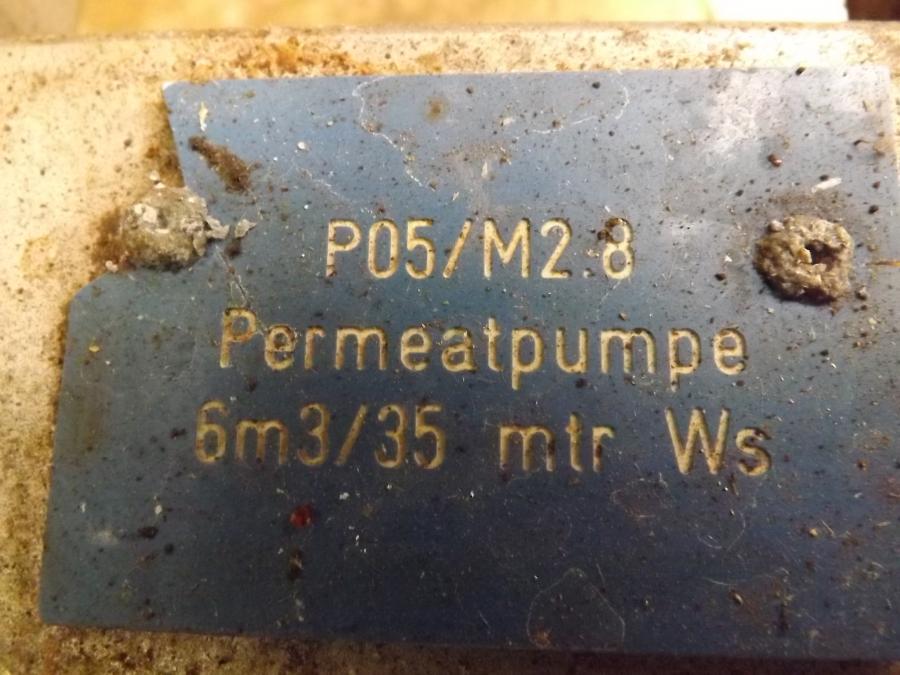

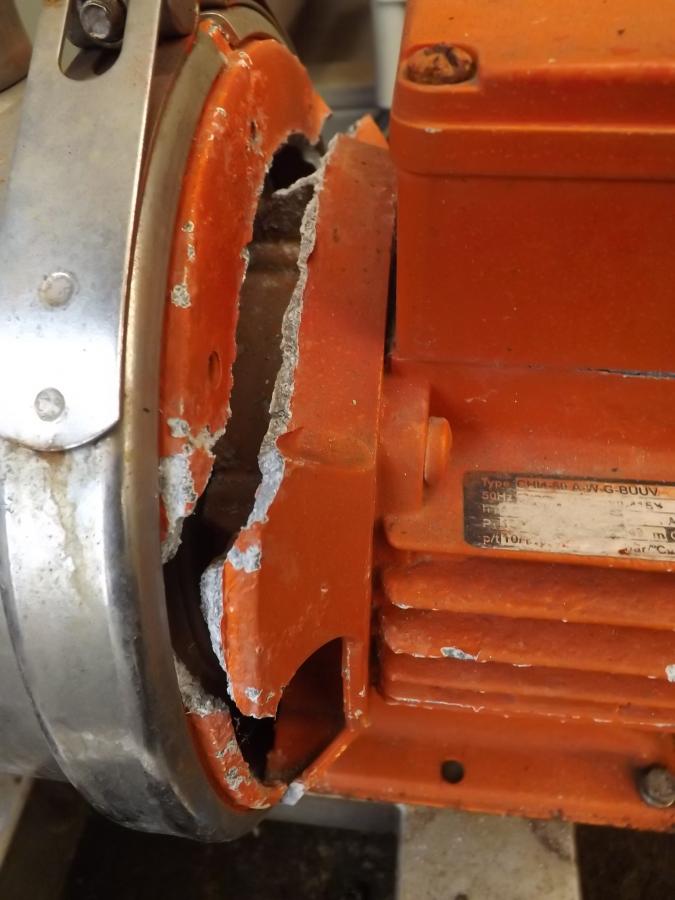

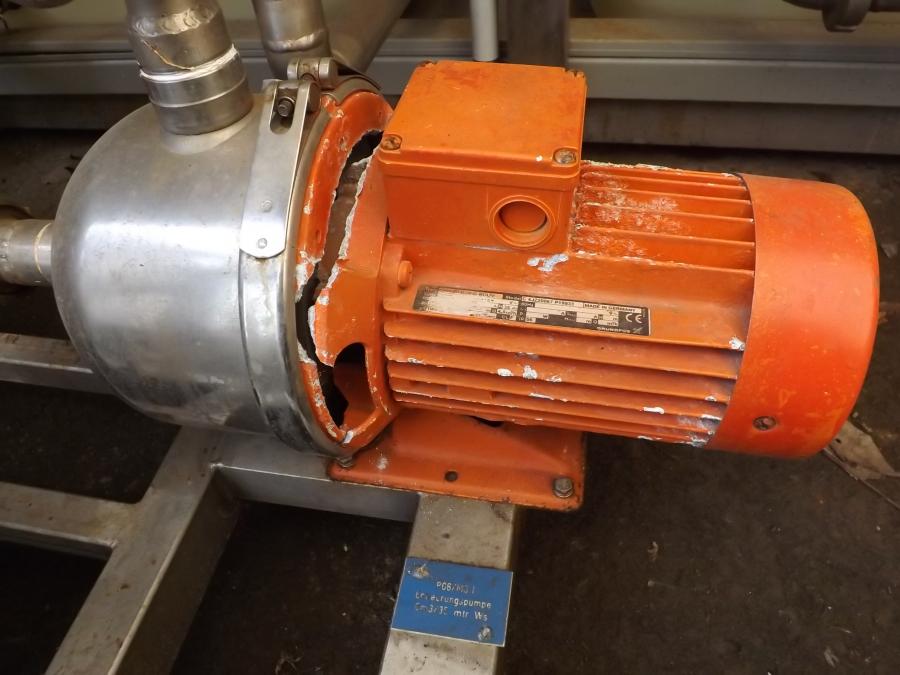

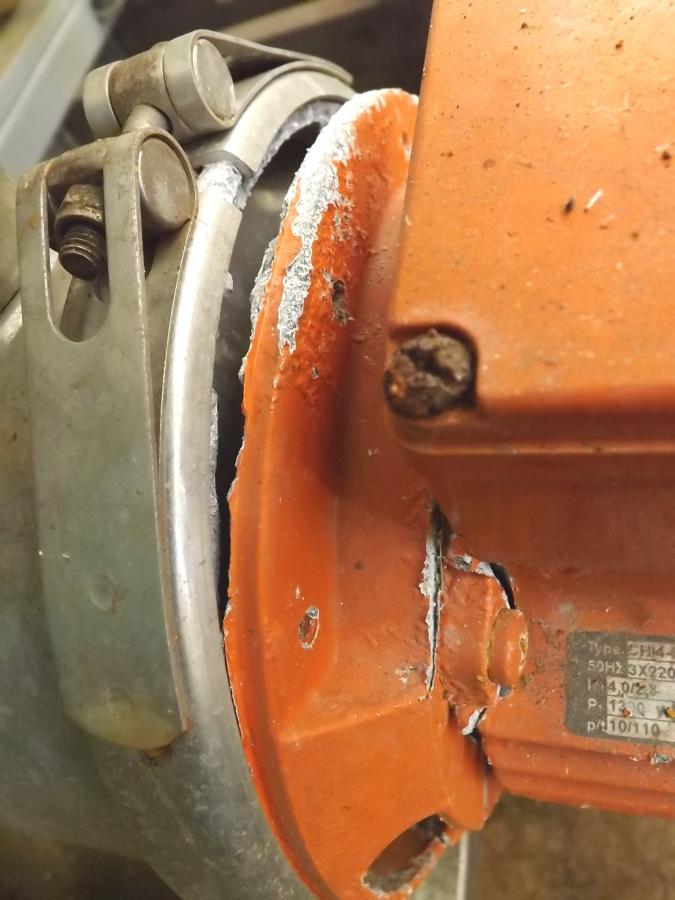

Accessories  (Grundfos permeate pump (pump head separated from housing))
Delivery rate  6 m³/h
Lifting height  35 m
Material  Edelstahl ()

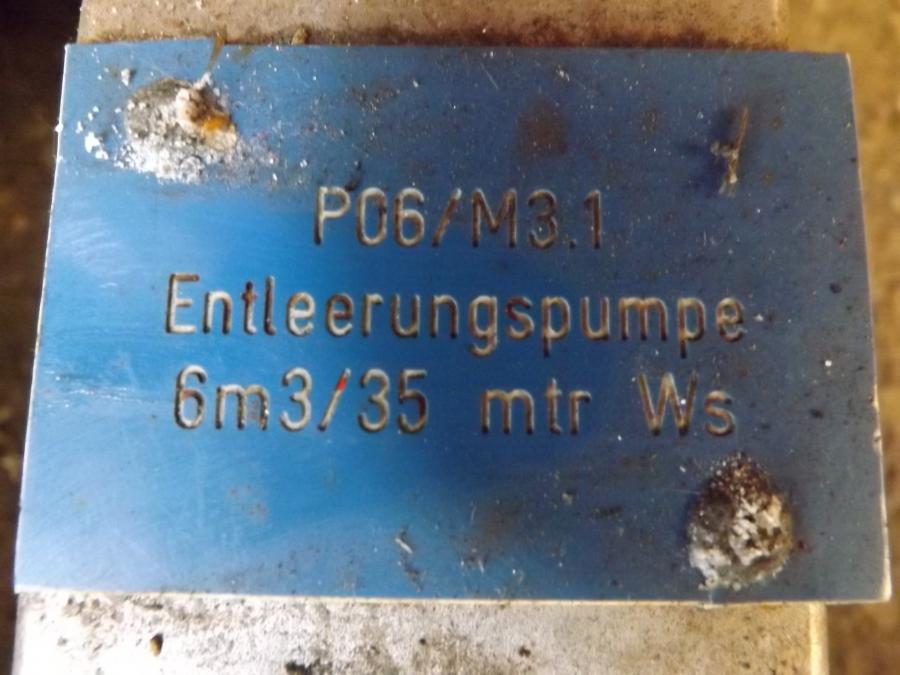

Accessories  (Grundfos drainage pump (pump head separated from the housing))
Delivery rate  1,6 m³/h
Lifting height  13 m
Material  Edelstahl ()

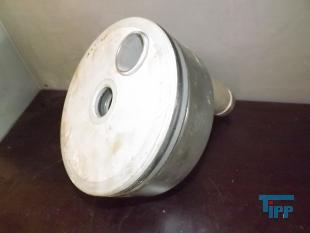

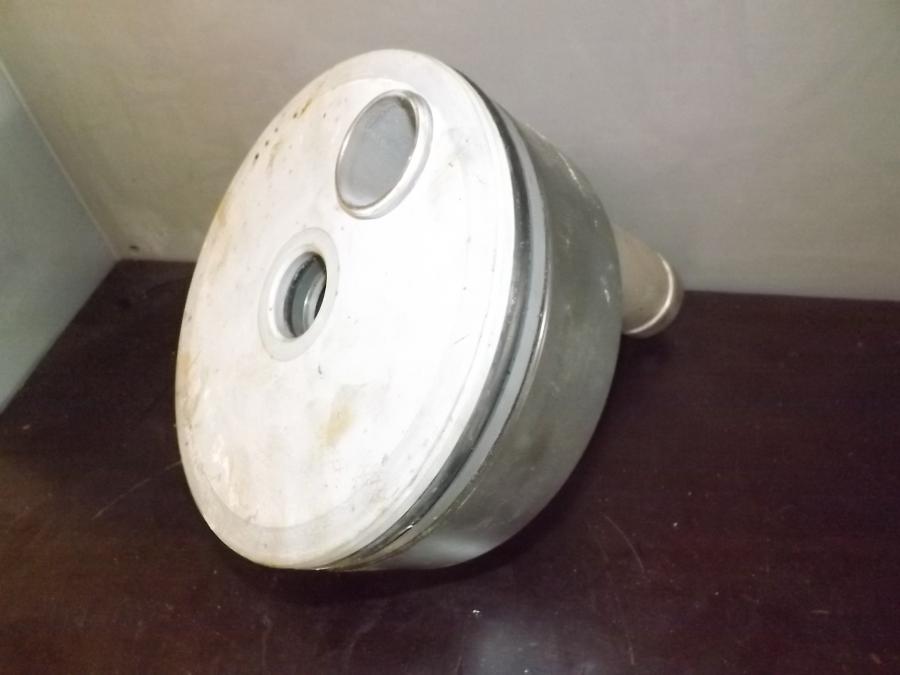

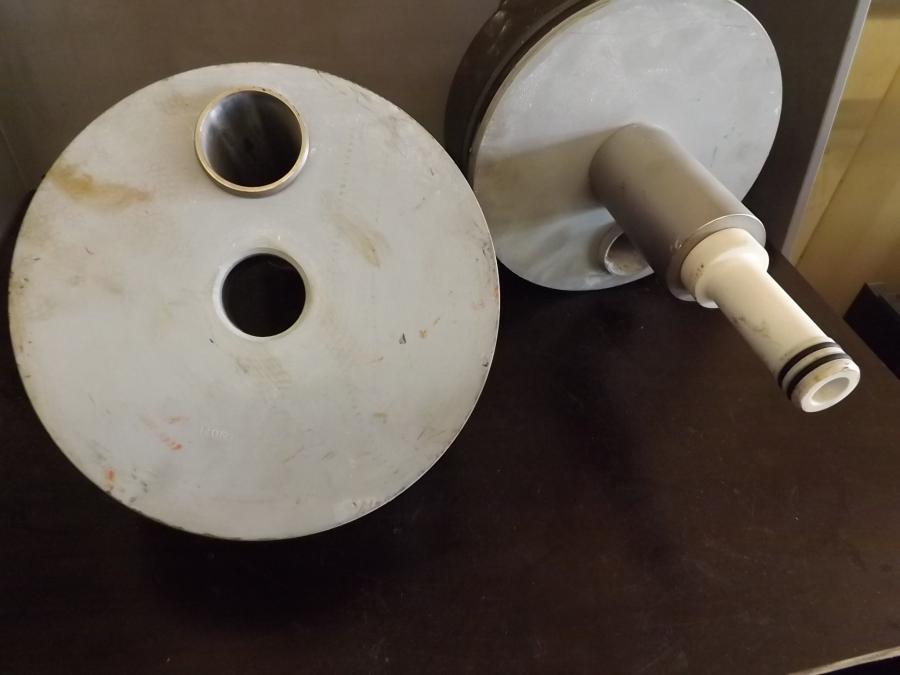

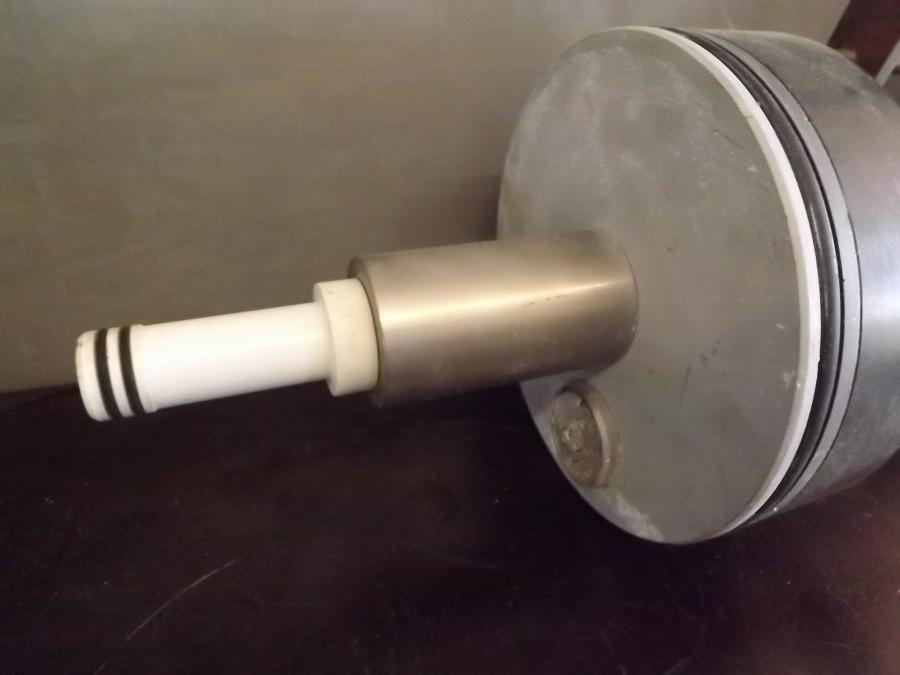

Further information  - (Intermediate piece / intermediate connector not complete (connection end-cap membrane))
