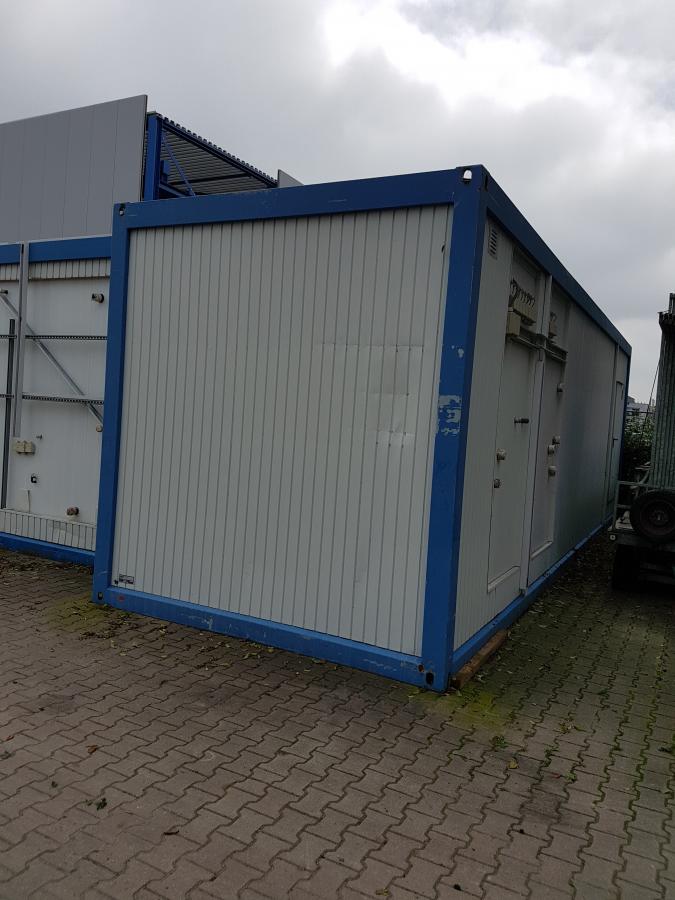

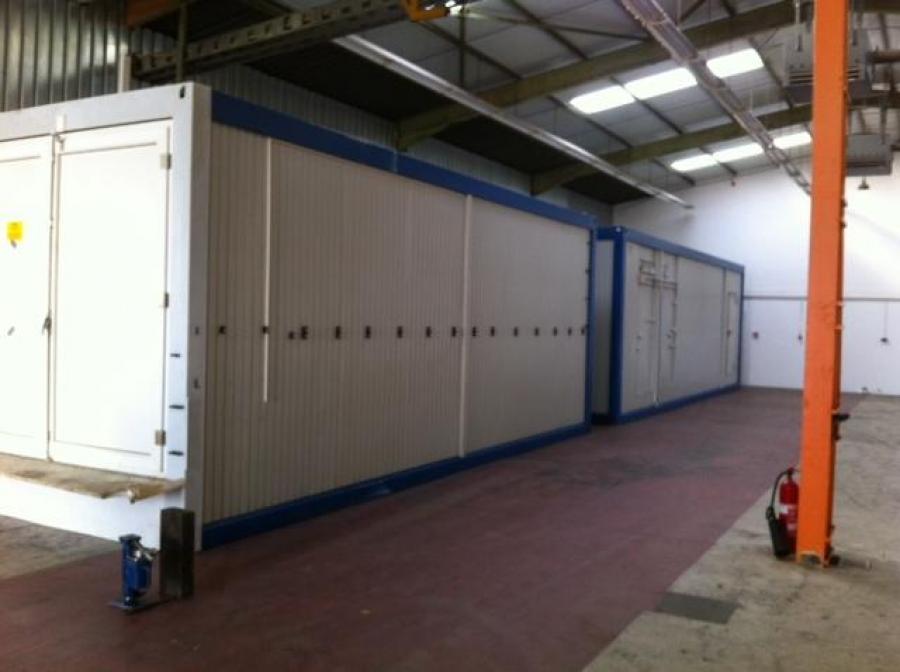

POLIGRAT automatic pickling plant in two containers

details to article: 28725

description:
The pickling, passivation and rinsing of the stainless steel parts in the container takes place automatically.
In addition, the following work processes are executed programmatically, which are displayed with the LED lamps.
- Empty Rotainer
- pickling
- Rinse with rinse water stain
- Passivate
- Rinse with rinse water passivation
- Program END

The pickling container consists of:

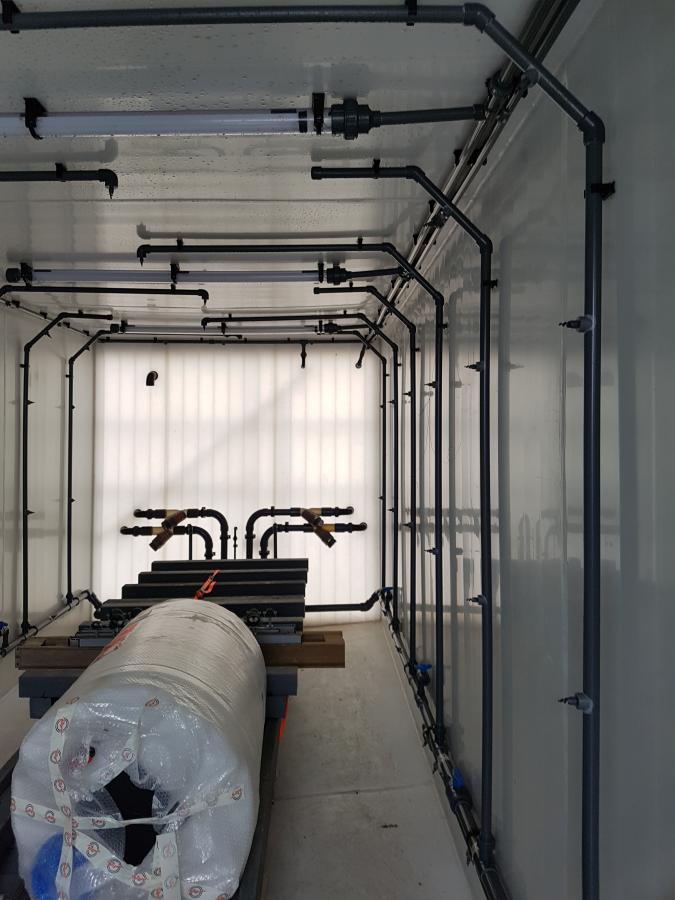

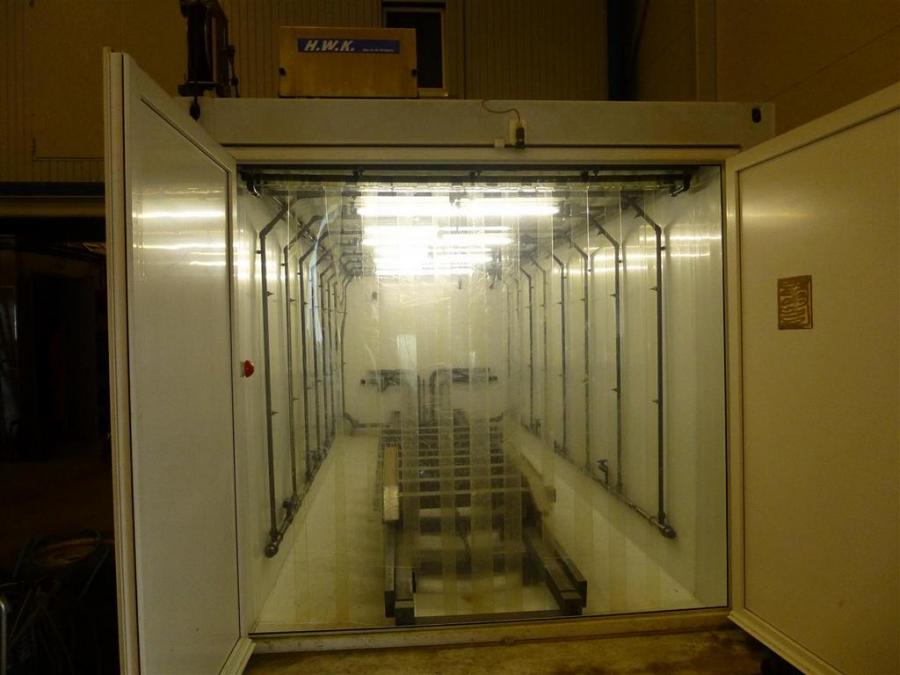

- System container as pickling container, acid-resistant clad
- Dimensions (LxWxH) 8000 x 2980 x 3100mm

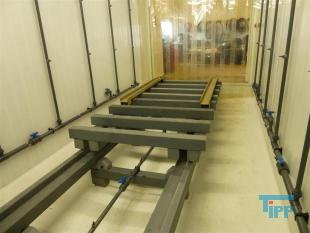

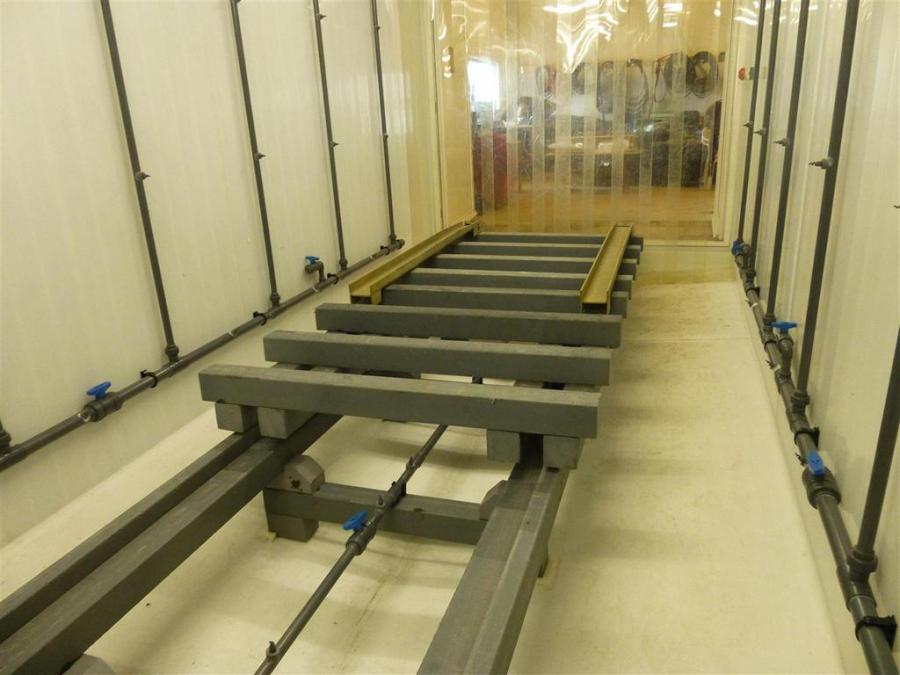

- Rail system 7000mm inside, with extension to the outside

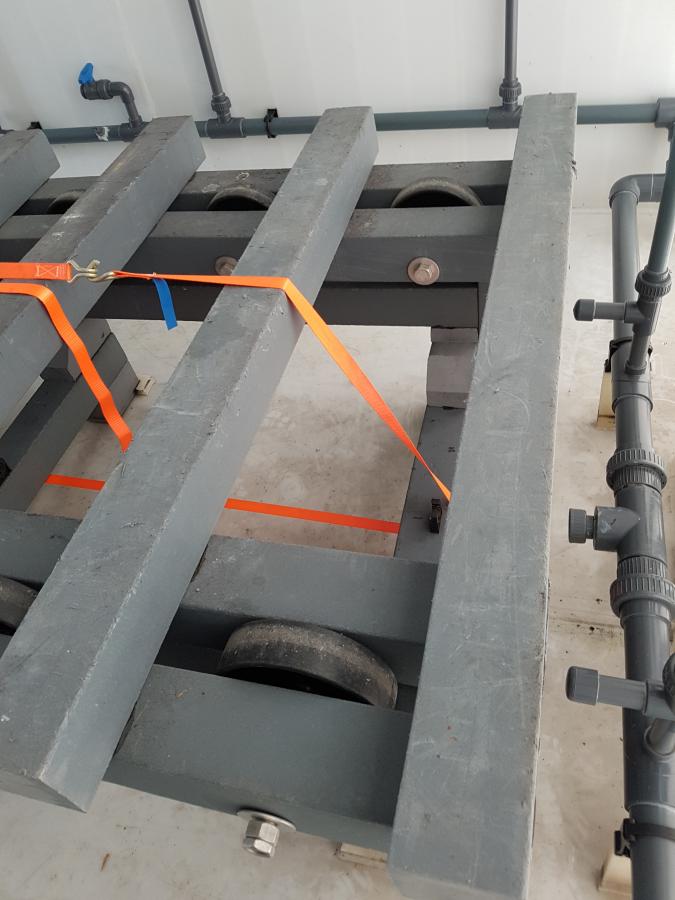

- 1 carriage

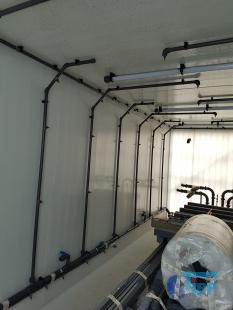

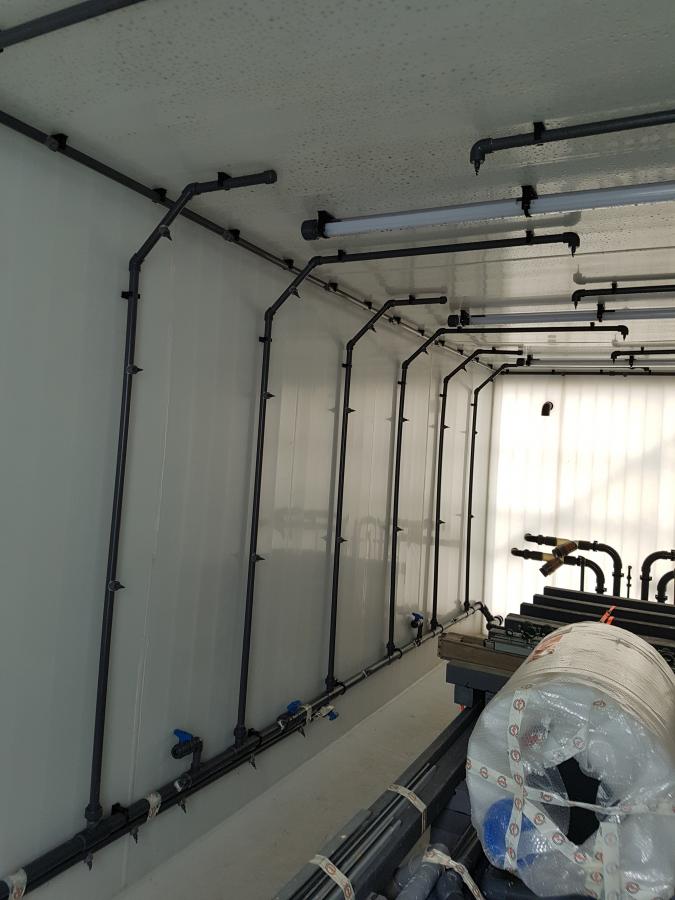

- Mist spray nozzles, mounted on a frame

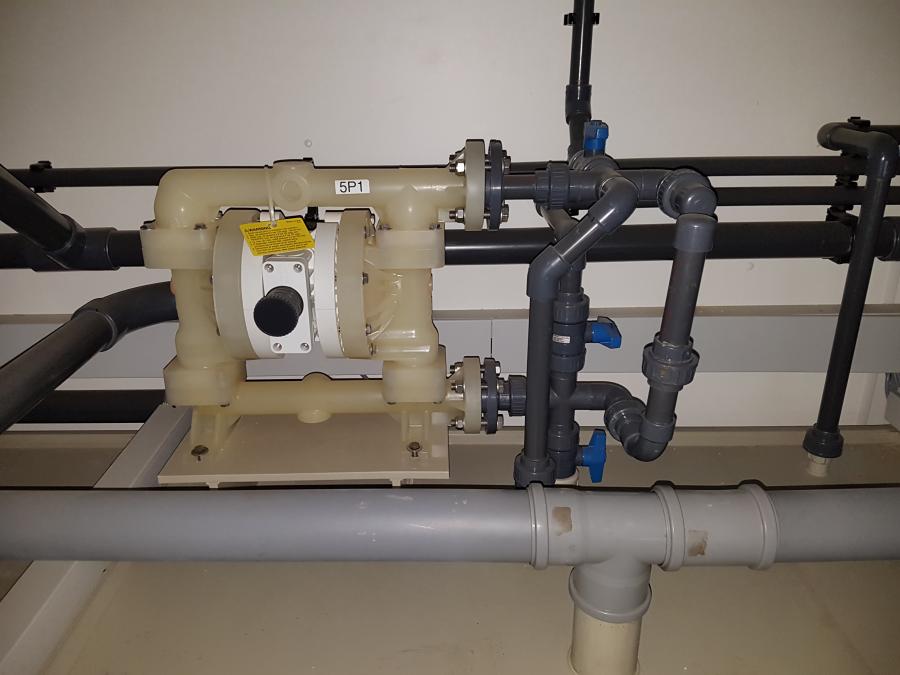

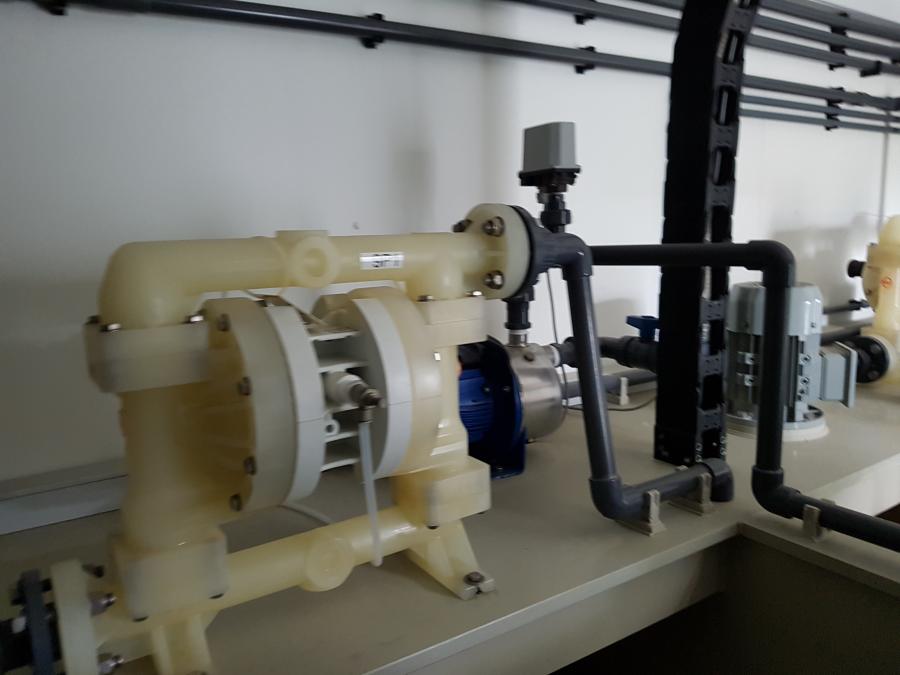

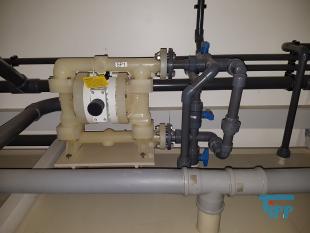

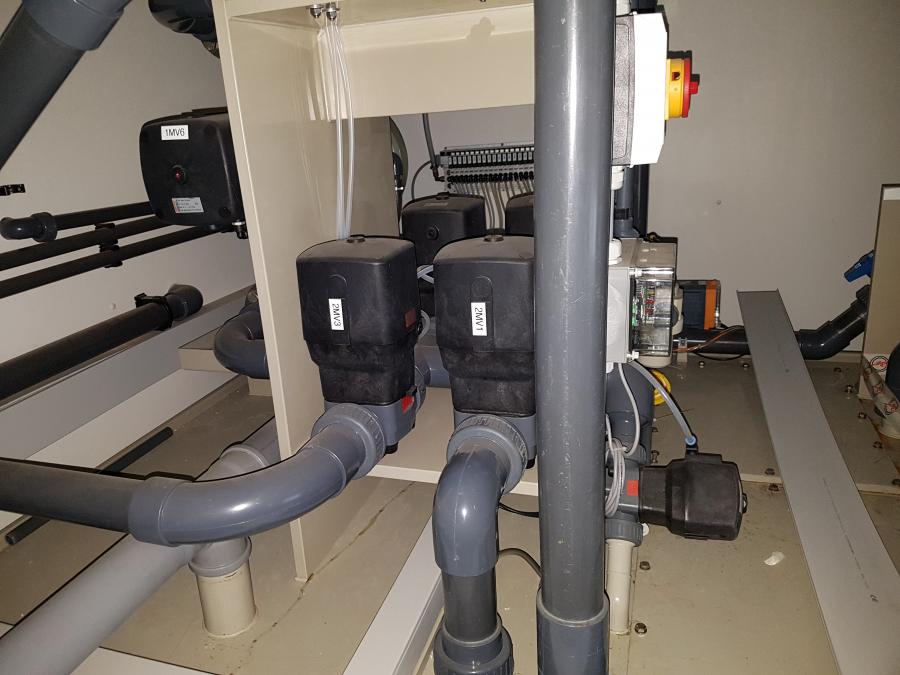

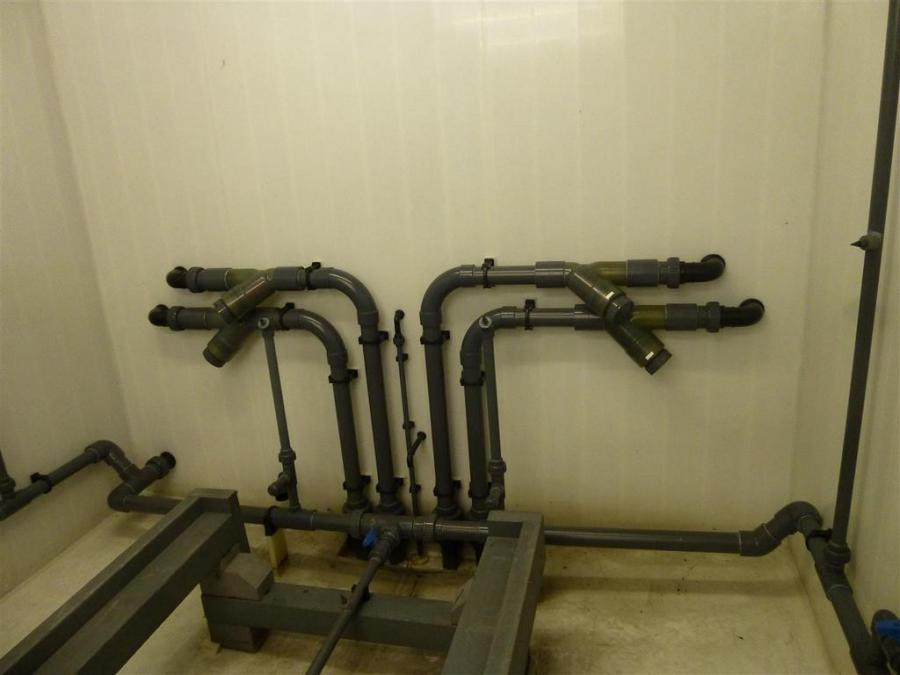

- Supply and return lines and valves, process pumps
Flushing and fresh water supply line

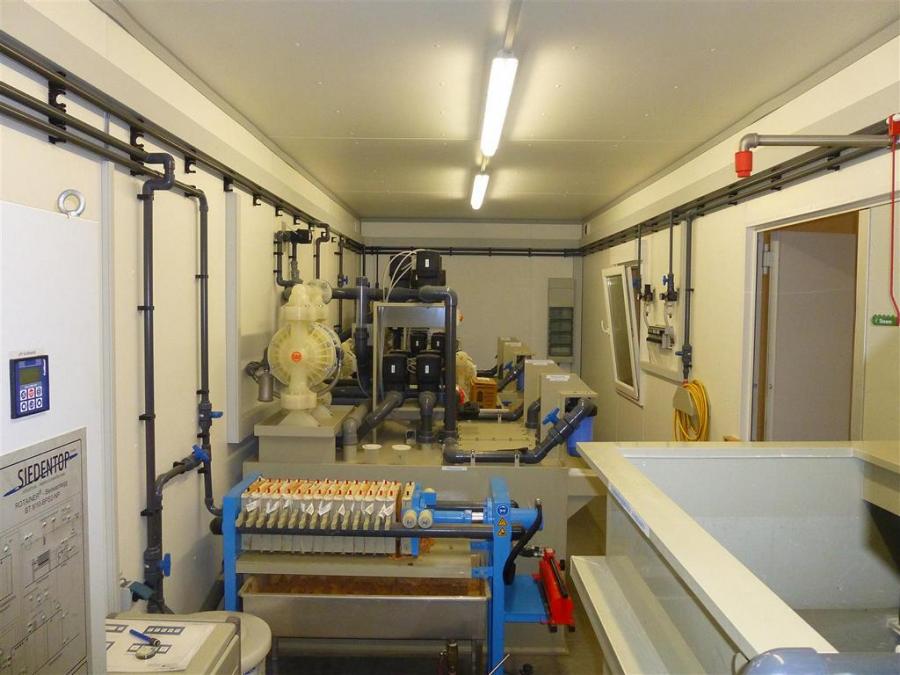

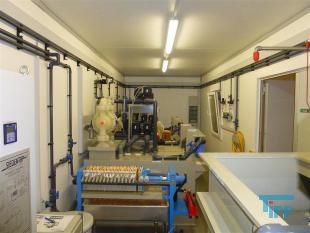

Technical containers:

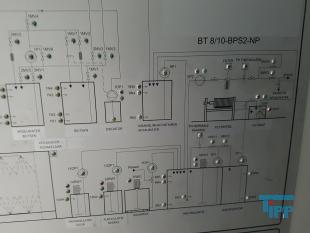

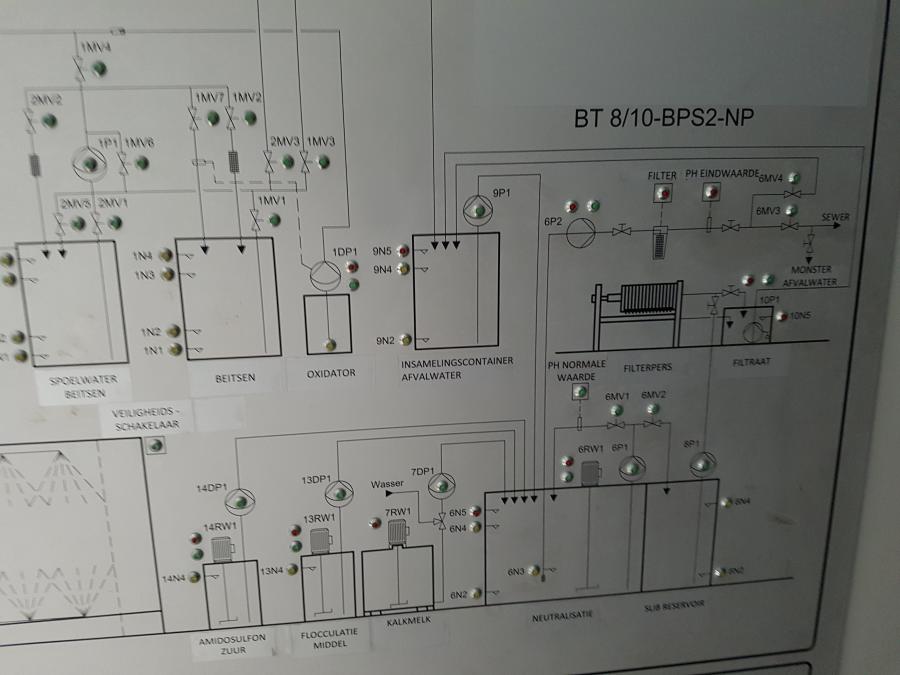

- Control and monitoring of the entire spray pickling plant
- consisting of pickling technology, wastewater neutralization plant and safety device

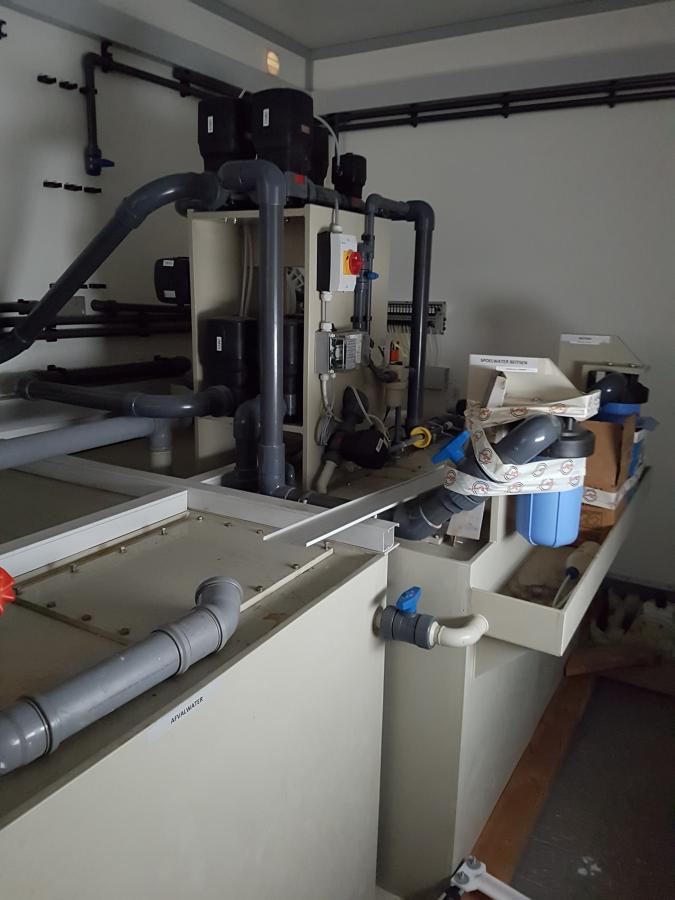

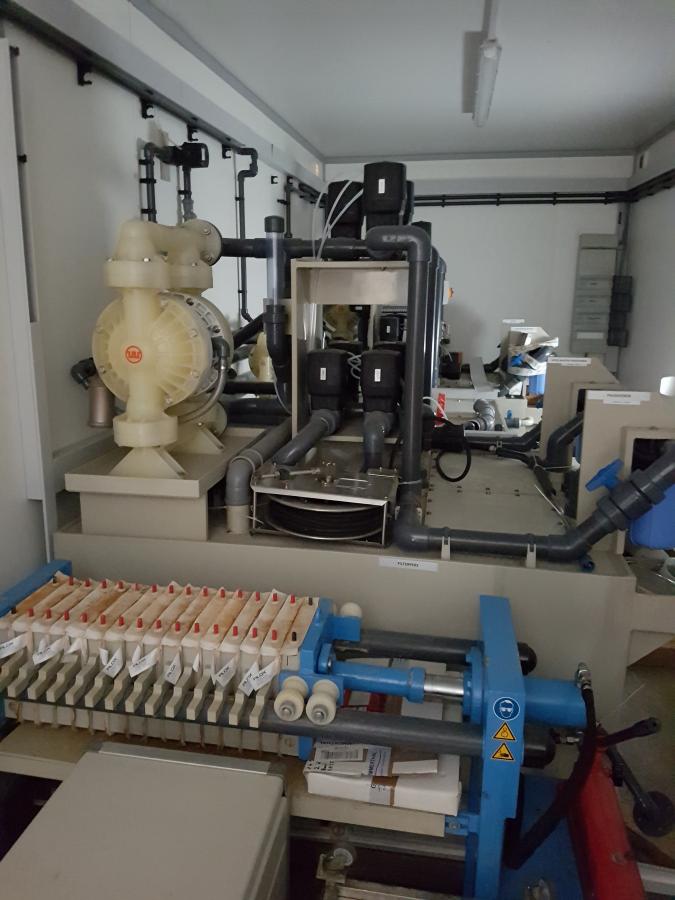

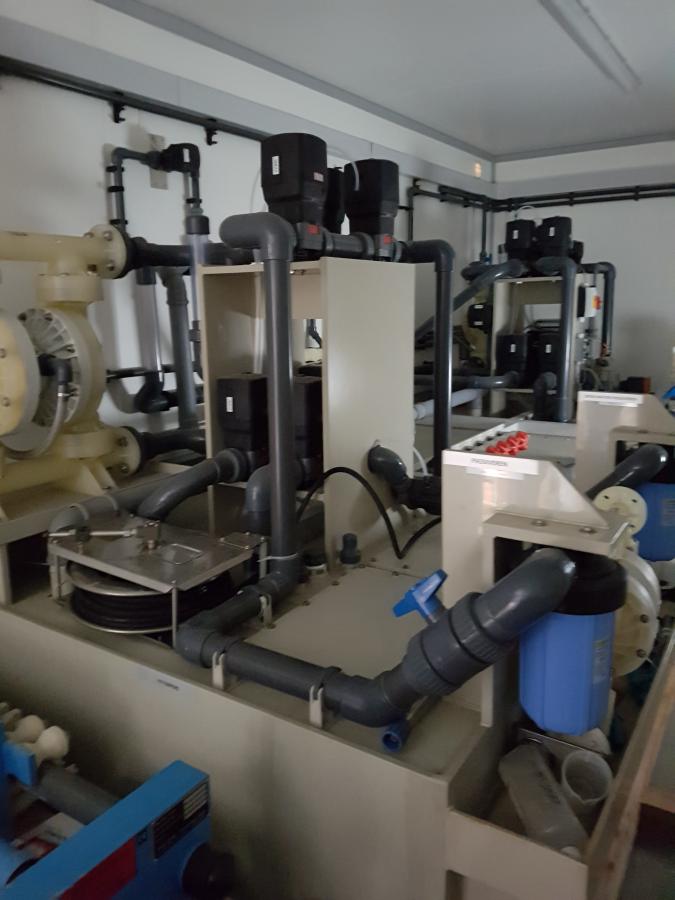

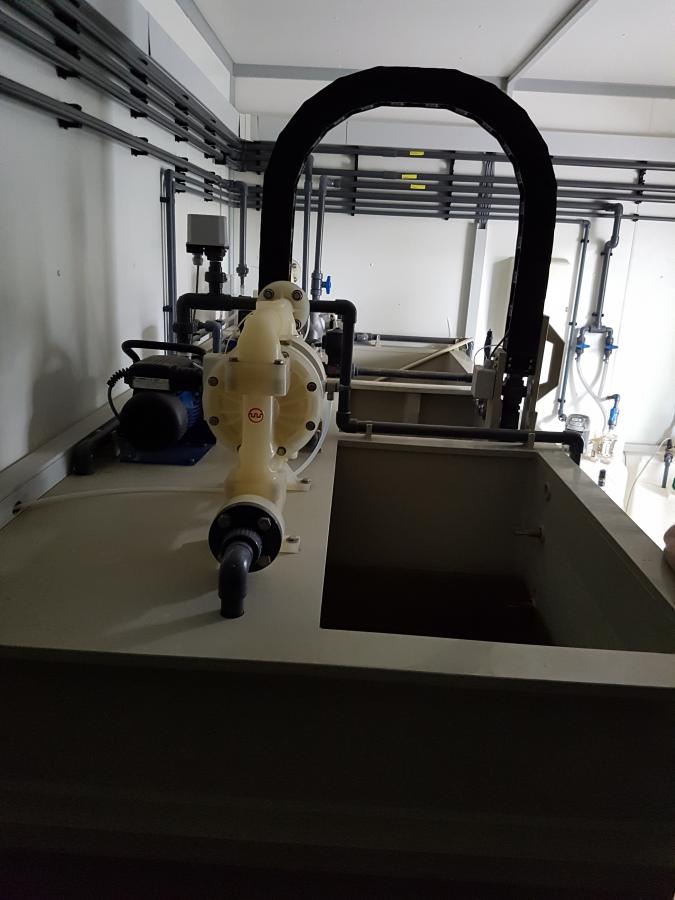

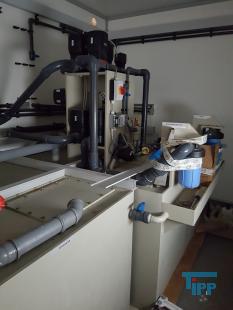

Pickling technique consisting of:

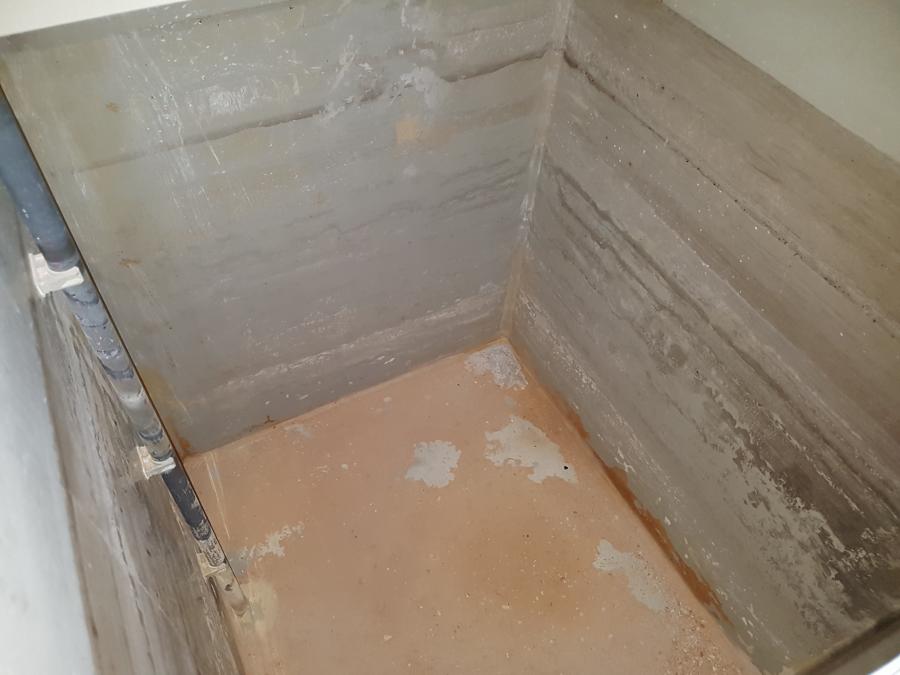

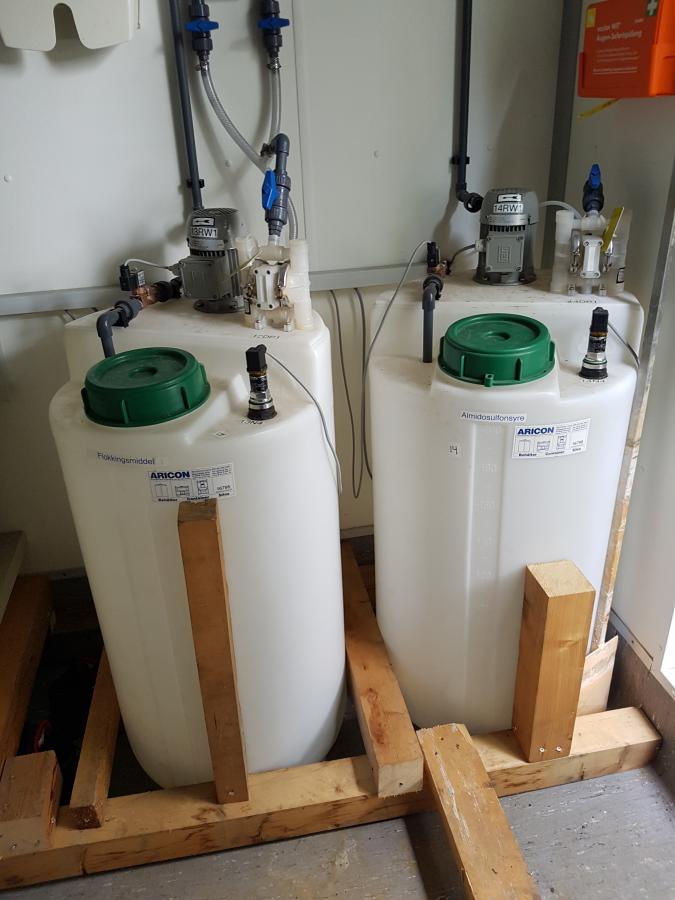

- each 1 storage tank for 1m³ pickling and 1m³ passivation
- 1 storage tank each for rinsing water after pickling and passivating (1m³)

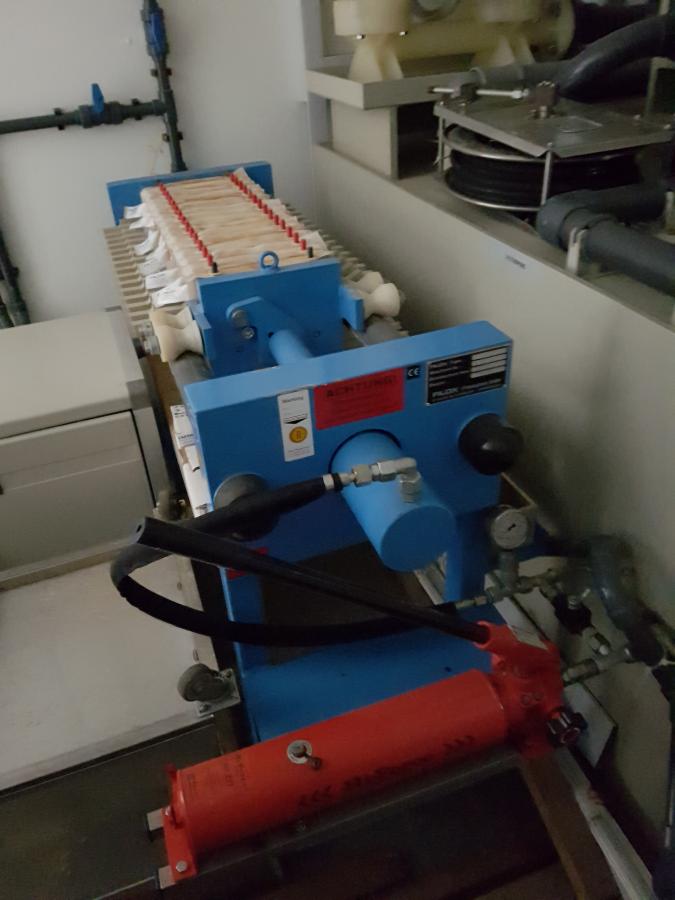

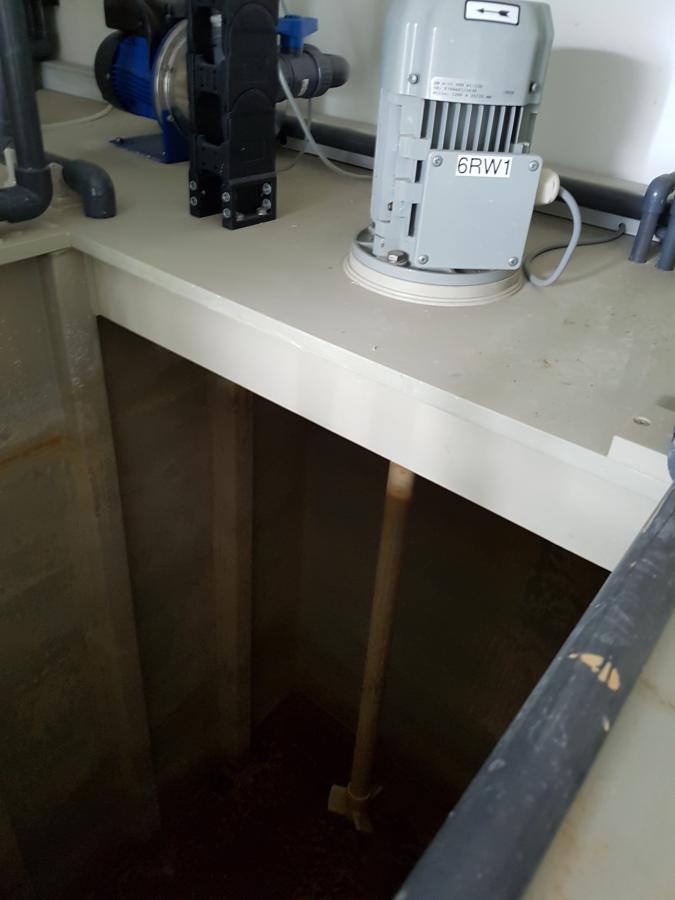

- Wastewater neutralization including chamber filter press
and peripherals

Producer:Poligrat
Typ:BT 8/10
Year of manufacture:-
Pieces:1
