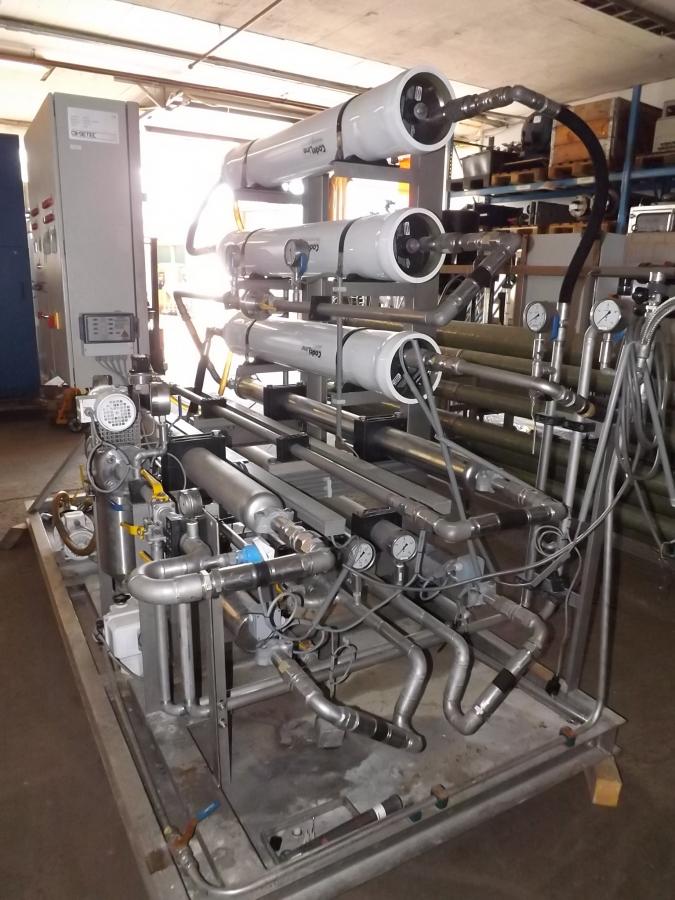

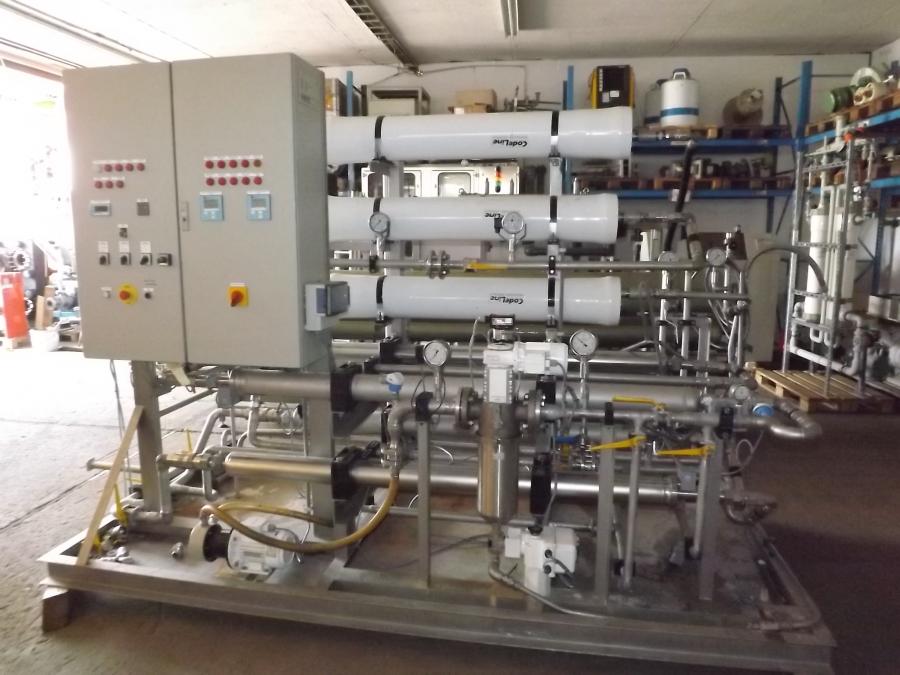

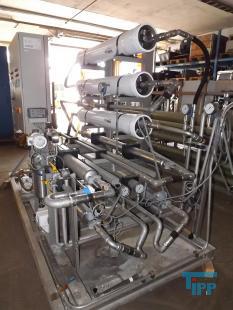

2-stage high pressure reverse osmosis plant

details to article: 28747

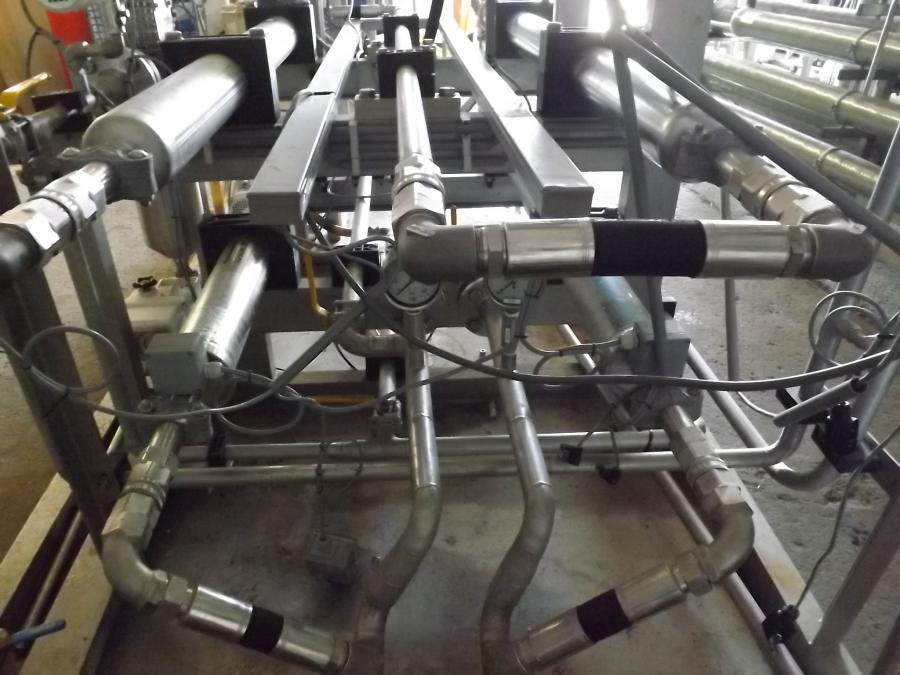

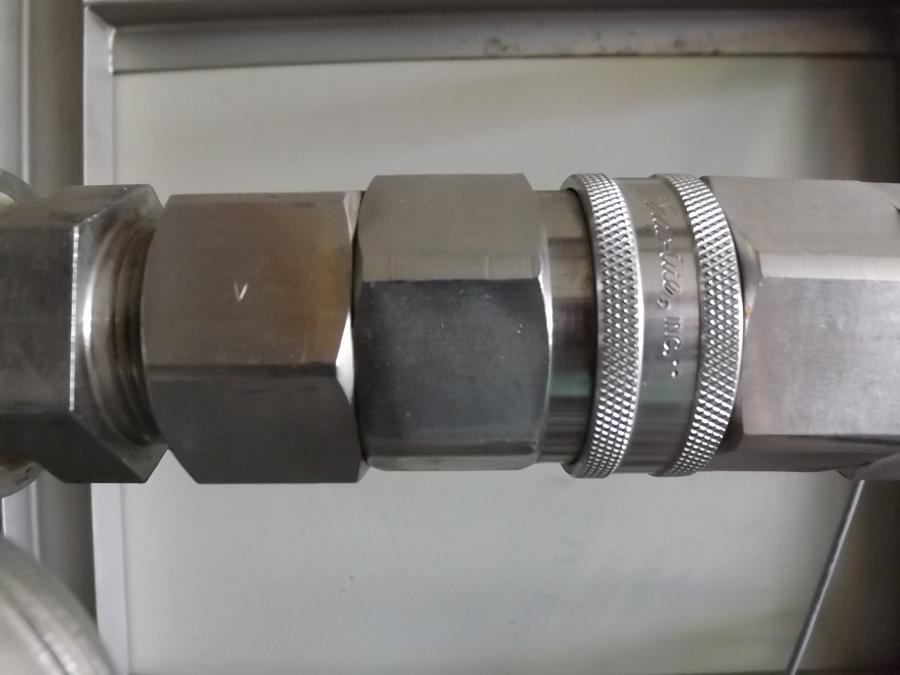

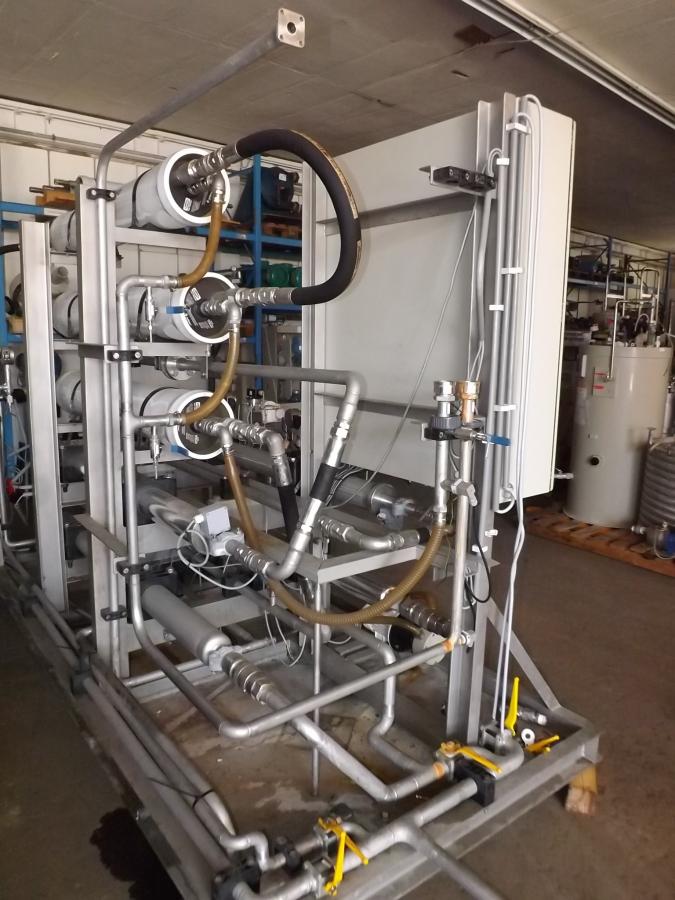

description: 2-way reverse osmosis system completely cased in stainless steel. All pressure pipes and inline pumps are equipped with quick disconnect couplings so that a quick change of the individual components can be made at any time.

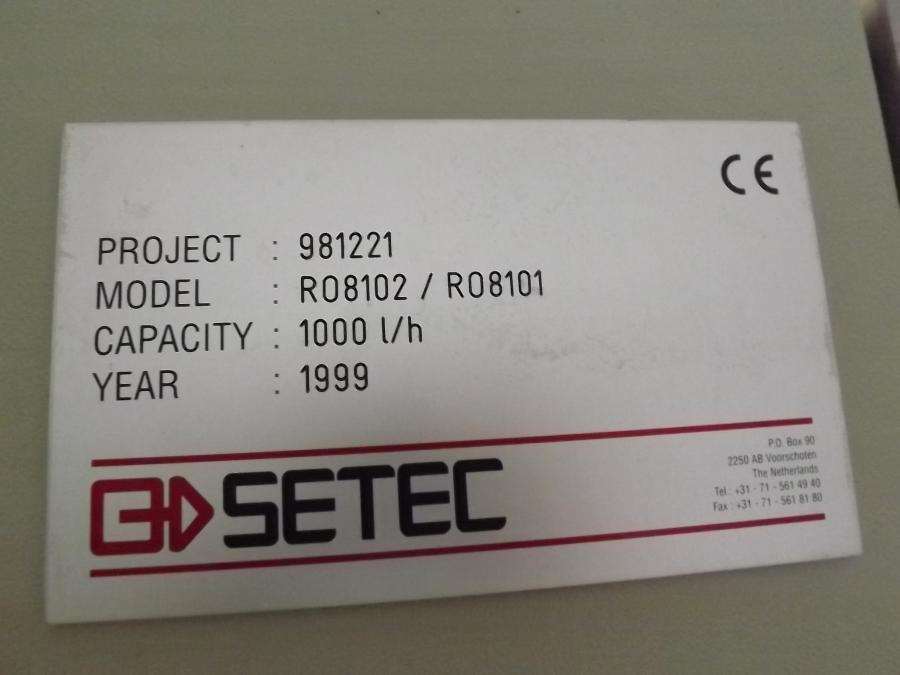

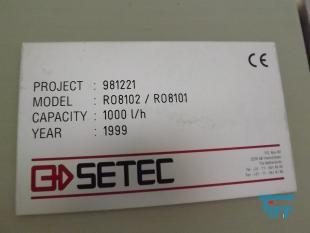

Producer:Setec
Typ:nur 968 Betriebsstunden
Year of manufacture:1999
Pieces:1



technical data

Hours of operation  968 h
Power  Straße 1 / Straße 2
1.37 / 1.30 m³/h (feedwater)
1.30 / 1.00 m³/h (permeate)
0.07 / 0.30 m³/h (concentrate)

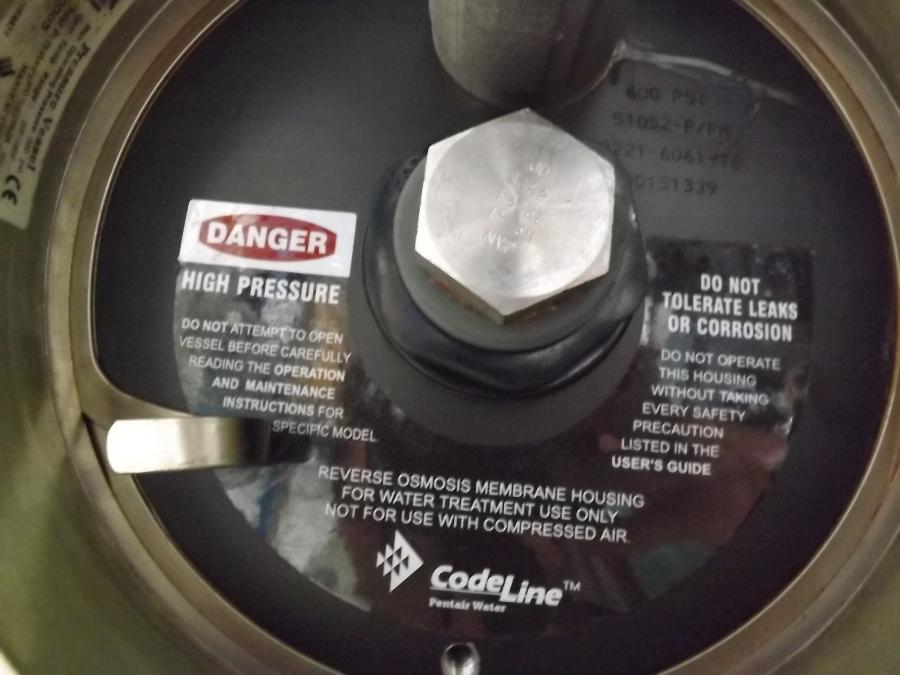

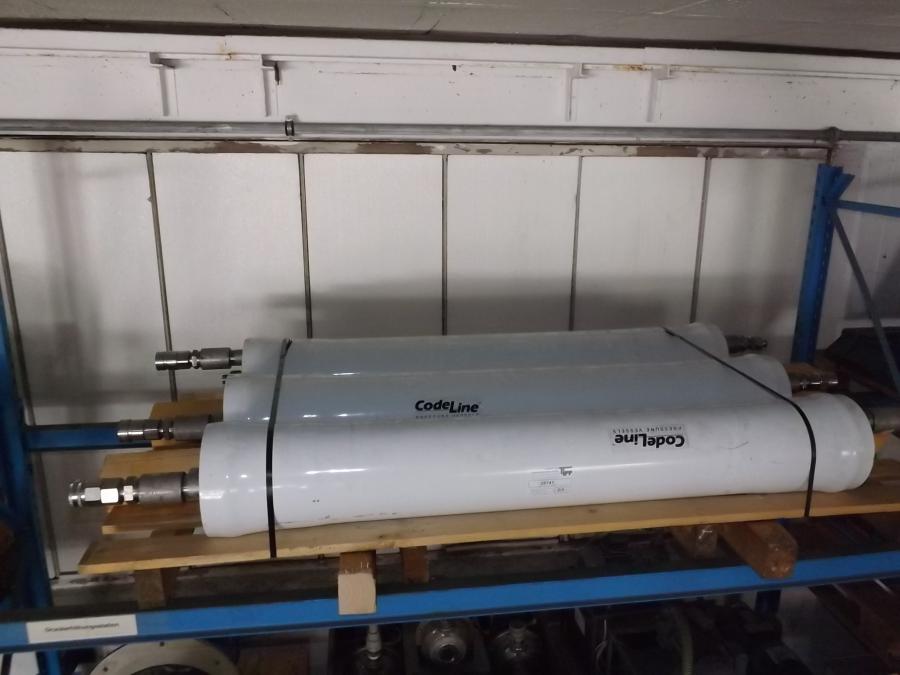

Further information  - (3 pressure pipes Codeline 80E60)
Pressure  41 bar (total)
Temperature  48 °C (total)
Further information  (3x winding modules type BW30LE-440 each 8 "/ 40")
Pressure  41 bar (total)
Temperature  45 °C (operating temperatur)

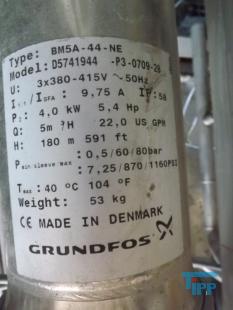

Further information  - (4x Grundfos pump BM5A-44-NE)
Delivery rate  5.0 m³/h (pro Pump)
Lifting height  180 m (total)
Temperature  40 °C (total)

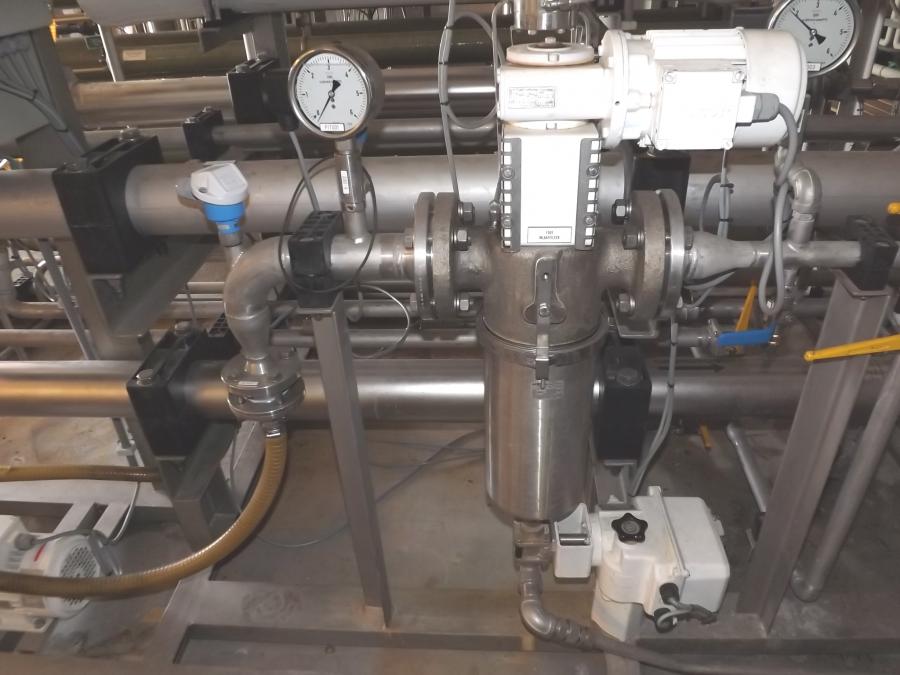

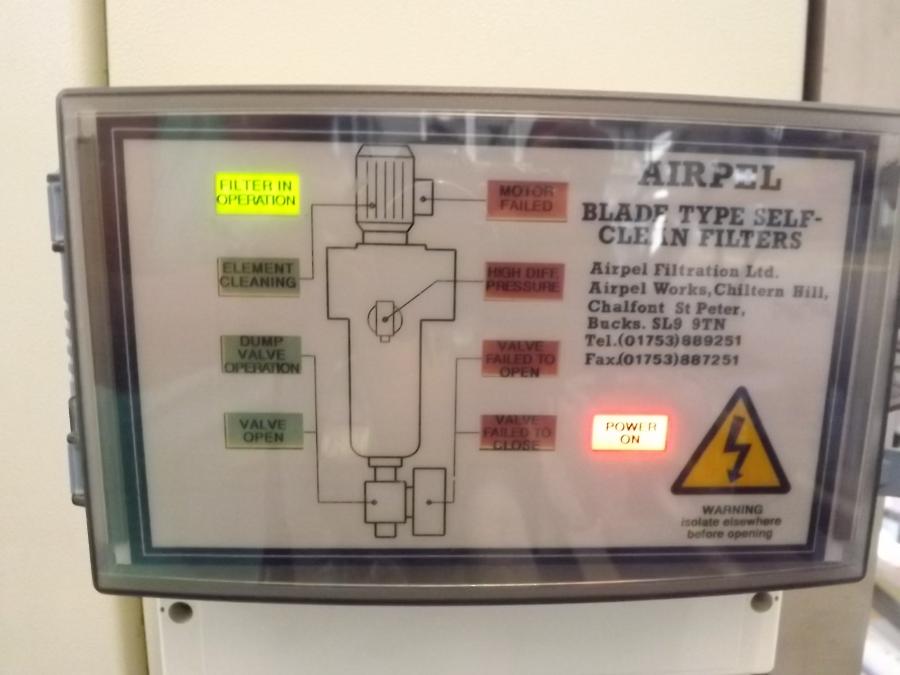

Further information  - (Stainless steel inlet filter. Manufact. Airpel with geared motor and control)

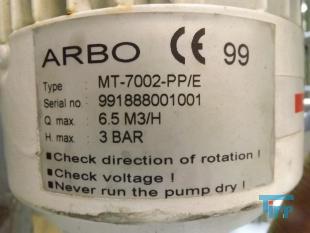

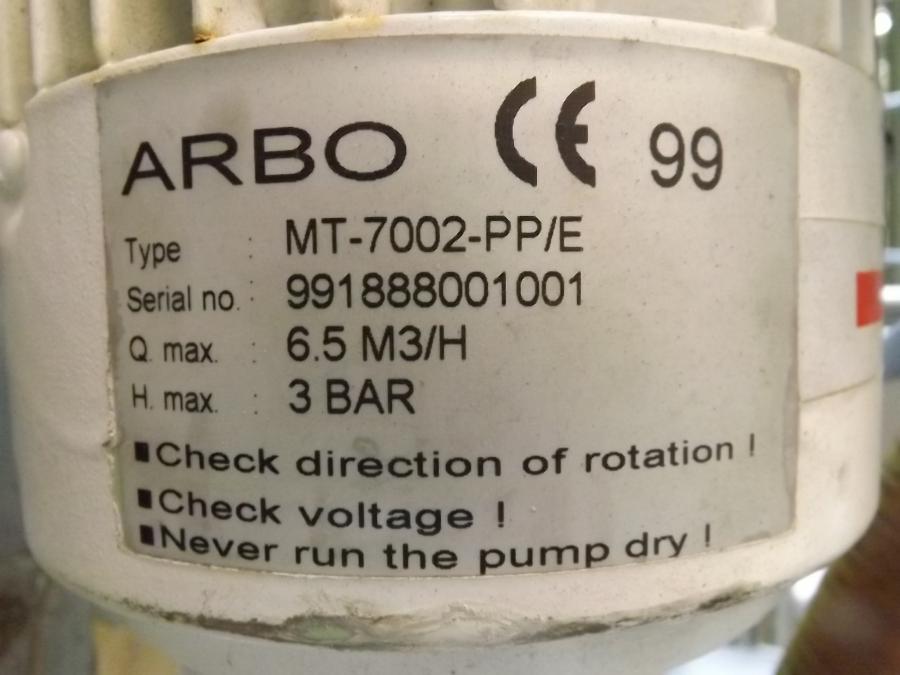

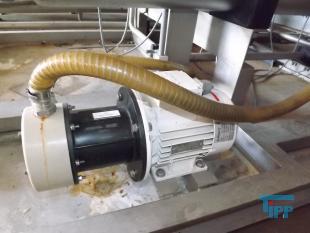

- (Booster Pump Herst. Arbo MT-7002-PP / E)
Delivery rate  6.5 m³/h (total)
Pressure  3.0 bar (total)
Volume  0.8 m³

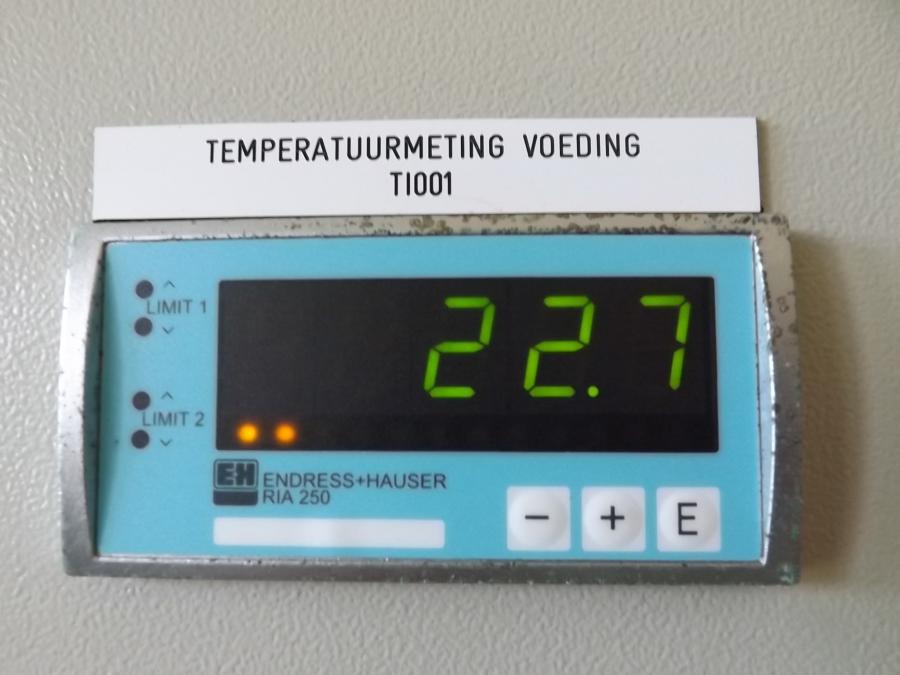

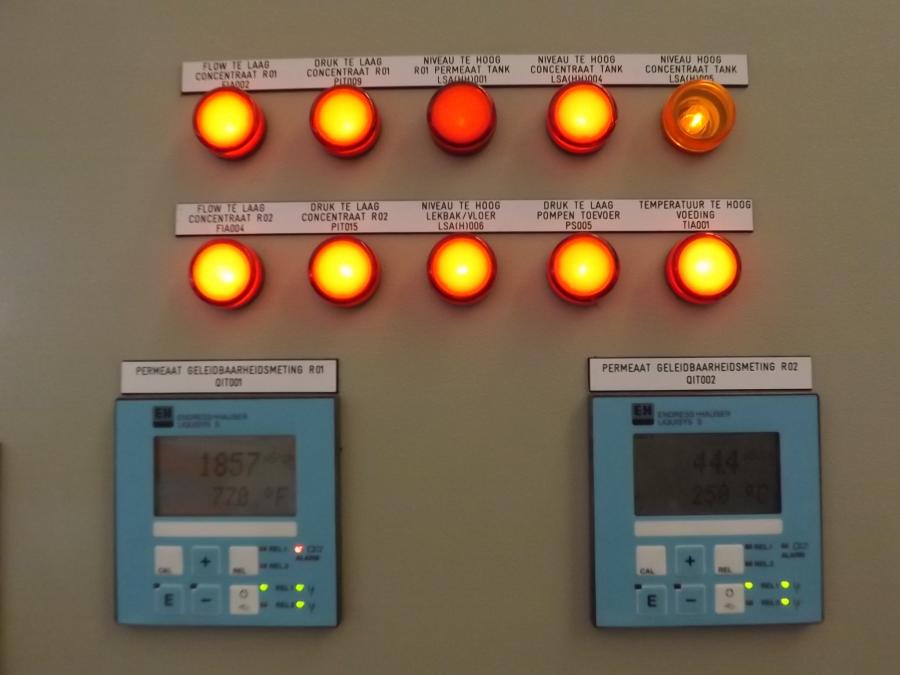

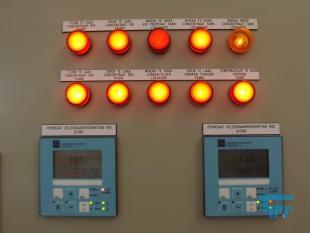

Further information  (2x conductivity measurement / temperature monitoring and manual control for cleaning the membranes)

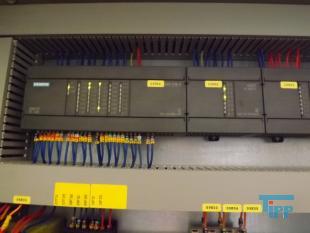

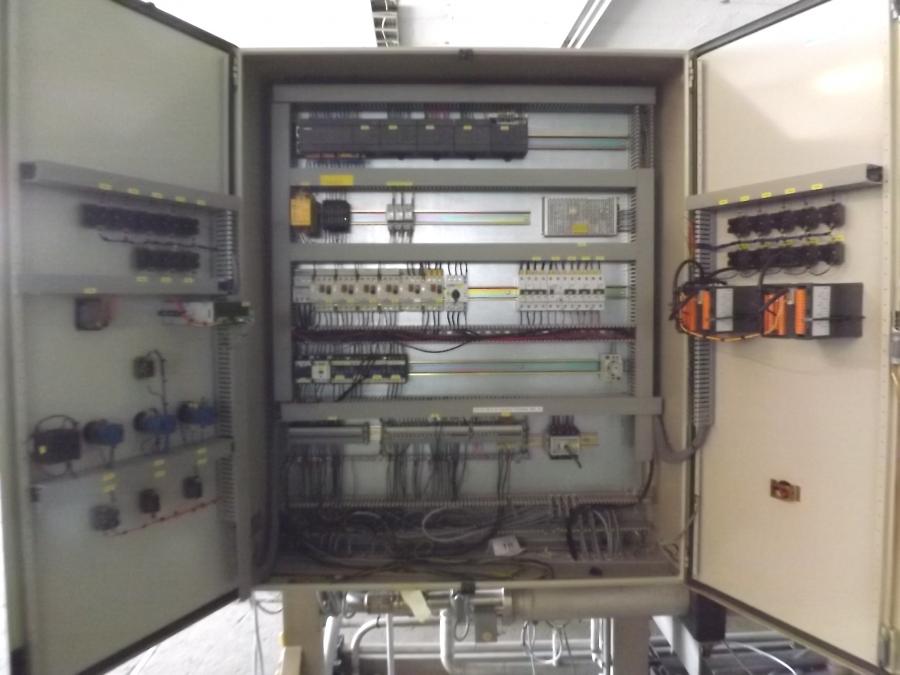

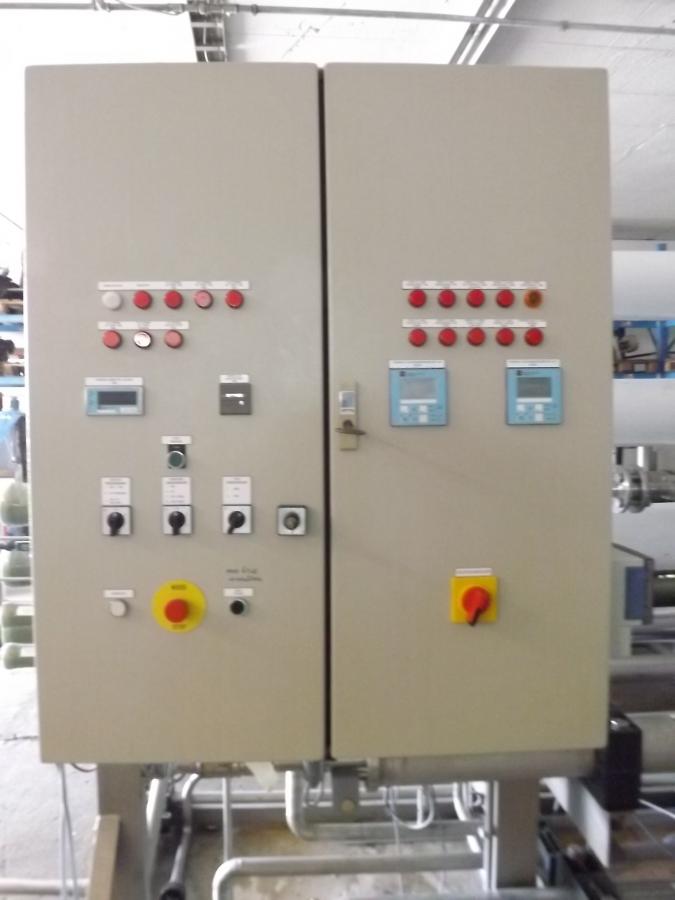

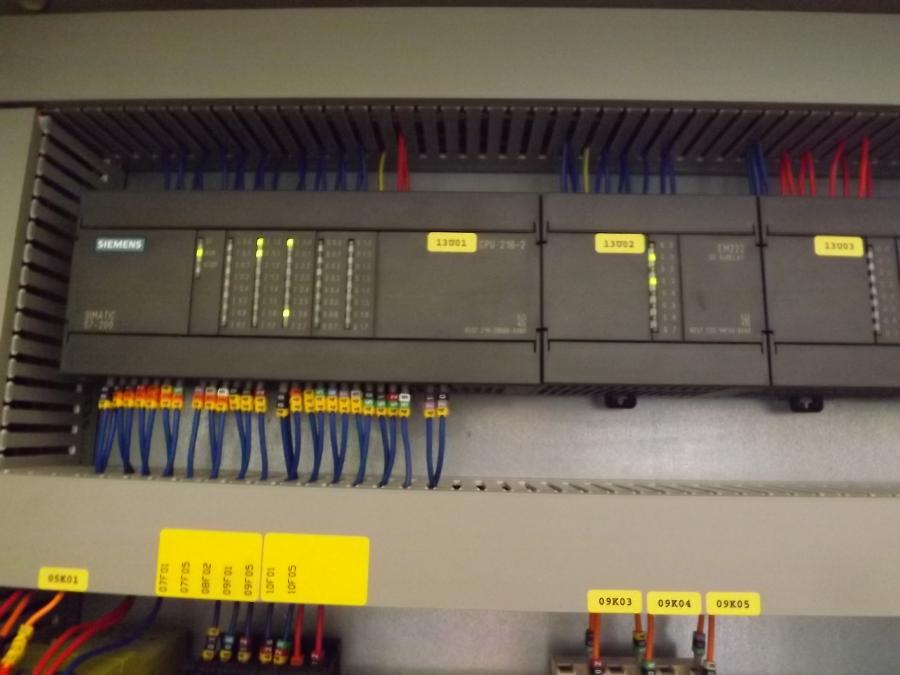

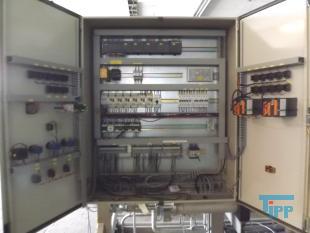

- (Control cabinet with Siemens S7 control)

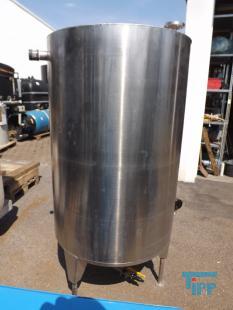

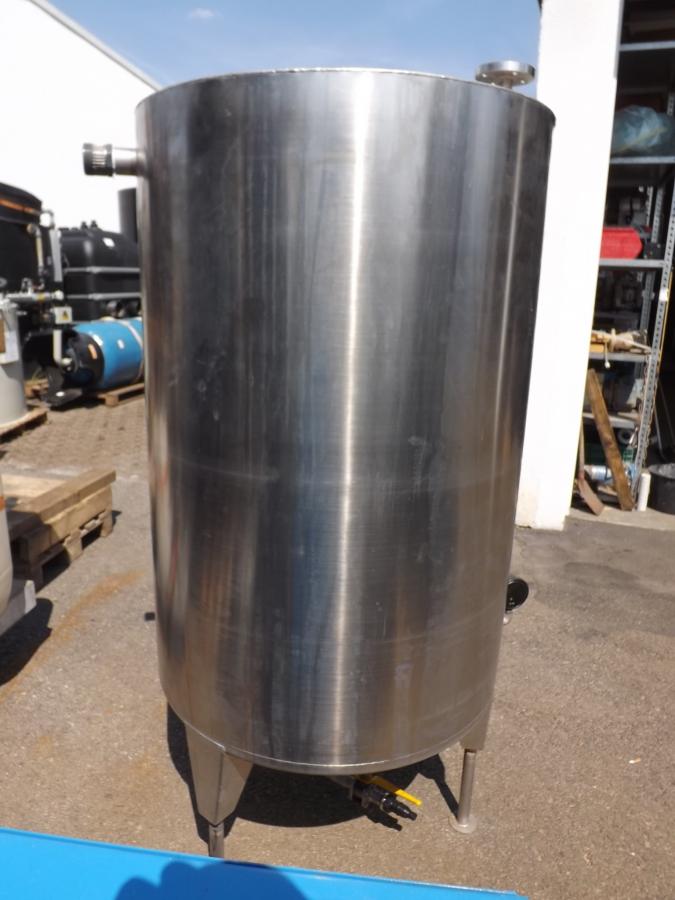

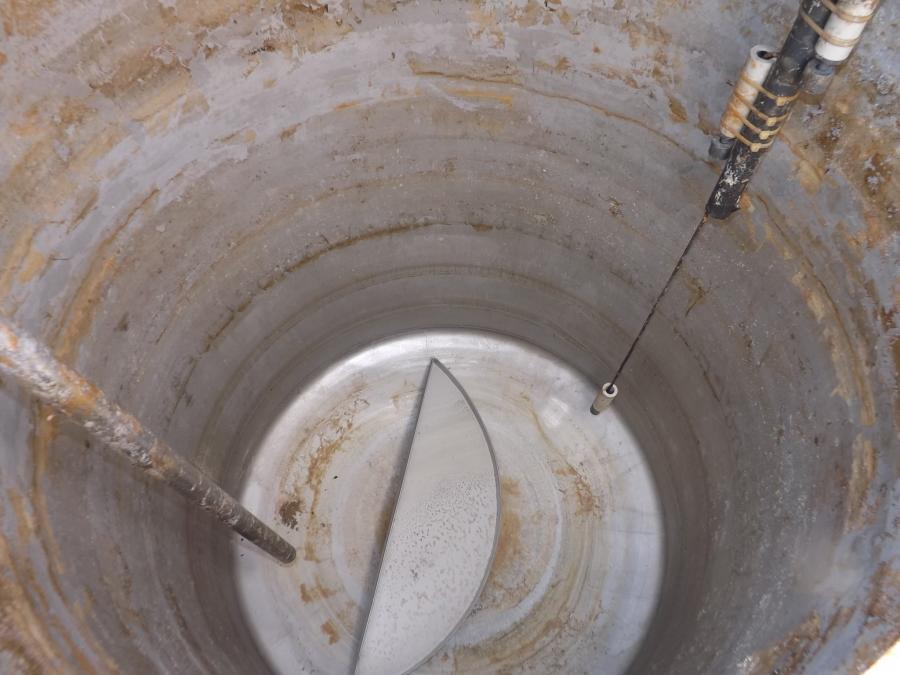

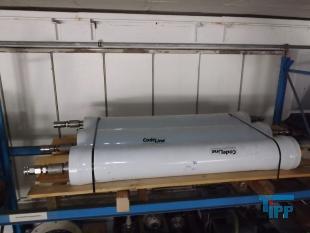

Accessories  (Permeattank made of stainless steel with suitable connections to the system / 3x Codeline pressure pipes with built-in membrane (winding module))

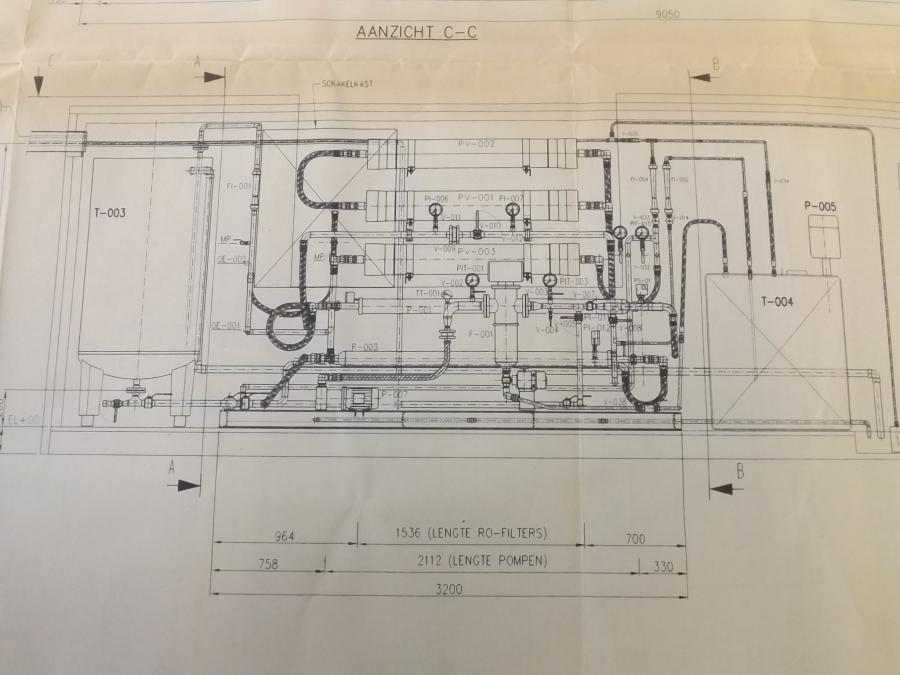

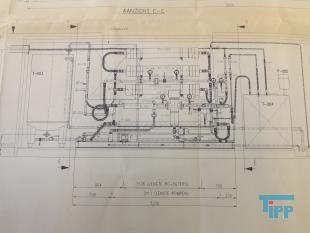

Length  3200 / 4000 mm (Reverse osmosis / with permeate tank)
Width  1500 mm
Height  2200 mm
