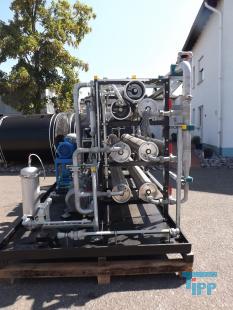

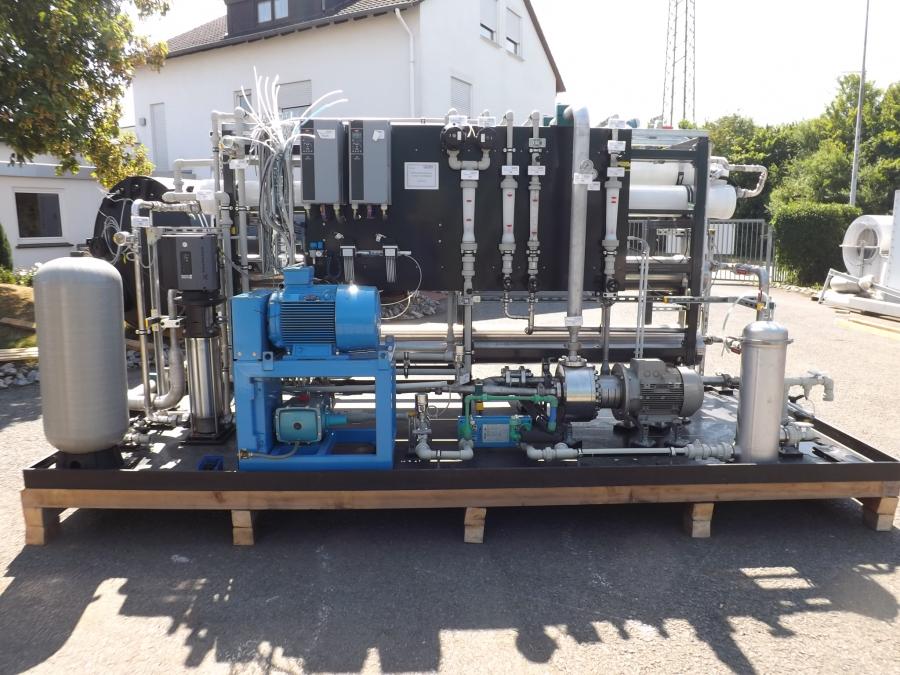

TRITON-Water 2 stage high pressure reverse osmosis plant

details to article: 28751

description: 2-stage high pressure reverse osmosis plant.

Producer:Triton Water
Typ:2-stufige Anlage
Year of manufacture:2010
Pieces:1



technical data

Description  (Description High Pressure Reverse Osmosis System (Level 1))
2.5 m³/h (Permeate ( setpoint ))
3.0 m³/h (min. Permeate at 25-30 ° and 70 bar (manufacturer details))
1.1 m³/h (concentrate)

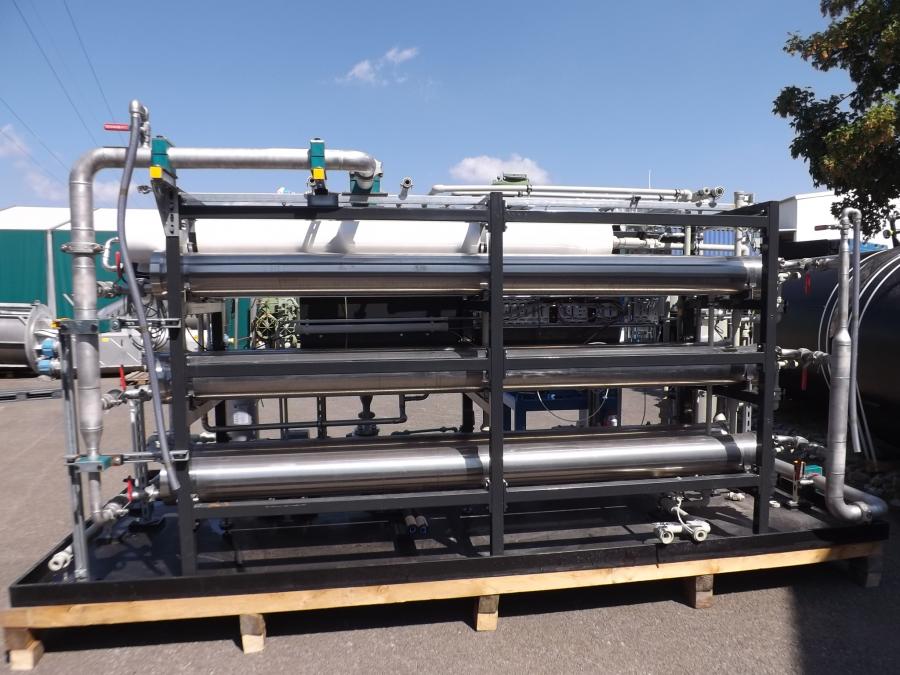

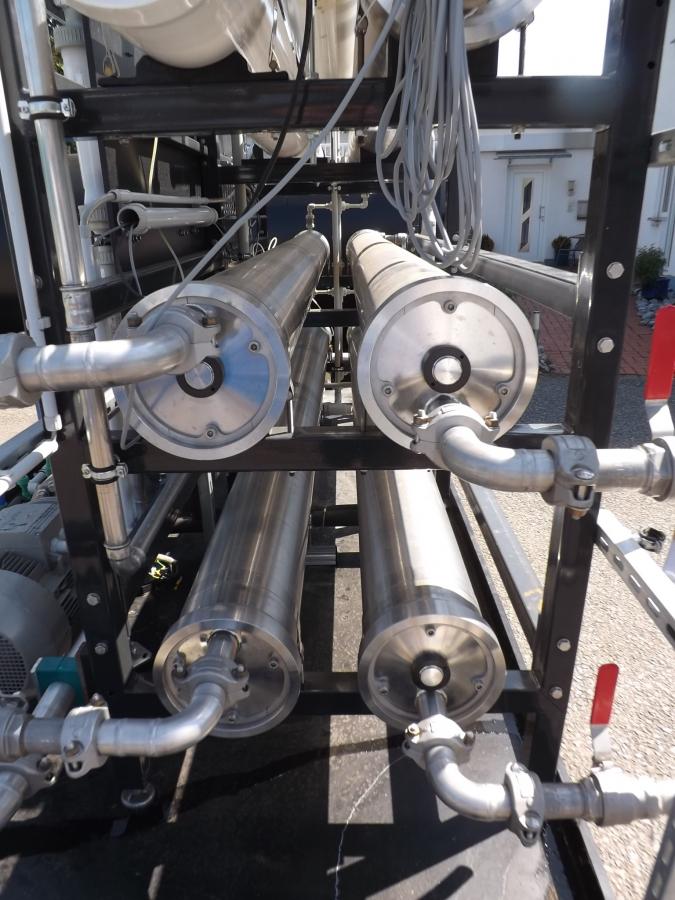

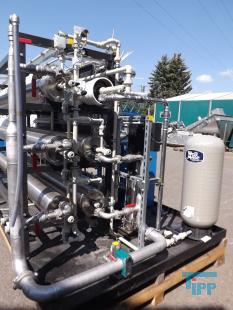

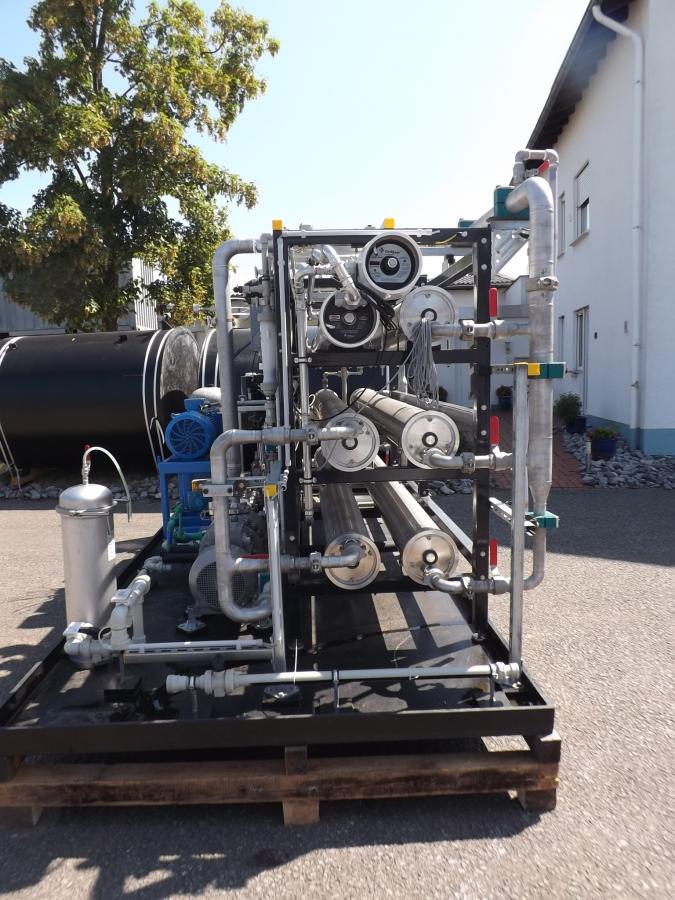

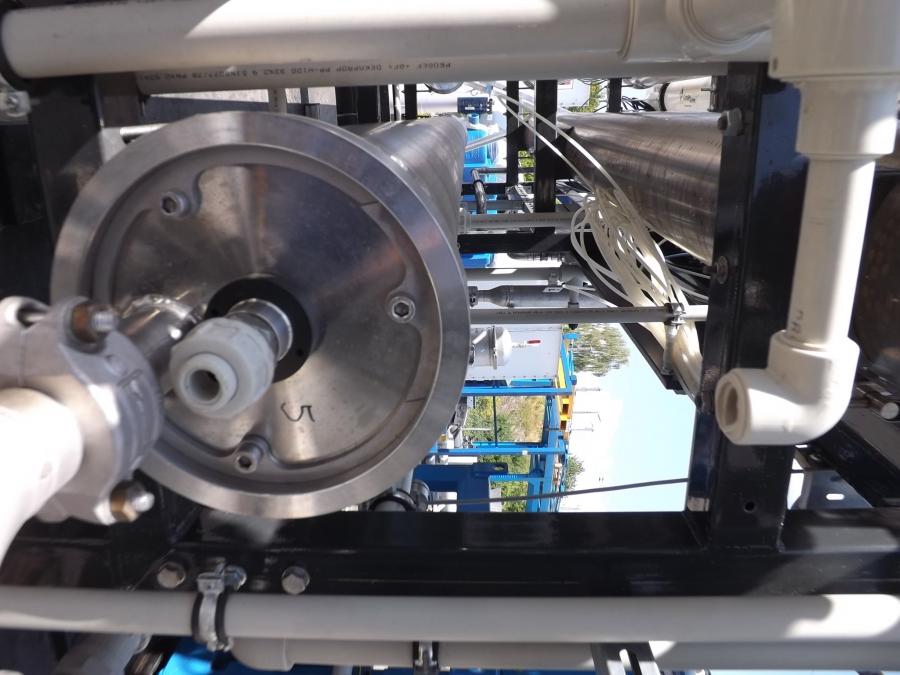

Further information  - (5 pressure pipes made of stainless steel; Pressure tube type: TES 8040 3e)
Pressure  82 bar (max.)
- (15x winding module each 8 "/ 40" (membrane, 3 each per pressure tube) DOW / Filmtec SW30HRLE)

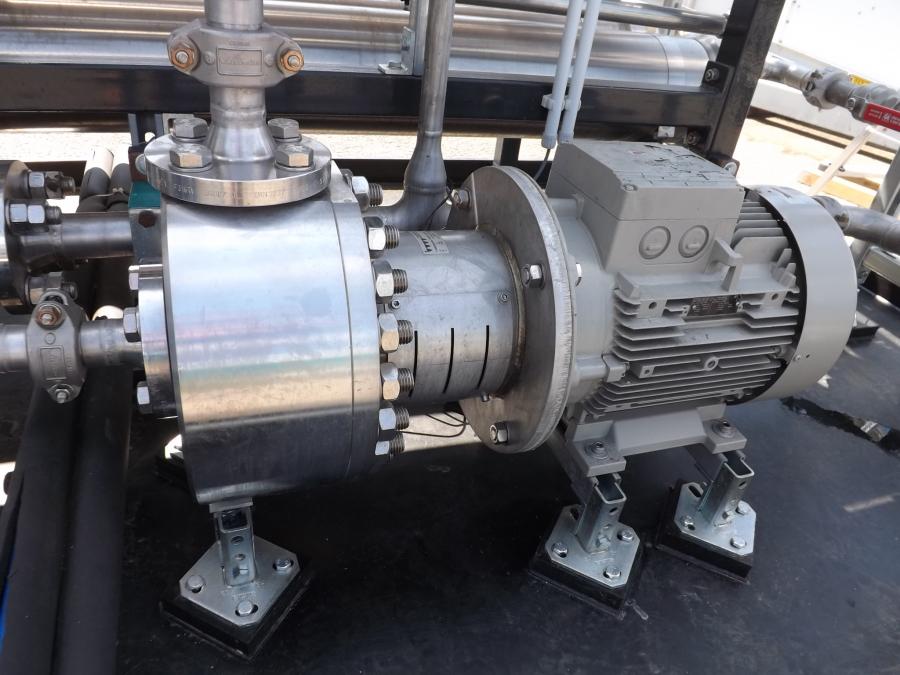

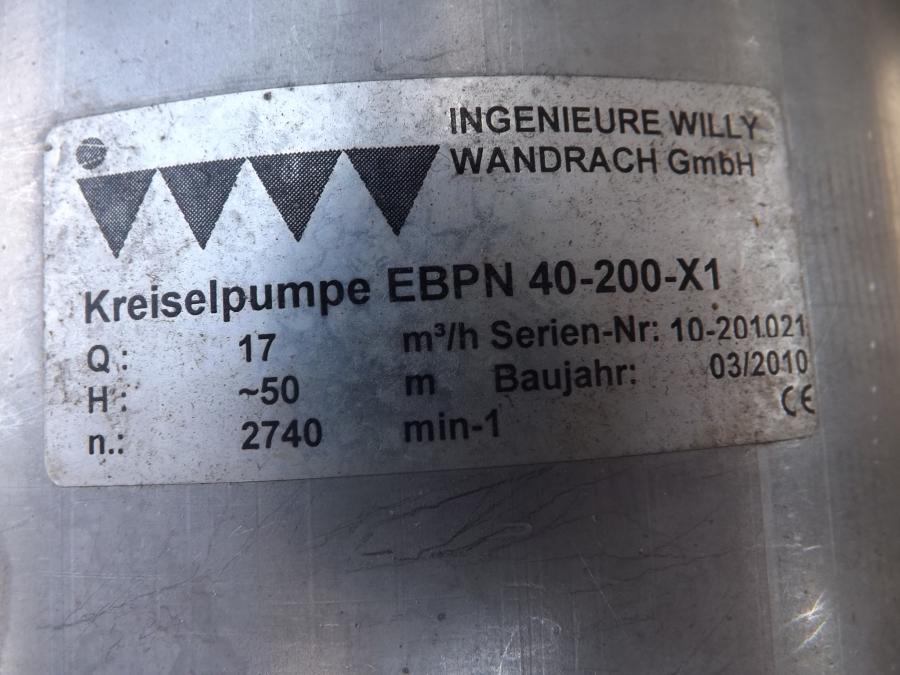

Further information  - (speck centrifugal pump EBPN 40-200-X1)
Delivery rate  17.0 m³/h (max.)

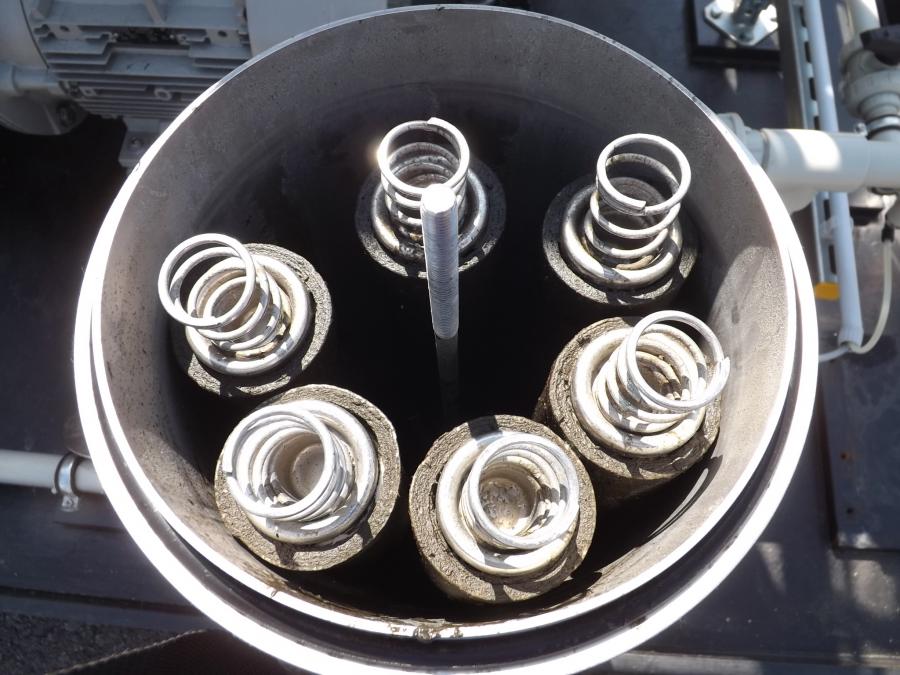

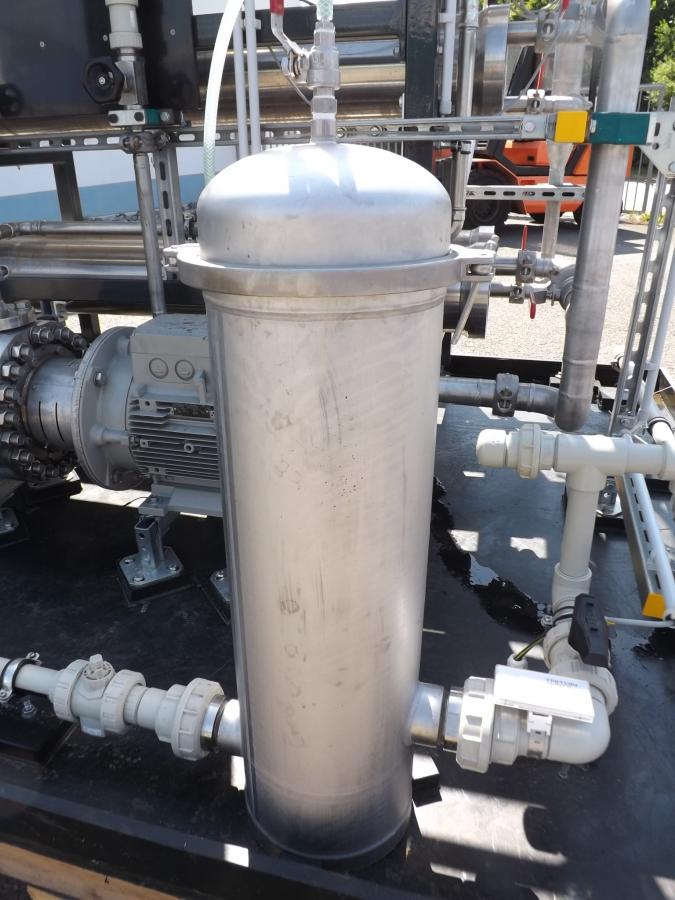

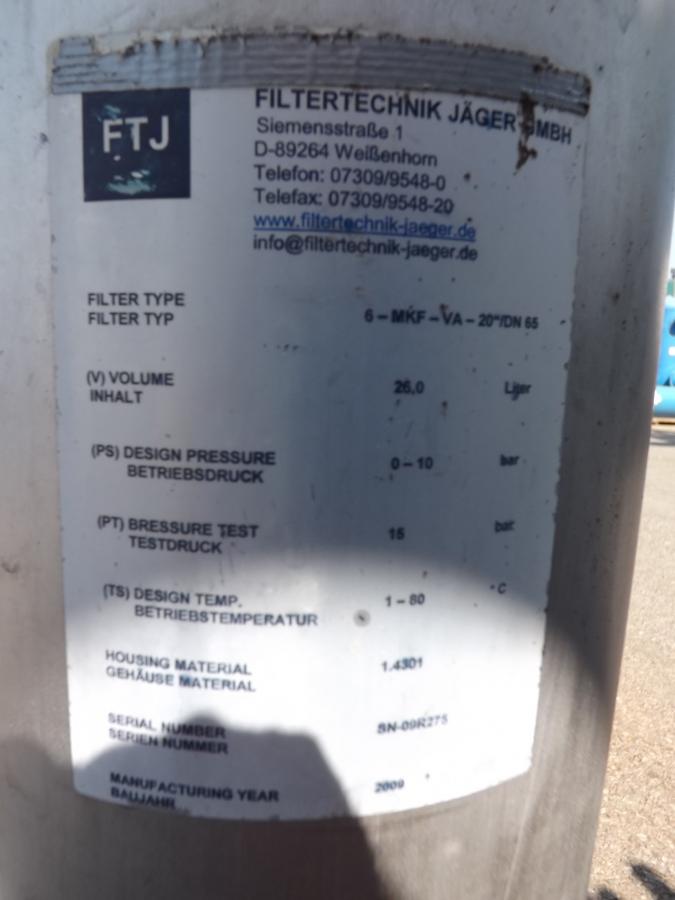

Further information  - (Filter housing made of stainless steel with 6 filter cartridges FTJ 6MKF-VA-20 °)
Content  26 l
Pressure  10 bar (max.)

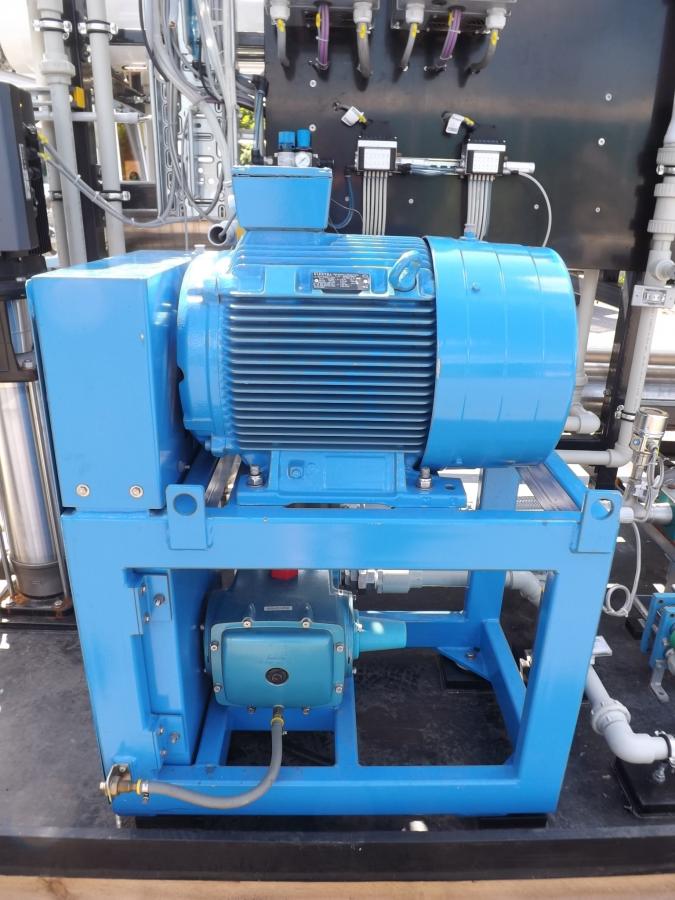

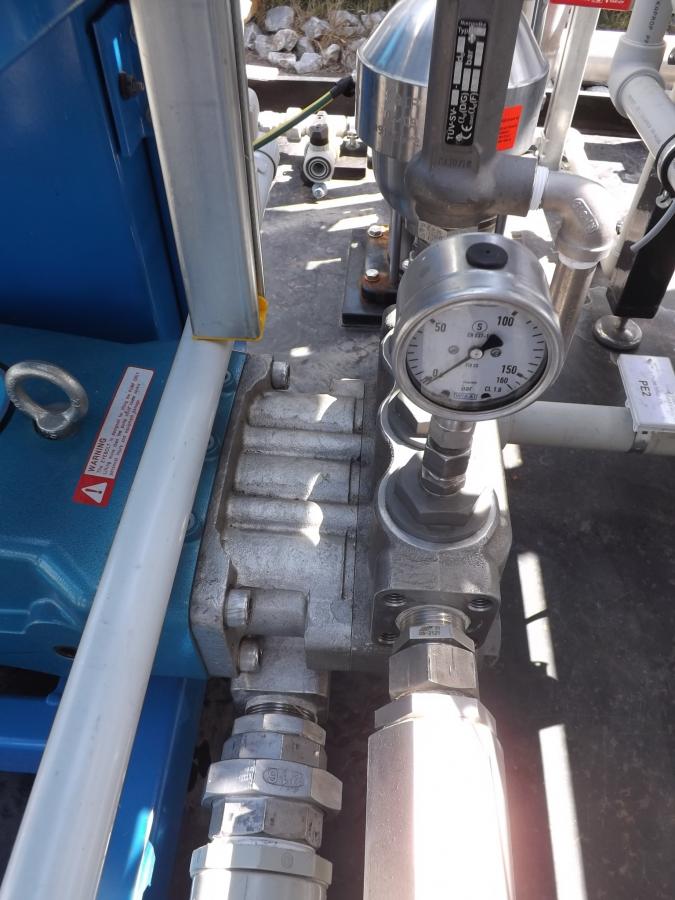

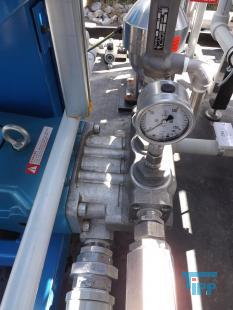

Further information  - (Cat high pressure pump (3551D7750))
Delivery rate  6.0 m³/h (80 bar)

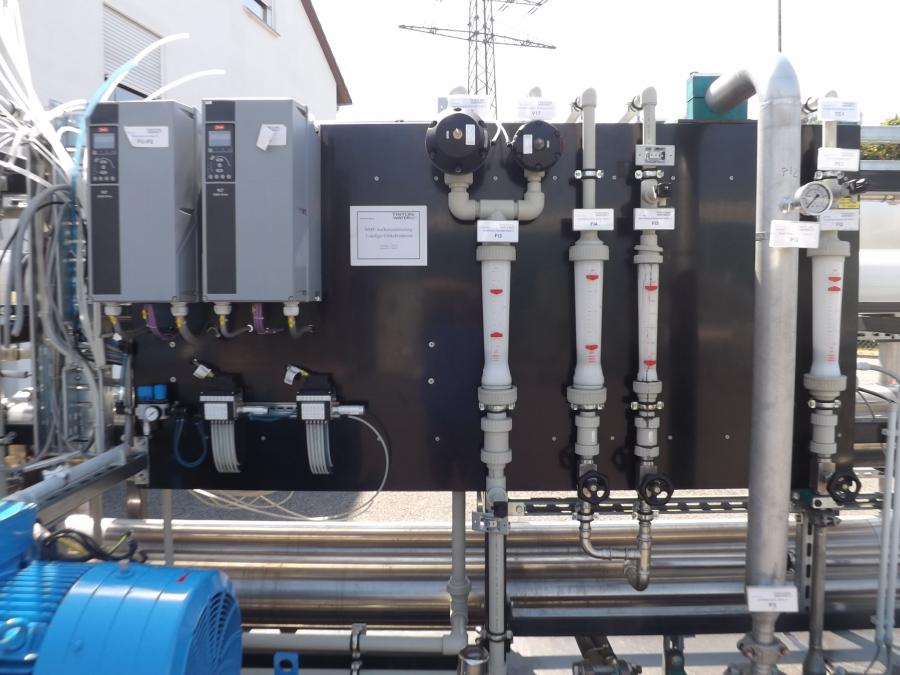

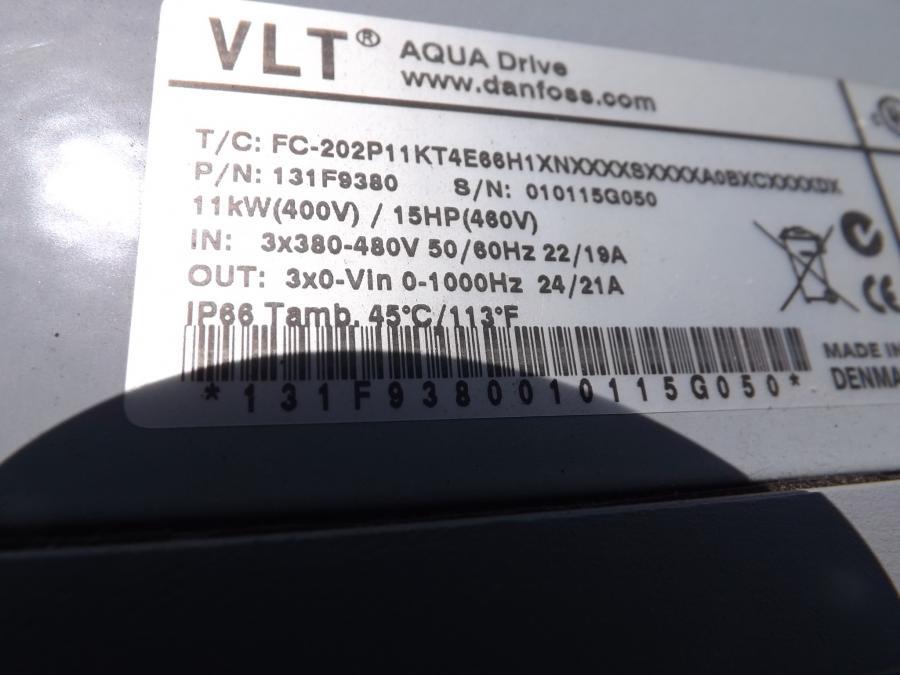

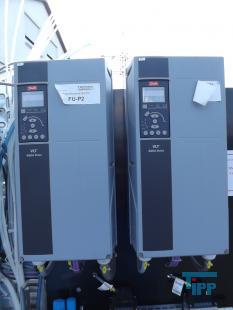

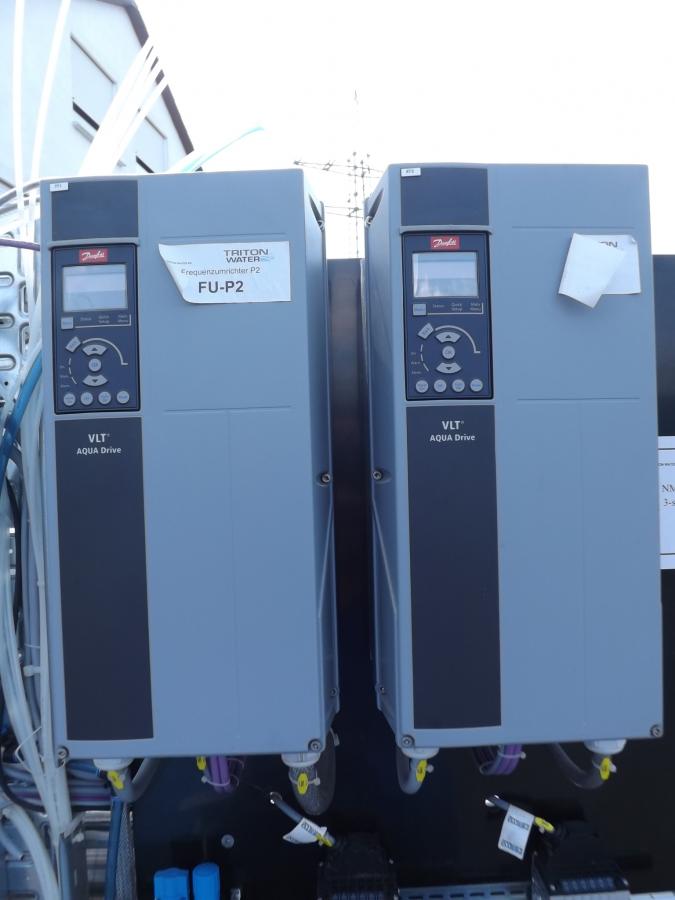

Further information  - (2x frequency converter / valves / flow meter and other components available)
Description  ()
3.5 m³/h (permeate)
3.3 m³/h (Concentrate reflux)
1.2 m³/h (concentrate wastewater)

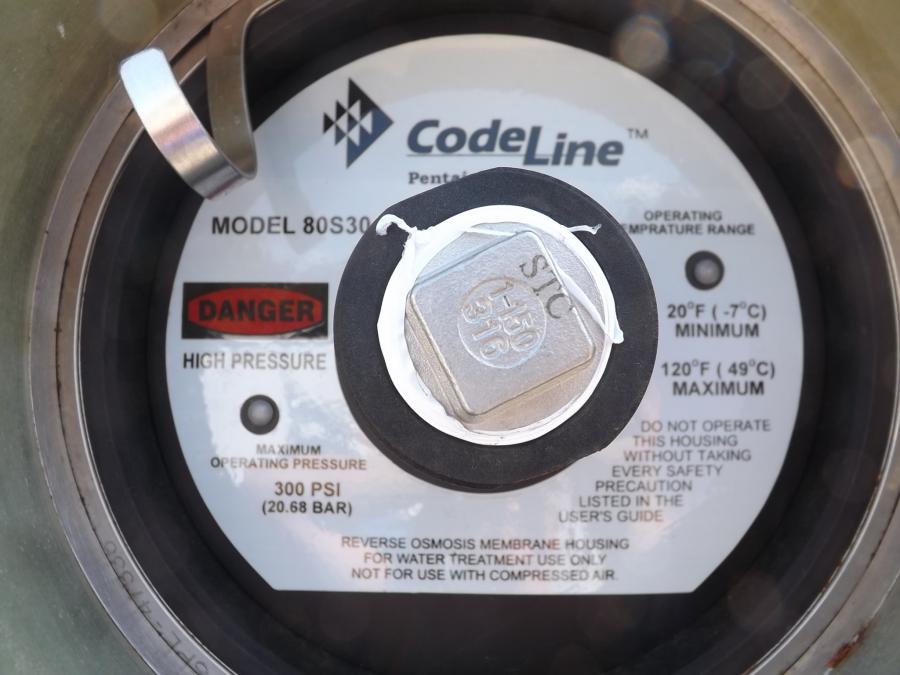

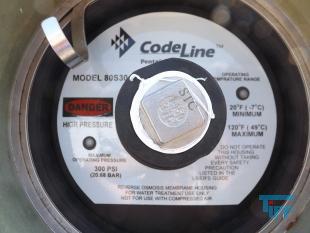

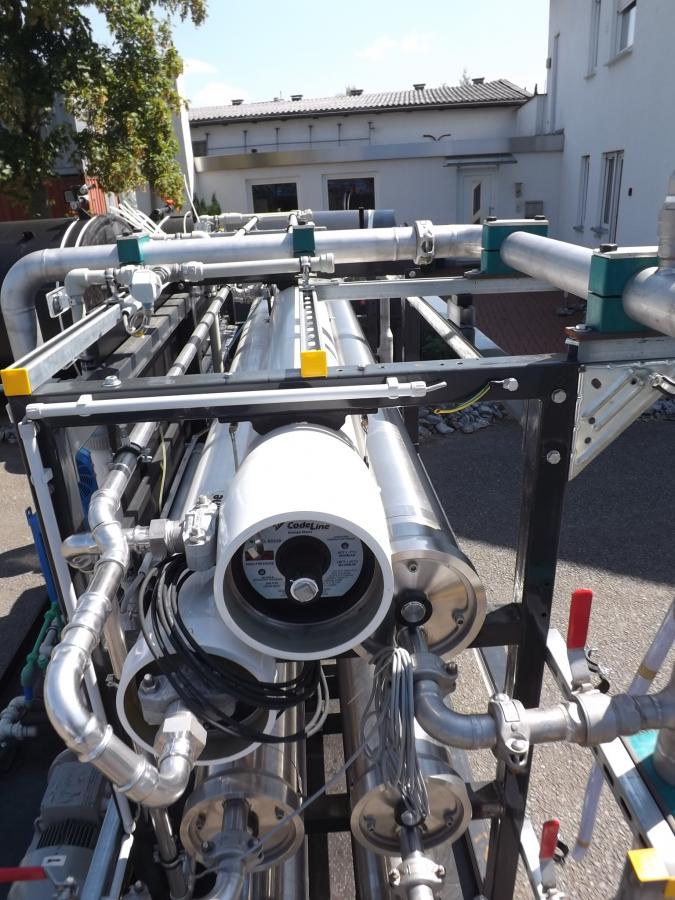

Further information  - (2 pressure pipes (type: TES Codline) 1x 80E30 3W / 1x 80E30 2W)
- (5x membrane (winding pulse) 1x 3 pieces ESPA2 8040 / 1x 2 pieces ESPA2 LD 8040)

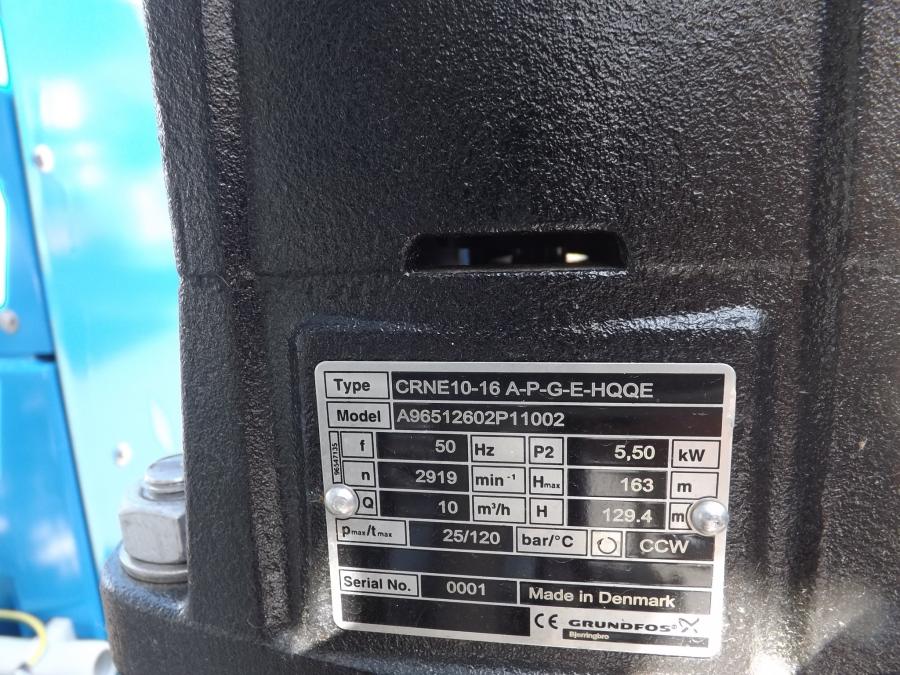

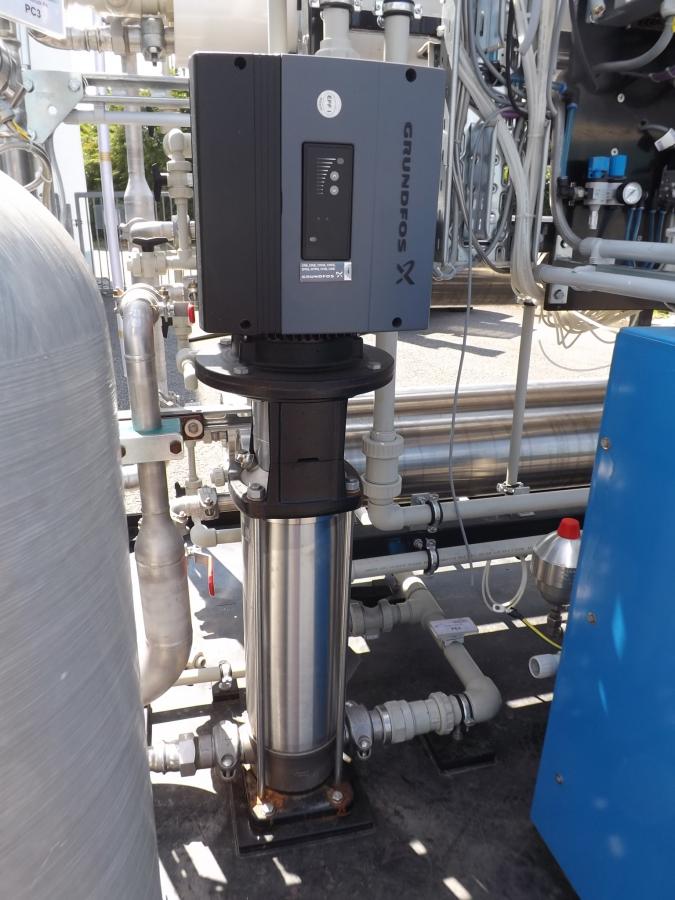

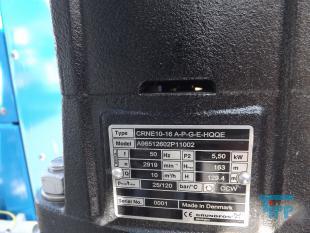

Further information  - (Multi-stage centrifugal pump from Grundfos (CRNE 10-16) with frequency converter)
Delivery rate  10 m³/h (max.)

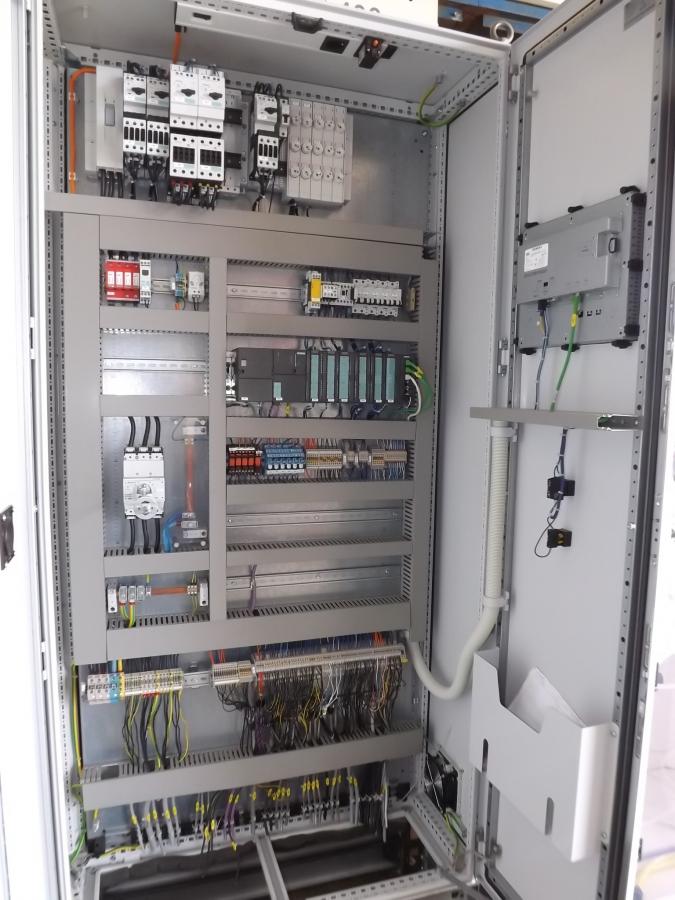

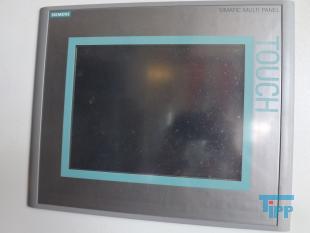

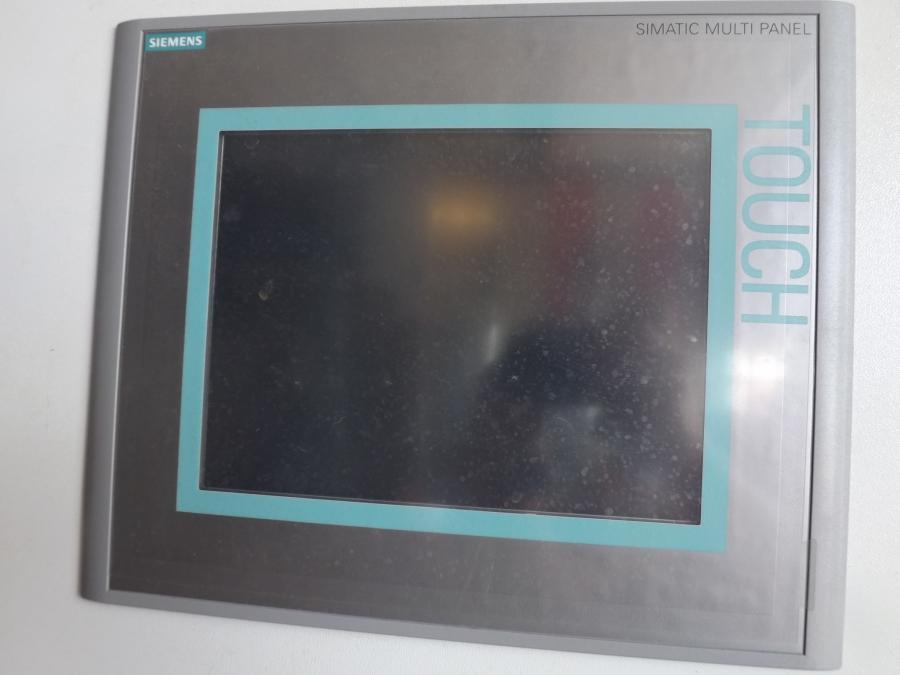

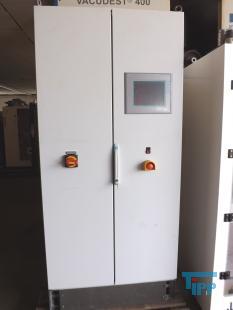

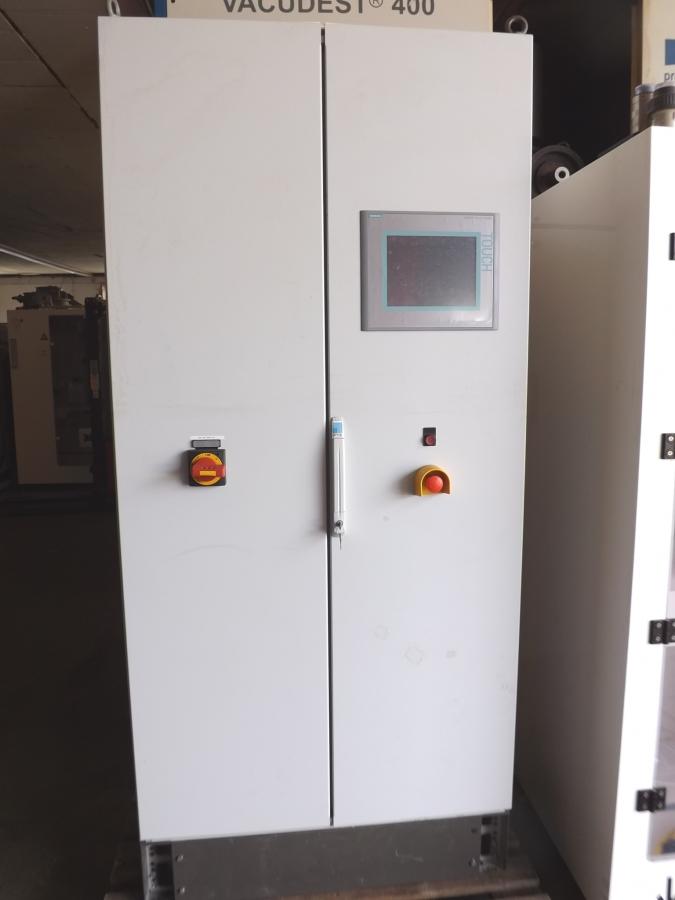

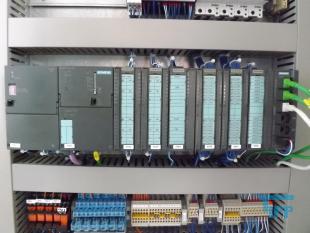

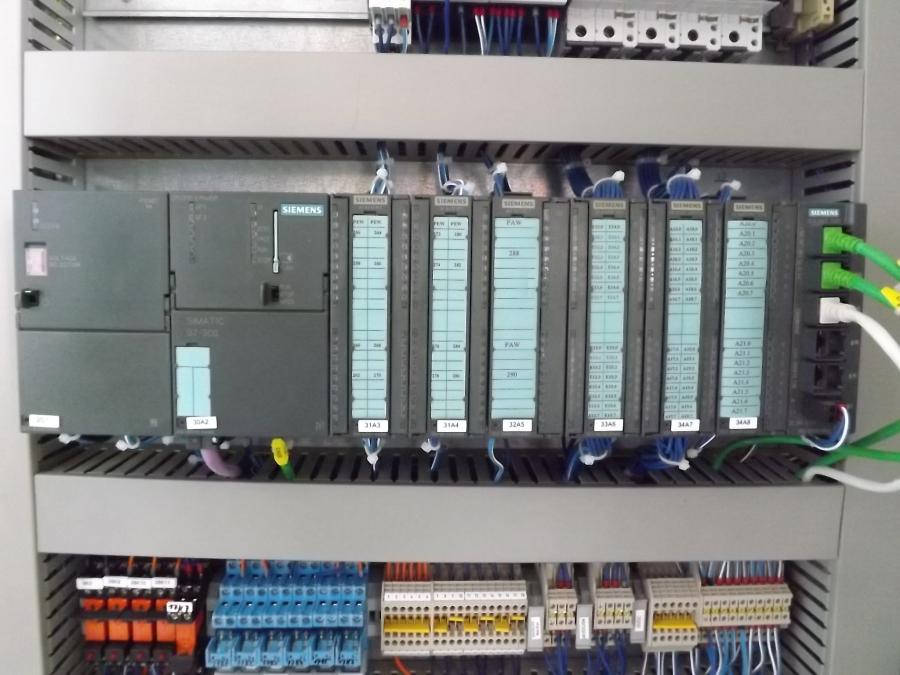

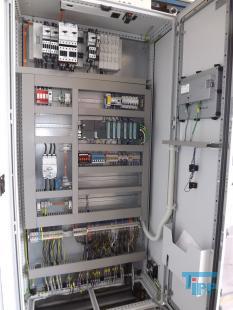

Accessories  - (Control cabinet with Siemens S7-300 control for reverse osmosis system stage 1 + 2)

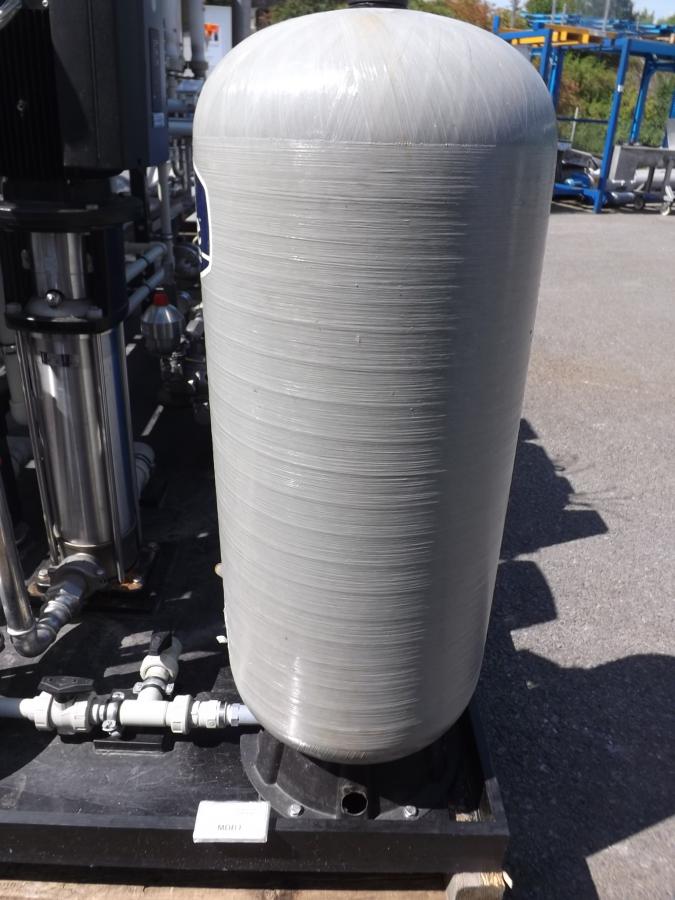

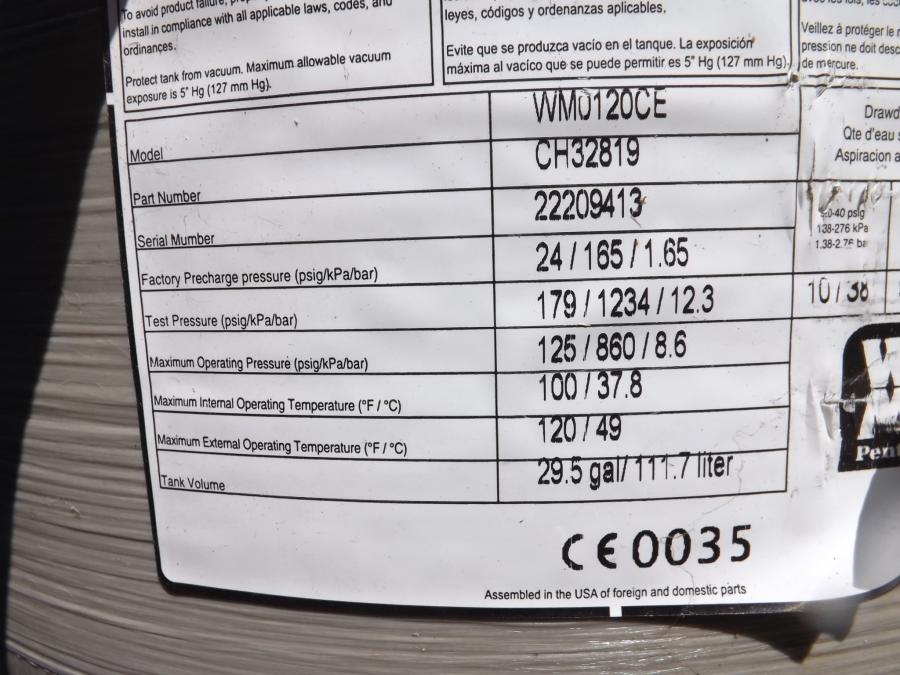

Further information  - (Diaphragm pressure tank Herst. CWG (WM-0150))

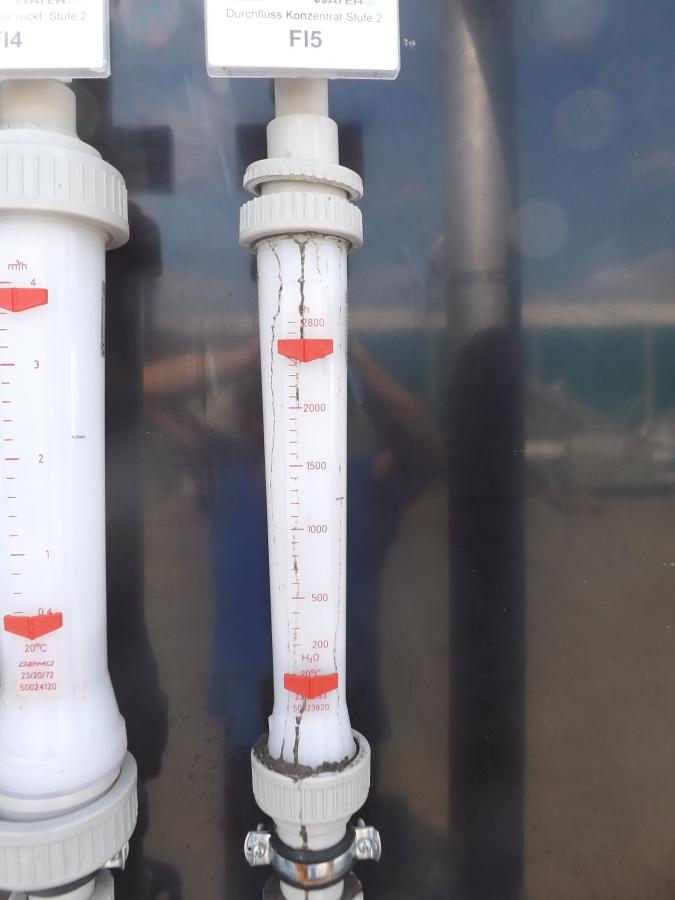

Material  PVDF (Float - Flowmeter)
Defects  leichte (Float - Flow meter and 1 membrane connection (PP connection permeate) at the pressure pipe RO1 must be renewed)
Dimensions  - (total)
Length  4500 mm
Width  2200 mm
Height  2200 mm
Height  2500 mm (transportation size)
