used dosing plant, chlordioxyd-plant

details to article: 28763

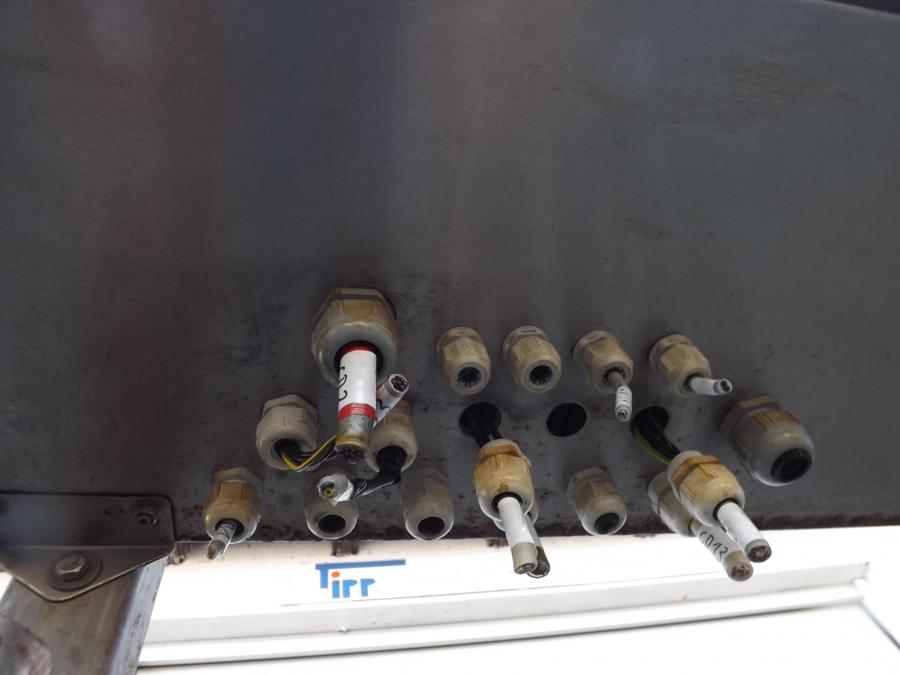

description: A water treatment with the chlorine dioxide system can be easily and safely integrated into any process. The plant produces a 2% chlorine dioxide solution. The chlorine dioxide is formed by a mixture of hydrochloric acid and Natriumchloisitlöung, which is dosed immediately after its formation (by means of reactor and mixer) to the treated water. The system was converted from CDVA 60 to CDVA 120. (Electrical connections have to be re-installed)

Producer:	Pro Minent

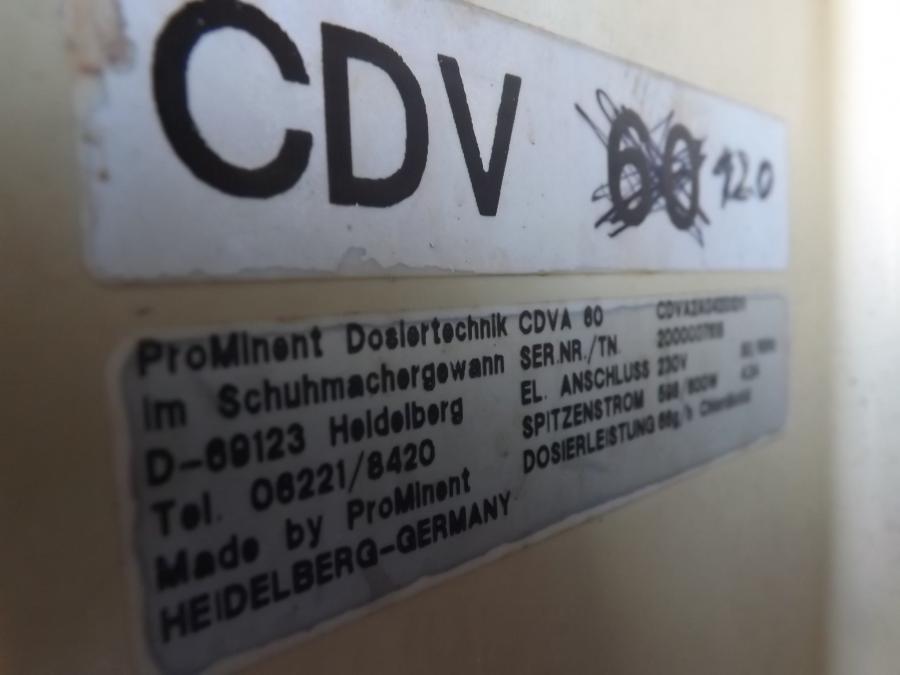

Typ:	Bello Zon Typ CDVa 60 (120)
Year of manufacture:	2000
Pieces:	1

technical data

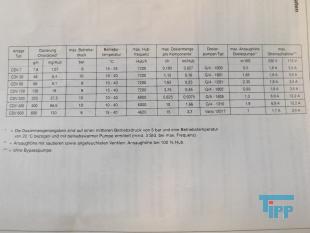

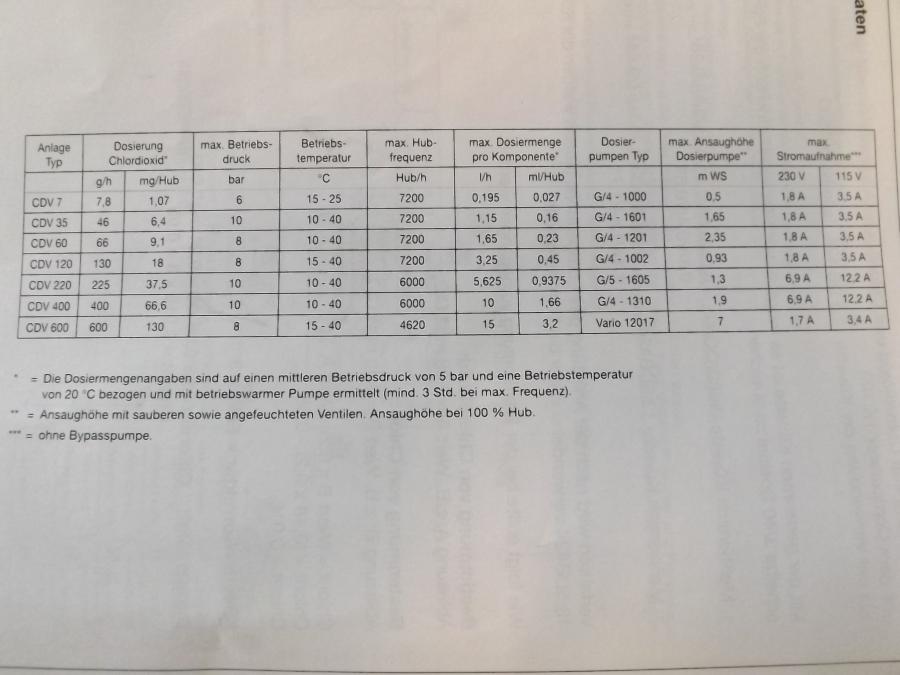

Power	- (Performance data according to test protocol (type CDVA 120))
-	75 (g / h (set value))
Delivery rate	1000 l/h (Flow rate bypass)
Delivery rate	700 l/h (bypass monitoring)
Delivery rate	220 ml (Discharge dosing pump acid)
Delivery rate	220 ml (Discharge dosing pump chlorite)

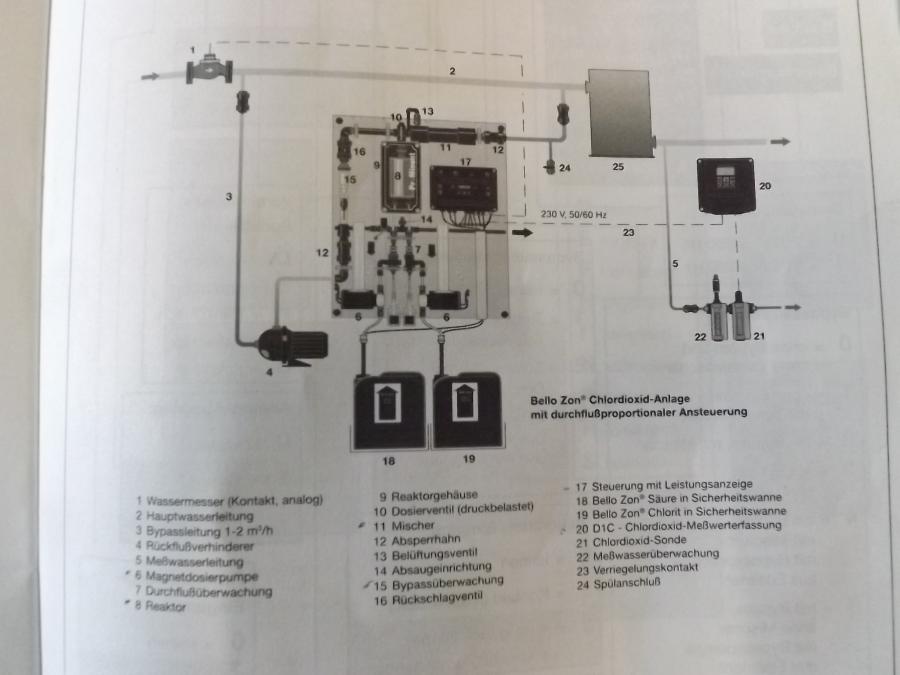

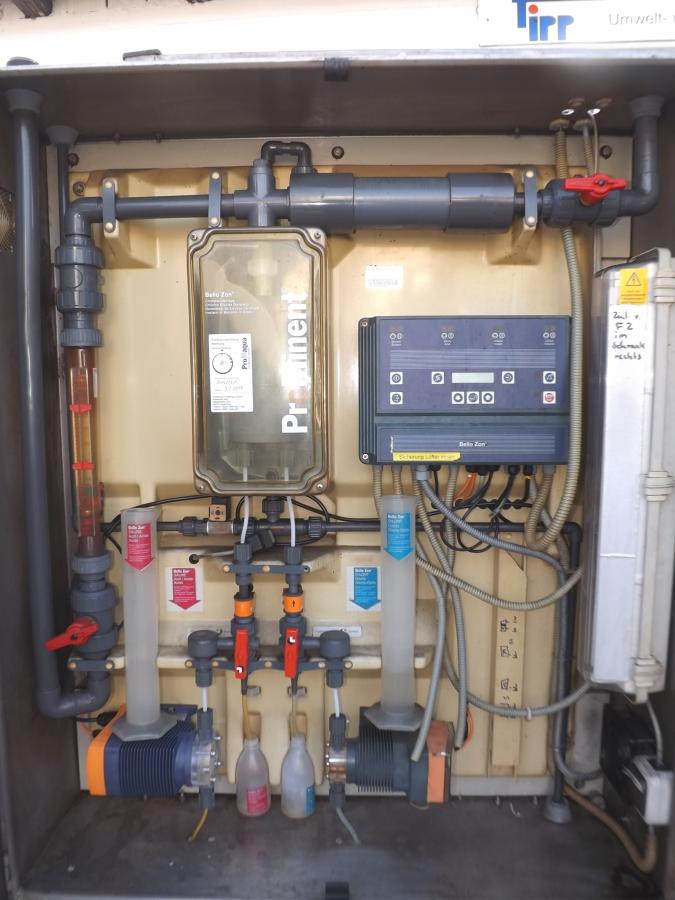

Further information	- (List of the individual components of the CDVA)

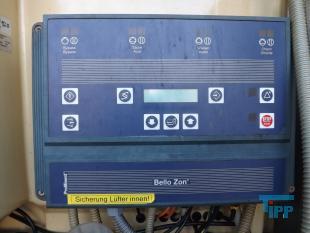

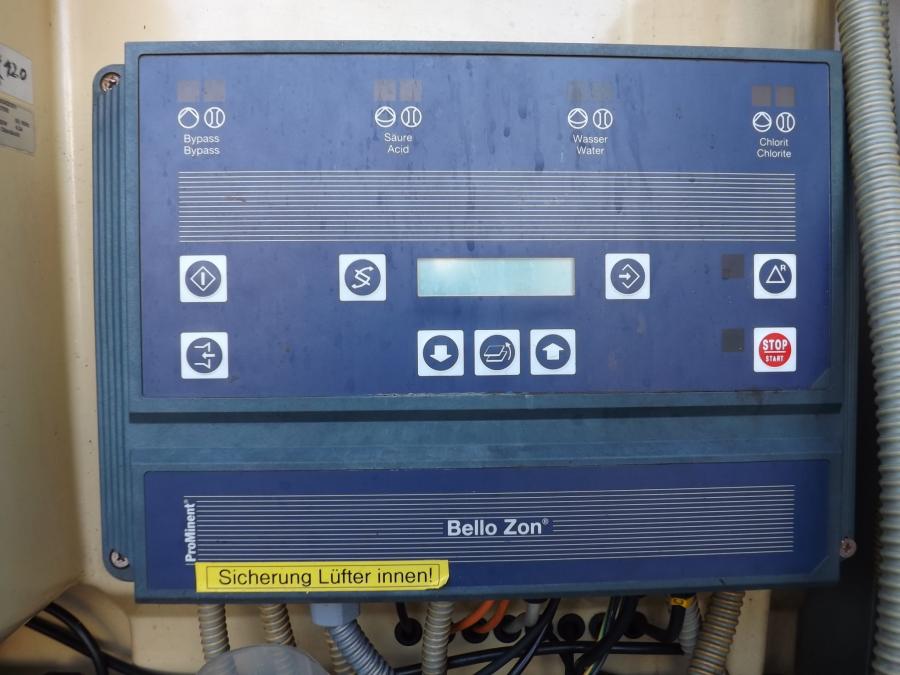

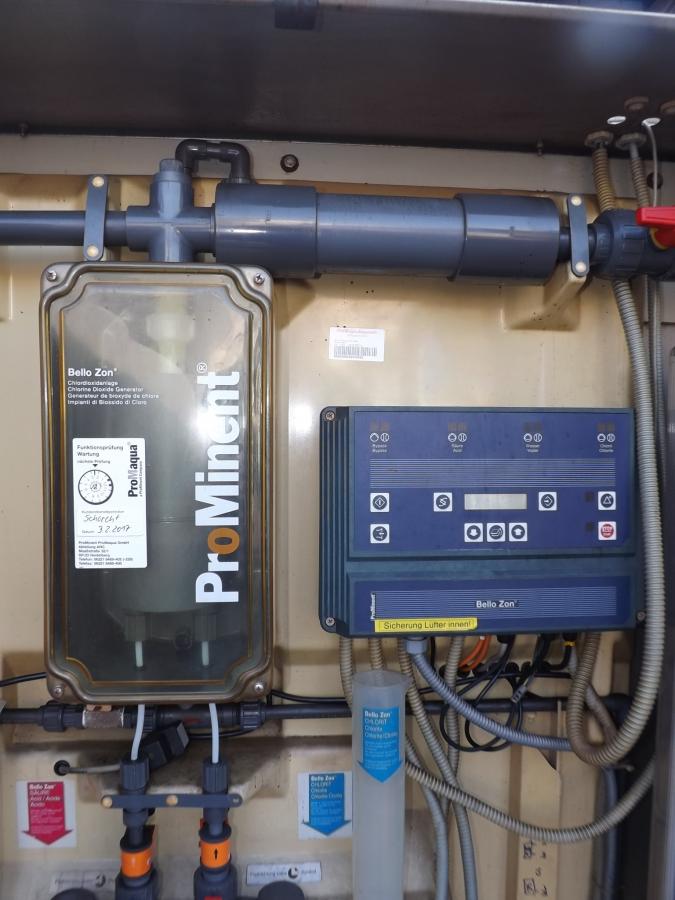

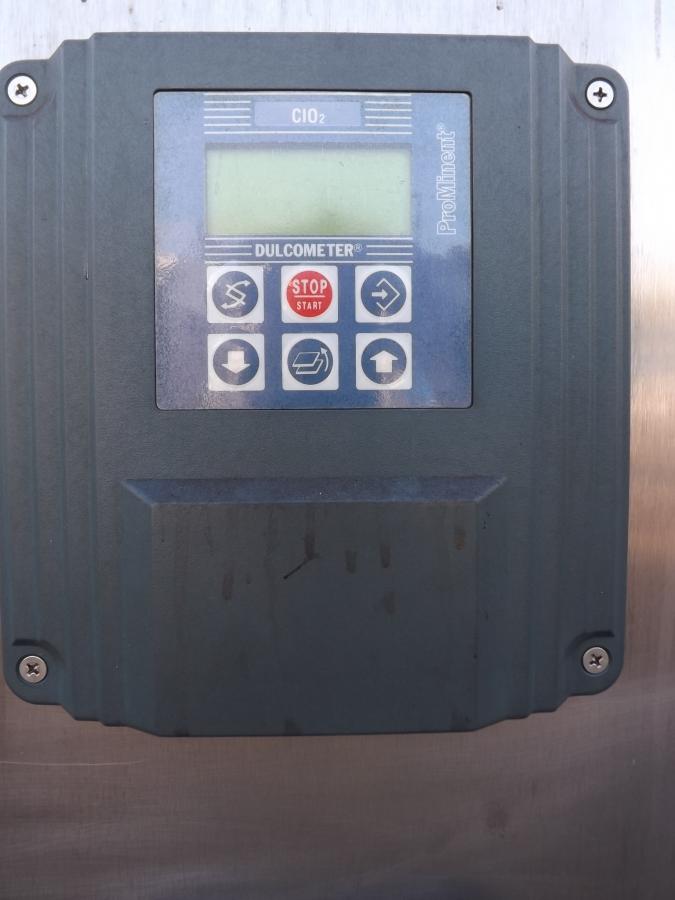

-	(Prominent control Bello Zon)

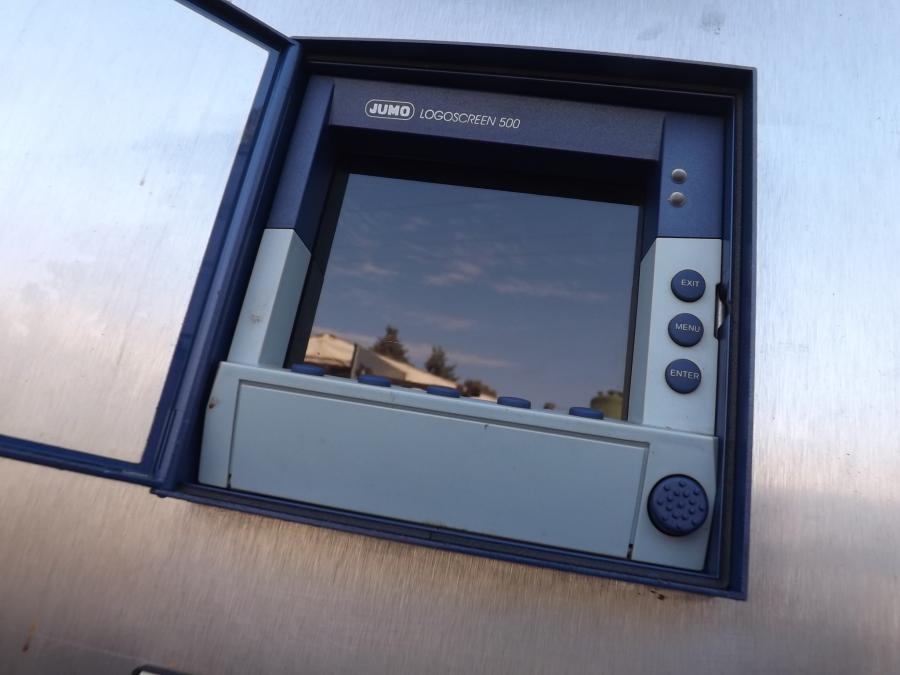

-	- (Jumo paperless recorder (Logoscreen 500))

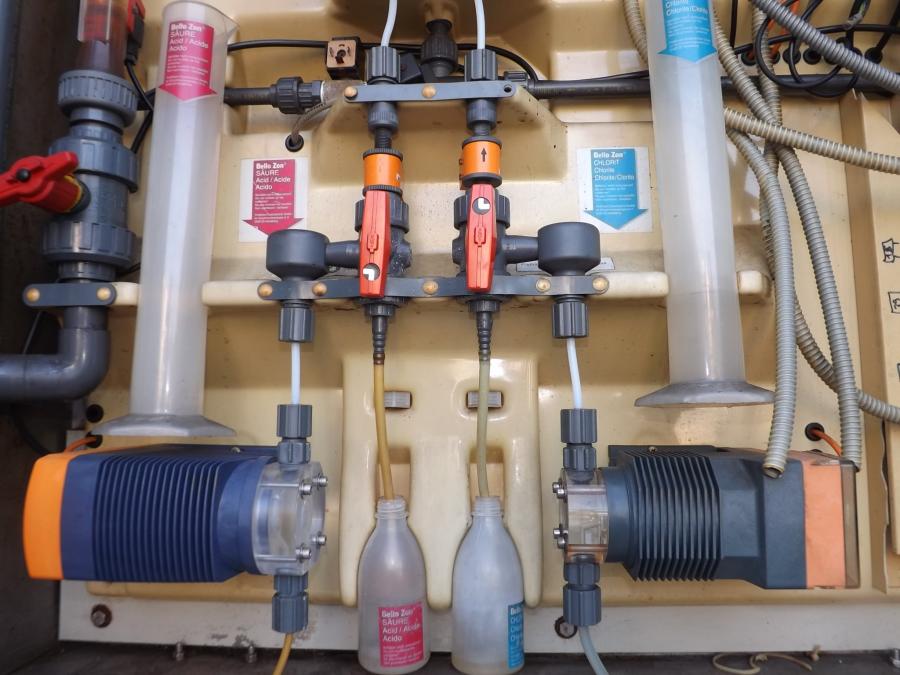

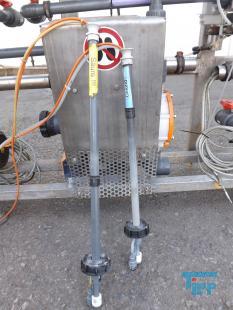

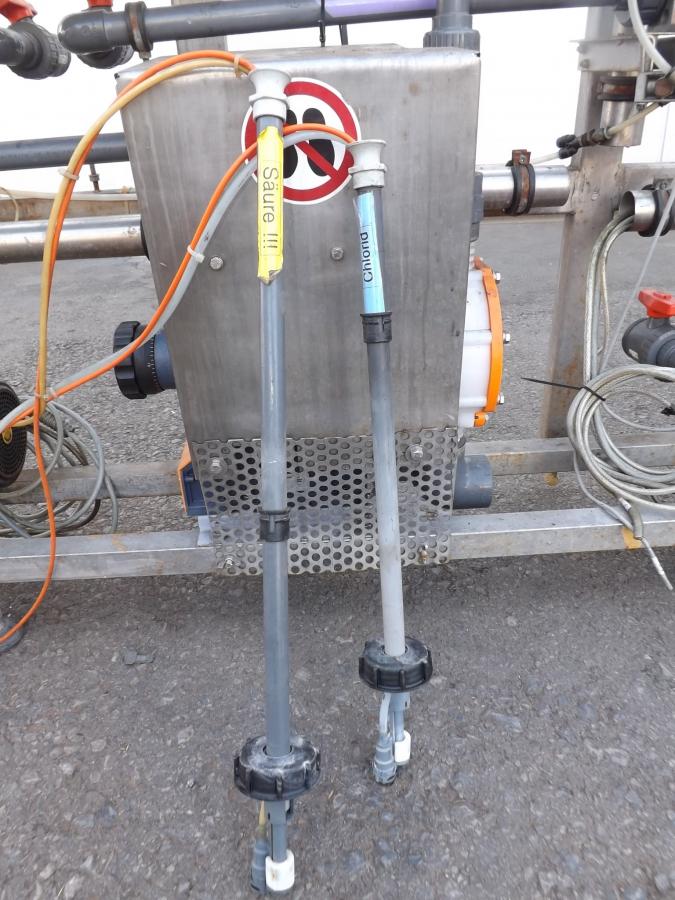

-	- (2x magnetic dosing pumps (Prominent gamma / 4) with suction lance)
-	- (reactor)

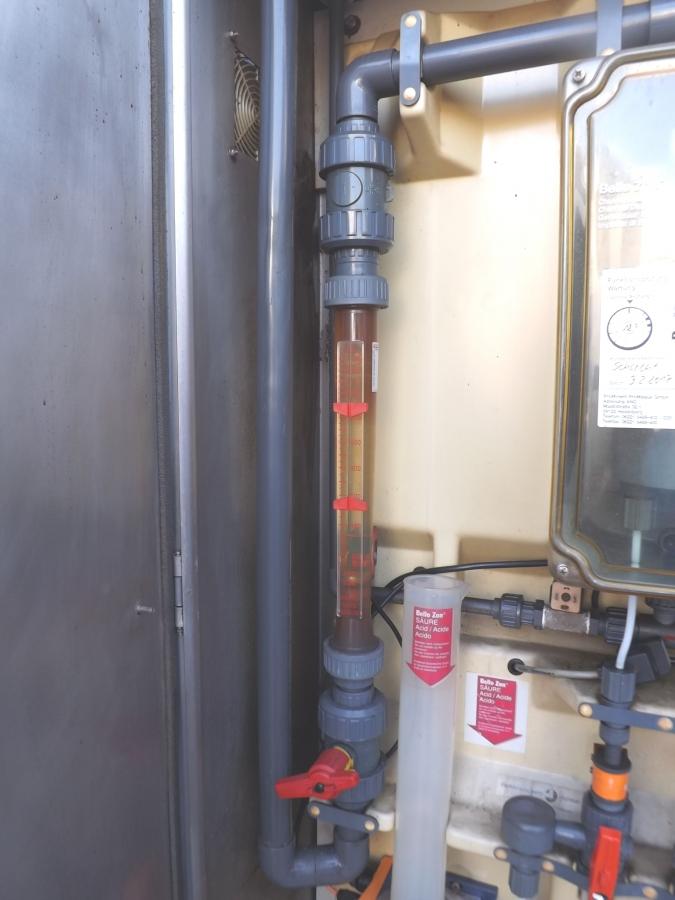

-	- (bypass monitoring)

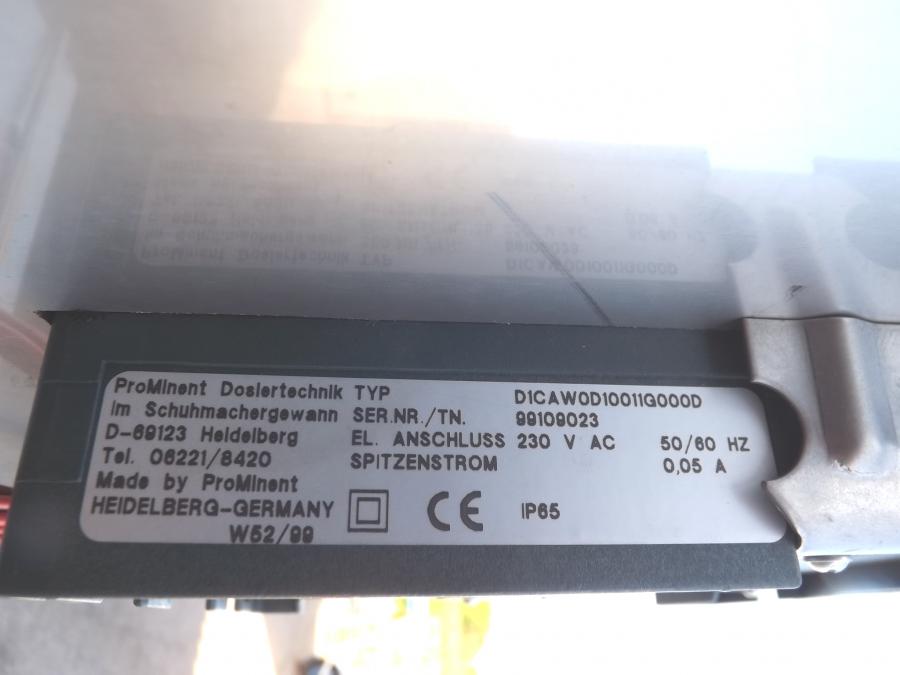

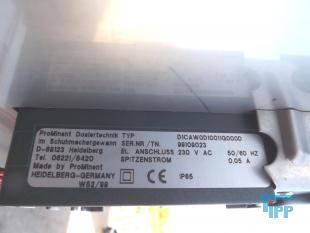

-	- (prominent D1C chlorine dioxide data logging)
-	- (Flow monitoring of dosing pumps)
-	- ()

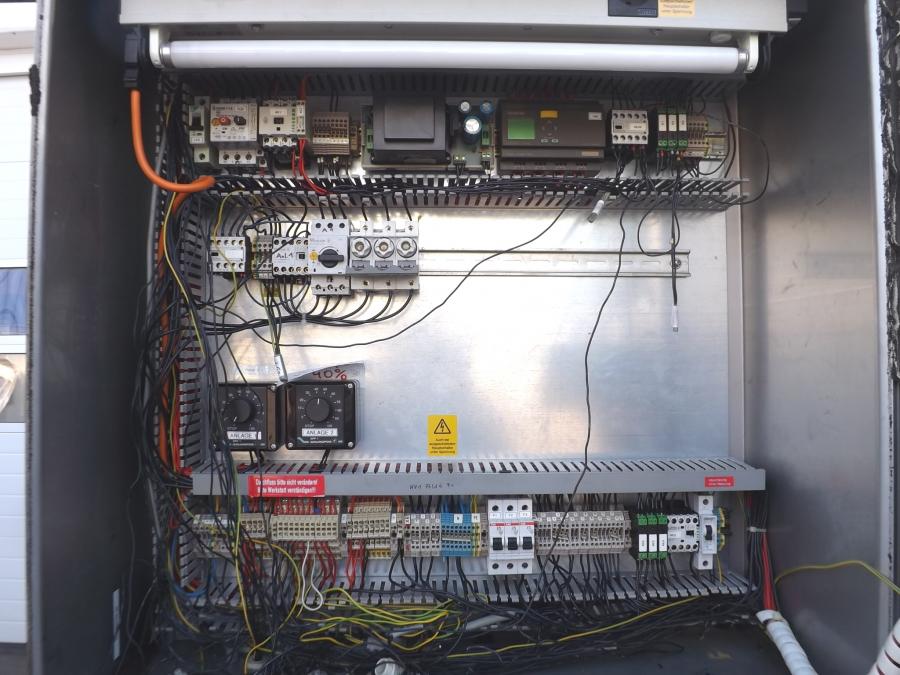

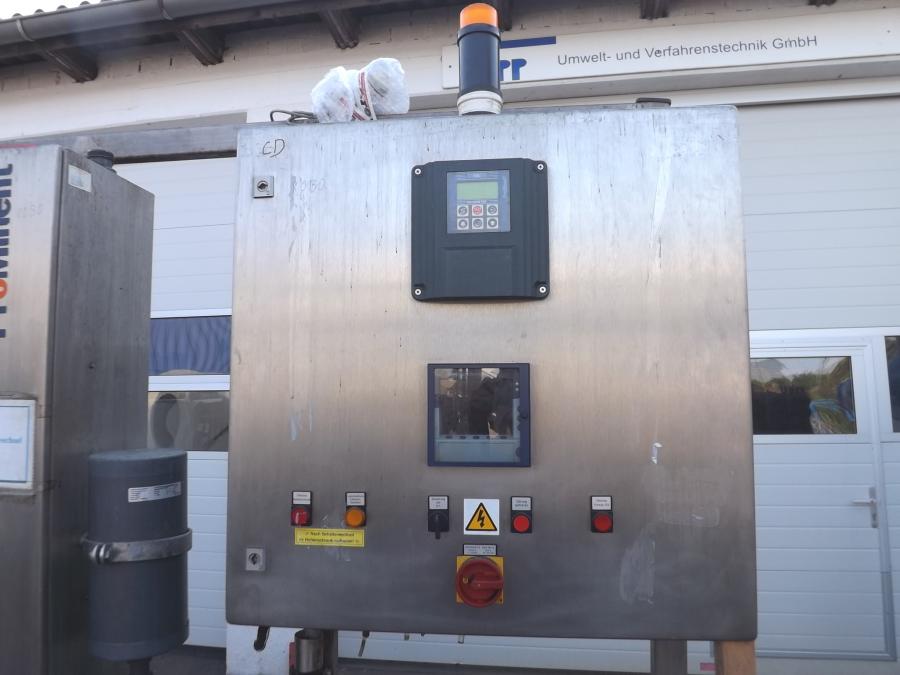

Further information	(Accessories of the entire system which can be integrated with the continued operation of the chlorine dioxide system or otherwise. (Entire system mounted on stainless steel frame, such as pumps and control cabinets))

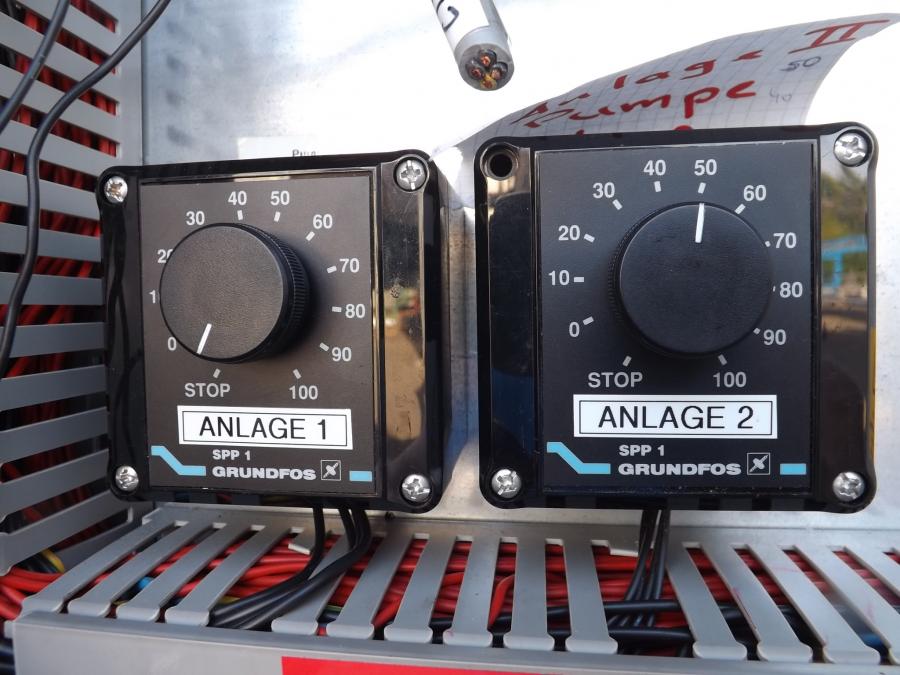

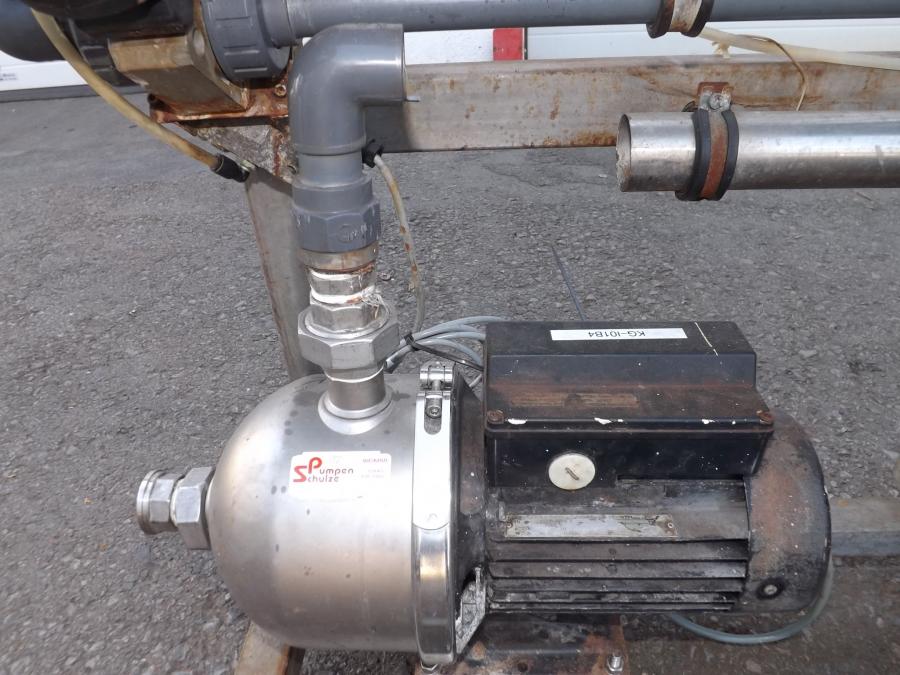

-	- (1x Grundfos centrifugal pump (stainless steel pump head))
Lifting height	50 m ()

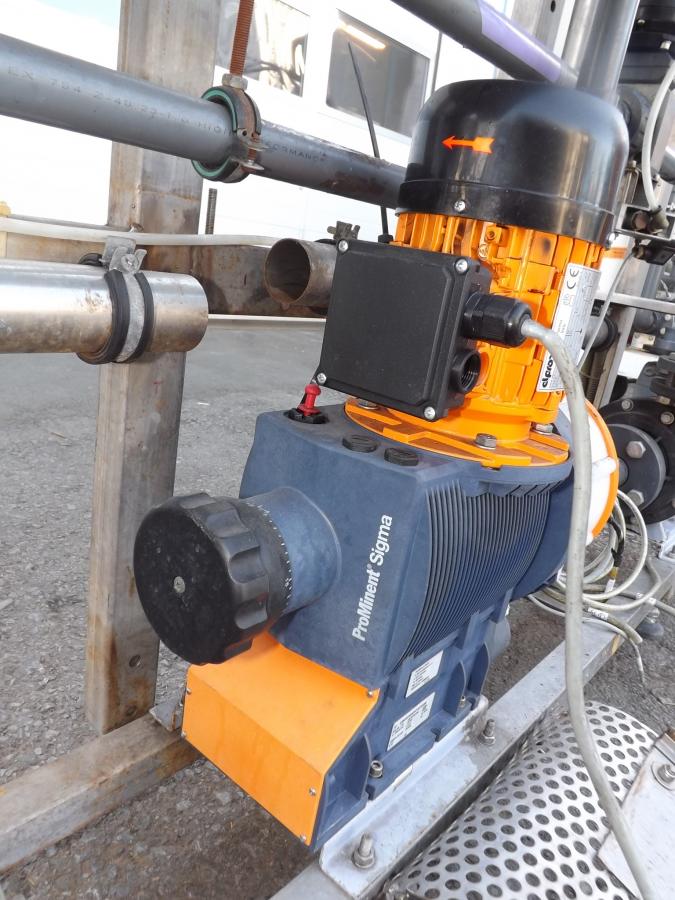

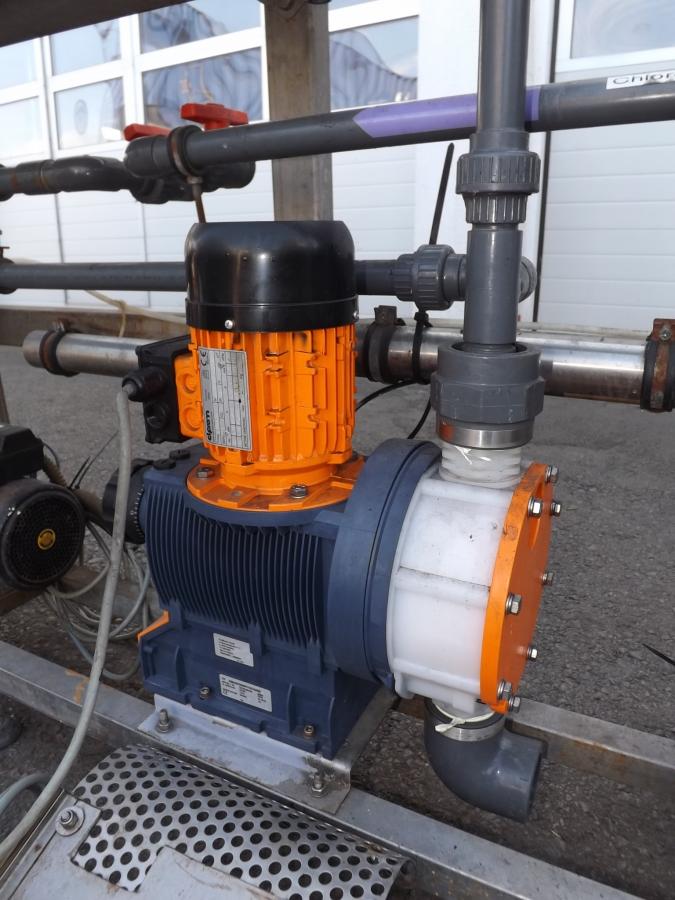

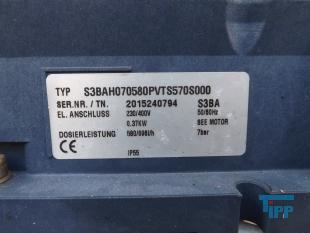

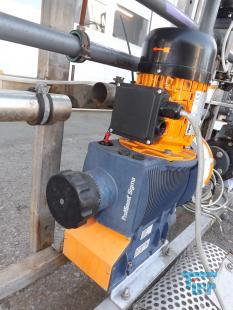

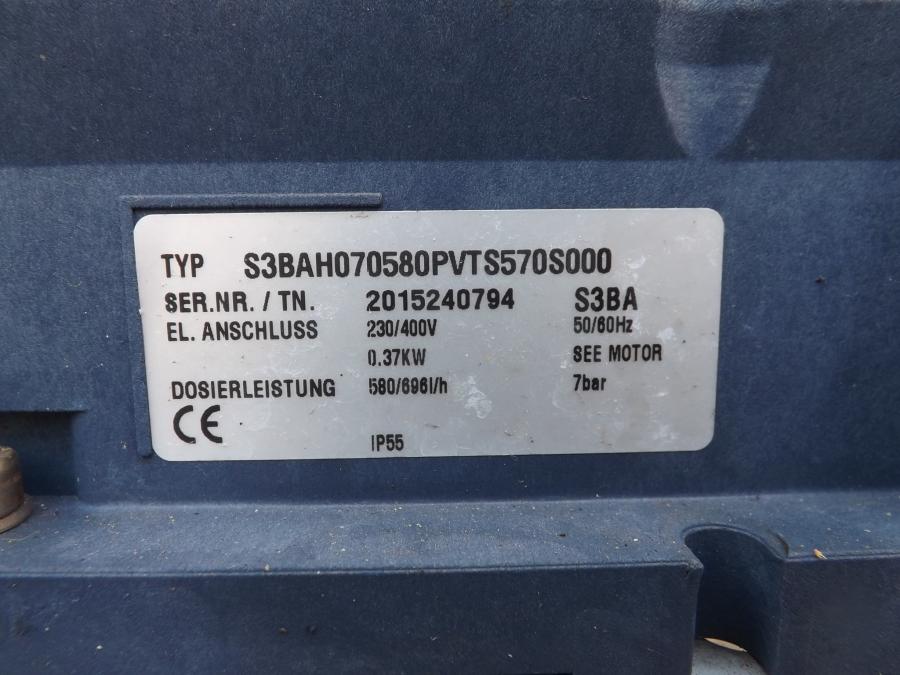

-	- (1x dosing pump Sigma)
Delivery rate	690 l/h ()
Pressure	7 bar ()

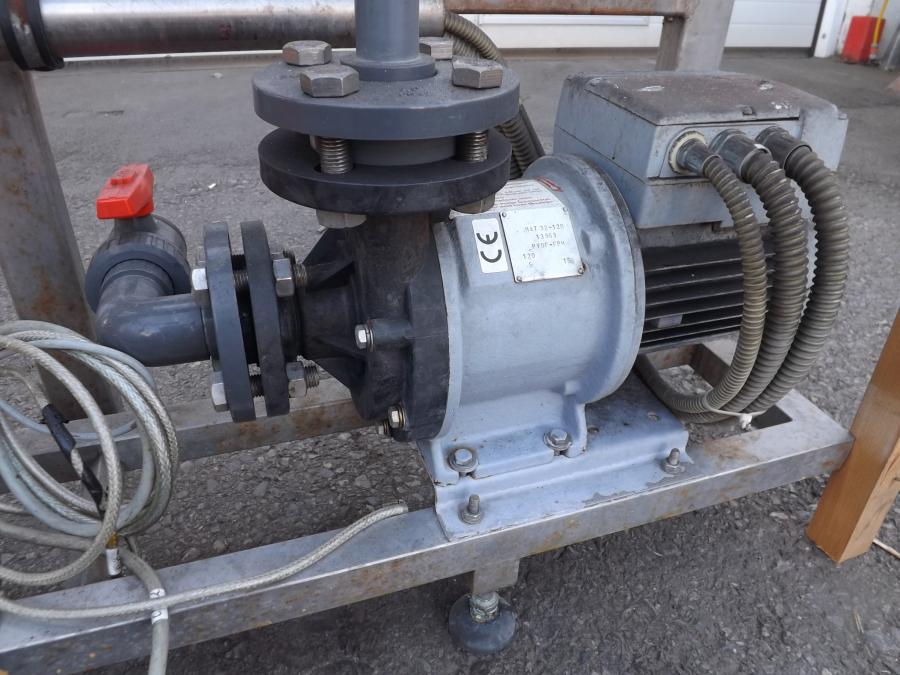

-	- (1x Stübbe centrifugal pump (Mat 32-120))
Length	2100 mm
Width	350 mm
Height	2250 mm

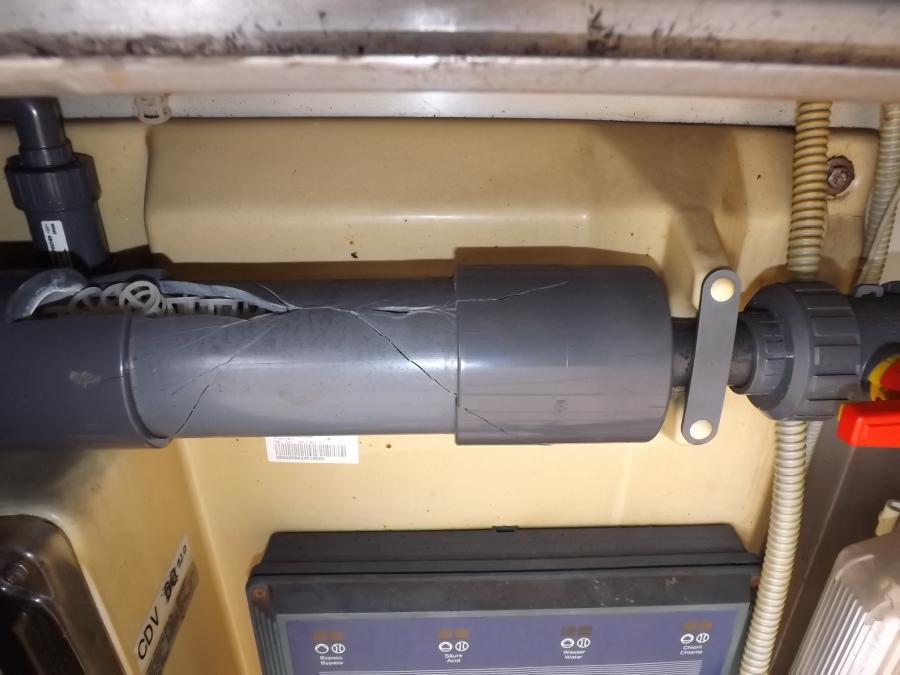

Further information	- (Mixer has to be replaced (SEE PHOTO))
