air operated diaphragm pump

details to article: 28995

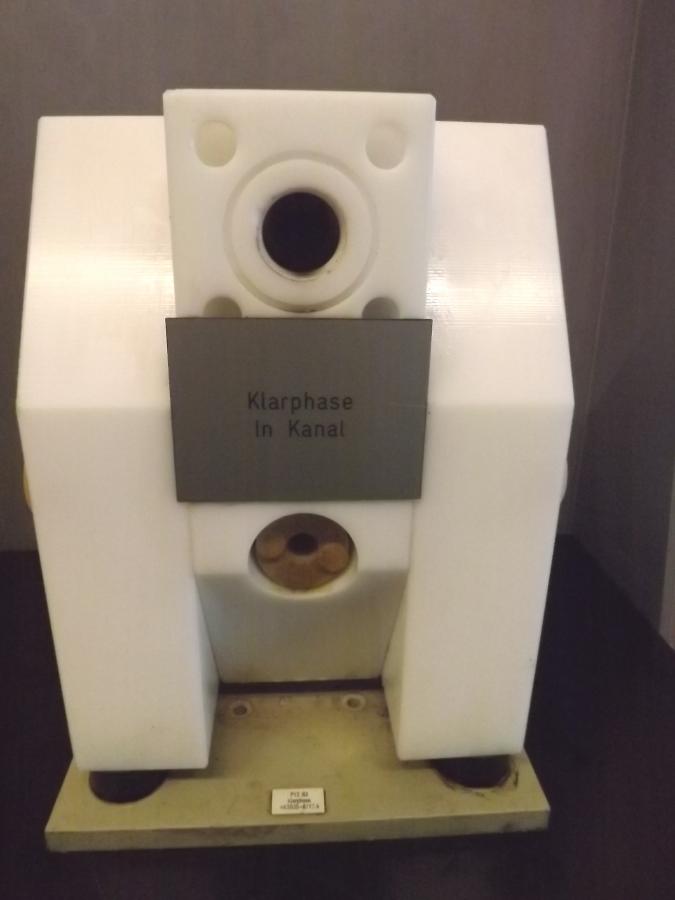

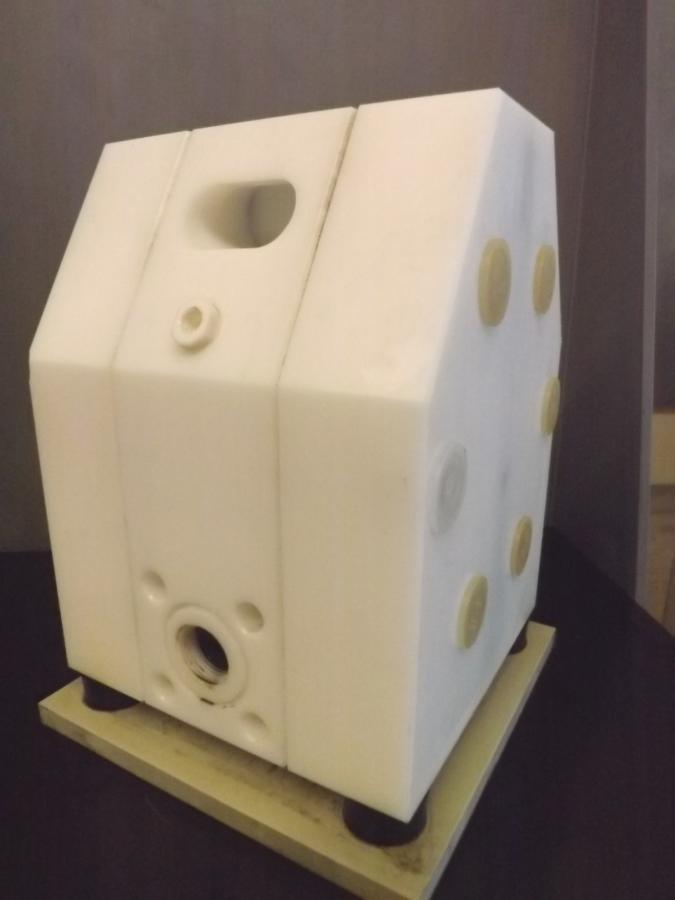

description: Compressed air diaphragm pump from ALMATEC with snubber and flange connection

Producer:ALMATEC

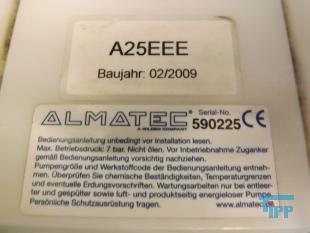

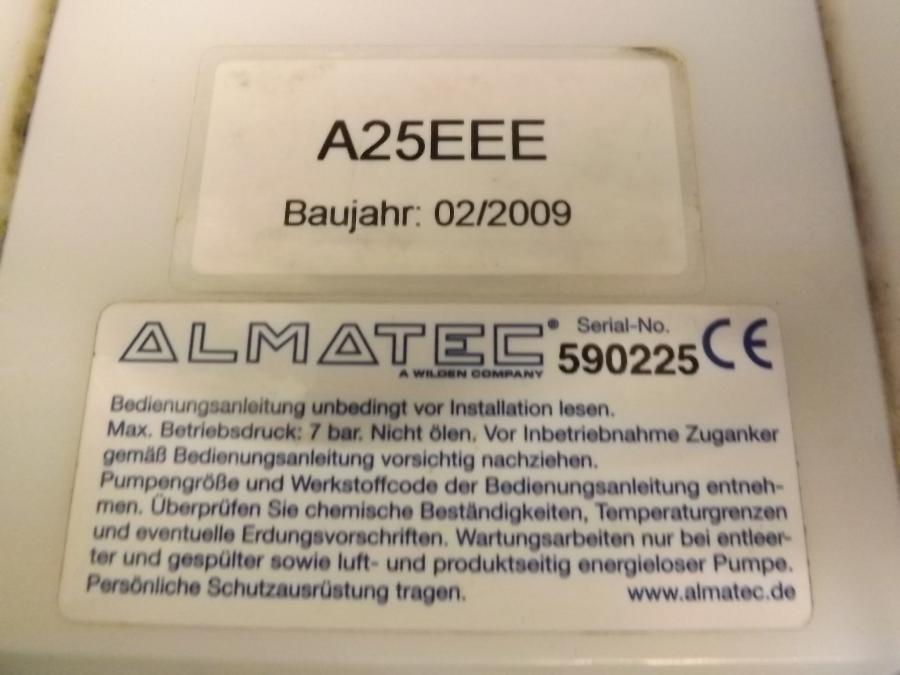

Typ:A25 EEE
Year of manufacture:2009
Pieces:1



technical data

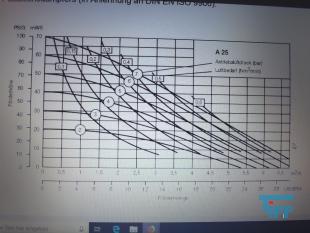

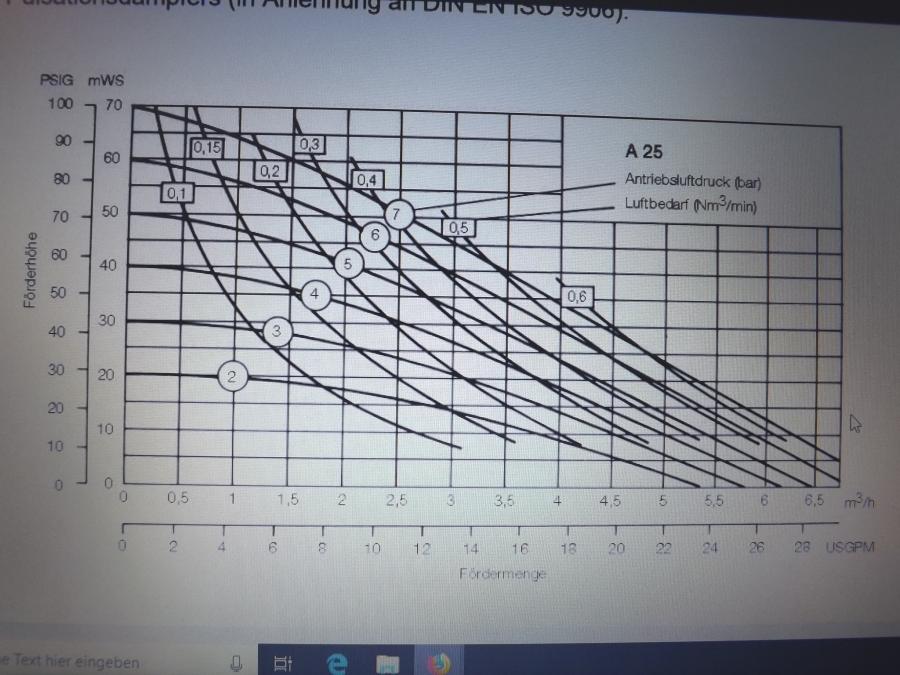

Delivery rate  7 m³/h (Max. (information without backpressure))
Pressure  7 bar (max. operating pressure)

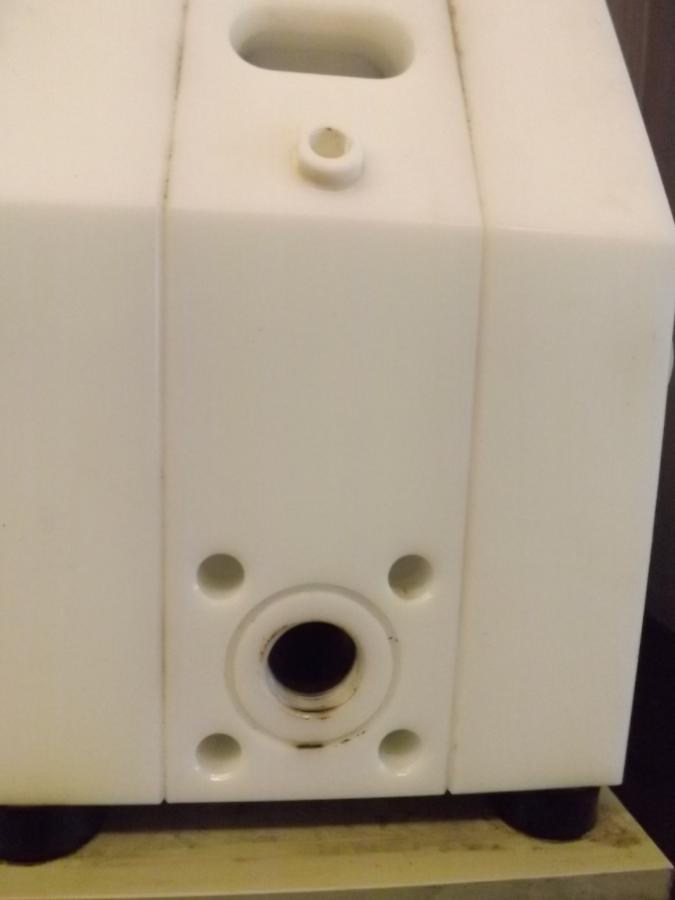

Connections  2x 1" `` (inlet - outlet)
Connections  (R 1/4 compressed air connection inner thread)
Material  - ()
Suction head  3 m (dry)
Suction head  9.5 m (productfilled)
Diameter  6 mm ()
Length  220 mm
Width  231 mm
Height  320 mm
Weight  13 kg
