used UV sterilization plant mounted a a plate with flow meter

details to article: 29101

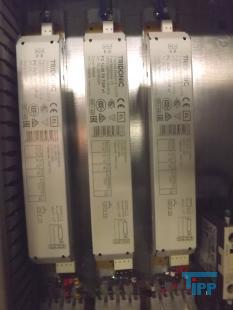

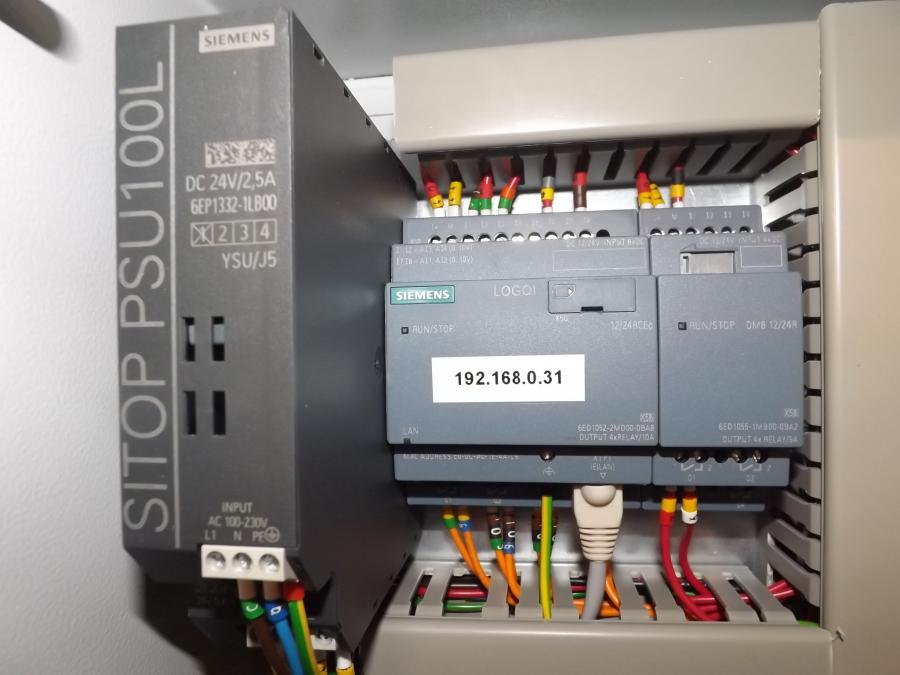

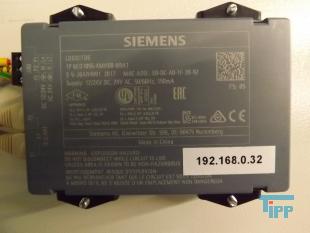

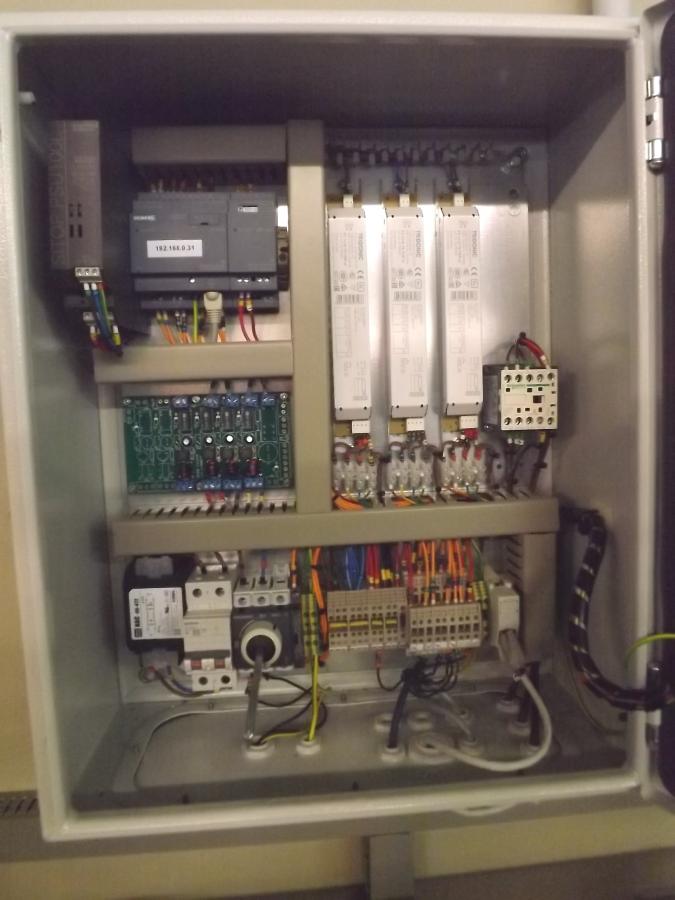

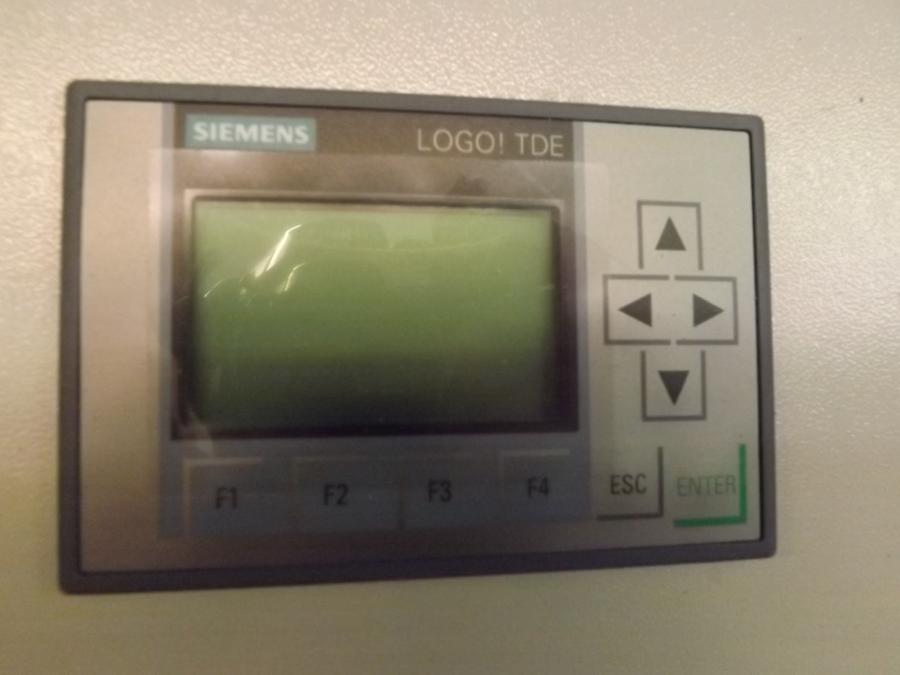

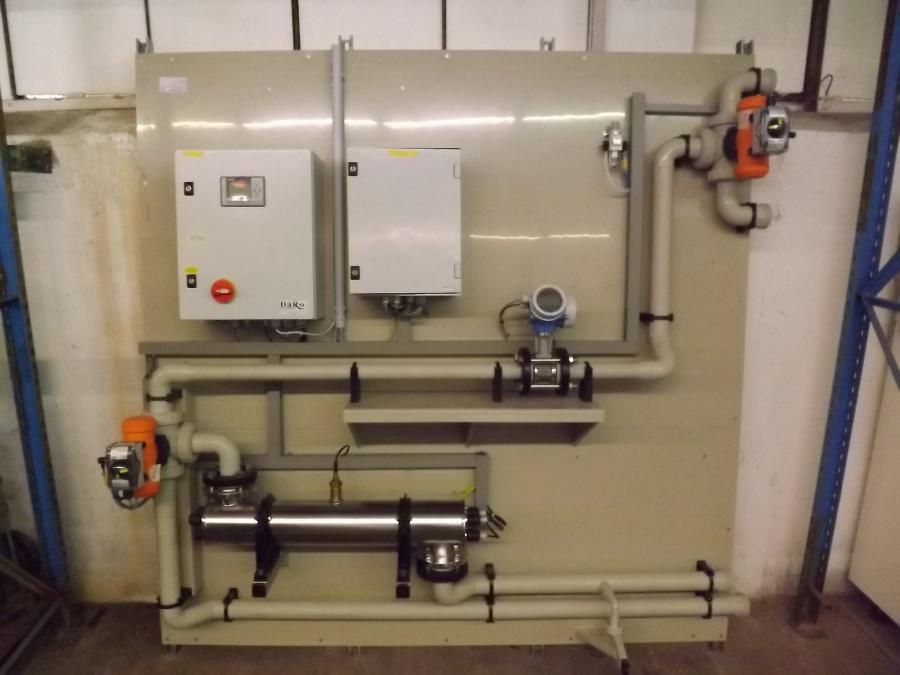

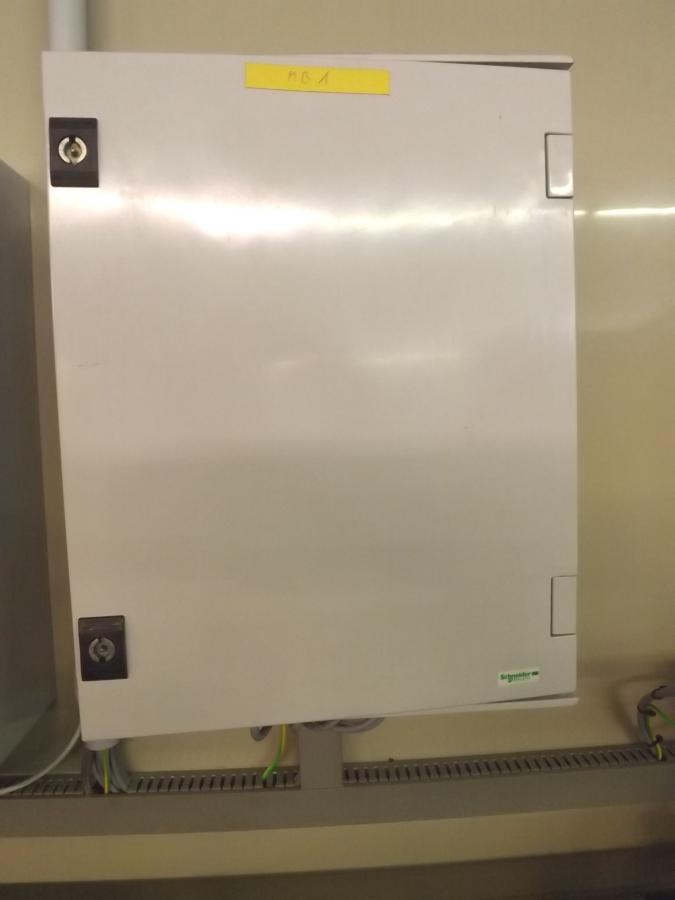

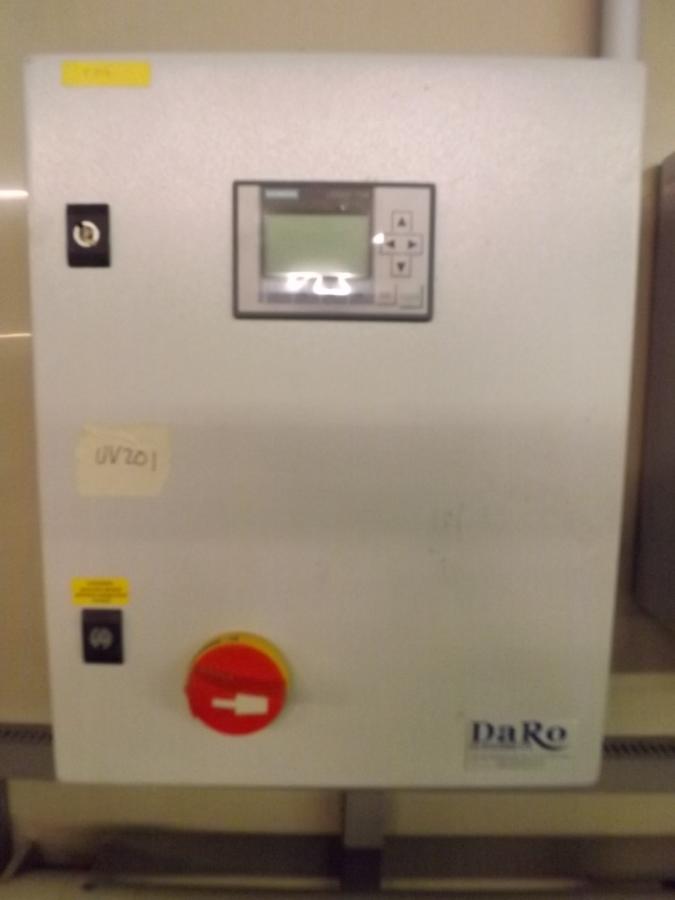

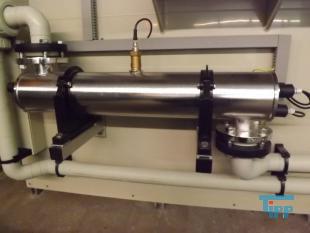

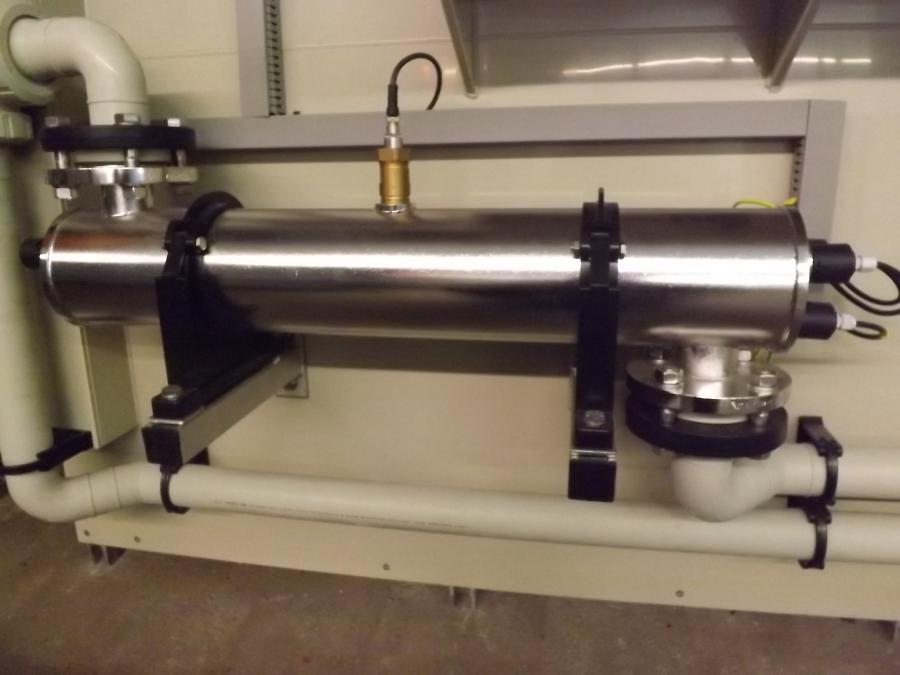

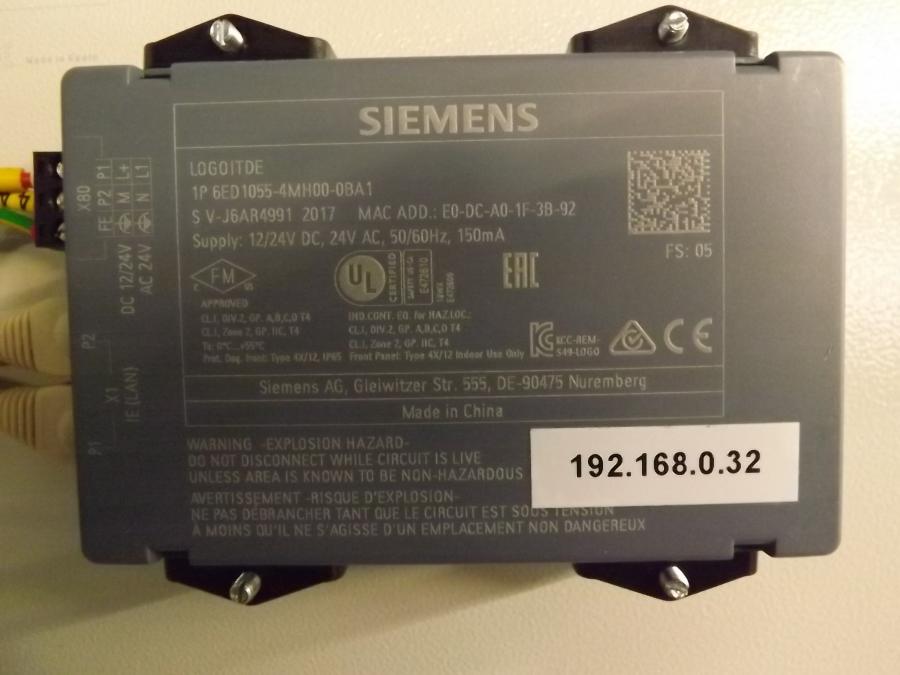

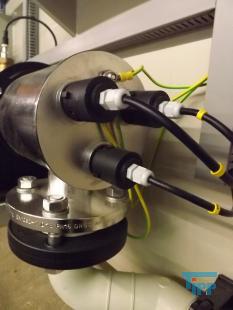

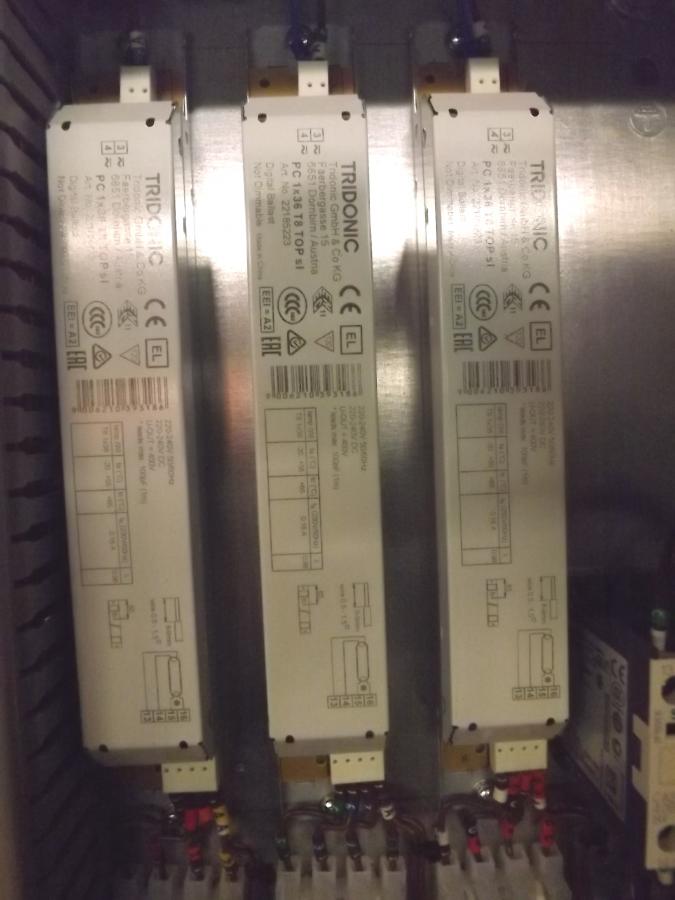

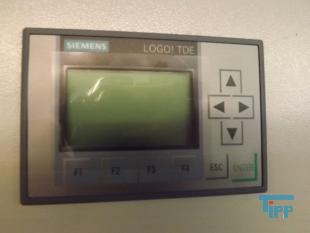

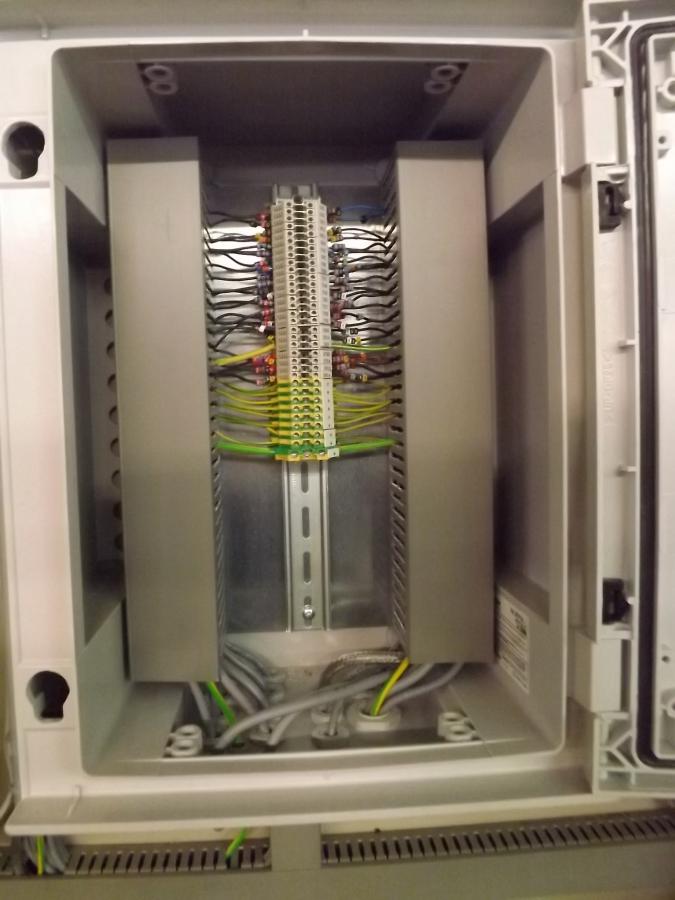

description: UV reactor system mounted on PP board for wall mounting. Control cabinet with Siemens logo TDE text display, terminal box, flow meter, 3-way ball valve and UV reactor.

Producer:	DaRo
Typ:	Serie 5 / 3 x 36 Watt UV
Year of manufacture:	2017
Pieces:	1

technical data

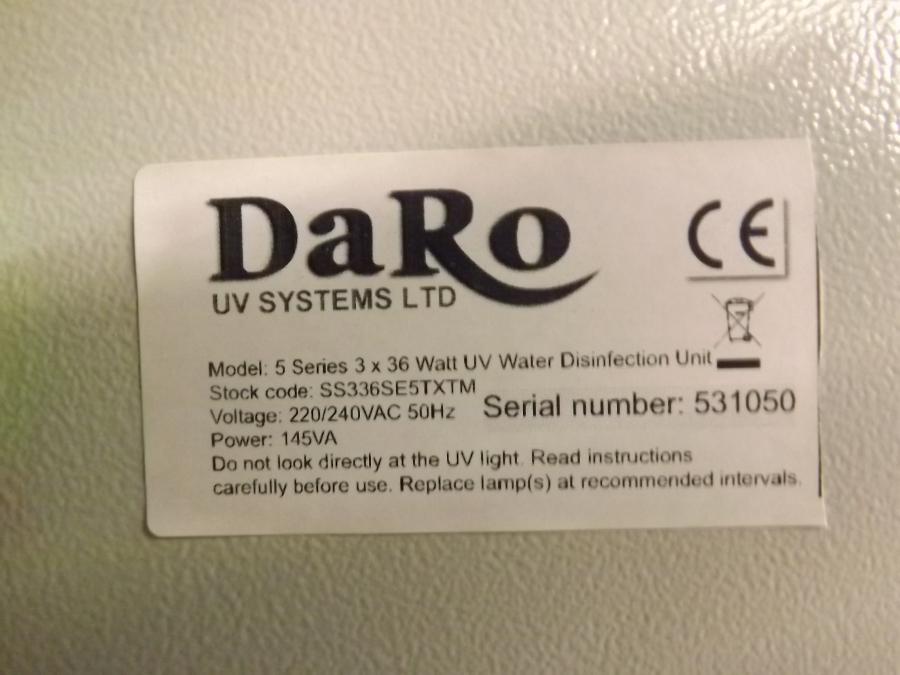

-	SS336SE5TXTM / 531050 (Warehouse code / serial number)
Power	19 m³/h (Max. Flow)
Pressure	10 bar (total)
Type of connection	- (Connection 2-inch BSP connector)

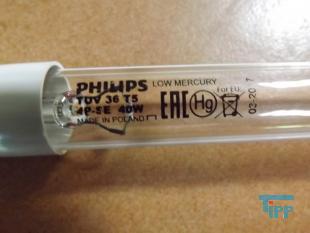

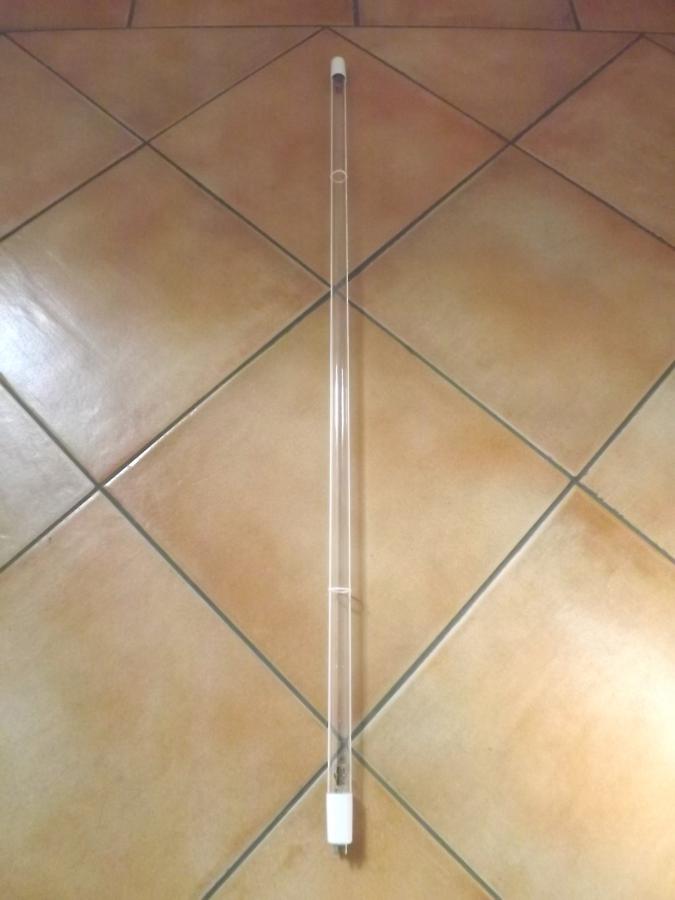

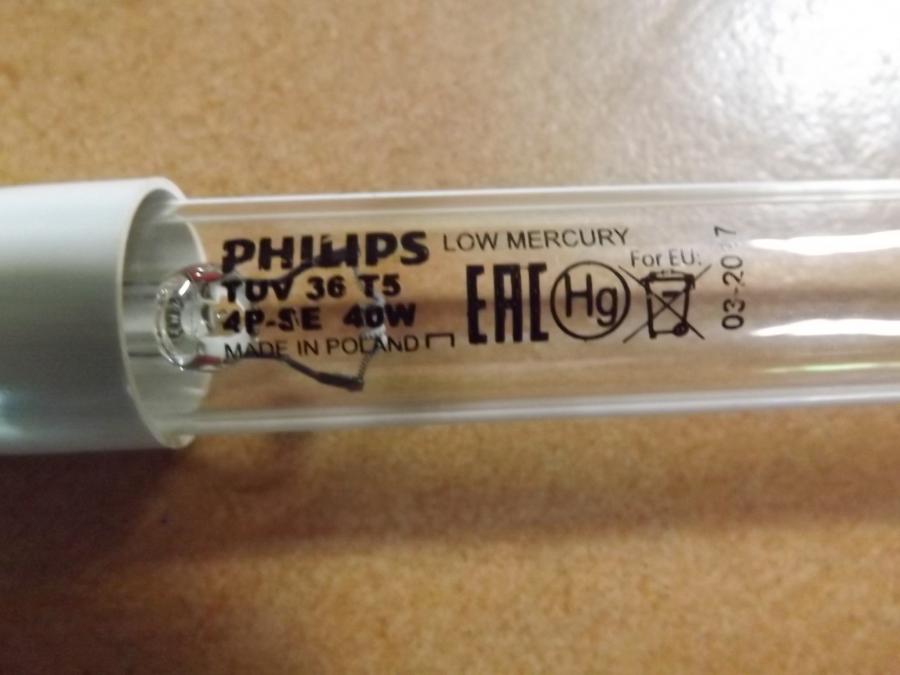

Power	3x 40 W (UV lamp (Philips TUV 36T 4P-SE 40W))
Length	850 mm
Power	145 (Rated power VA (single-phase))

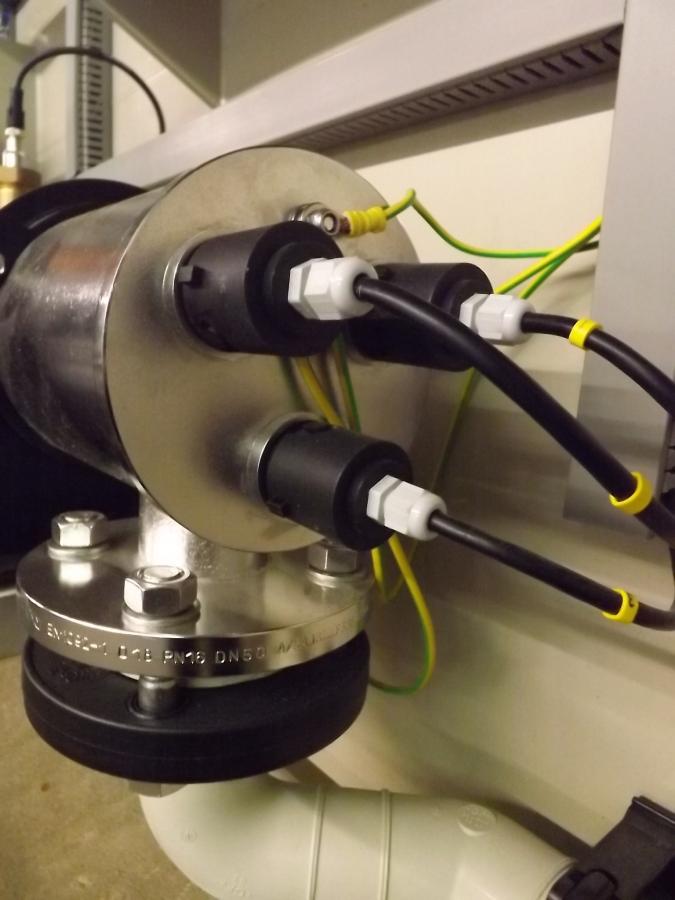

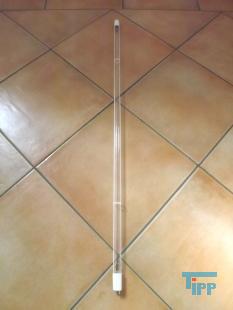

-	1.4404 / QTZ 36 (Stainless steel reactor / quartz sleeve)
Connections	2x DN50 (flange)

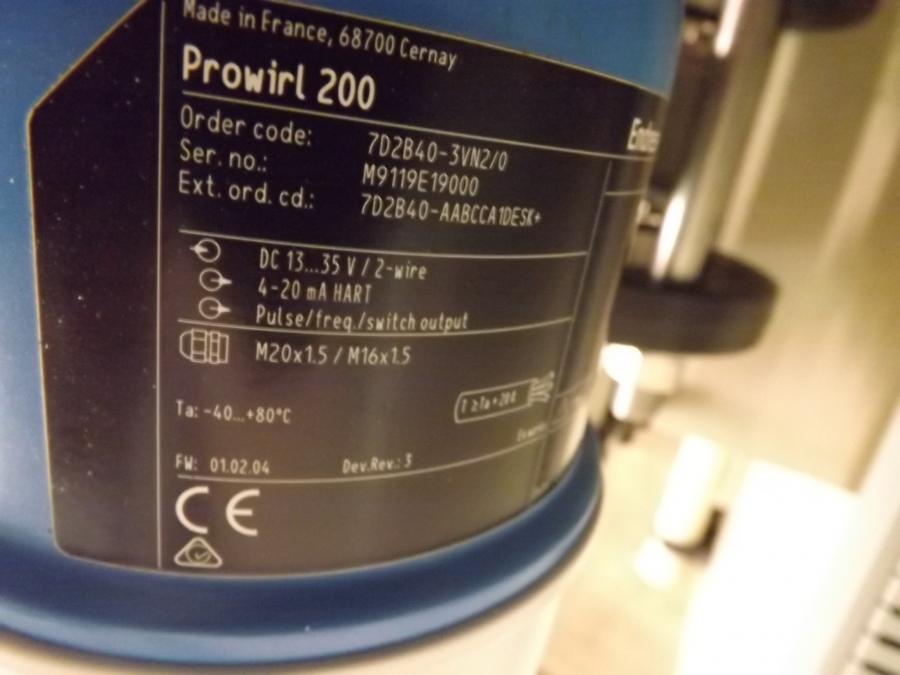

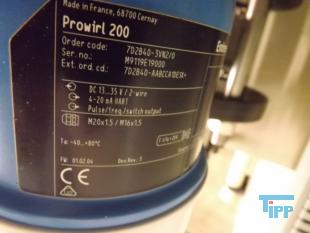

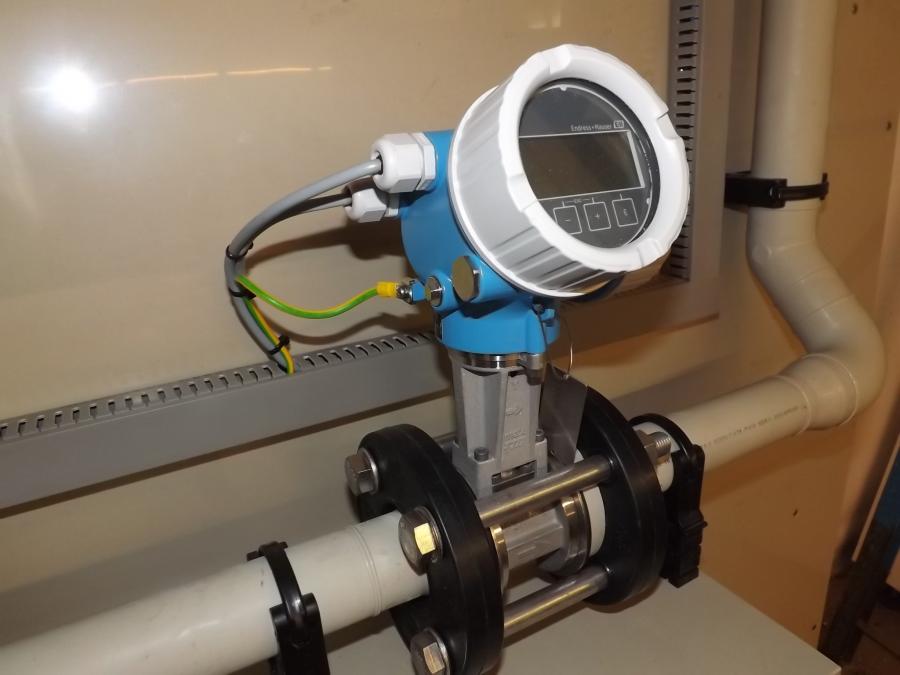

-	- (Inductive flowmeter Prowirl 200 from Endress + Hauser)

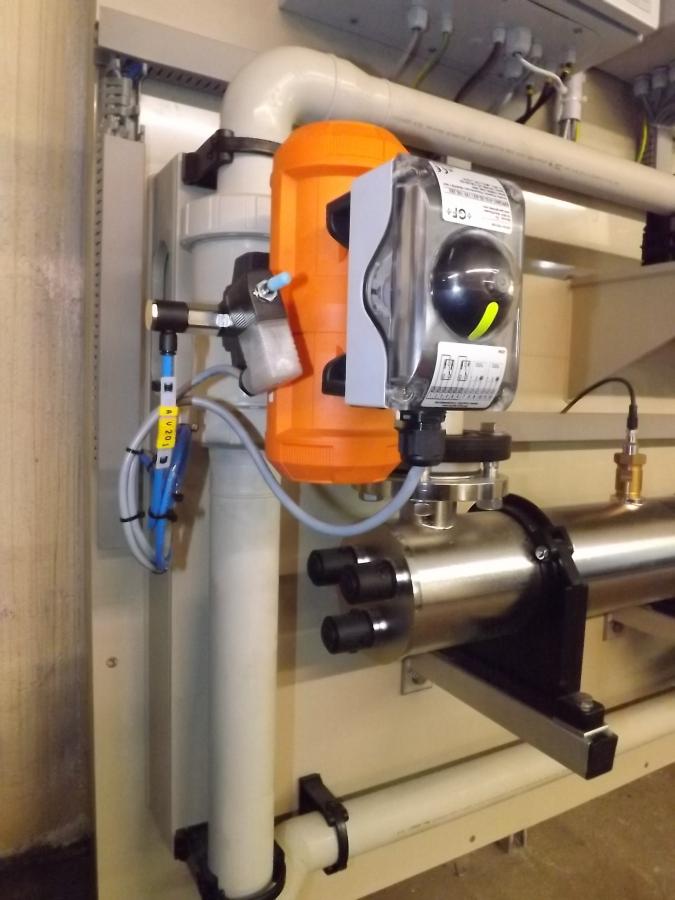

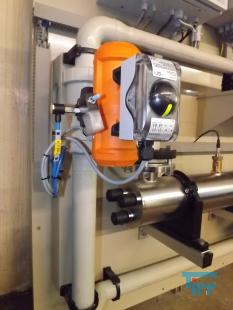

-	- (2x Pneumatic 3-way ball valve with position indicator by Endress + Hauser)
Further information	- (PP piping in DN50)
Dimensions	- (total)
Length	2050 mm
Width	360 mm
Height	2100 mm
