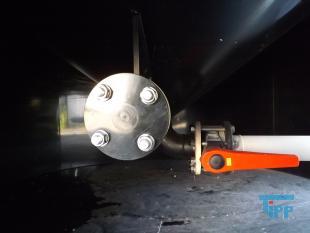

used plastic sedimentation tank PE conical bottom
details to article: 29189
description: Round tank made of PE with settling funnel / cone bottom
| Producer: | atea |
| Year of manufacture: | 2004 |
| Pieces: | 1 |
technical data |
| Volume | 3.65 m³ (Effective volume) | | Volume flow rate | 10.0 m³/h (Max. Volume flows (filling / emptying)) | | Temperature | 0 - +40 °C () | | Tank bottom | konisch | | Material | PE | | Connections | 2X DN65 / 1X DN20 mm (side) | | Connections | 1x DN80 / 1x DN40 | | Diameter | 500 mm (manhole) | | Diameter | 1800 mm (tank) | | Height | 2530 / 2600 mm (tank) | | Dimensions | - (tank inside) | | Height | 2100 /600 mm (total / cylinder) | | Weight | 325 kg | | Further information | - (Manhole and connections above were separated) |
