tank
details to article: 29195

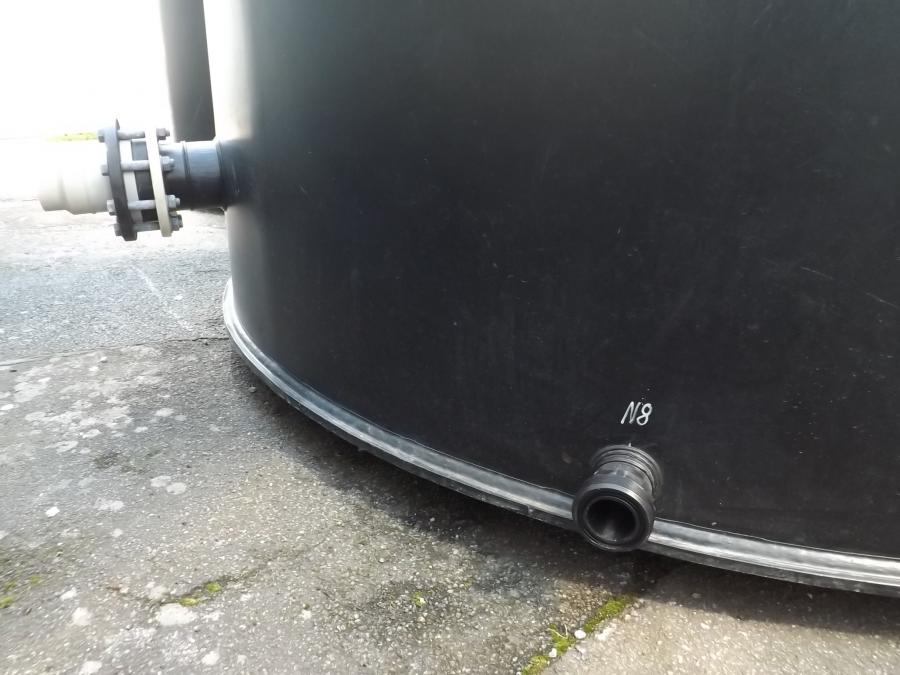

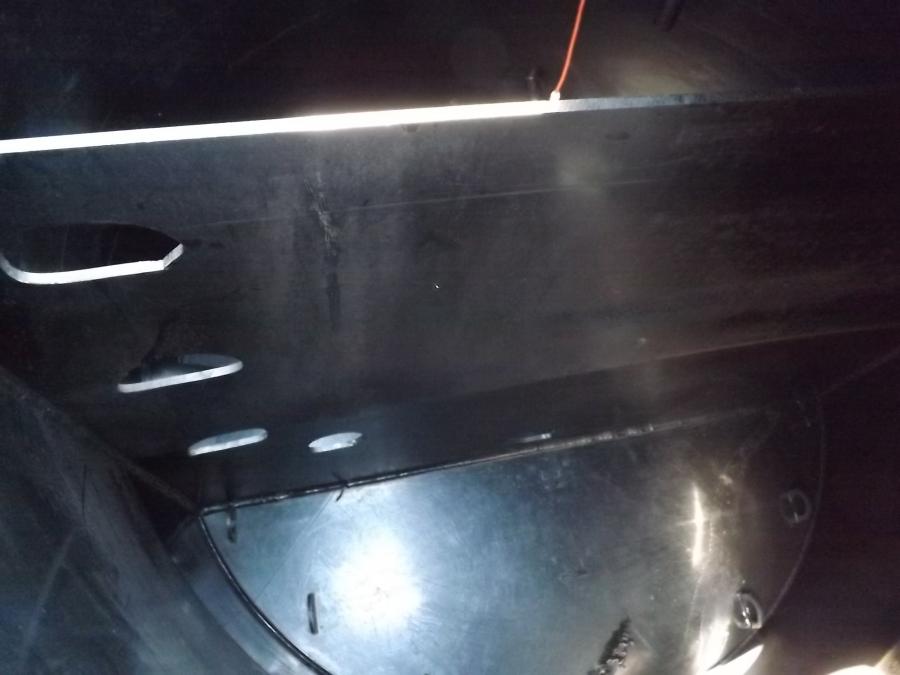

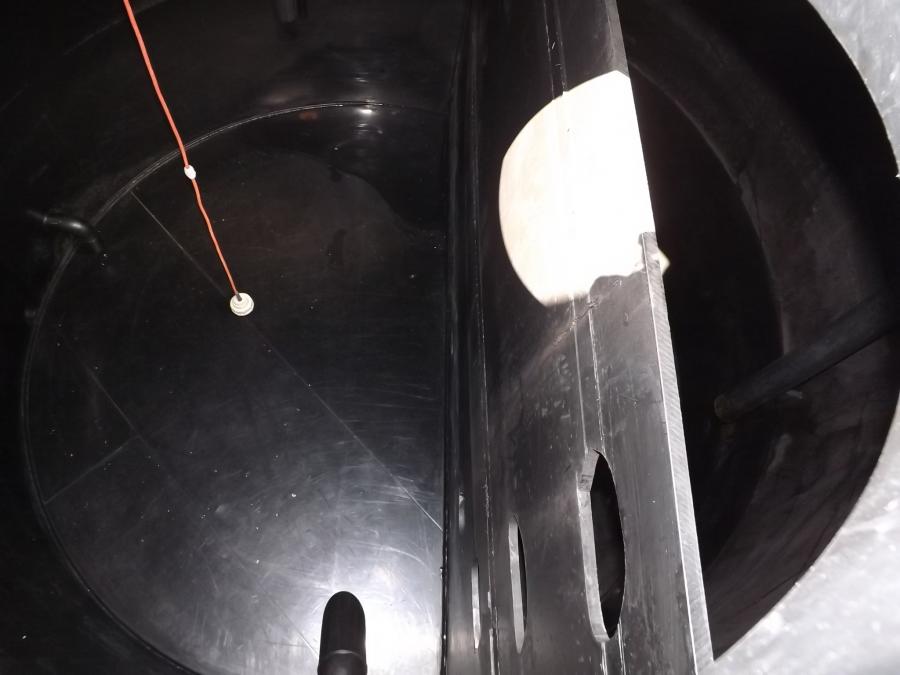

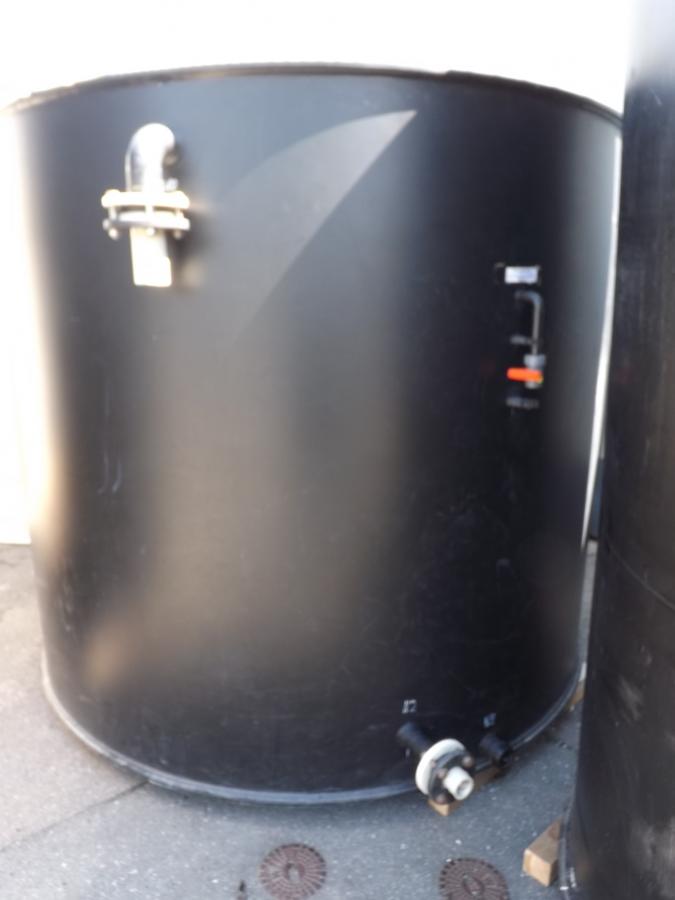

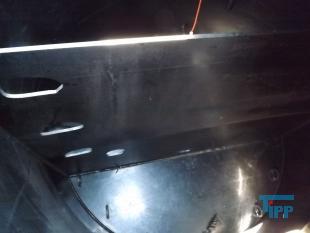

description: Round tank made of PE with 2x manhole and intermediate wall. Height of the separation 1650 with 5 bushings of approx. 200mm x 120mm.

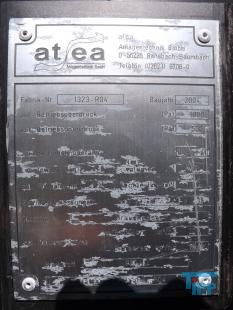

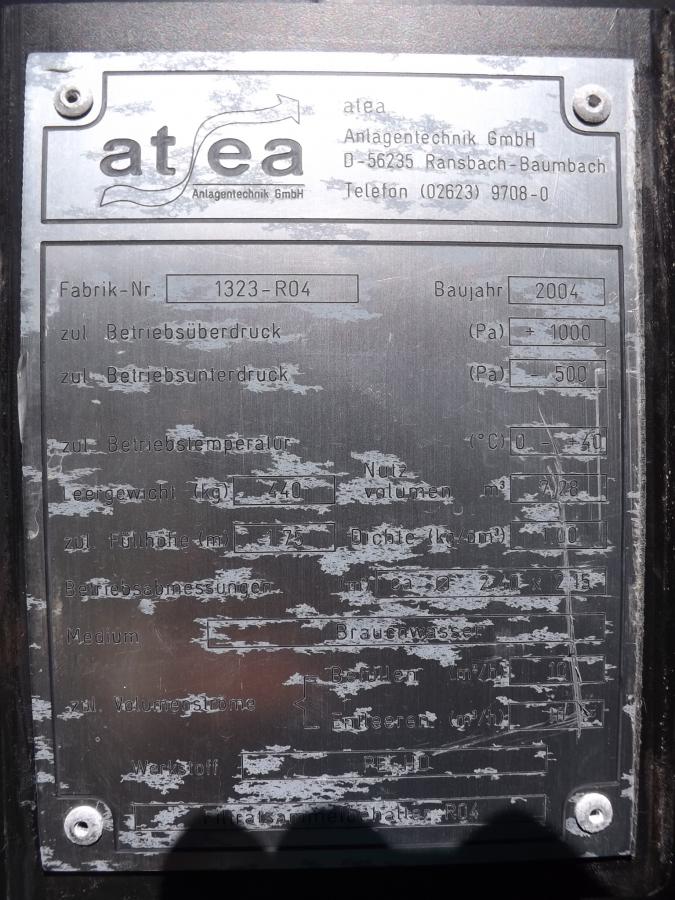

Producer: | atea |
Typ: | Rundbehälter |
Year of manufacture: | 2004 |
Pieces: | 1 |
technical data |
Volume | 7.28 m³ (Effective volume) | Tank bottom | flach | Material | PE | Connections | DN100 / DN465/ 3x DN / DN20 mm (side) | Connections | DN100 / DN65 / DN50 / DN40 / 2x DN32 / DN25 (above) | Diameter | 500 mm (2x manhole) | Diameter | 2400 mm (tank) | Height | 2030 / 2330 mm (tank / total) | Weight | 350 kg () |
