backwash filter

details to article: 29199

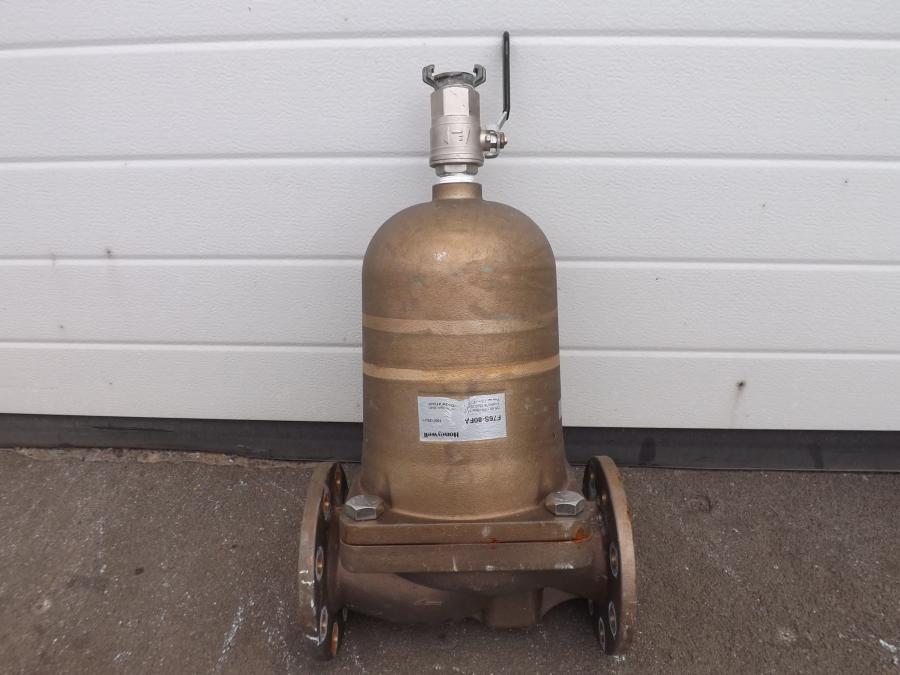

description: Backwash filter with countercurrent flange.
The filter is designed for systems with high water flow. It ensures continual supply of filtered water. The filtration can prevent contamination of the system by external solid particles, for example rust particles or grains of sand.

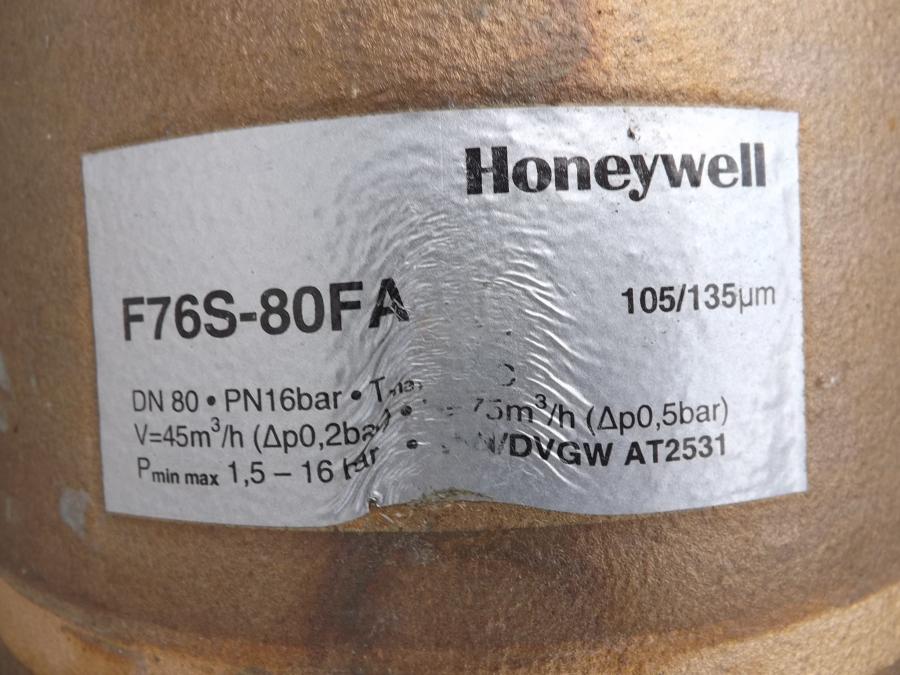

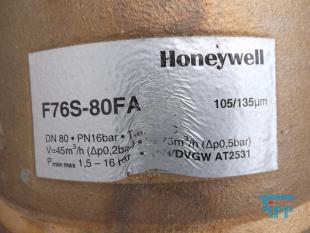

Producer:Honeywell
Typ:F76S-FA
Year of manufacture:2010
Pieces:1



technical data

Volume flow rate  45 / 75 m³/h (at 2.0 bar / at 0.5 bar)
Temperature  70 °C (Max. Fluid temperature)
Pressure  1.5 / 16 bar ()
Material  - (bronze)
Connections  DN80 (flange)
Dimensions  305 / 220 / 500 mm ()
Weight  38 kg
