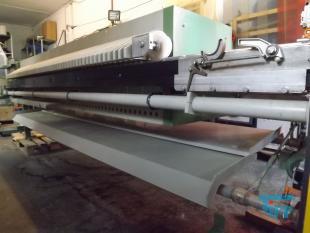

automatic Chamberfilterpress

details to article: 29231

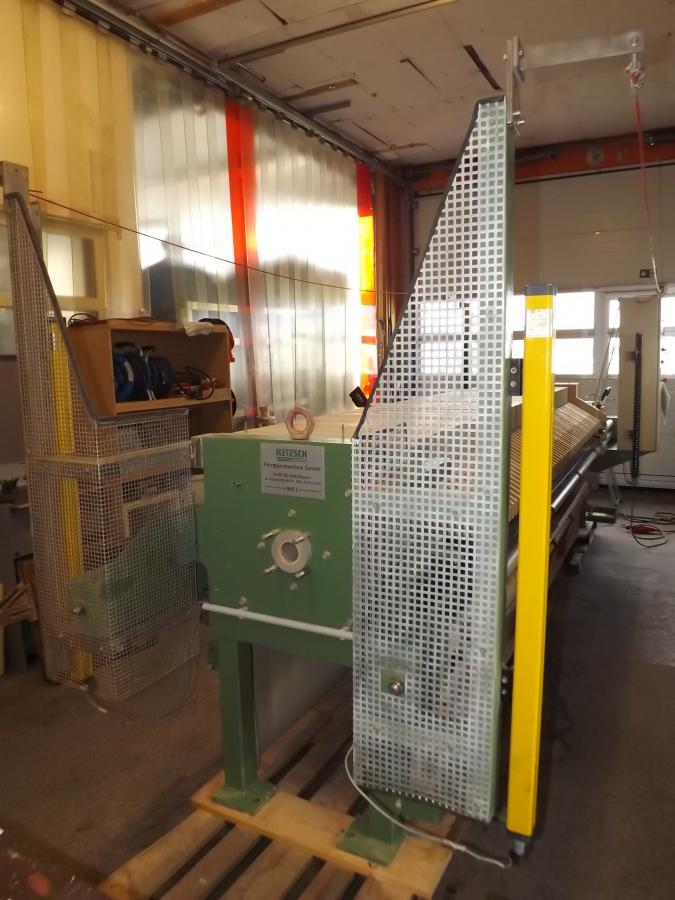

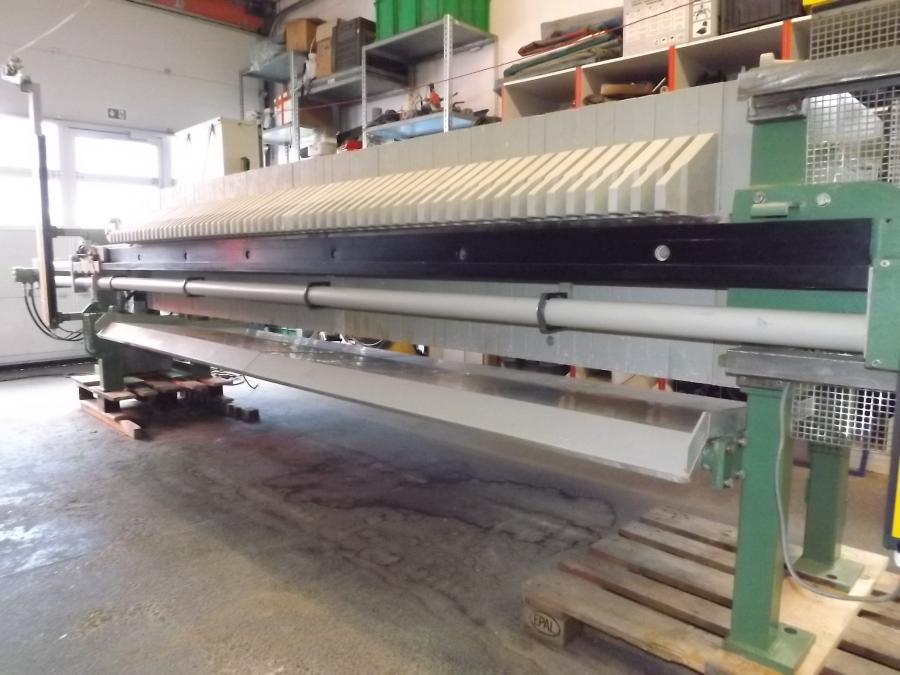

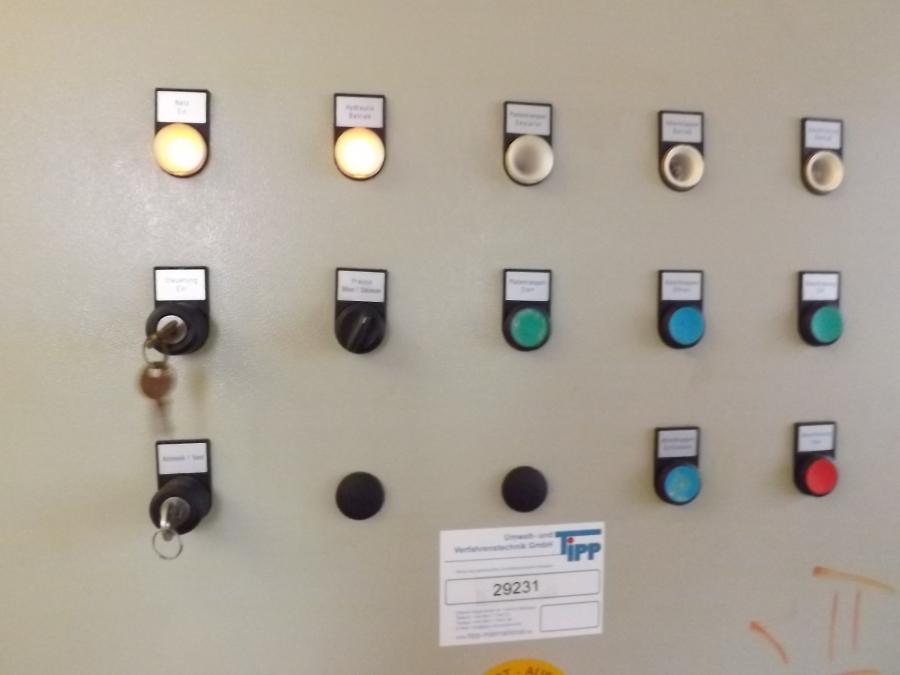

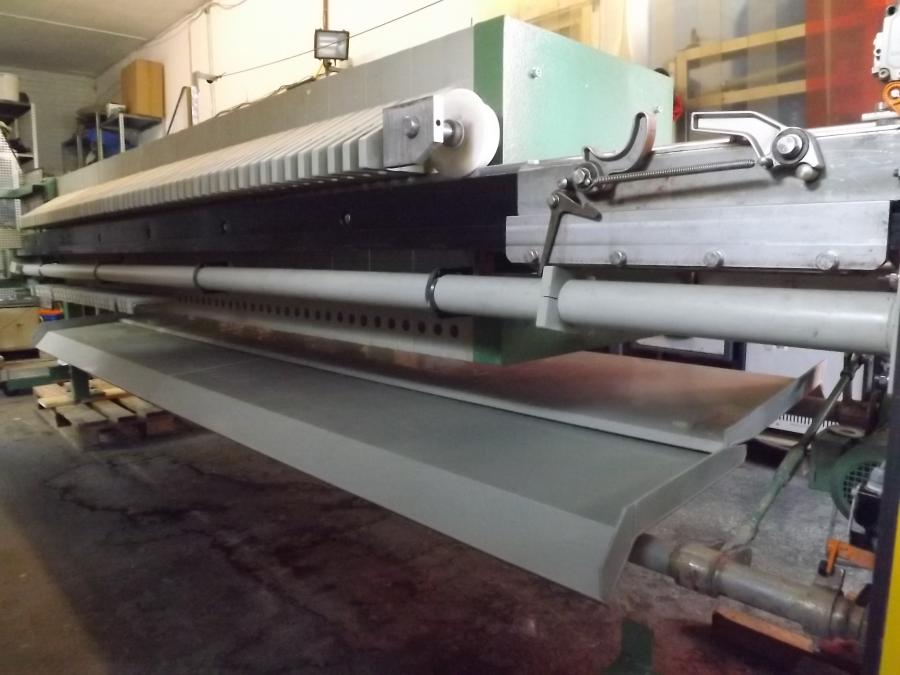

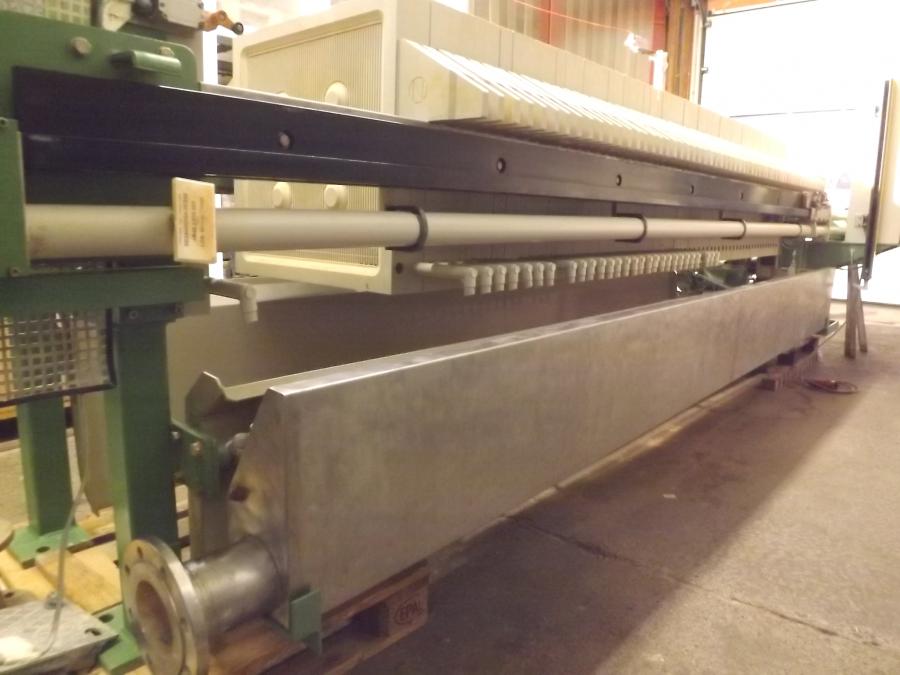

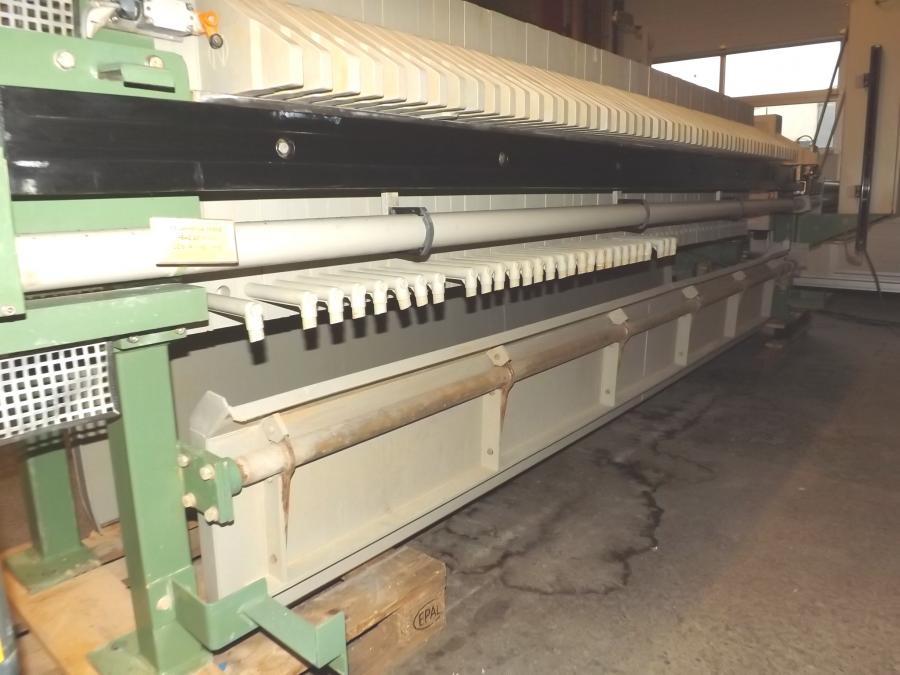

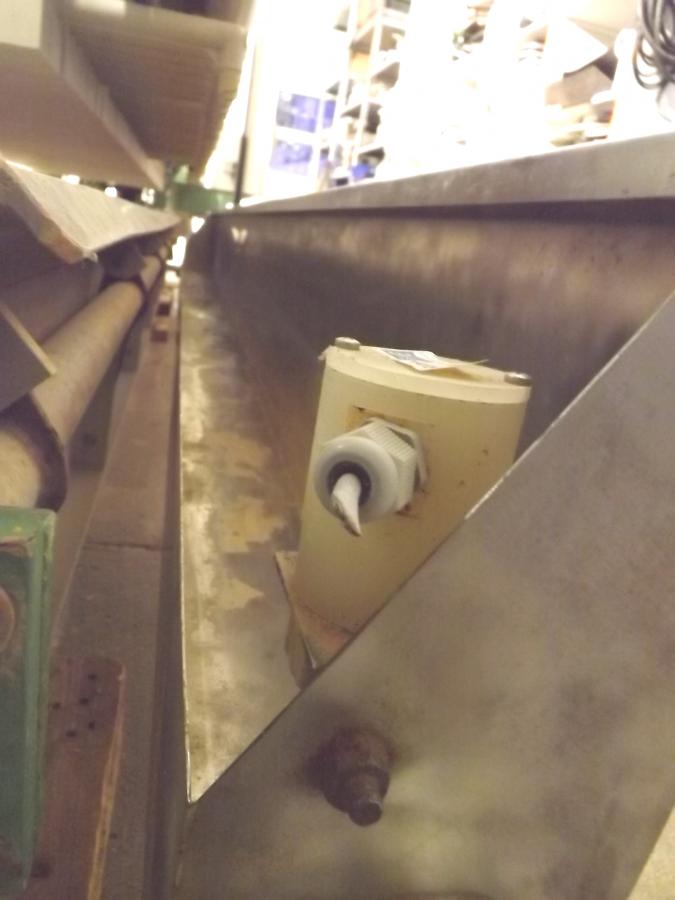

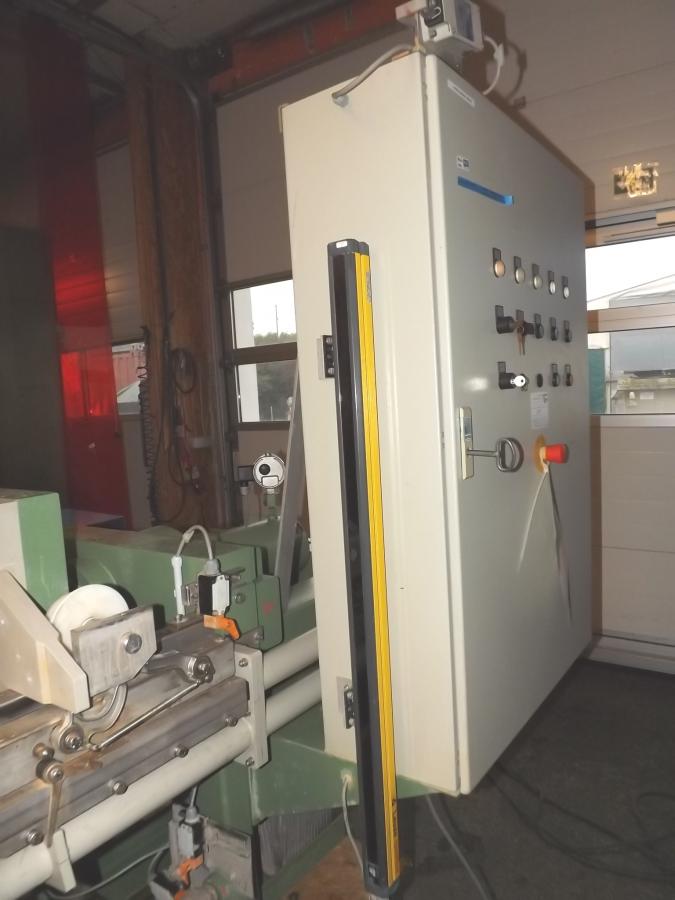

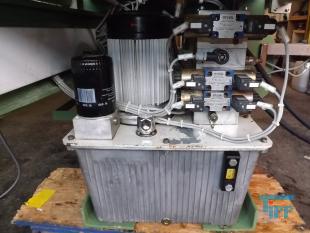

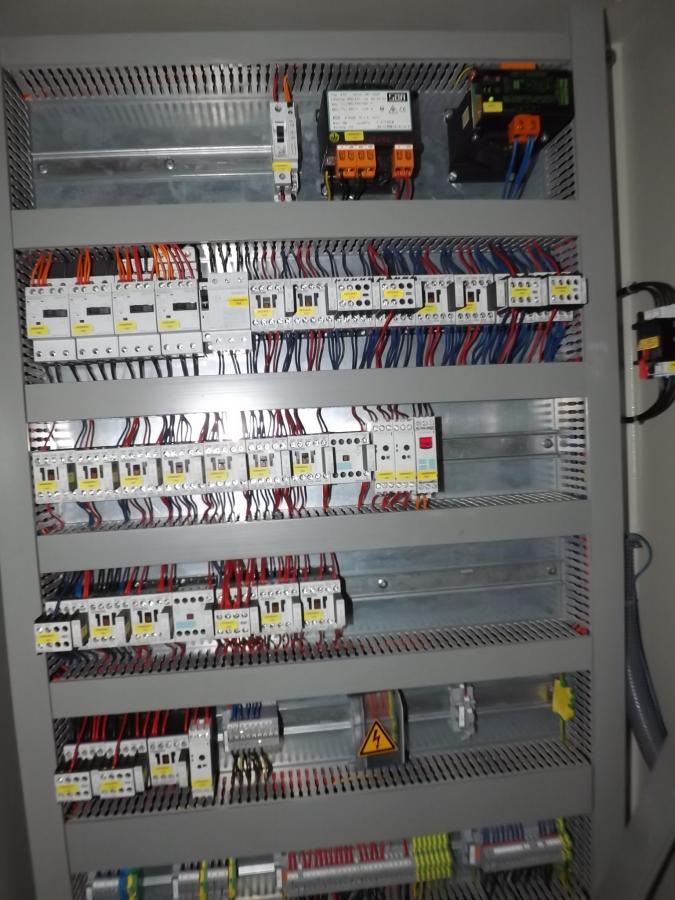

description: 630- chamber filter press with motor hydraulics, 4x light barriers, control cabinet, open filtrate drain, stainless steel filtrate duct, discharge valves made of PP (electrically controlled) and automatic plate displacement. Chamber filter press can be controlled manually or automatically.

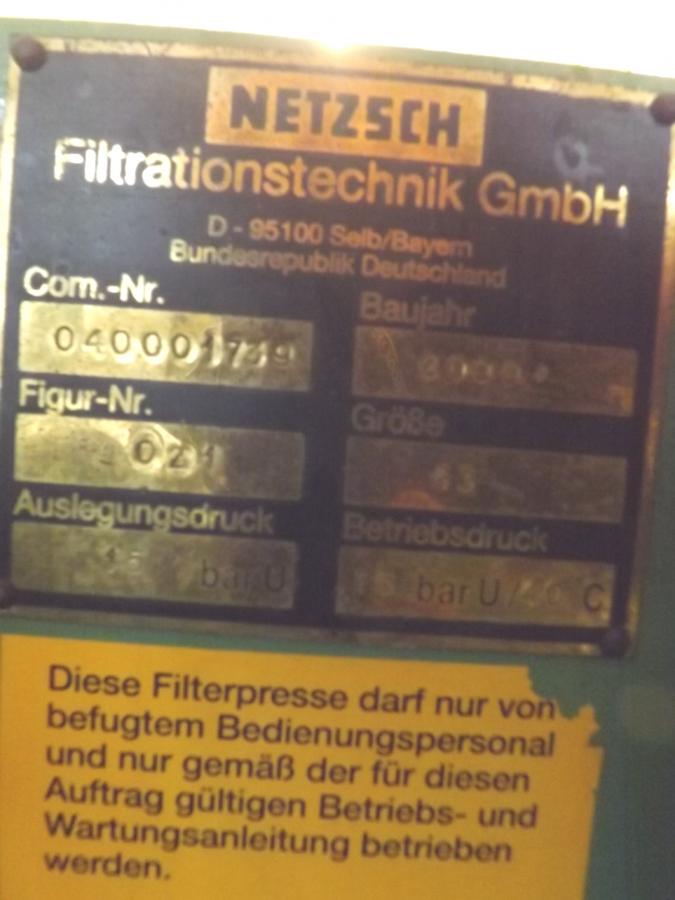

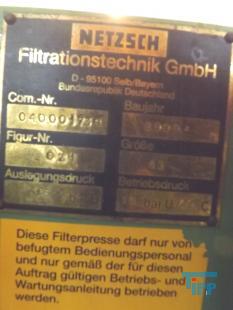

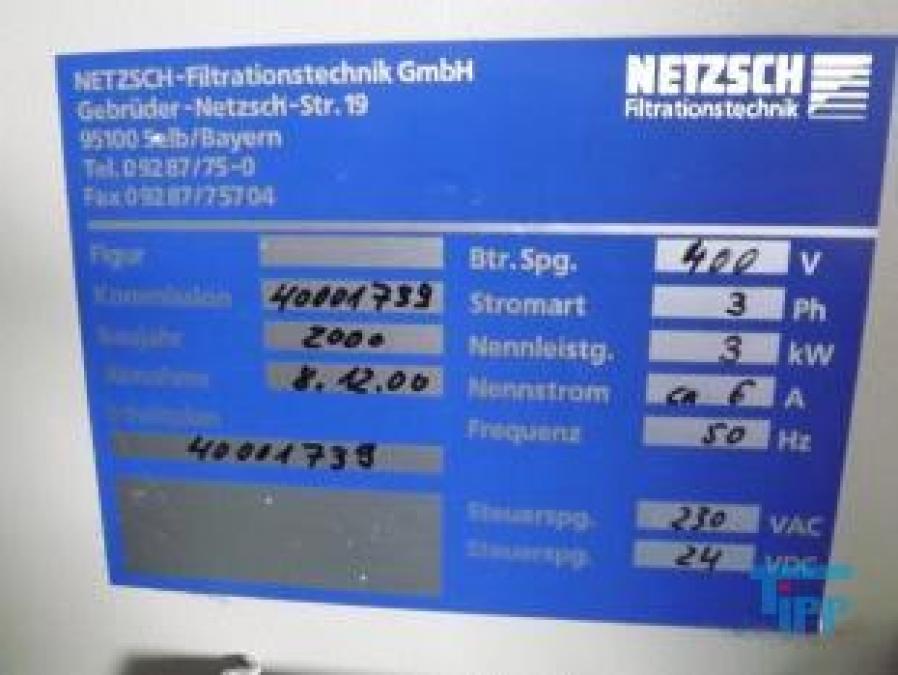

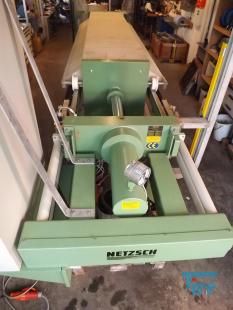

Producer:Netzsch
Year of manufacture:2000
Pieces:1



technical data

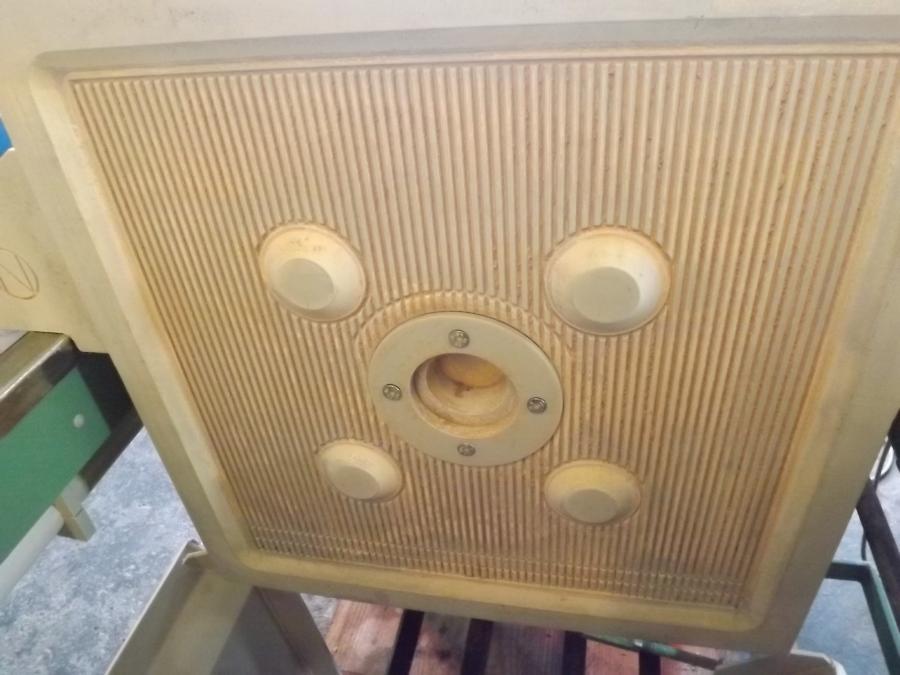

Plate dimension  630 mm
Material  PP
Number of plates  59+1+1 ( End - Head plate)
Pate thickness  50 mm
Cake strength  25 mm
Filter surface  28.5 m²
Volume  405 l ( volume filter press)

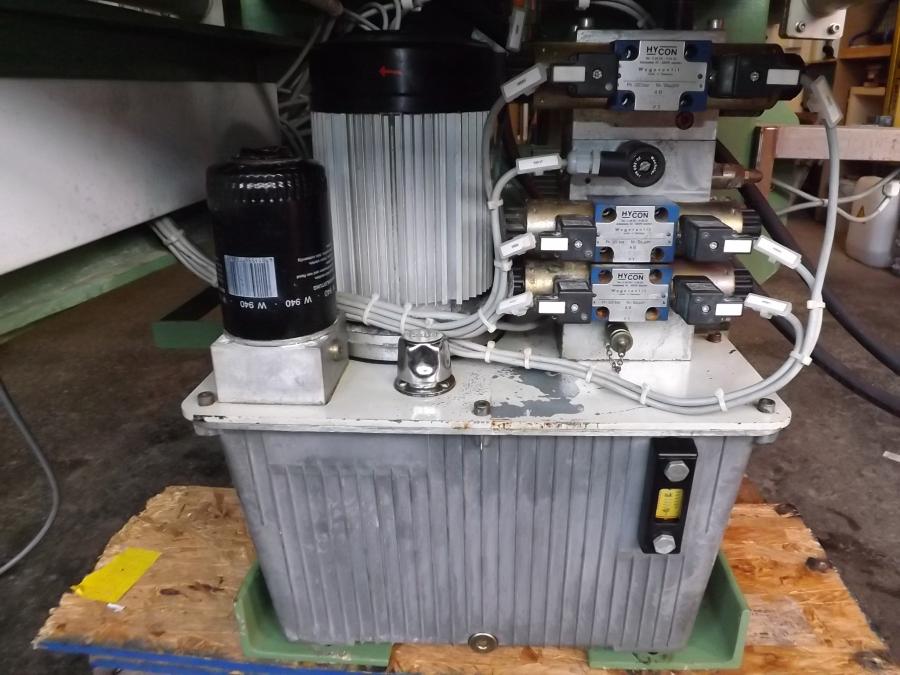

Hydraulics  motorisch
expiration of filtrate  offen
Pressure  385 bar (max. closing pressure)
Pressure  15 / 16 bar (Max. Feed pressure / design pressure of the press frame)
Temperature  15 / 40 °C (min / Max. operating temperatur)

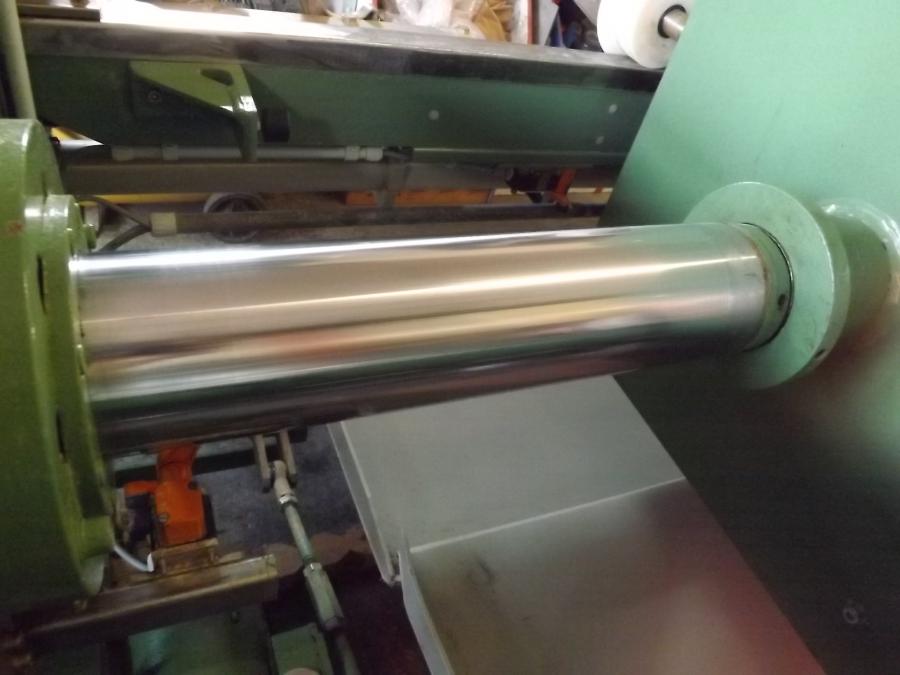

Further information  (hydr. Lock (motor-hydraulically actuated with automatic repressurization))
(Drip tray (geared motor, split version))
(Plate transport (motor-hydraulically actuated, automatic mode of operation))
()
Length  5225 mm (total)
Width  1520 mm (total)
Height  2050 mm (total)
Weight  3300 kg (Curb weight of the press frame)
Further information  - (Spout of chamber filter plates not complete)
