used fixed bed reactor

details to article: 29259

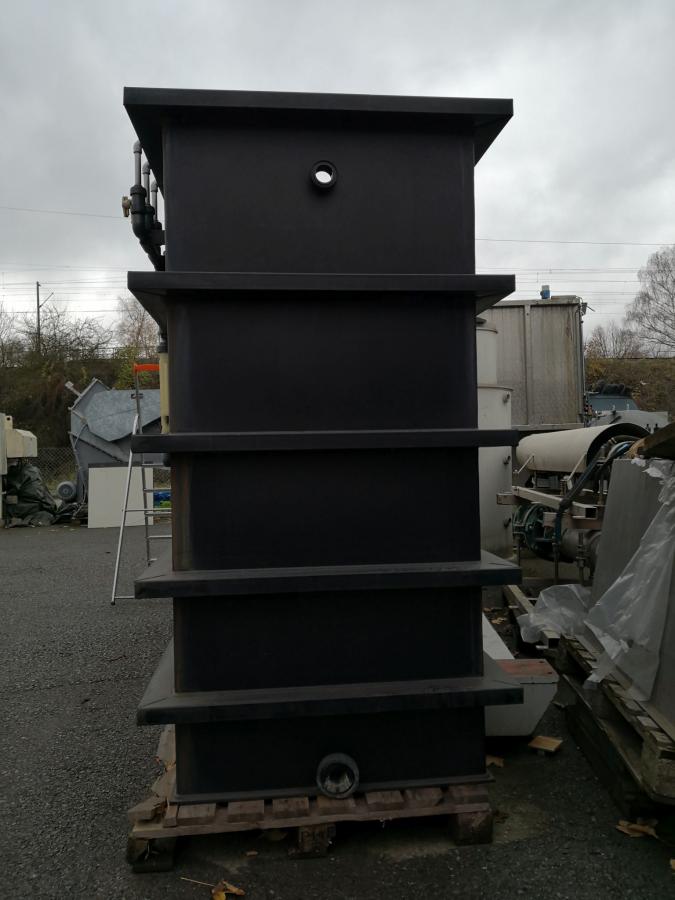

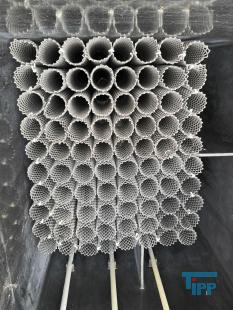

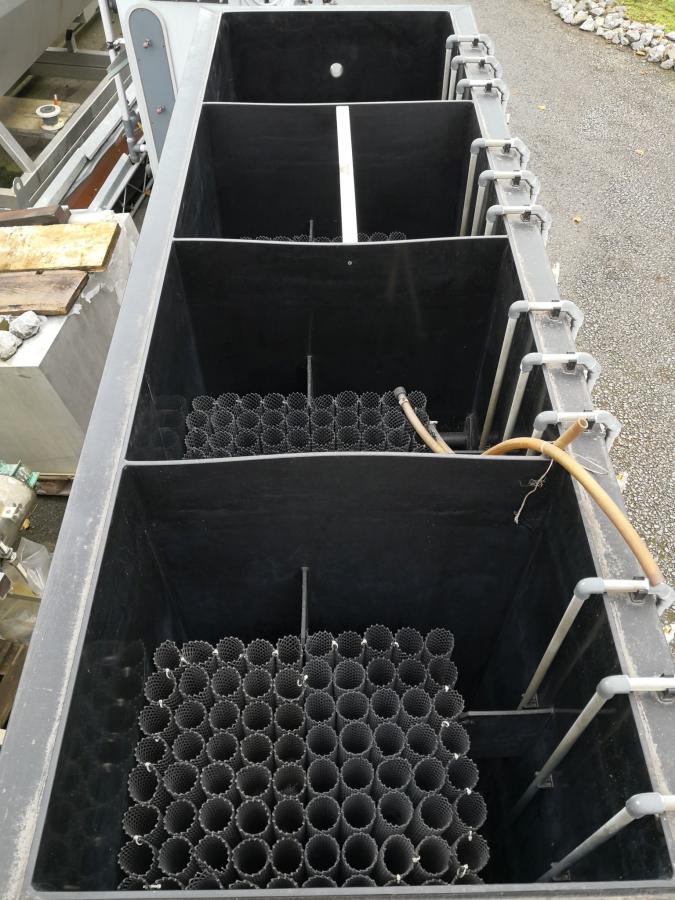

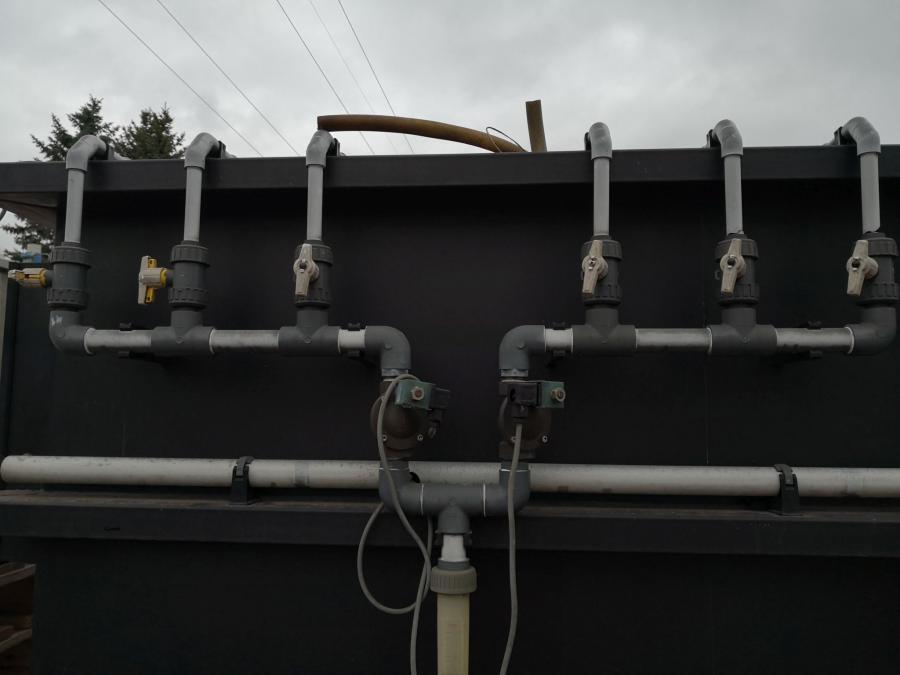

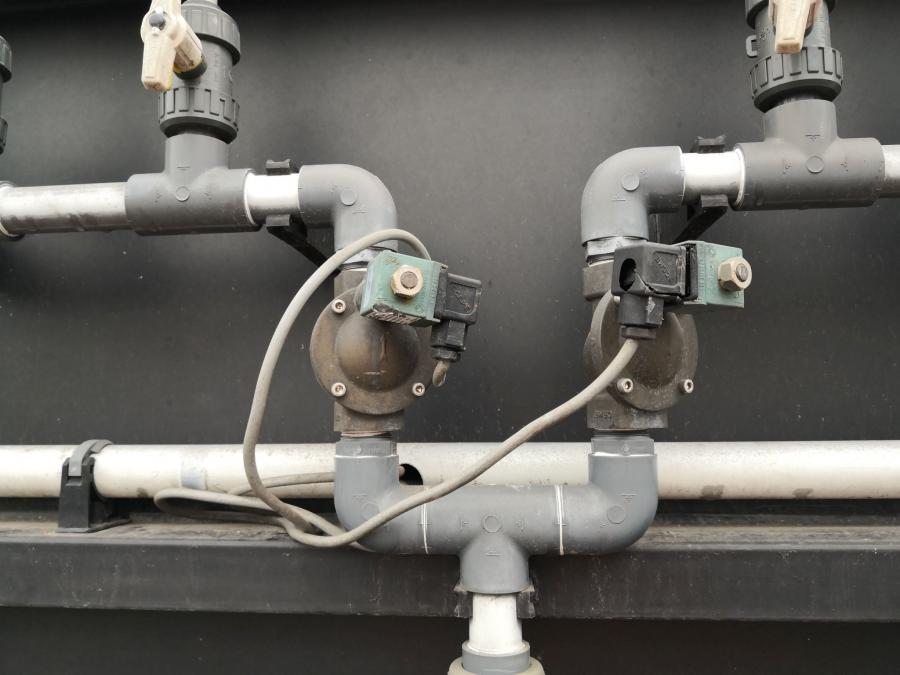

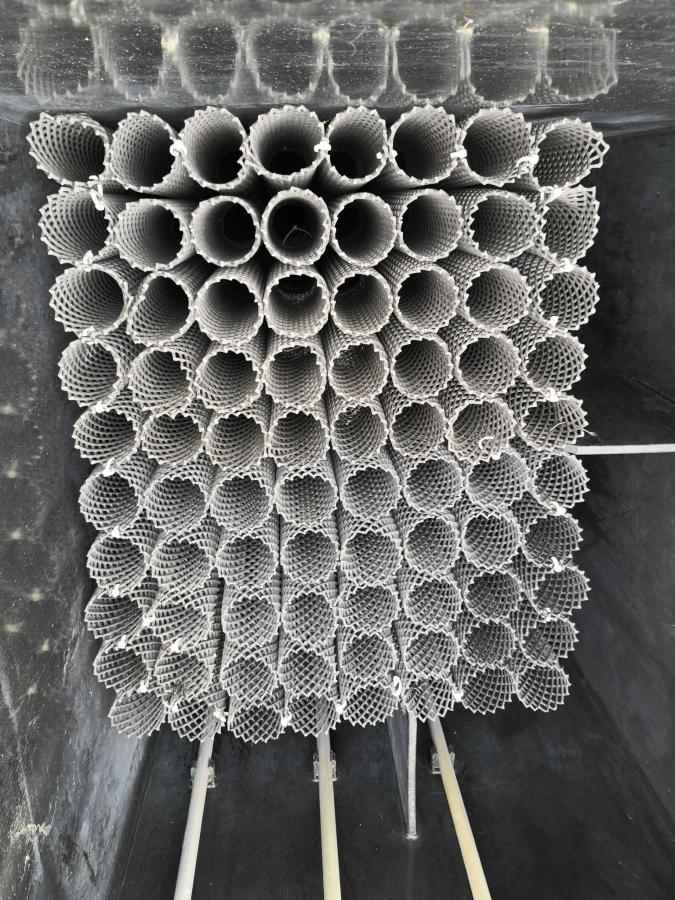

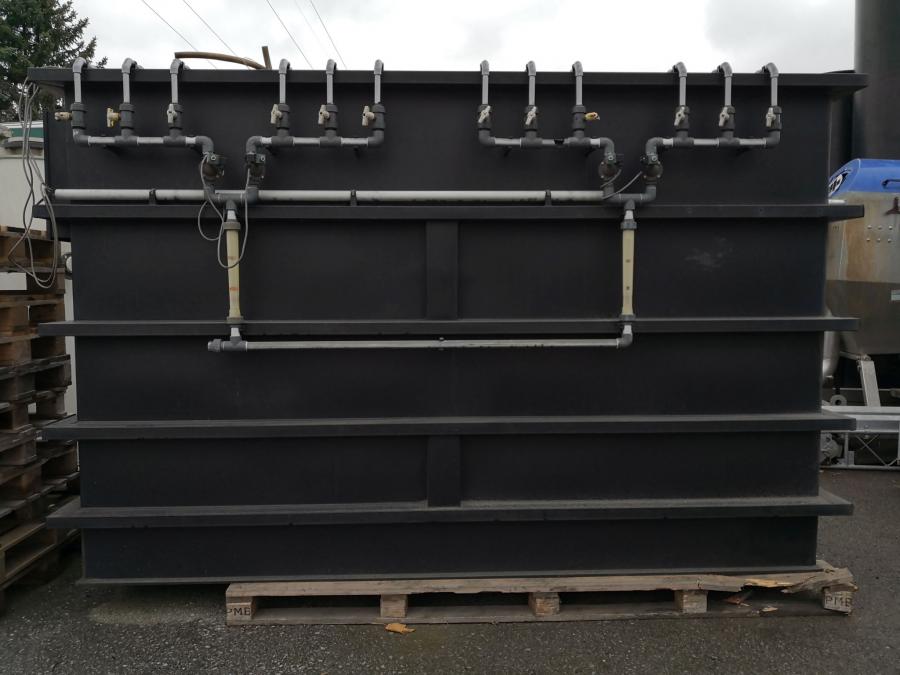

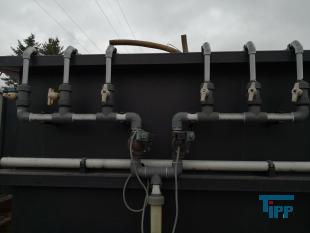

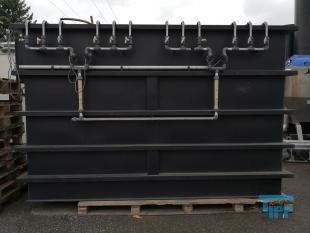

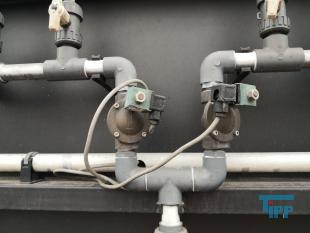

description: The rectangular tank is divided into 4 chambers. The connection between the chambers is given at the bottom to allow the flow. A fixed bed is vertically mounted in each chamber and consists of bundled perforated tubes (PE) - the last one with the finest mesh. Filler and drain (DN 50) are located at the face side of the last chamber. Each chamber can be ventilated by three pipes from the bottom. The flow can be controlled by magnetic valves (1 per chamber - controlled via Siemens LOGO) and manual stop valves (3 per chamber).

Producer:	Holstein-Kunststoff-Technik GmbH
Year of manufacture:	2003
Pieces:	1

technical data
Length	3200 mm (with border)
Width	1100 mm (with border)
Height	2000 mm
Volume	5.4 m³
Weight	525 kg
Tank bottom	flach
Material	PE

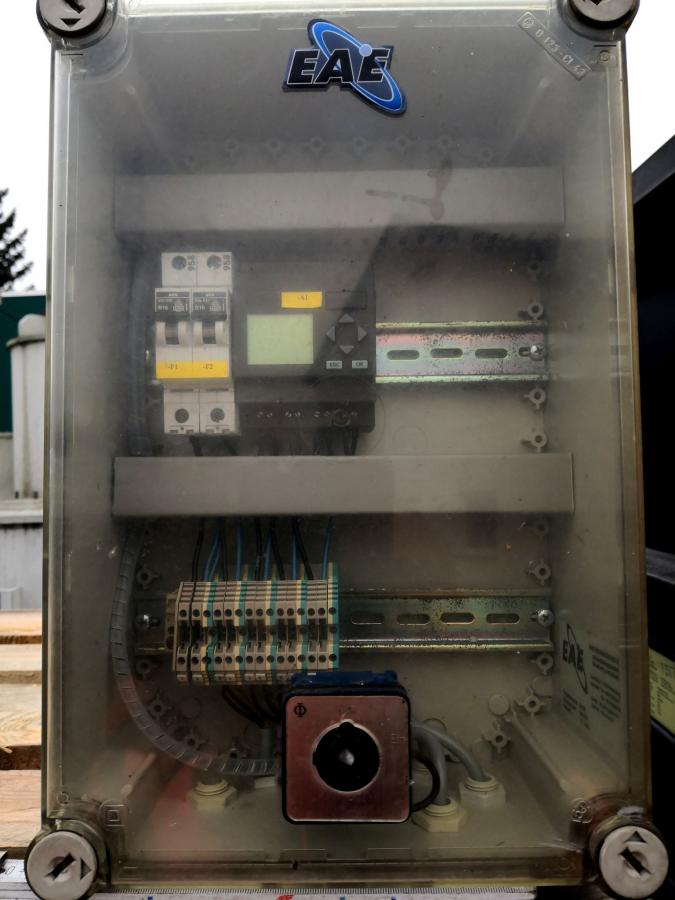

Accessories	(Siemens LOGO controller in a control box)

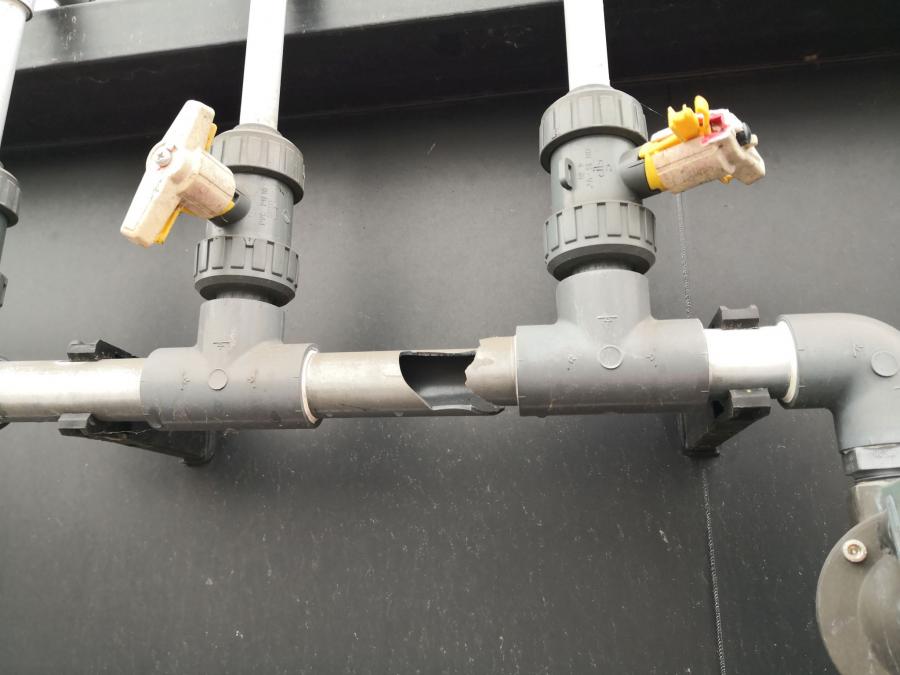

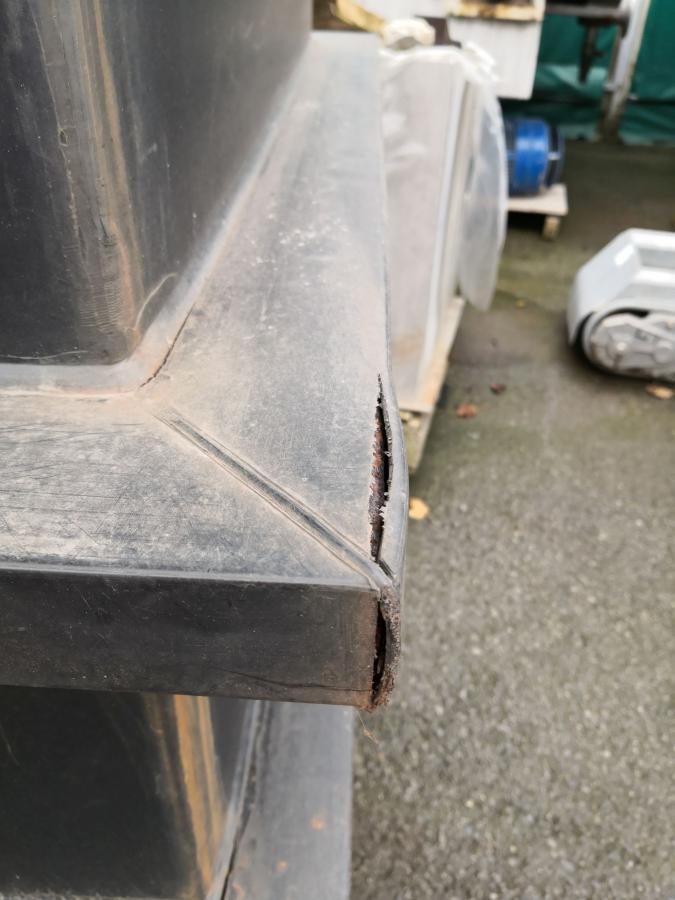

Miscellaneous	(Outer sheathing partially torn, one pipe broken)
Power	0.4 m³/h ()
Miscellaneous	(COD-reduction from 1000 mg/l to 100 mg/l)
