UV sterilization plant

details to article: 29269

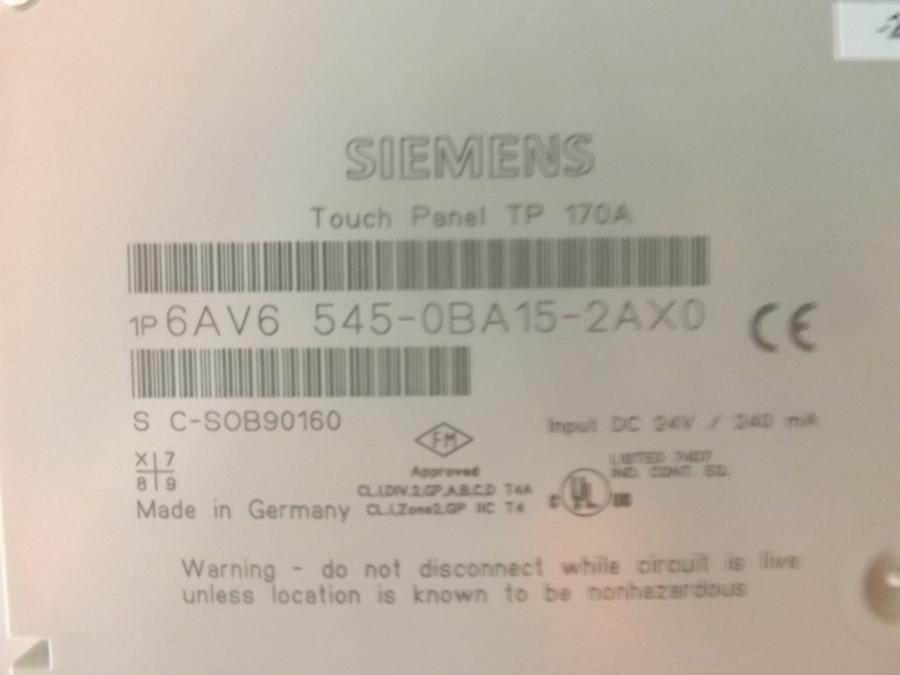

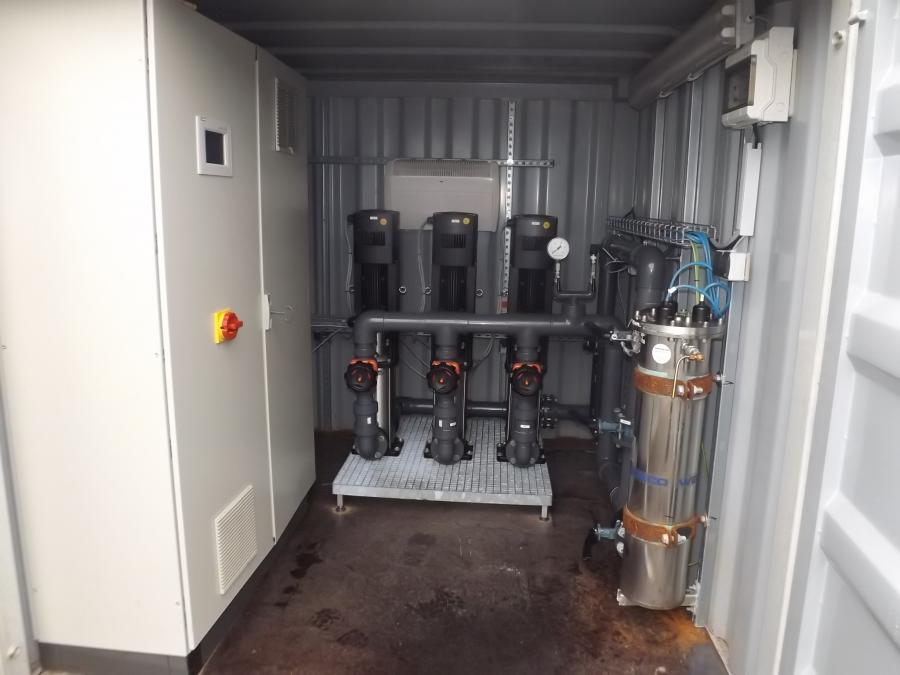

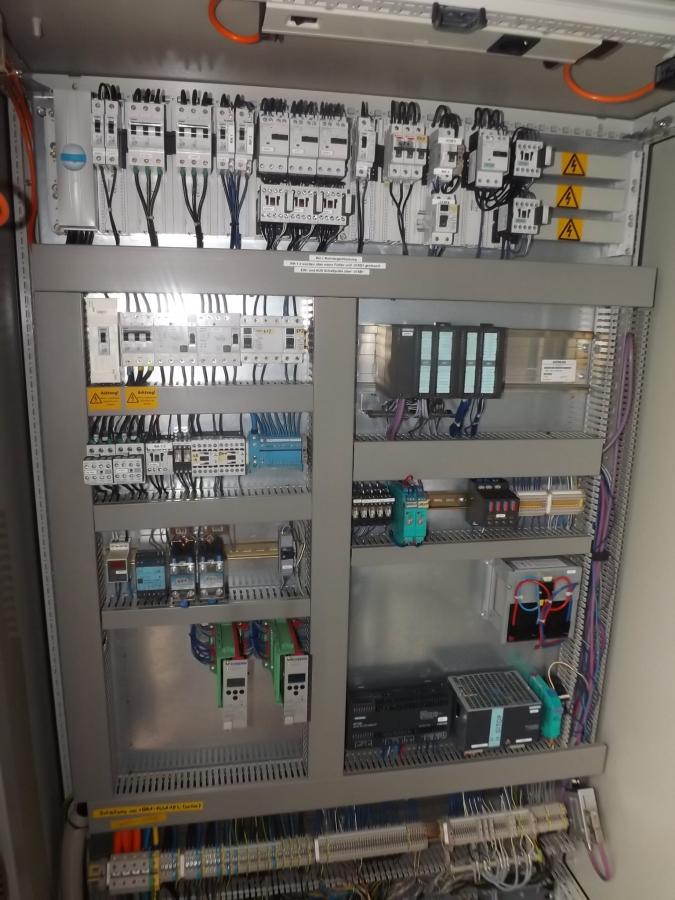

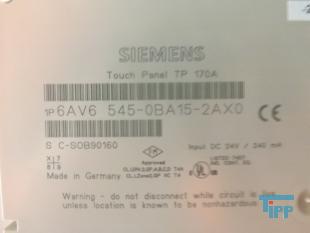

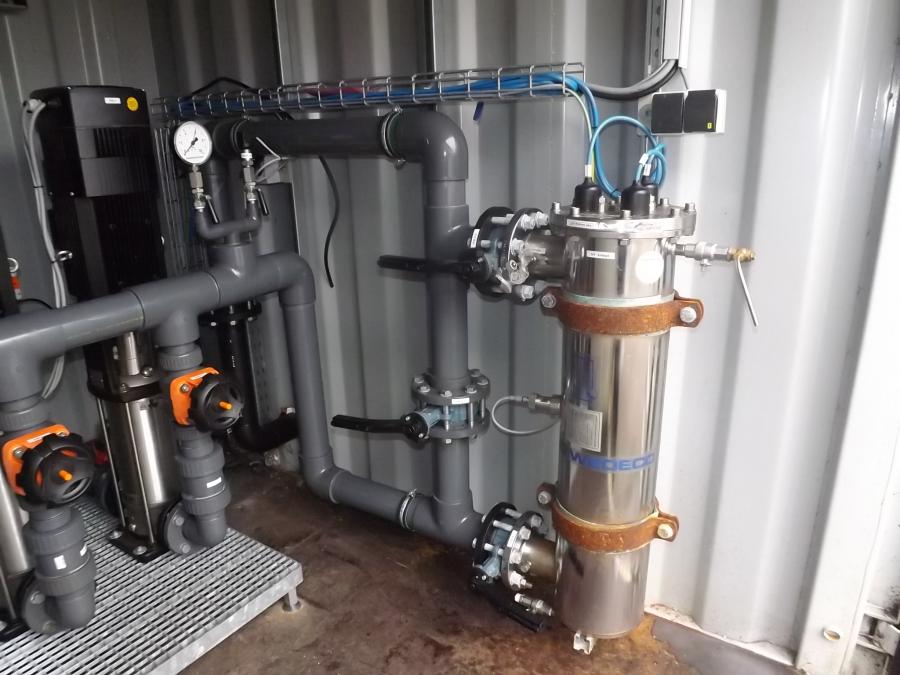

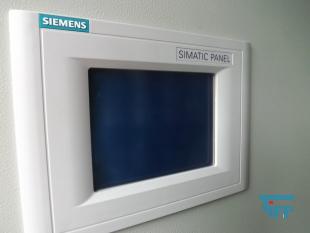

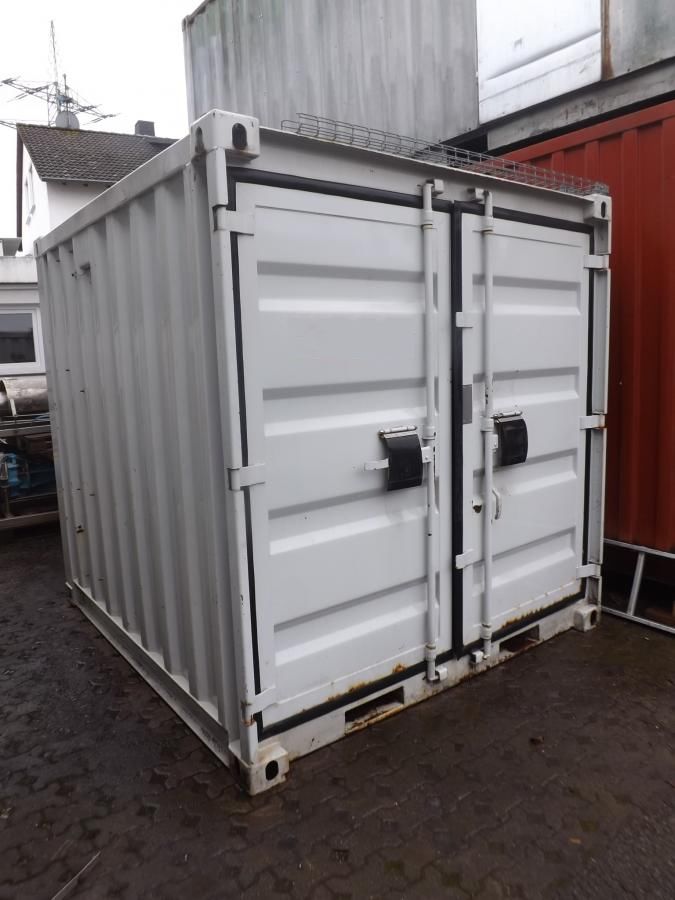

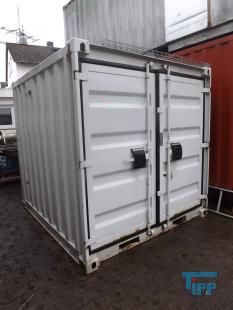

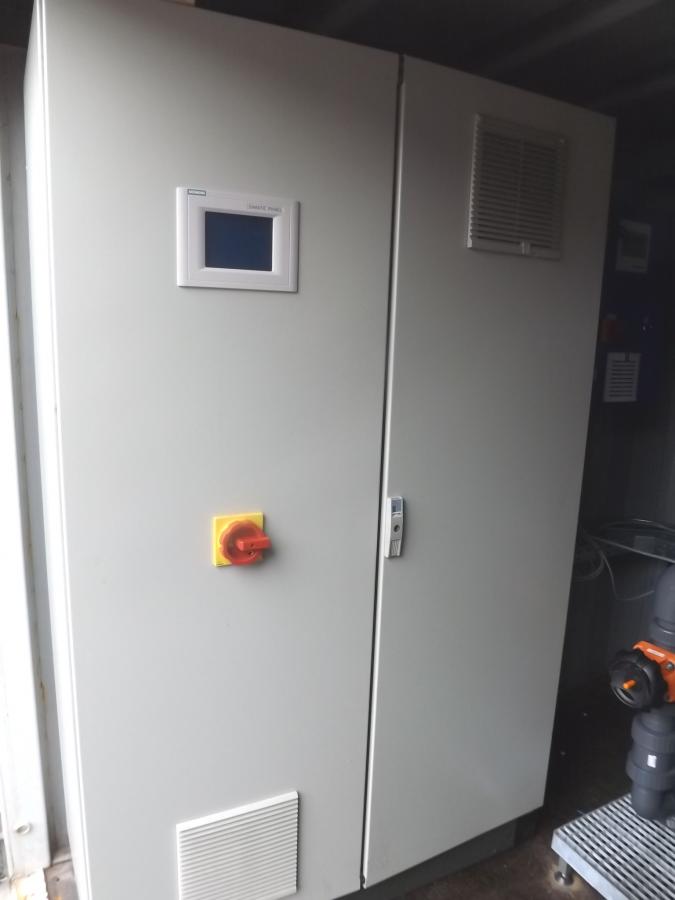

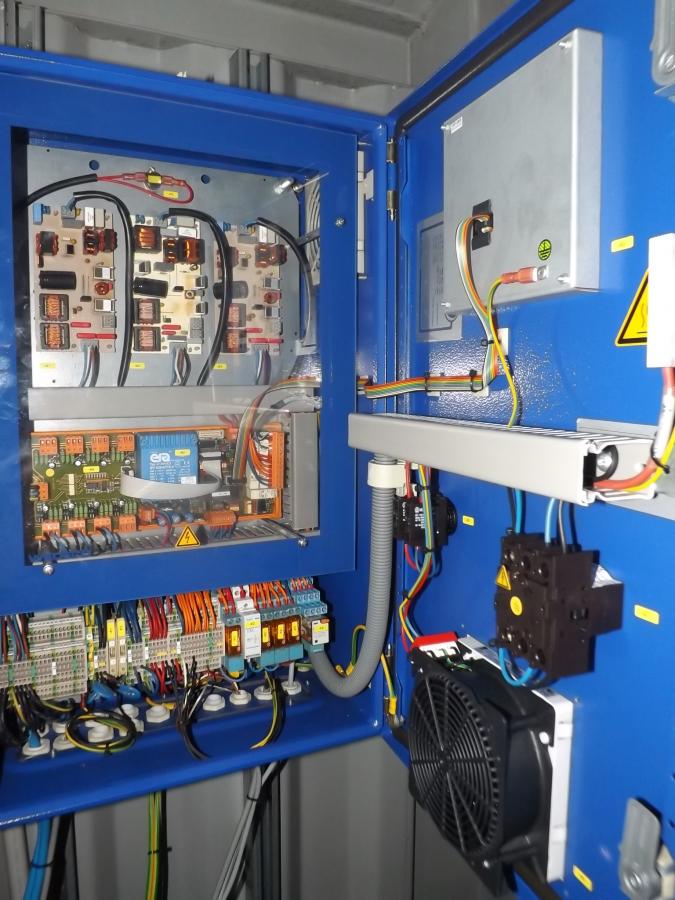

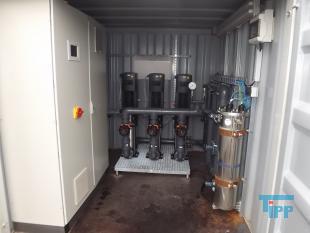

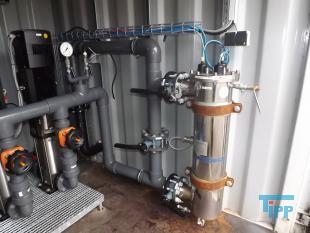

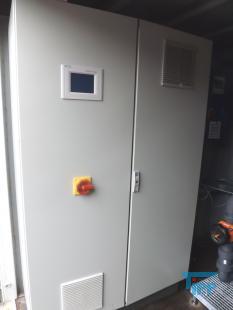

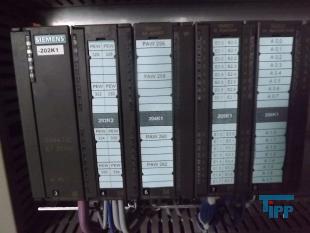

description: UV reactor plant mounted in container. Control cabinet with Siemens control, Grundfos centrifugal pumps, SEC controller with UV reactor.

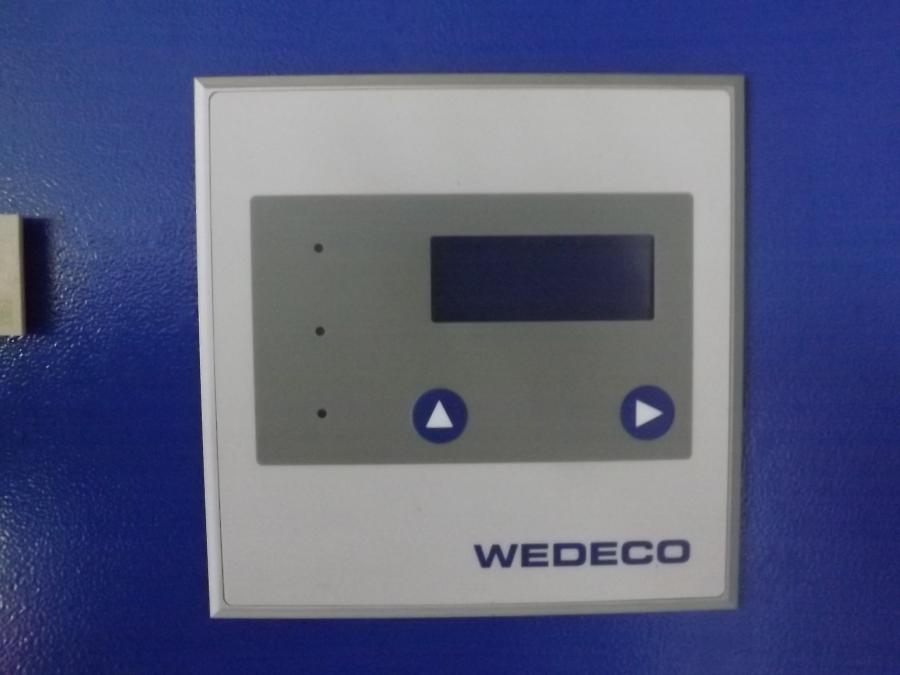

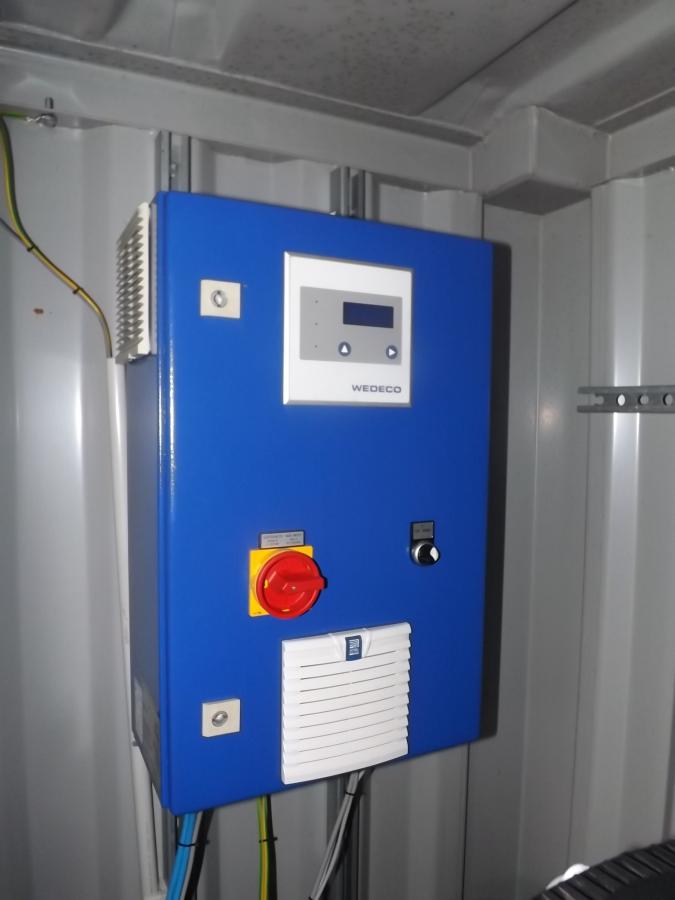

The SEC system includes all the control and monitoring functions required to operate the UV system.

Producer:WEDECO
Typ:UV BX30
Year of manufacture:2004
Pieces:1



technical data

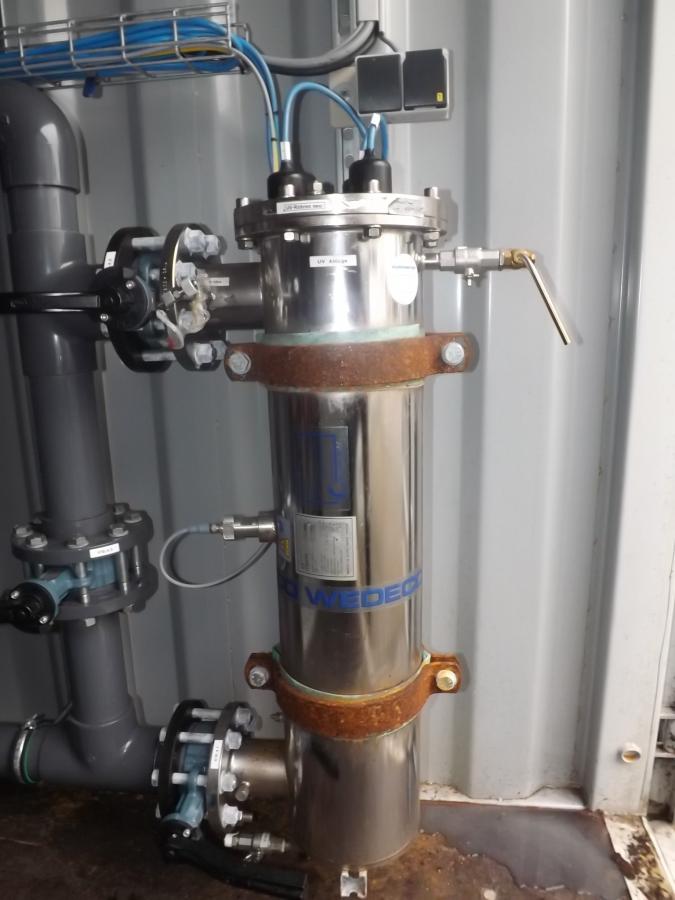

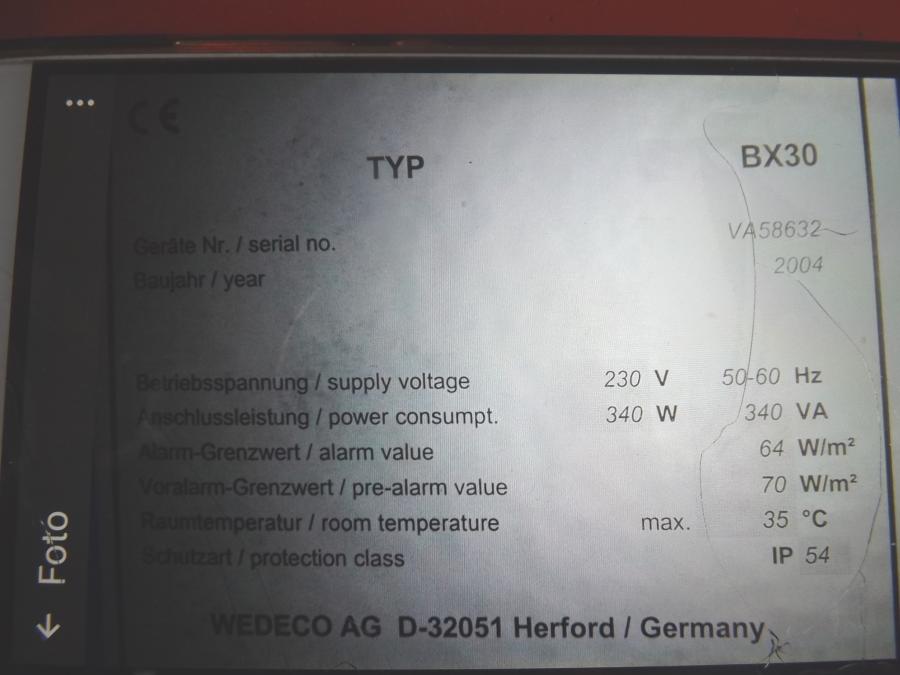

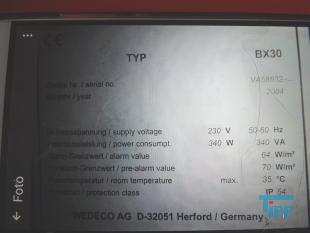

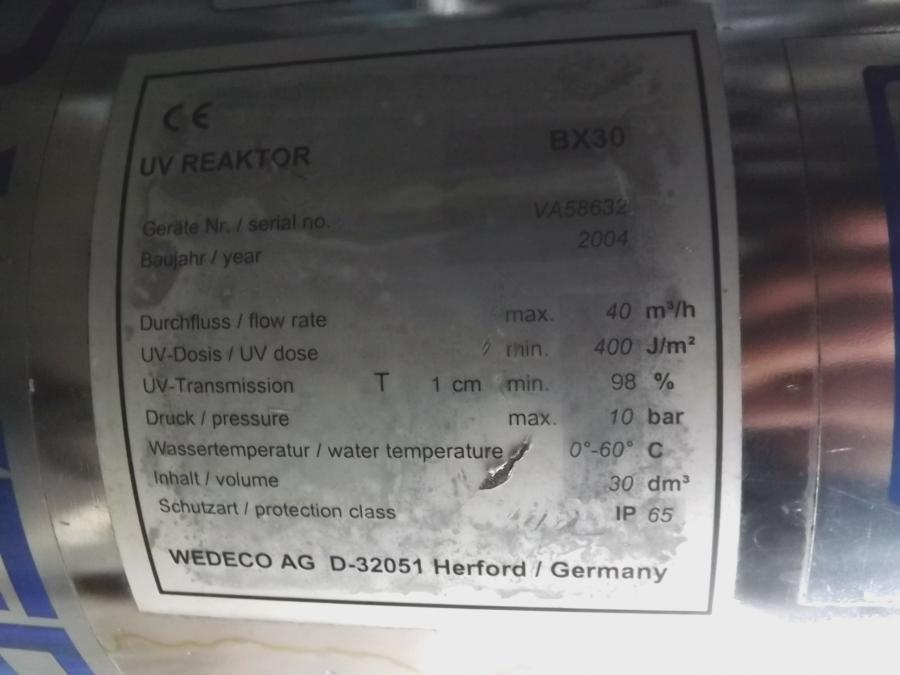

Description  - (UV reactor BX30)
VA58632 (serial number)
Power  40 m³/h (Max. Flow)
400 (J / m² UV dose)
Pressure  10 bar (total)
Type of connection  2x DN80
Content  30 l

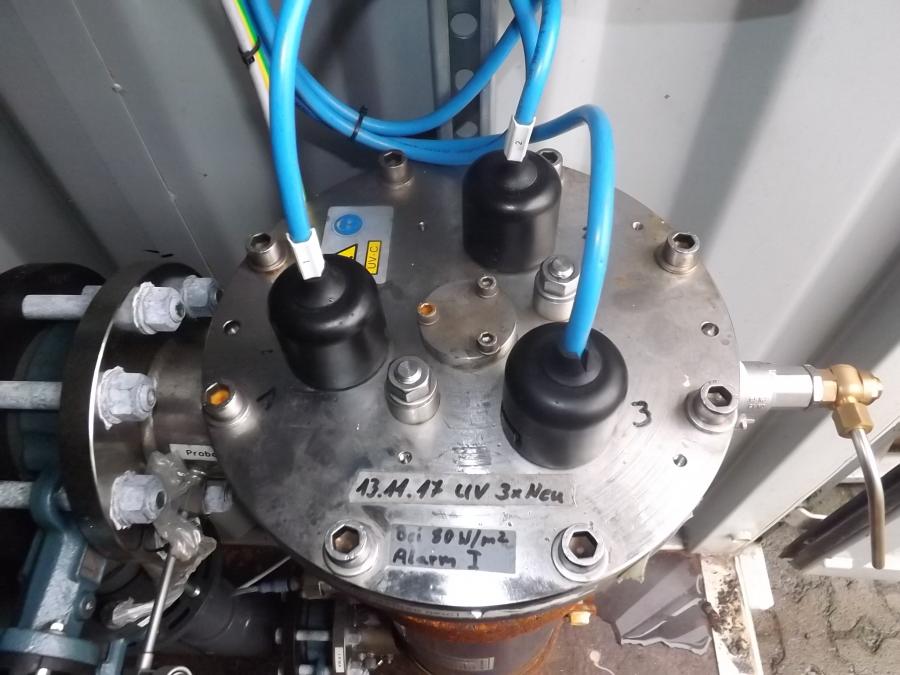

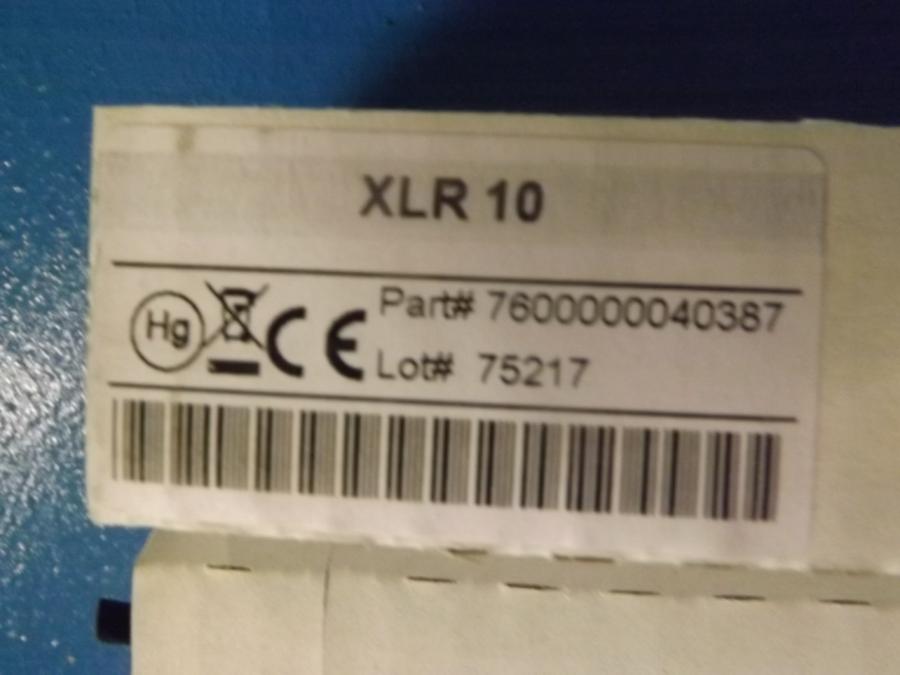

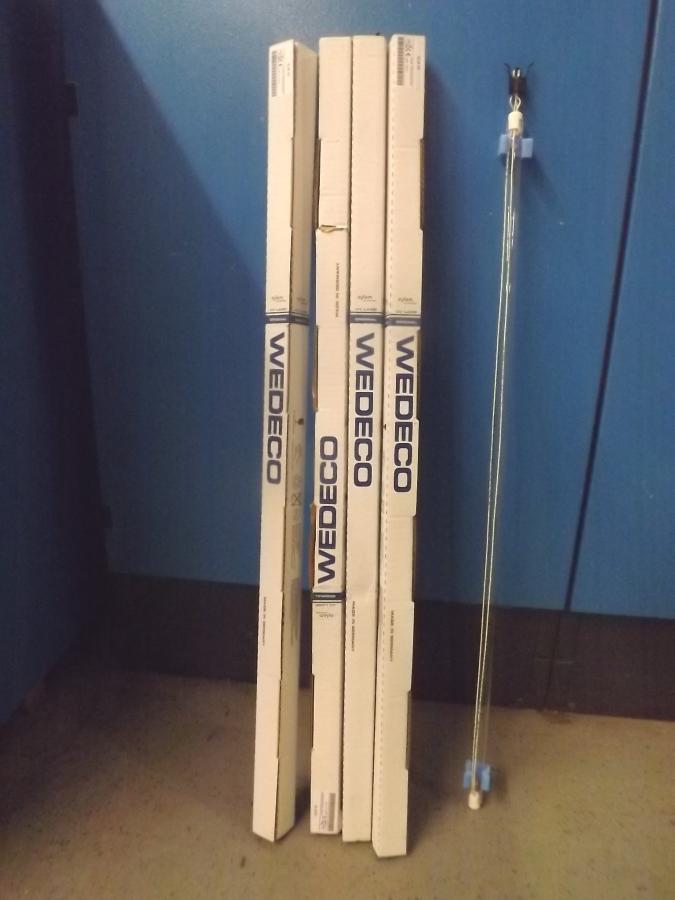

Power  3x 84 W (UV lamp (Wedeco XLR 10) 4 spare lamps available)
Length  875 mm

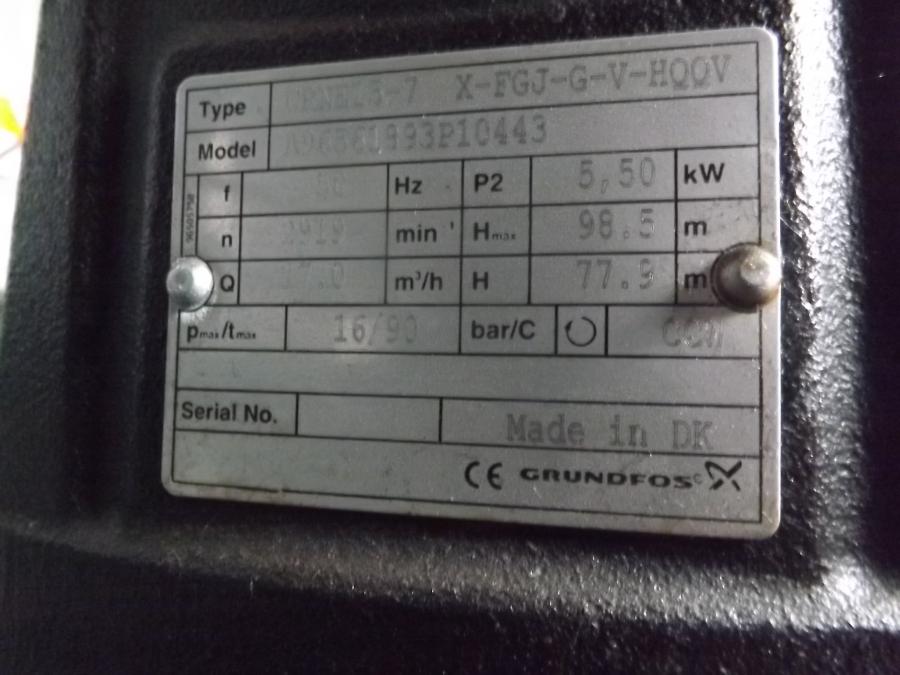

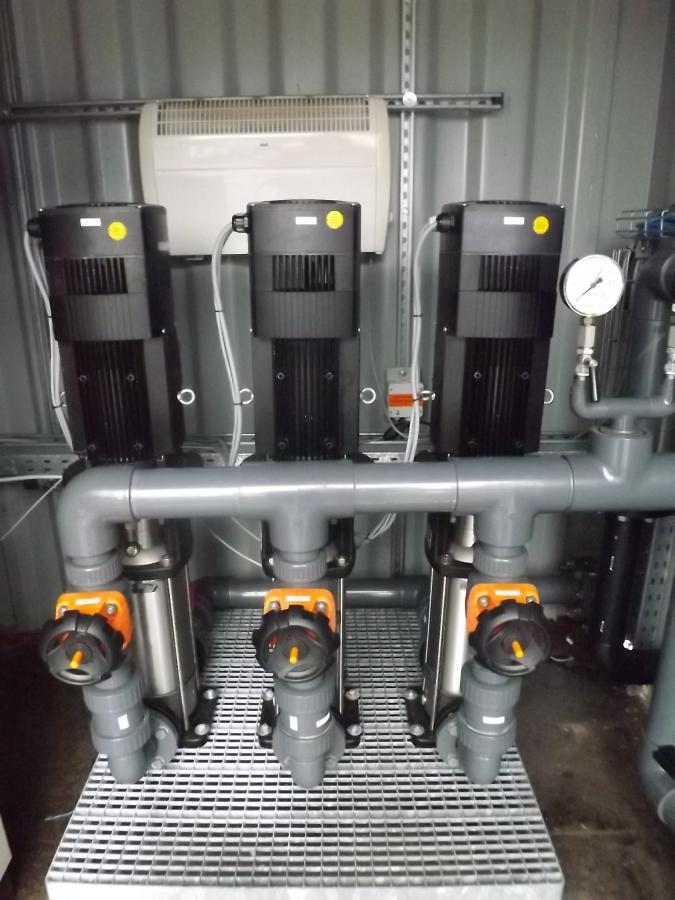

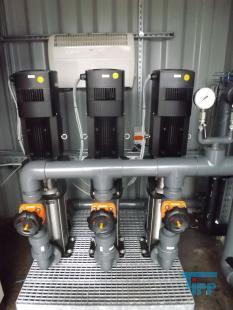

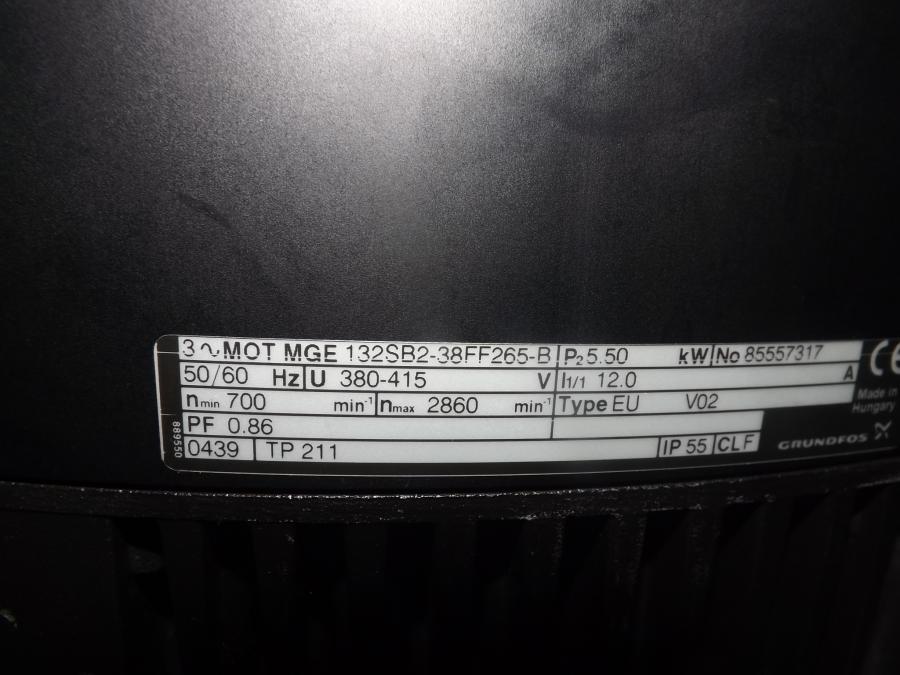

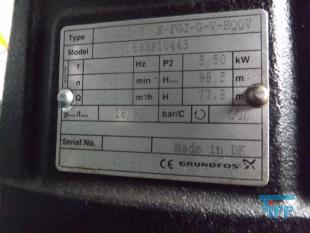

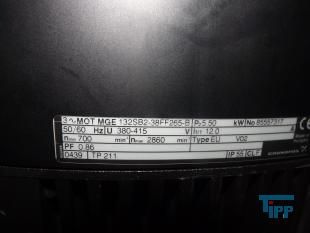

Description  - (Grundfos centrifugal pump CRNE 15 (frequency regulated))
Pieces  3
Delivery rate  17 m³/h
Lifting height  77.9 m
Pressure  16 bar ()
Temperature  90 °C (Max. operating temperatur)
Material  Edelstahl (pump head)
Power  5.5 kW
Dimensions  ()
Length  2450 mm
Width  2200 mm
Height  2300 mm
Weight  2000 kg ()
