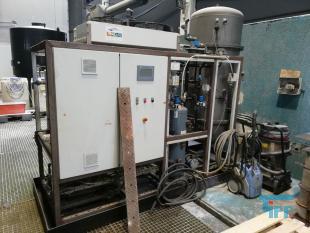

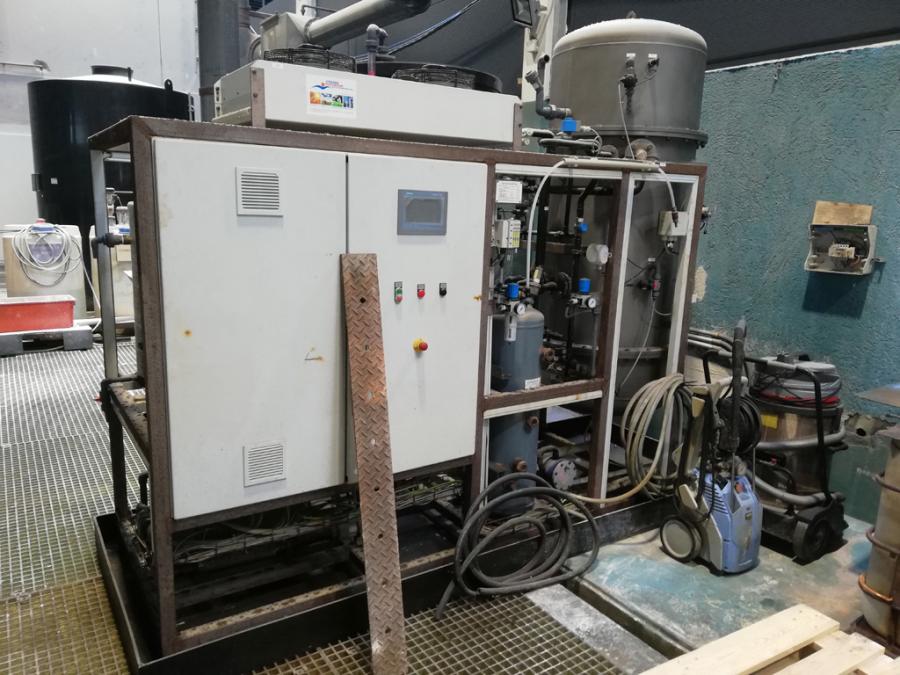

Vacuum evaporator
details to article: 29279
description: Vacuum evaporation system for the alternating evaporation of rinsing water and semi-concentrates from the alkaline Zn-Ni process or passivation containing chromic acid.
System consisting of:
1 supporting frame made of stainless steel (W.Nr.:1.4404)
1 boiling chamber made of titanium (3.7035 Grade 2), internal tubular spiral heat exchanger
Titan (3.7035 Grade 2), equipped with an illuminated viewing window, large hand hole as
Inspection and cleaning opening, level control
1 attached condensate chamber made of stainless steel 1.4404 with internal pipe spiral
Heat exchanger and integrated exhaust vent with demister (droplet separator)
1 Heat pump device with suction gas-cooled, specially developed for vacuum evaporation systems
Compressor, to generate the process heat and cold. Air-cooled condenser for condensation
of the refrigerant. The structure and the technical equipment correspond to the accident prevention regulations or the VBG 20
Regulations. Environmentally friendly and generally approved refrigerant: R 134a.
Delivery with analog pressure and temperature sensors.
1 Vacuum generation with a liquid ring vacuum pump made of stainless steel. To prevent
Cavitation, the water reserve is cooled by a compressor refrigeration system in a temperature-controlled manner. The
The operating vacuum is 40… 80 mbar abs. Delivery with analog negative pressure sensor.
Evacuation time: approx. 15 min.
1 Concentrate discharge with compressed air diaphragm pump made of PE / PTFE. The pump comes with a special one
Control system equipped for use under vacuum.
2 compressed air operated membrane valves for concentrate, 1x PVDF, 1x PVC, membranes made of PTFE
(Teflon®)
2 compressed air operated diaphragm valves for products made of PVC / PTFE
1 internal piping including fittings, concentrate side made of PVDF and PVC, product side made of PVC,
condensate side made of PVC, membranes and seals made of PTFE

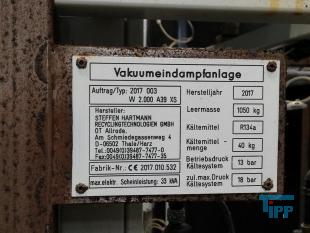

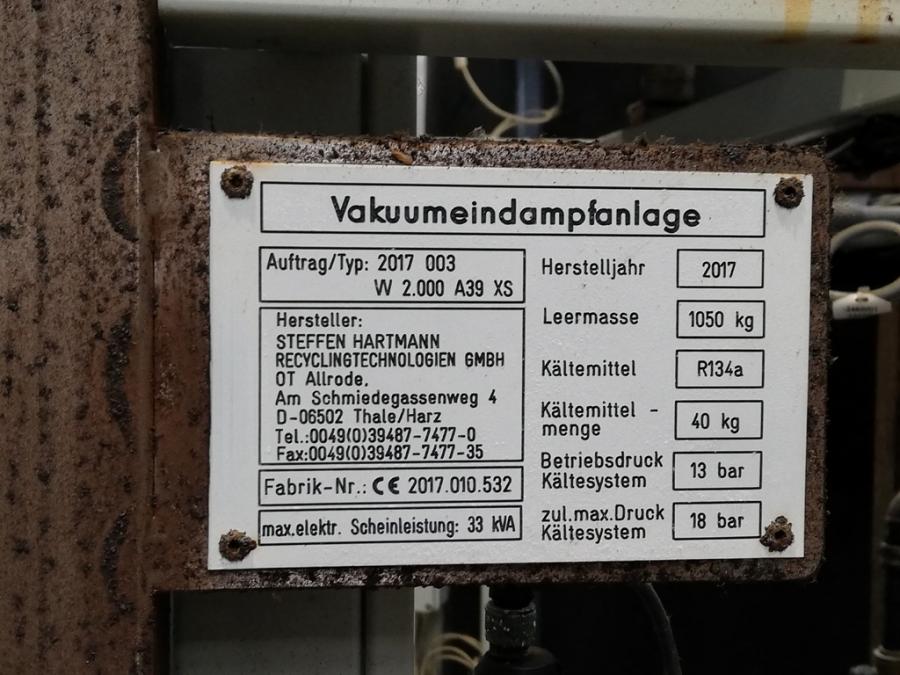

| Producer: | Steffen Hartmann |
| Typ: | VV 2.000 Cr-Ti |
| Year of manufacture: | 2017 |
| Pieces: | 1 |
technical data |
| Power | 82 l/h | | Power | 11 kW | | Material | - (Titan (3.7035 Grade 2) vacuum chamber) | | Weight | 1580 kg | | Length | 3000 mm | | Width | 1500 mm | | Height | 2500 mm |
