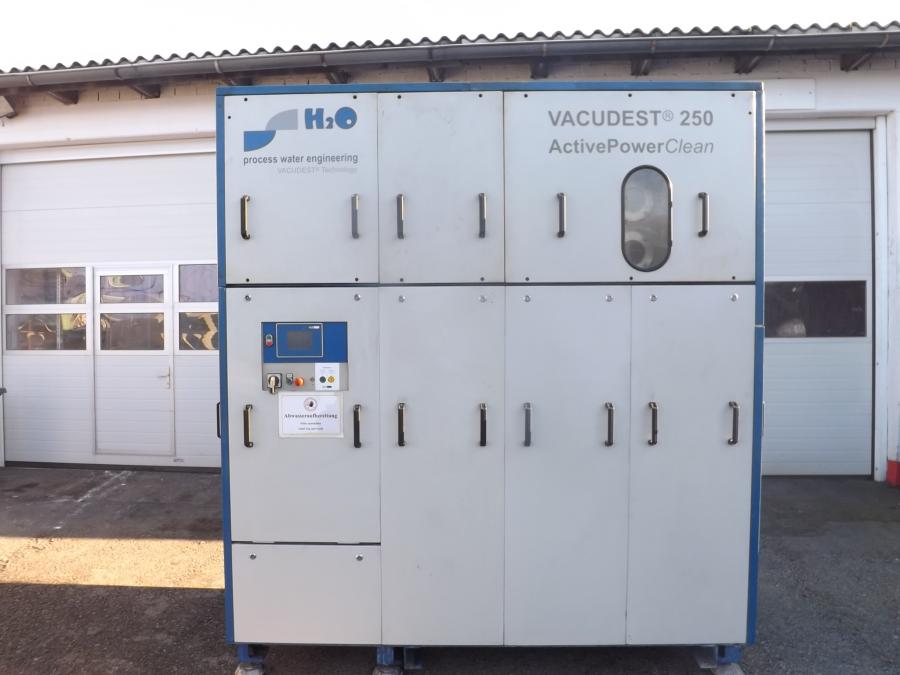

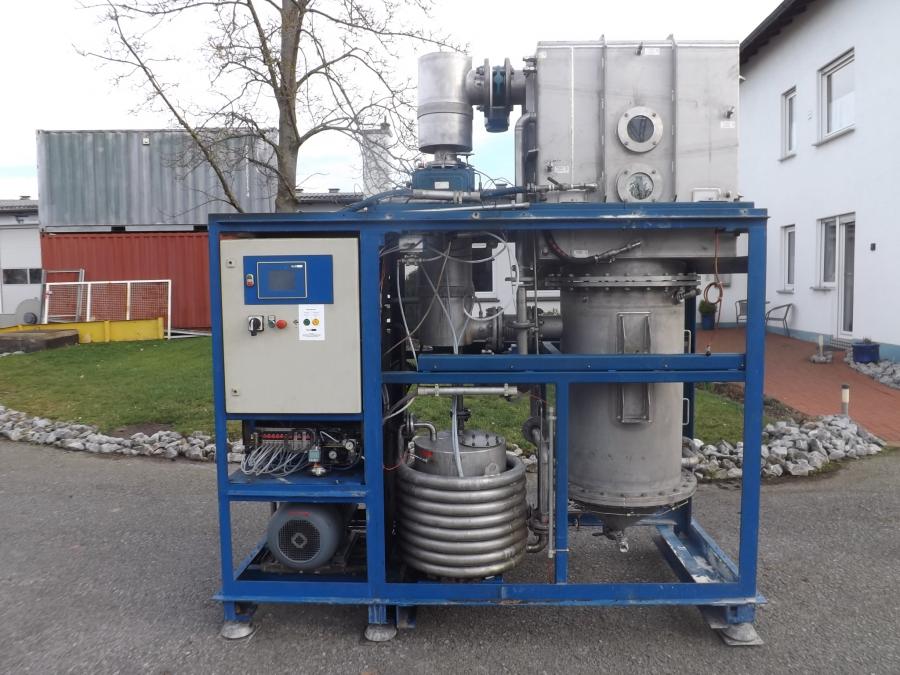

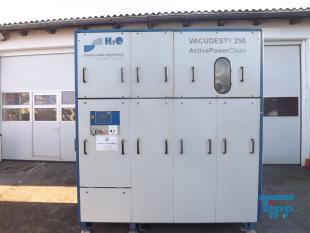

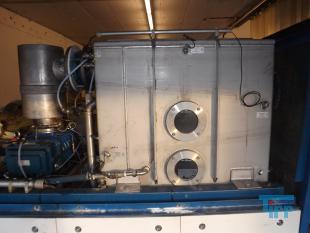

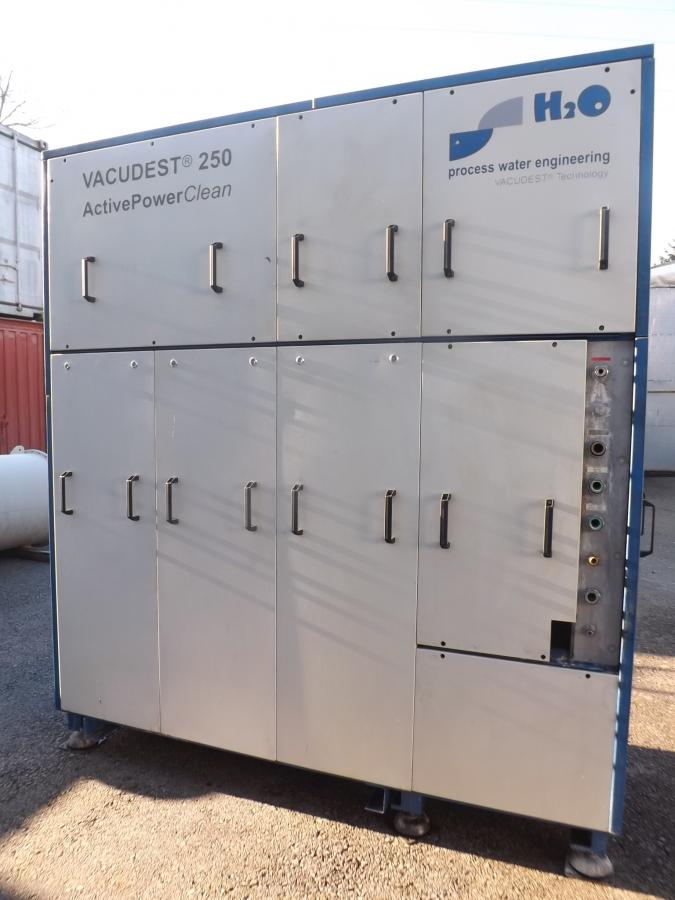

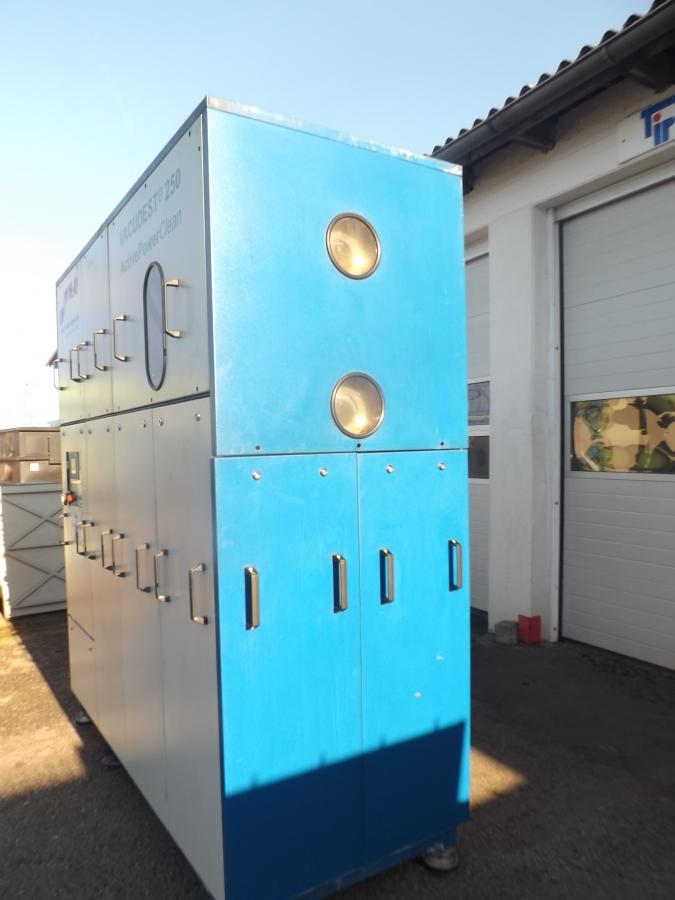

H2O VACUDEST 250 NT vaccuum evaporator

details to article: 29283

description: -The plant was shut down in 2019

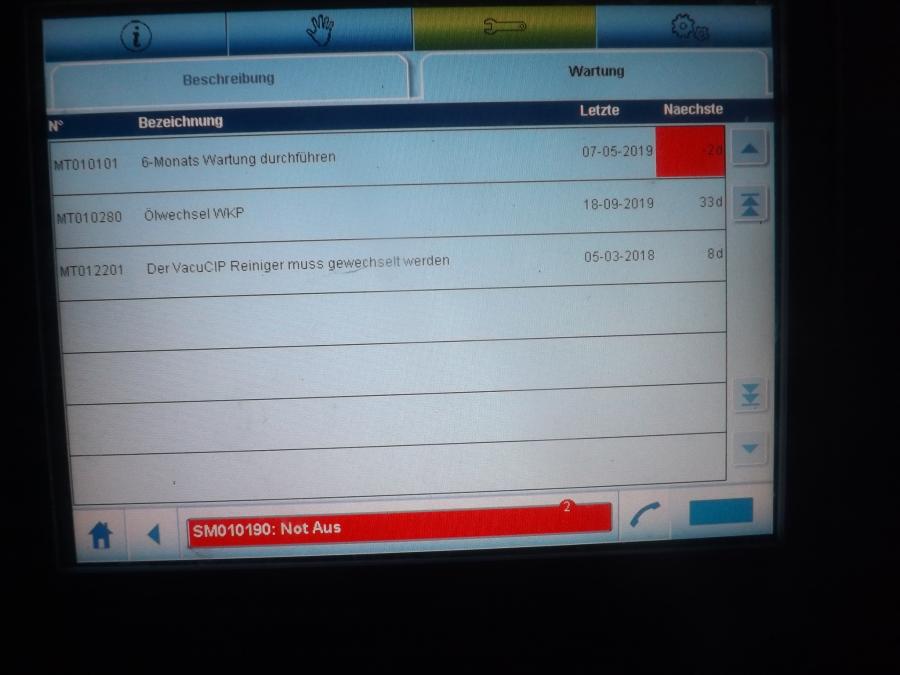

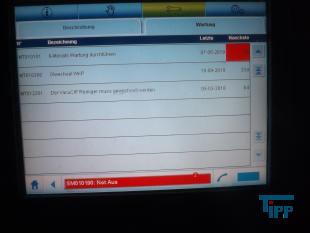

-The Vacudest evaporator has been serviced by H2O every six months, last maintenance 05/19

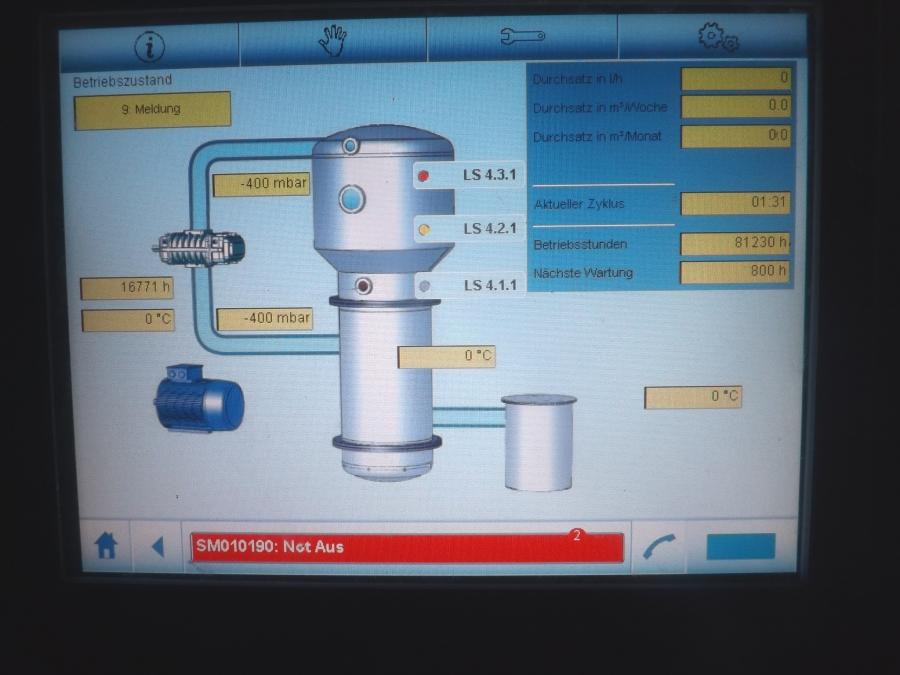

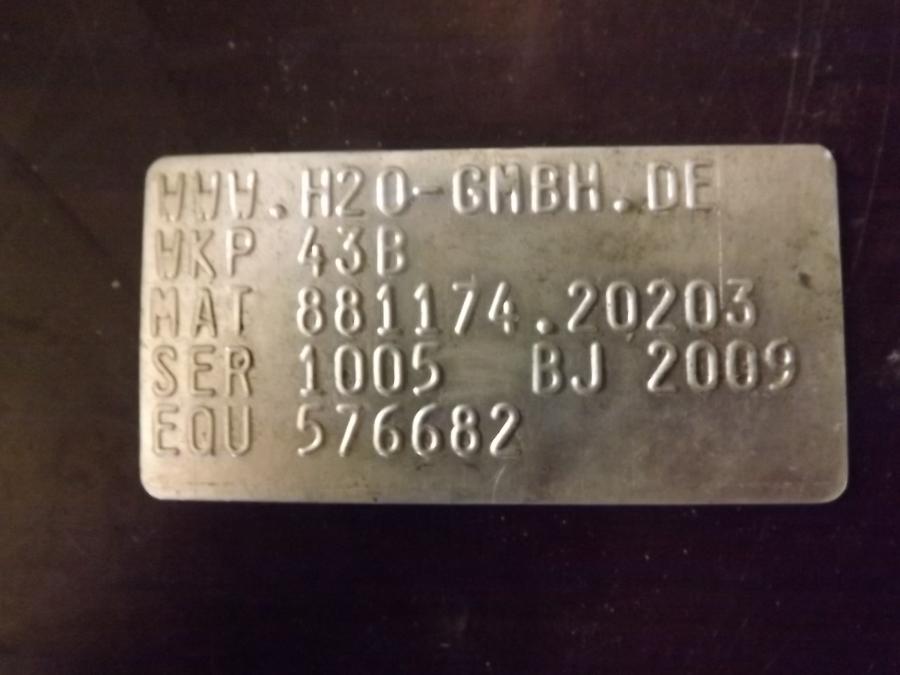

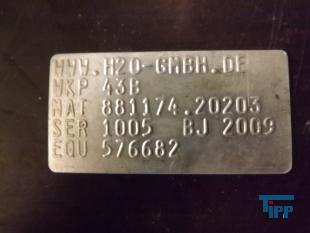

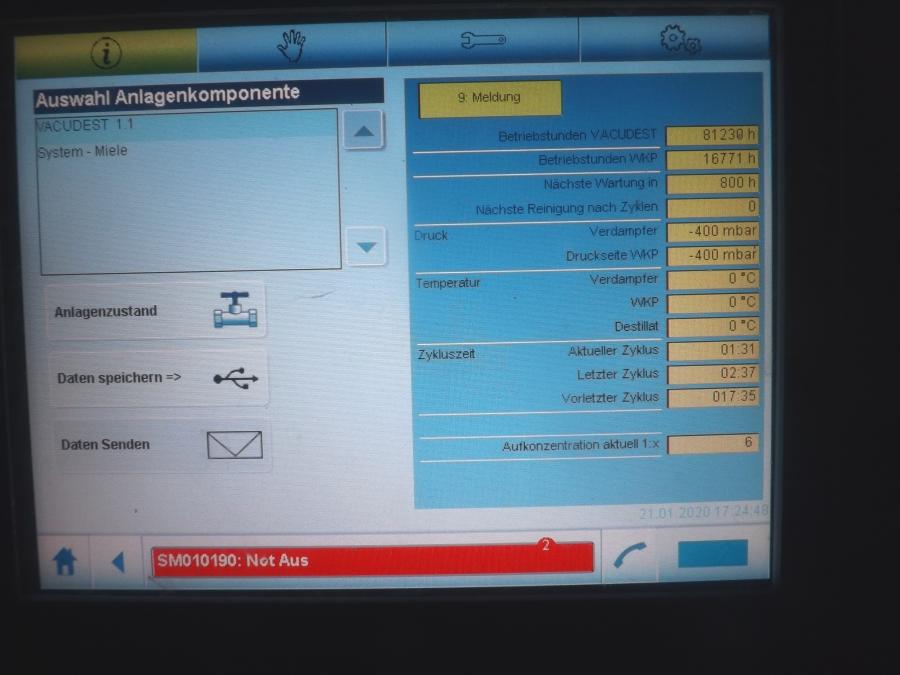

-The Vacudest has got a new Roots blower in exchange (Bj 2009) which currently has 16771 operating hours (read operating hours, see photo).

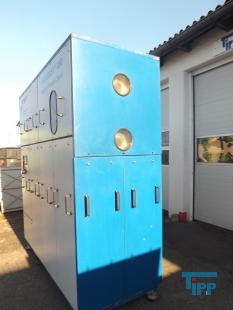

-The system is stored in our warehouse in Warburg.

Producer:H2O
Typ:VACUDEST 250 NT
Year of manufacture:2003
Pieces:1



technical data

Power  250 l/h
Material  Edelstahl (V4A 1.4571 (X6CrNiMoTi17-12-2), AISI 316Ti, (A5))

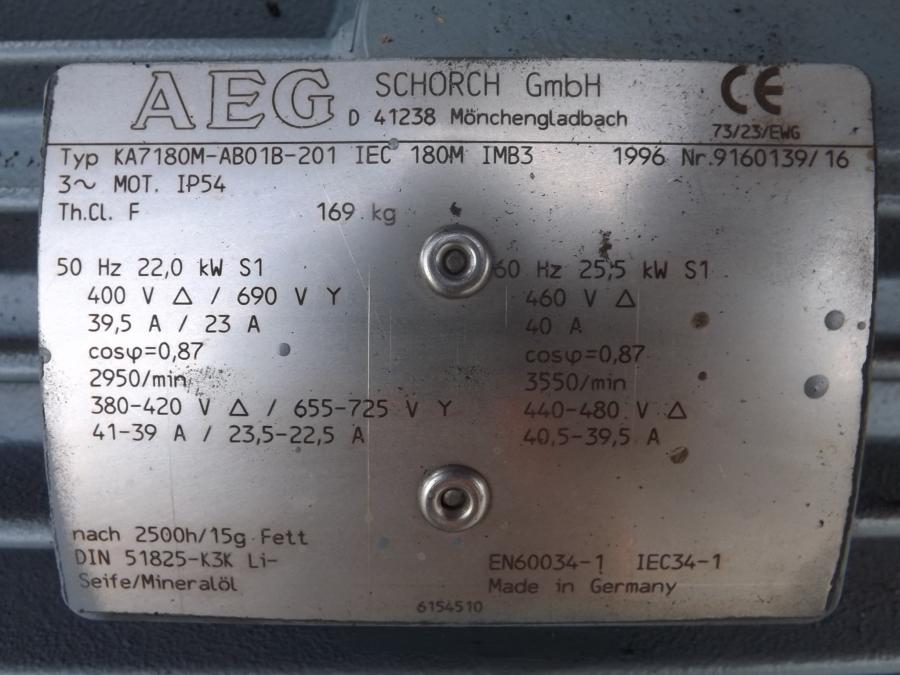

Power  22 kW (Installed engine power)
Power  15 kW (approx. nominal power consumption at 600 mbar operating vacuum)
Pressure  600 - 750 mbar (Operating vacuum (absolute))
Temperature  7 -35 °C (temperature process water)
Temperature  85 - 92 °C (sump high temperature)
Temperature  90 - 145 °C (vapor compressor)
Revolutions per minute  2400 1/min (vapor compressor)
79 db(A) (excess pressure)
Temperature  40 - 60 °C (outlet distillate)
Voltage  400 V (power supply)
Pressure  6 bar (compressed air supply)
Hours of operation  81230 h ()
Hours of operation  16771 h ()

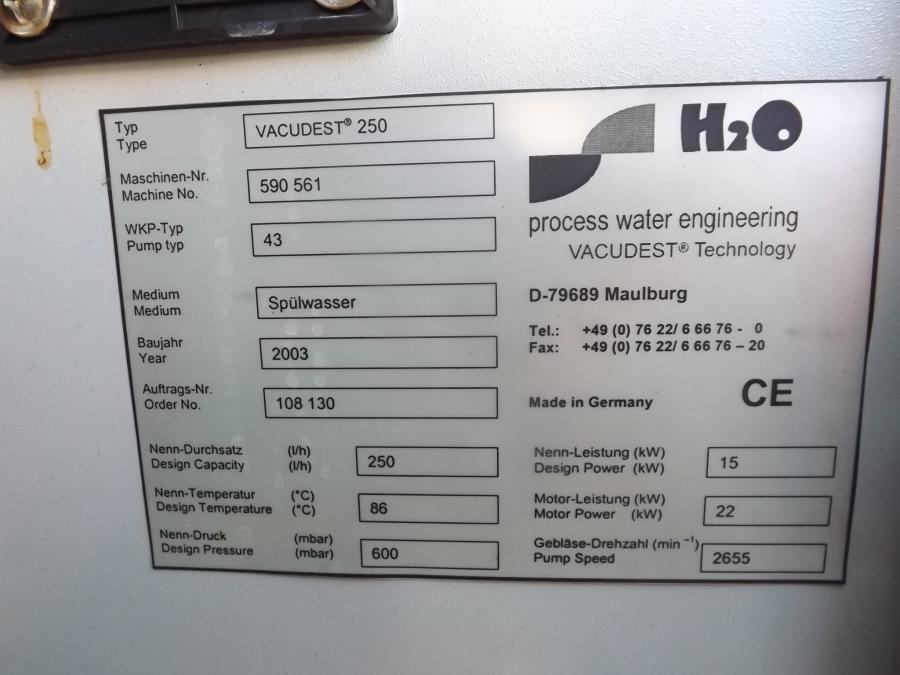

Further information  590 561 (Machine no.)
Weight  2300 kg ()
Dimensions  L/B/H 2,50/1,15/2,80 m

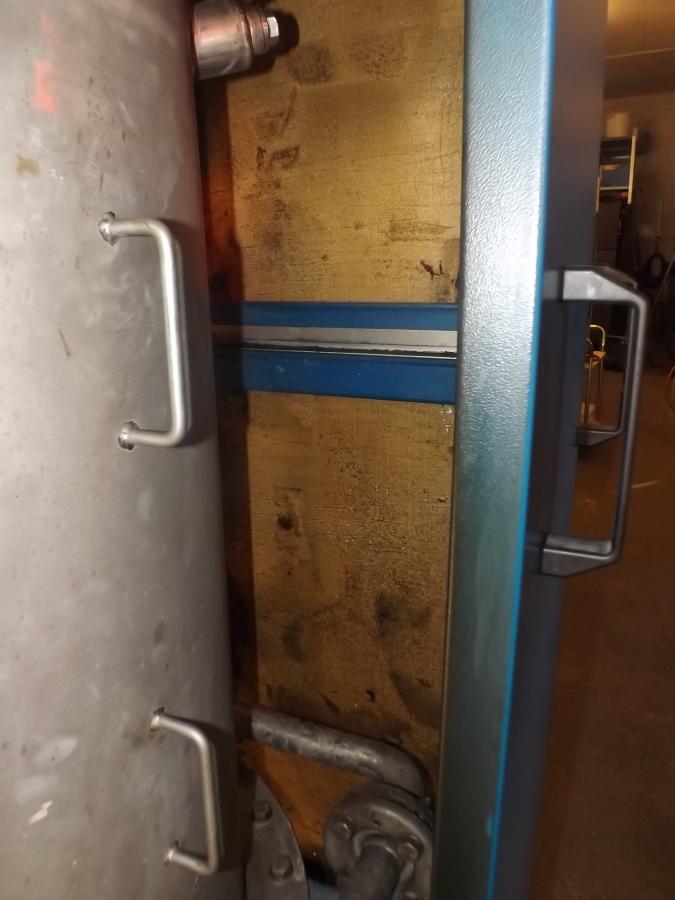

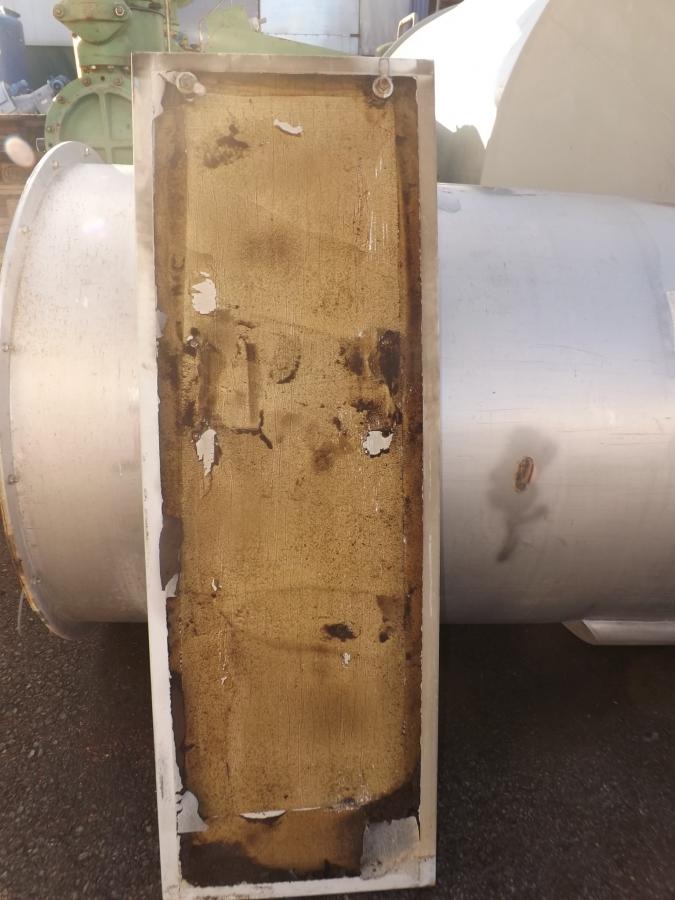

Further information  - (The soundproofing panels in the soundproofing walls must be replaced)

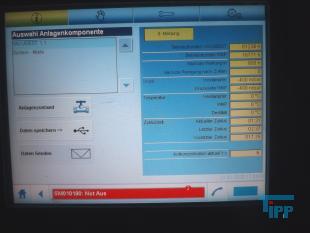

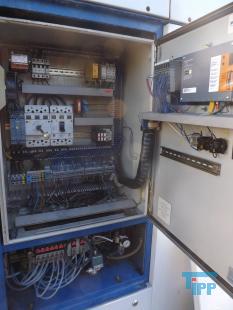

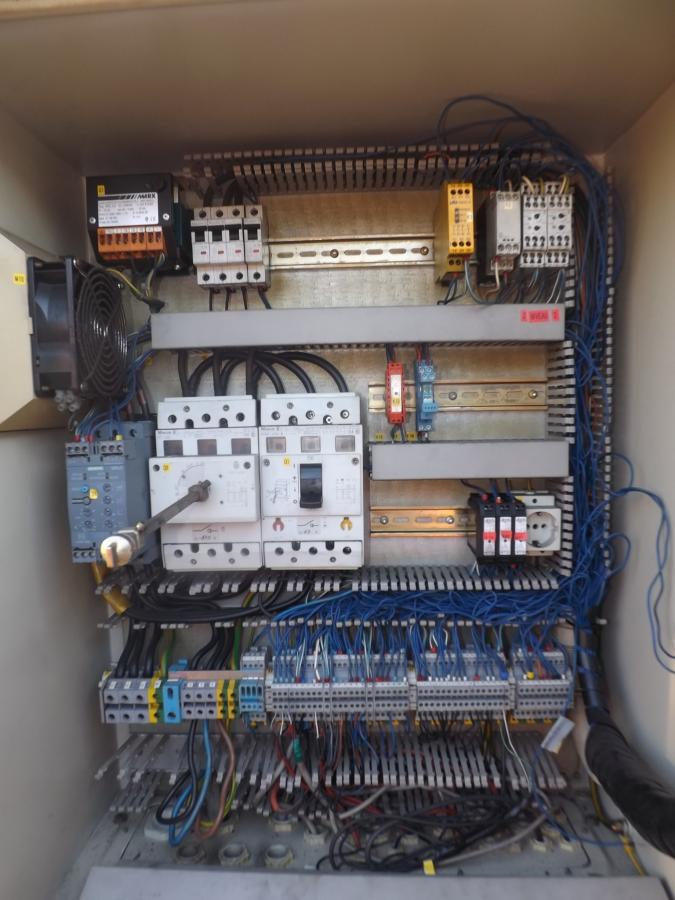

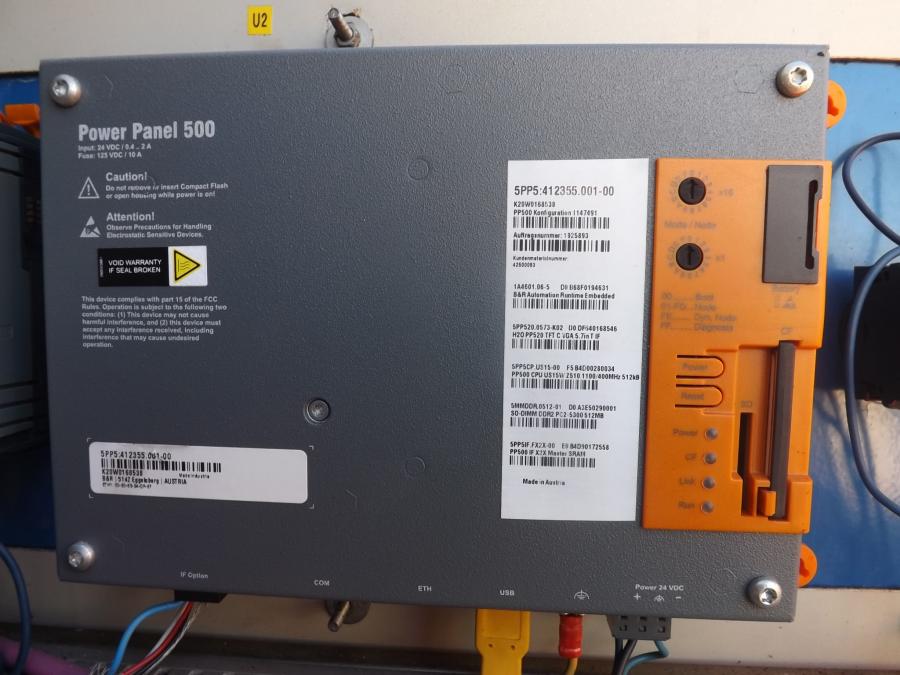

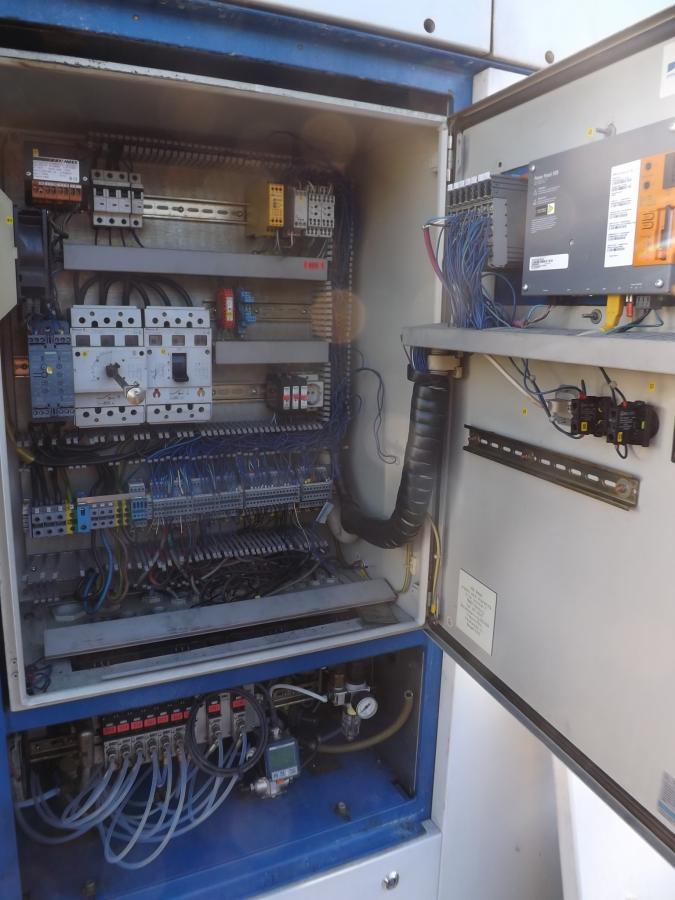

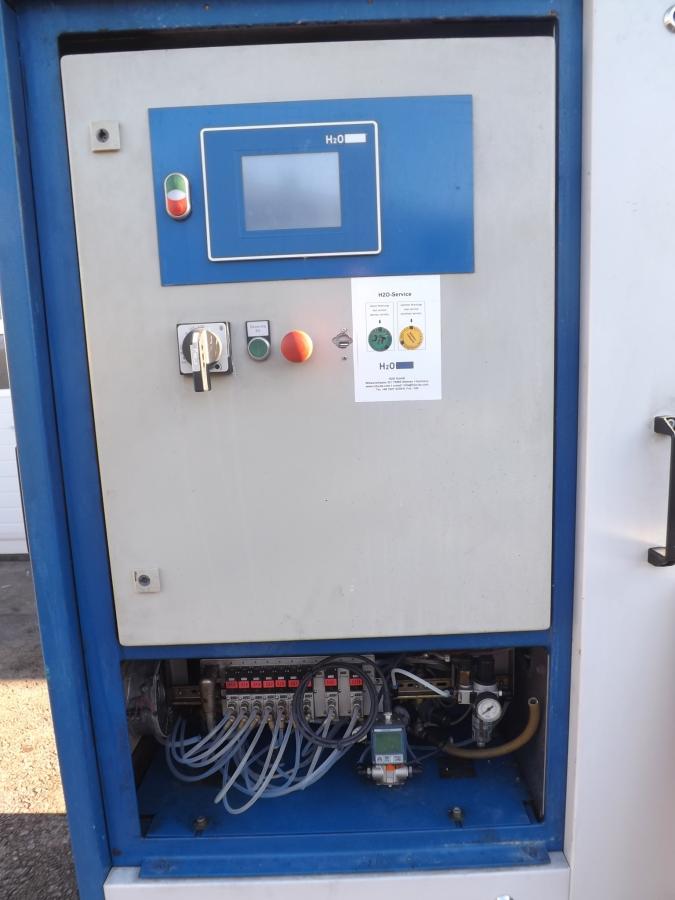

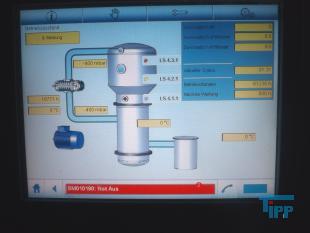

Further information  - (control unit is network compatible)
