details to article: 29295

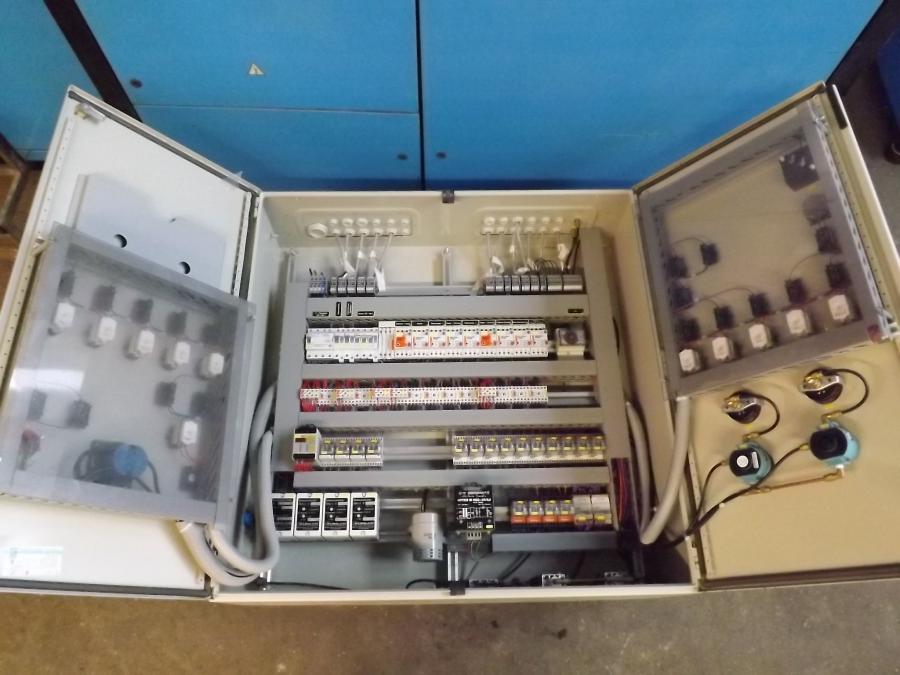

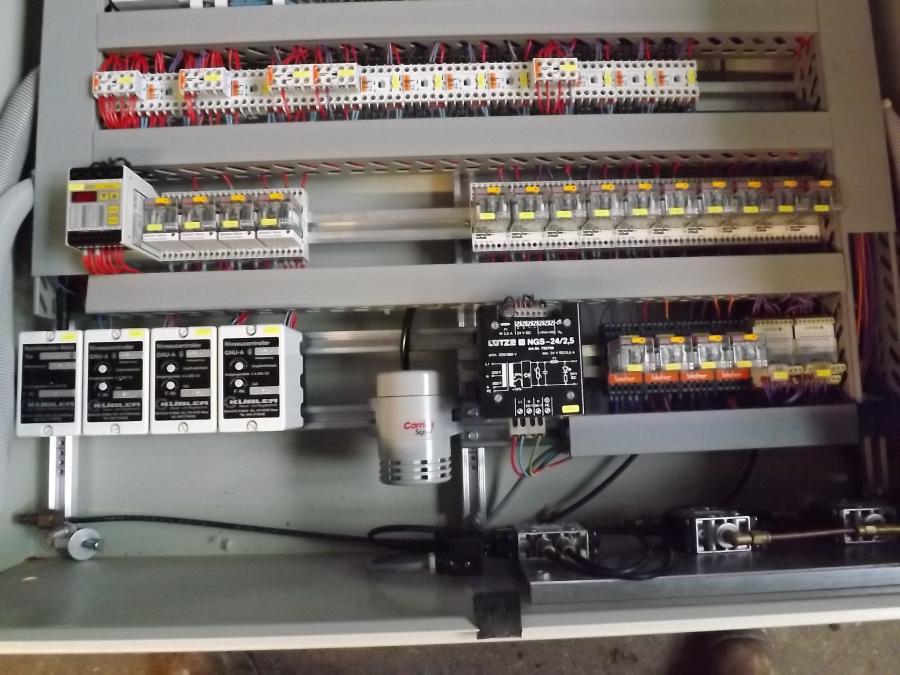

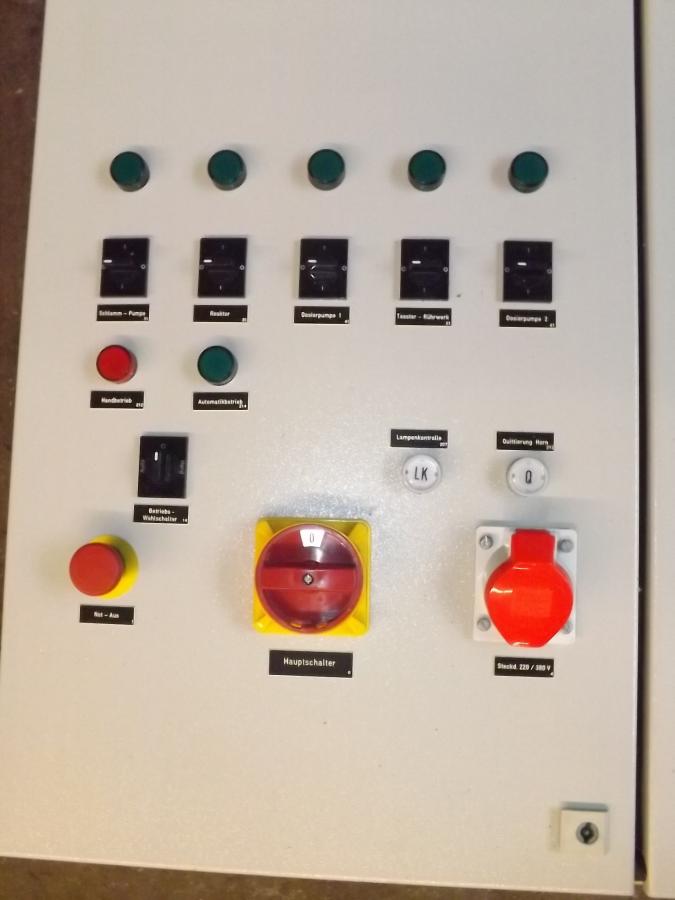

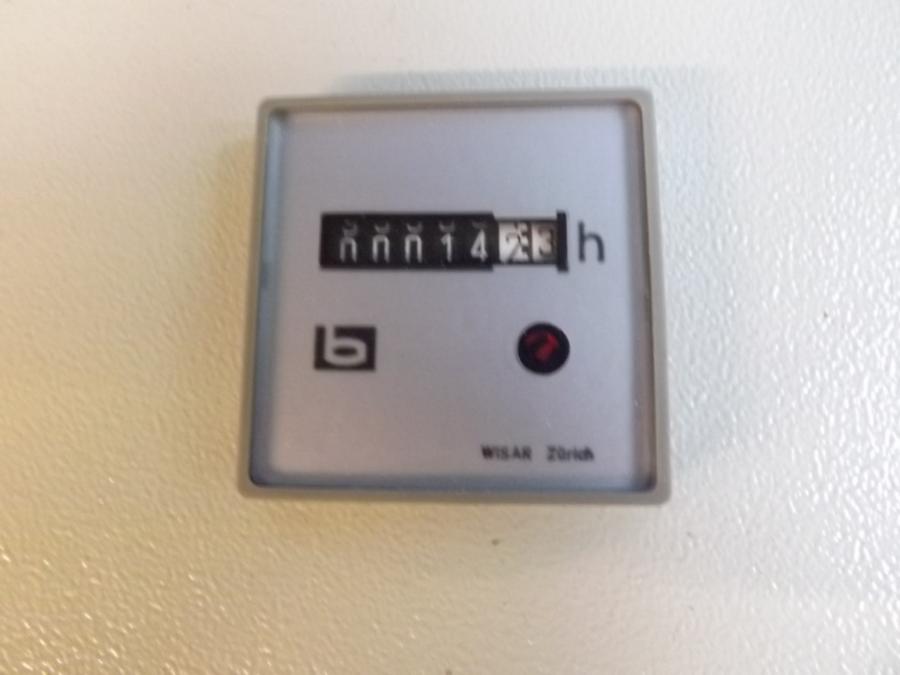

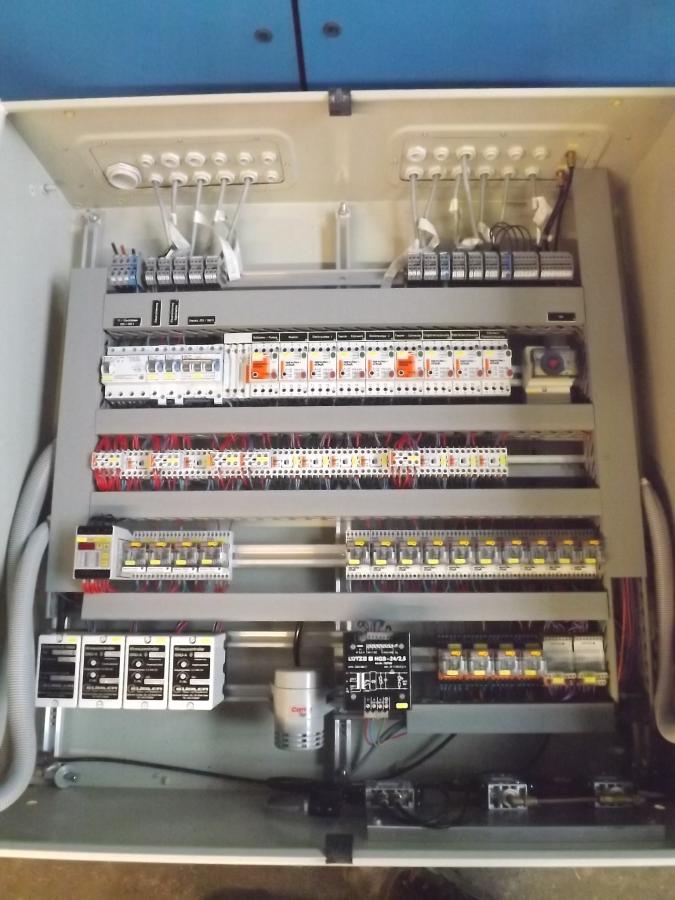

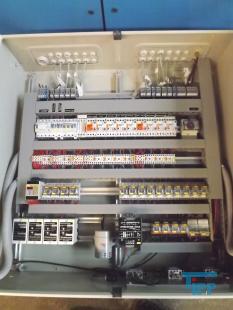

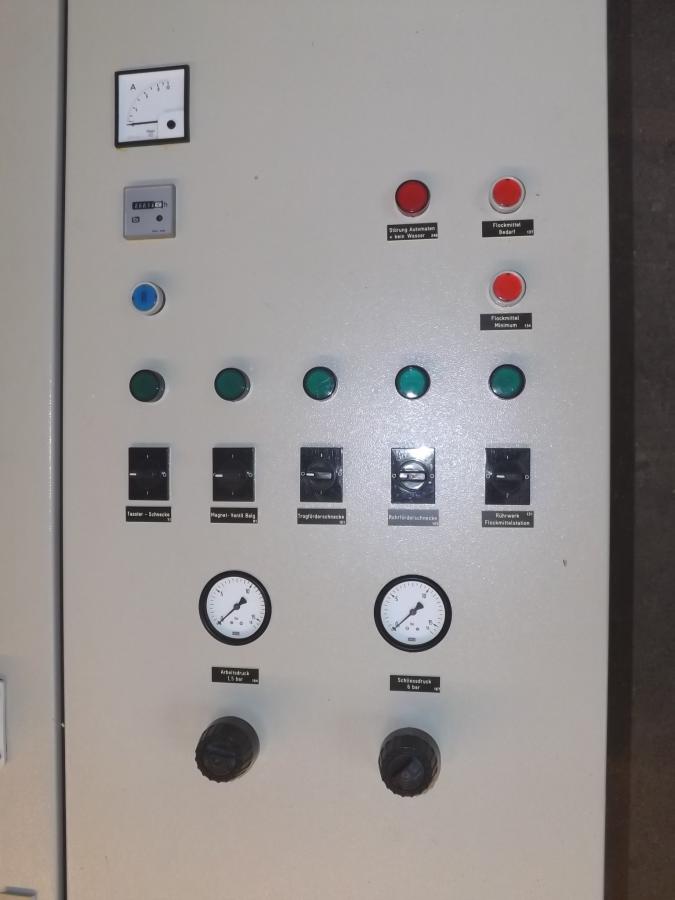

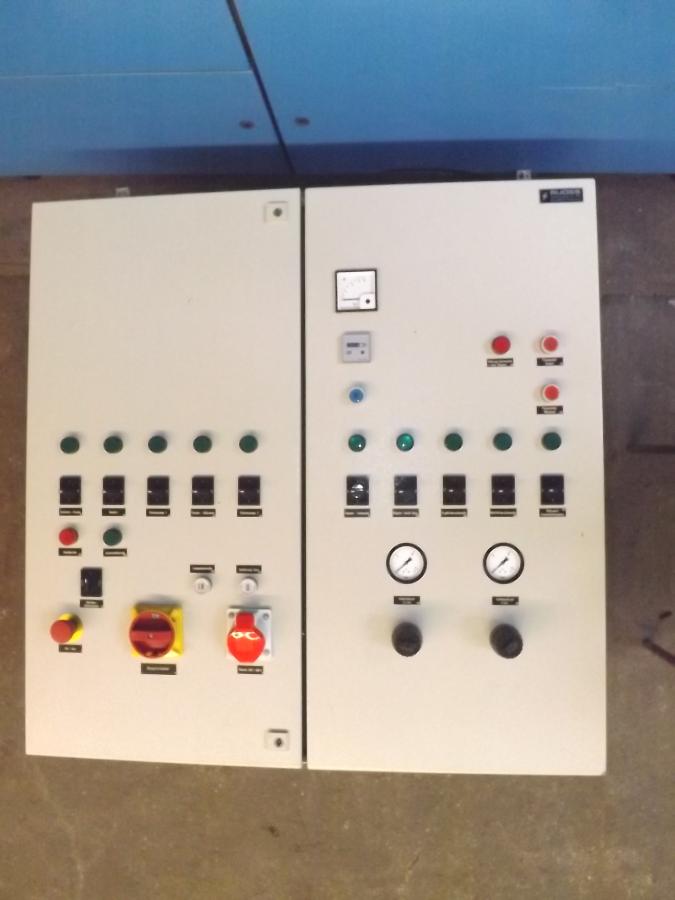

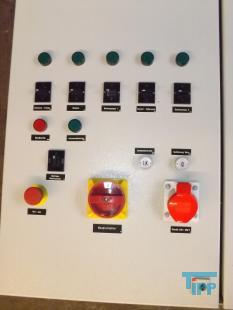

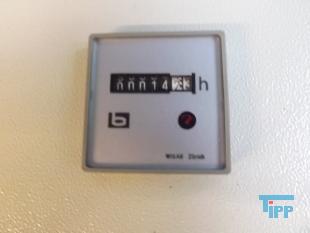

description: Accessories of the system are dewatering unit, flocculant station with agitator and 2 dosing pumps (polymer), feed pump (sludge pump), round container with screw made of PP, control cabinet with relay control. The system was operated as a test system. Only 14 operating hours.

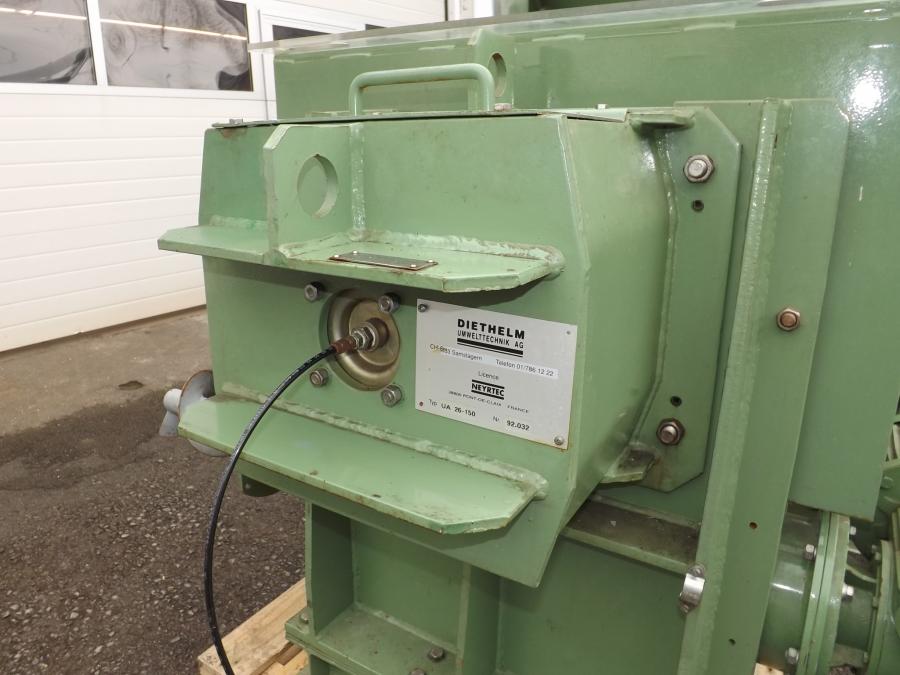

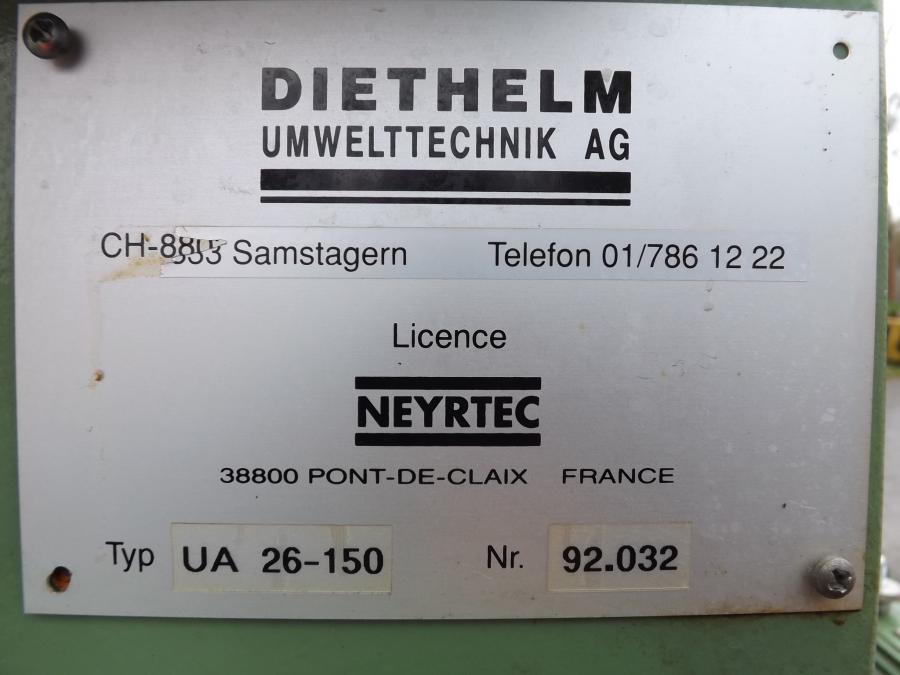

Producer:Diethelm
Typ:UA 26 - 150
Year of manufacture:1993
Pieces:1



technical data

Power  100 h (nominal output kg / TS / h)
3.0 m³/h (nominal output approx. (Hydraulic))

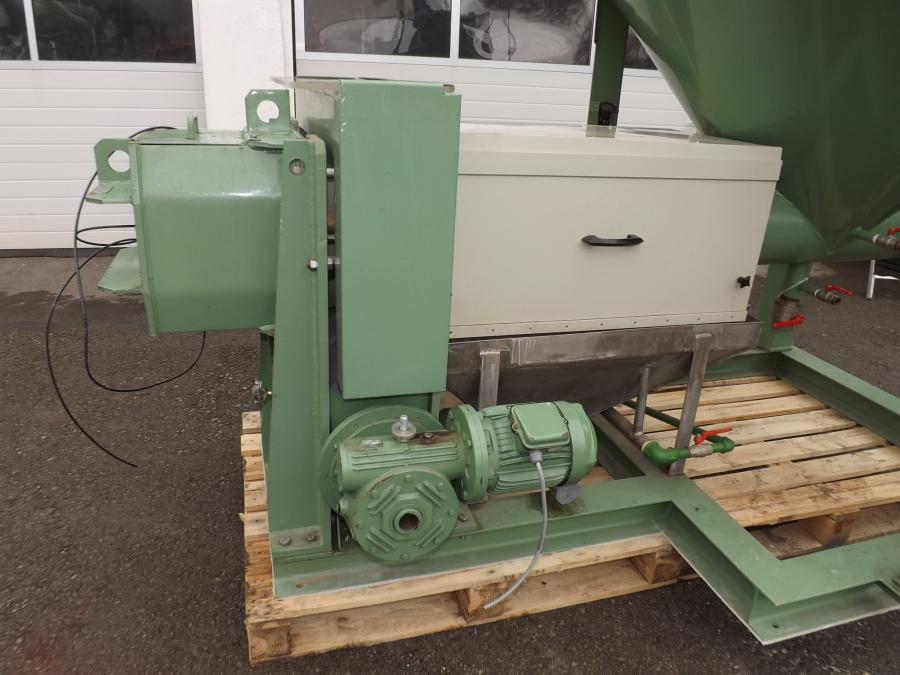

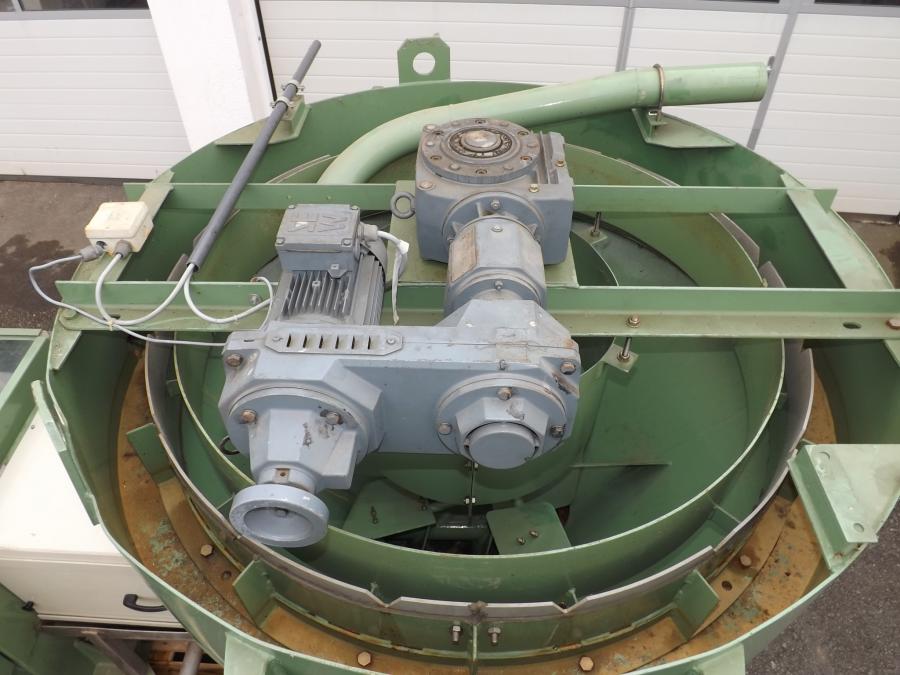

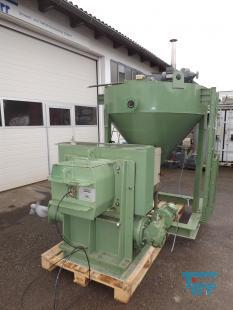

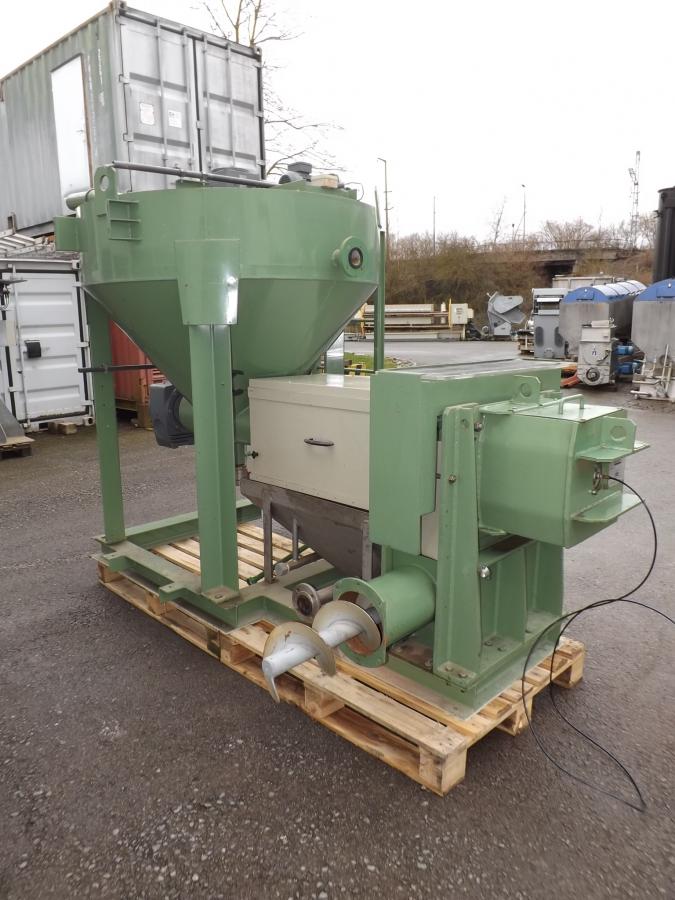

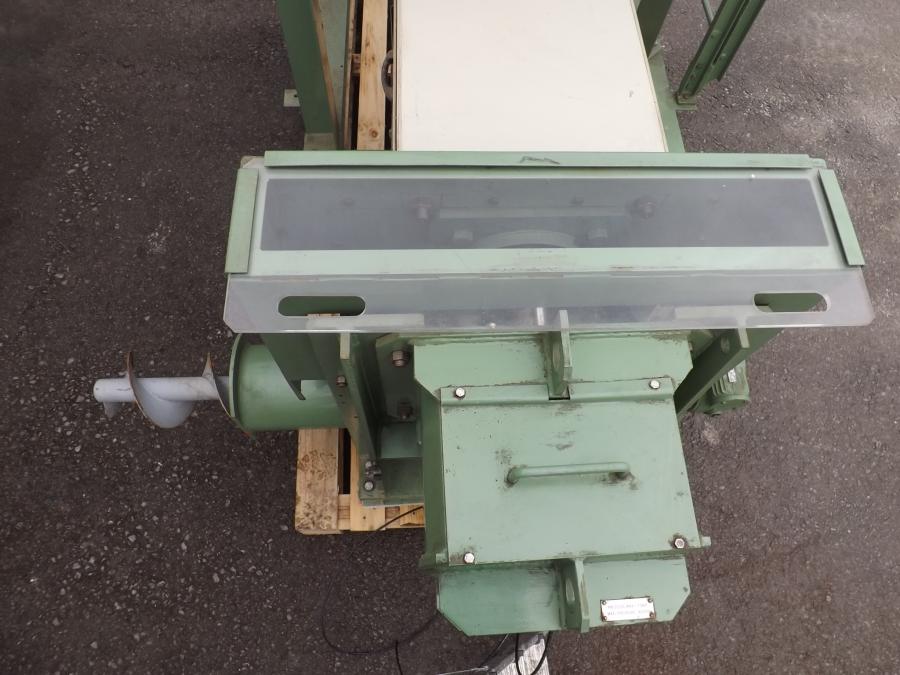

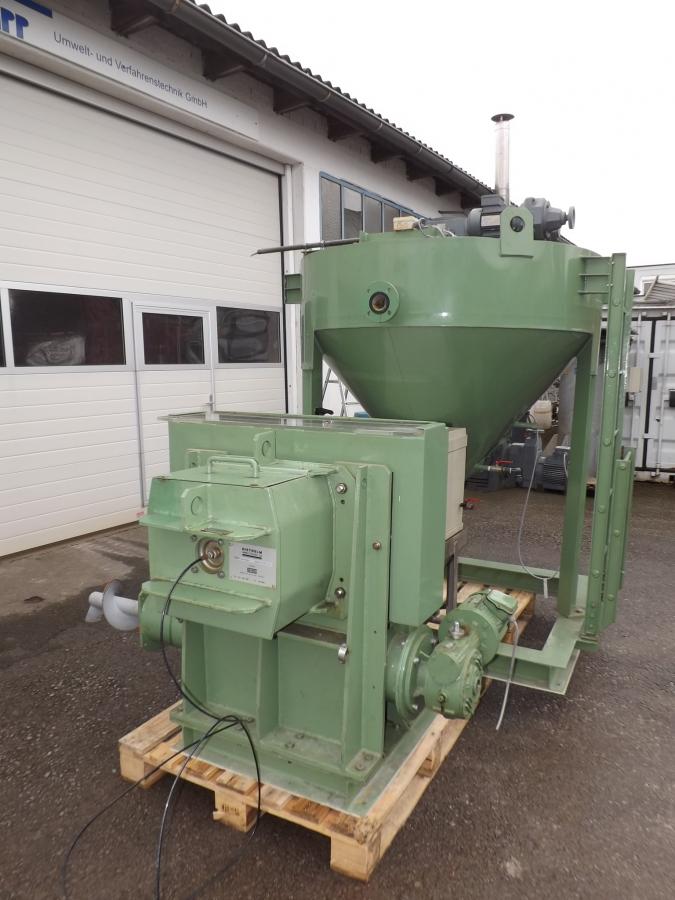

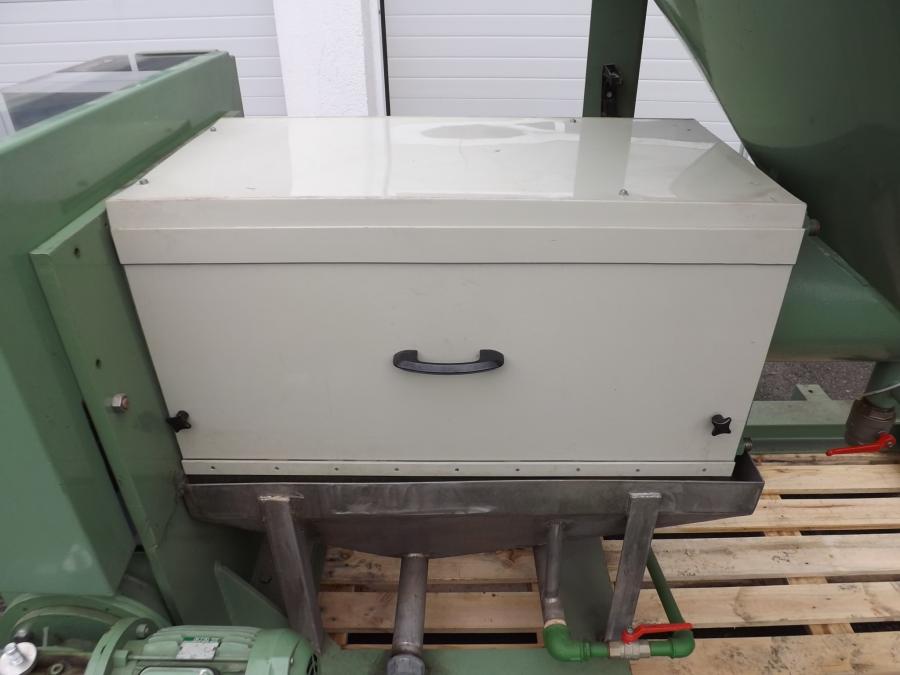

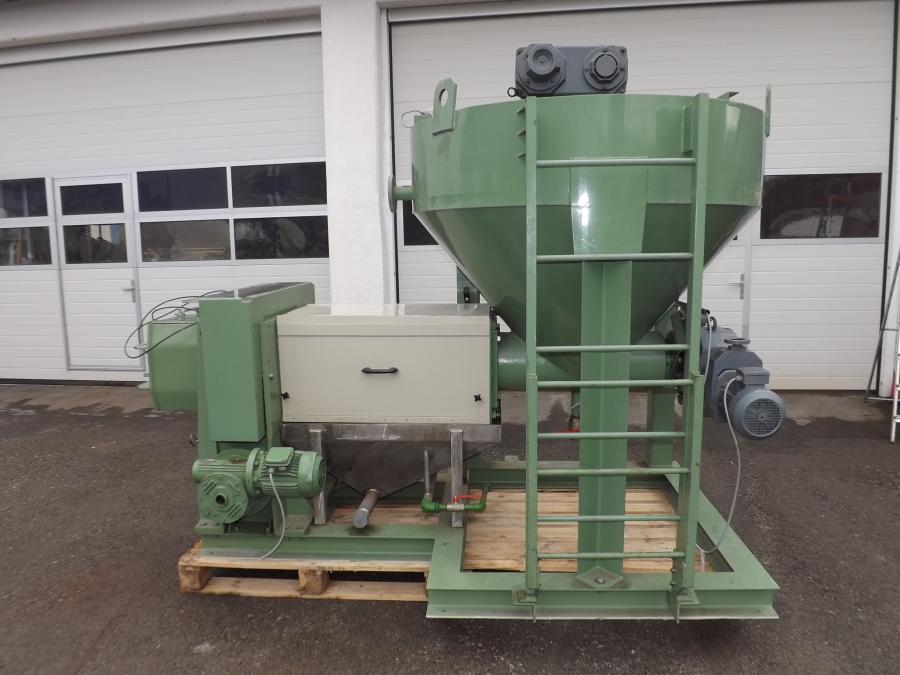

Description  (Tasster dewatering unit: thickening of flocculated sludge / filtering of the pre-thickened sludge in the screw grid system / pressing of the sludge by a counterpressure device / trough conveyor screw (removed due to transport) with geared motor)

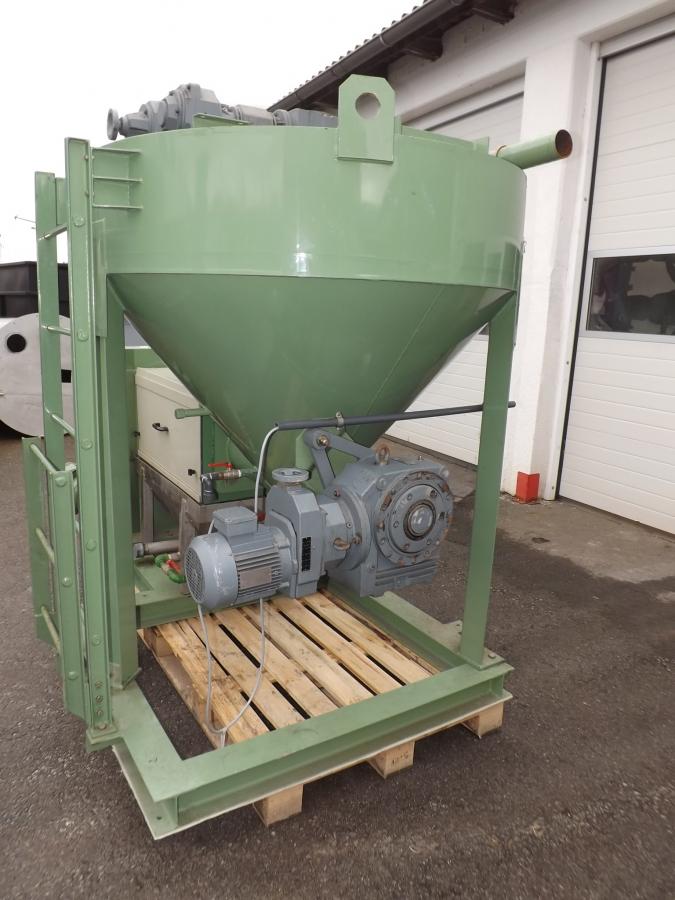

Content  1.0 m³ (contents of the tank (cylindrical-conical))
Diameter  1500 mm (tank inside)

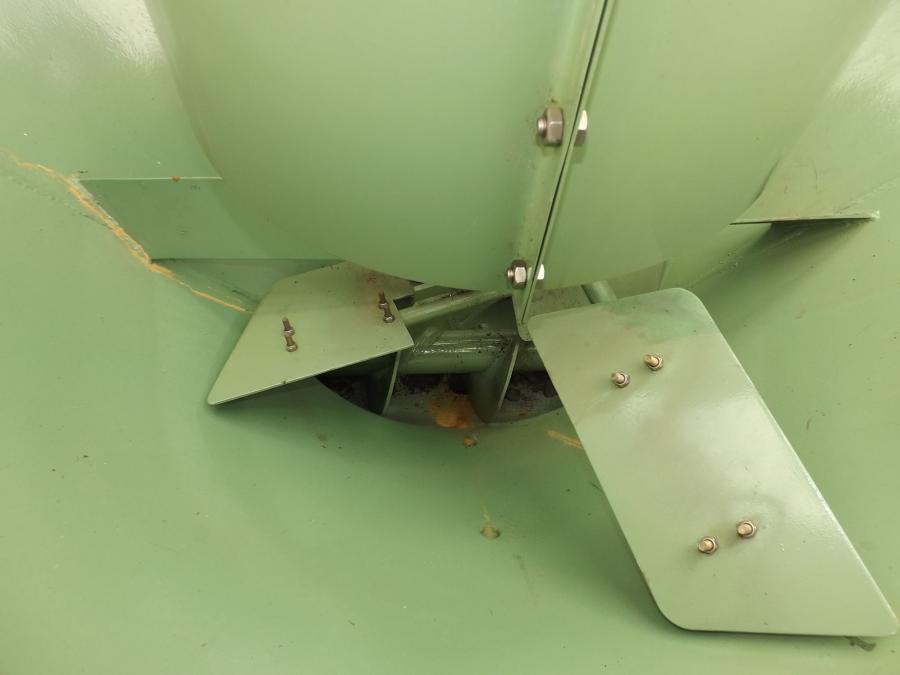

- (vertical agitator with 4 blades and a brush system with motor reduction gear)

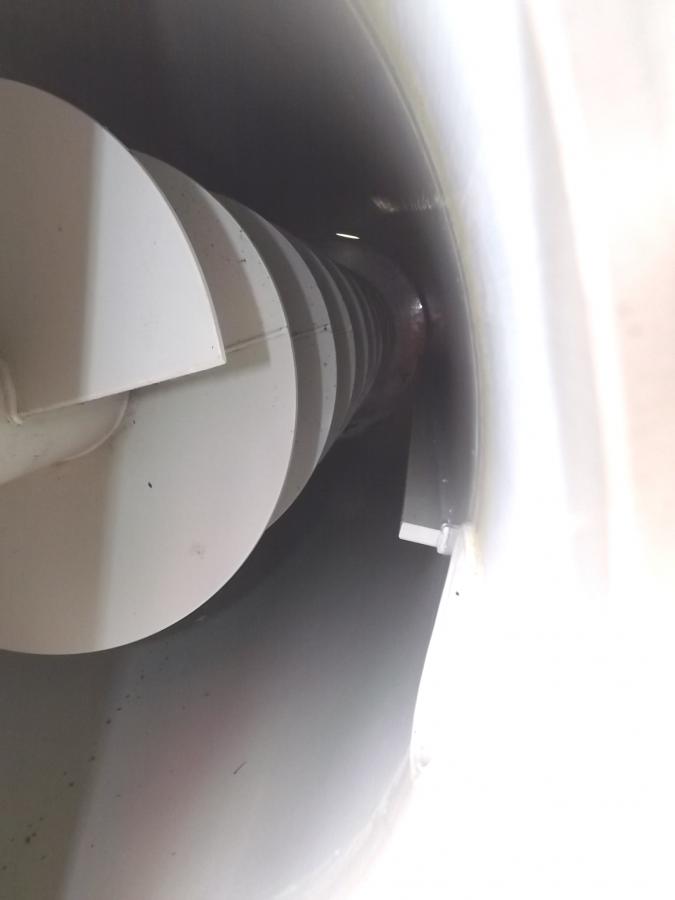

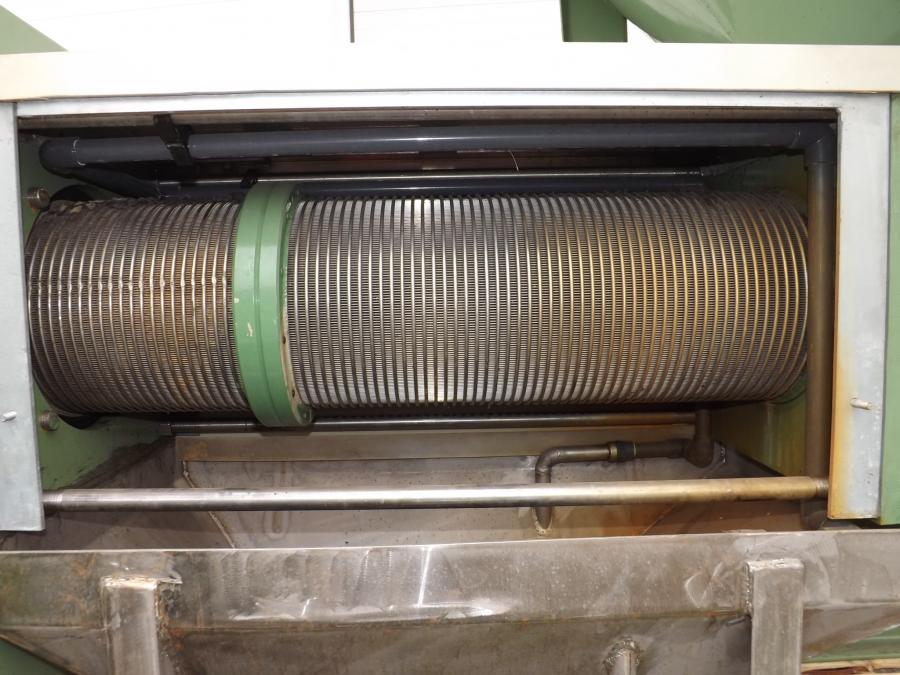

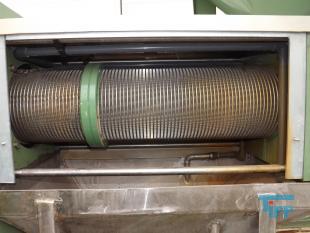

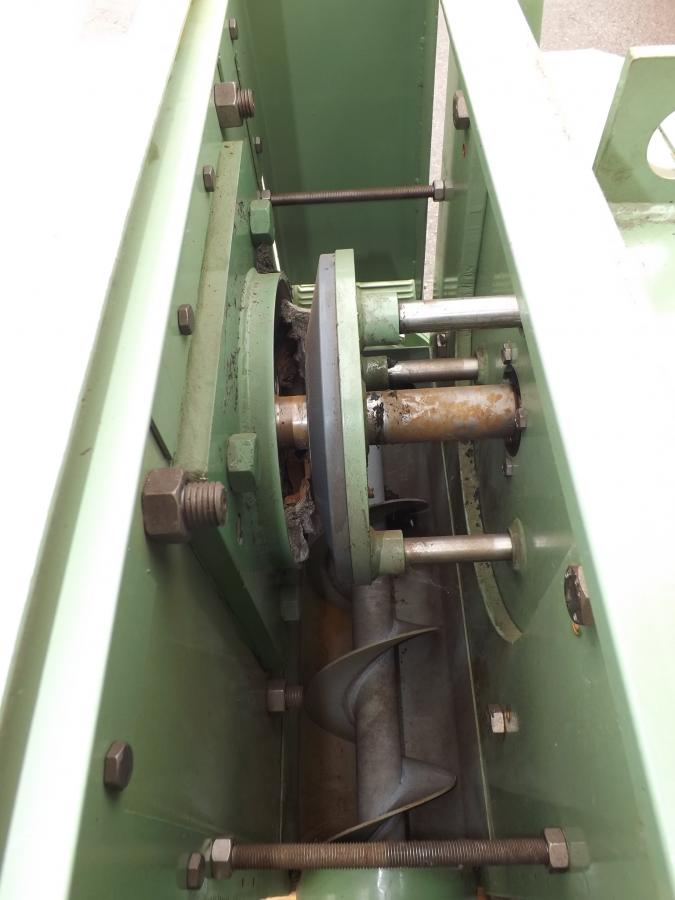

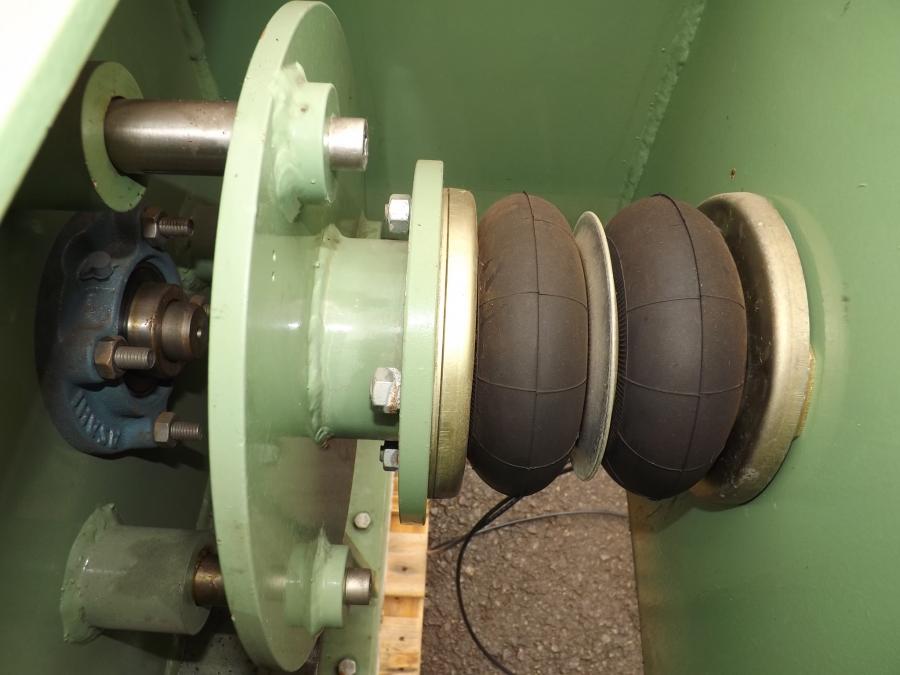

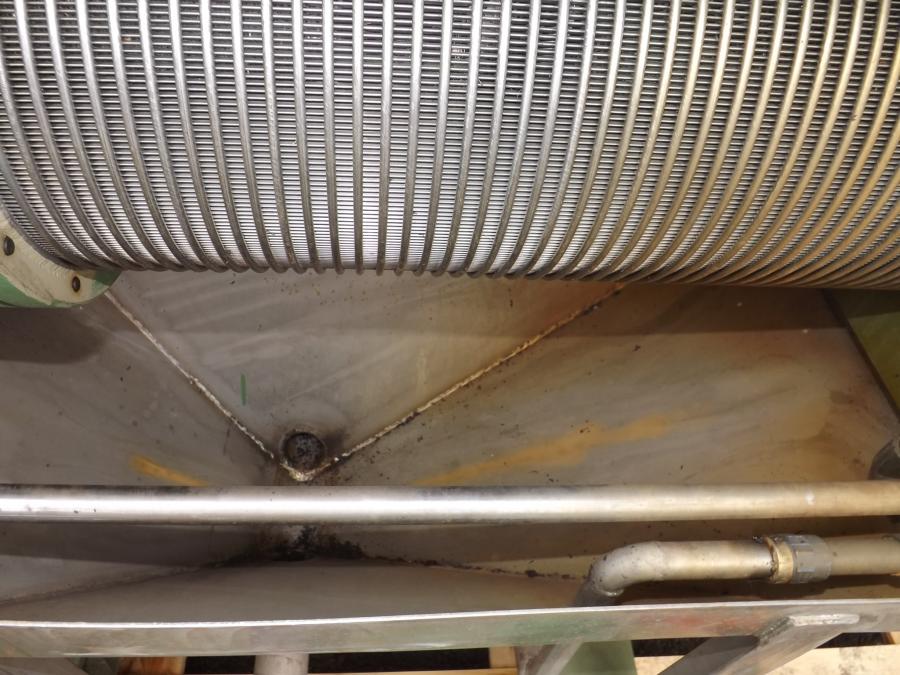

- (screw with counter pressure system (7 bar), mesh screen for the filtrate water)

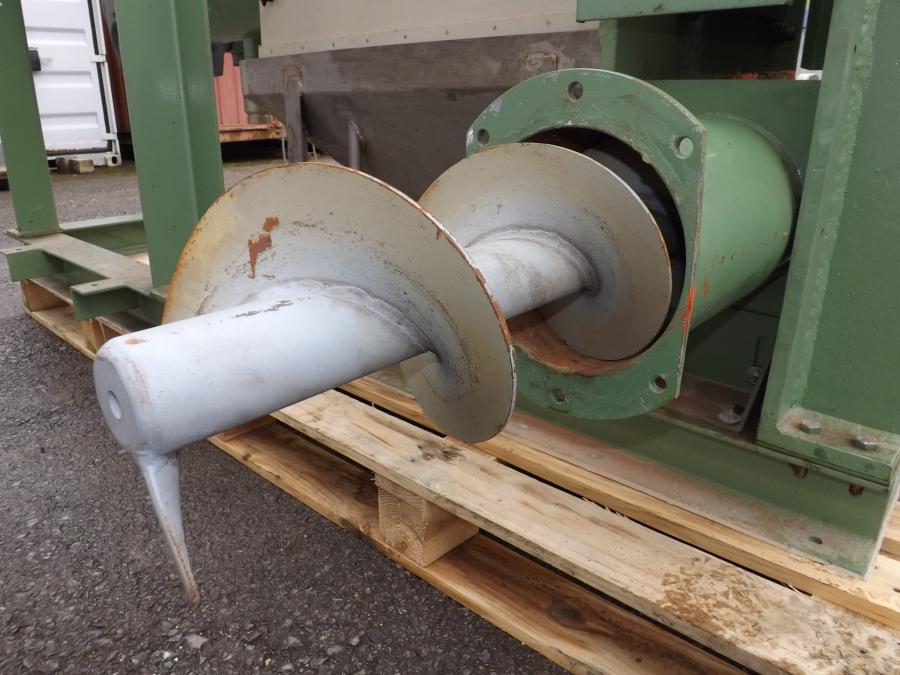

- (sludge discharge in DN200 using screw conveyor (screw is removed from the gear motor))
- (overflow DN50)
Dimensions  2800 / 1700 / 2100 mm (l / w / h)
Weight  1900 kg (approx)

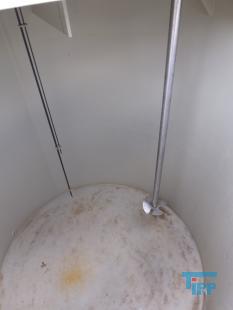

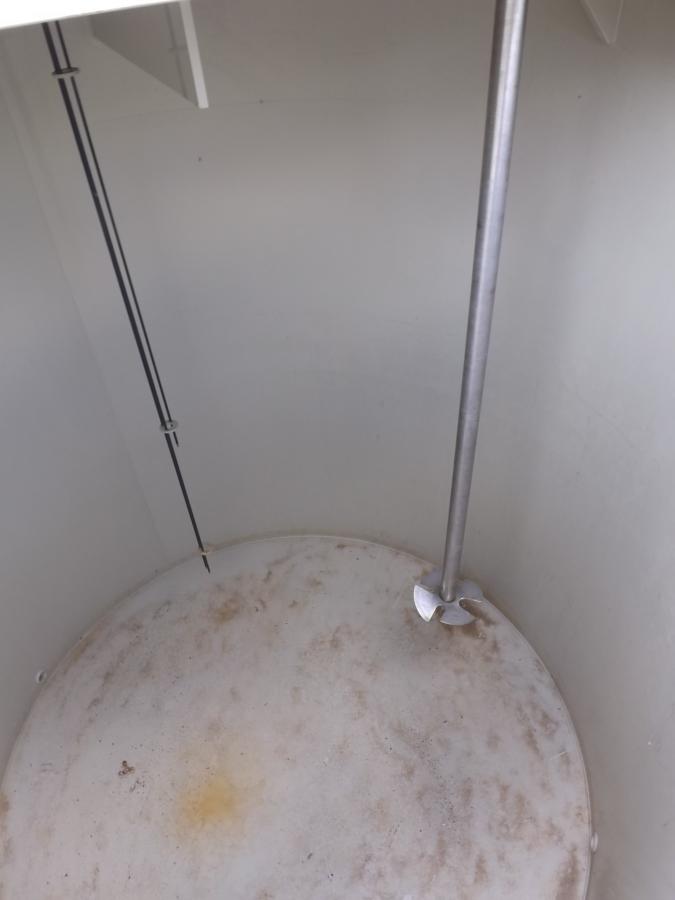

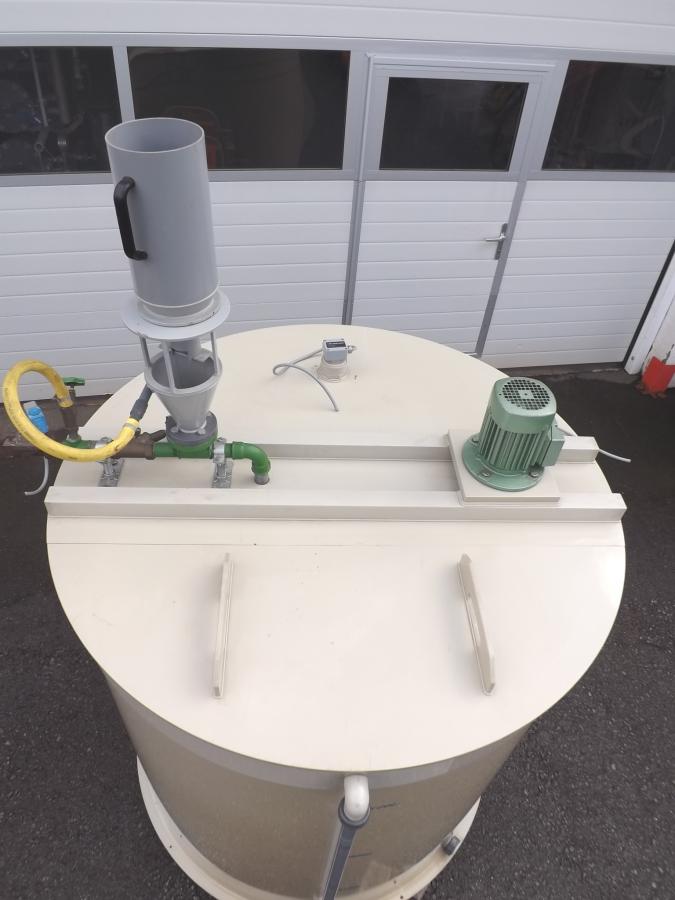

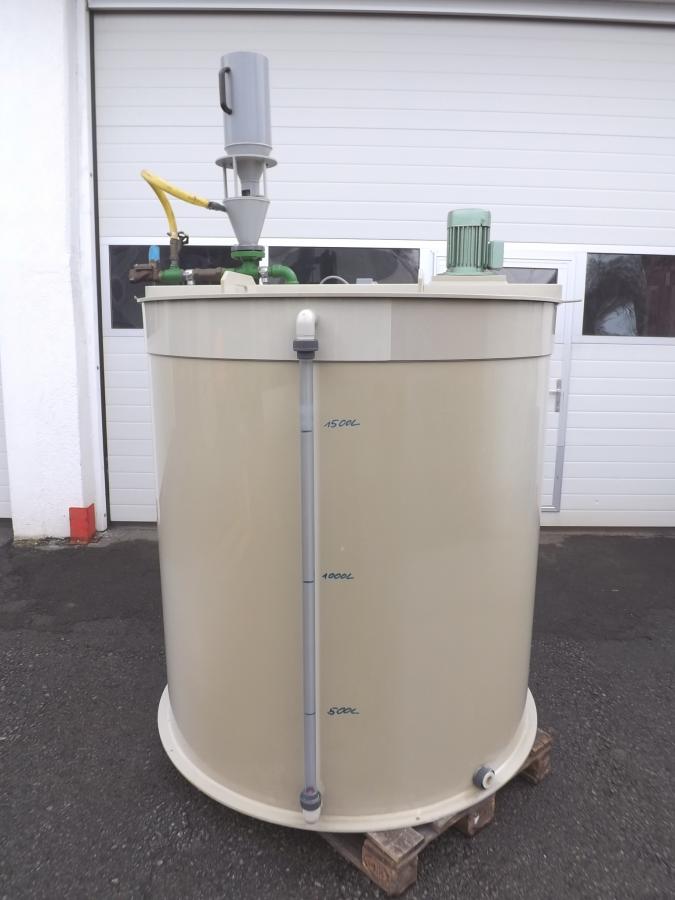

Description  - (flocculation container / flocculant station with agitator)
Volume  2.0 m³
Material  PP

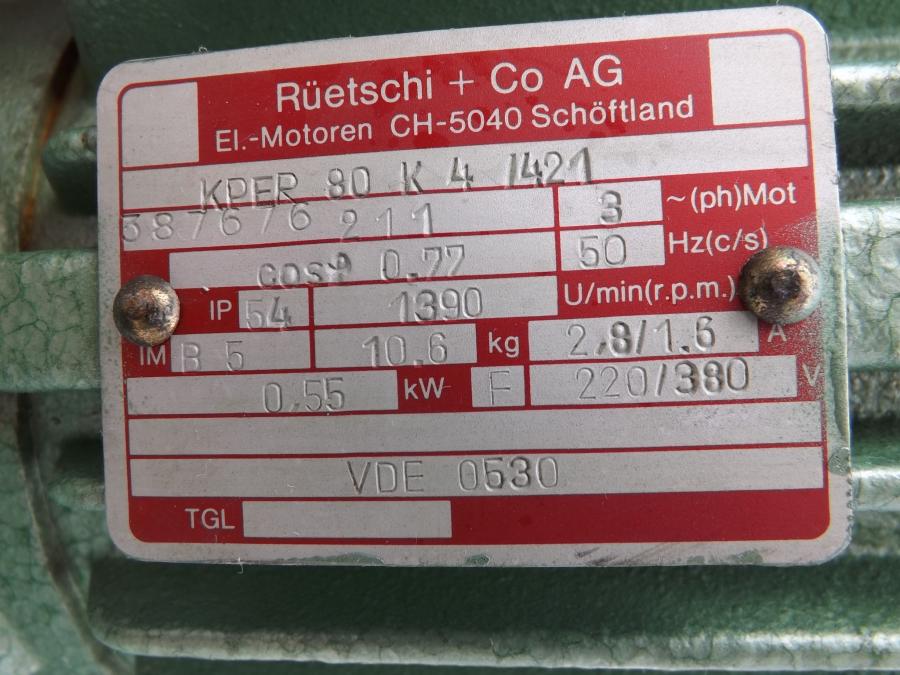

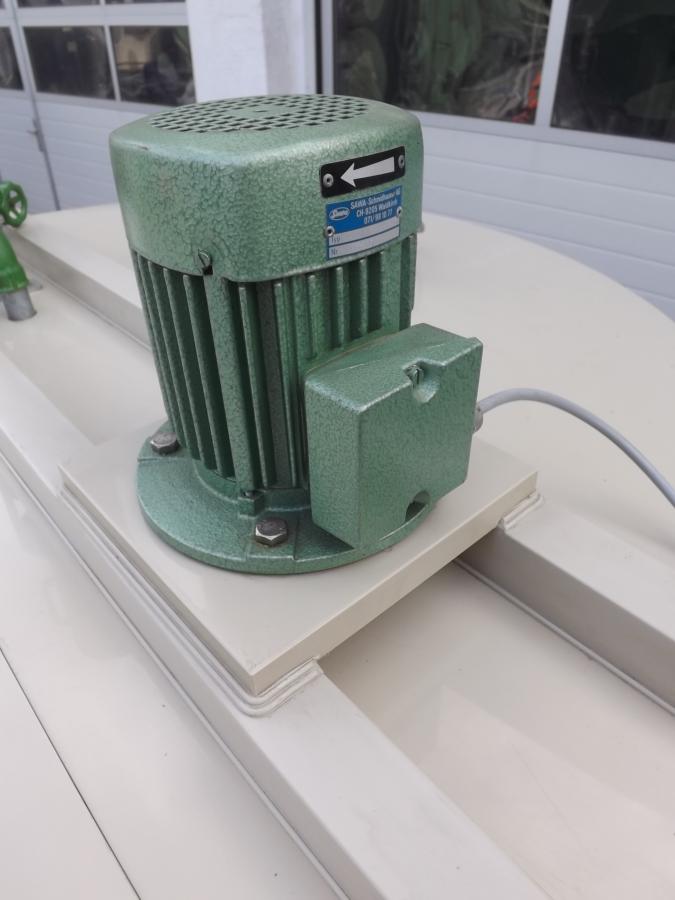

Power  0.55 kW (agiator)
Rotations  1390 1/min
Length  1200 mm (length)
Diameter  140 mm (impeller)
Material  Edelstahl (spindle and impeller)

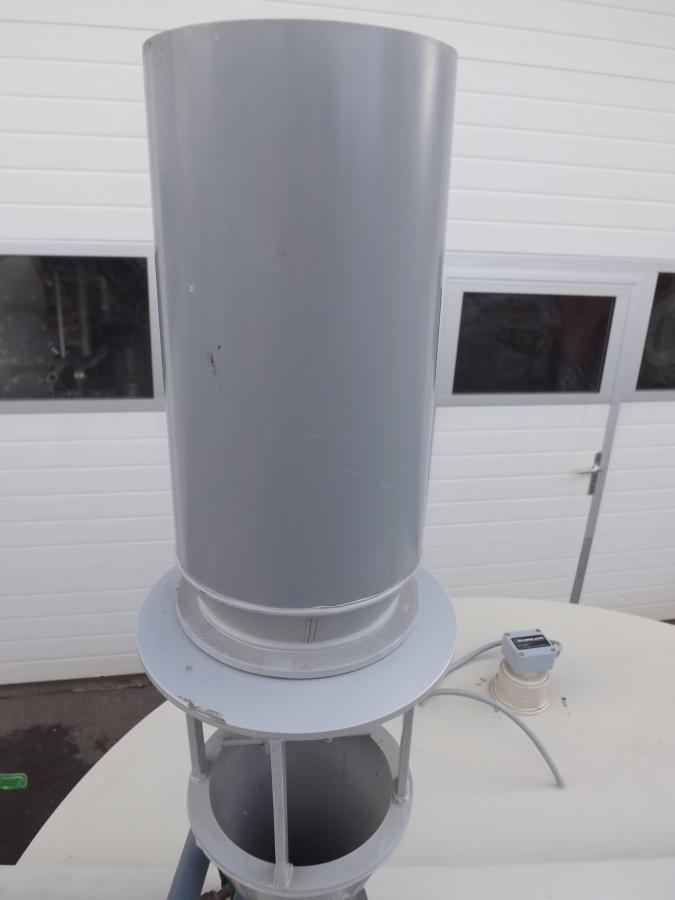

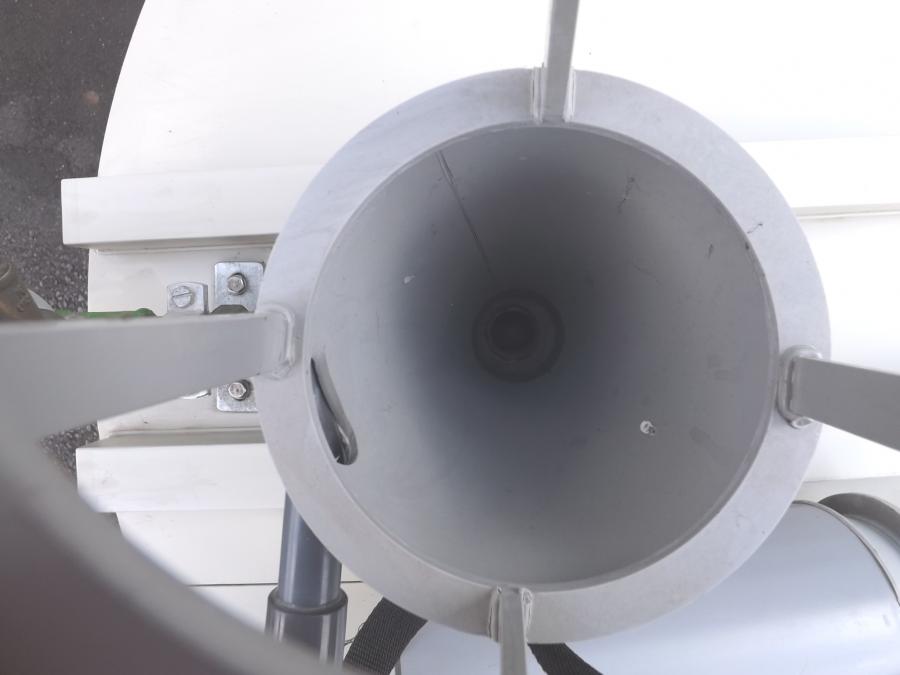

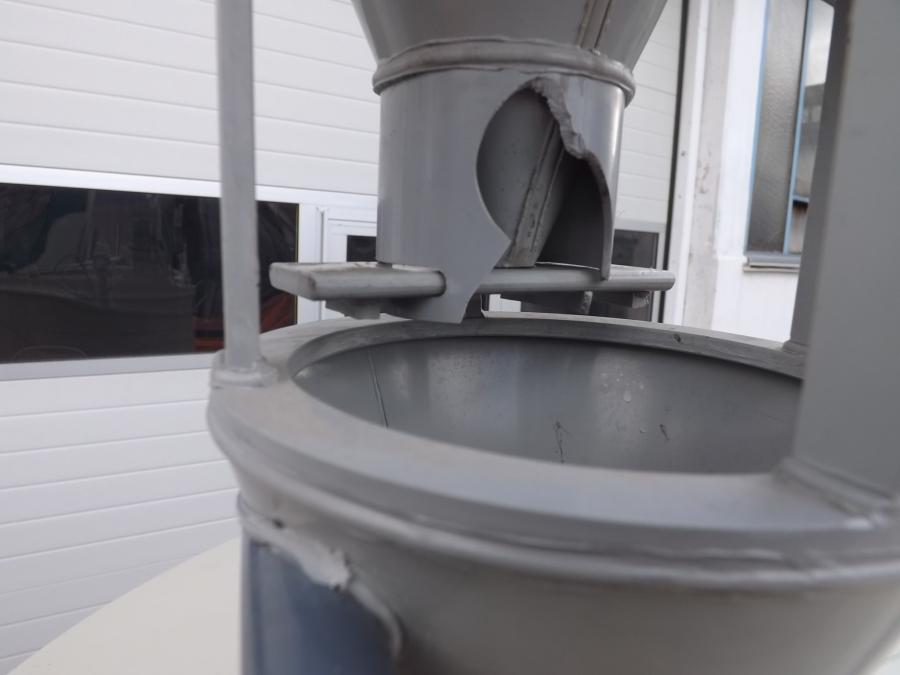

Accessories  - (optical liter-level indicator / lances with level sensor / spreading device for powder dosing (slightly damaged) / valve for fresh water supply)
Connections  2x DN25
Diameter  1330 mm (tank)
Height  1450 / 2300 mm (tank total)

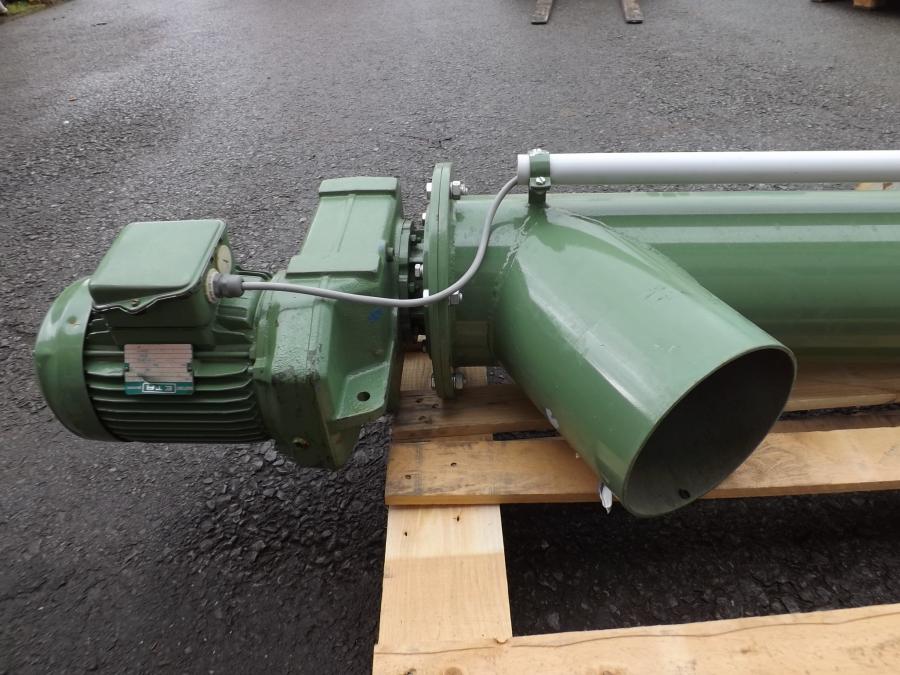

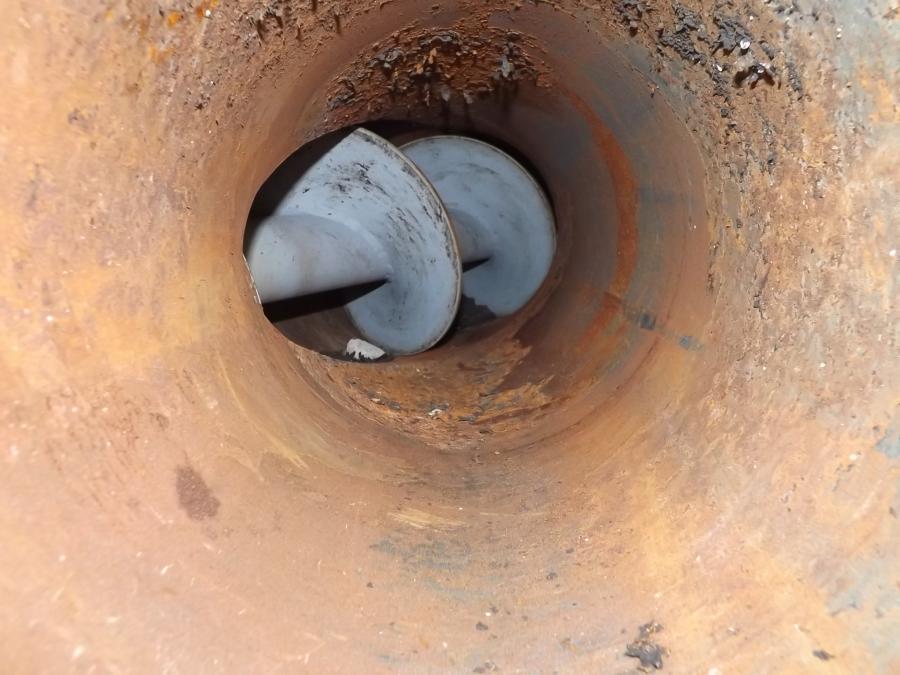

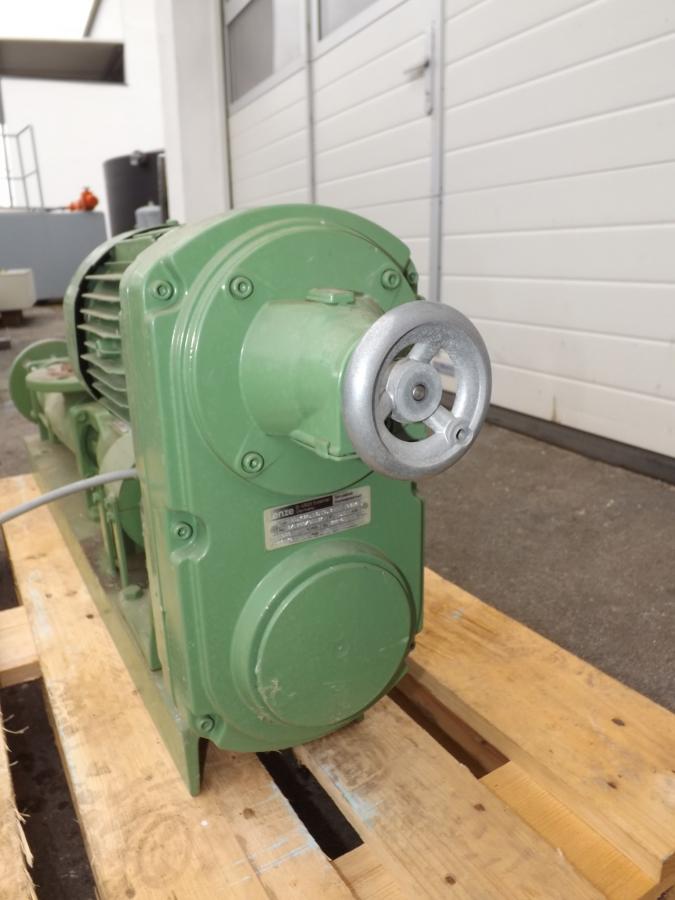

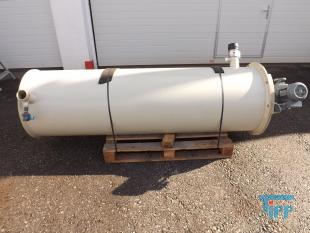

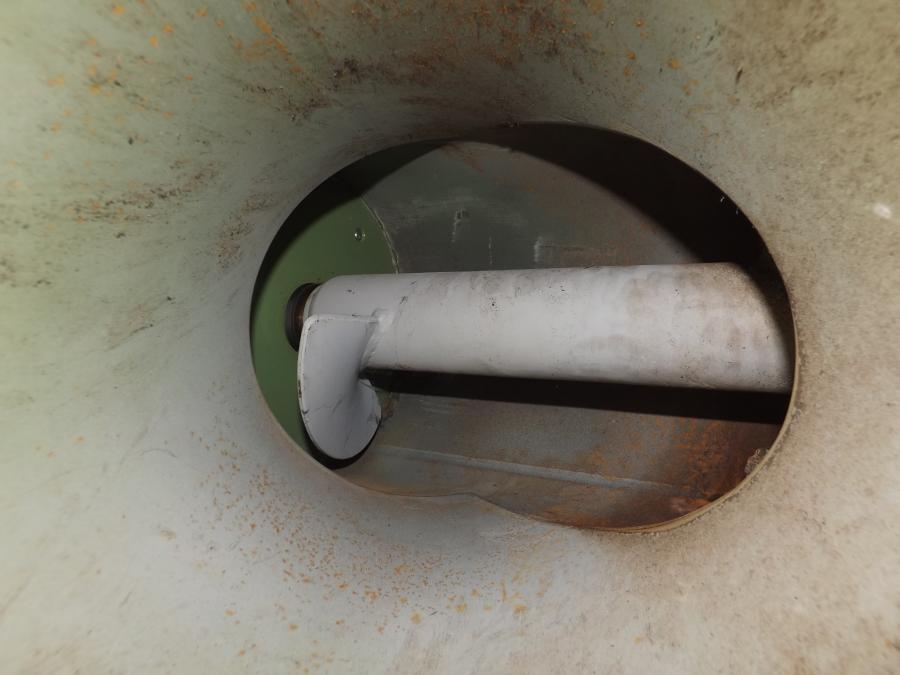

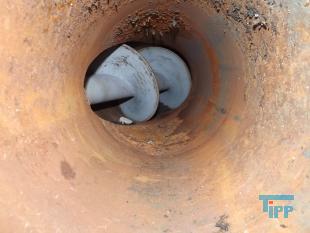

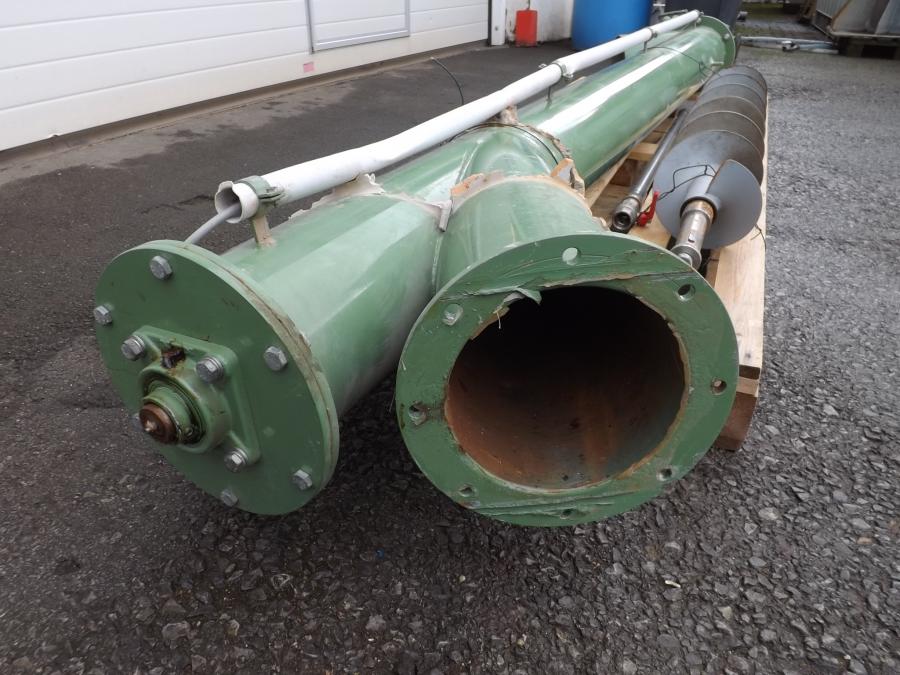

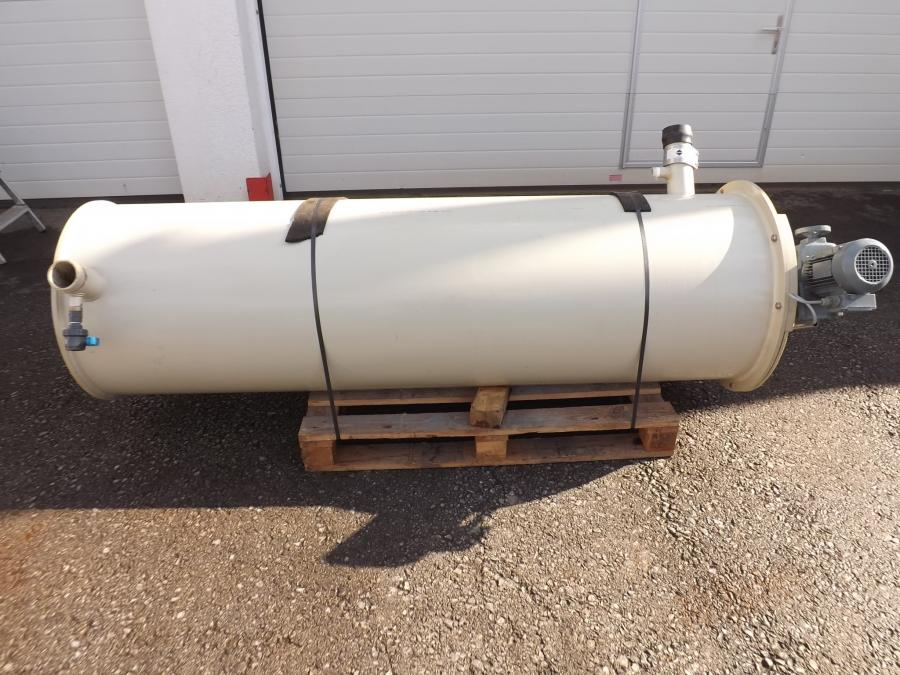

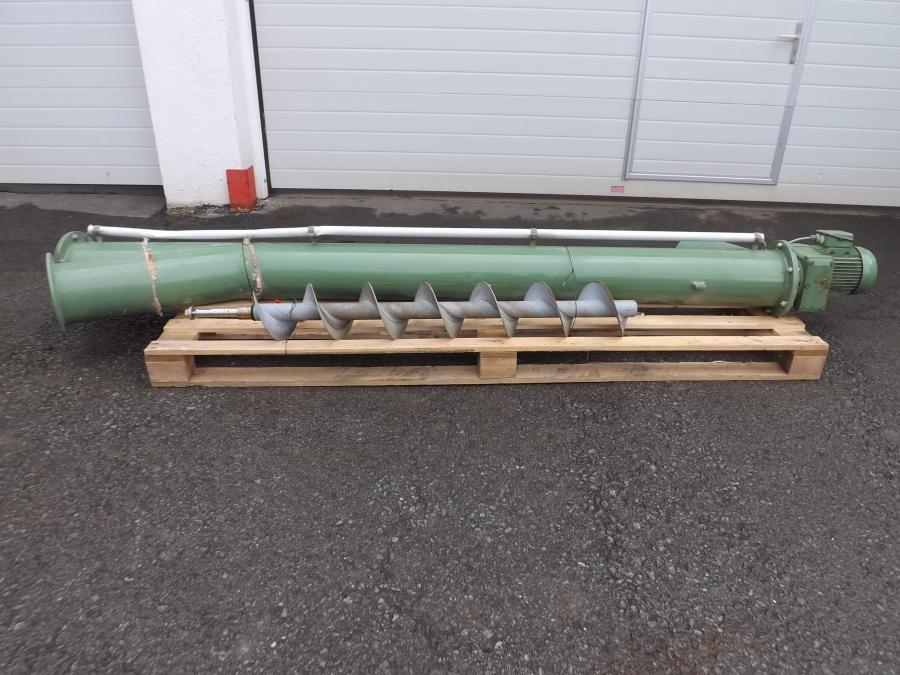

Description  - (pipe conveyor screw for further transport of the sludge)

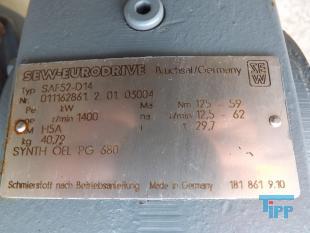

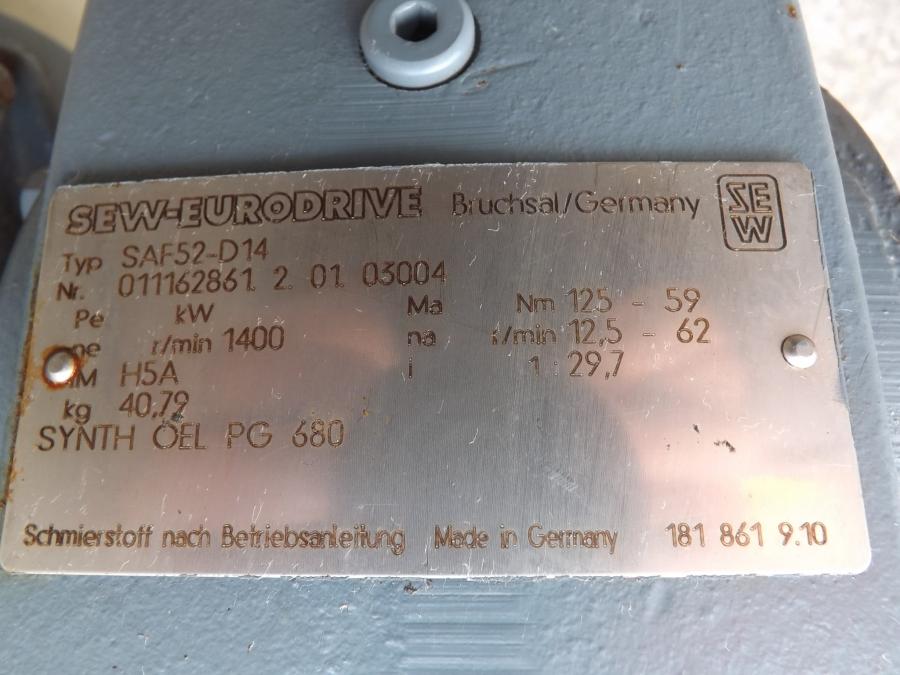

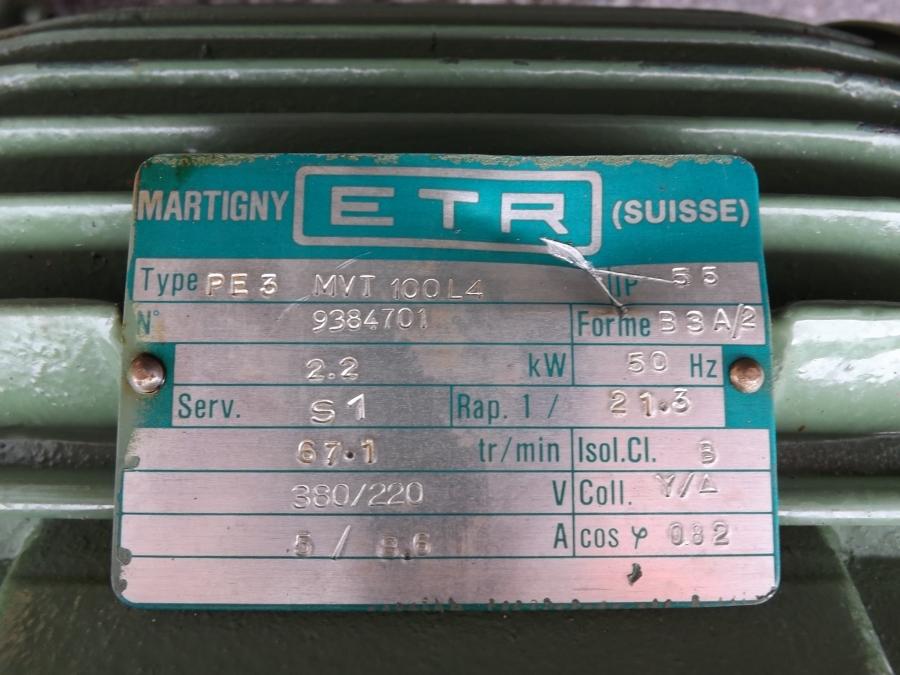

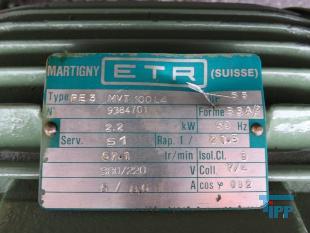

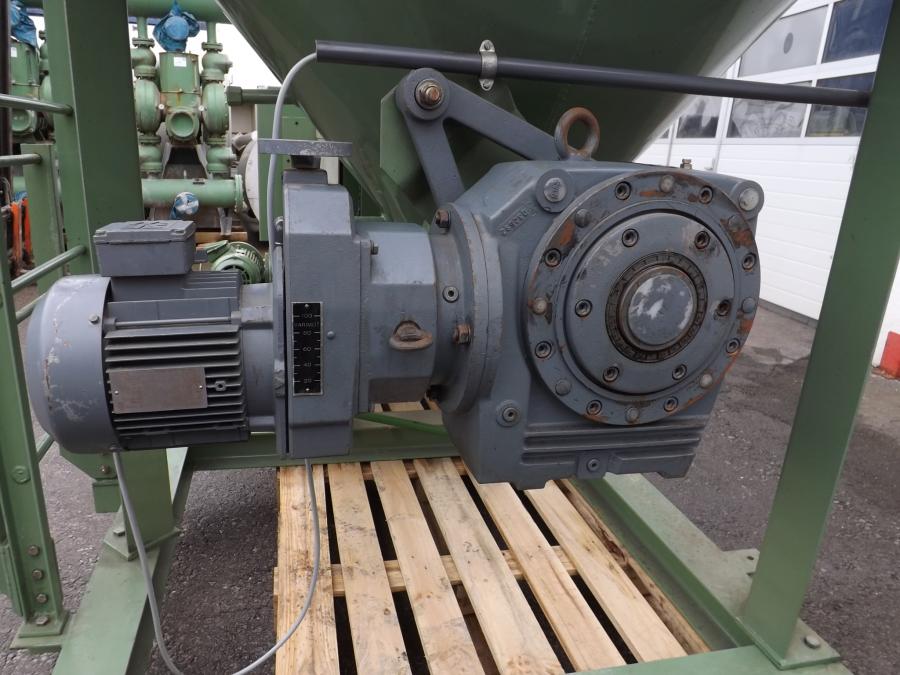

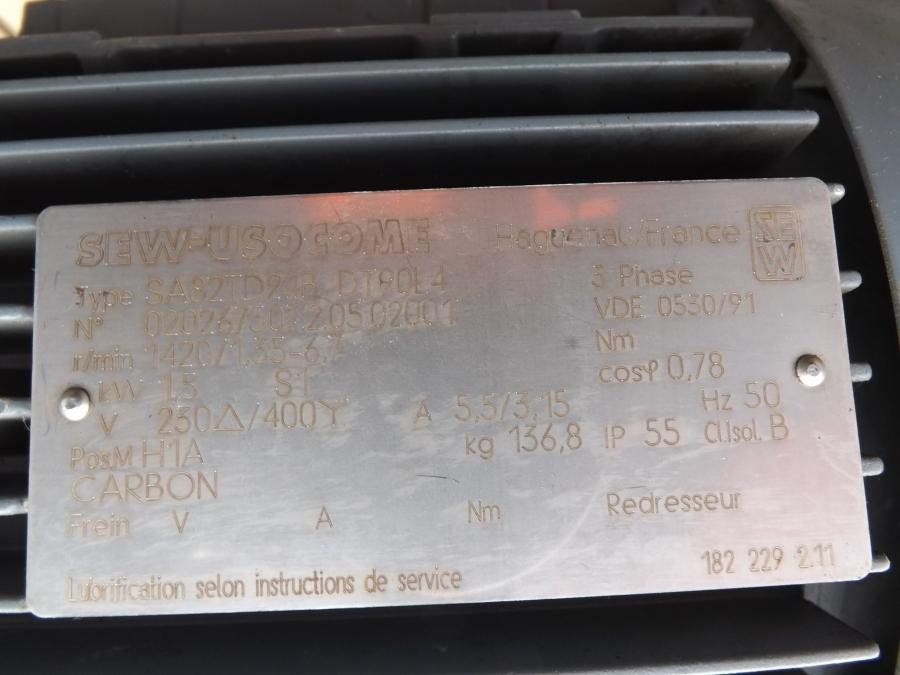

Power  2.2 kW (gear motor)
Rotations  67.1 1/min (gear)
Connections  210 mm (inside (pipe connection flange) / pipe connection ejection)
Length  2700 / 3200 mm (screw / total length)

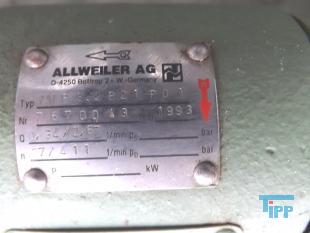

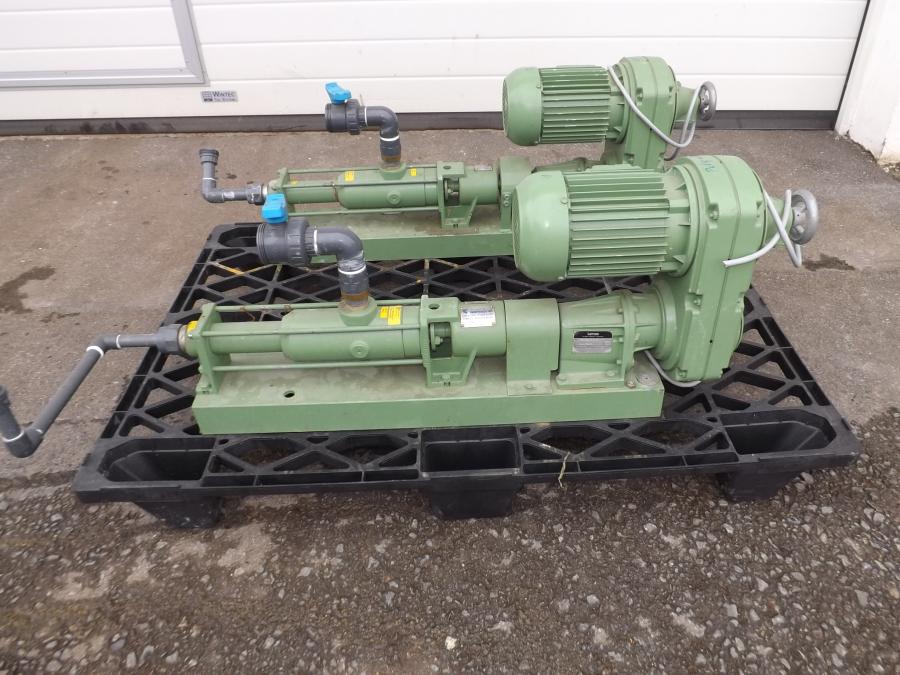

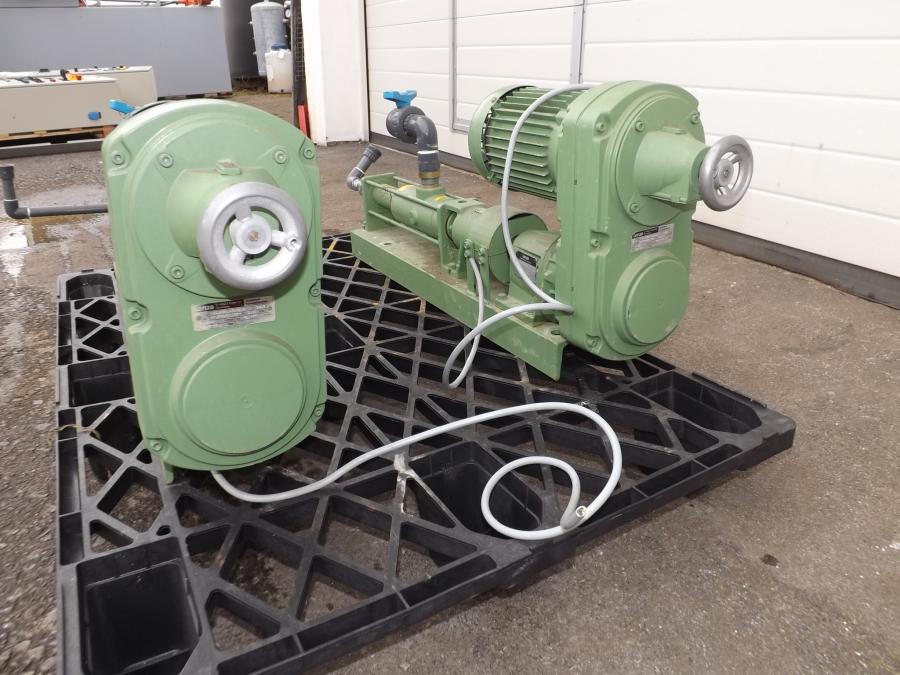

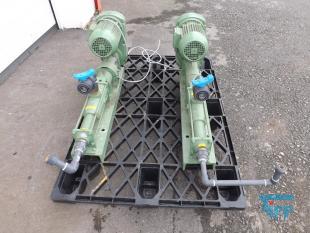

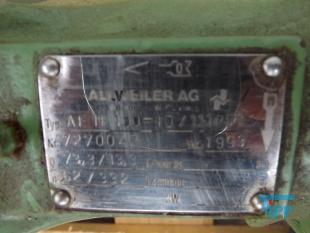

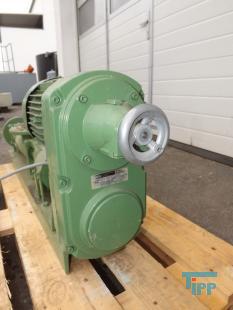

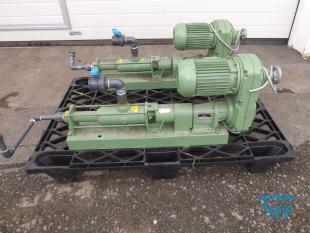

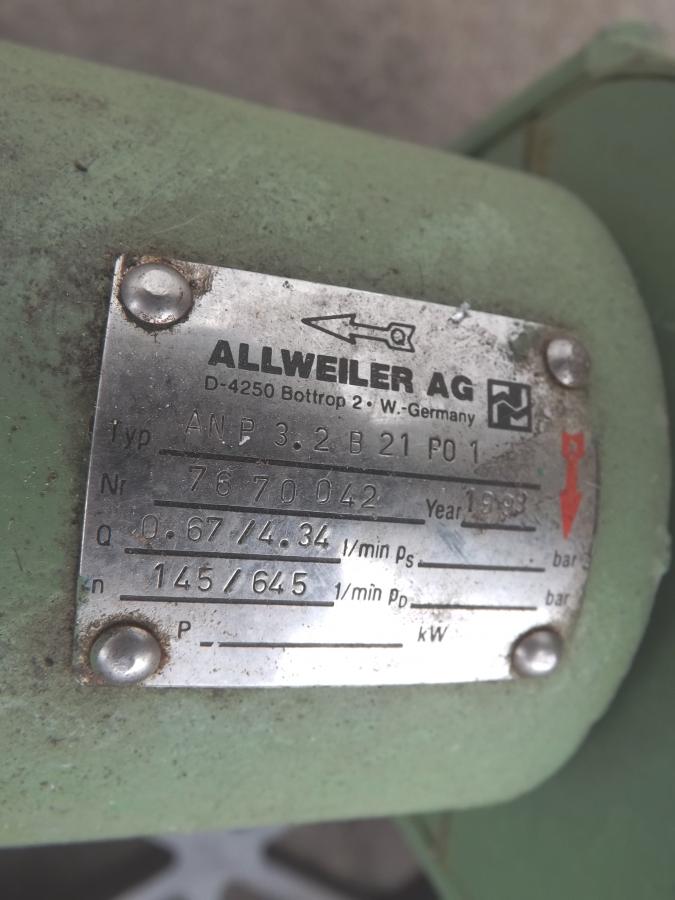

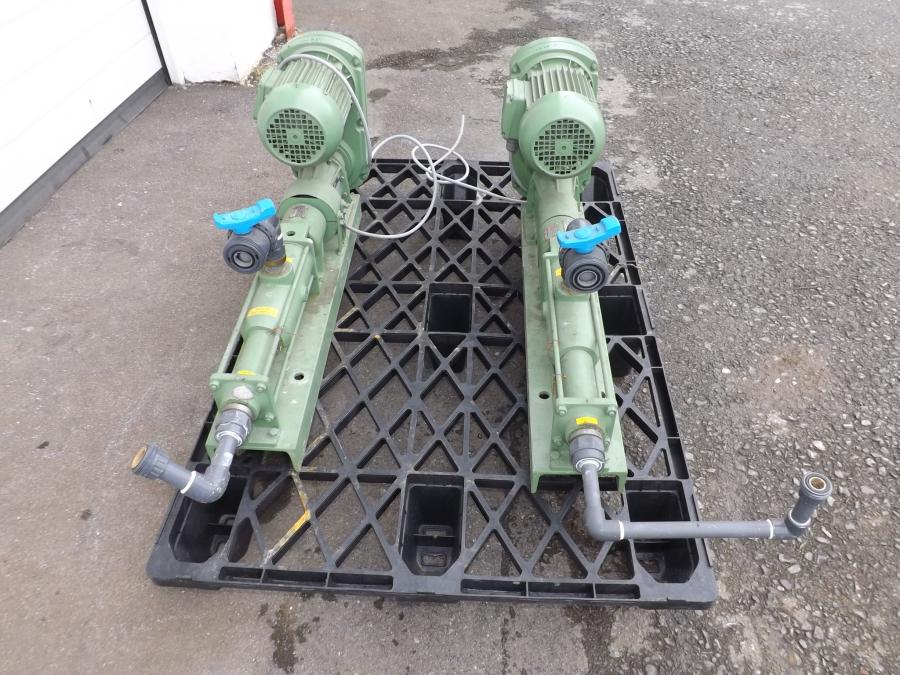

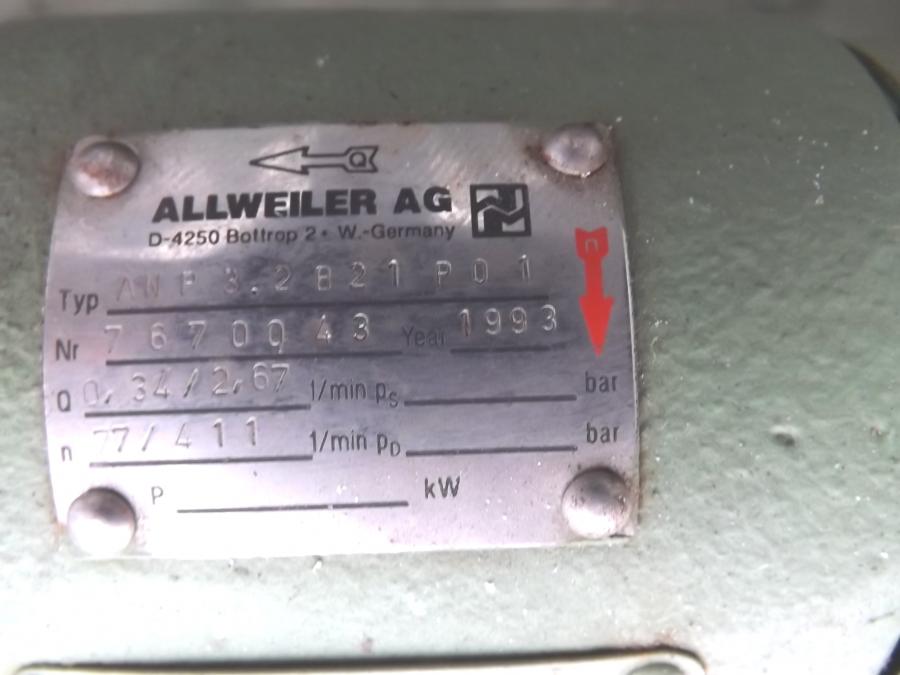

Accessories  - (2x Allweiler eccentric screw pump (dosing pump with gear motor ))
Power  0.55 kW
Delivery rate  0.67-4.37 / 0.34-2.67 l/min
Connections  1x DN25 / 1x DN20

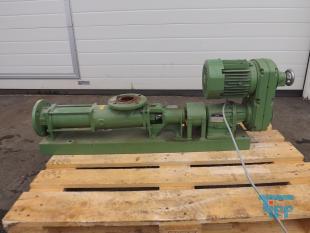

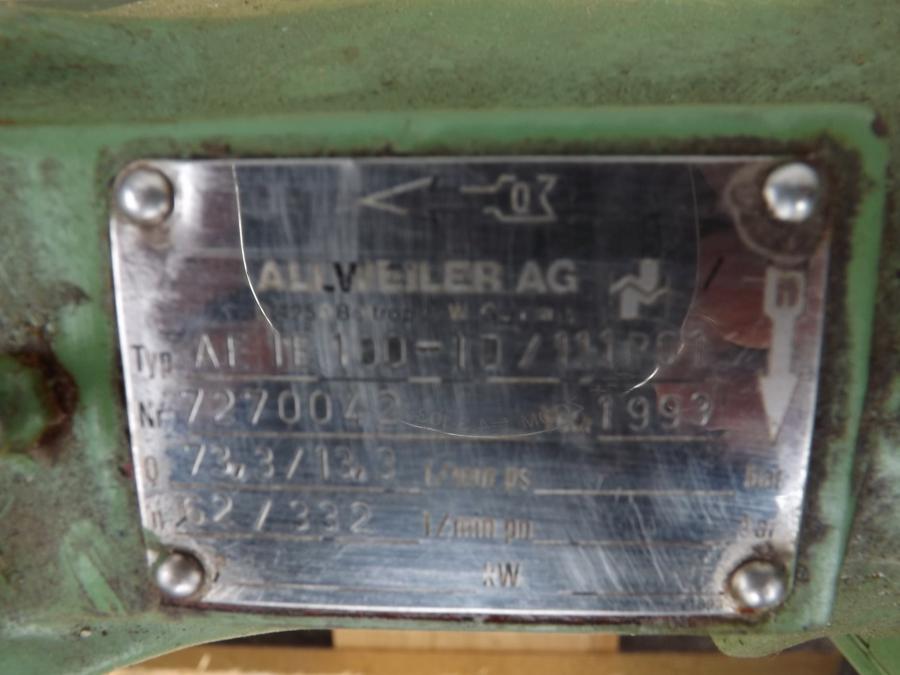

Accessories  - (Allweiler eccentric screw pump (sludge pump))
Power  1.1 kW
Delivery rate  13.3-73.3 l/min
Connections  2x DN65 (flange)

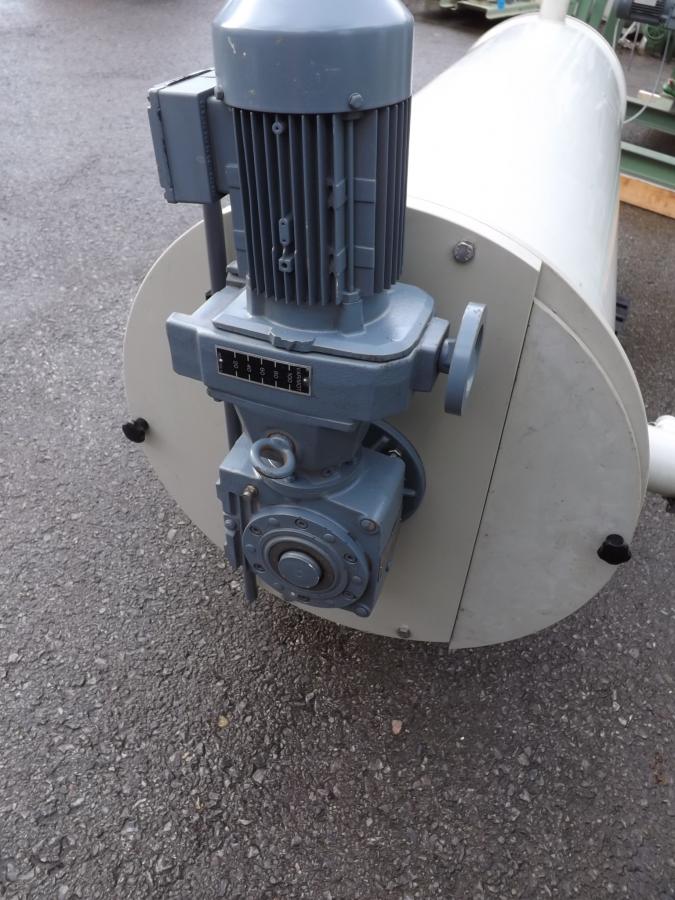

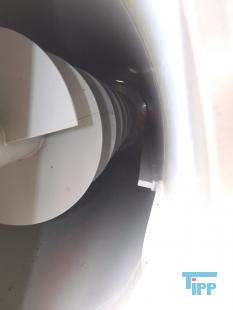

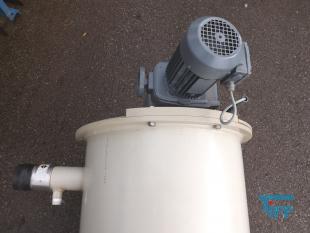

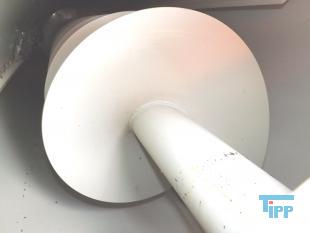

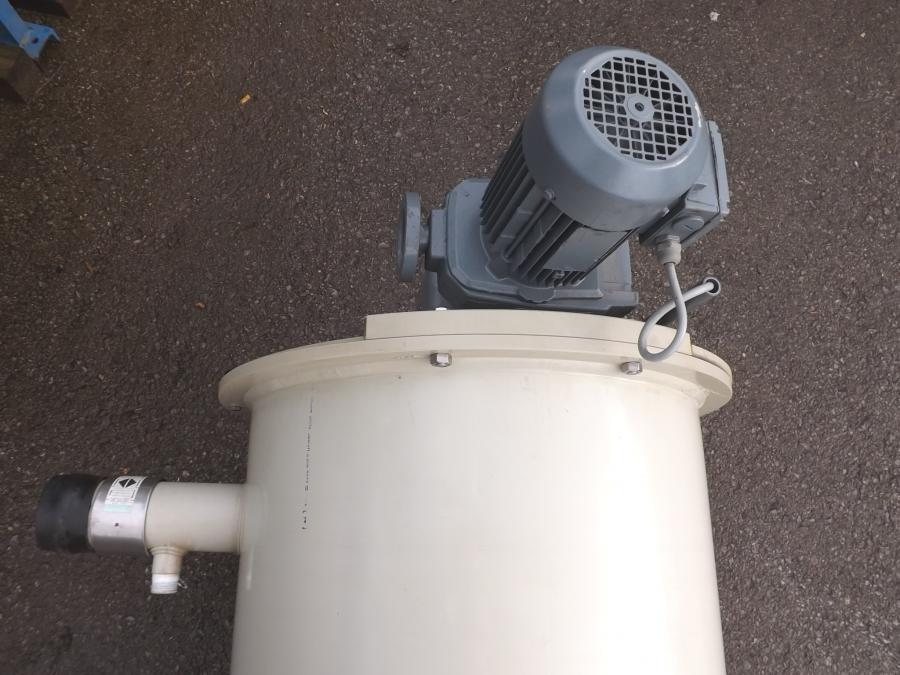

Accessories  - (agitator tank / treatment tank with gear motor and continuous screw)
Material  PE
Volume  0.55 m³ (usable volume)

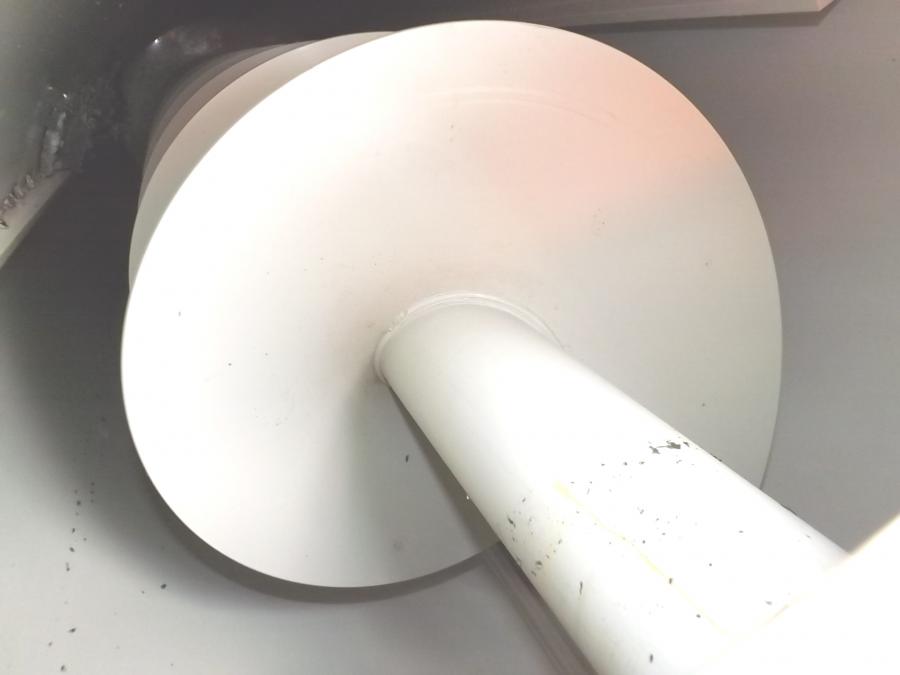

Diameter  360 mm (screw diameter)
Material  PP
Power  0.55 kW (gear motor)
Dimensions  - (tank)
Height  2300 mm (total with gear agitator)
Height  2100 mm (tank)
Diameter  600 mm (inside)
Connections  2x 90 mm (1x thread / 1x hose connection)
2x 33 mm (connections to the existing connection)
