technical data |

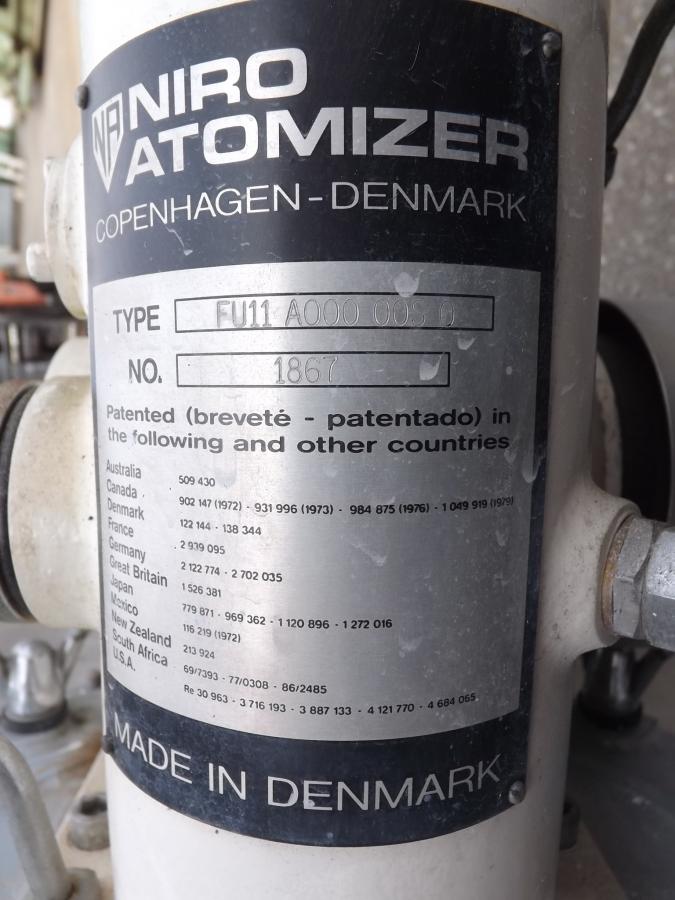

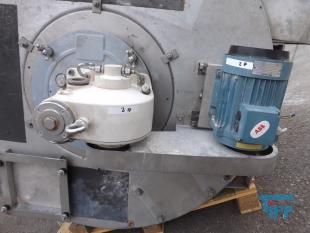

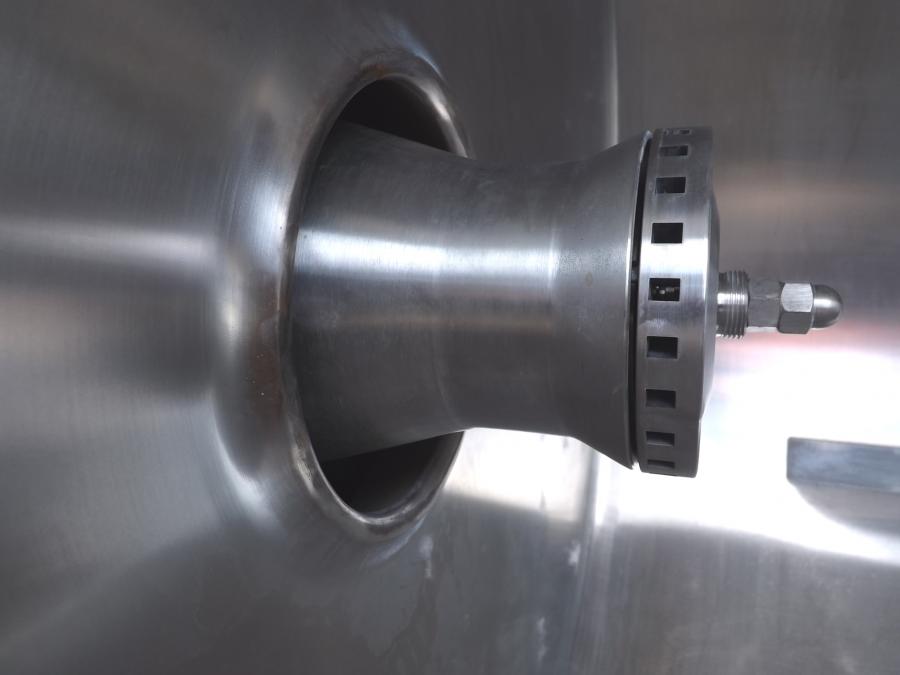

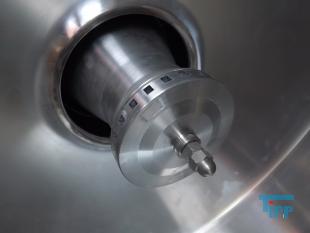

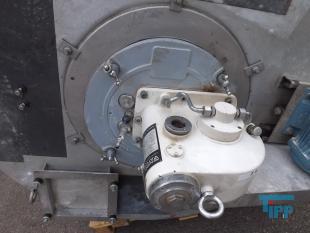

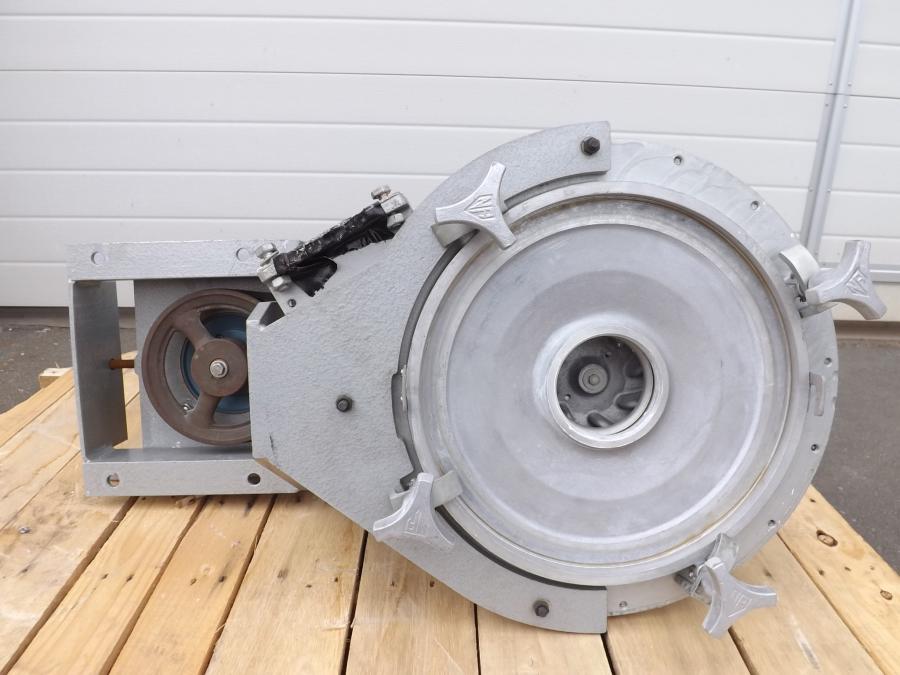

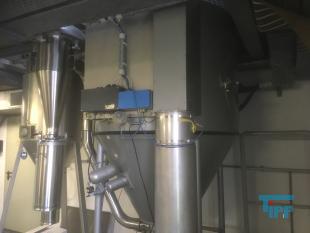

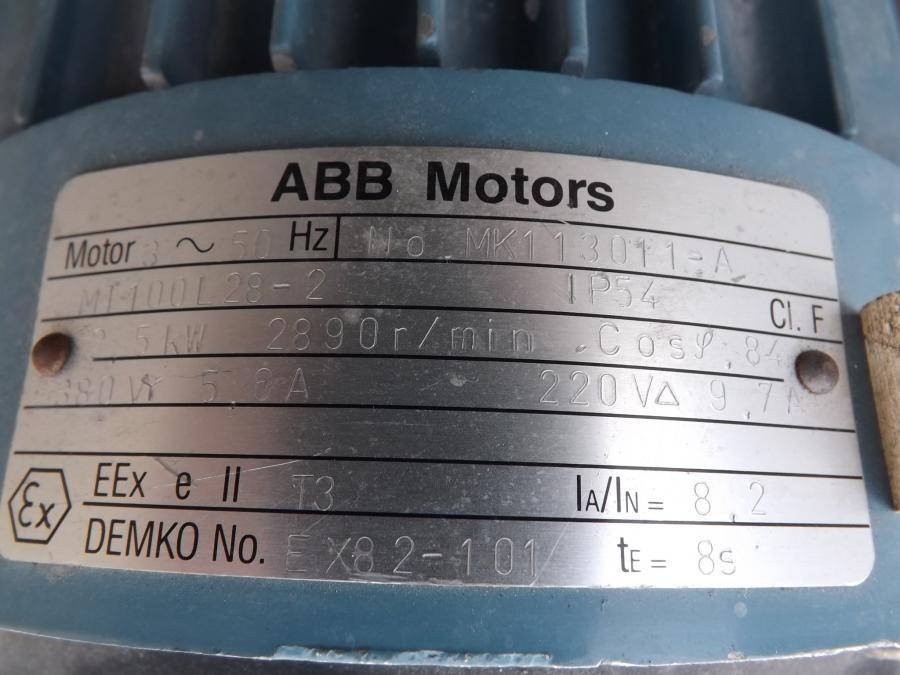

Description | - (Centrifugal atomizers, type Fu-11 / A00. The power is transmitted from the motor to the atomizer spindle by means of a V-belt drive) |
Power | 2.2 kW (engine) |
Rotations | 15000 - 24000 1/min |
Further information | - (All parts in contact with the product are made of stainless steel (1.4401)) |

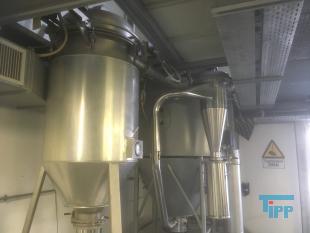

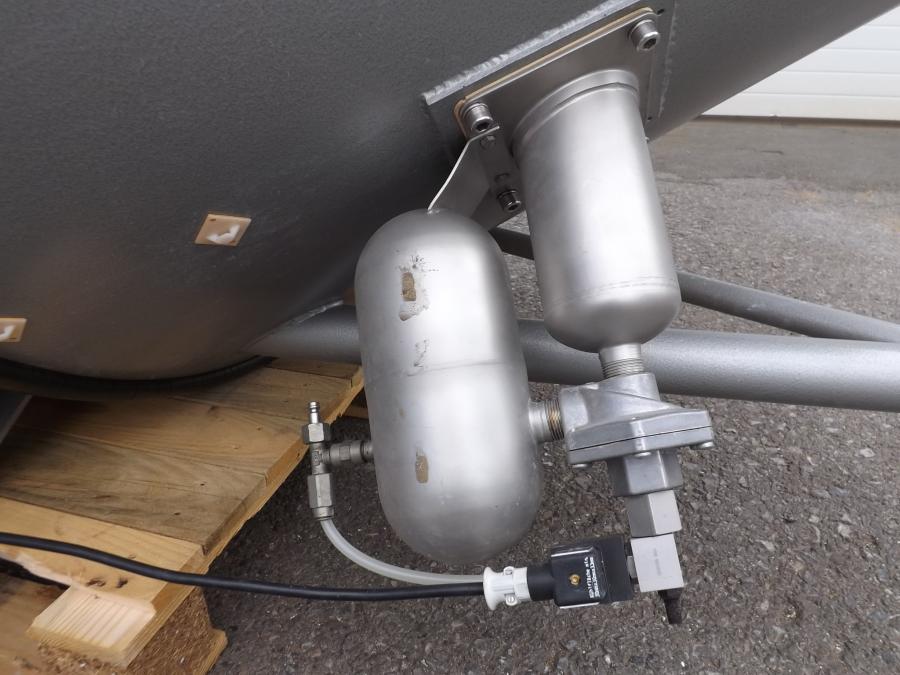

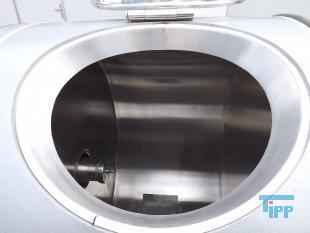

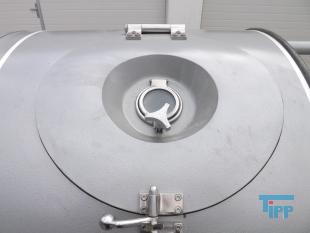

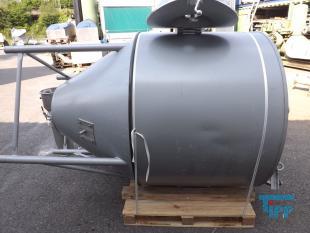

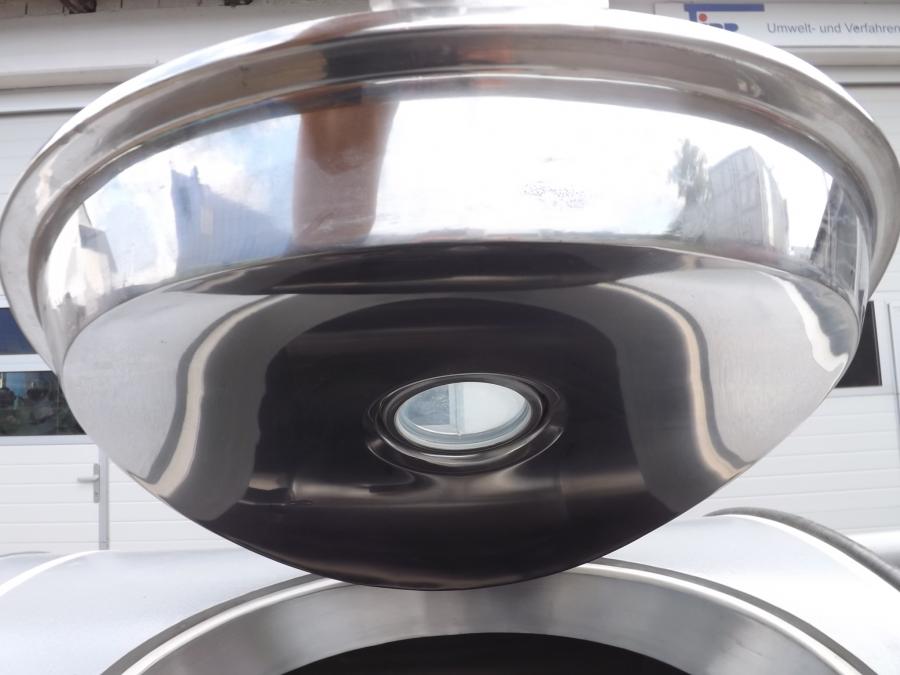

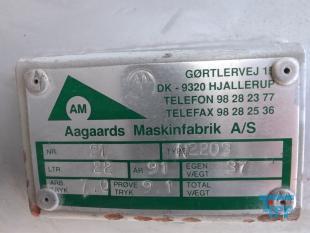

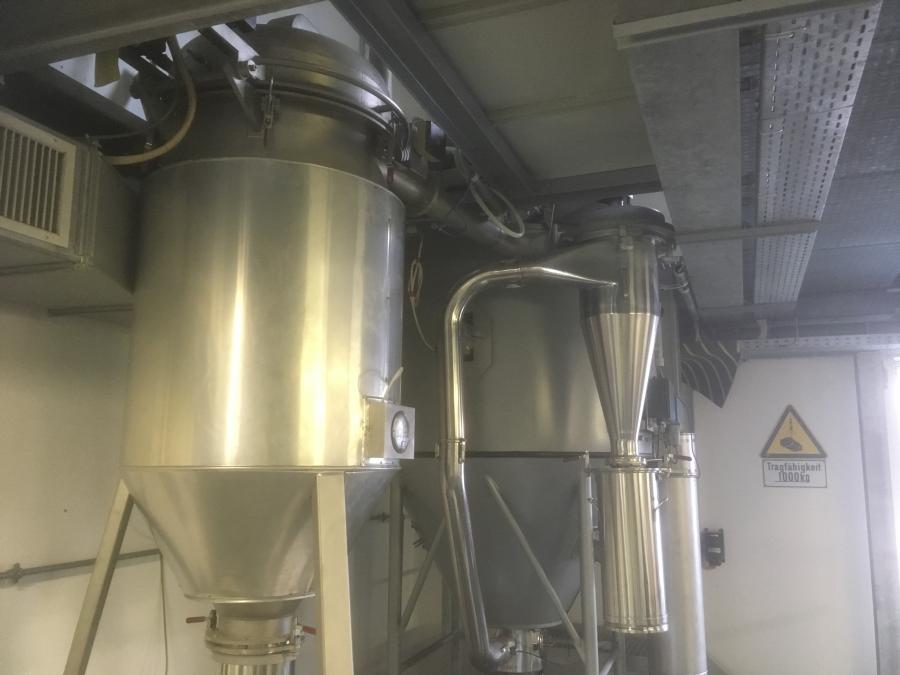

Description | - (Drying tower / spray drying tower with strong insulation layer. Stainless steel (1.4401), sight glass, service door, cylindrical lower part with rotary flap, pneumatic hammer (vibrator), 3x collecting container (20 liters).) |
Volume | 1,3 m³ () |
Diameter | 1200 / 1350 mm (Container inside / outside) |
Width | 1600 mm (total) |
Height | 1750 / 3100 mm (Container / total) |

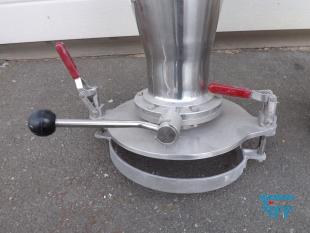

Connections | - (Bottom connection for stainless steel container and nozzle for cyclone with rotary flap (quick release)) |

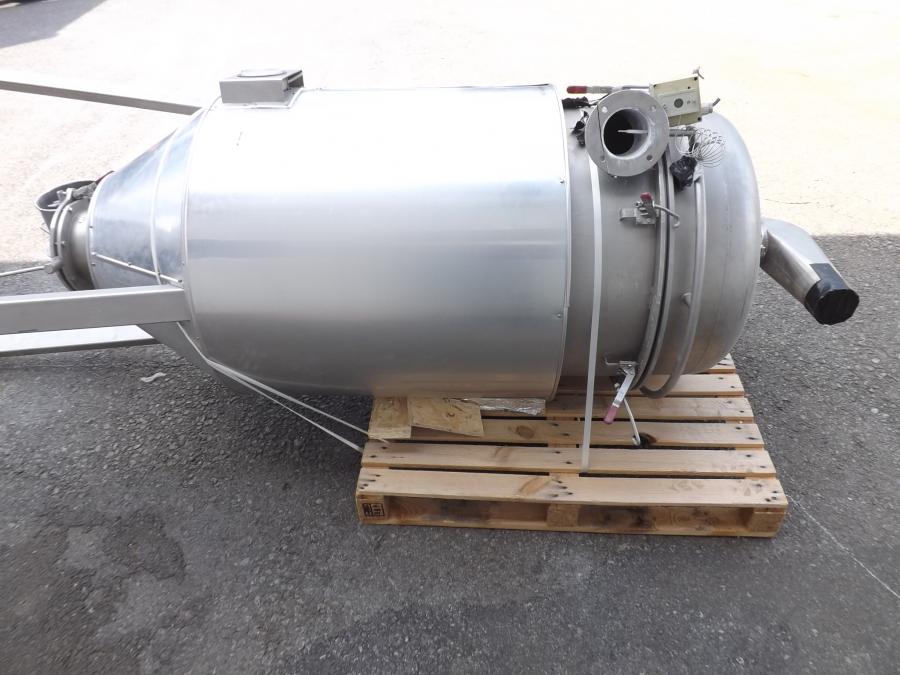

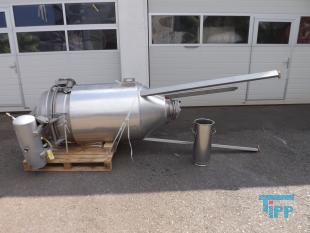

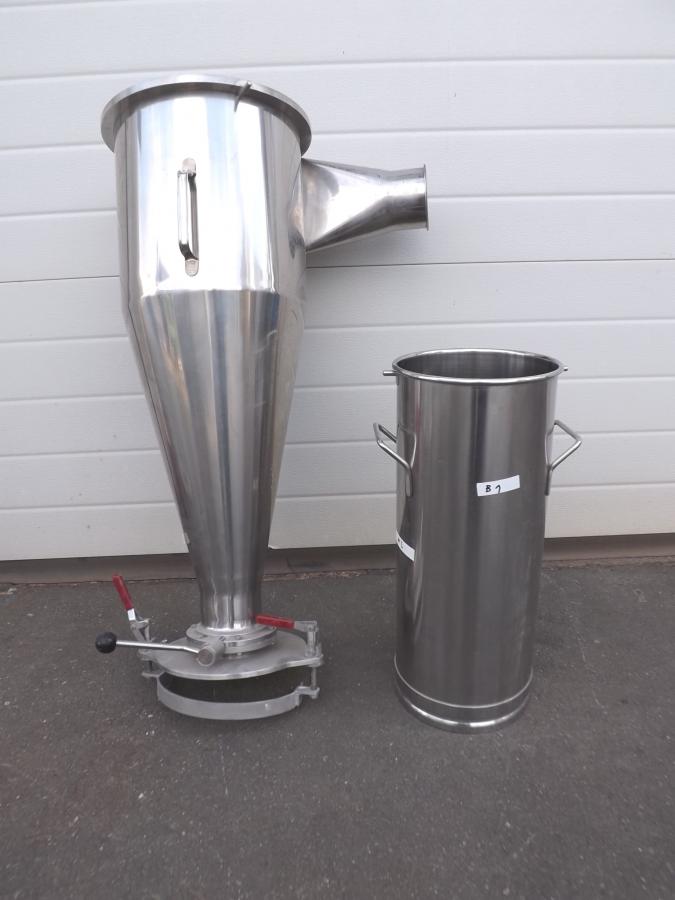

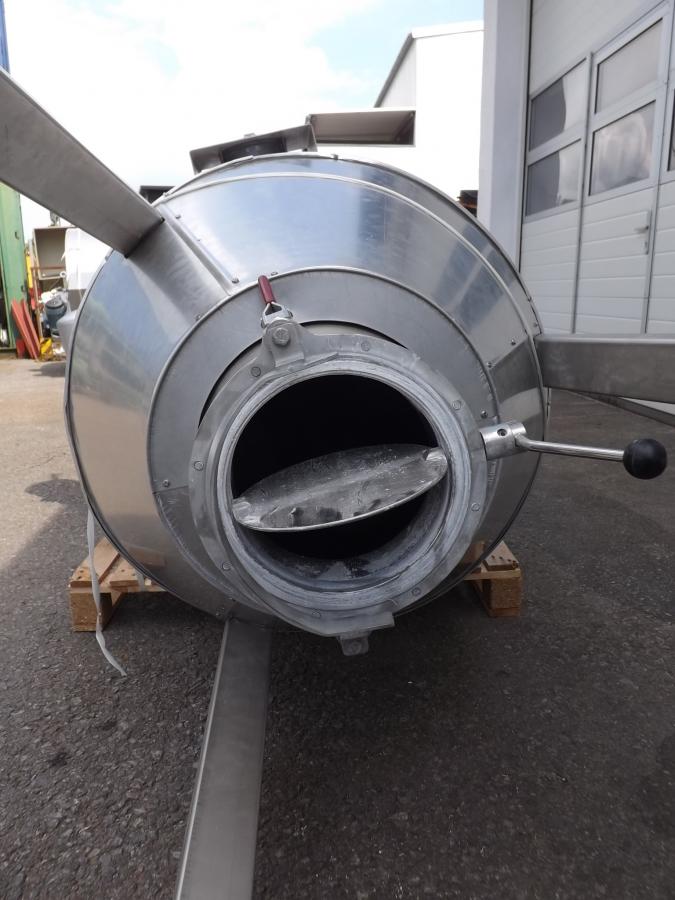

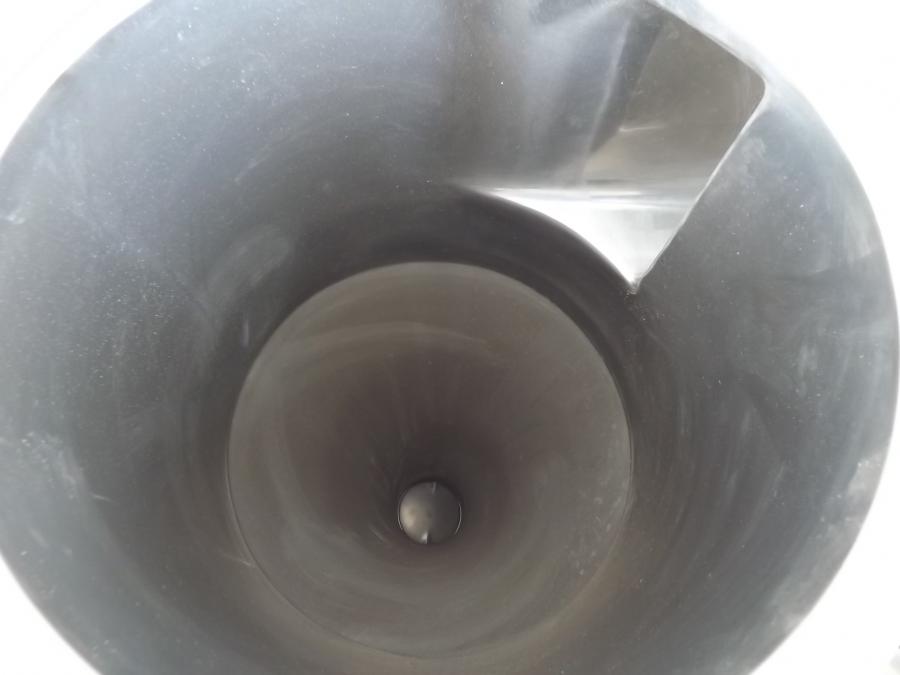

Description | - (Cyclone / cyclone separator made of stainless steel (1.4401) for separating the product from air with a collecting container.) |
Content | 30 l |

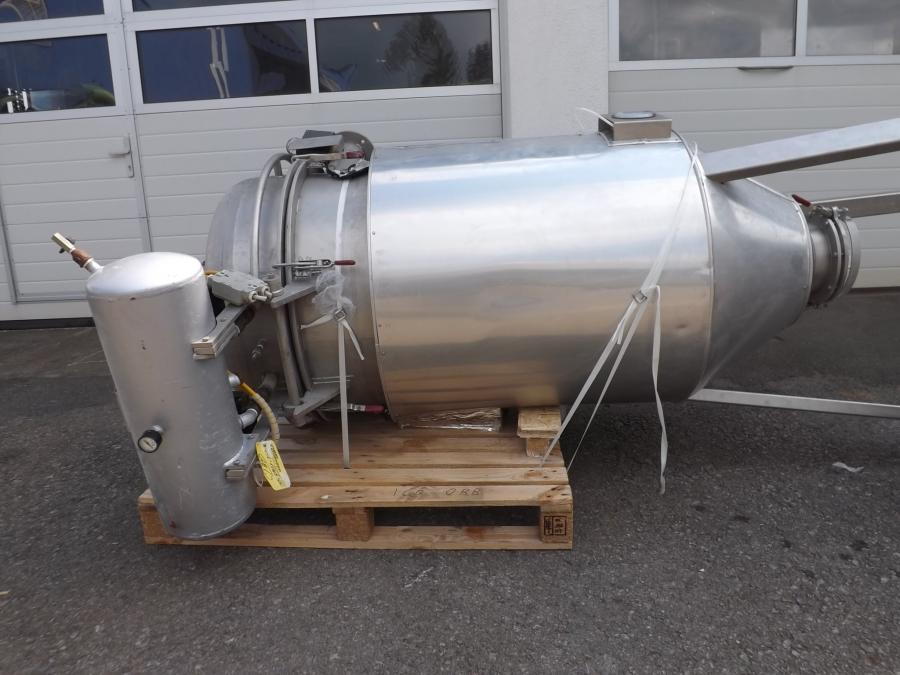

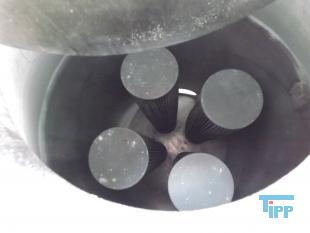

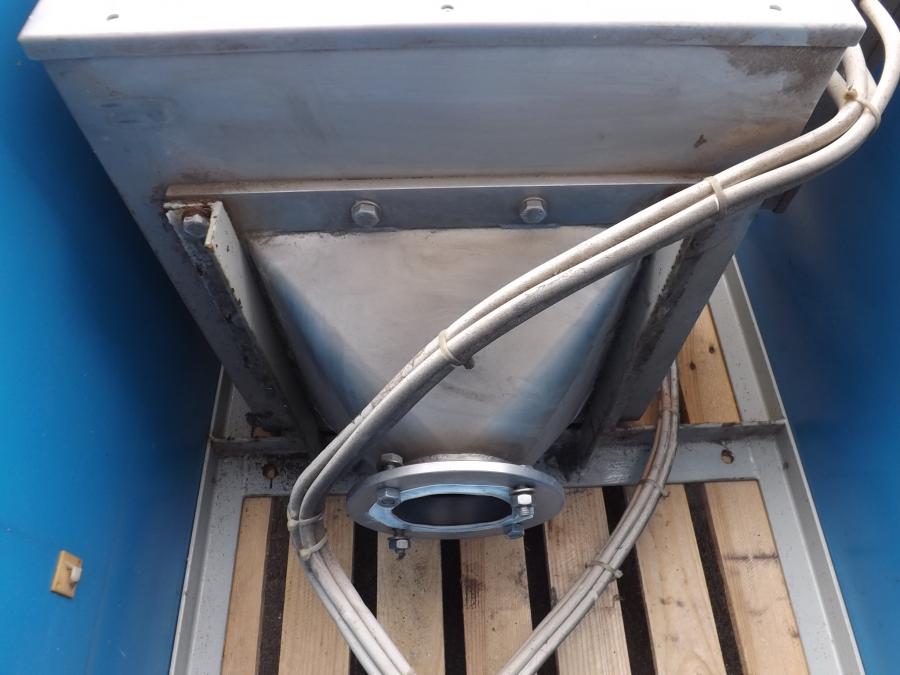

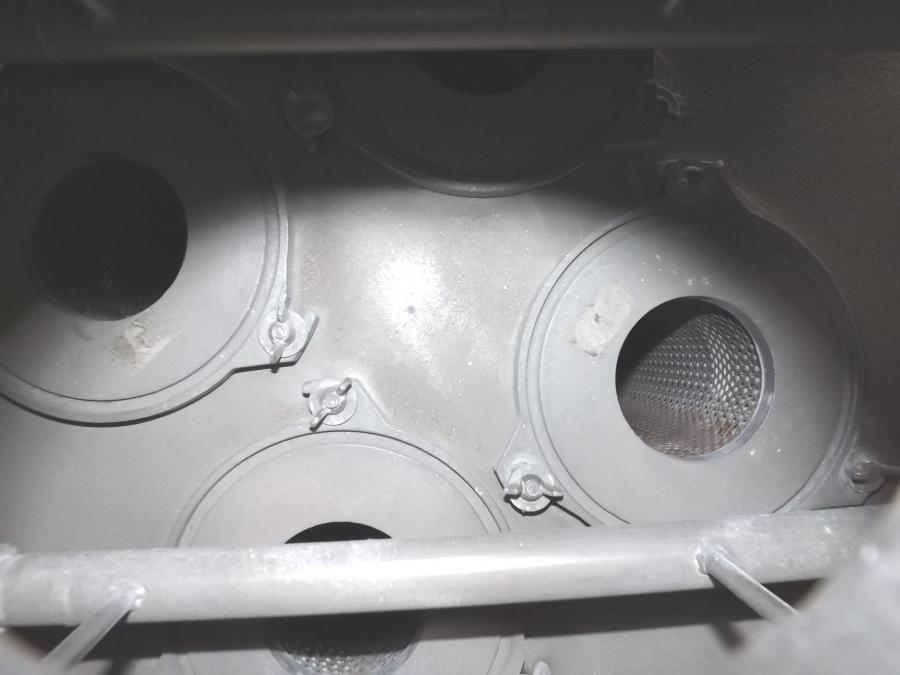

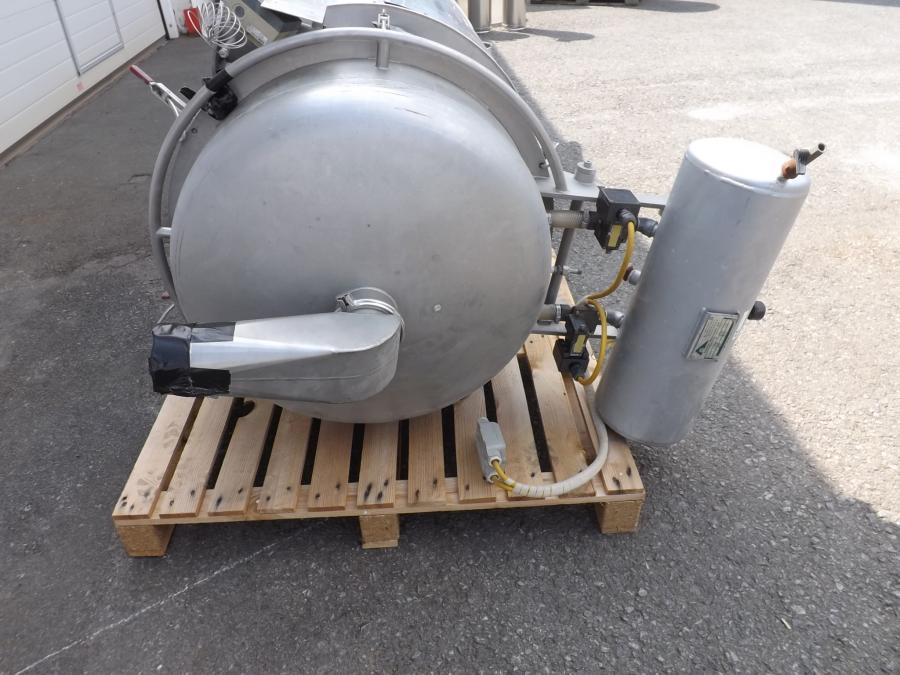

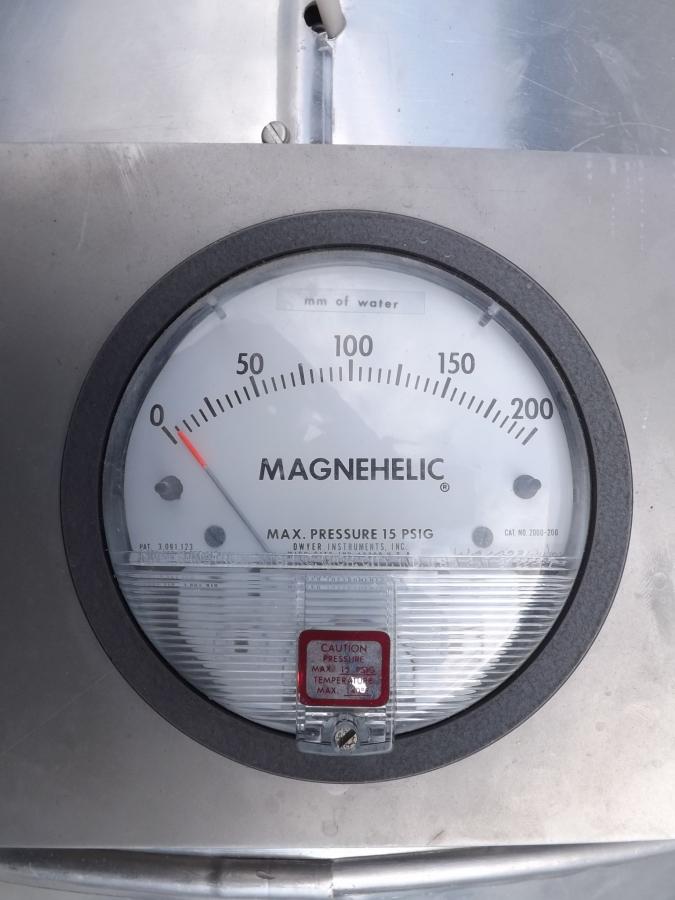

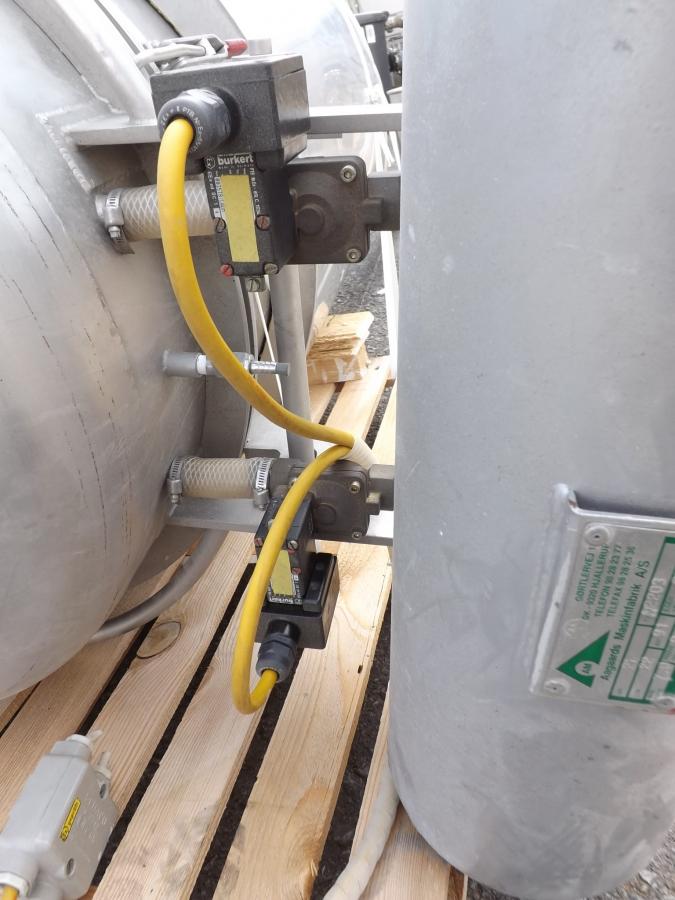

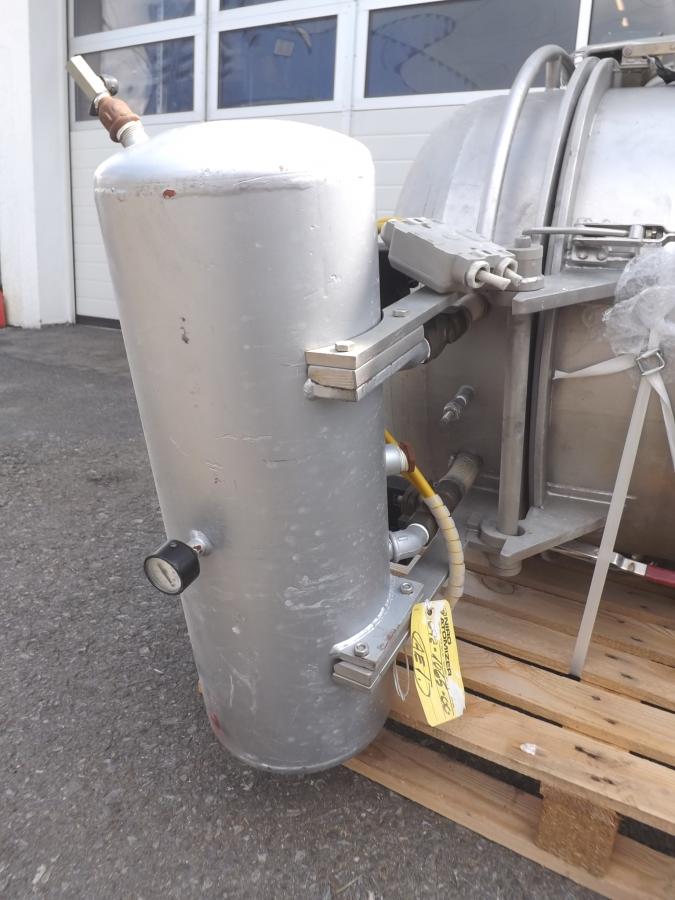

Description | - (Exhaust air filter / cartridge filter mounted on a frame, with cover and conical bottom. Filter cartridges made of polyester fleece (4 pieces). The filter cartridges are cleaned with compressed air via a control unit.) |
Connections | - (Air outlet / air inlet / valve powder container) |
Length | 1000 mm (Filter cartridge) |
Diameter | 156 mm |
Volume | 0.5 m³ |
Diameter | 700 mm (Inside) |
Width | 1300 mm (total) |
Height | 1750 / 3200 mm (Container / total) |

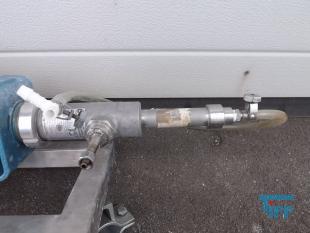

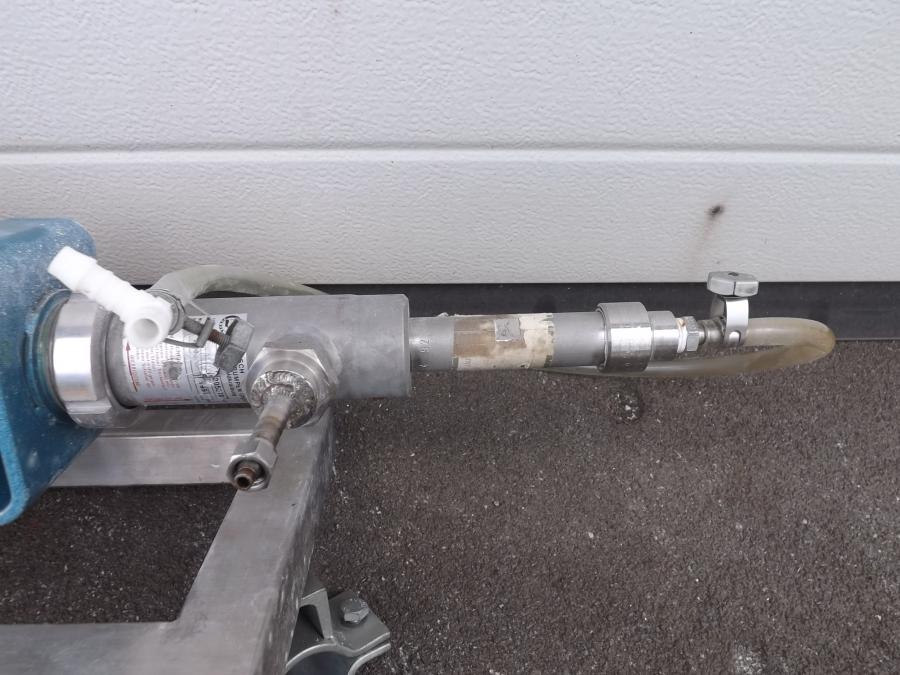

Accessories | - (Netzsch (type MAF 16) feed pump / dosing pump to supply the atomizing equipment) |

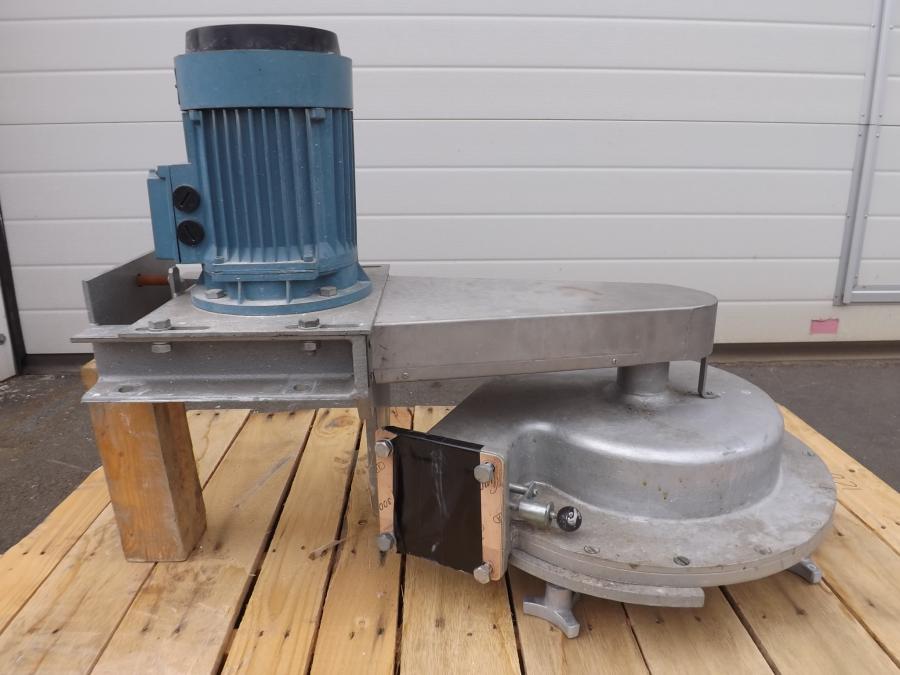

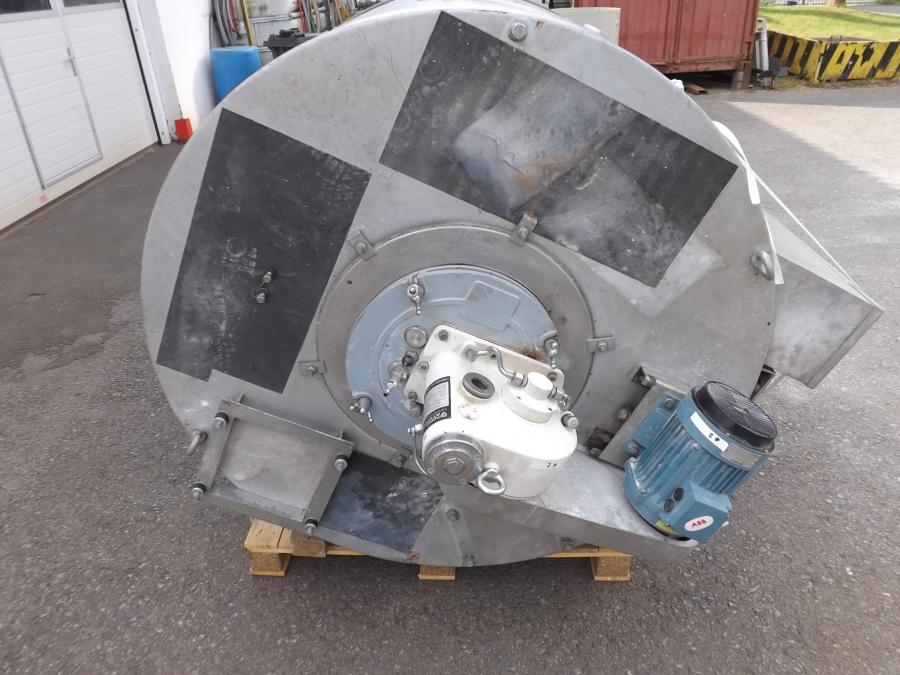

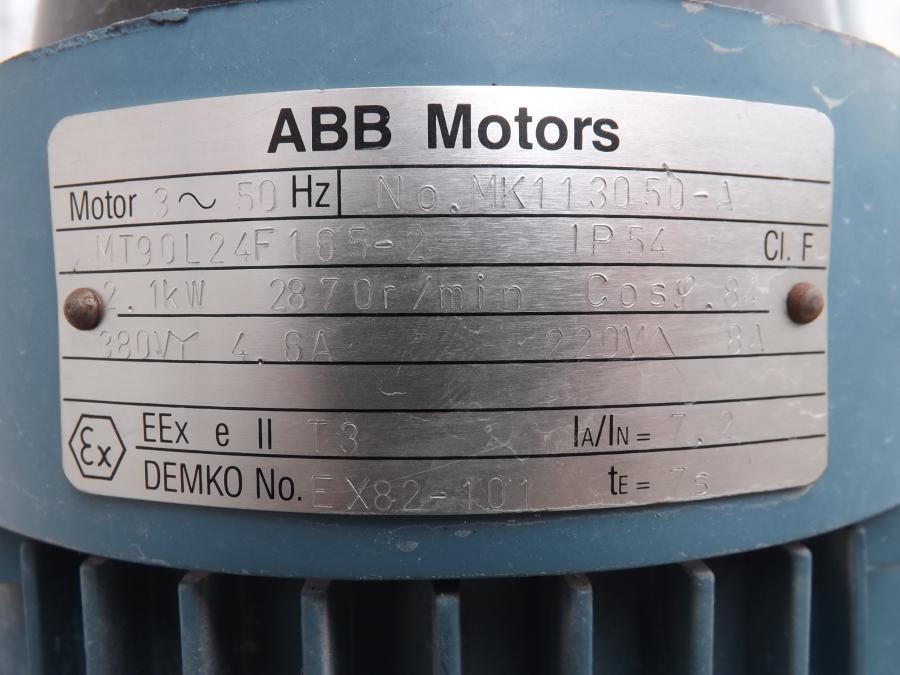

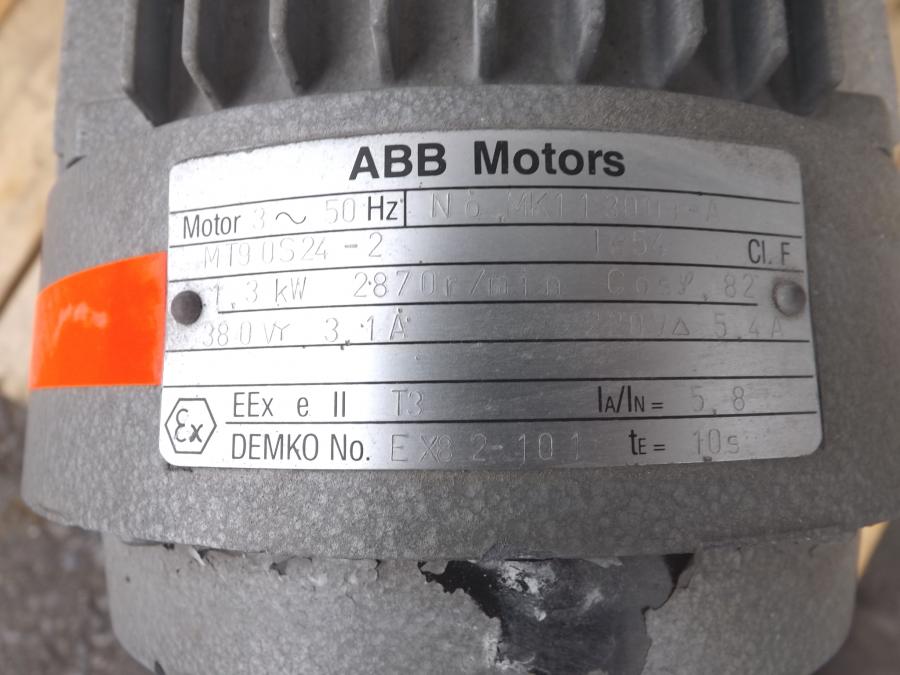

Description | - (Centrifugal fan for conveying dry air and is mounted on the cyclone. (V-belt drive motor).) |
Power | 2.1 kW |
Rotations | 2870 / 6400 1/min (Motor / with translation) |
Power | 400 (Air volume kg / h) |
Accessories | - (Exhaust fan) |
Power | 1.3 |

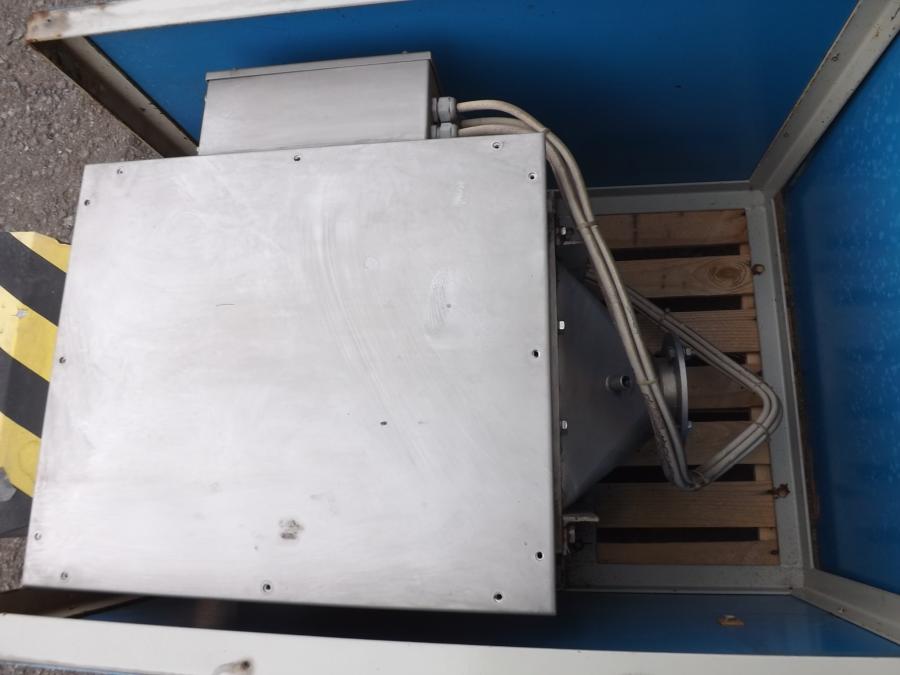

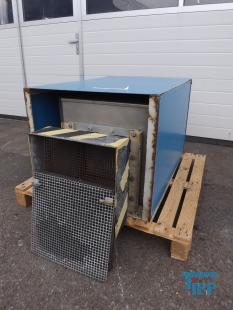

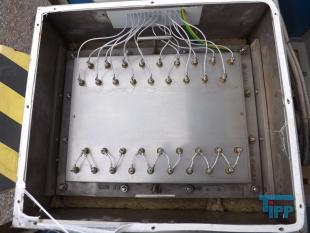

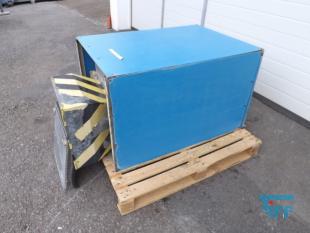

Accessories | - (Heating / electric heater suitable for wall mounting.) |
Power | 36 kW |
Voltage | 3x 380 V |
Dimensions | 1200 / 700 / 600 mm (L / W / T) |

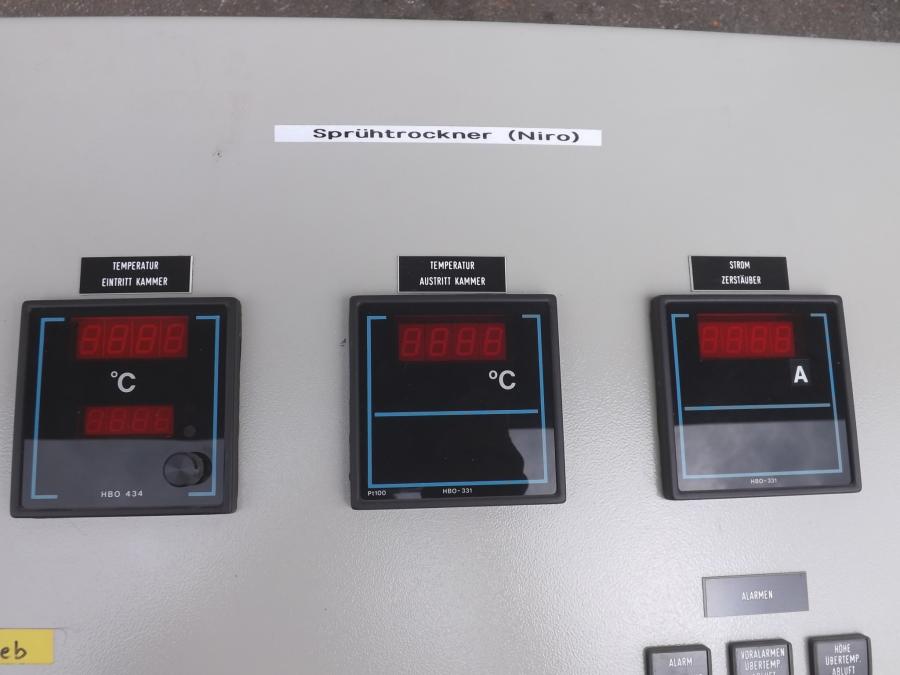

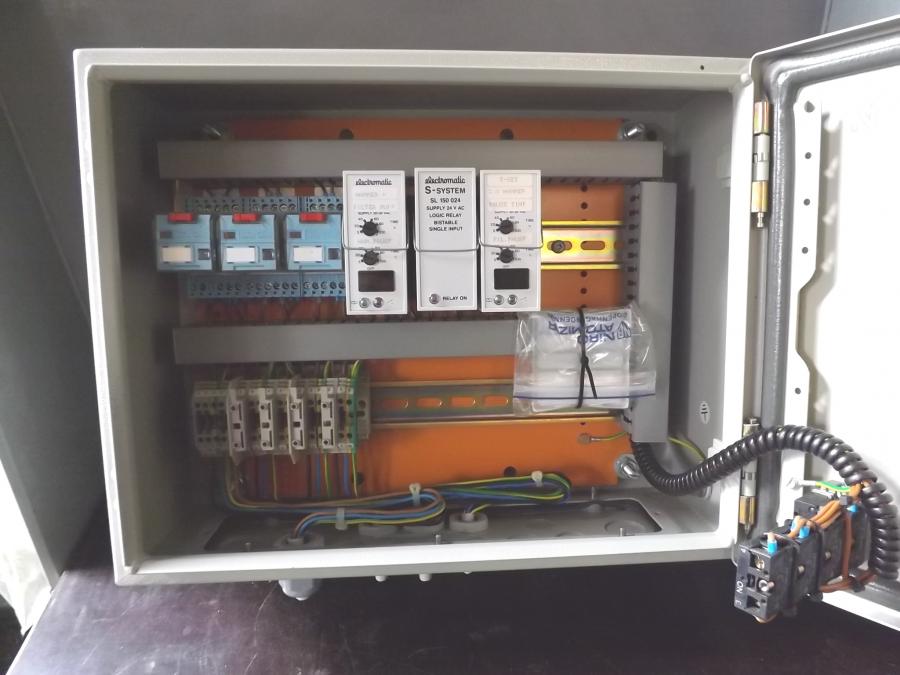

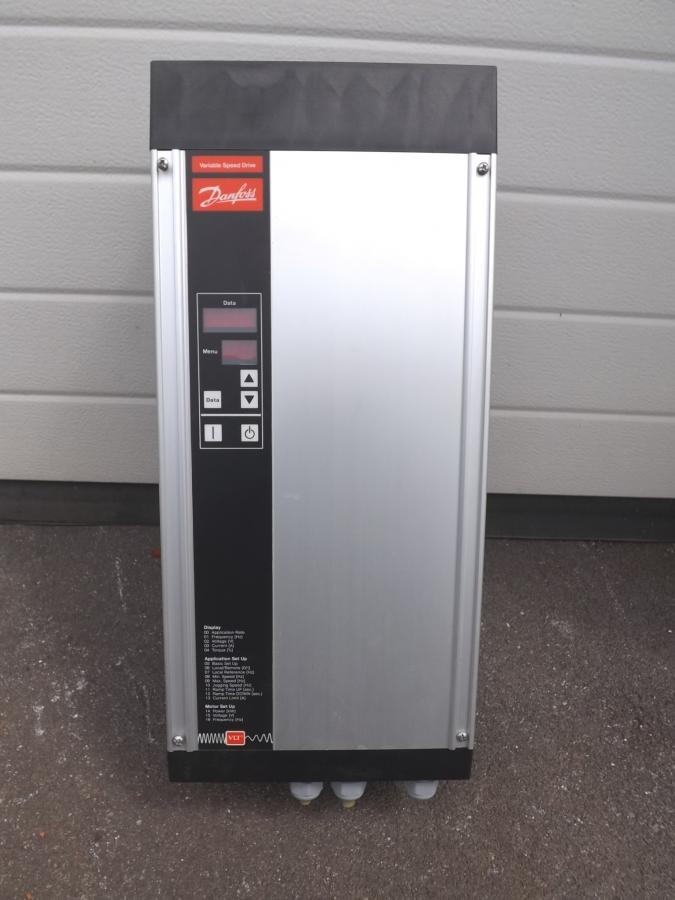

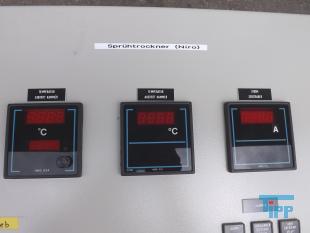

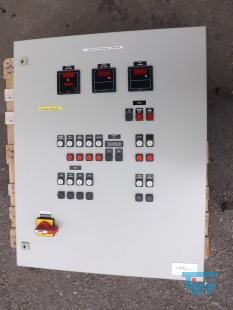

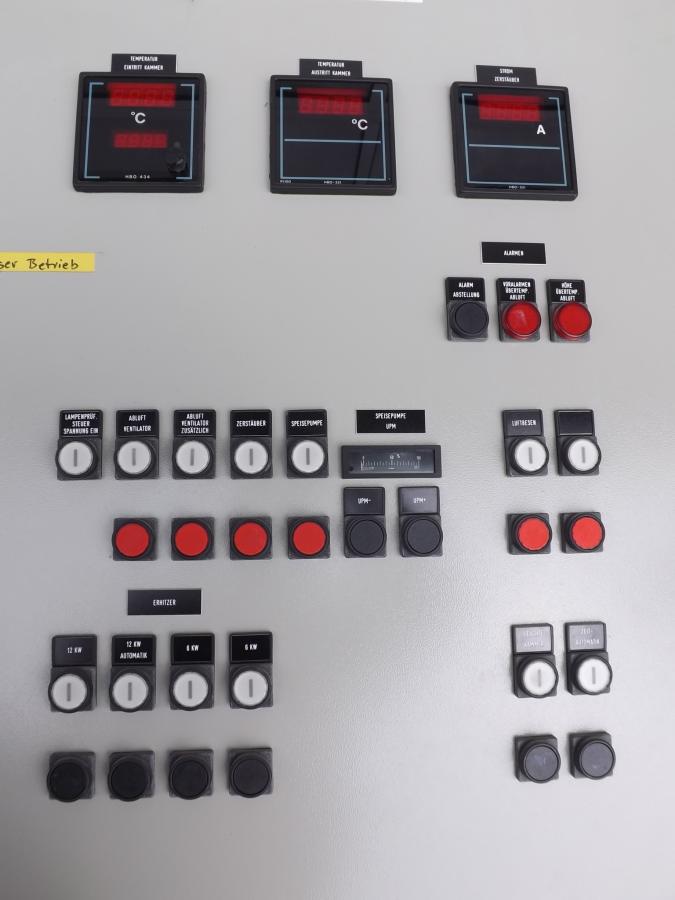

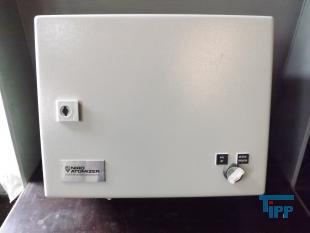

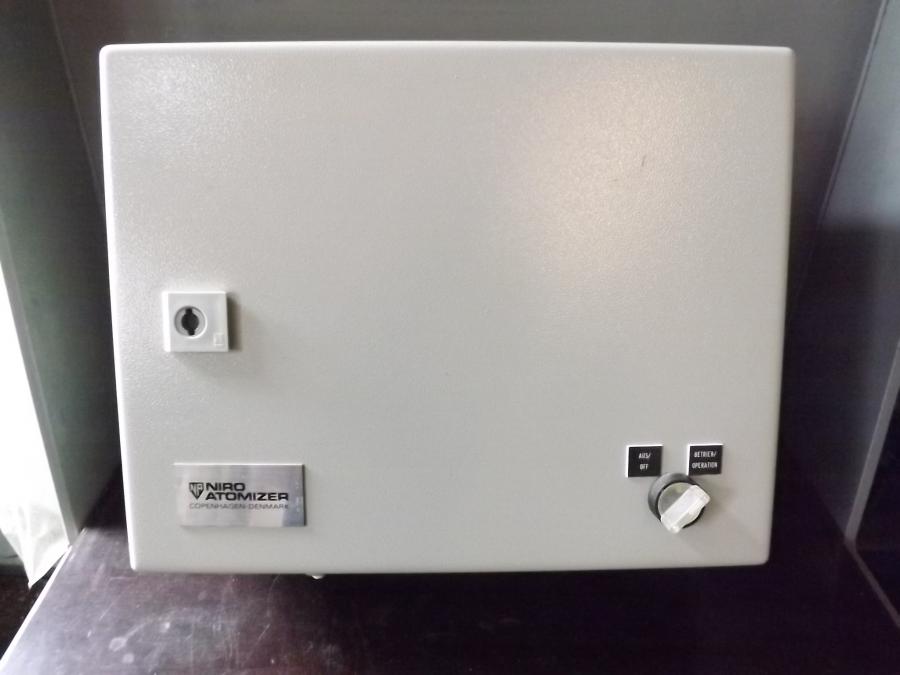

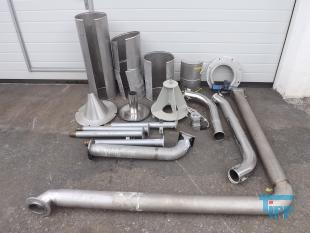

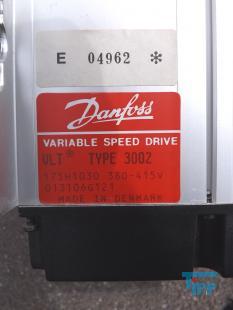

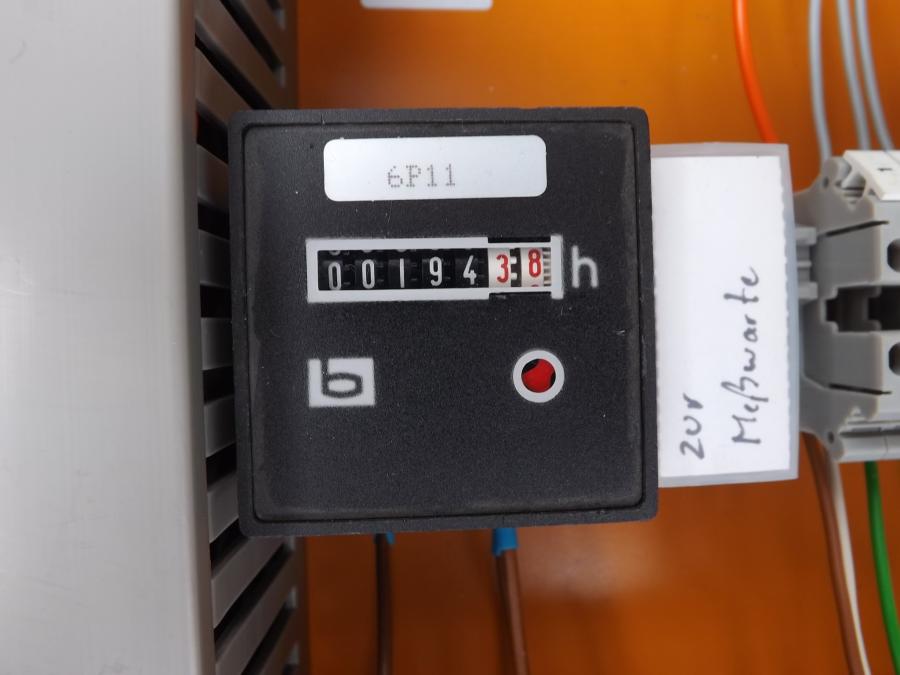

Accessories | - (Control cabinet for controlling the entire system / frequency converter and piping) |

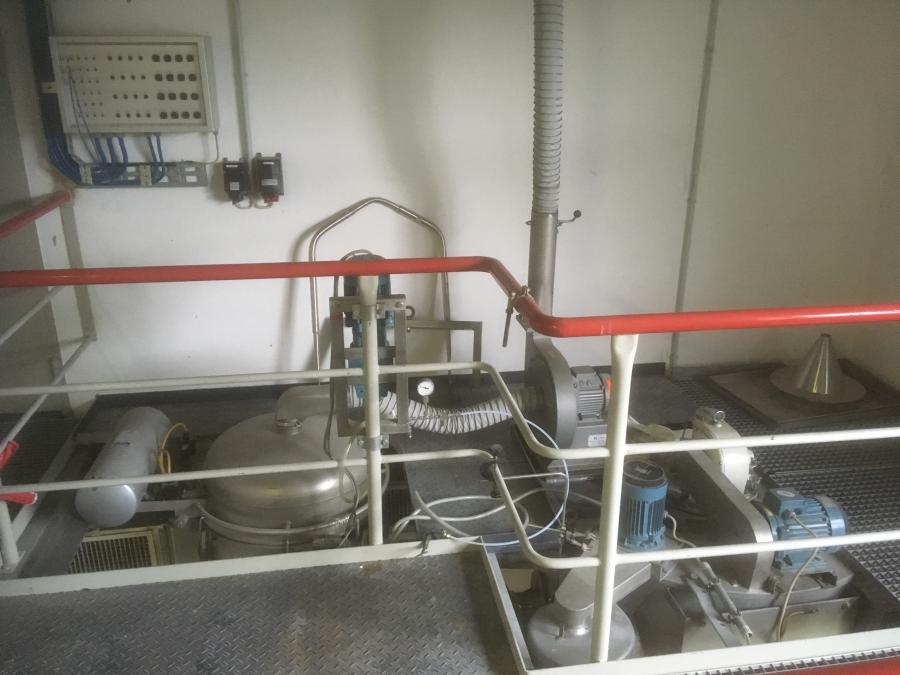

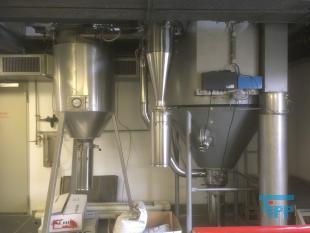

Further information | - (The spray drying system was set up on a steel platform. The platform as well as the operating platforms and ladders are not available. The system is dismantled and stored.) |
