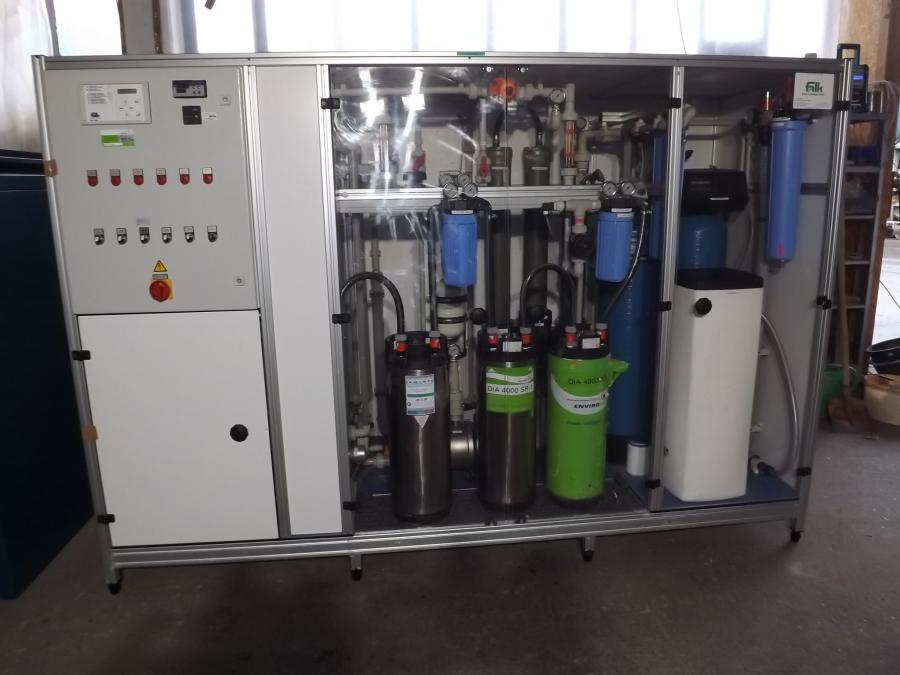

ultra pure water system with reverse osmosis and ionexchanger
details to article: 29449
description: Description of the system
- Pre-filter 5µ and pipe separator

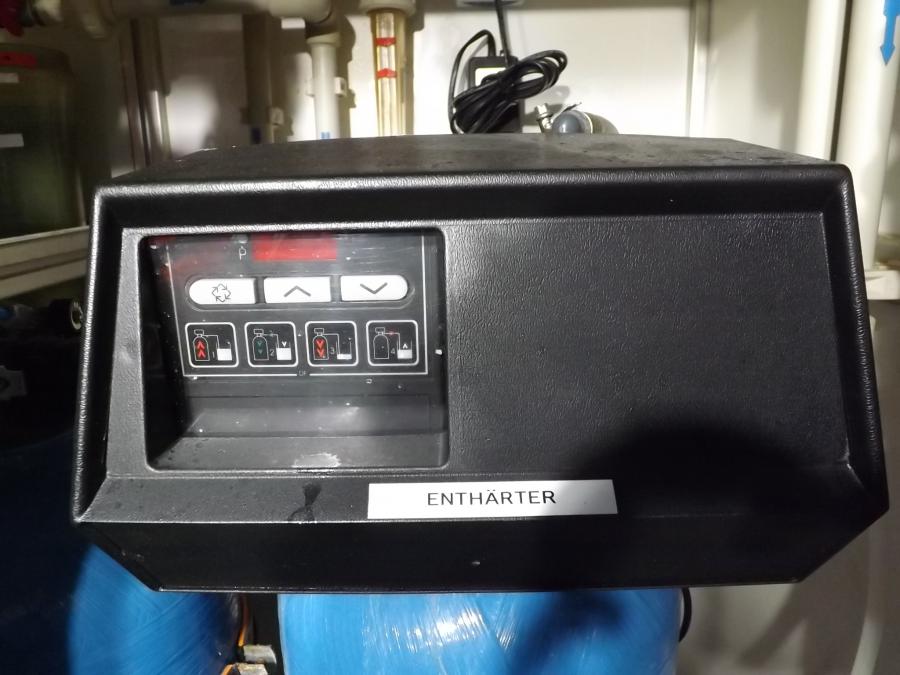

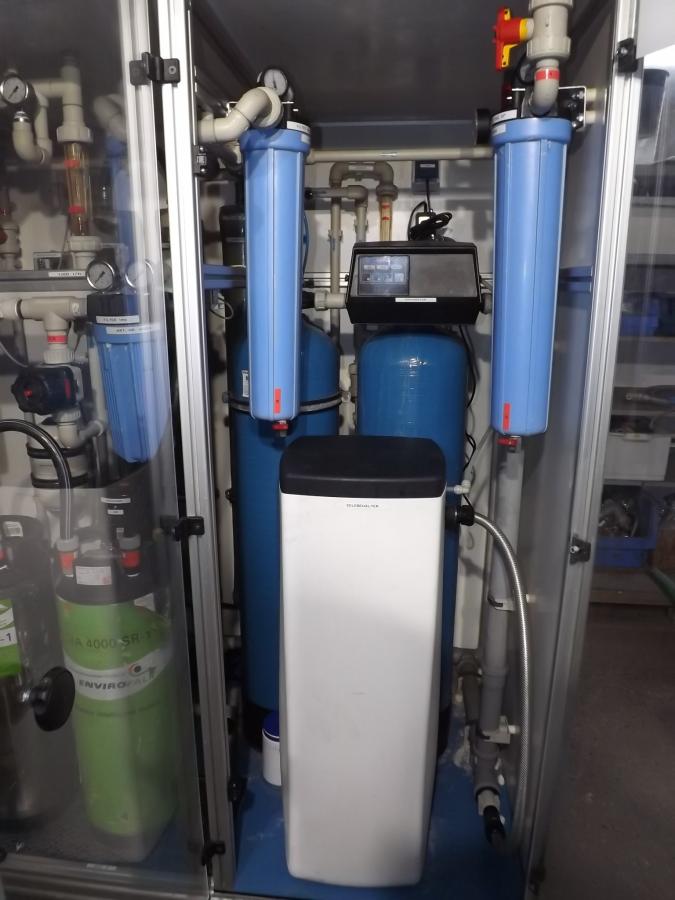

- Water softener MC -N 160-2 (2x GRP pressure tanks, each 48 l. capacity with control and brine tank) is supplied with filtered drinking water.
This is fed over the regenerated softener granulate (cation resin) and treated. The hardness control unit monitors the water hardness.
In case of hardness, Limitron switches off the reverse osmosis.

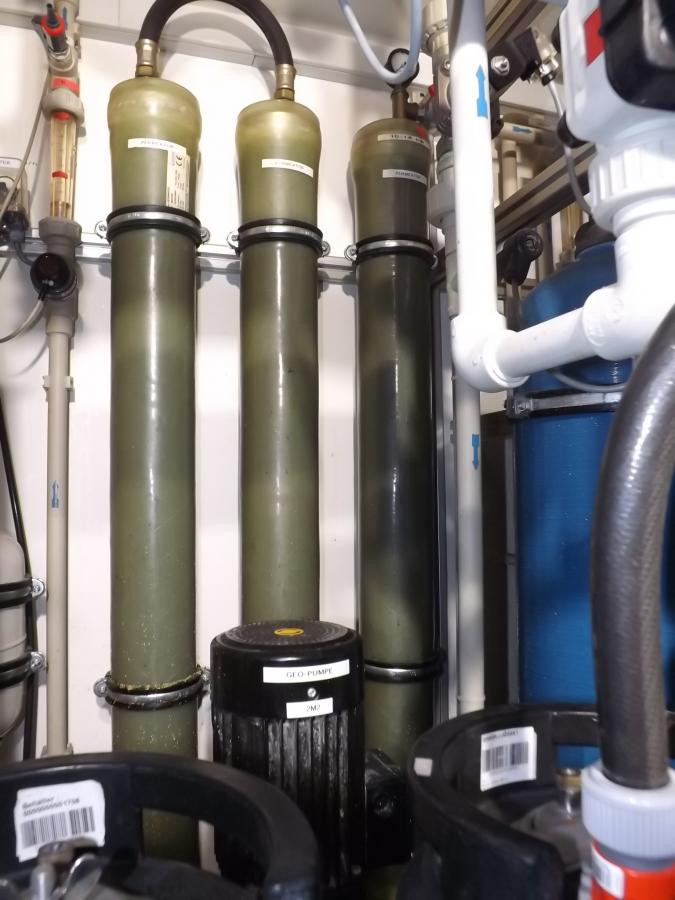

- Reverse osmosis with 3x 4" coiled tubing modules.
Permeate capacity 700 litres.

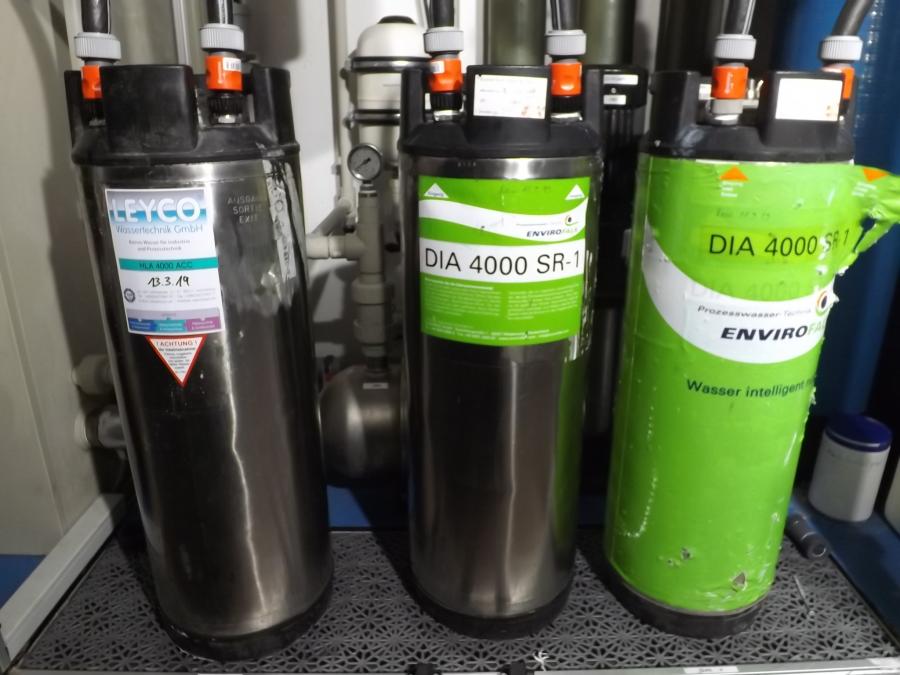

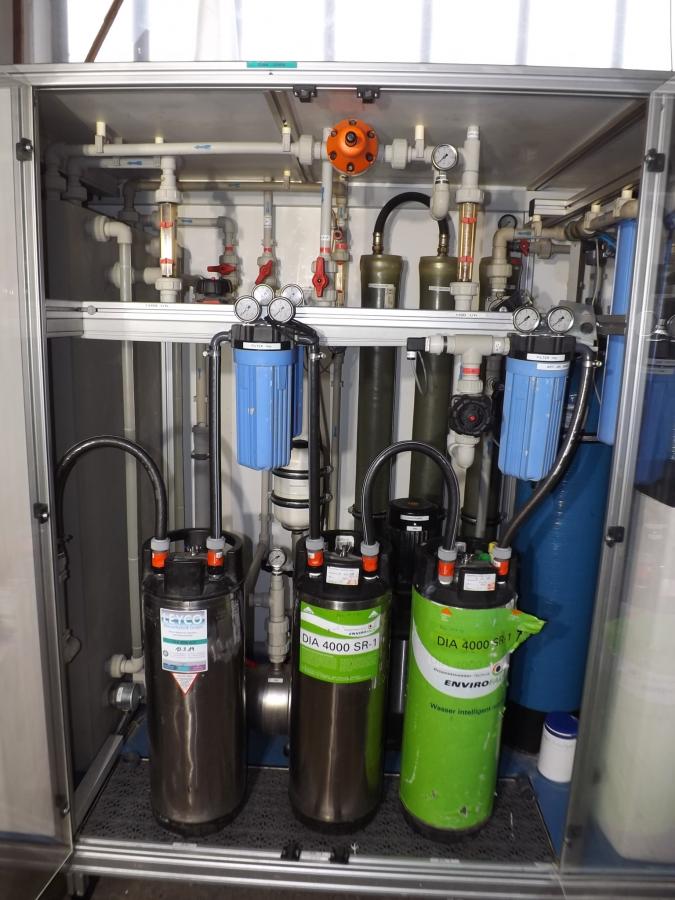

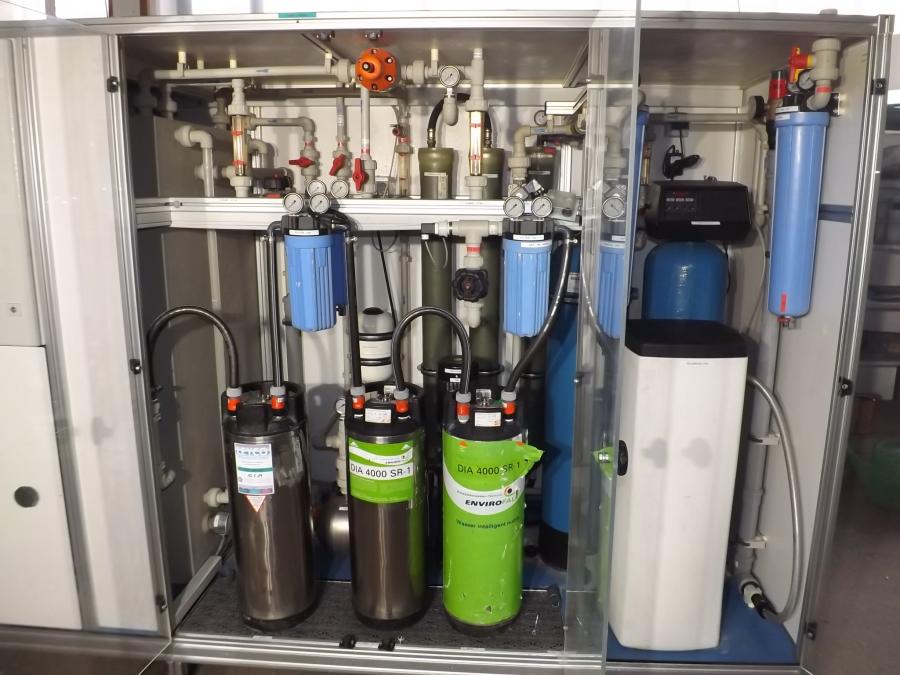

- 1x activated carbon, 2x mixed bed ion exchanger cartridges

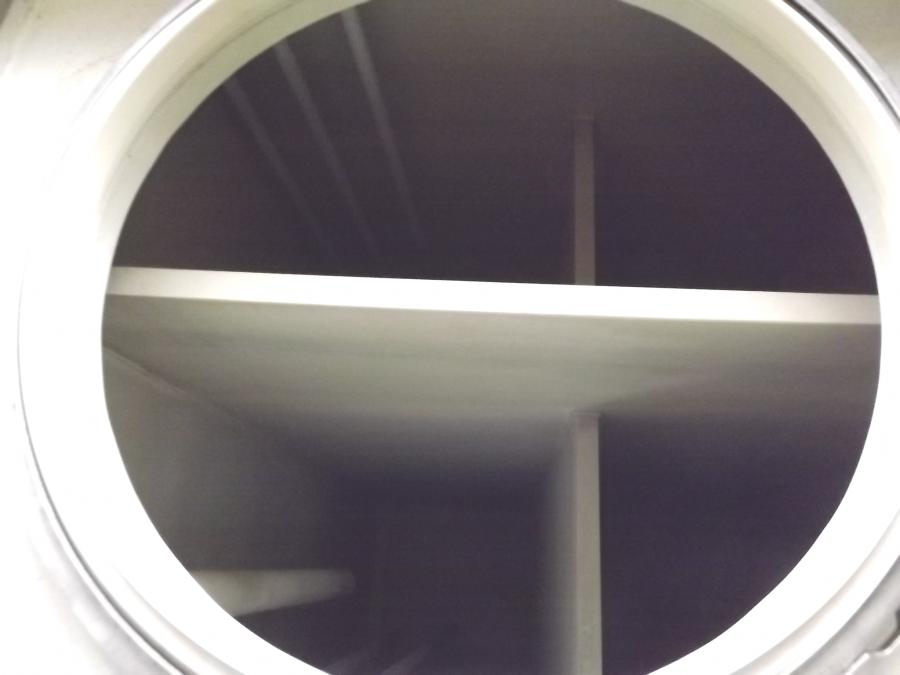

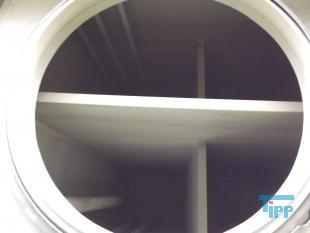

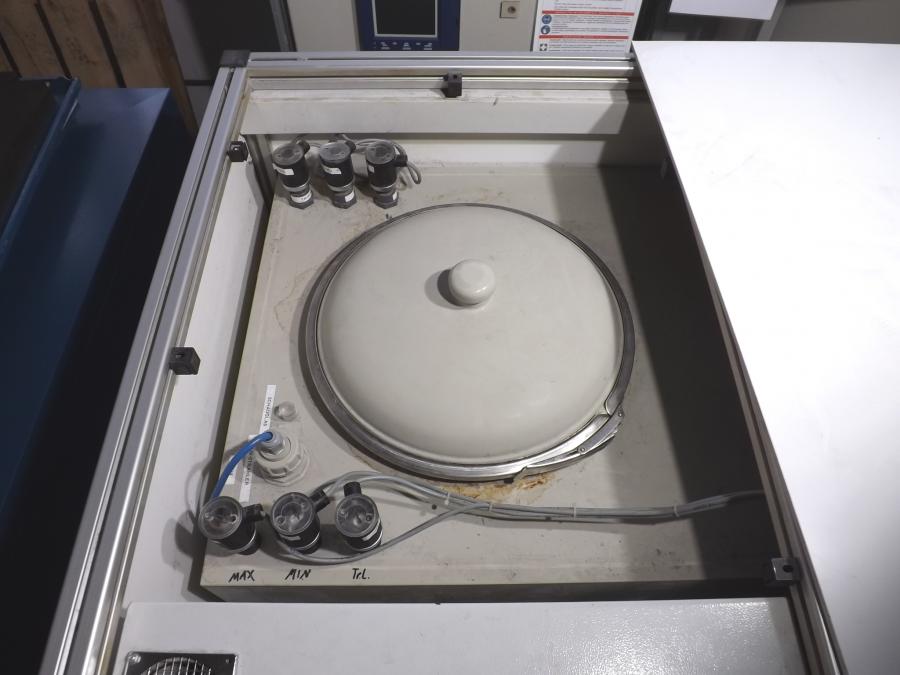

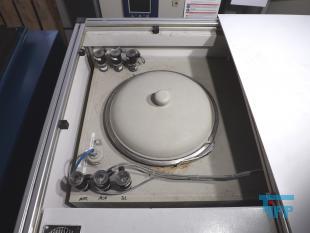

- Double tank made of PP (300 litres per tank). The tank is filled with the reverse osmosis permeate. Each chamber has a heater.
This brings the circulation water to the desired temperature (max. 69°C).

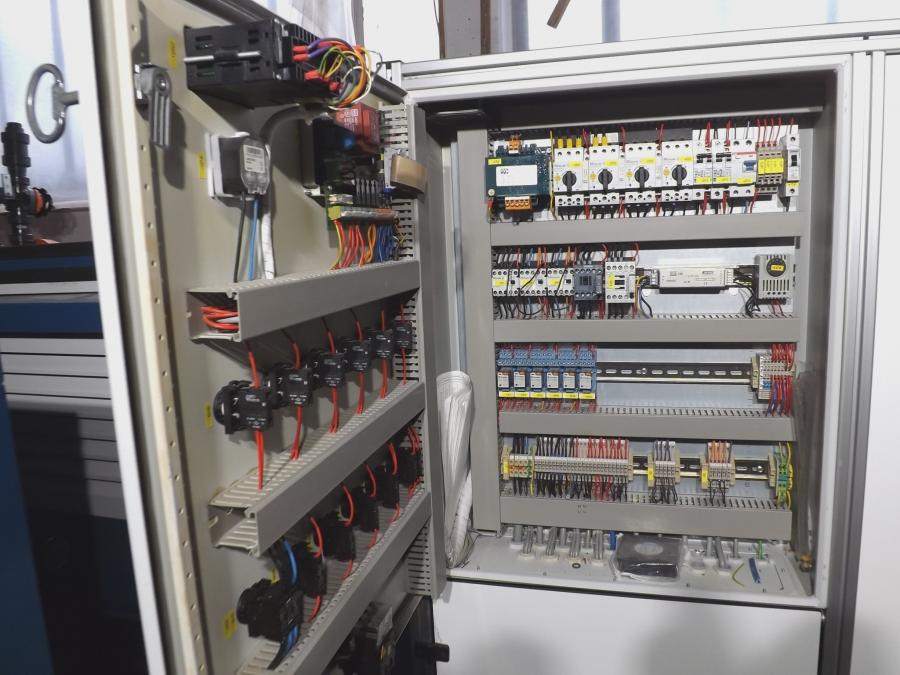

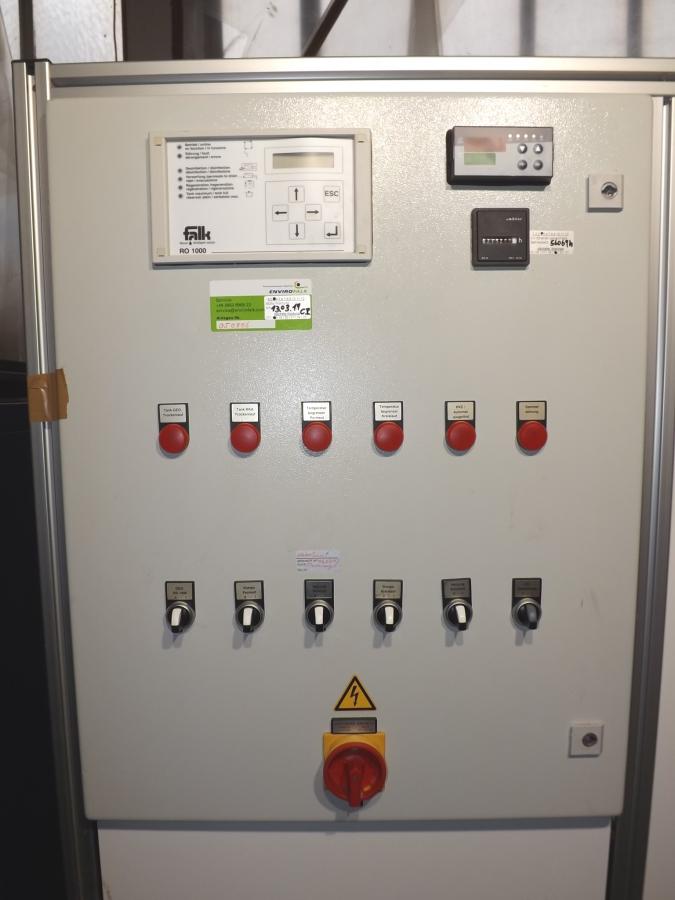

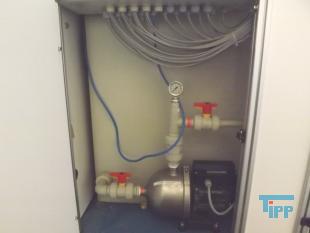

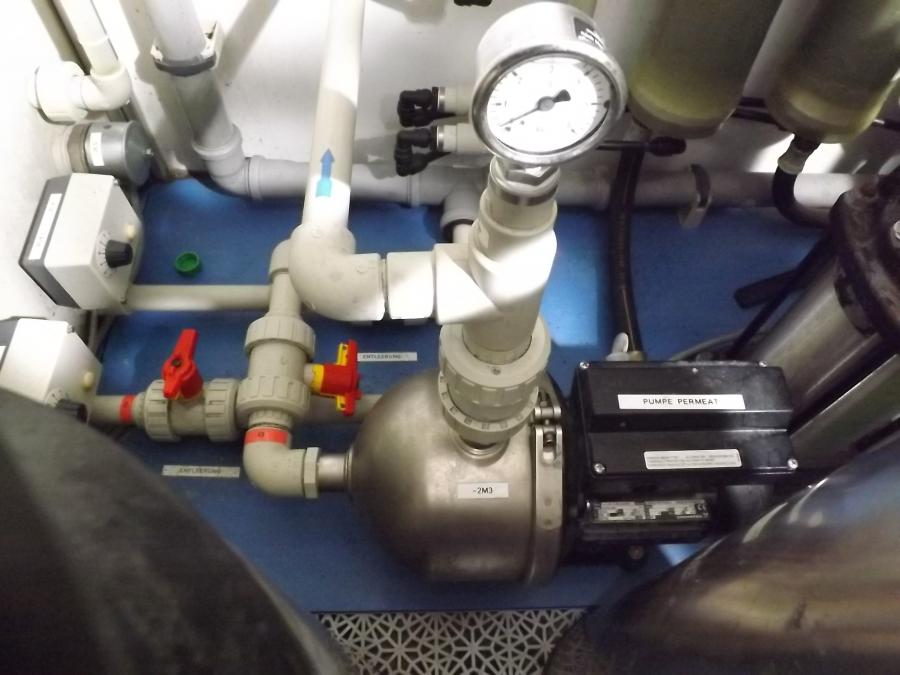

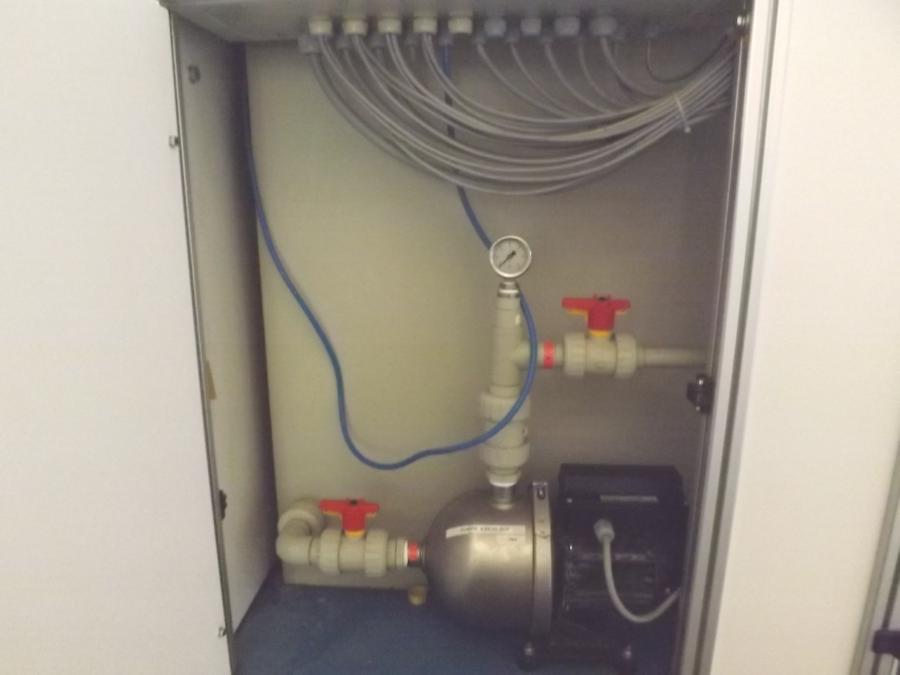

- Further information: 1x Grundfos circulation pump / 1x centrifugal permeate pump / control cabinet with Falk RO 1000 control.
Producer: | Enviro Falk |
Typ: | Elmapur 1200 GEO |
Year of manufacture: | 2005 |
Pieces: | 1 |
