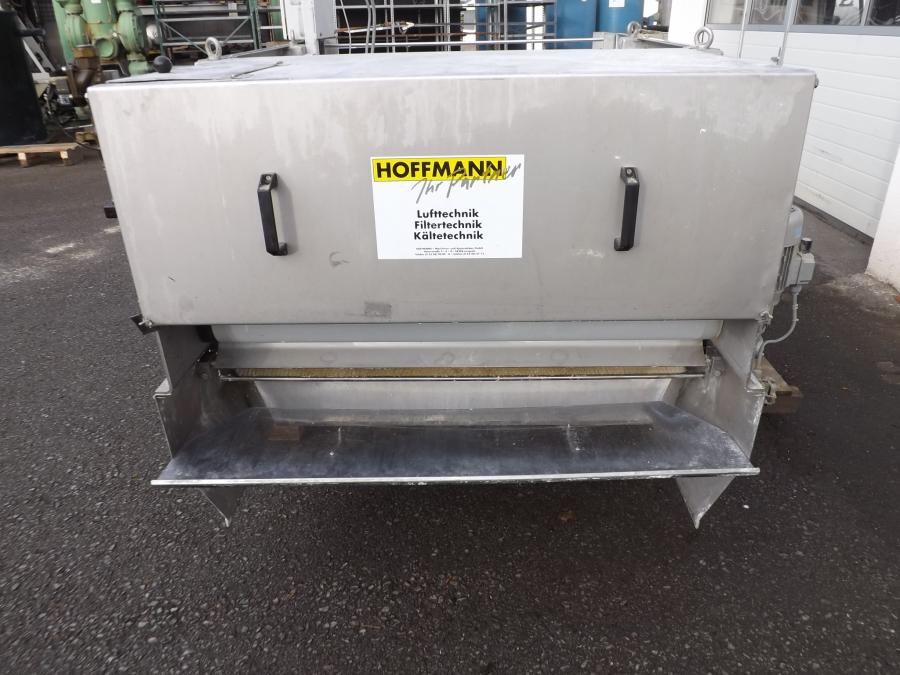

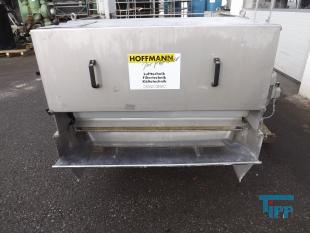

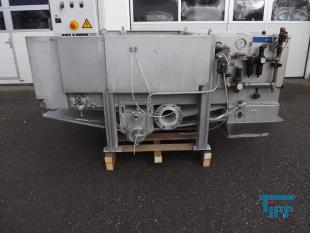

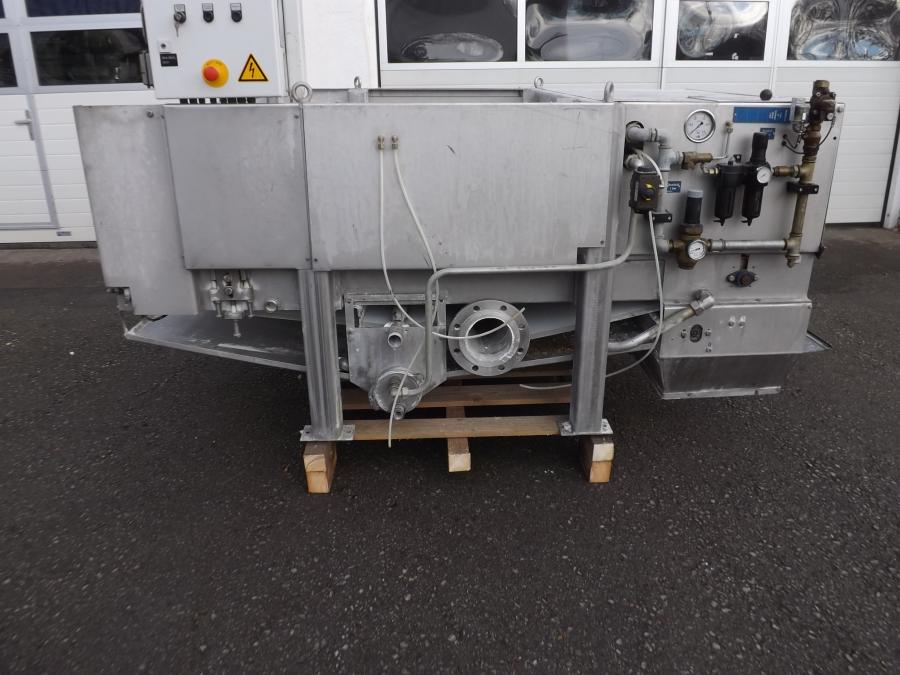

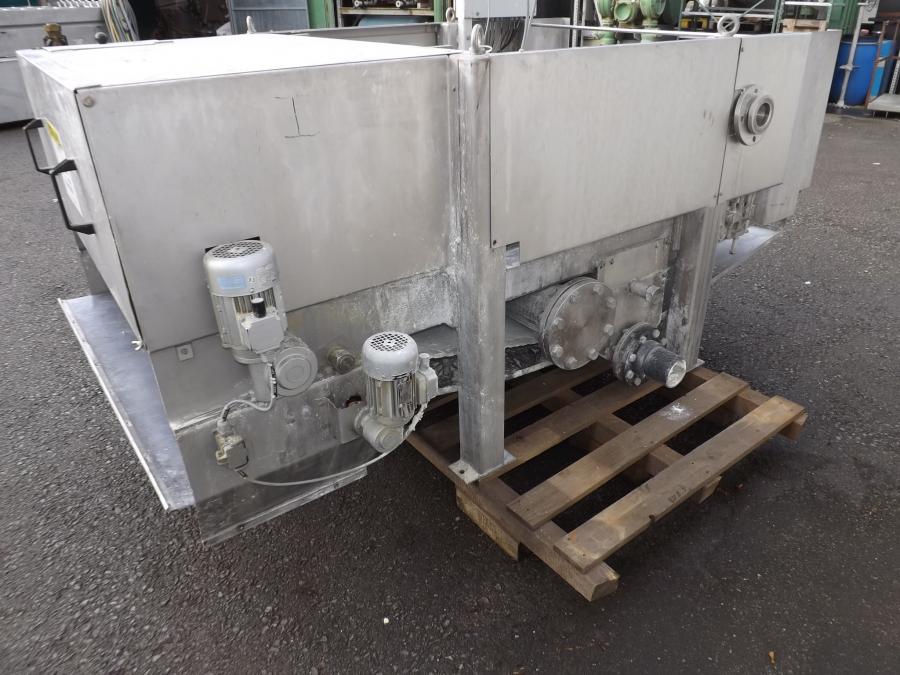

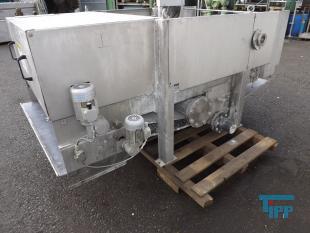

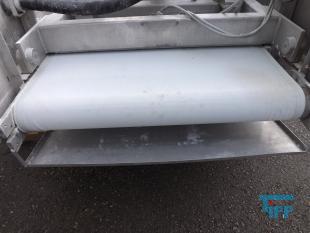

pressure belt filter made of stainless steel

details to article: 29455

description: Stainless steel pressure belt filter for the treatment of cooling lubricants or drilling and grinding emulsions in the machine tool industry or in the waste water sector for the filtration of waste water.

Functional description:

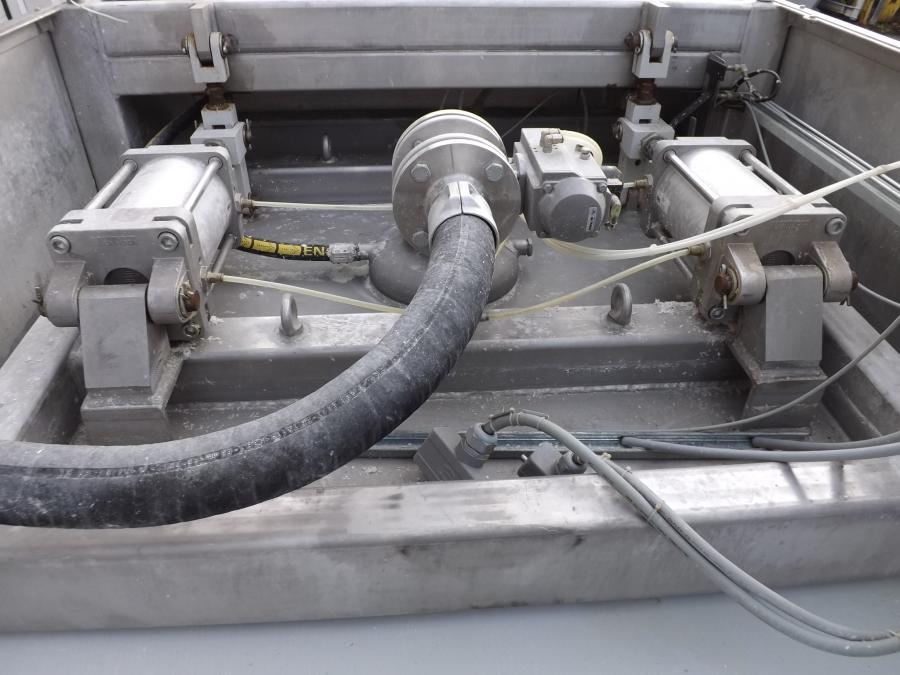

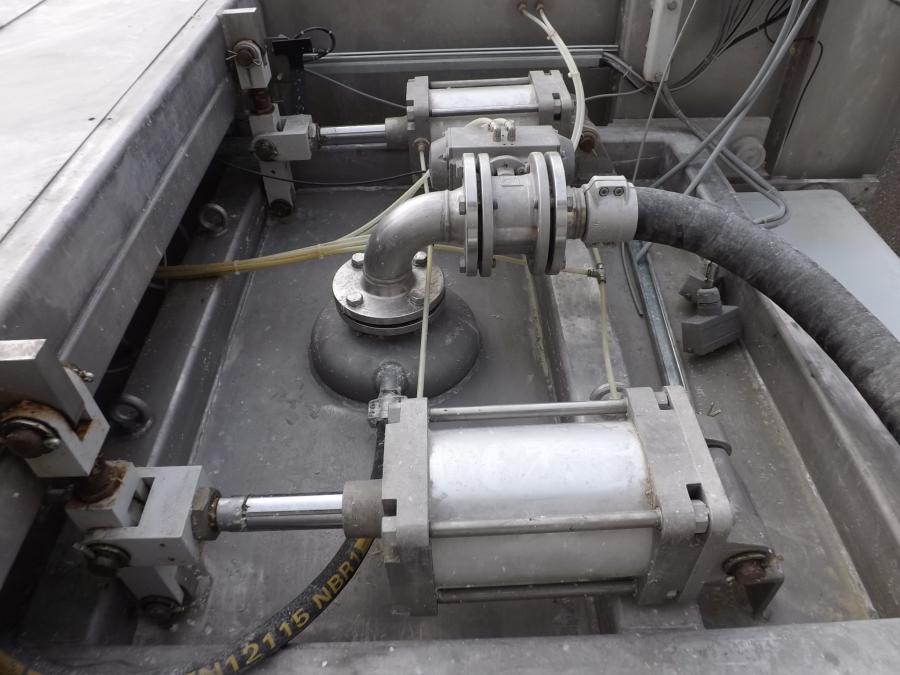

The pressure belt filter consists of two chambers. The upper chamber can be opened by means of a cylinder
upper chamber can be opened. The chambers are sealed off from each other by a seal attached to the upper chamber.
upper chamber.

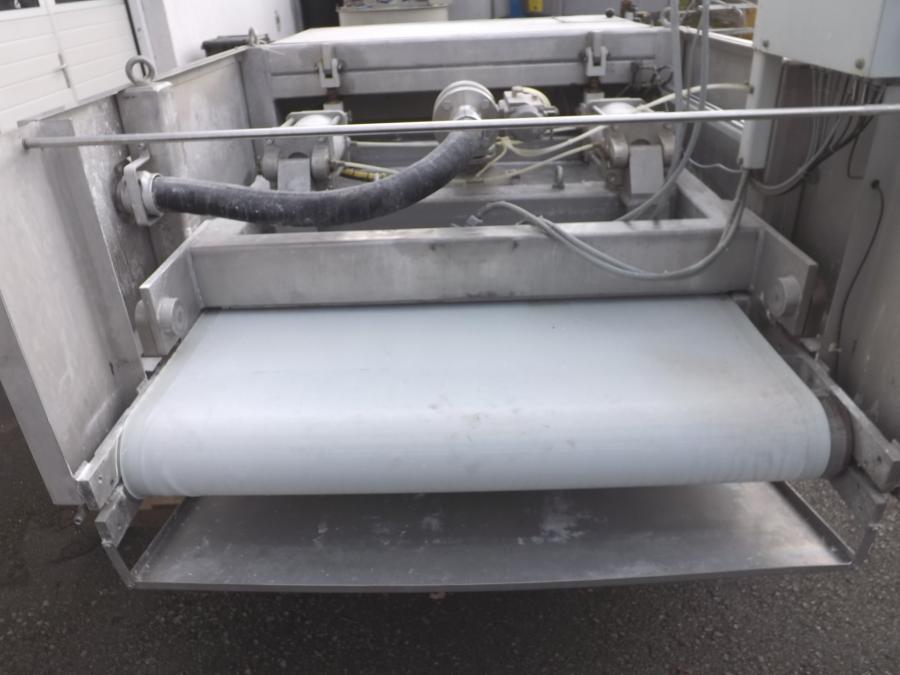

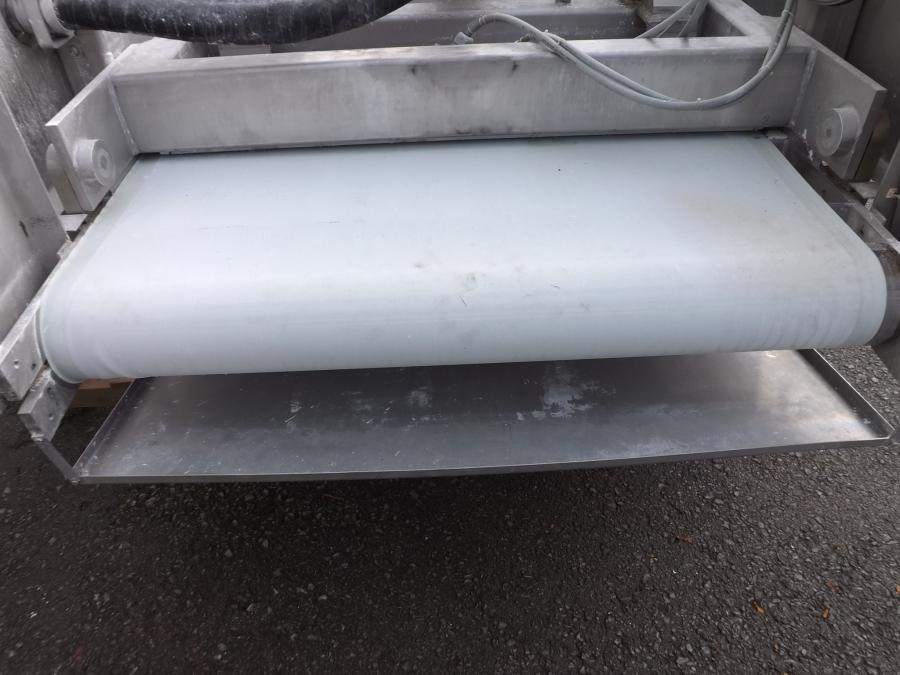

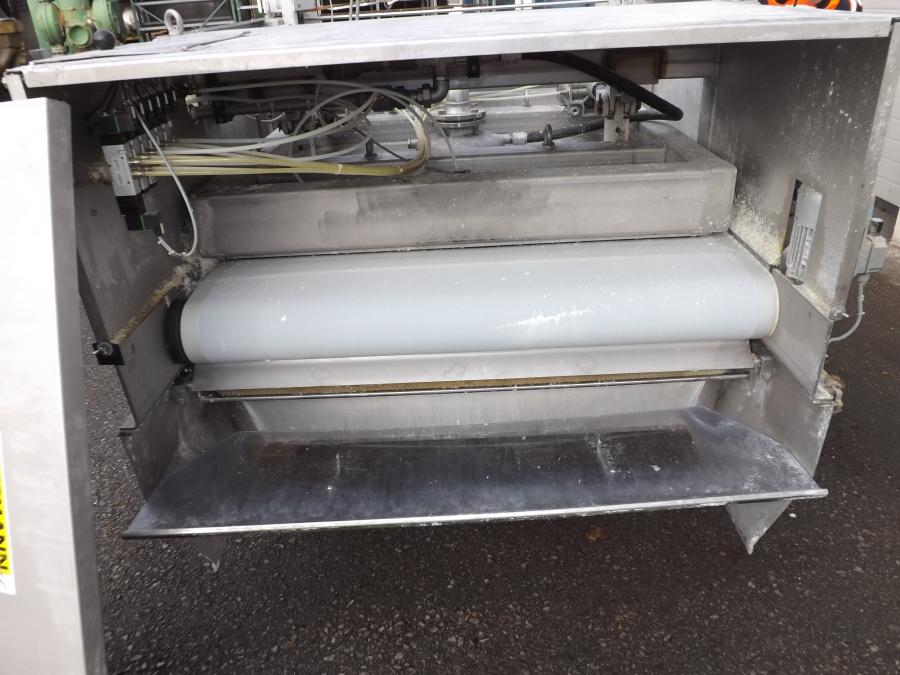

The medium is conveyed to the filter upper chamber, where it reaches the filter belt.
The medium flows through the filter belt and into the lower chamber where it can be pumped out.

Producer:	Hoffmann Maschinen und Apparatebau GmbH
Typ:	HKF 1,5
Year of manufacture:	2001
Pieces:	1

technical data
Volume flow rate	10 m³/h (prior use, depending on the application the flow can increase)
Power	17.5 m³/h (Filter performance (with medium water))

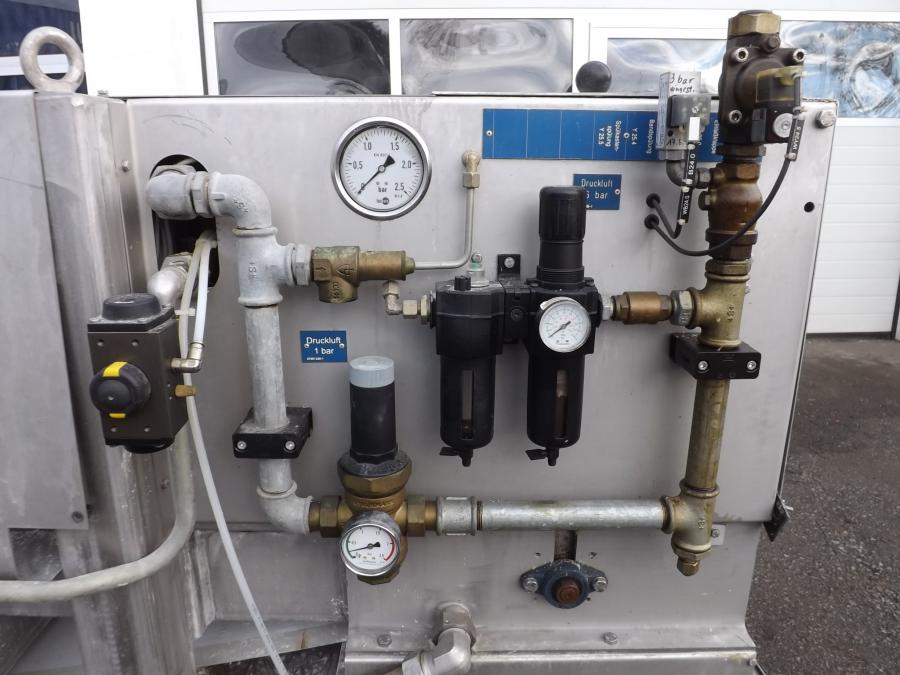

Pressure	1.5 bar (Pressure of the feeding pump, futher more sludge dewatering through 6bar compressed air)
Dimensions	1250 mm (bandwidth)
Filter surface	1.5 m² (approx. area pressure chamber)
Further information	(filter fineness 105μm)
Material	(filter belt made of plastic)
Dimensions	(length 2550, width 1800, height 1700mm)
Weight	2000 kg (approx.)
Further information	(filter is clean with own medium)
Further information	(filter cake is dryed by compressed air)

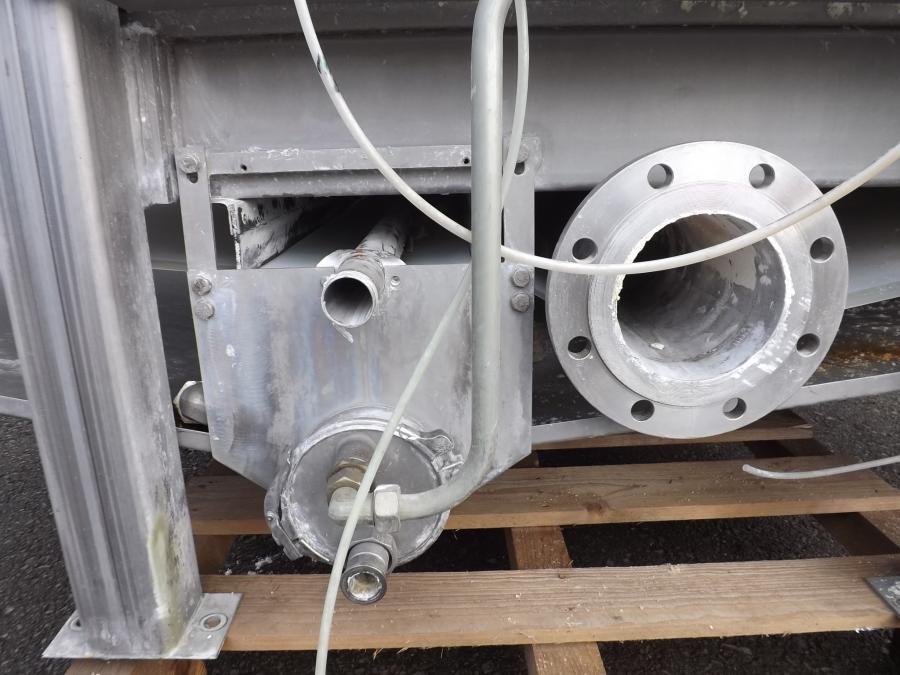

Connections	(Filter drain piping-dirt side DN150-100 / clean side DN150 - 80 / filter inlet piping 2x DN65)

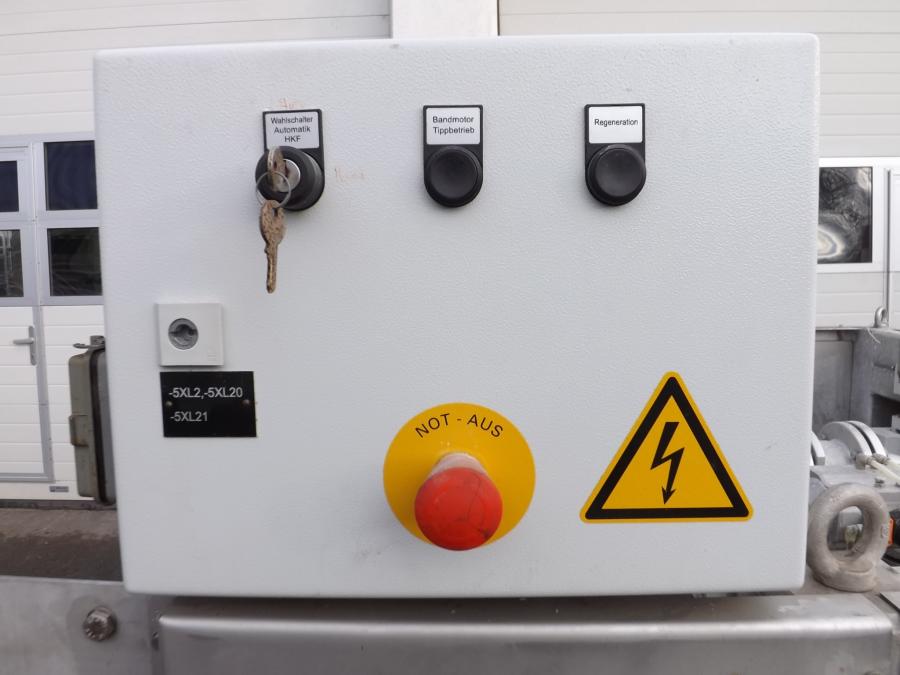

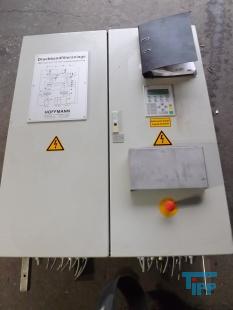

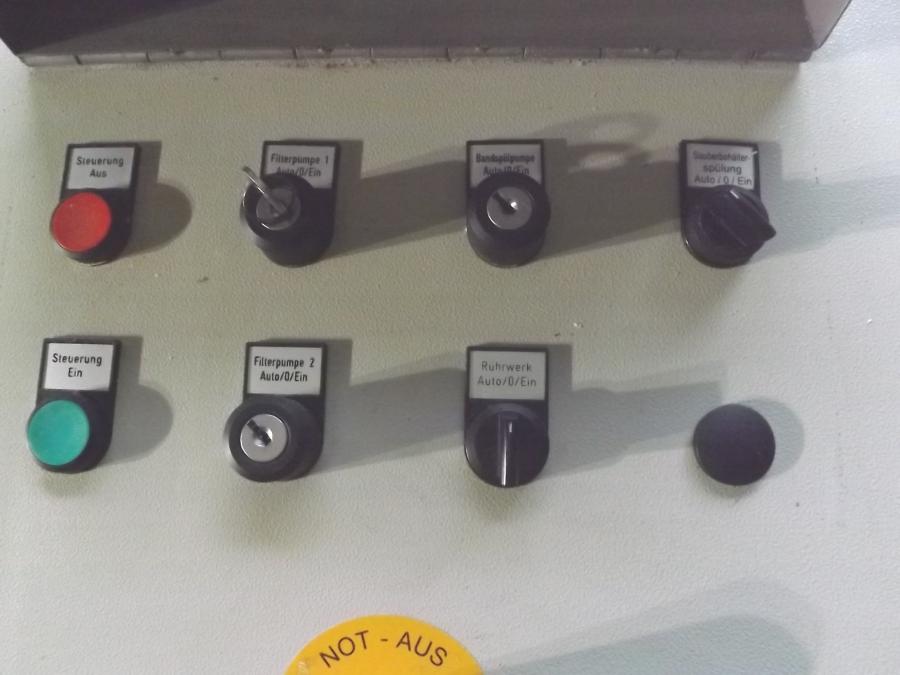

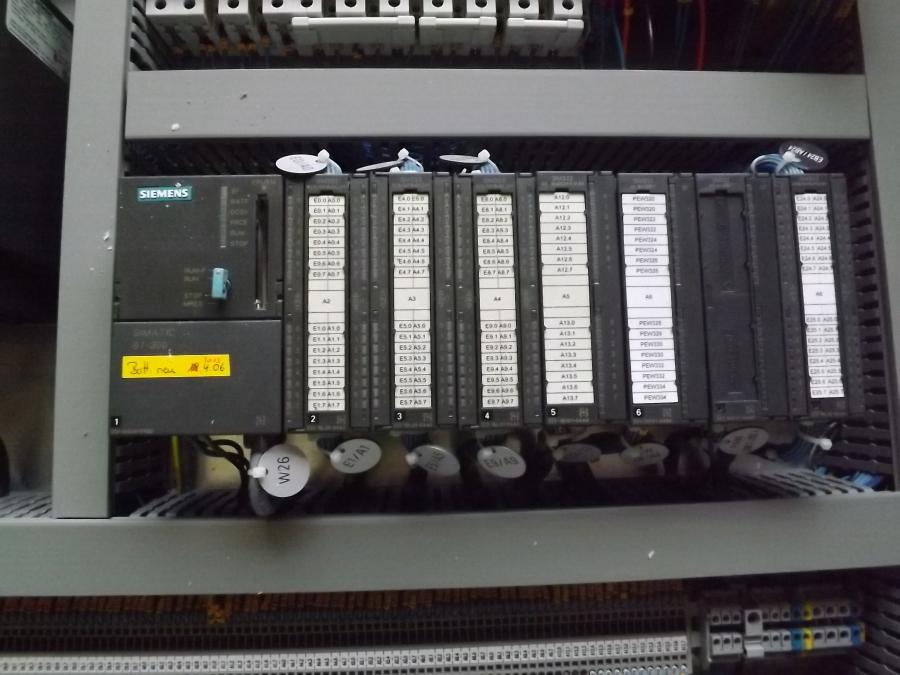

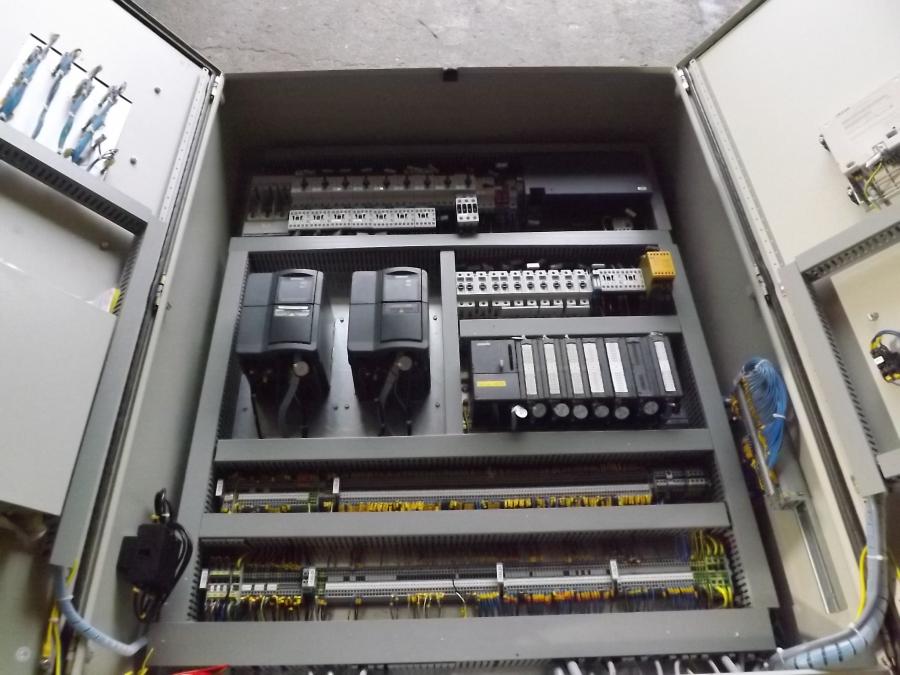

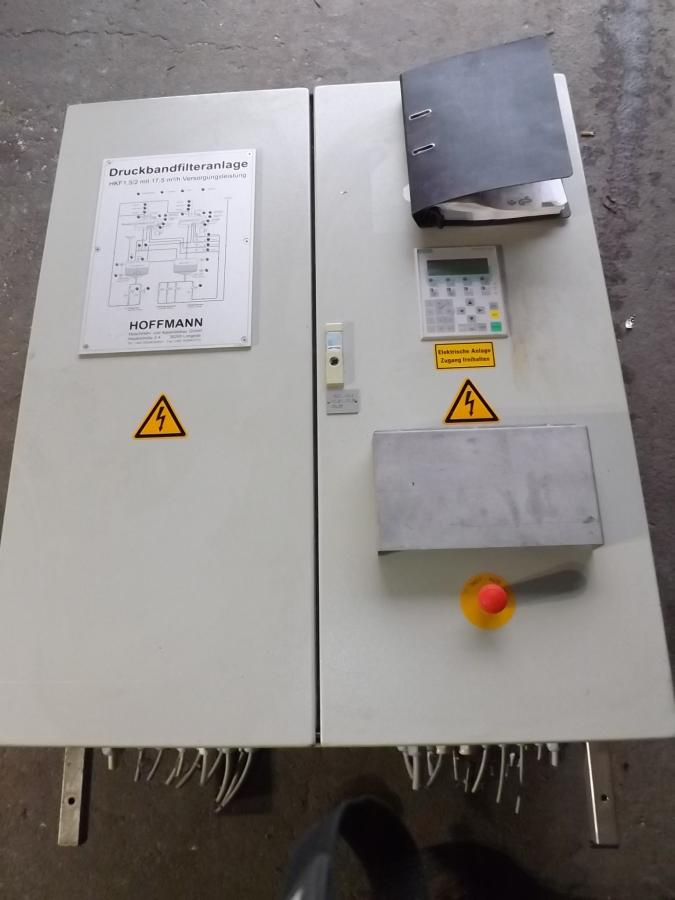

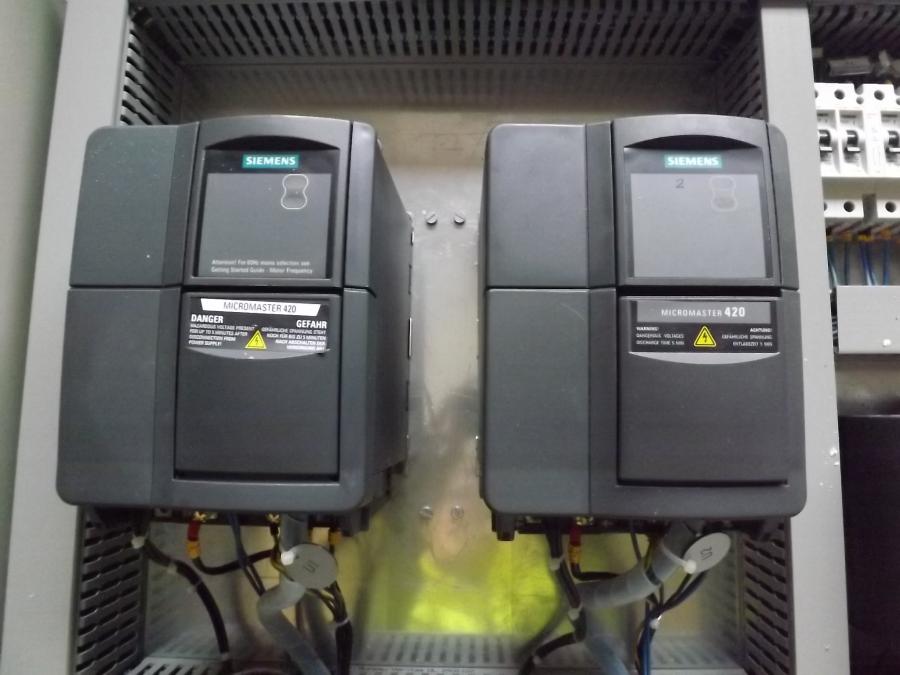

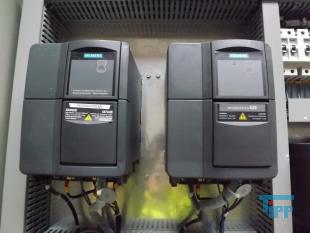

Further information	Schaltschrank für eine komplette Abwasseranlage inkl. diesem Filter vorhanden und kann separat erworben werden
