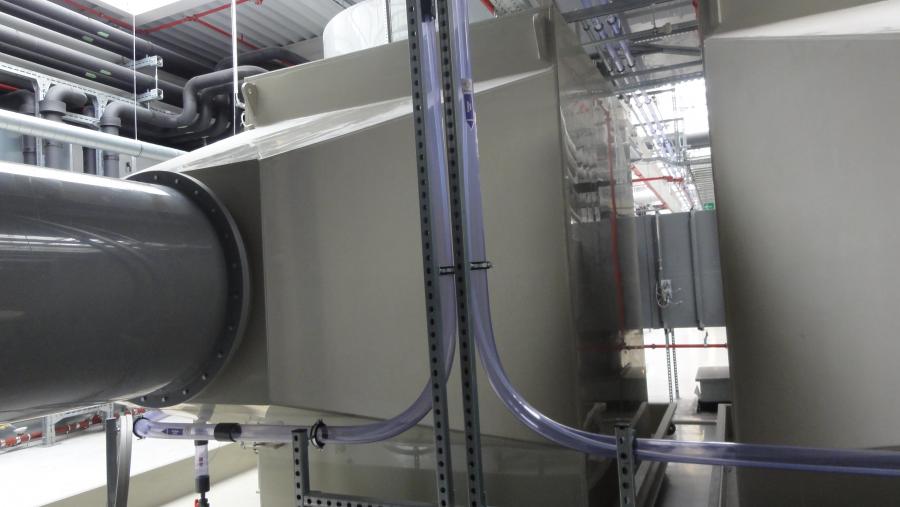

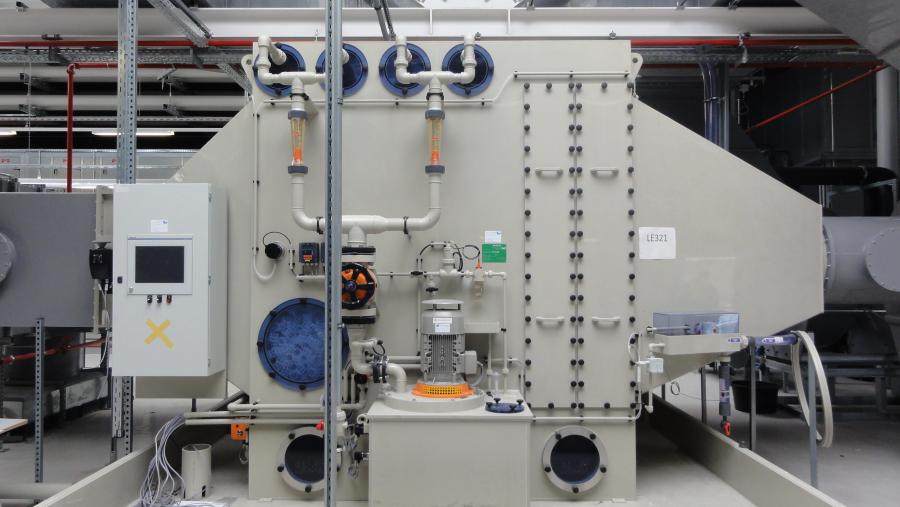

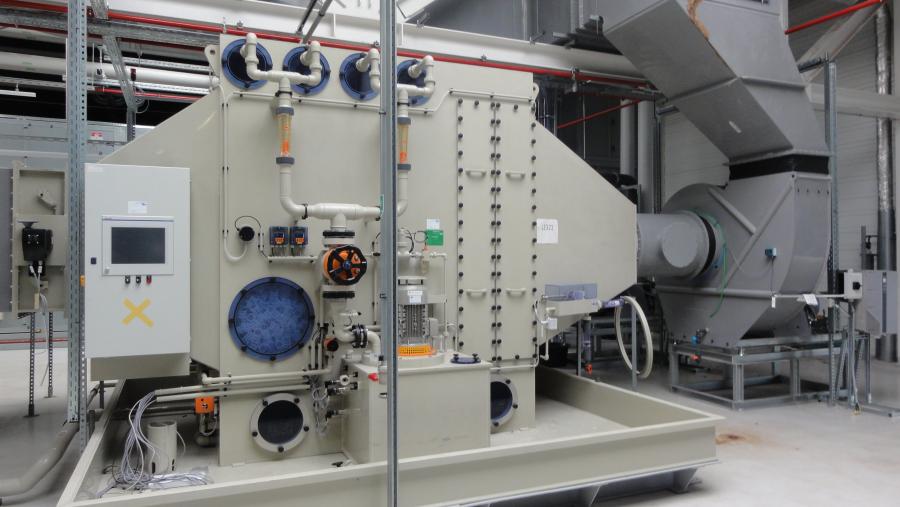

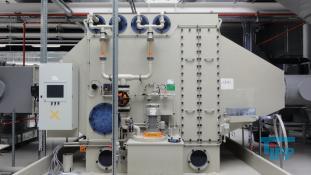

Compact air scrubber / air washer / exhaust air system / gas scrubber for acidic gases

details to article: 29621

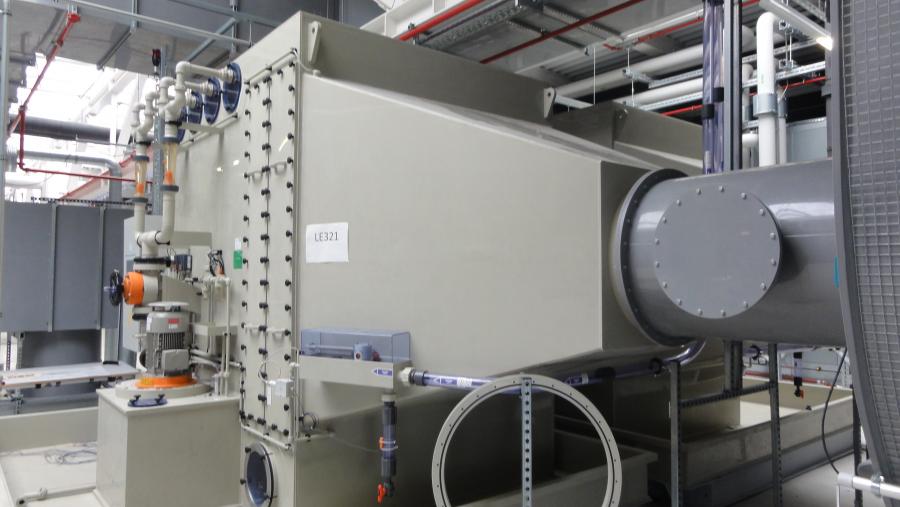

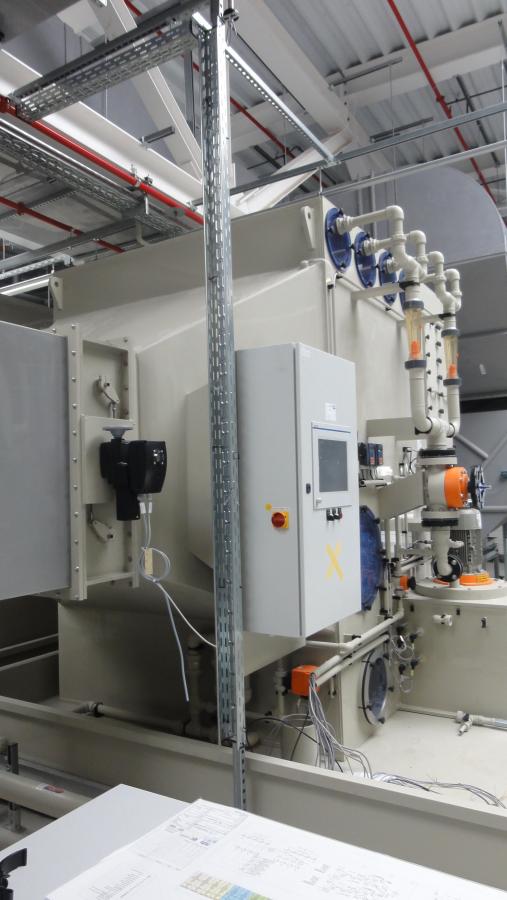

description: Horizontal single-stage exhaust air washer with integrated liquid tank, packing and droplet separator (lamella separator) for cleaning acidic and lye-containing exhaust air. Principle: A washing liquid is injected into the horizontally flowing exhaust air in a circuit. Washing out of water-soluble impurities by adding alkalis or acids.

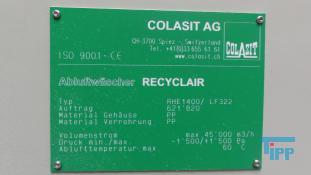

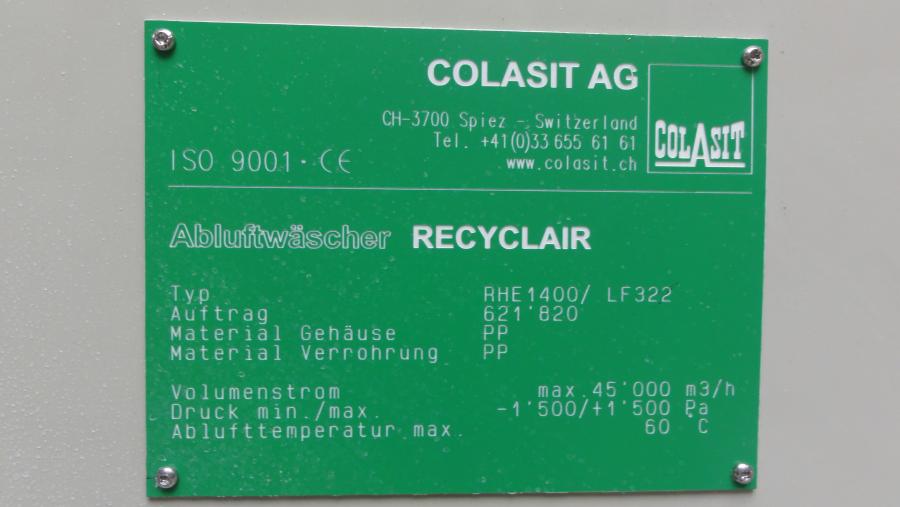

Producer:Colasit
Typ:RHE 1400 / LF322
Year of manufacture:2016
Pieces:1



technical data

Volume flow rate  45000 m³/h (Air volume)
Pressure  -1.500 / +1.500 Pa (Pressure min / max)
Temperature  60 °C (Exhaust air temperature max)
Material  PP (Housing / piping)
Accessories  ()

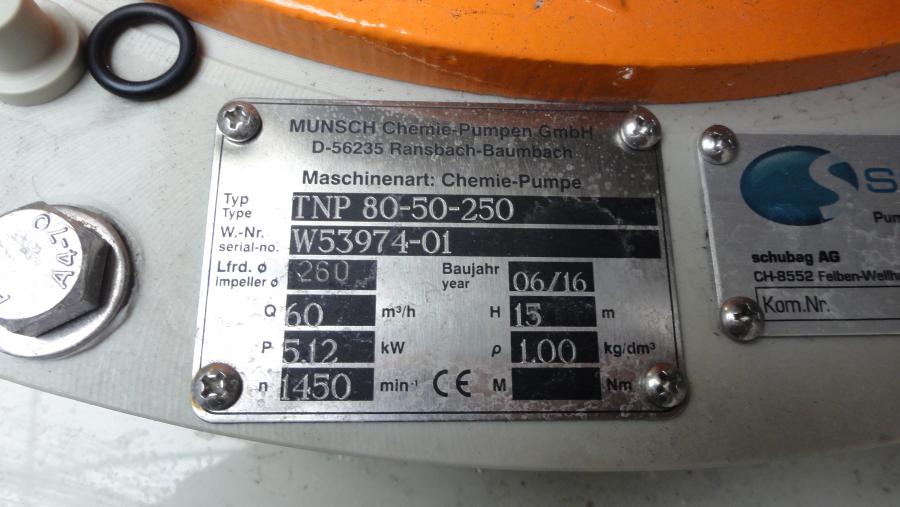

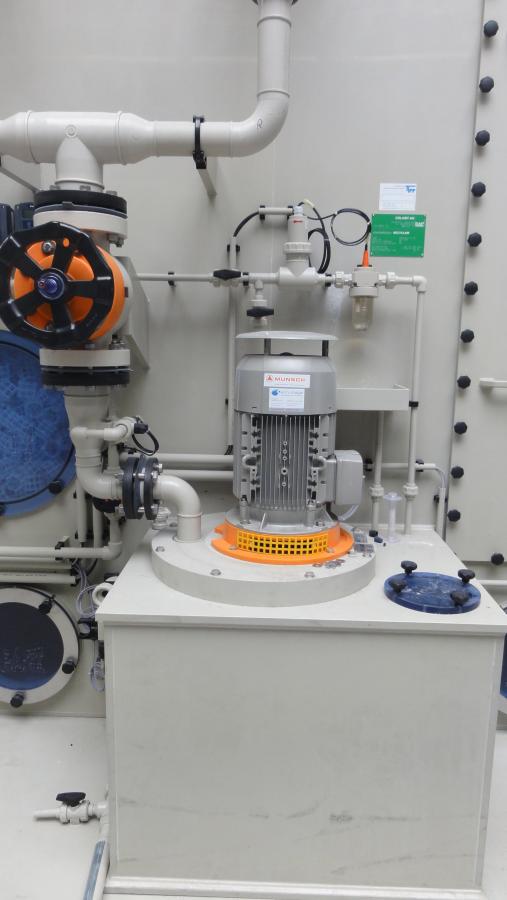

Delivery rate  60 m³/h (max.)
Lifting height  15 m (max.)
Power  5 kW
Rotations  1450 1/min
Dimensions  - (Exhaust air scrubber)
Power  5500
Width  2820 mm
Height  3100 mm
Weight  kg (Empty weight / operating weight)

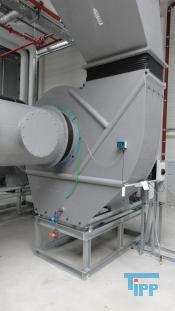

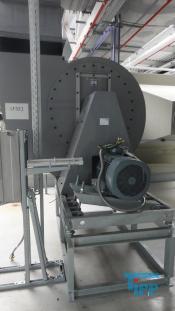

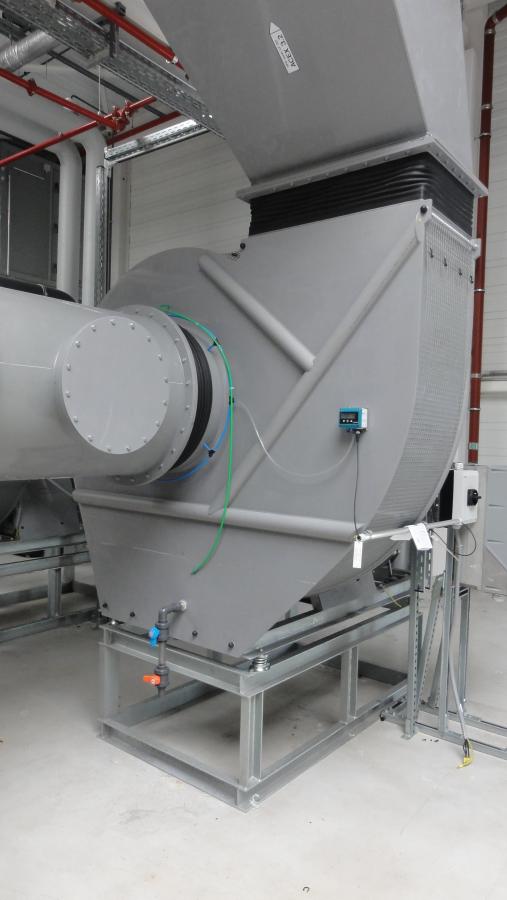

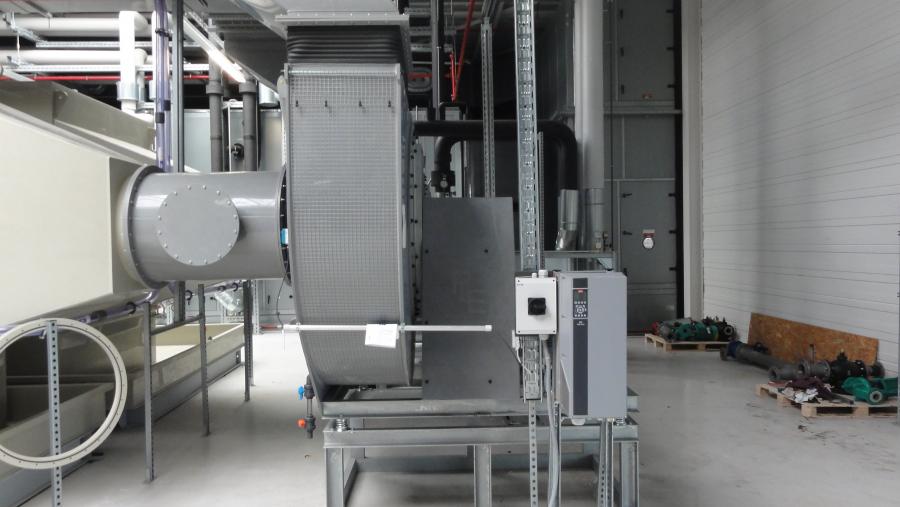

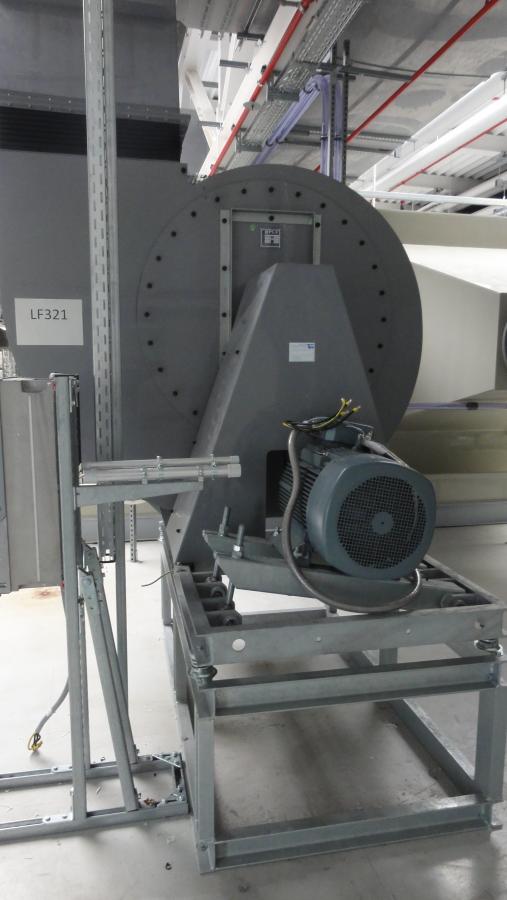

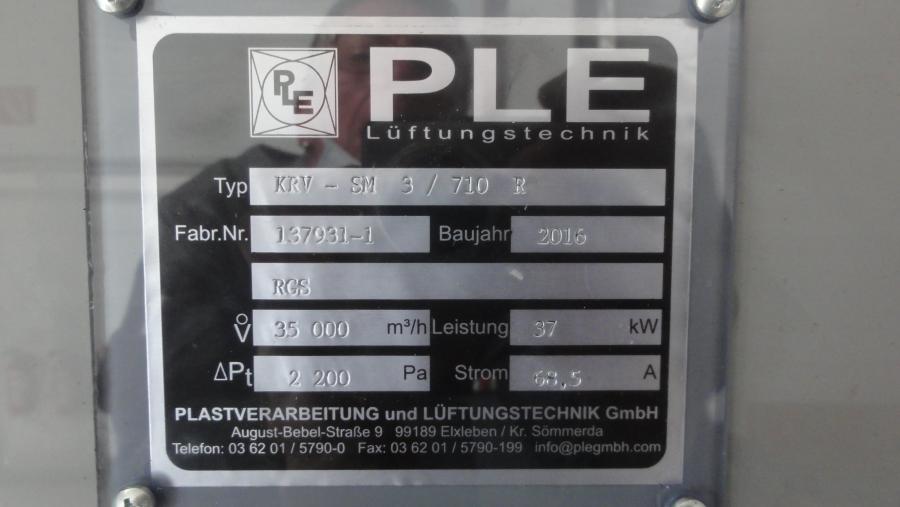

Description  - (Fan / blower (Manuf.PLE KRV - 8m 9/710 R))
Volume flow rate  35000 m³/h
Pressure  2200 Pa (Static pressure)

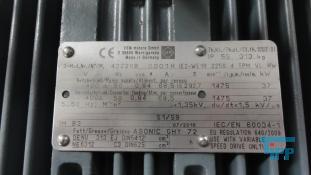

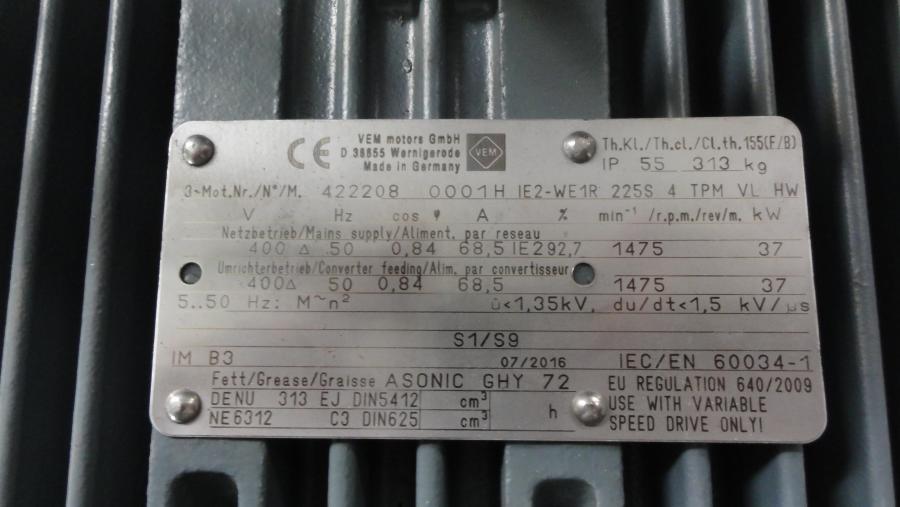

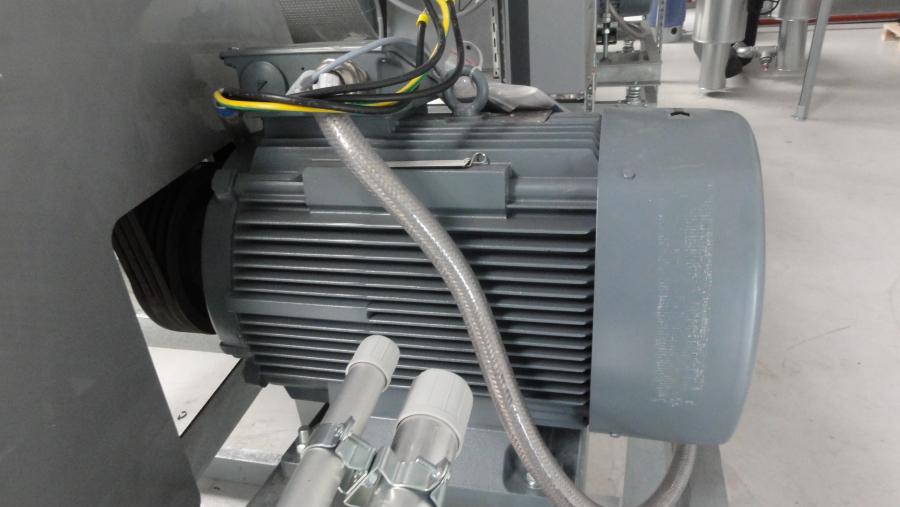

Power  37 kW (engine)
Dimensions  - (complete with frame)
Length  2150 mm
Width  2050 mm
Height  2700 mm


Artikel nicht mehr verfügbar
