Berkefeld mega-RO 320x5 reverse osmosis

details to article: 29641

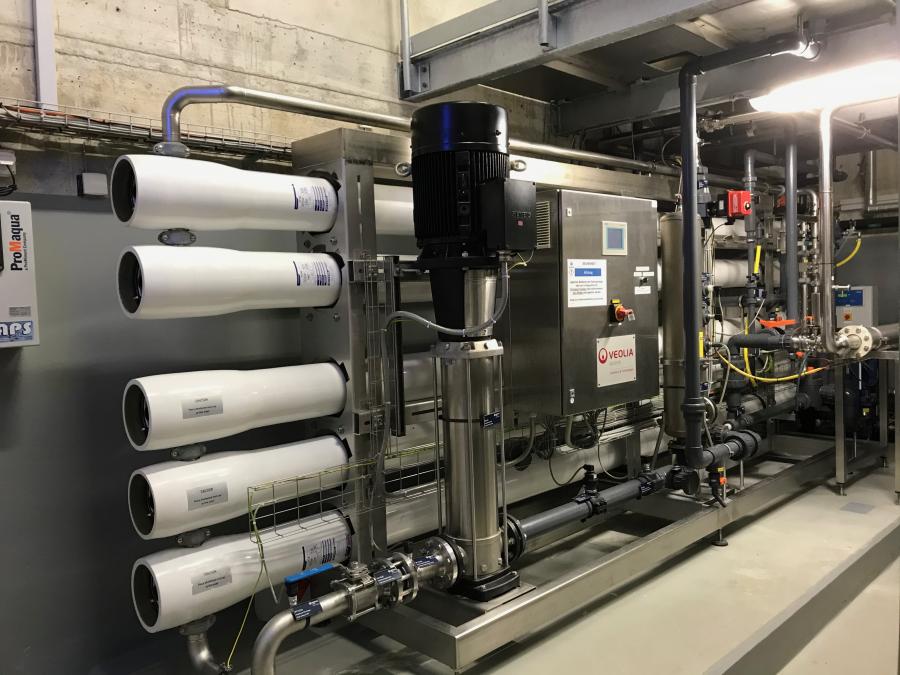

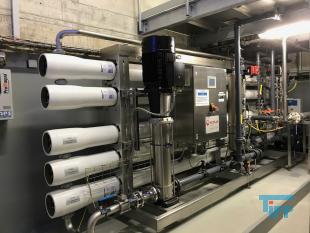

description: Water treatment plant Berkefeld megaRO 320 x 5 - The plant was used in the food industry.
The five 8" pressure pipes are 5606 mm long and equipped with Filmtec membranes LE 440i.
The plant includes a cleaning system (CIP).
The RO is practically new and is circulated, rinsed and preserved monthly with sodium bisulfide.

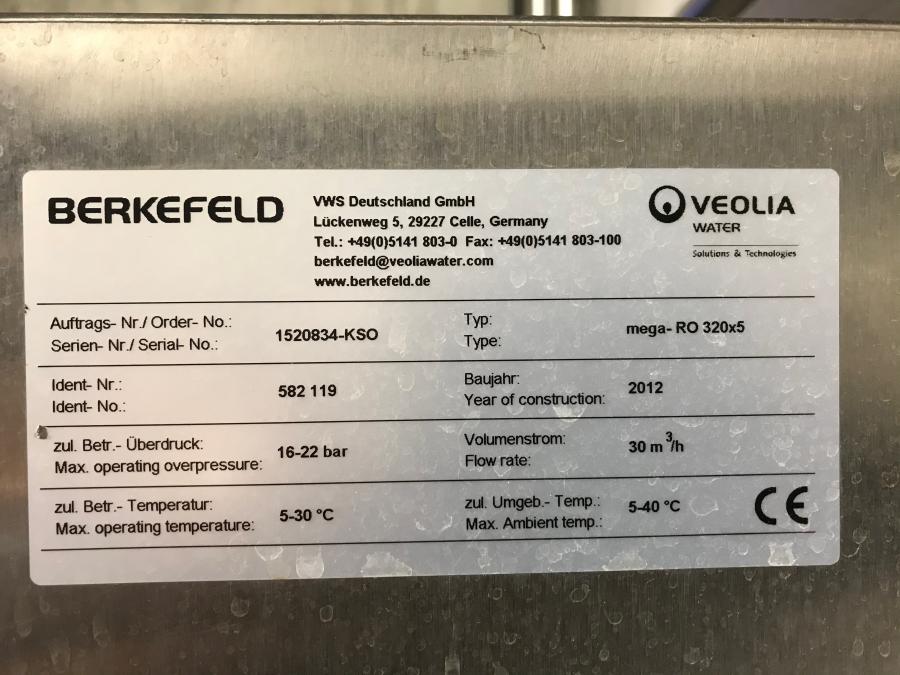

Producer:	Berkefeld
Typ:	mega-RO 320x5
Year of manufacture:	2012
Pieces:	1

technical data
Volume flow rate	30 m³/h (permeate)
Volume flow rate	7,5 m³/h (concentrate)
Length	5900 mm
Width	900 mm
Height	2280 mm
Weight	4250 kg ()
	(Horizontal polyethylene-coated steel pressure pipes with 8 "membranes)

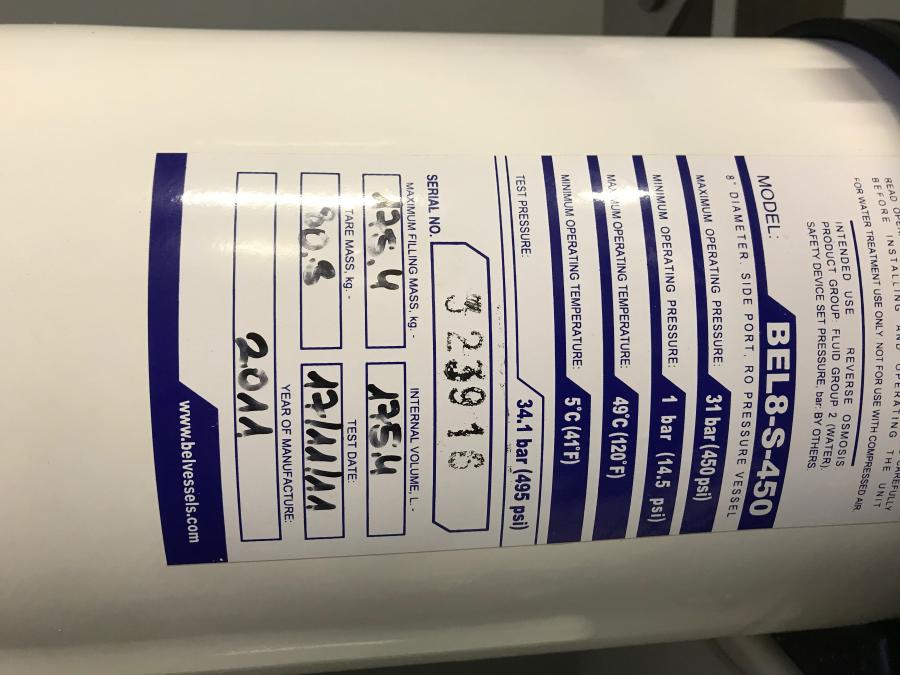

	(Pressure pipes 8", 450psi, length 5606 mm)
	(Filmtec Membranes LE 440i)

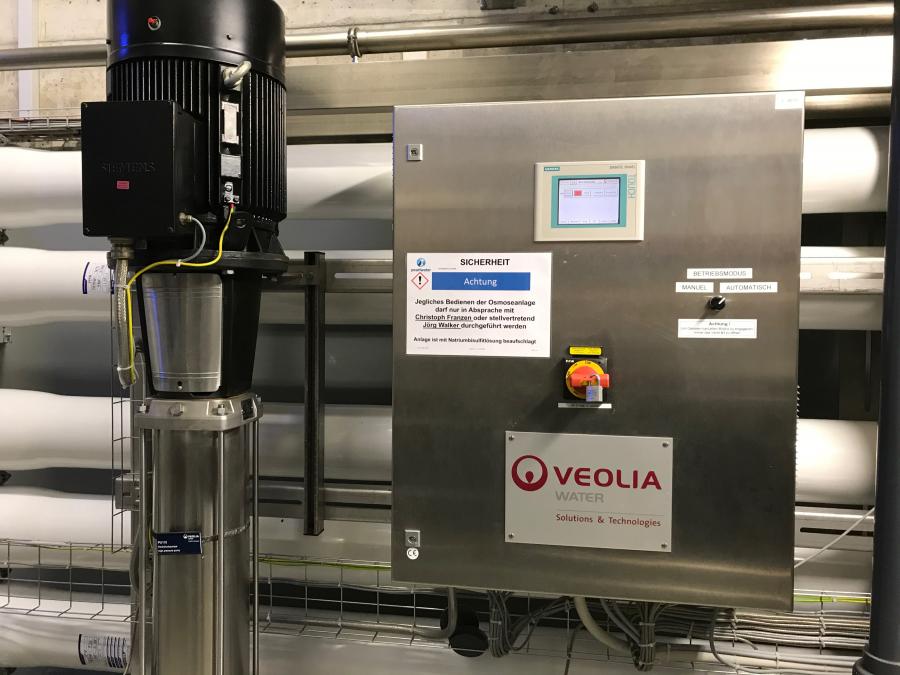

	(Centrifugal pump Grundfos CRN 45-9-2 (19,5bar, 37,5 m³/h, 30kW))
	(Dosing pump Grundfos DDI (2.2-16))
Connections	DN80 / DN65 / DN50 (Raw water / permeate / concentrate)

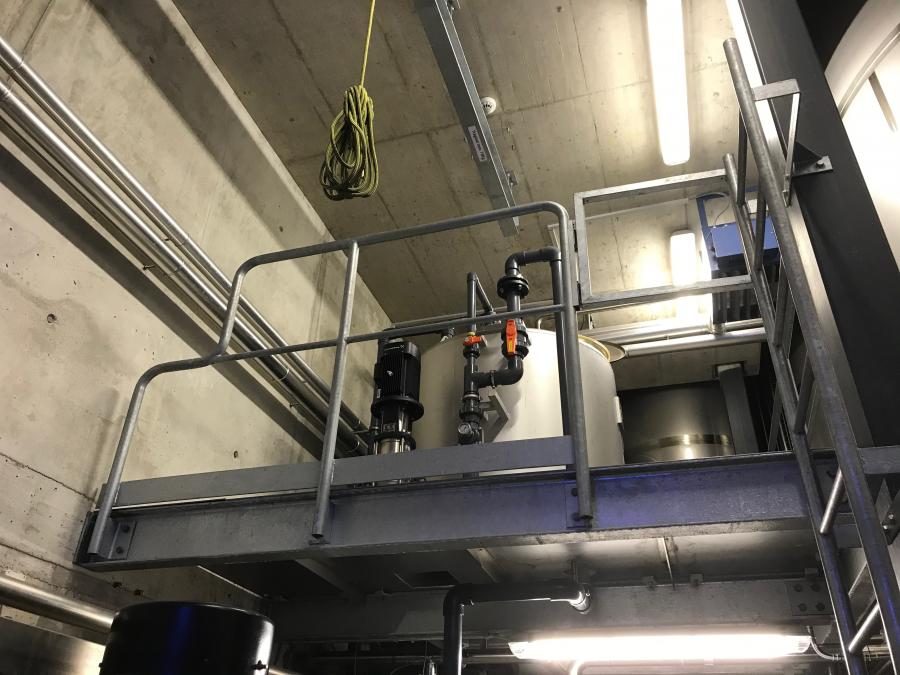

Accessories	Spülstation (CIP)
	(Centrifugal pump Grundfos CRN 20-5)
Width	2300 mm (approx.)
Depth	1700 mm (approx.)
Height	1805 mm (approx.)
