Stainless steel screen for wastewater filtration / sewage receiving station

details to article: 29649

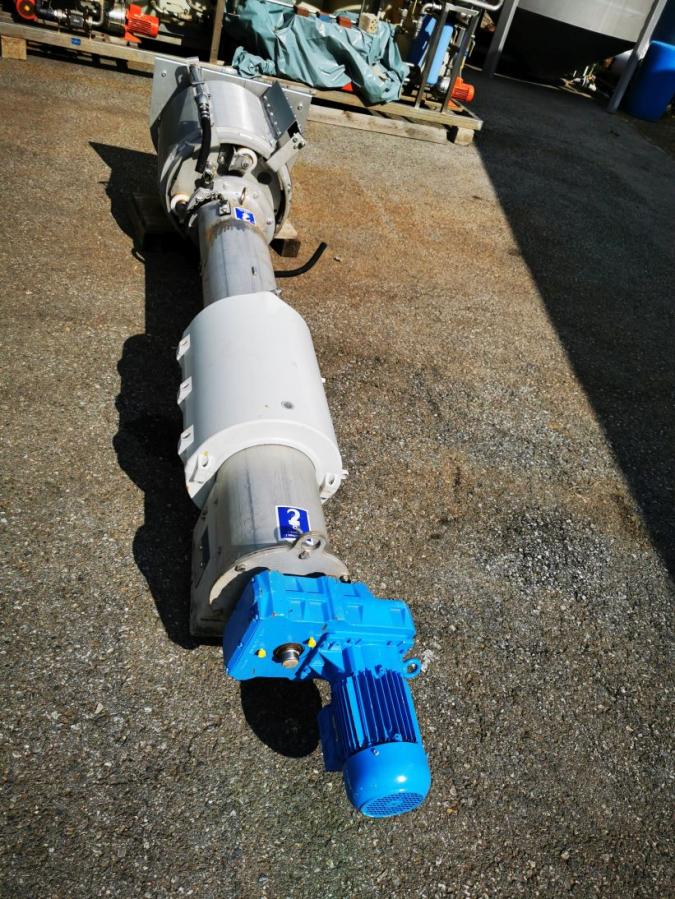

description: Huber Rotamat RO2 as fine screen design and EX-protection with stainless steel tank.
Separation of solids from wastewater, compaction and washing of screenings.
Application: Wastewater treatment plants

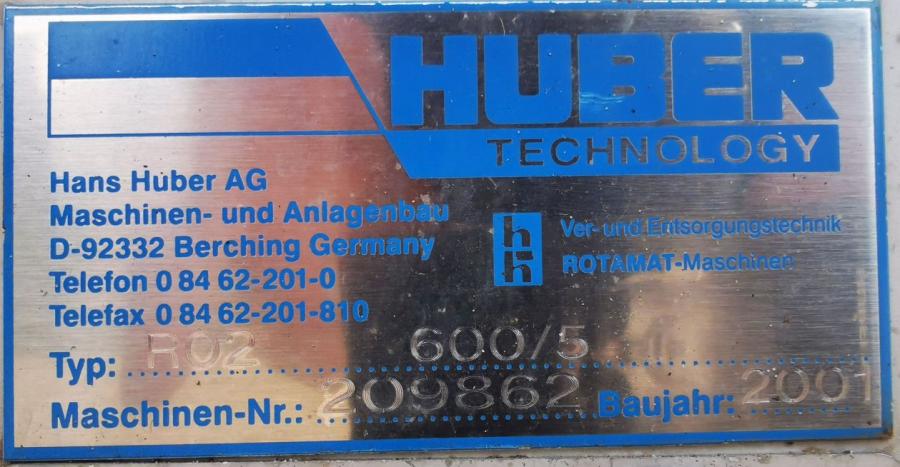

Producer:HUBER Technology
Typ:Rotamat RO2
Year of manufacture:2001
Pieces:1



technical data

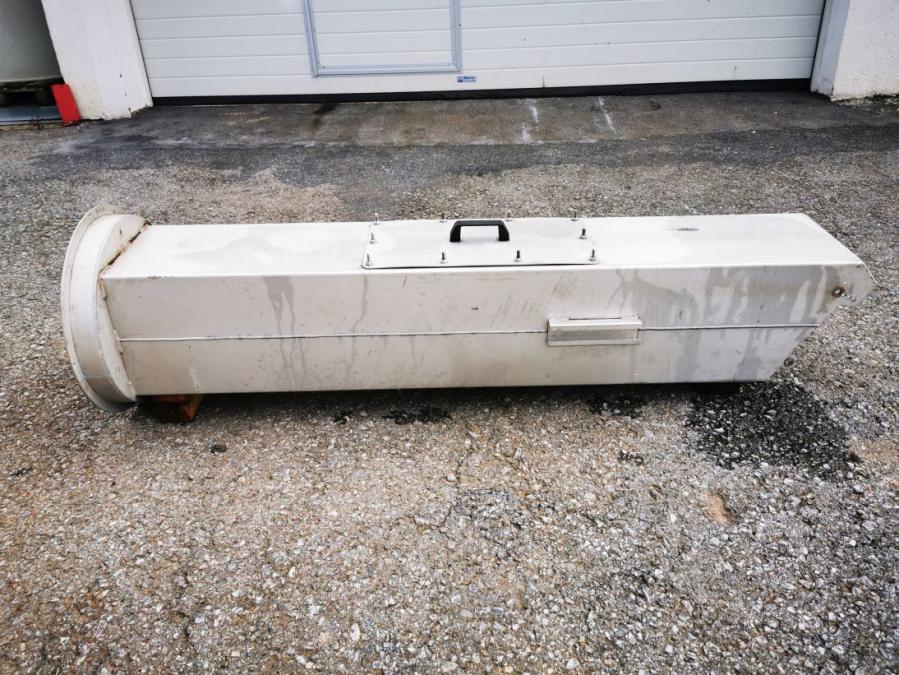

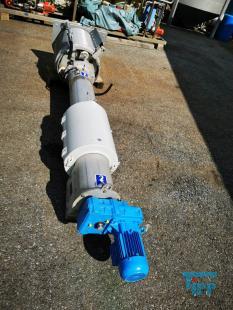

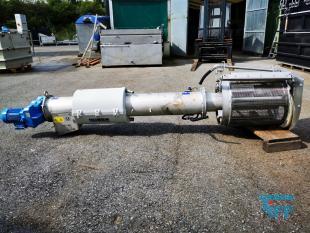

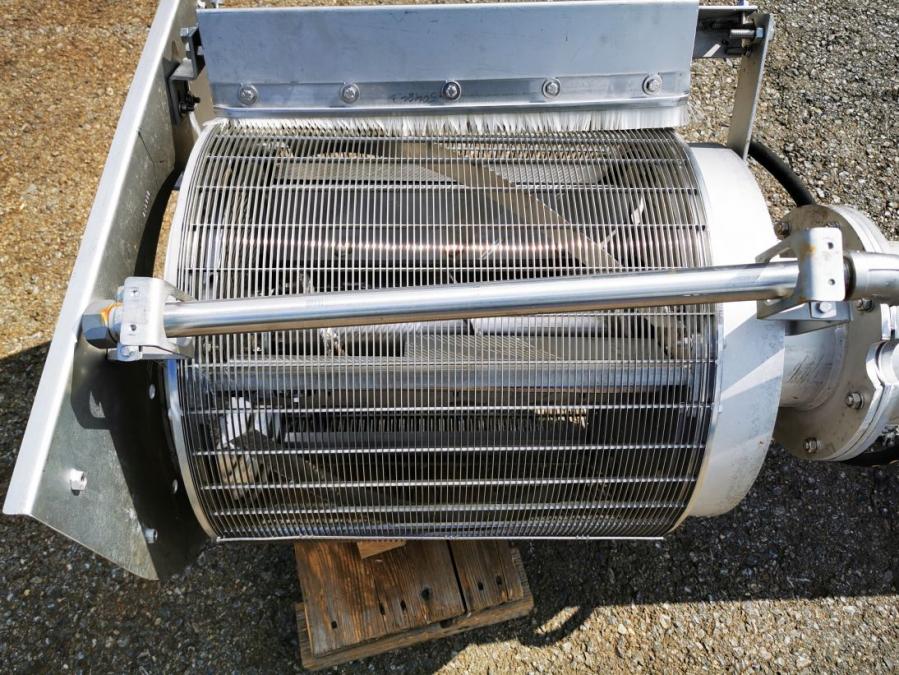

Siebrechen (RO2 600/5)
Gap width  5 mm
Length  3420 mm (incl. motor)

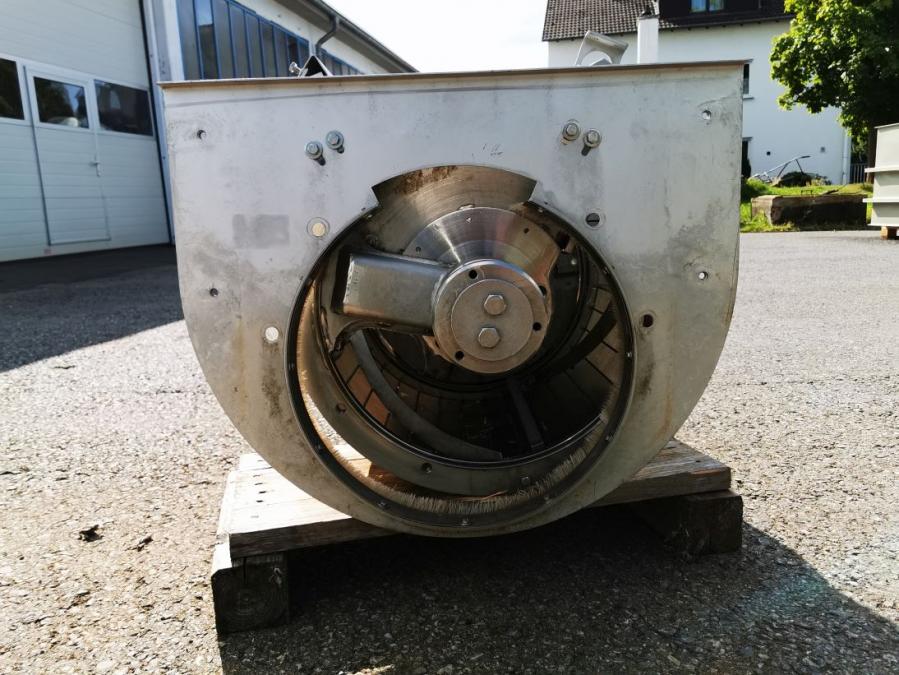

Diameter  600 mm (Screen drum)
Material  Edelstahl

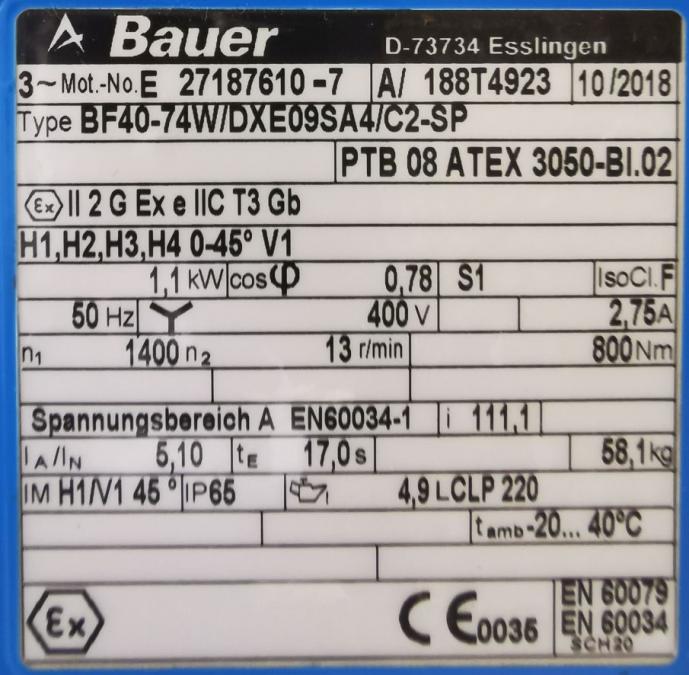

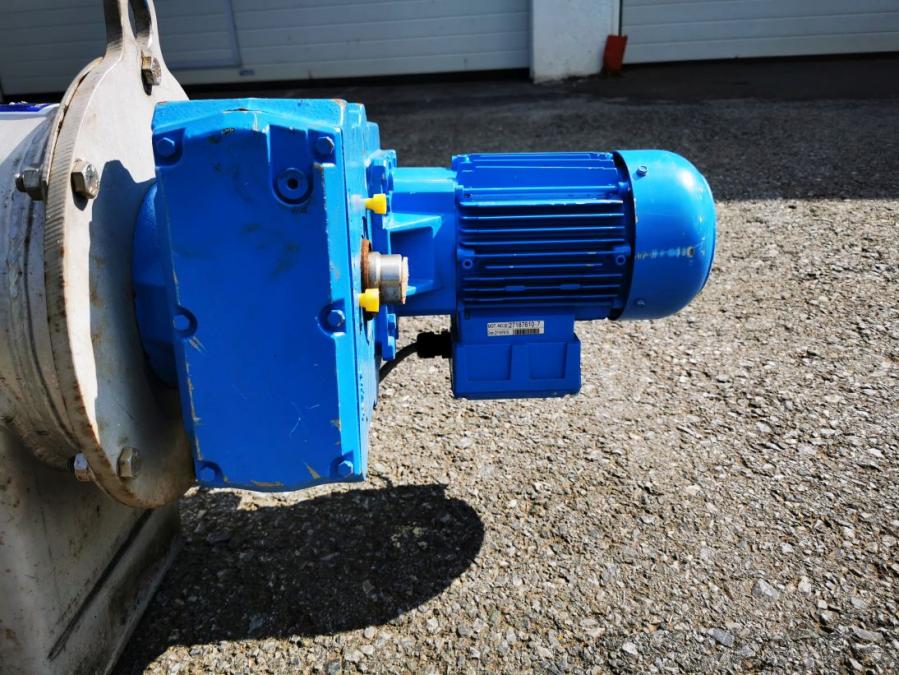

Engine (Bauer BF40-74W)
Power  1.1 kW
Voltage  400 V
Amperage  2.75 A
Revolutions per minute  n1 1400 / n2 13 1/min

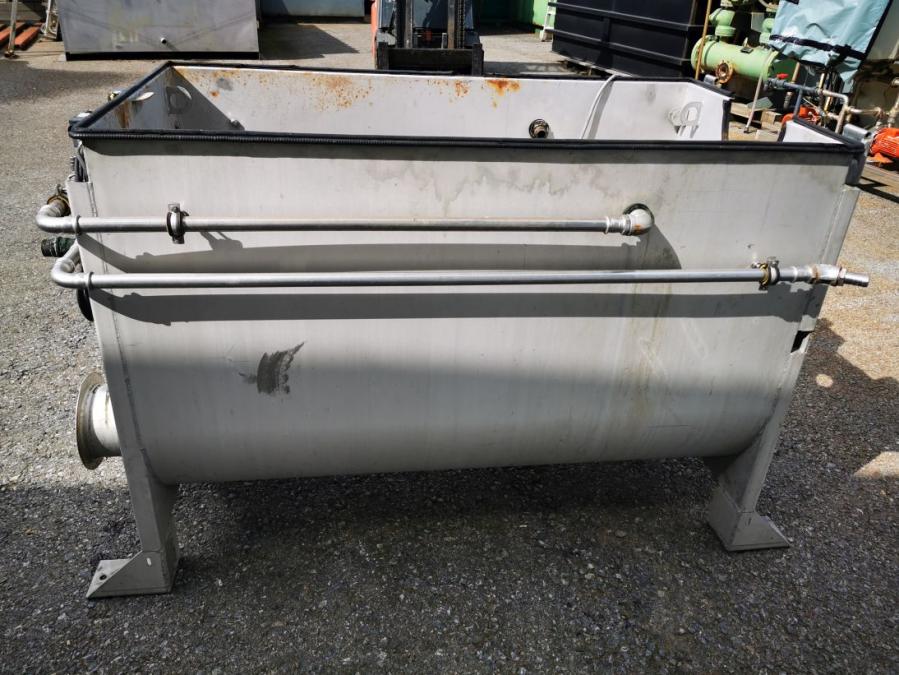

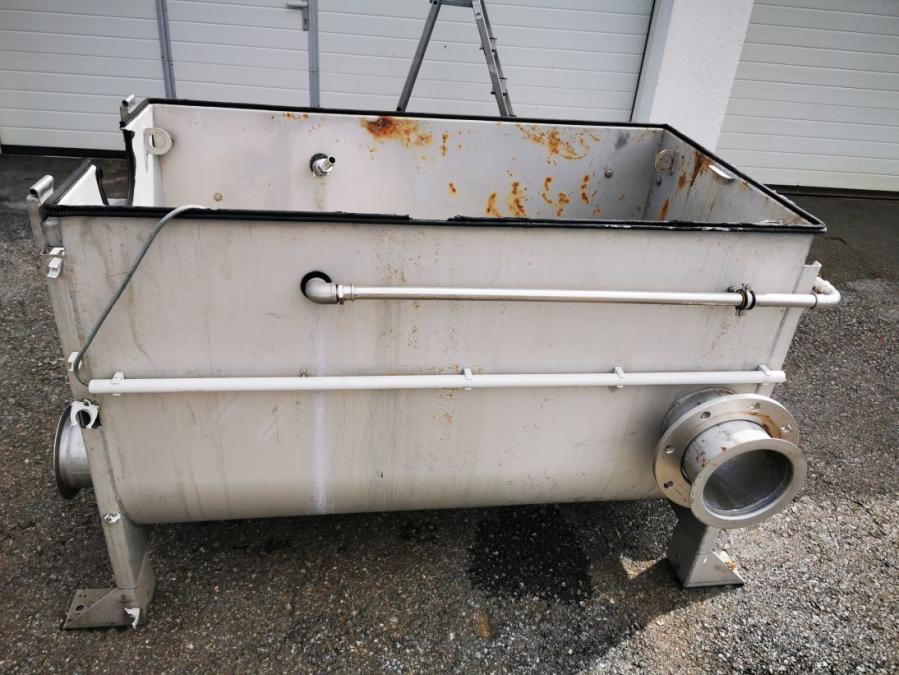

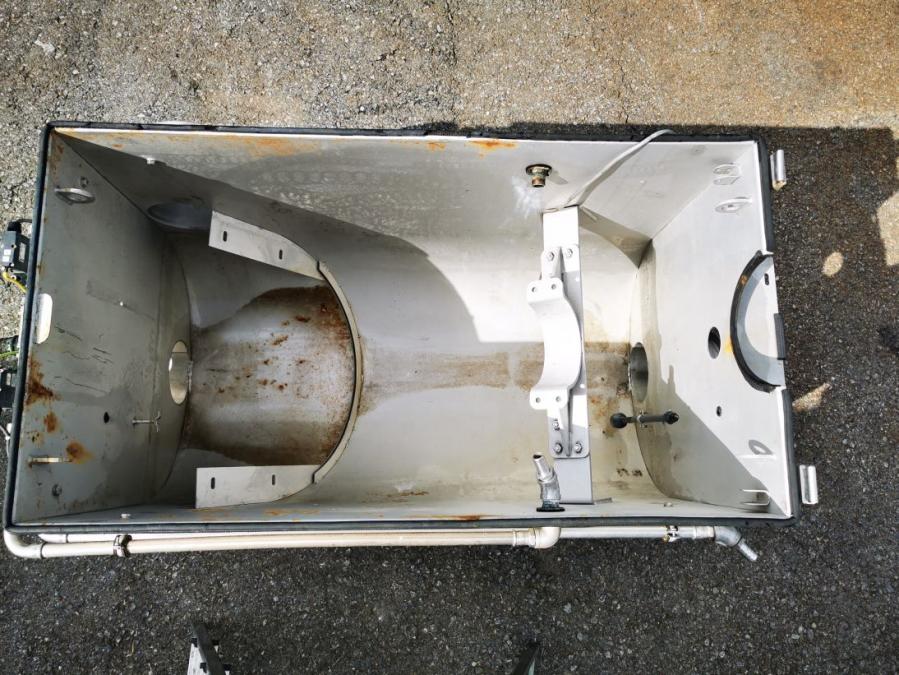

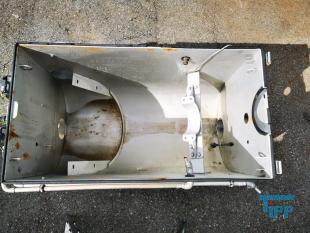

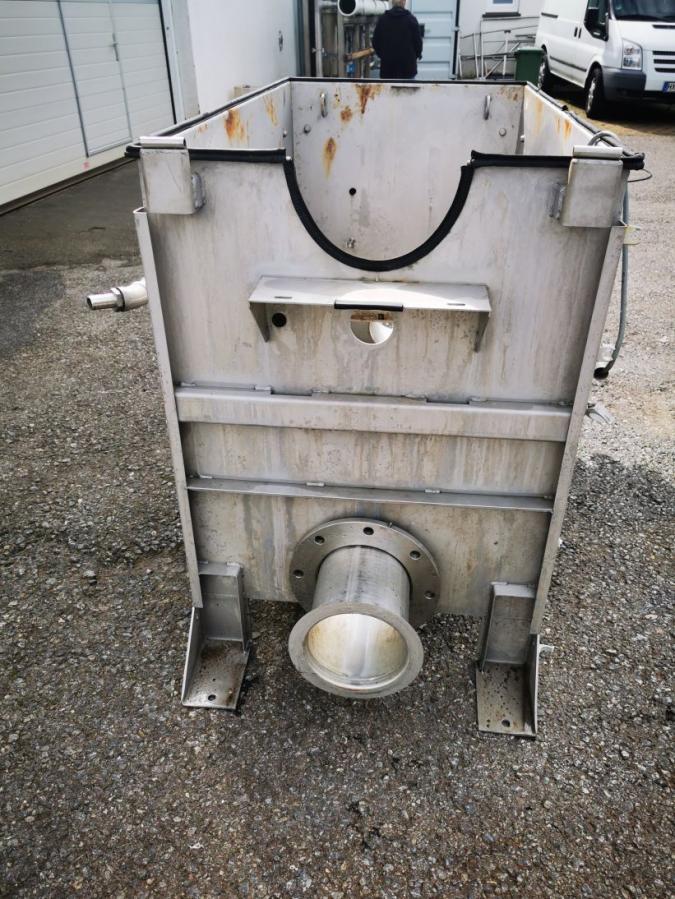

Wanne
Length  1540 mm
Width  830 mm
Height  1150 mm
Connections  200 mm (1 front, 1 x side (inner diameter))

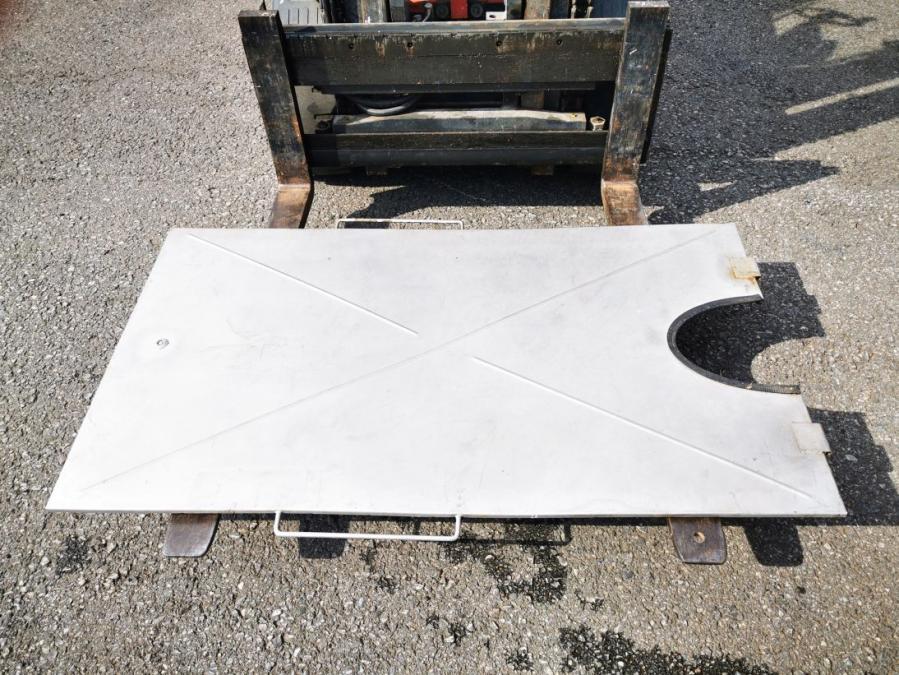

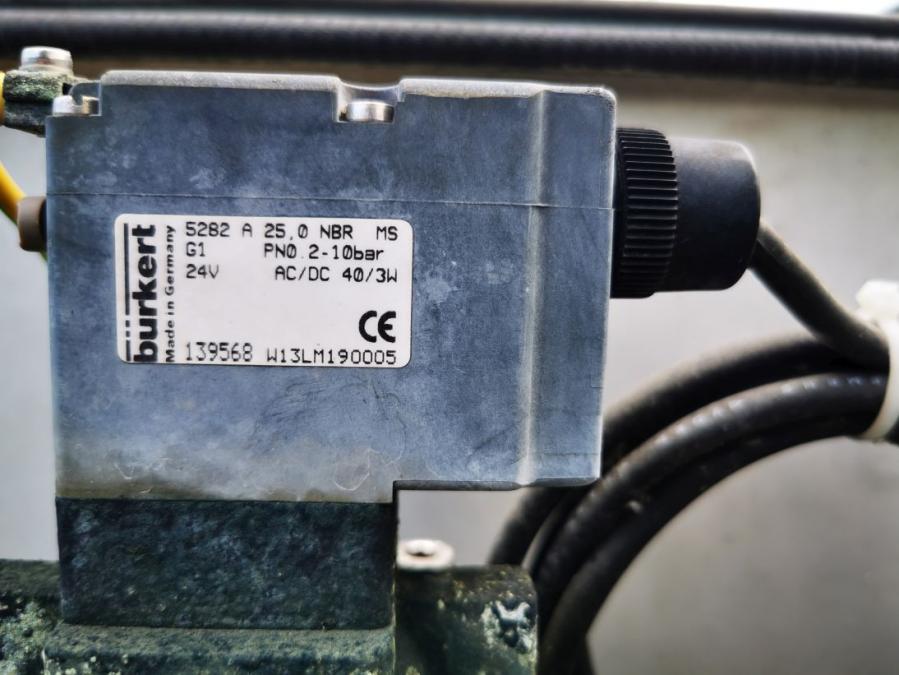

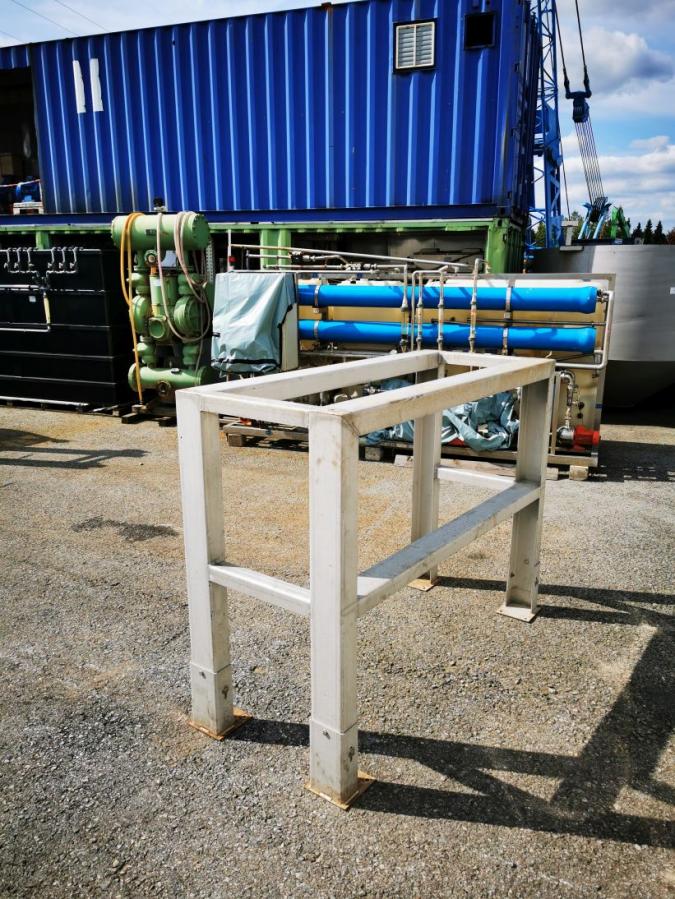

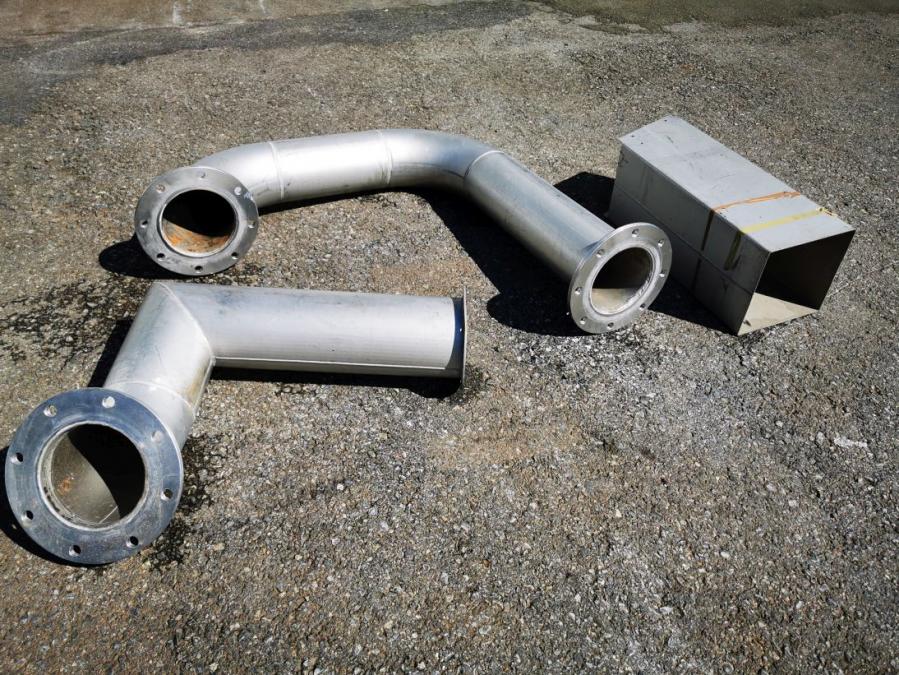

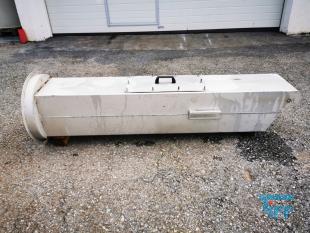

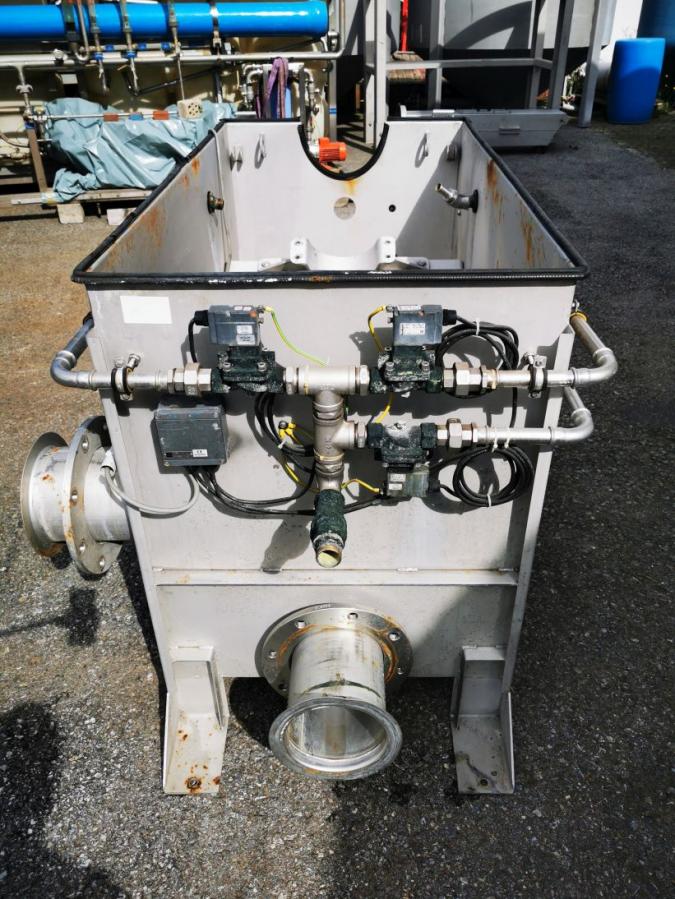

Miscellaneous  Bürkert Ventile, Verrohrung, Anschlussrohre, Gestell, Abdeckplatte
