unused steam generator

details to article: 29731

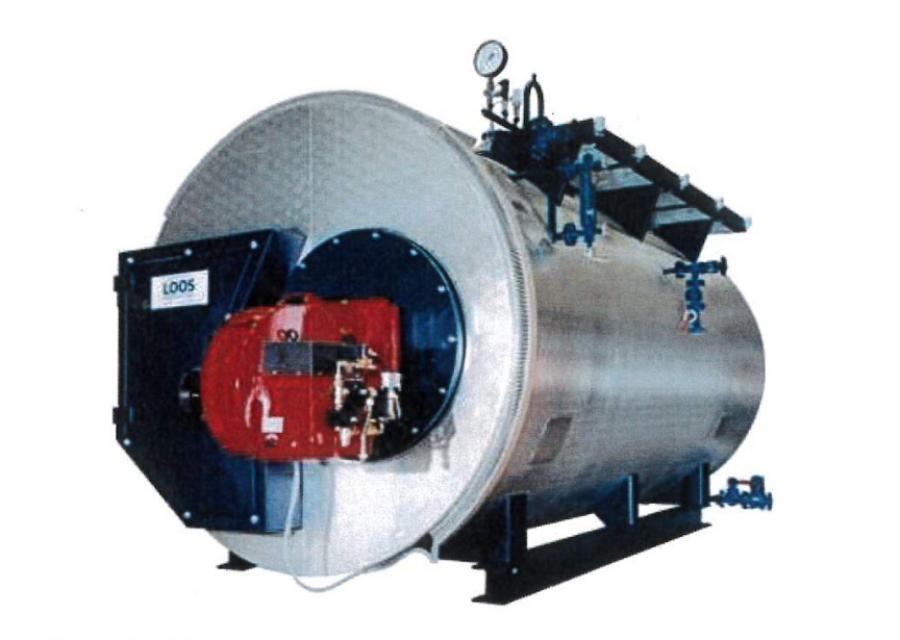

description: High pressure steam boiler
in three-pass flame tube smoke tube technology with integrated economiser
with Weishaupt oil burner

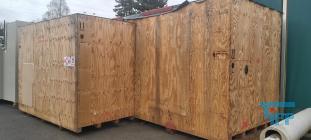

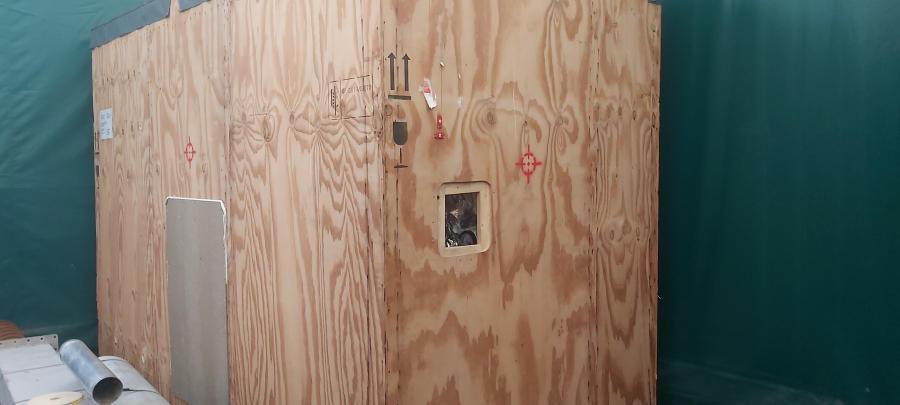

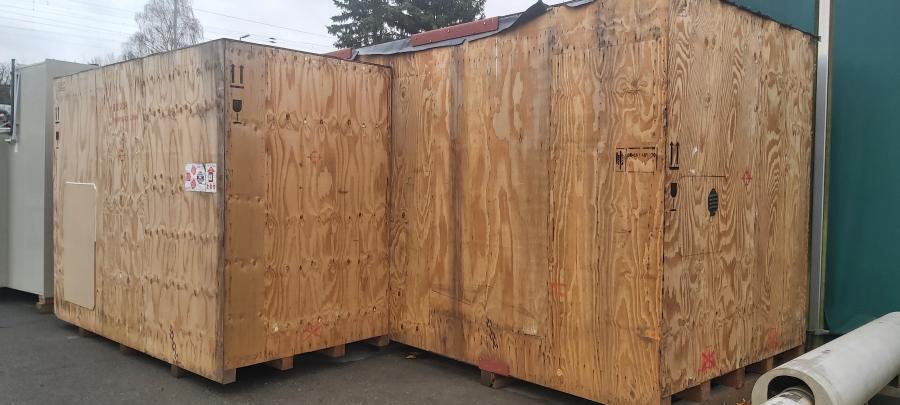

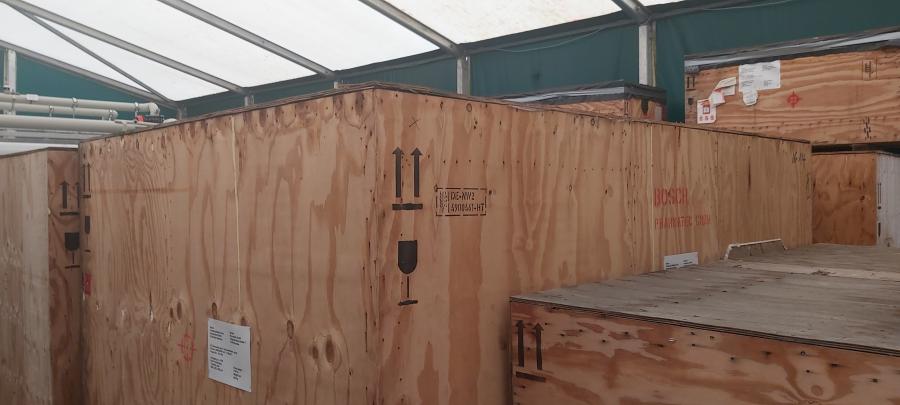

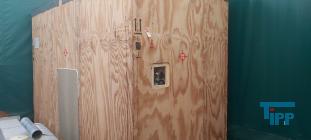

The system is partly still in the original packaging.

Boiler and boiler components
- Large water space boiler for generating saturated and superheated steam
-Lining of the front turning chamber with heat protection mats
- Inspection openings on the fire and flue gas side for shell boilers with a laterally arranged flame tube

Firing

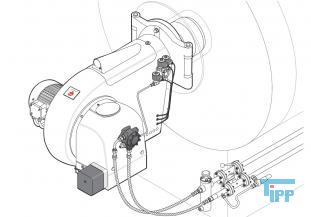

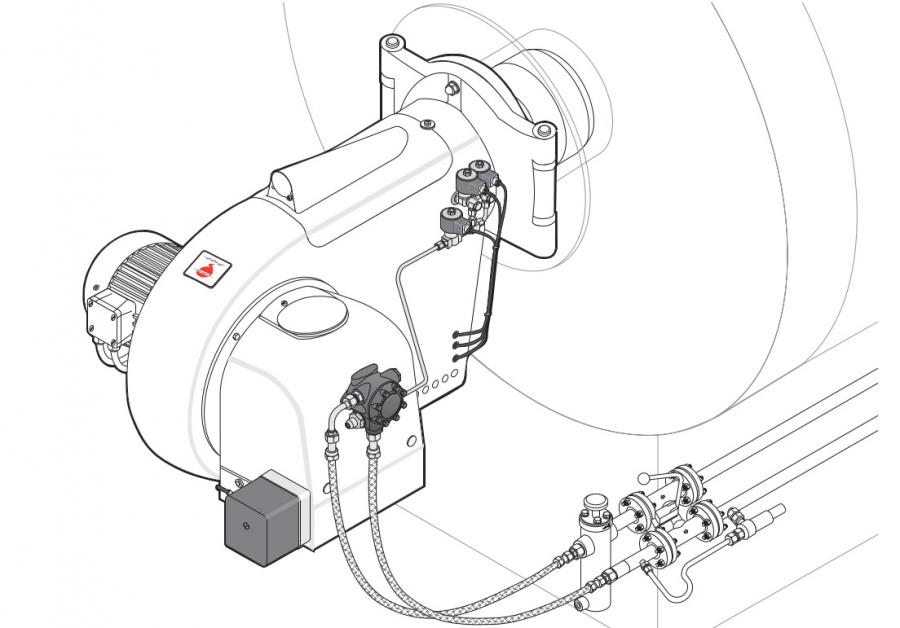

-Weishaupt burner

System components and modules for water and steam supply

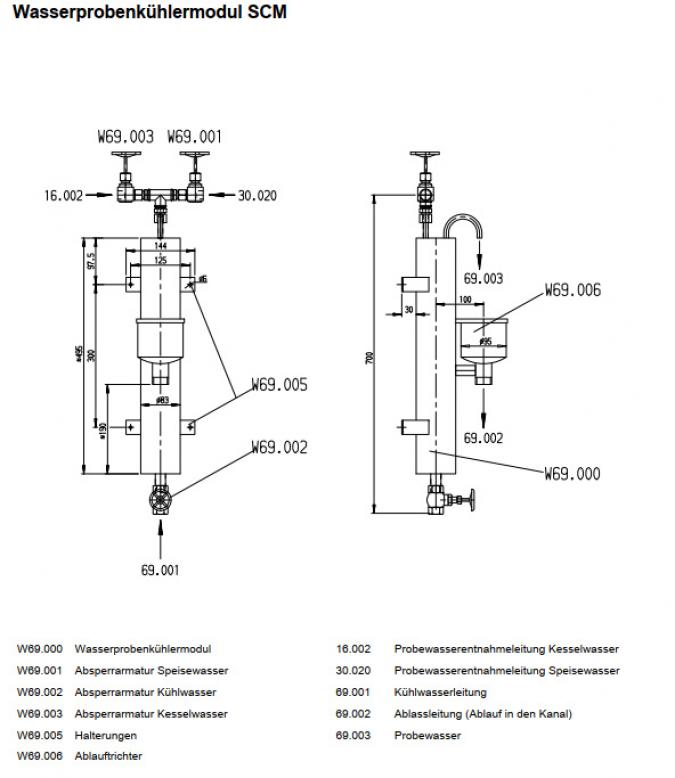

-Water sample cooler module SCM
-Thermal feed water partial degassing system
- Drain water, expansion and cooling device module BEM

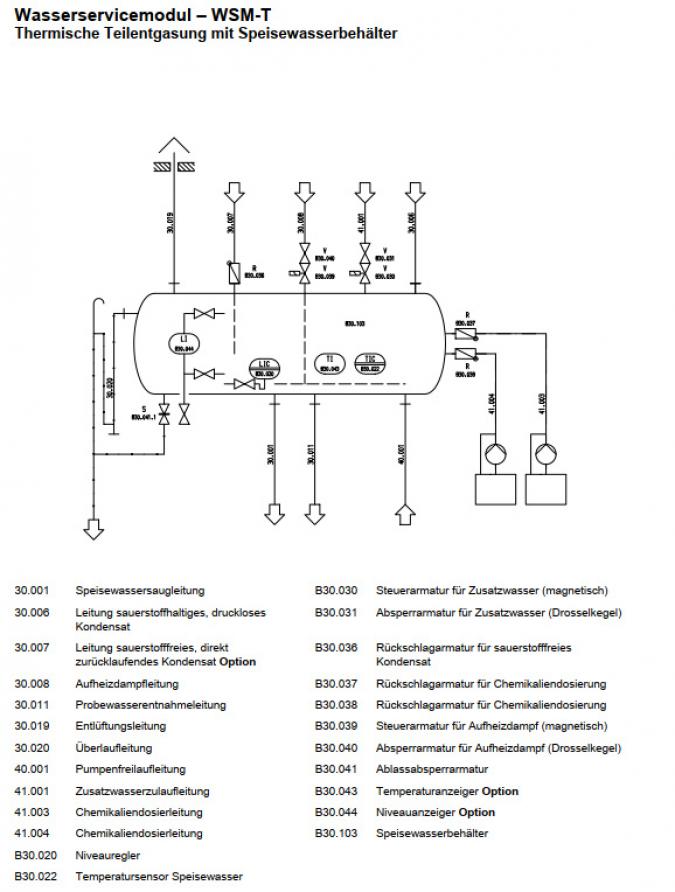

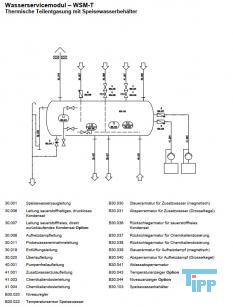

-Water service module - WSM-T Thermal partial degassing with feed water tank

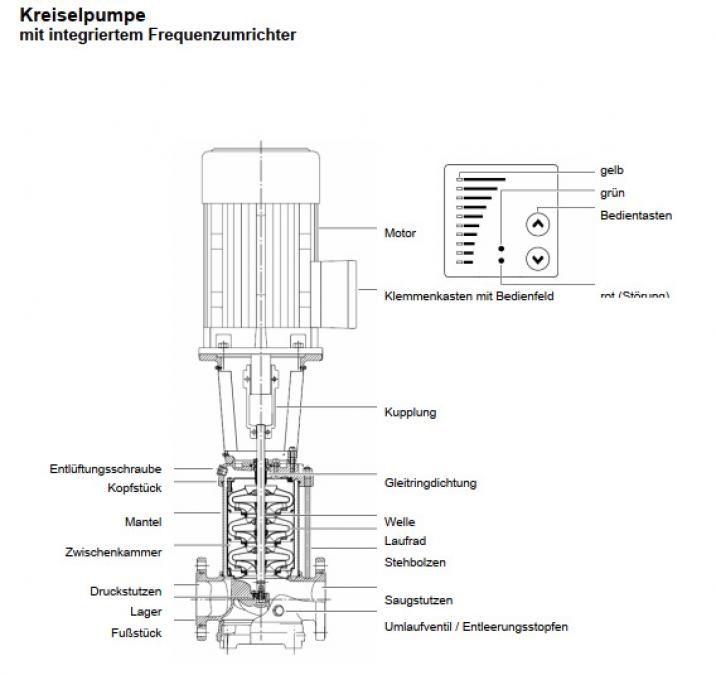

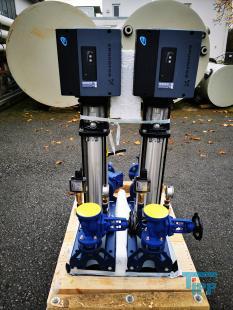

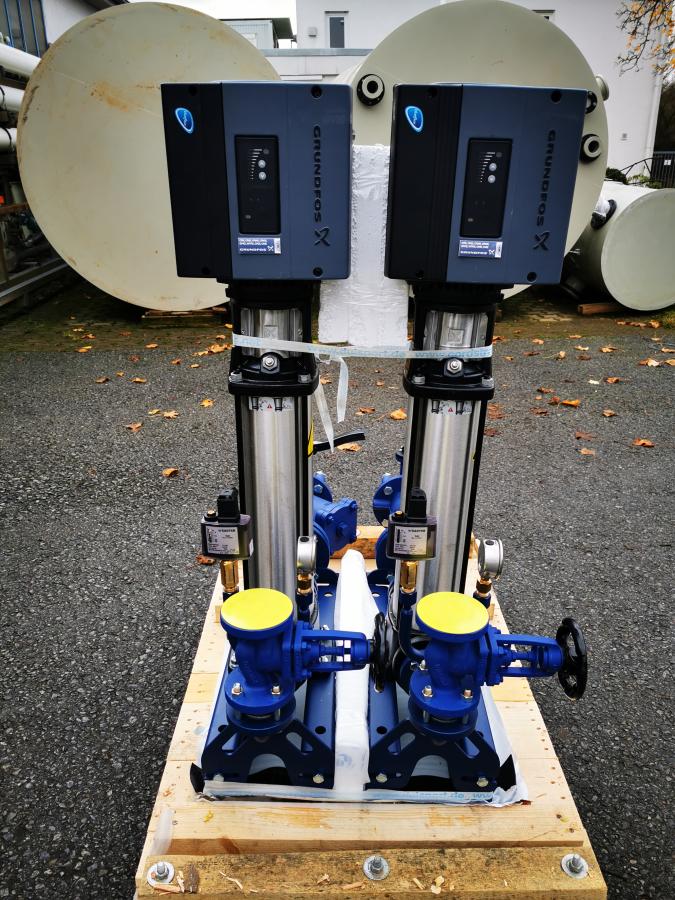

-Centrifugal pump with integrated frequency converter 2 (08/10)
Dosing system DOSIN with dosing pump DPI

System components and modules for fuel supply and heat recovery

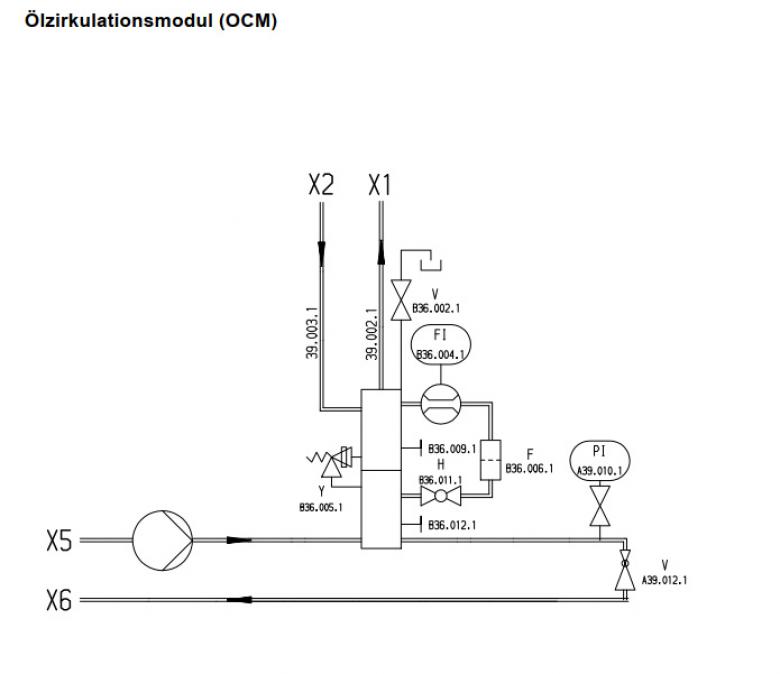

-Oil circulation module (OCM)
-Exhaust gas heat exchanger economiser unlockable, unregulated
-Oil pressure control module 1

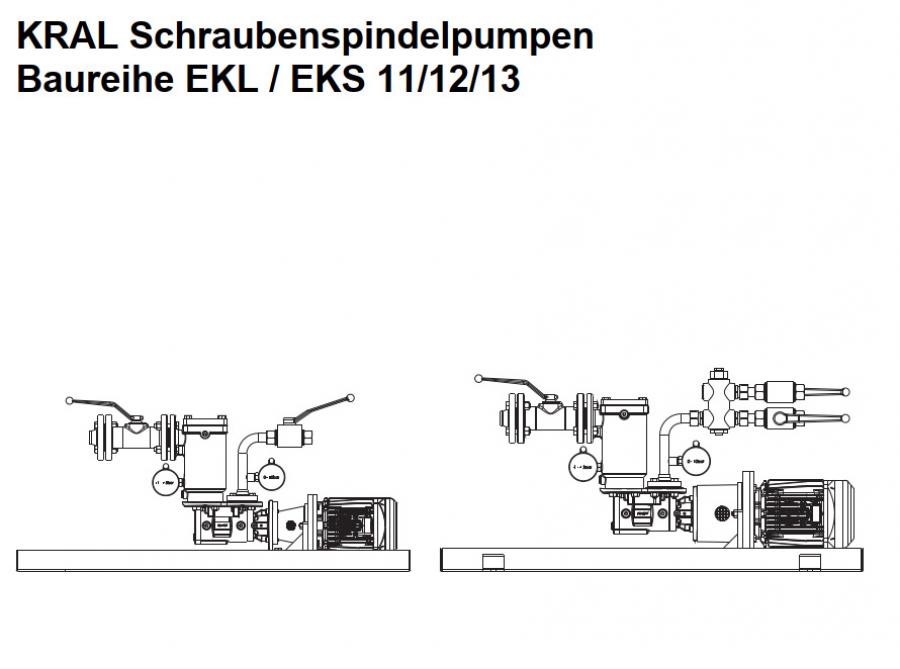

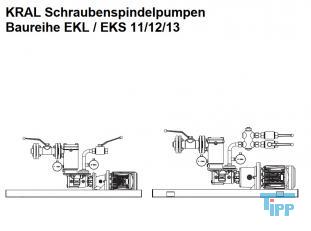

-Screw pump series EN
-Kral pumping station

Producer:Bosch Industriekessel GmbH
Typ:UL-S 3200
Year of manufacture:2012
Pieces:1



technical data

(steam boiler system)
Power  3000 kg/h (max. steam capacity)
(medium saturated steam)
(fuel LFO / heating oil EL)
(calorific value - Hu (based on 0 ° C) kWh / kg 11.89)
(LOOS flame tube smoke tube boiler UNIVERSAL, type UL-S)
Pressure  8 bar (medium operating pressure)
Temperature  90 °C (feed water temperature)
Kessel und Ausrüstung
Power  1995 kW (gross heat output (nominal load))
(total sound pressure level from exhaust noise dB (A) 85.0 of the boiler system)
Weight  7285 kg (boiler body - empty)
(Weishaupt oil burner )
(LOOS exhaust gas heat exchanger / economiser, type Eco 1 - integrated)
Pressure  56 bar (cold water overpressure)
Power  101 kW (eco with oil operation)

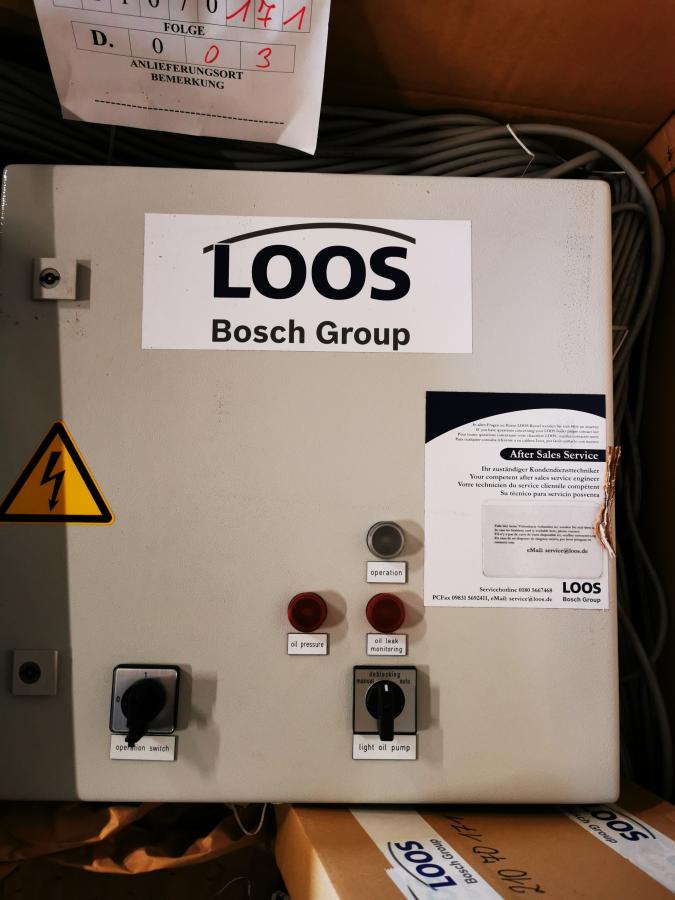

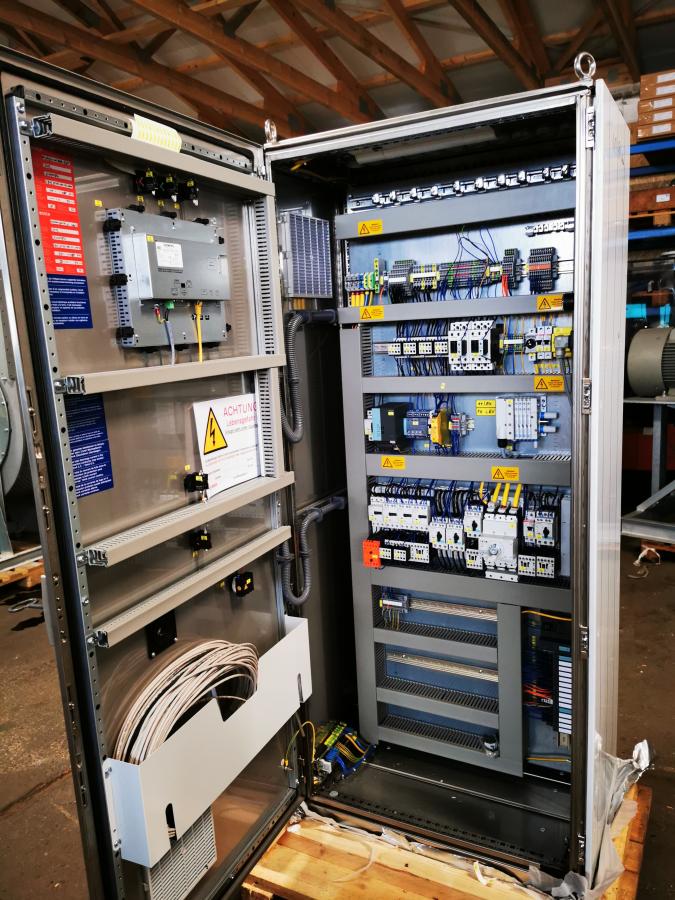

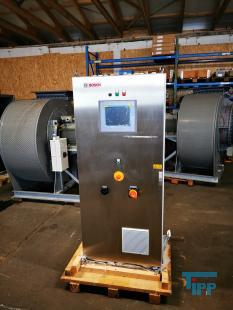

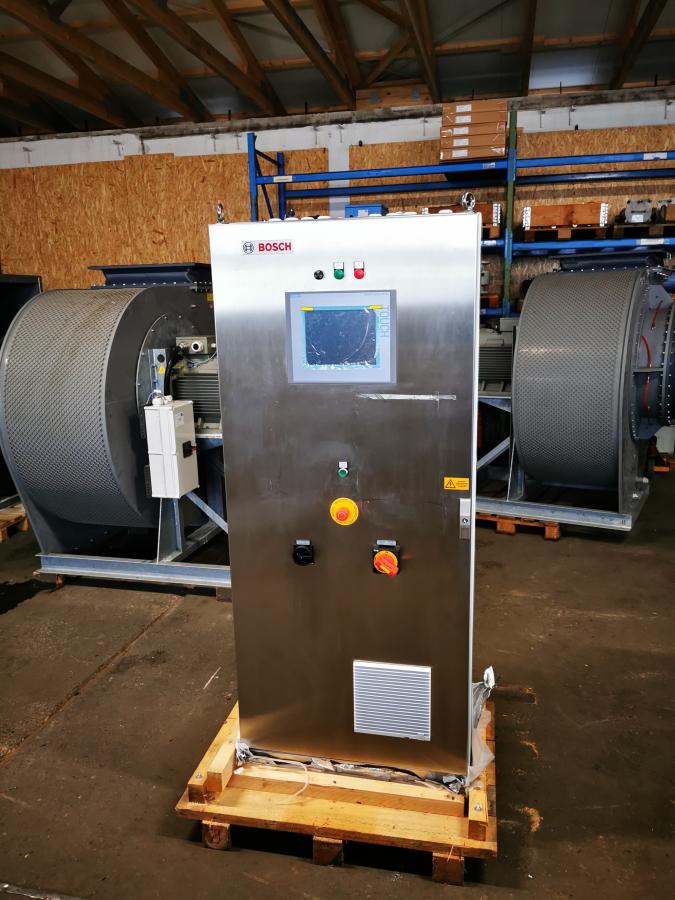

(boiler control cabinet)
Power  9.7 kW ()
Protection rating  54 IP

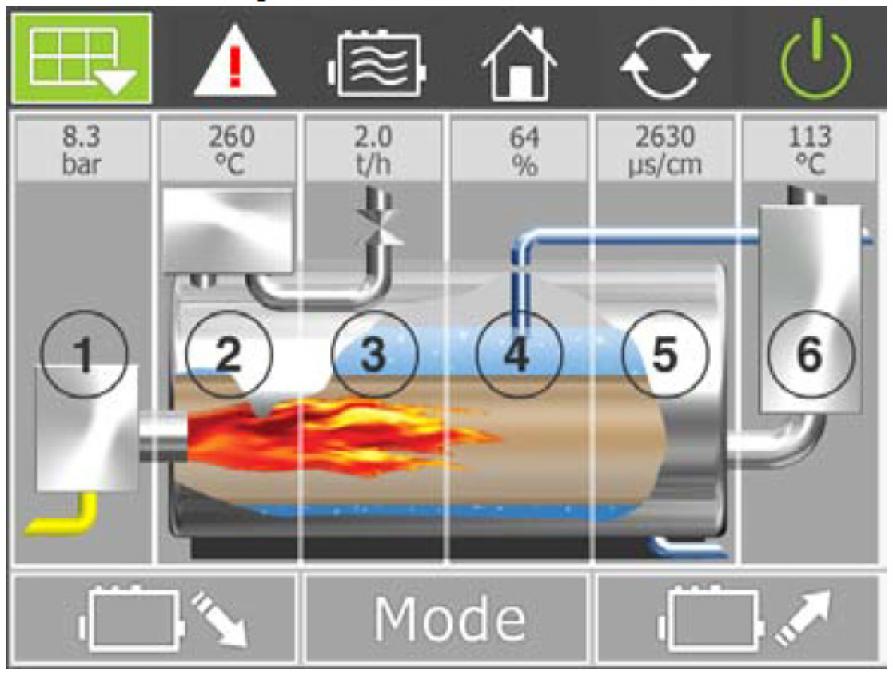

(touch panel 8 Zoll)
Weight  60 kg
Accessories  (pump module PM)
Accessories  (circulation module (OCM))
Accessories  (water service module partial degassing WSM-T)
Accessories  (oil supply module OSM with switch cabinet)
