used experimental plant chem. Nickel - manual electroplating plant

details to article: 29957

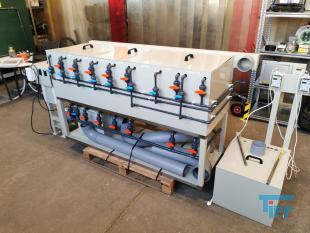

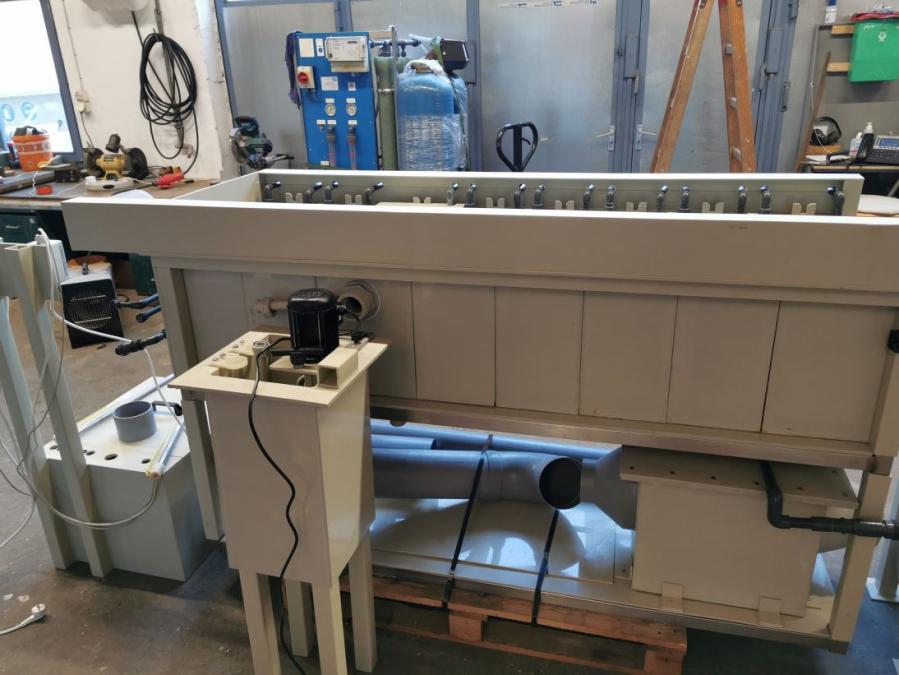

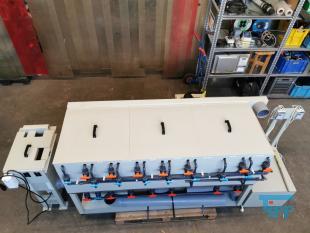

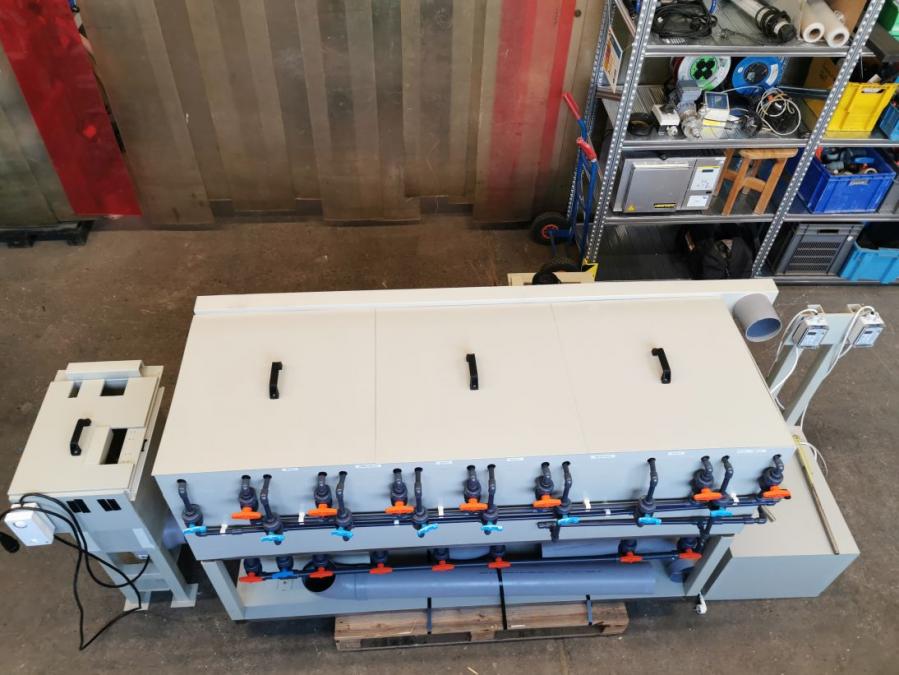

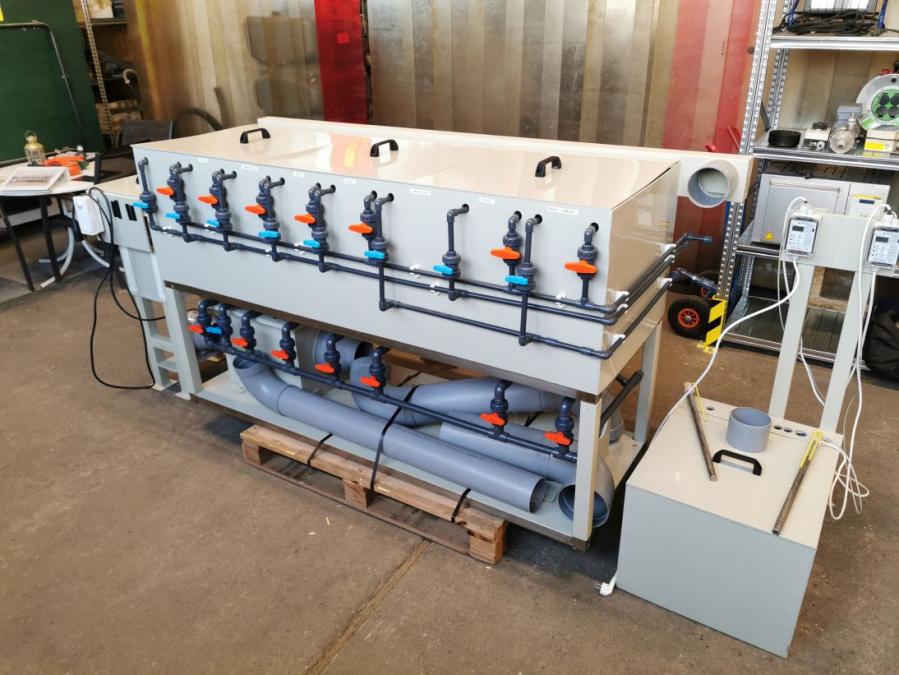

description: Experimental laboratory unit for manual chemical nickel plating of aluminium parts.

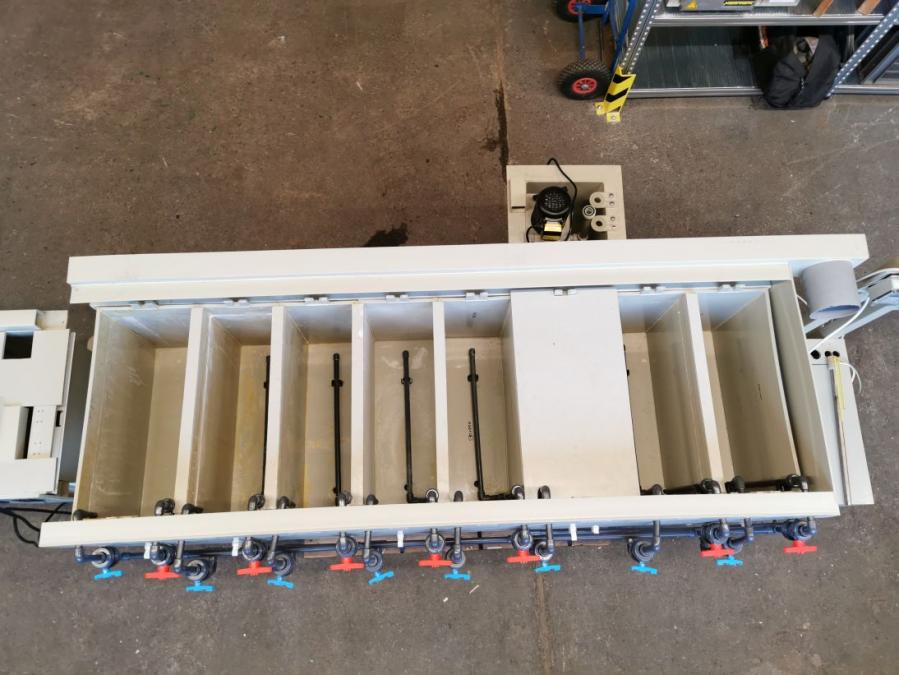

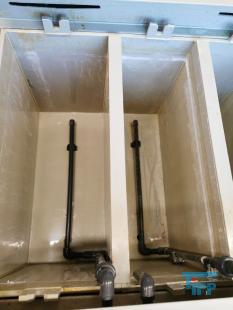

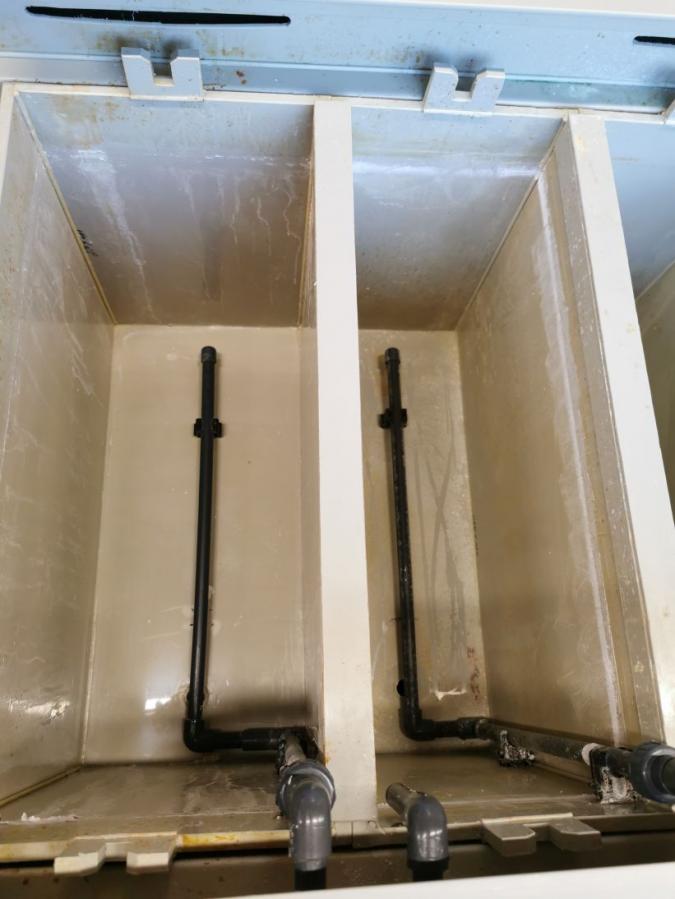

The unit contains 8 basins:
- 1 x pickling bath - dimensions: 250 x 550 x 400 mm
- 1 x zincate pickle - dimensions: 250 x 550 x 400 mm
- 1 x chemical nickel - dimensions: 250 x 550 x 400 mm
- 4 x sink - dimensions: 200 x 550 x 400 mm
- 1 x decapitation - dimensions: 200 x 550 x 400 mm

Materials used: PP-H and stainless steel 1.43 (frame), piping in PVC and PP

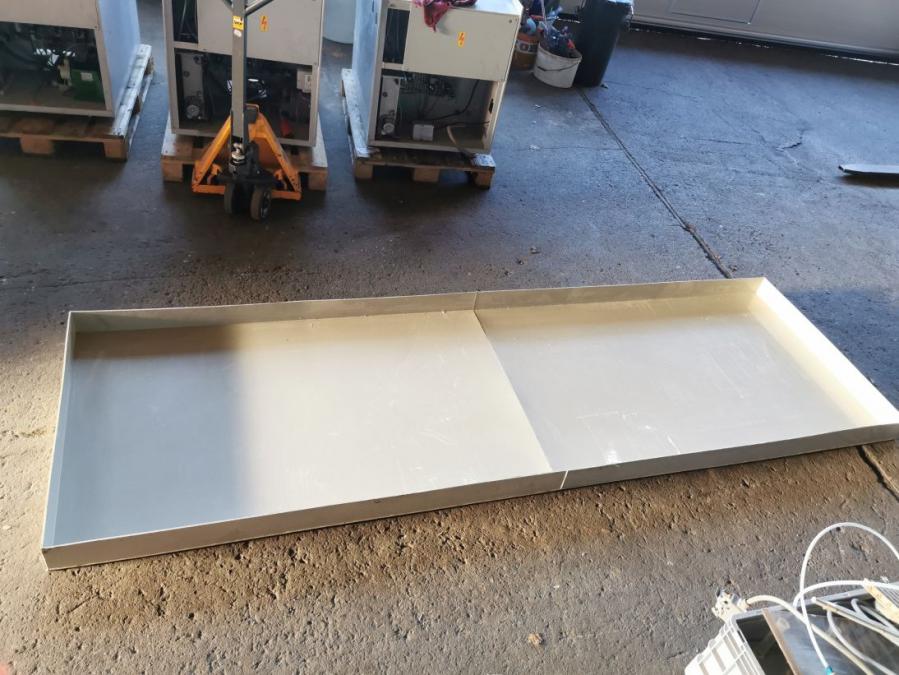

With PP sump tray - Dimensions: 3200 x 1000 x 100 mm

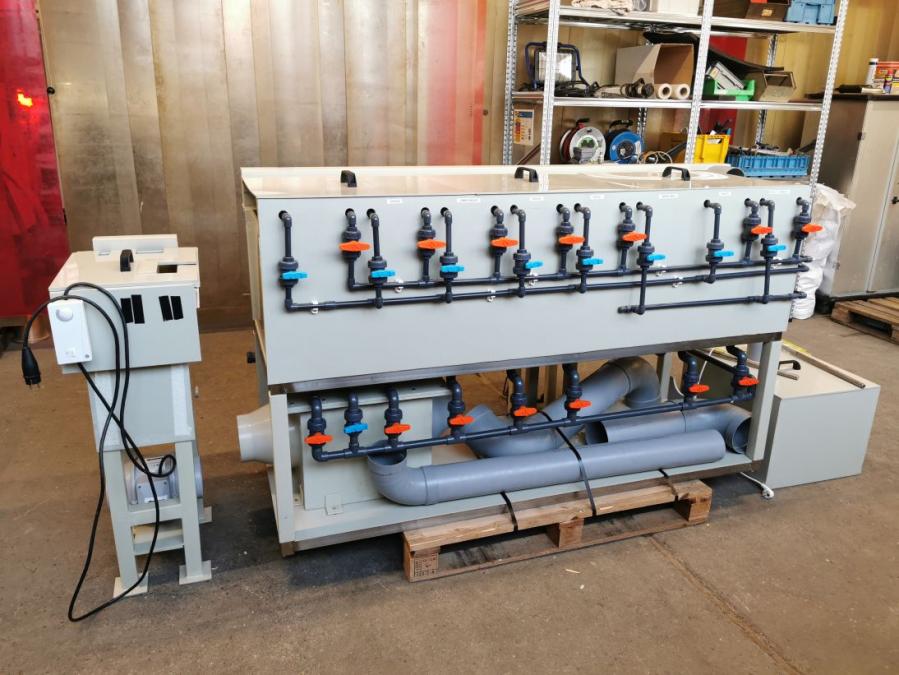

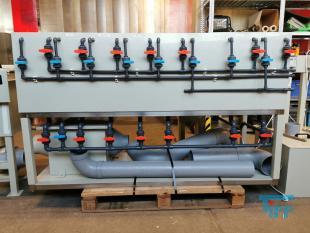

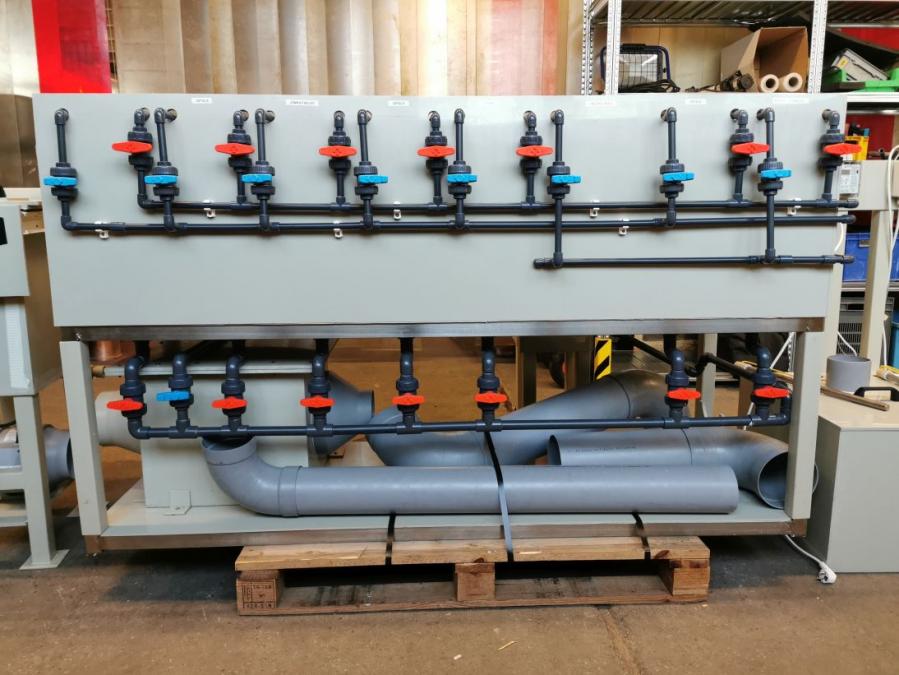

Air inlet with ball valve, water inlet with ball valve, drain with ball valve.

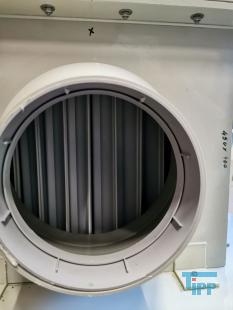

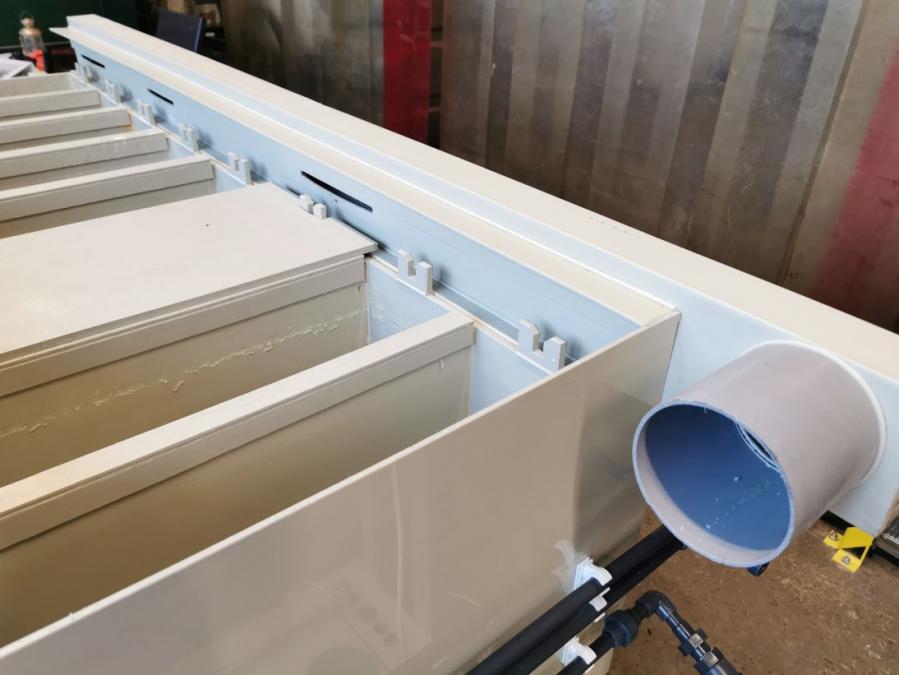

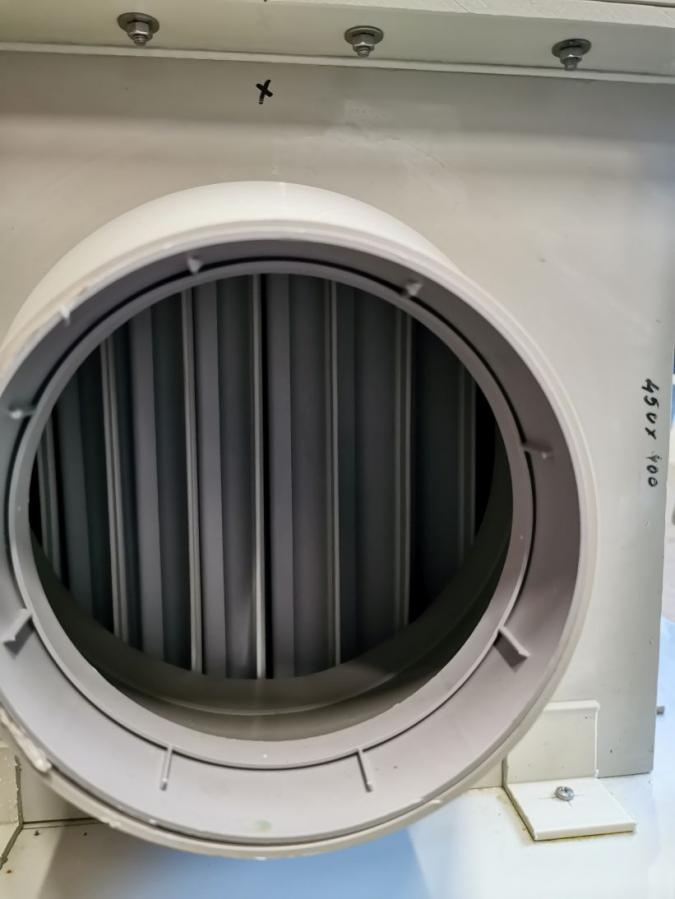

Extraction shaft in the housing.

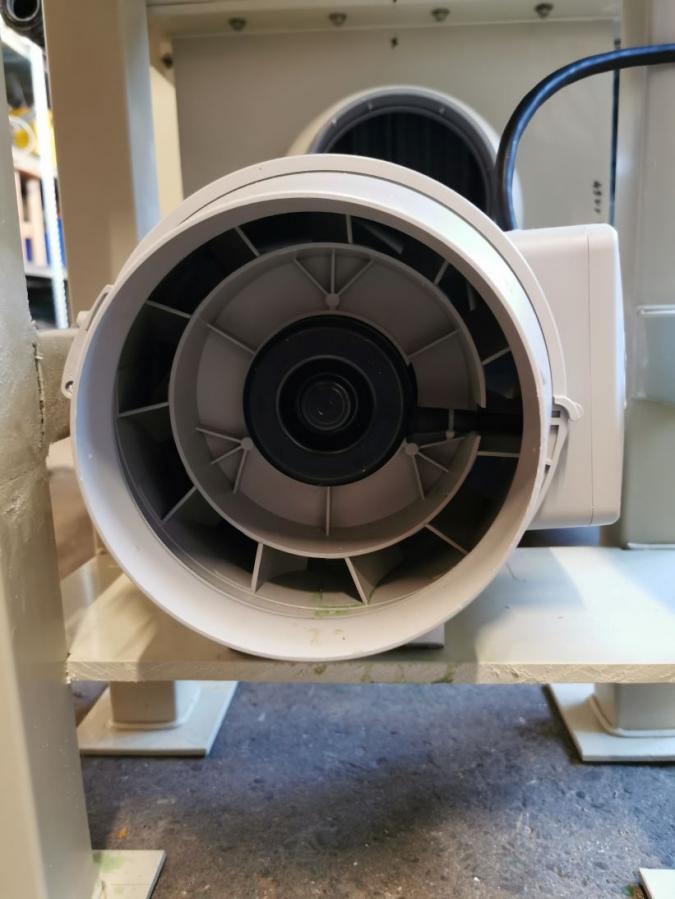

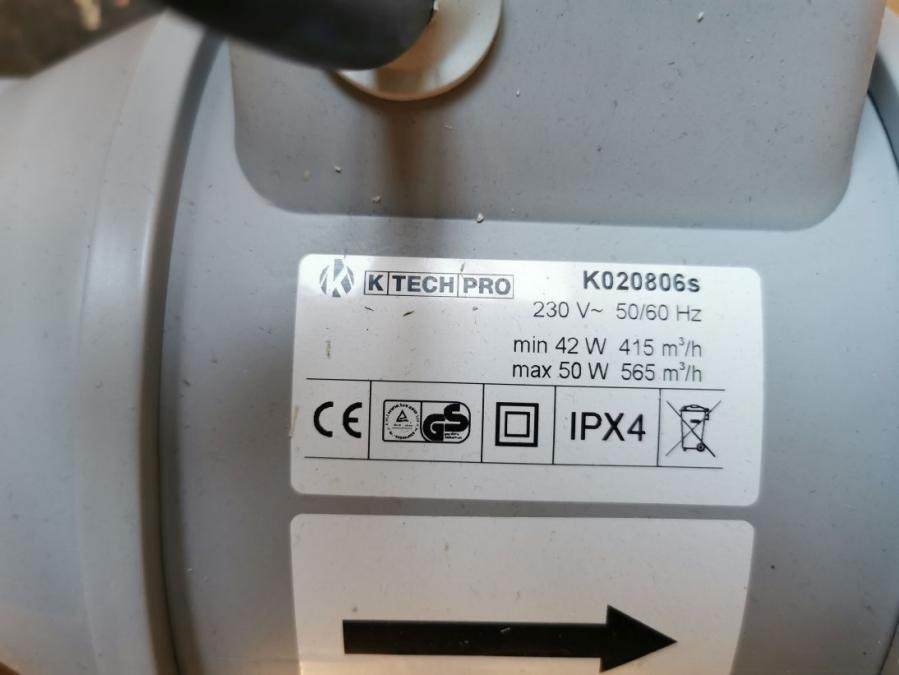

Exhaust fan KTECH PRO K020806s Flow rate 415 - 565 m³/h

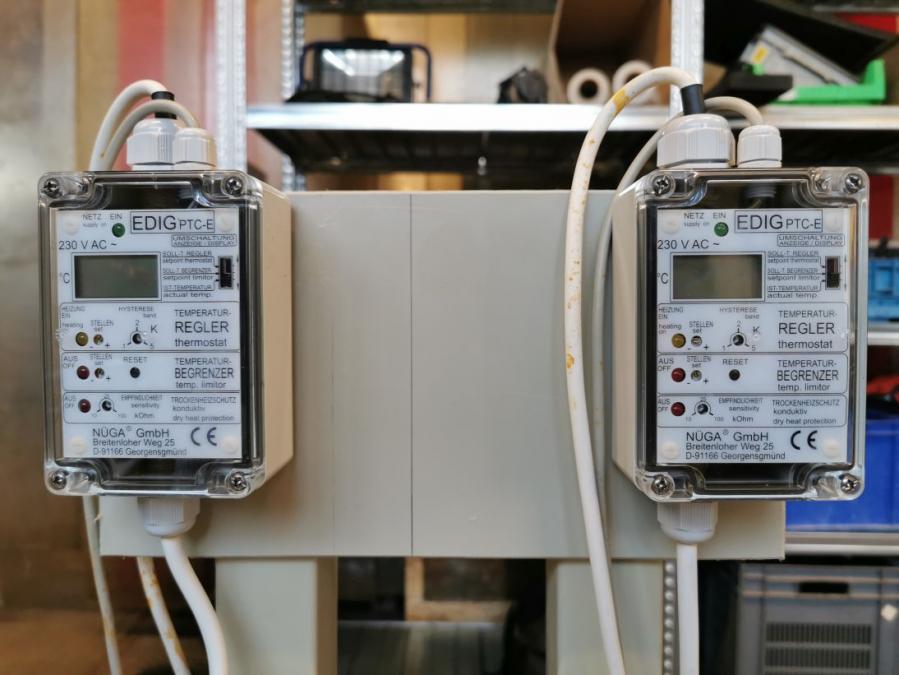

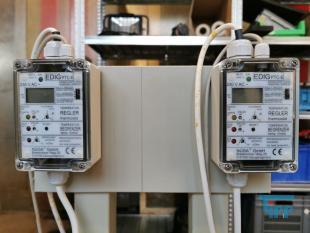

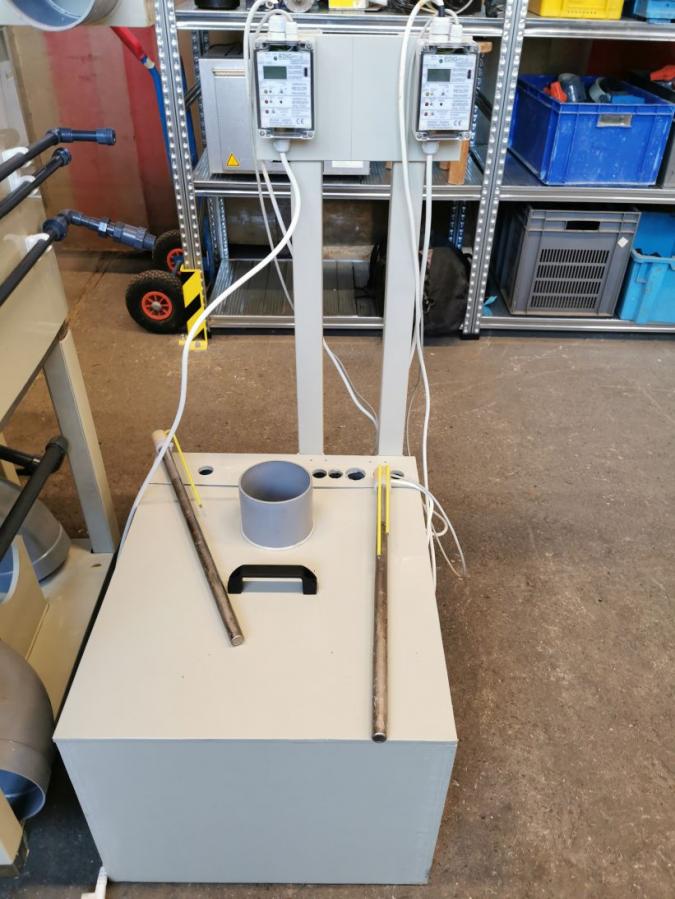

Evaporator for evaporating the rinse water incl. heating, temperature controller / limiter Nüga EDIG PTC-E

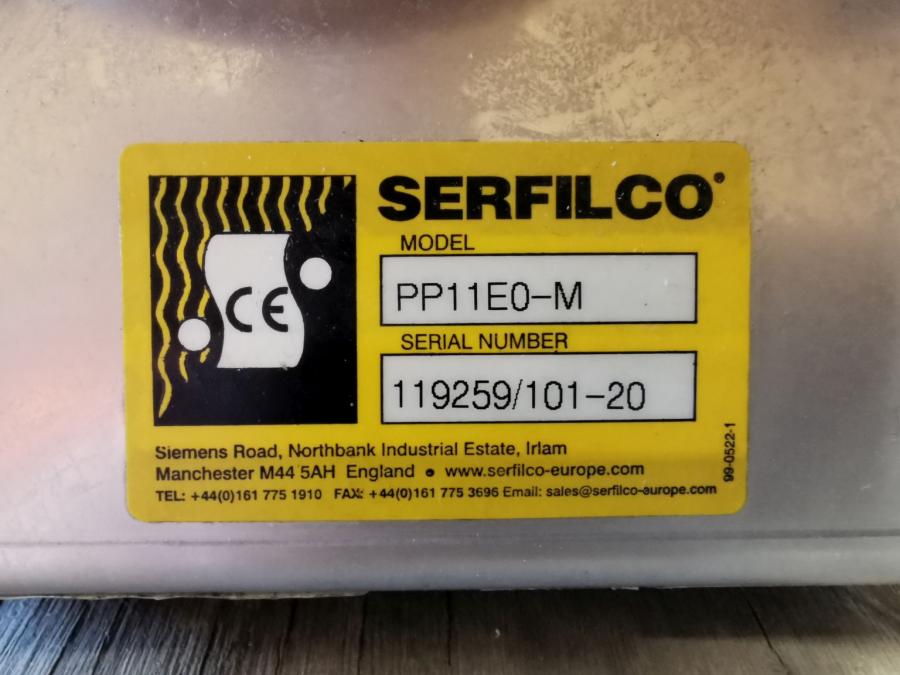

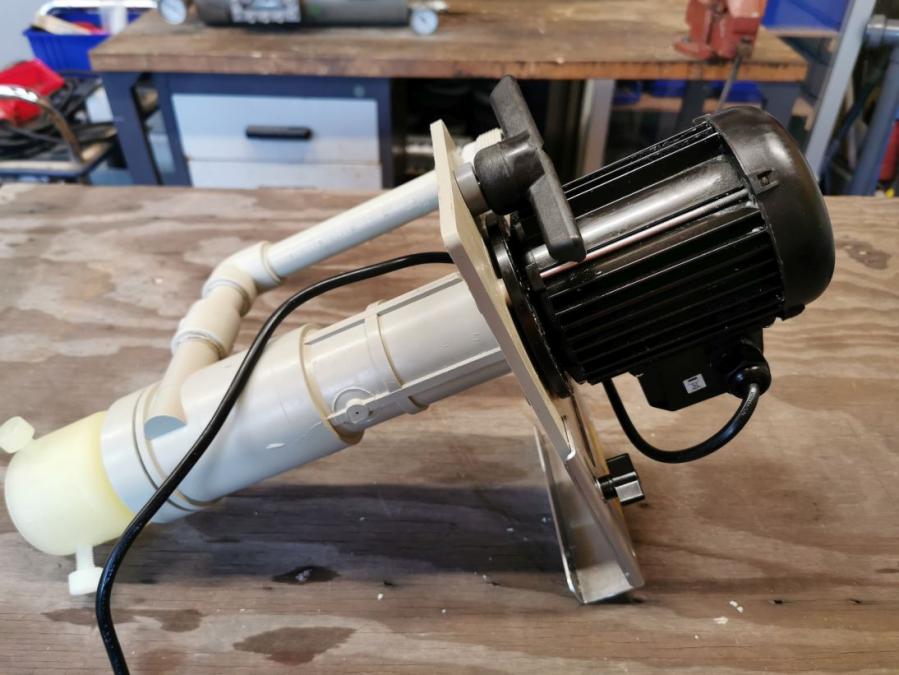

Cantilever pump Serfilco SA1200PP
