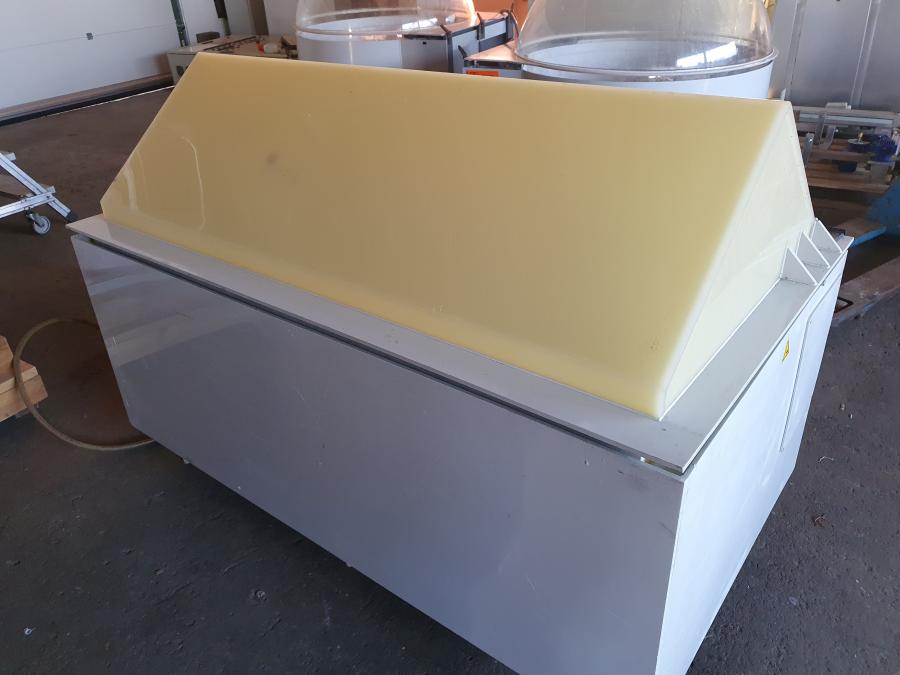

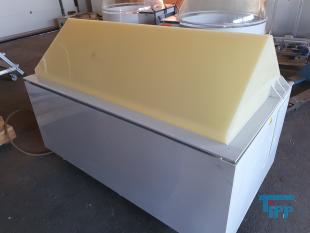

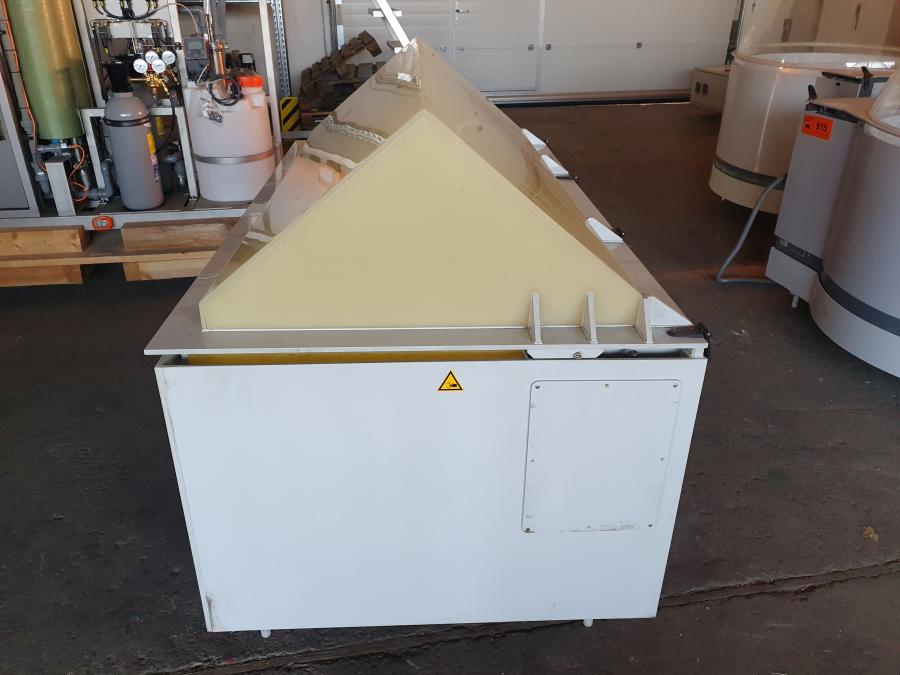

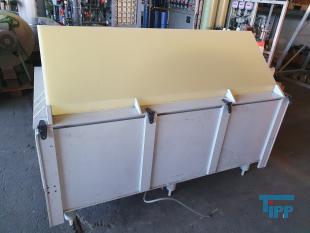

Erichsen corrosion tester for alternating stress / alternating climate test chamber

details to article: 29963

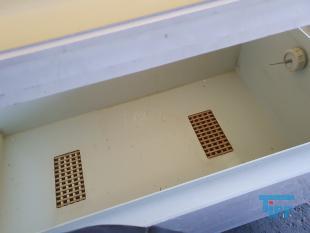

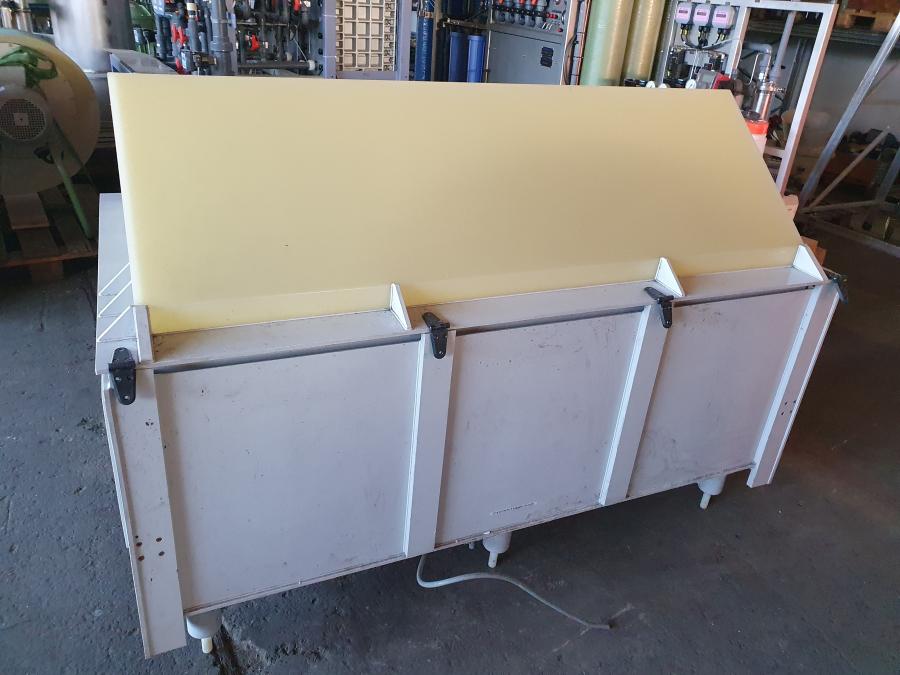

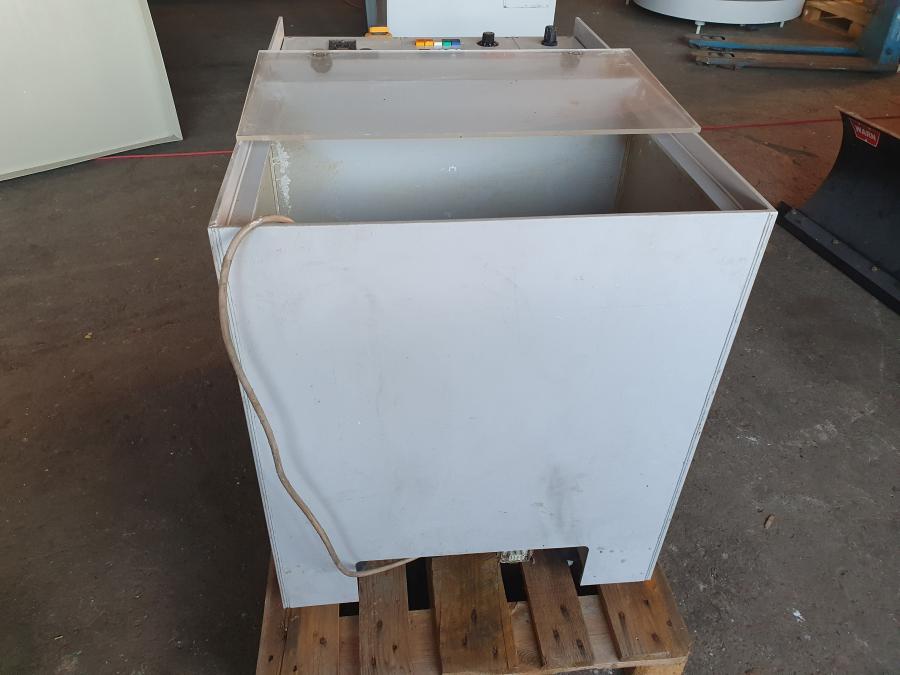

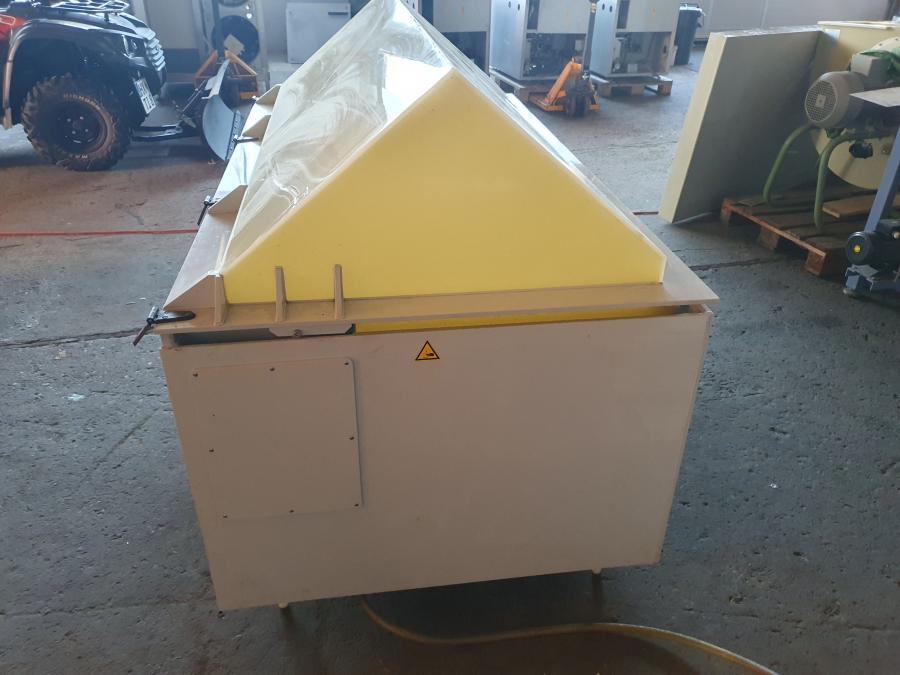

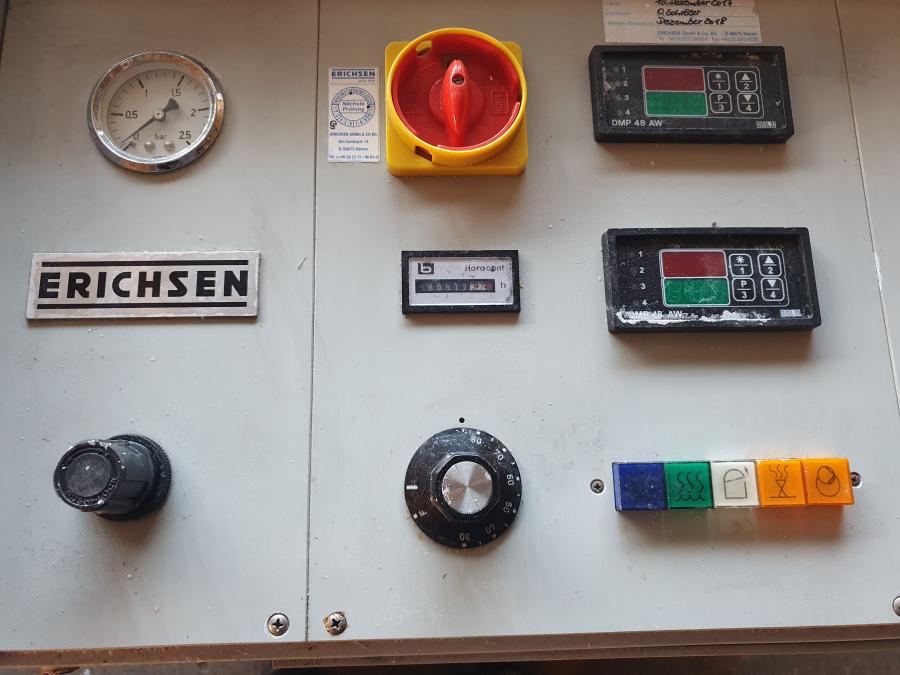

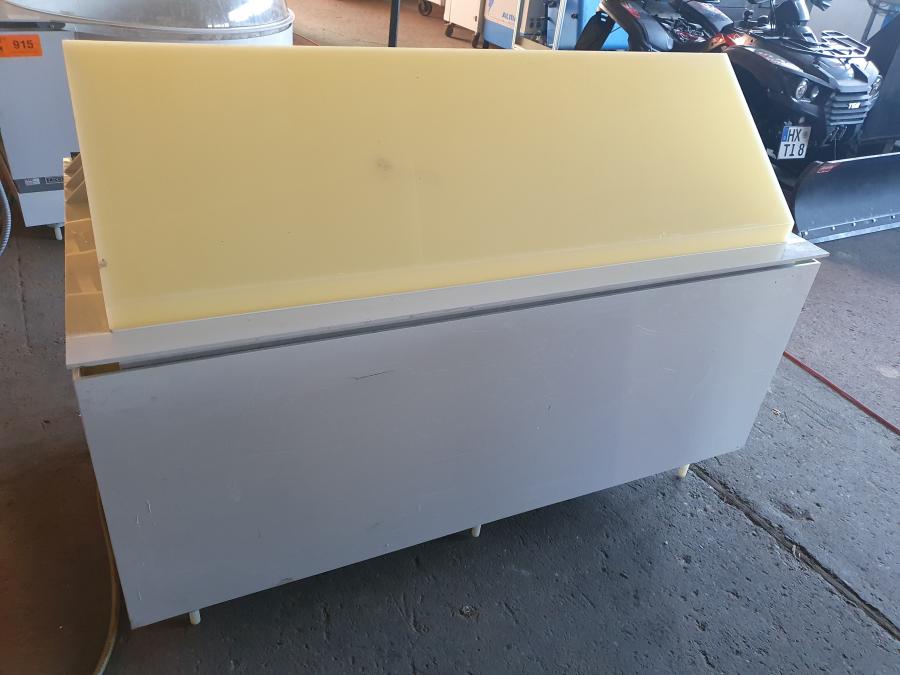

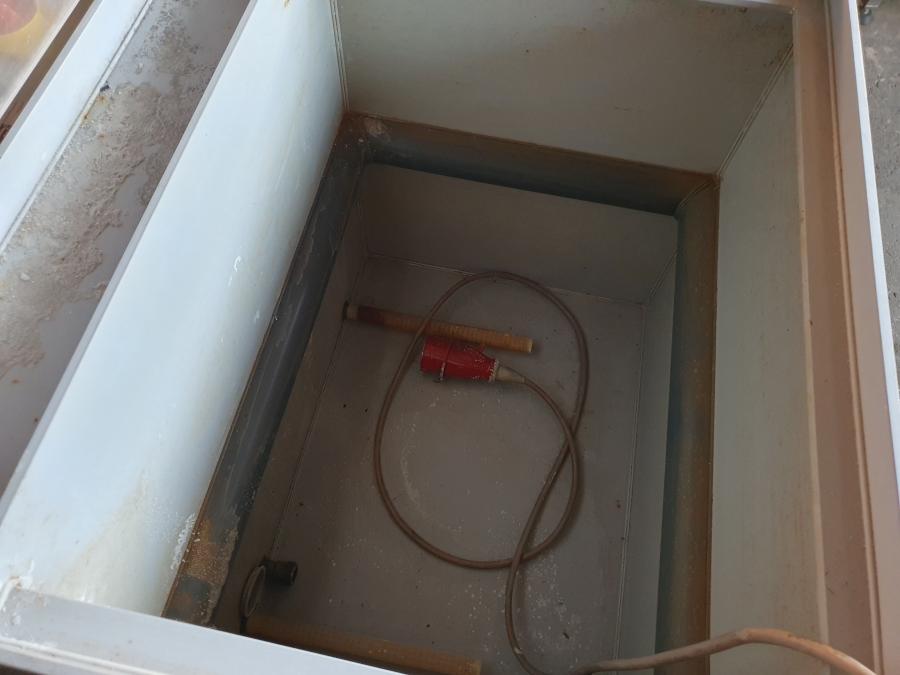

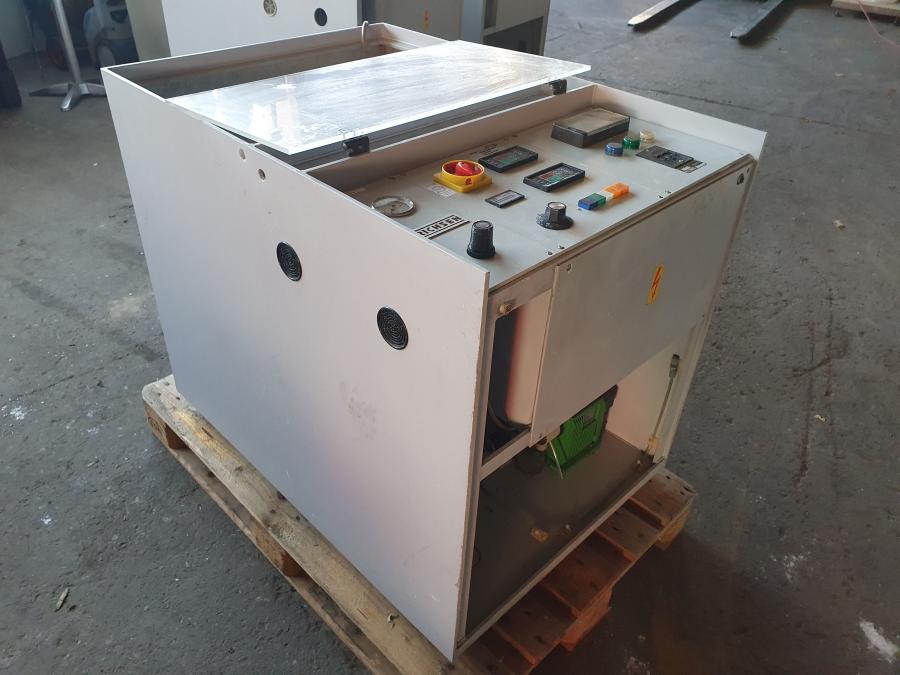

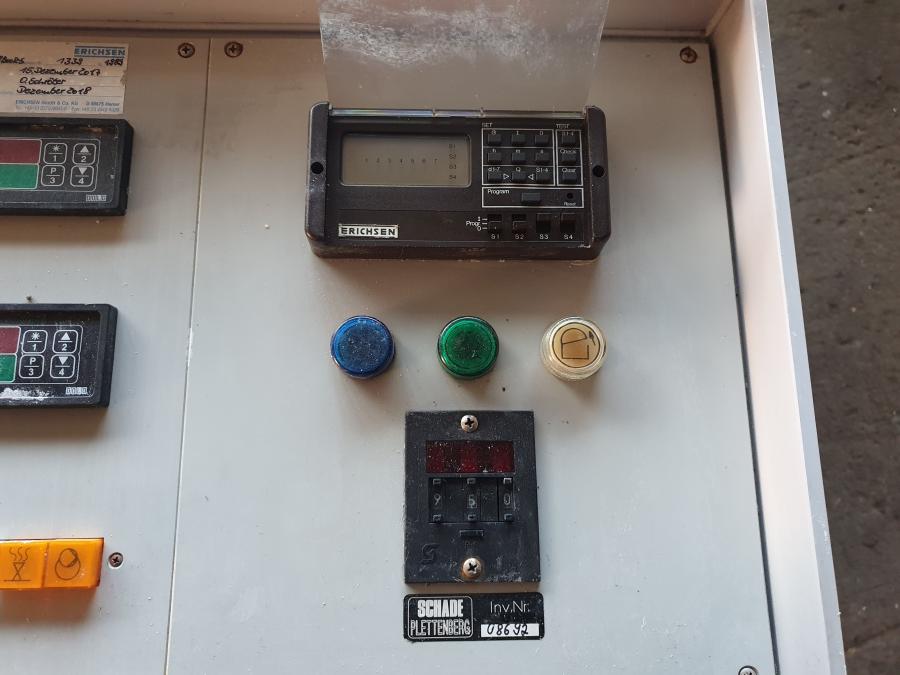

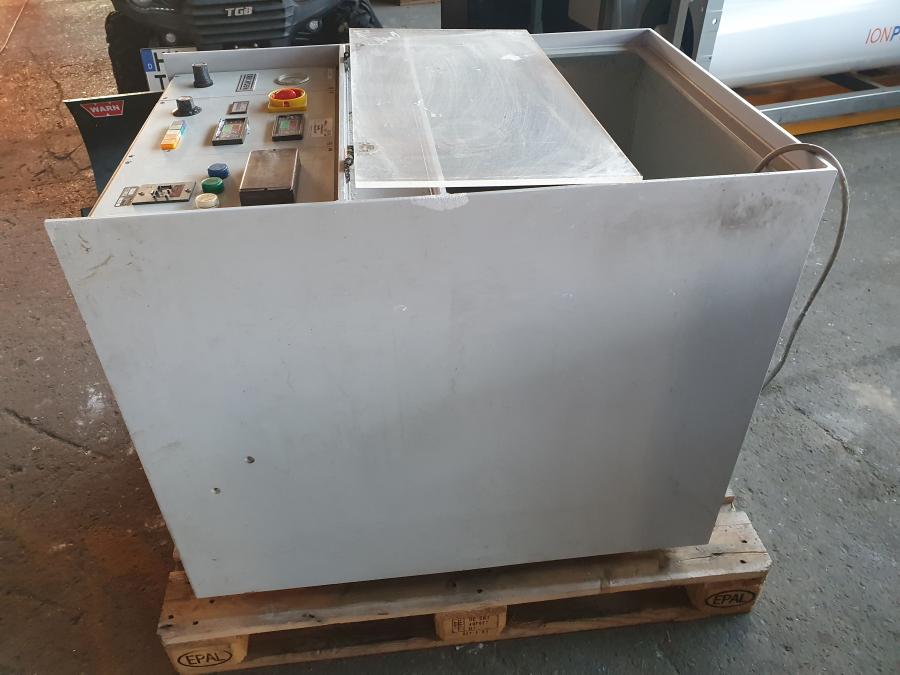

description: The tank in the control unit holds approx. 250 l of spray solution. The solution can be prepared directly in the tank. Example of an experiment: 1 day: salt spraying / 4 days: condensation water / 2 days: room climate. Different switching patterns for different experiments can be programmed via the switching displays. The program sequence must always result in a complete circuit diagram. Continuous salt spray tests and condensation water tests are possible. The test chamber can be opened and closed by means of pneumatic cylinders.

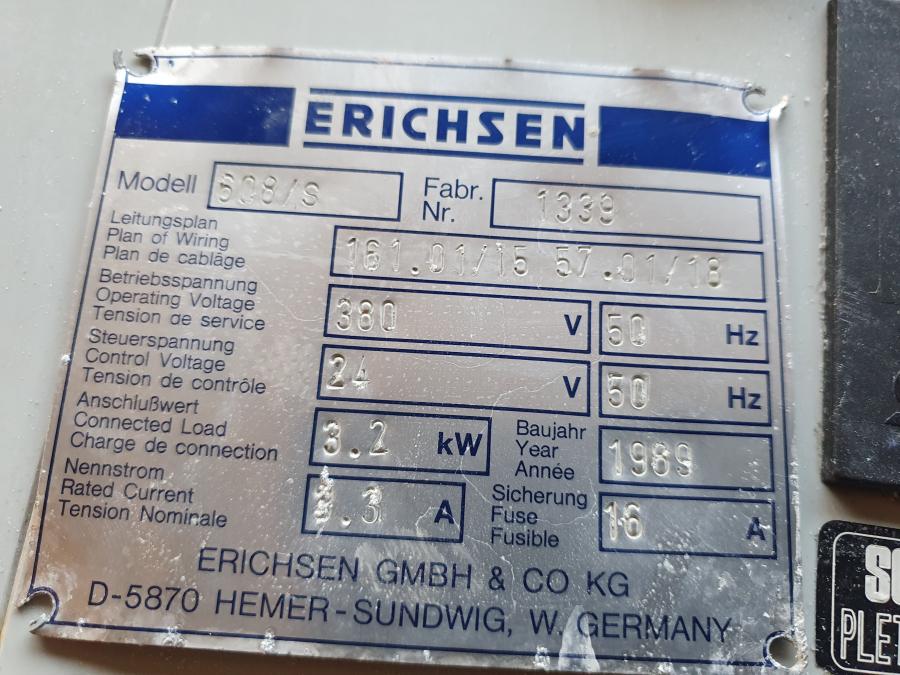

Producer:Erichsen
Typ:Modell 608/900 R-S Prüfkammer Rechteck
Year of manufacture:1989
Pieces:1



technical data

Voltage  380 V
Amperage  3 x 16 A
Frequency  50 Hz
Power  3,2 kW
Volume  1 m³
Pressure  4 - 6 bar (Compressed air connection)
Connections  3/4" Innengewinde (water connection)
Consumption  0.5 l/h (water consumption)
Material  PP

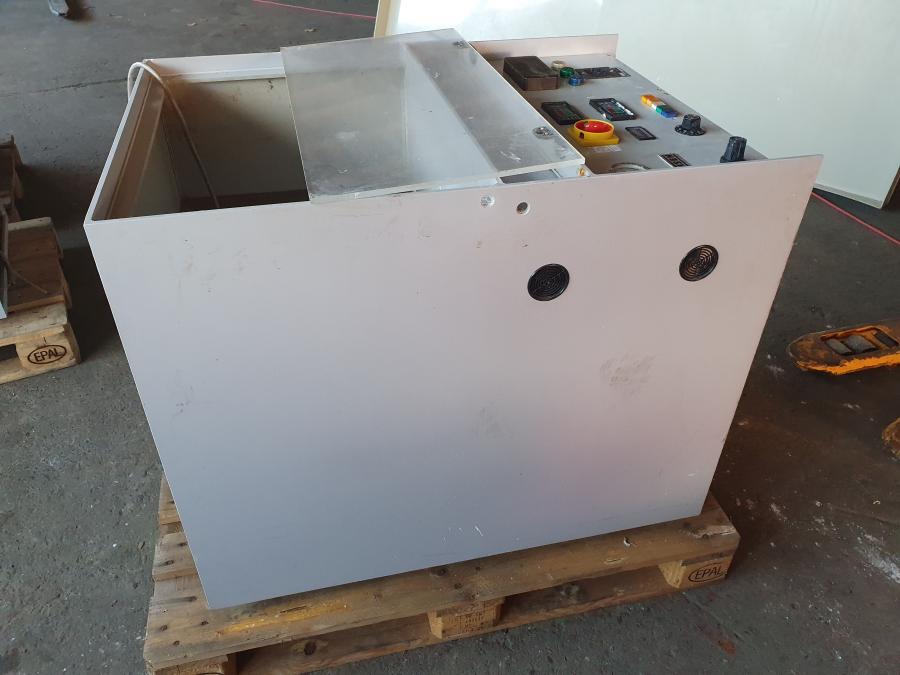

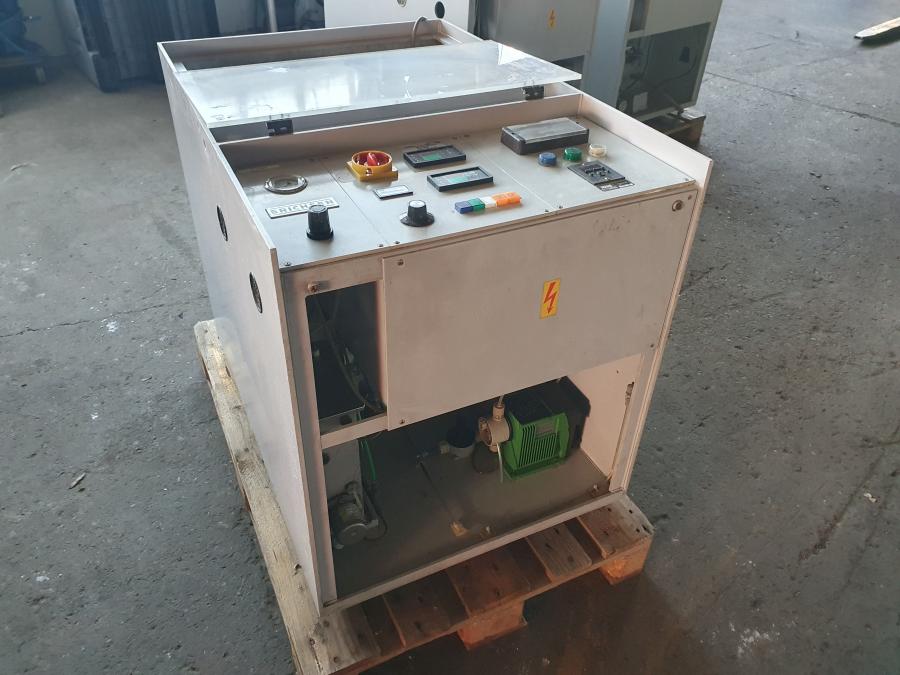

Dimensions  700 x 900 x 1000 mm (Control unit (H x W x D))
  1820 x 1000 x 1900 mm (test chamber - open state (W x D x H))
Weight  115 kg (control unit)
  120 kg (test chamber)
