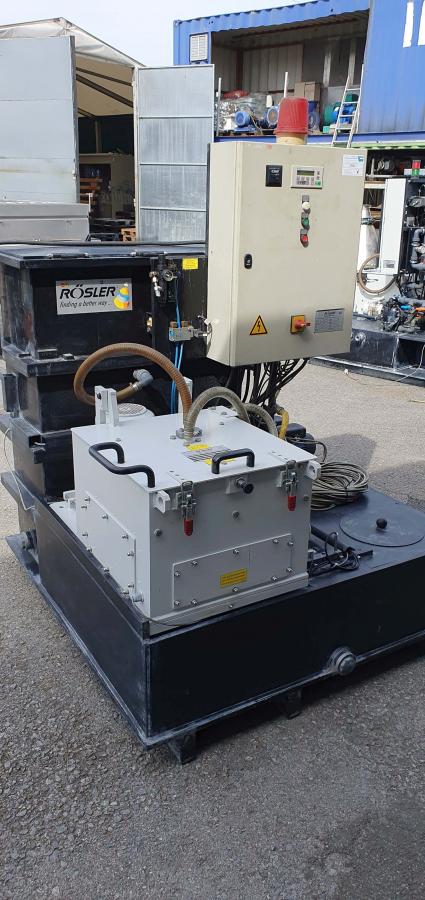

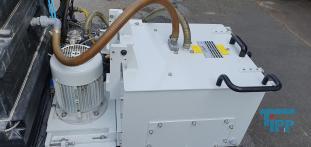

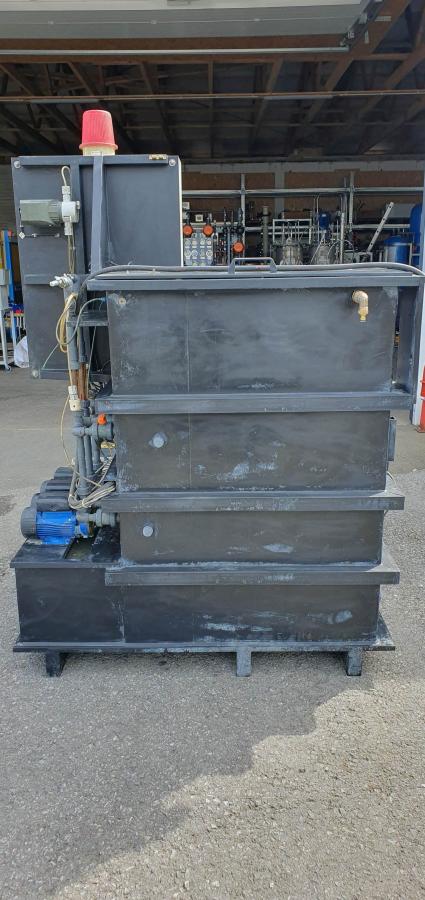

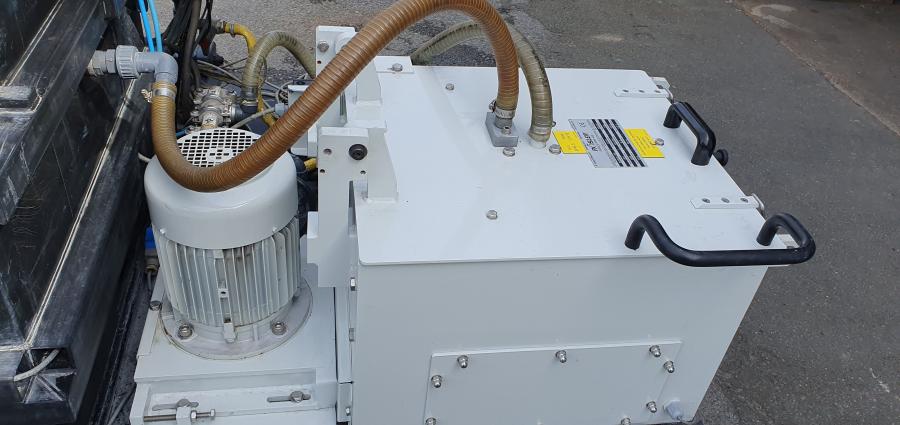

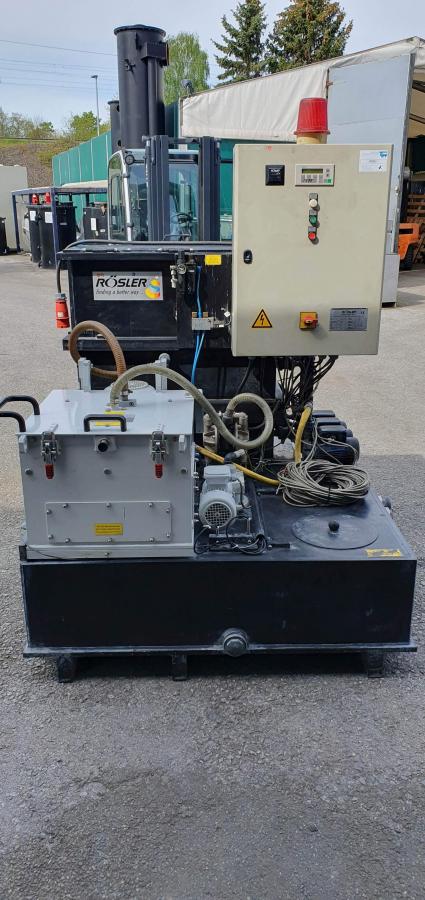

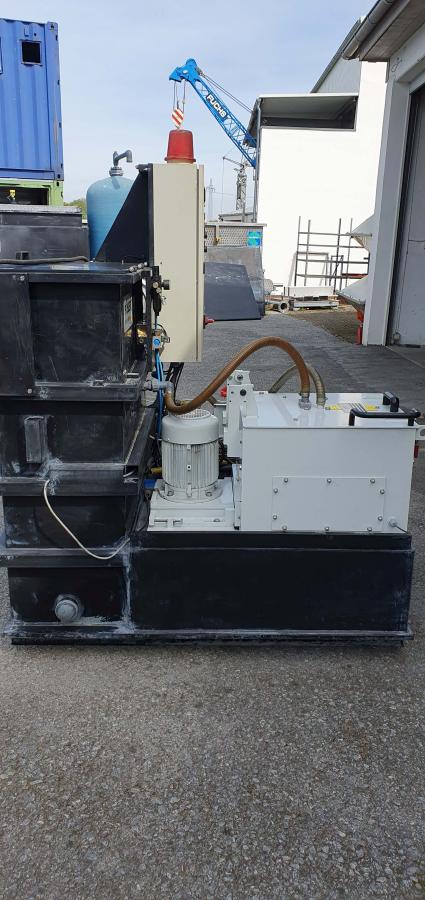

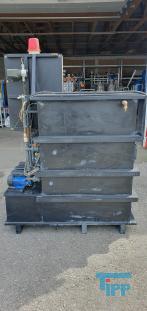

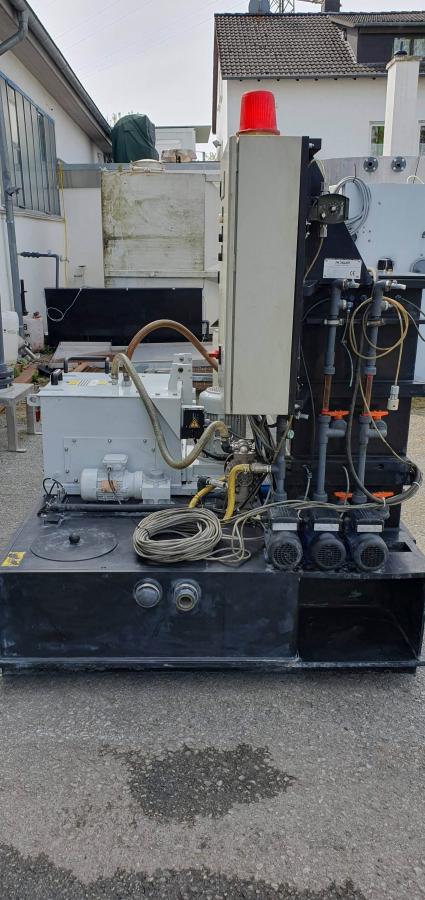

used process water circulation system with dosing device, centrifuge for solids separation, buffer and clear water tank

details to article: 30083

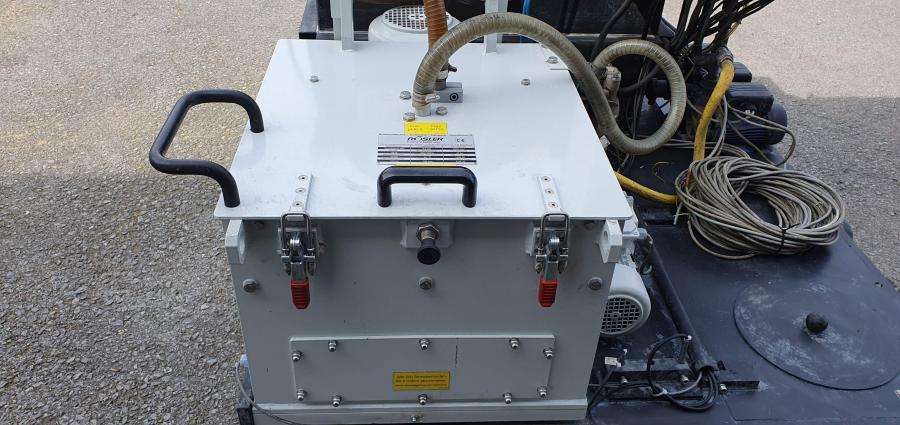

description: The centrifugal separation plant can only be used for process water with a pH value of 6.5 to 10. Depending on the desired degree of purification, the throughput capacity is up to 1200 l/h.

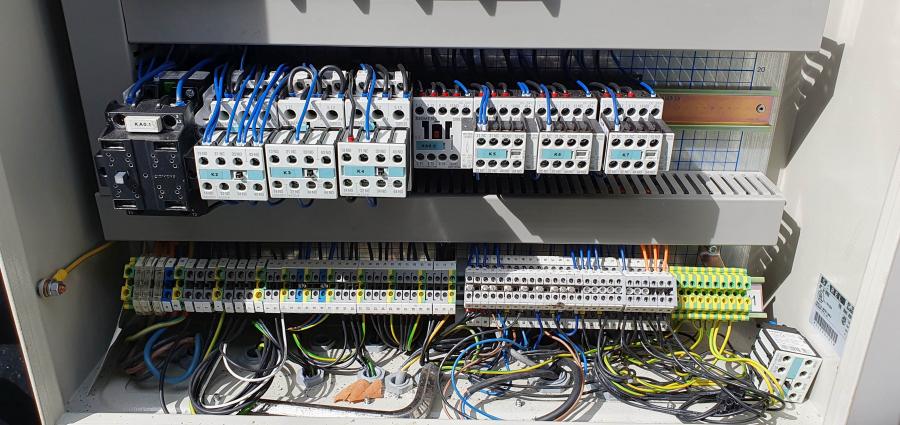

Circuit diagram, machine, program and maintenance plan are available.

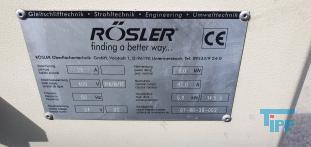

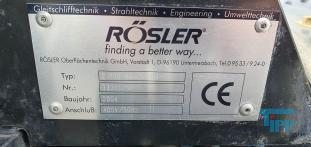

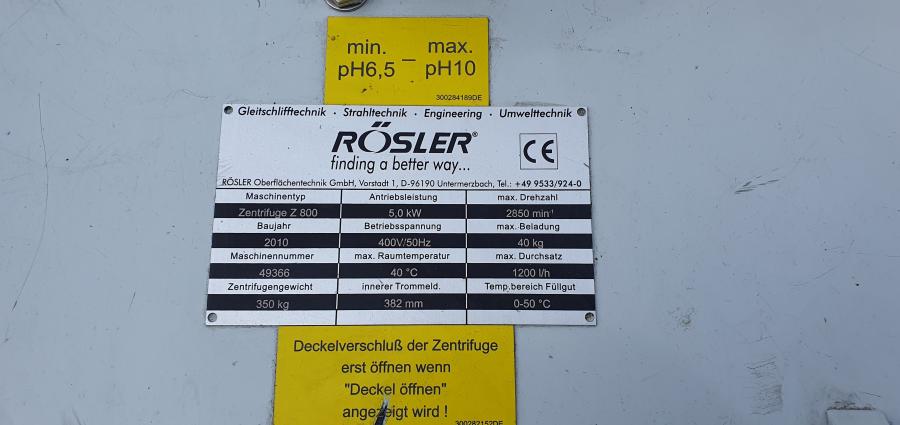

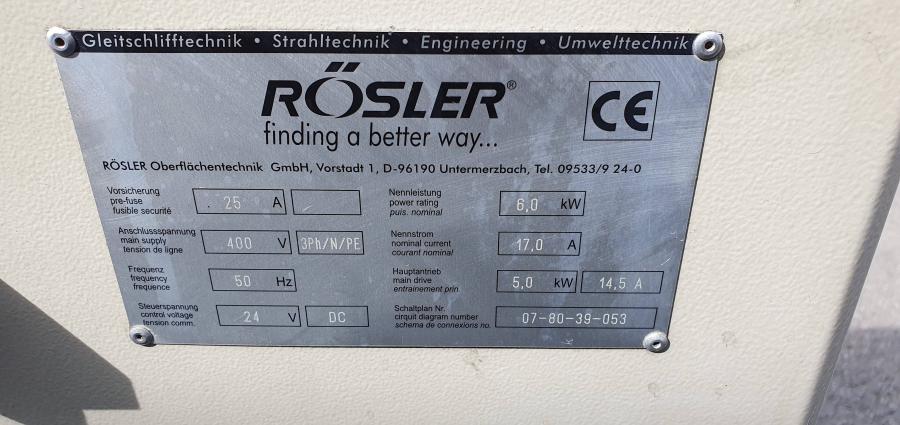

Producer:Rösler
Typ:Z 800 K
Year of manufacture:2010
Pieces:1



technical data

Voltage  3 x 400 V (Operating voltage)
24 V (Control voltage)

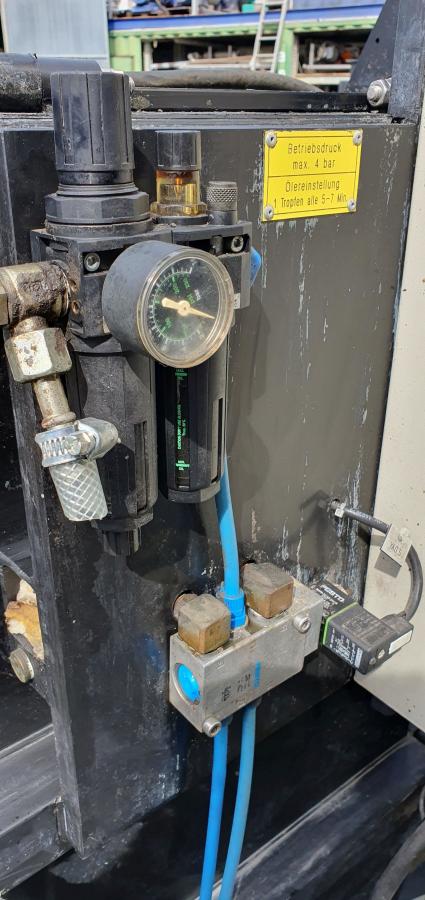

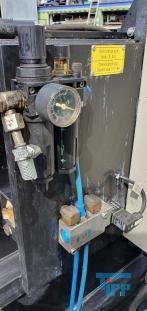

Pressure  4 bar (Compressed air connection value)
Power  6 kW (electrical connection value)
Frequency  50 Hz
Power  5 kW (Drive power)
Power  1200 l/h (Max. throughput)
Pressure  4 bar (Operating pressure)
Length  1530 mm
Width  1400 mm
Height  2000 mm
Weight  790 kg (Total weight)
Weight  350 kg (Centrifuge weight)
Trommel diameter  382 mm (inner drum diameter)
Capacity  30 kg (max. load)
Temperature  50 °C (Temp. range of filling material)

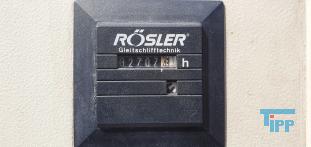

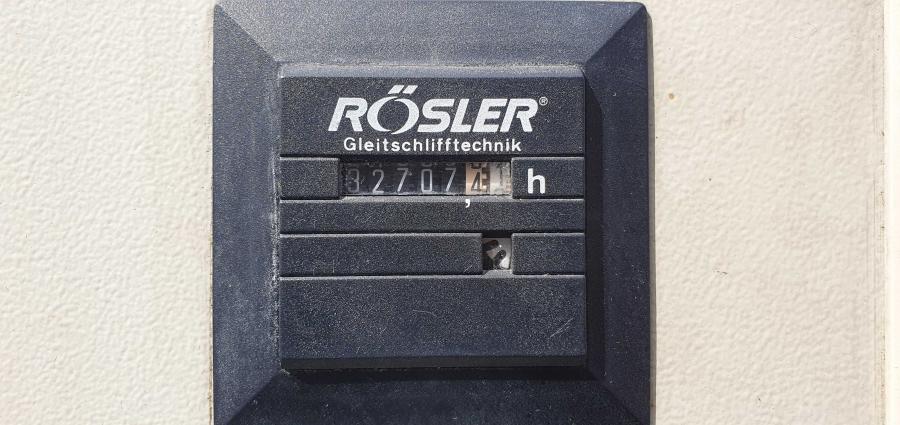

Hours of operation  32707 h
Further information  92681 (Machine number)

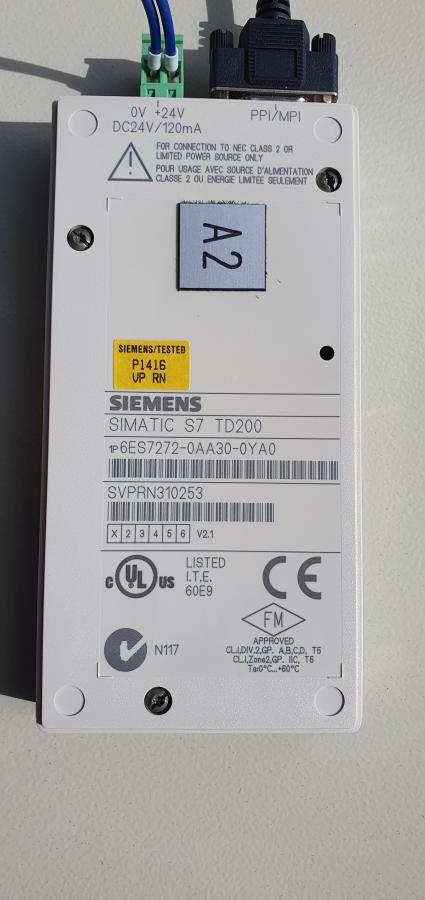

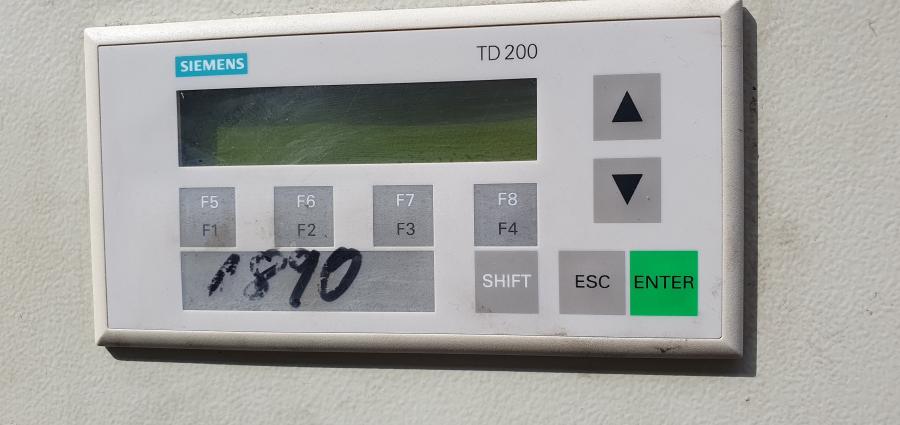

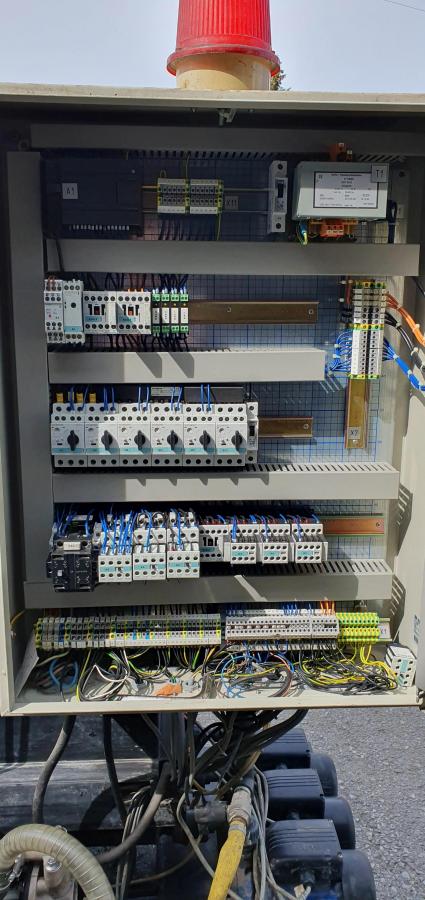

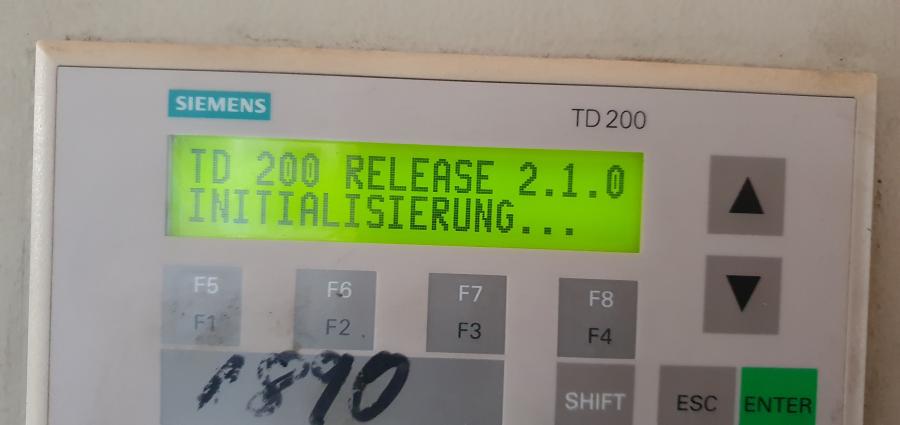

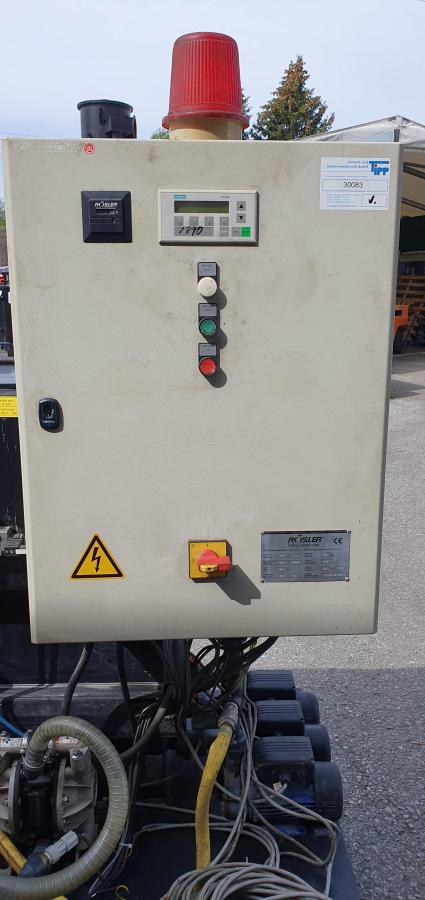

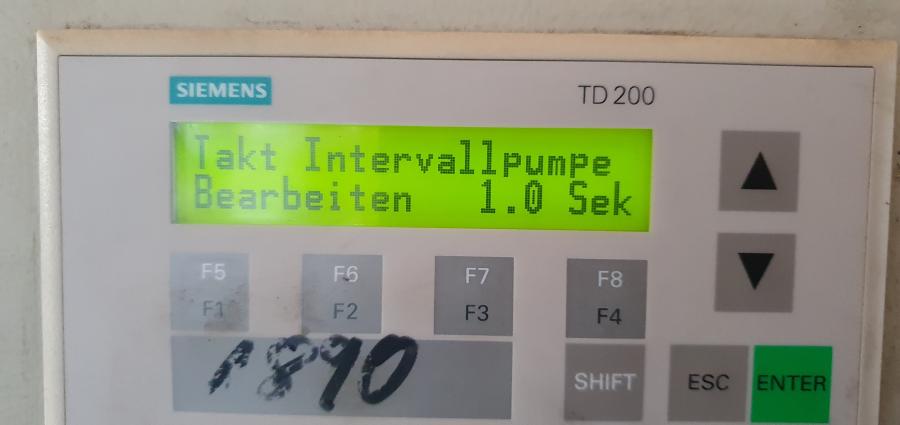

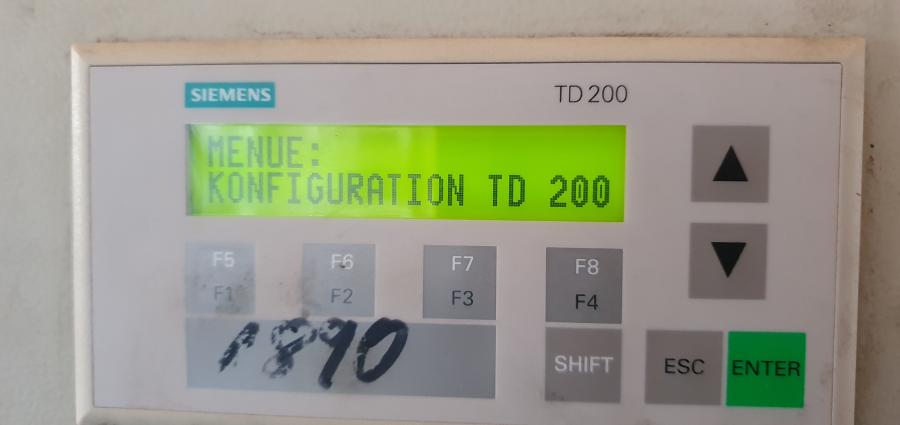

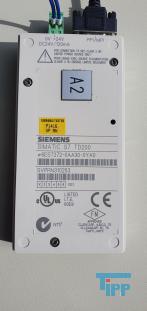

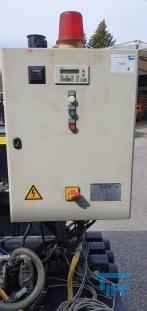

(Control unit Siemens TD 200)

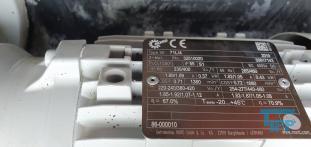

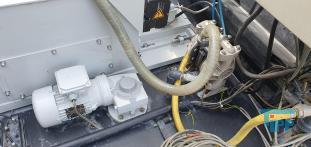

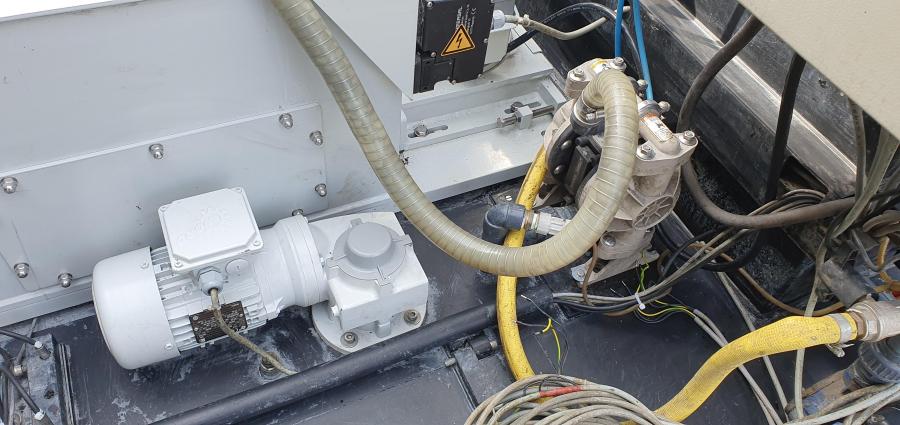

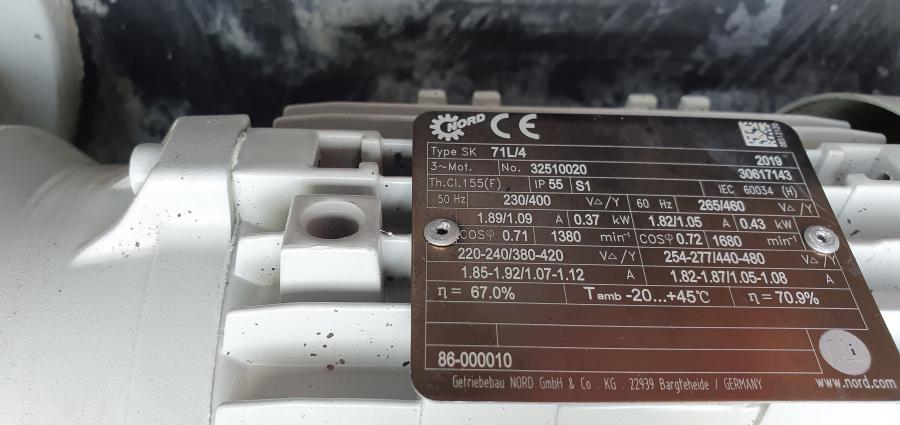

(Worm gear motor 0.37 kW ; 76 U/min for agitator)

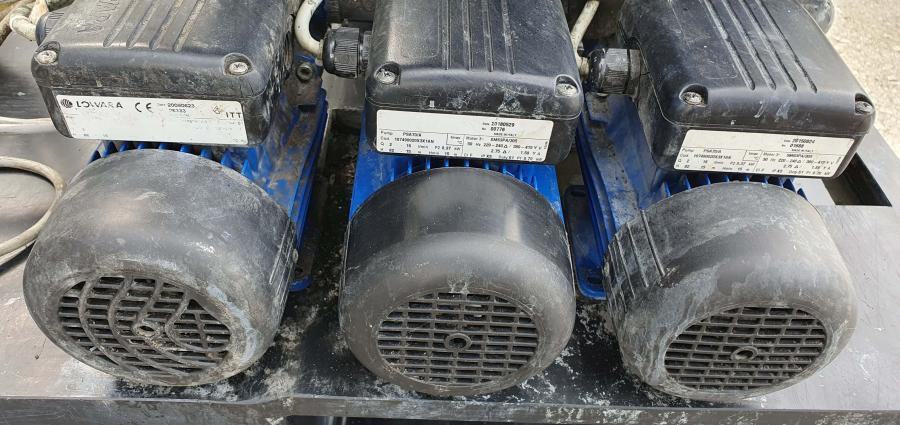

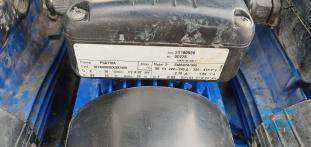

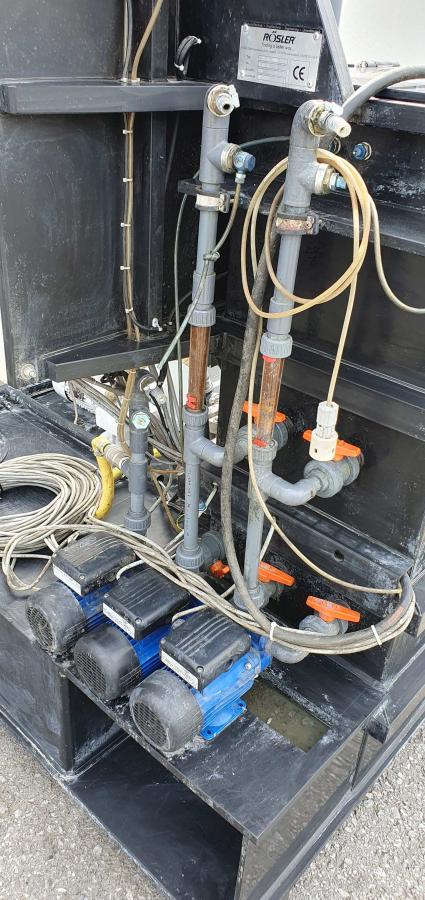

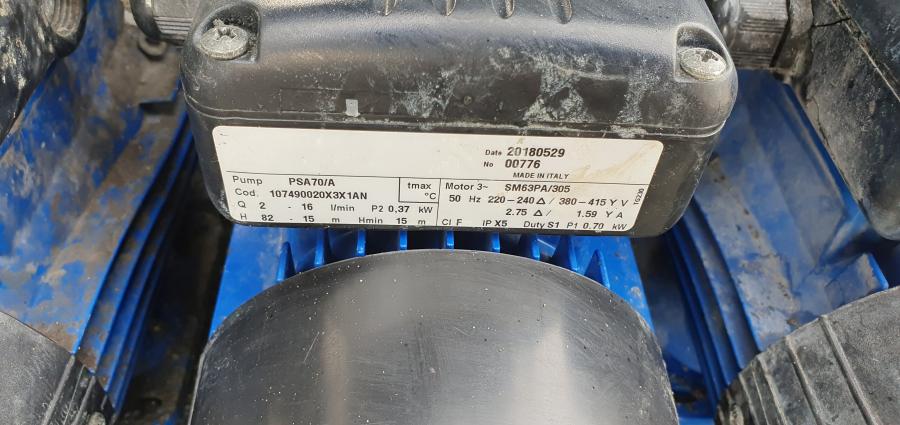

(3 x Centrifugal pump PSA 70 LOWARA)

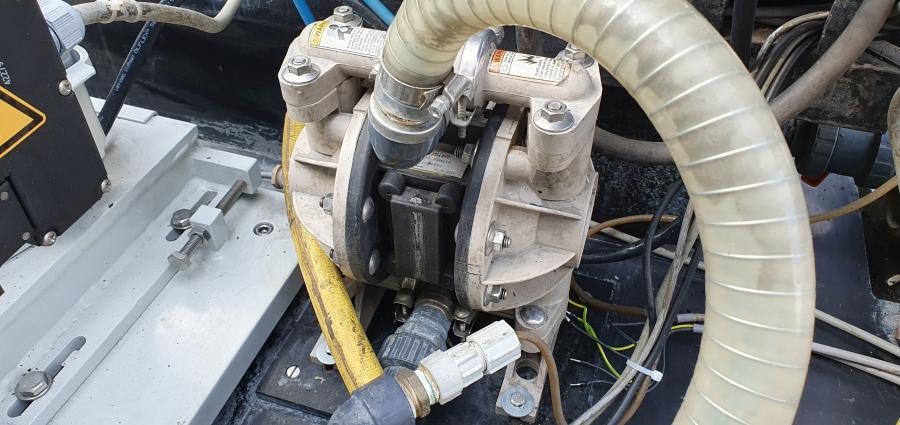

(Air operated diaphragm pump P3-1 cycle controlled)

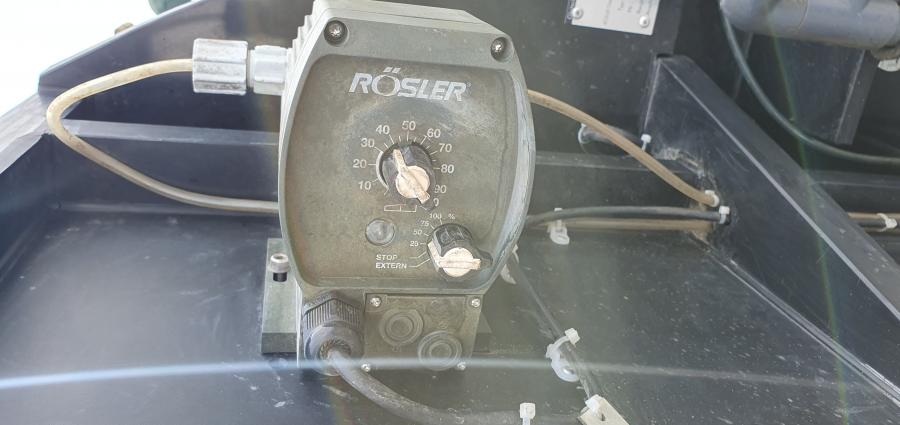

(Dosing pump RD-CN-PA ; 1 l/h ; for actuating medium)
(3 pcs sludge baskets)
