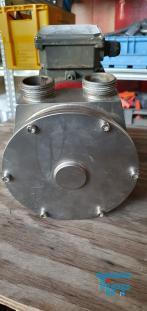

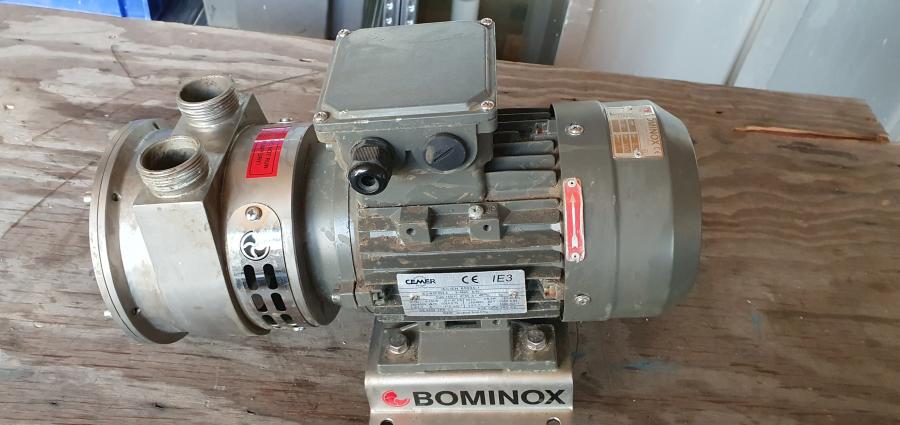

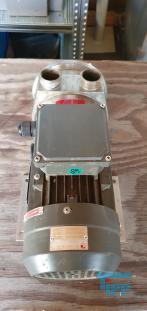

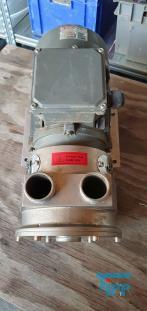

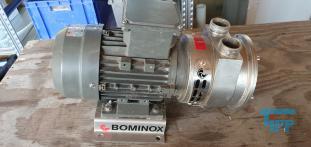

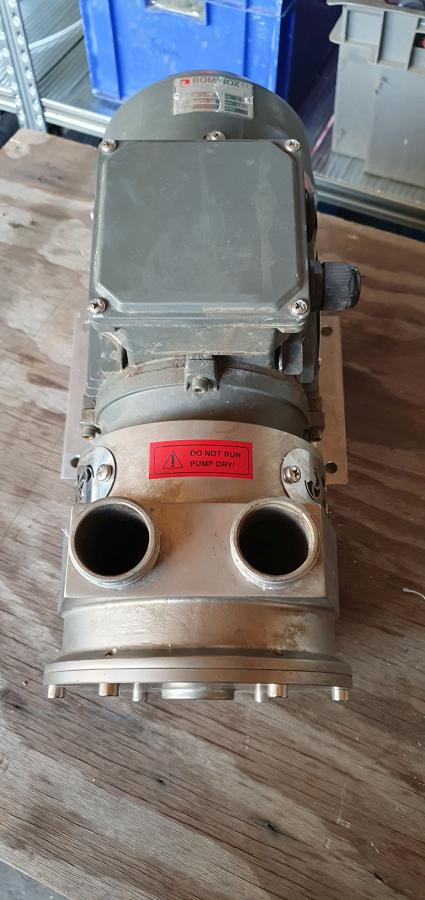

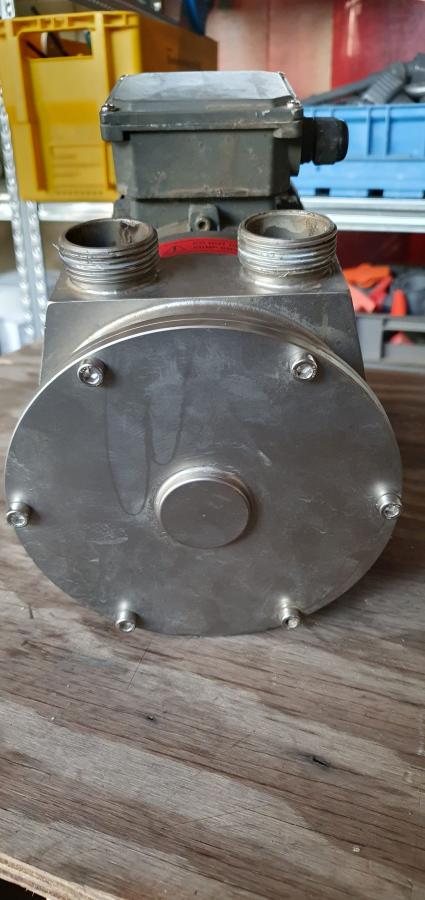

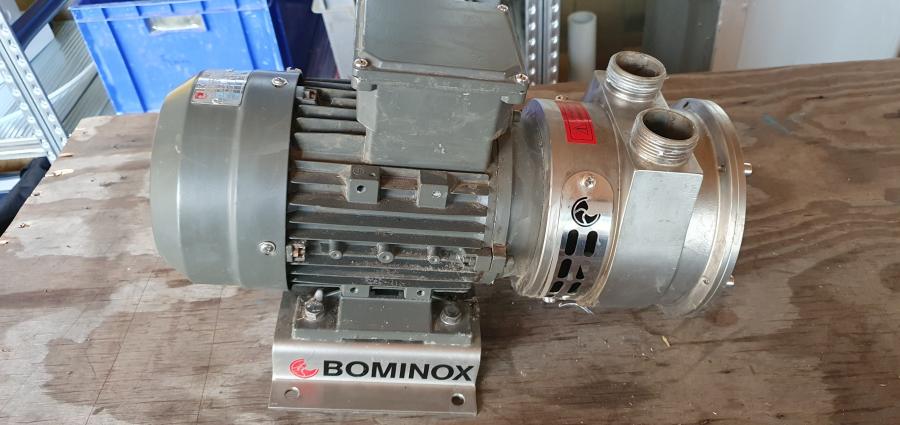

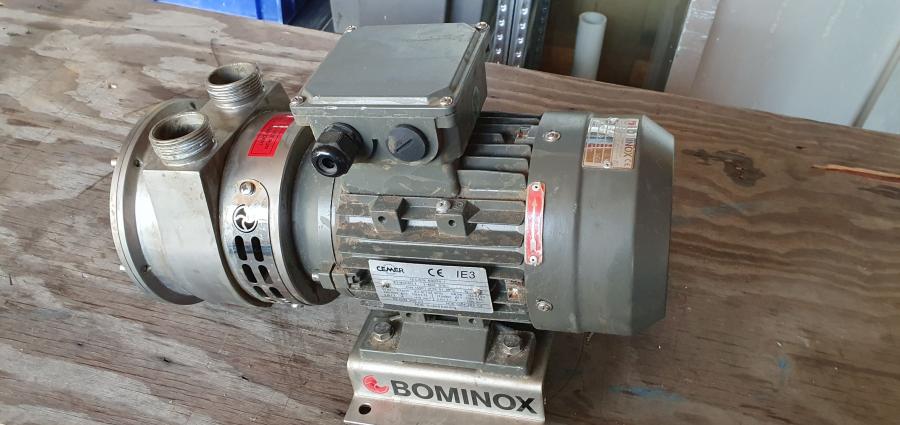

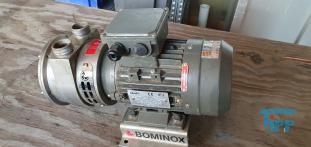

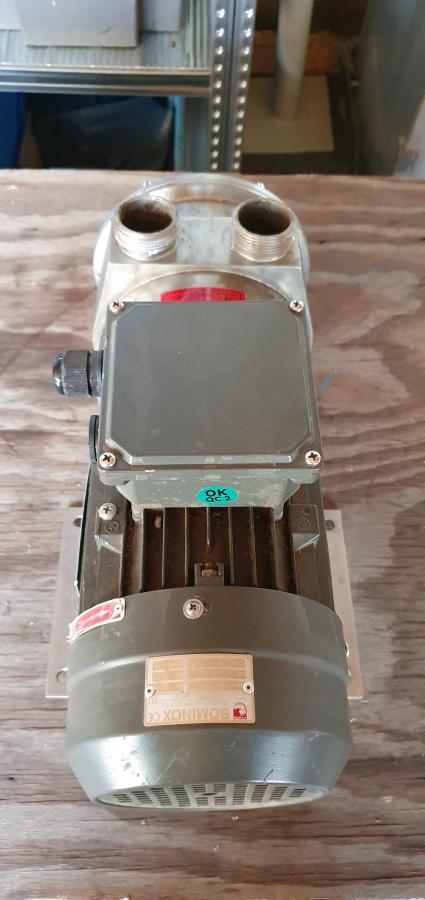

Self-priming side channel pump

details to article: 30095

description: Self-priming side channel pump for clear liquids up to 5 m. Due to the settings, the pump has a large negative suction force and can also work with liquids containing air or gas without losing pumping capacity. The pump is fully reversible. The areas of application include: Water, alcohol, oil, brine, acids, solvents and cleaning solutions.

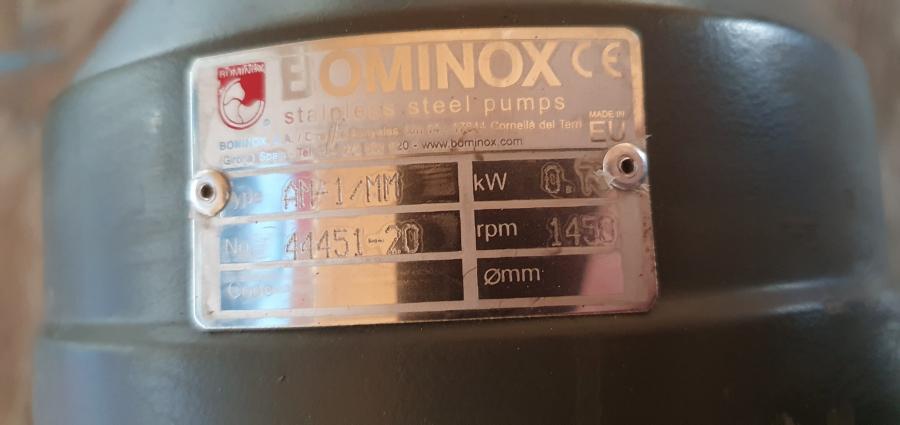

Producer:Bominox
Typ:RAPIT-MM
Pieces:1



technical data

Delivery rate  50 m³/h
Protection rating  55 IP
Pressure  10 bar (max)
Lifting height  (60 mWC)
Connections  (Gas or DIN 1185)
Material  Stahl (AISI 316 (EN 1.4401))

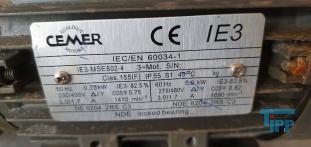

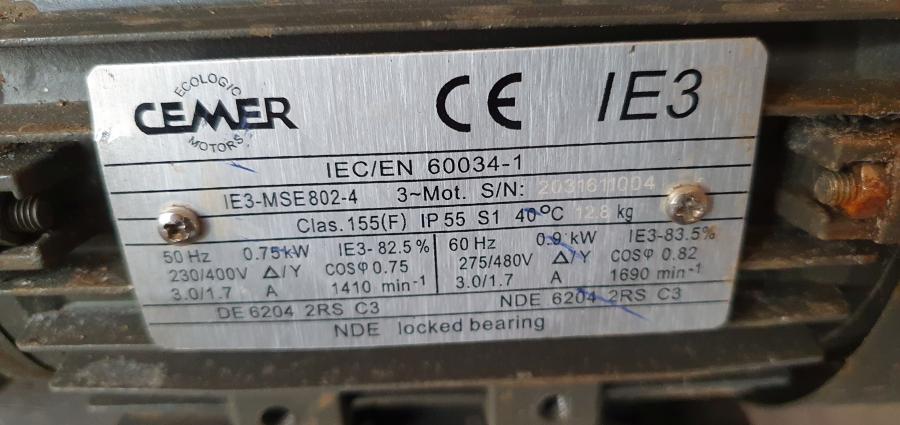

  Motordaten
Voltage  230/400 V
Frequency  50 Hz
Power  0,75 kW
Rotations  1410 1/min
  Dimensions
Length  400 mm
Width  230 mm
Height  260 mm
Weight  15 kg


Artikel nicht mehr verfügbar
