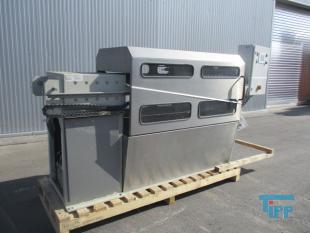

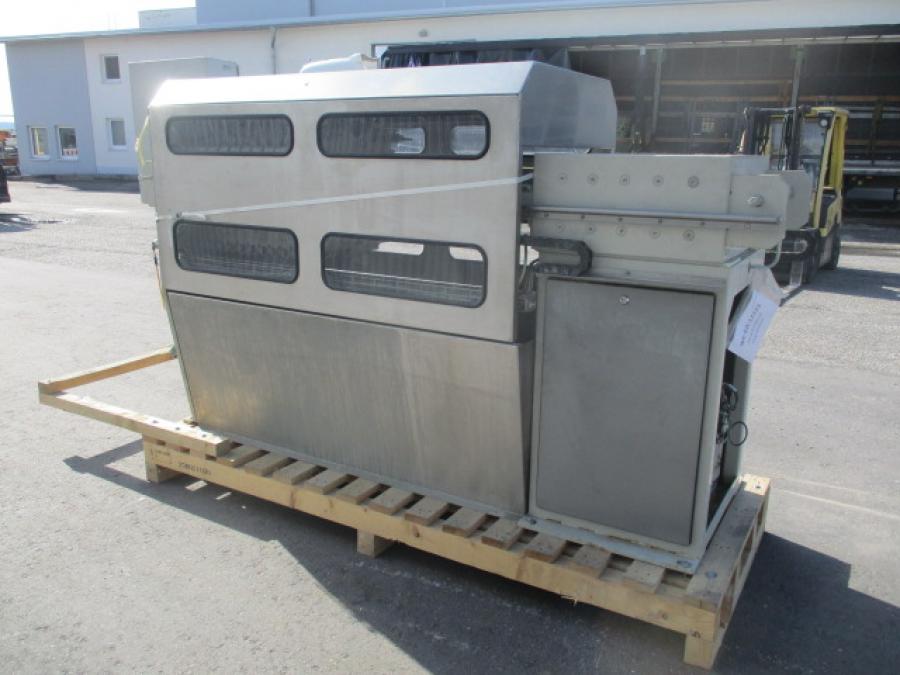

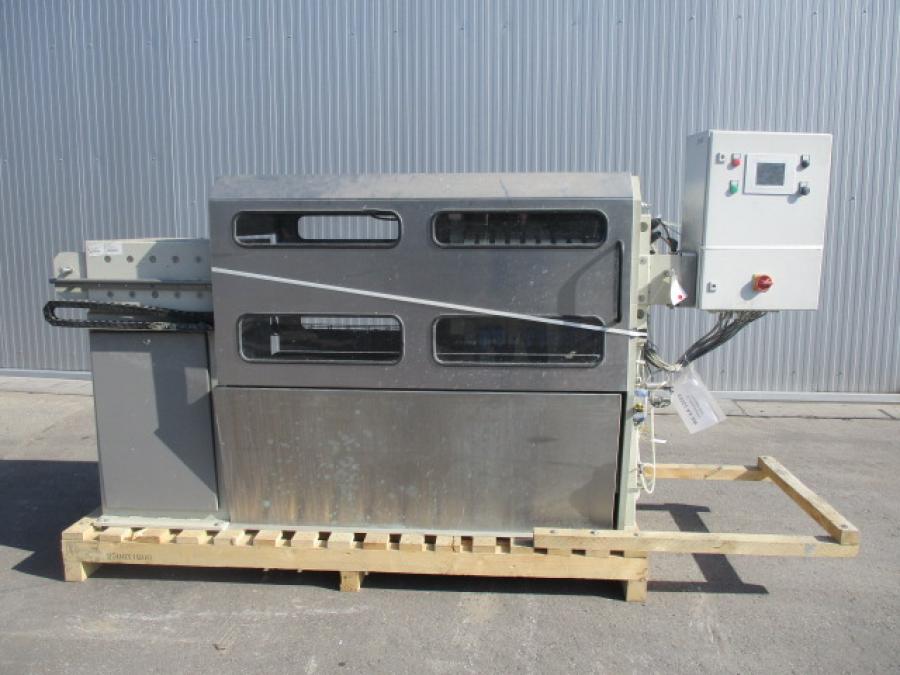

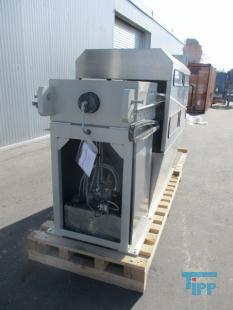

Membrane chamber filter press / membrane filter press / automatic filter machine

details to article: 30101

description: Automatic membrane filter press. Cake emptying system and vibrating cylinder integrated in the filter plate handle. Automatic self-regulating electric/pneumatic/hydraulic closing system. The press has a safety cover with gas springs. The operator side is oriented to the right. It is designed for automatic and manual operation and stores all relevant data of the last 10 cycles. Software: throughput recording, cycle recording, process optimization wizard, alarm log, operating hours counter for all components, maintenance wizard.

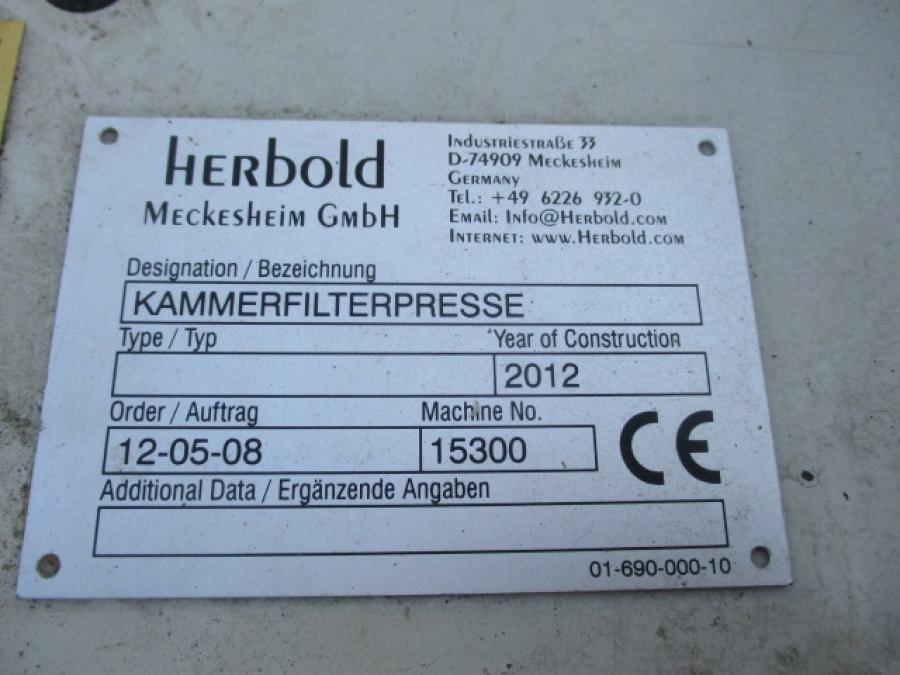

Producer:	Aquachem
Typ:	AF470AM32-10-46
Year of manufacture:	2012
Pieces:	1

technical data
Hydraulics	motorisch
Material	PP (plates/frames)
Plate dimension	470 mm
Number of plates	12
Chambers	10
Cake strength	32 mm
Pressure	350 bar (Max. closing pressure)
Pressure	8 bar (Max. feed pressure)
Volume	46 l (Filter volume)
Filter surface	3,2 m² (total filtration area)
Plate transport	automatisch (package shifting)
expiration of filtrate	geschlossen (via 4 corner drain holes)
Connections	(Filtrate drain 4 x DN 32 PN 16)
Connections	(Inlet 2 x DN 32 PN 16)
Steering	(Dialog 5 ; 4 inch color touch screen and PLC)
Engine	0,75 kW
Voltage	400 V
Frequency	50 Hz
Length	3000 mm
Width	1200 mm
Height	1600 mm
