used highpressure-reverse osmosis plant in 40 feet HighCube container, biogas digestate, seawater desalination, wastewaterpurification

details to article: 30115

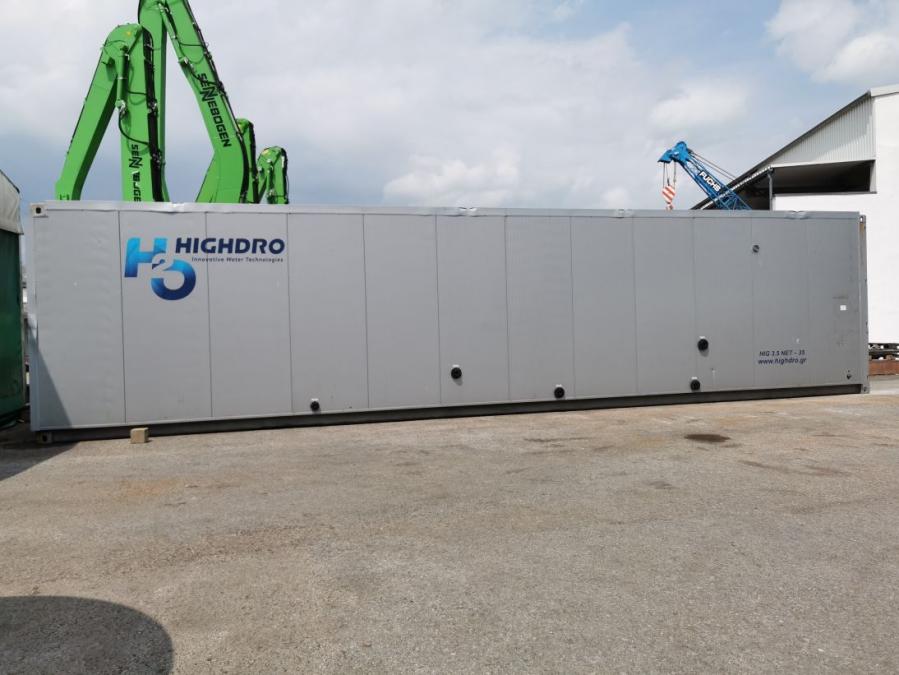

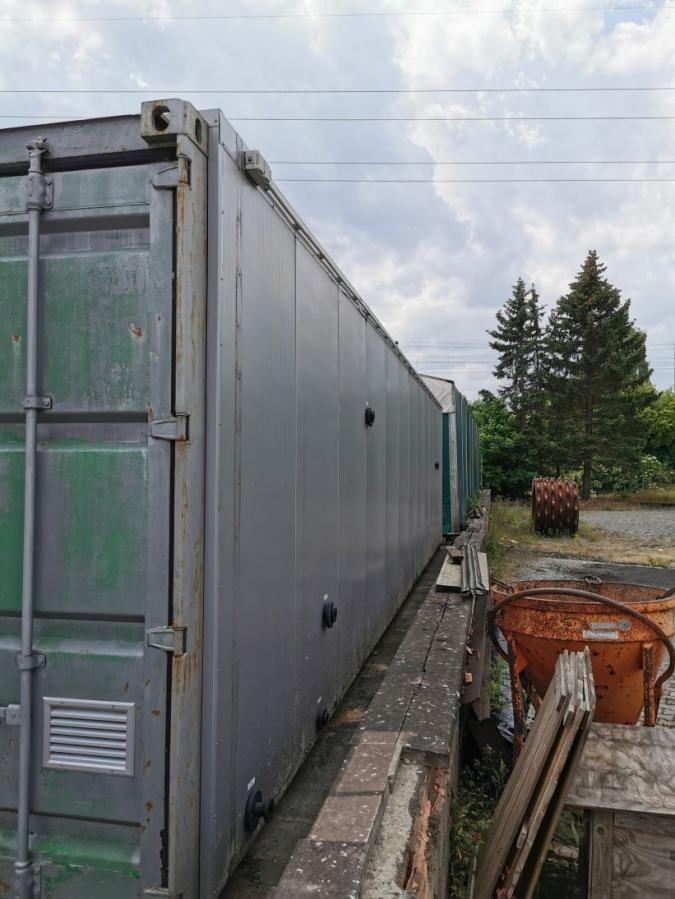

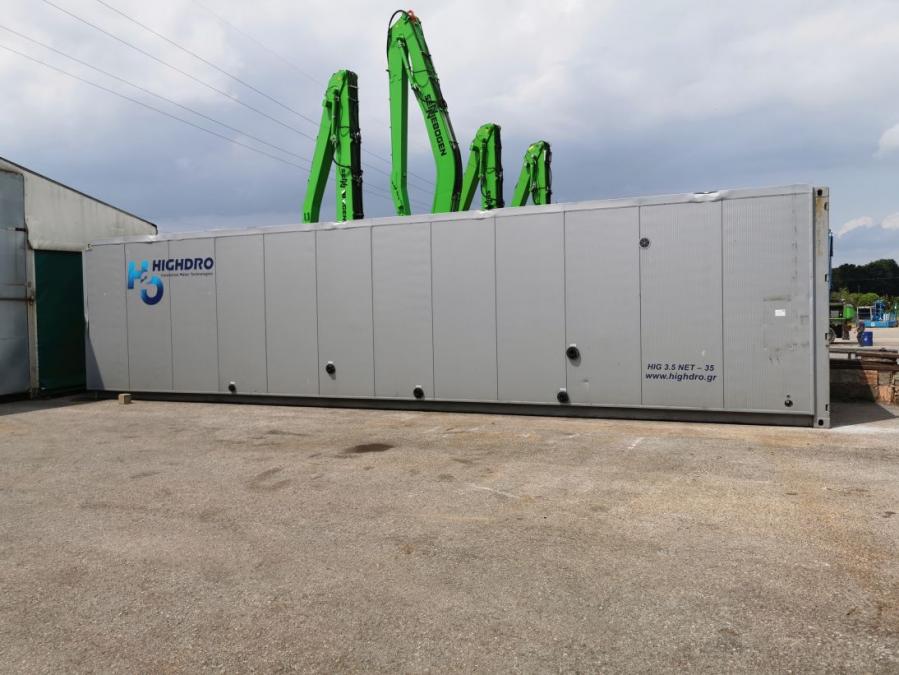

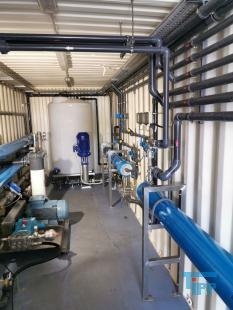

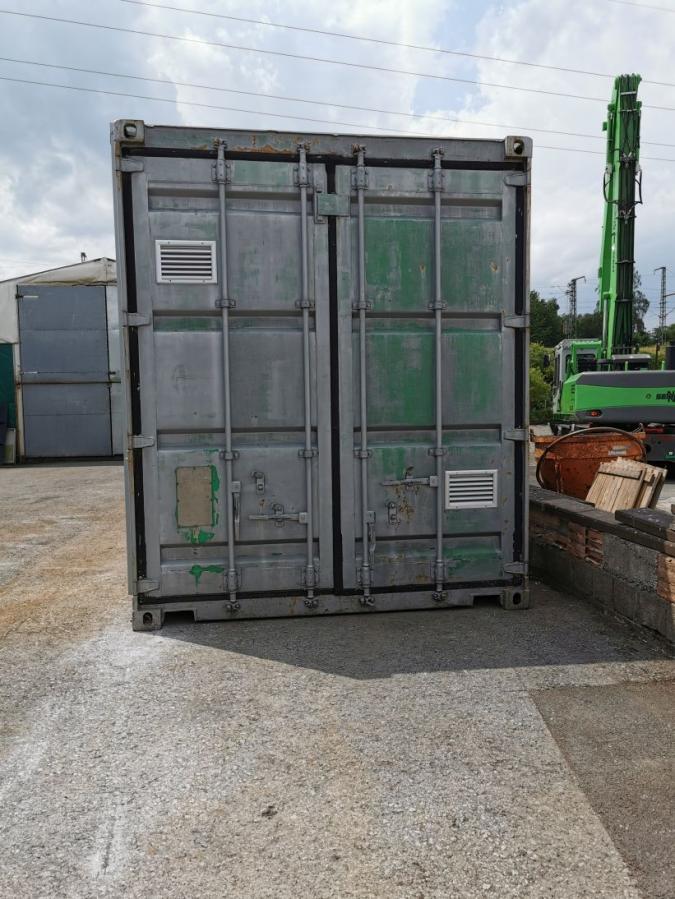

description: 40 foot HighCube container with insulation and ventilation

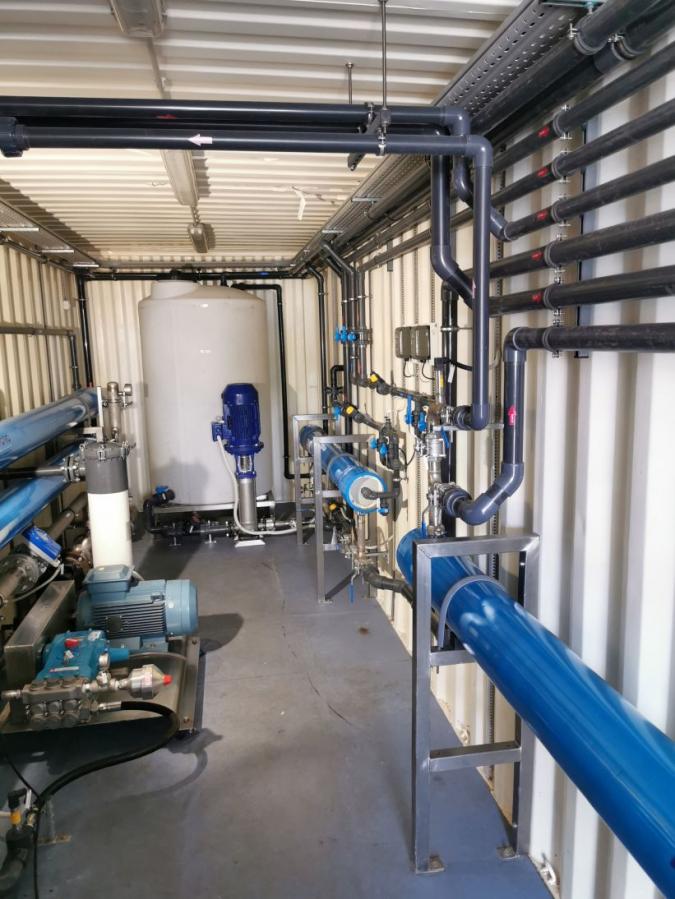

• Reverse osmosis 3 stages

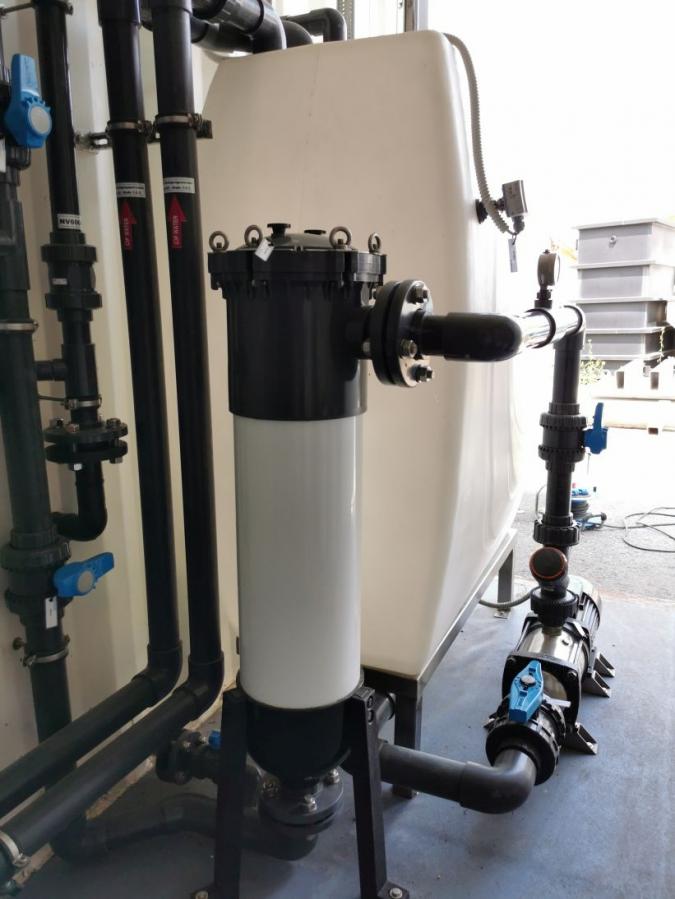

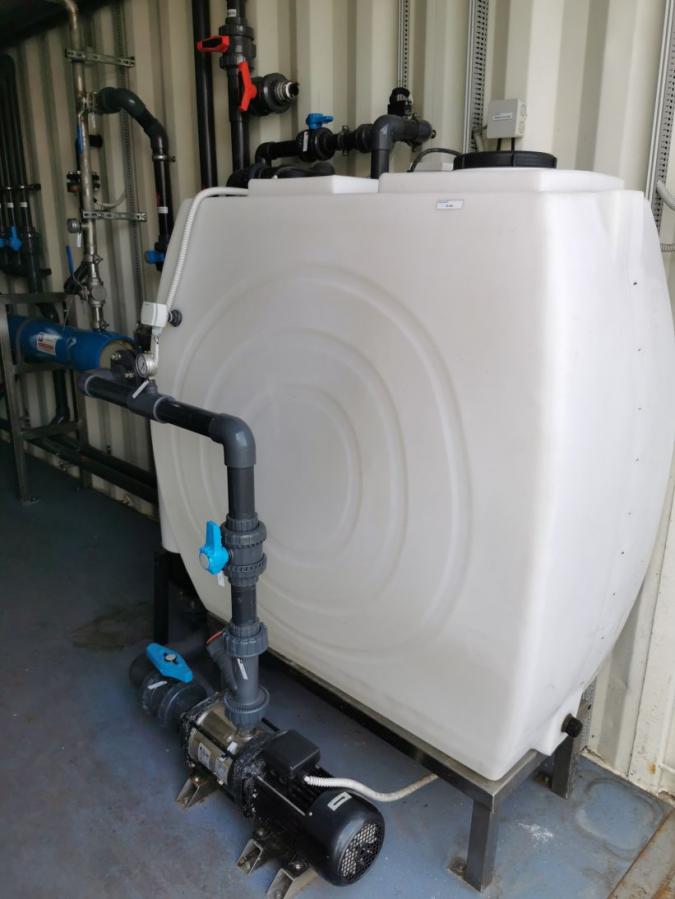

• CIP – cleaning station
• Connecting pipelines in plastic PVC-U and high-pressure lines in stainless steel

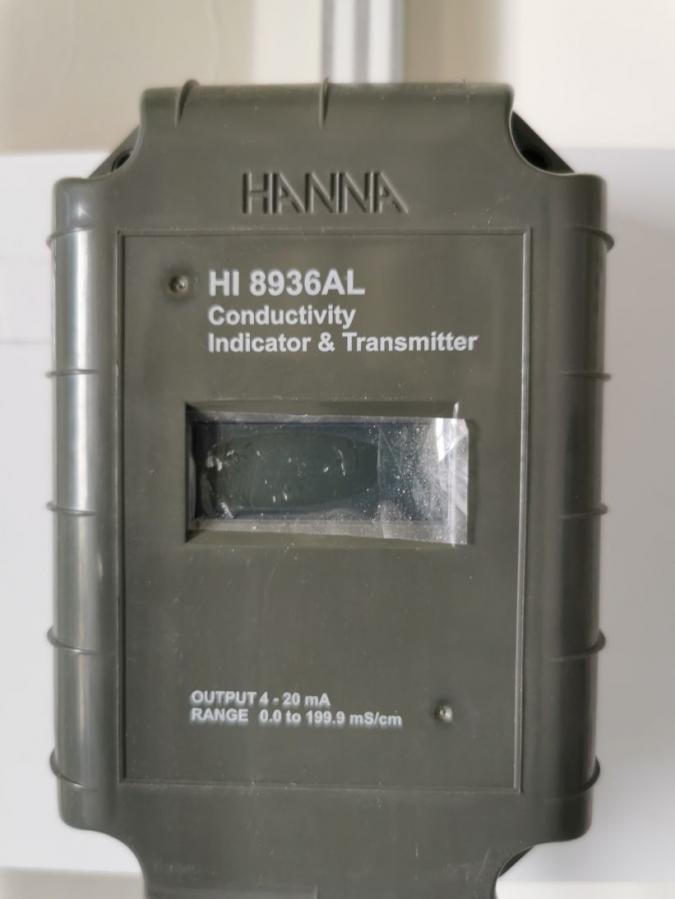

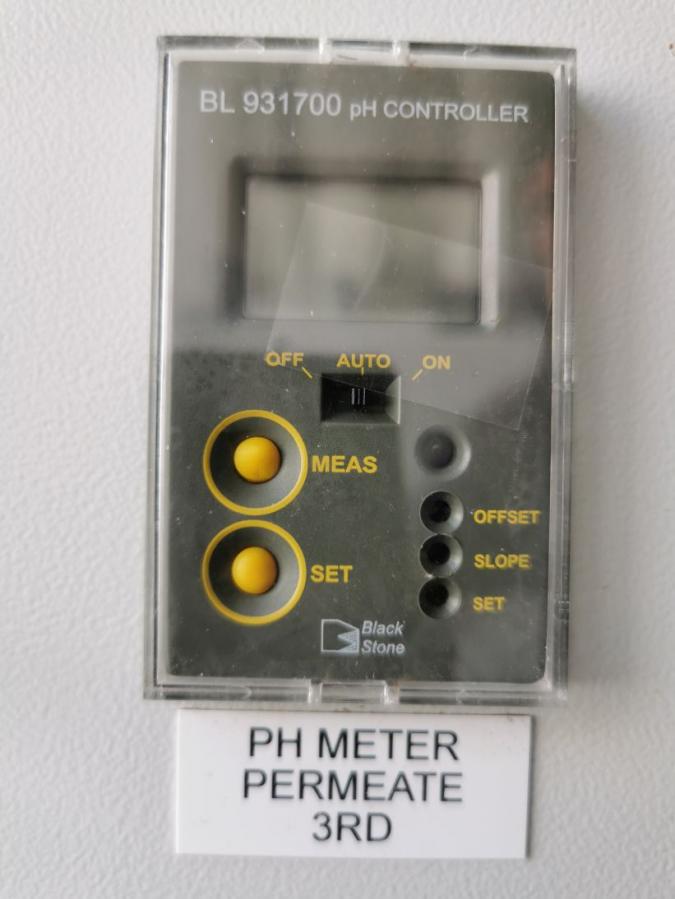

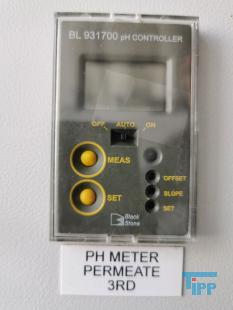

• Conductivity measurement technology, pressure measurement technology, pH measurement technology, level measurement technology

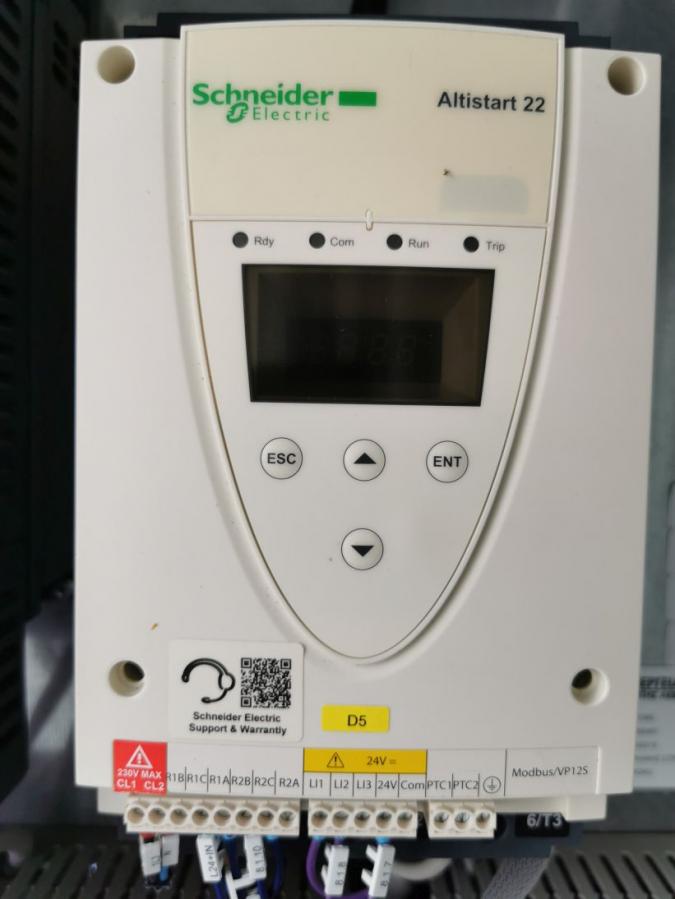

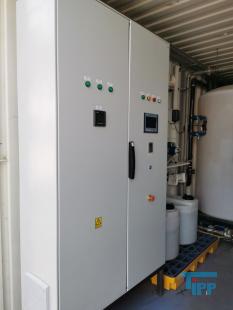

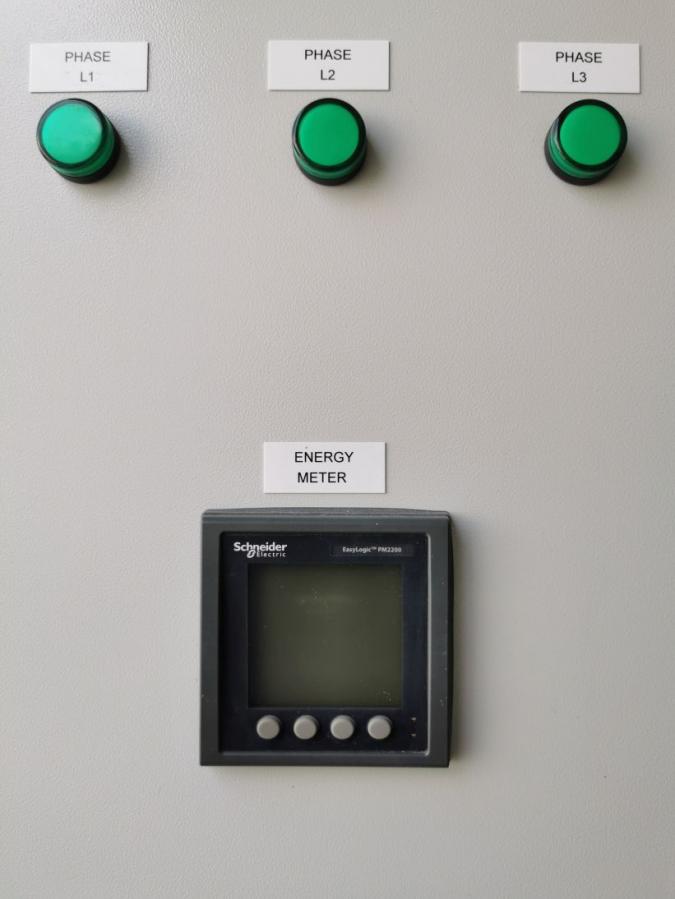

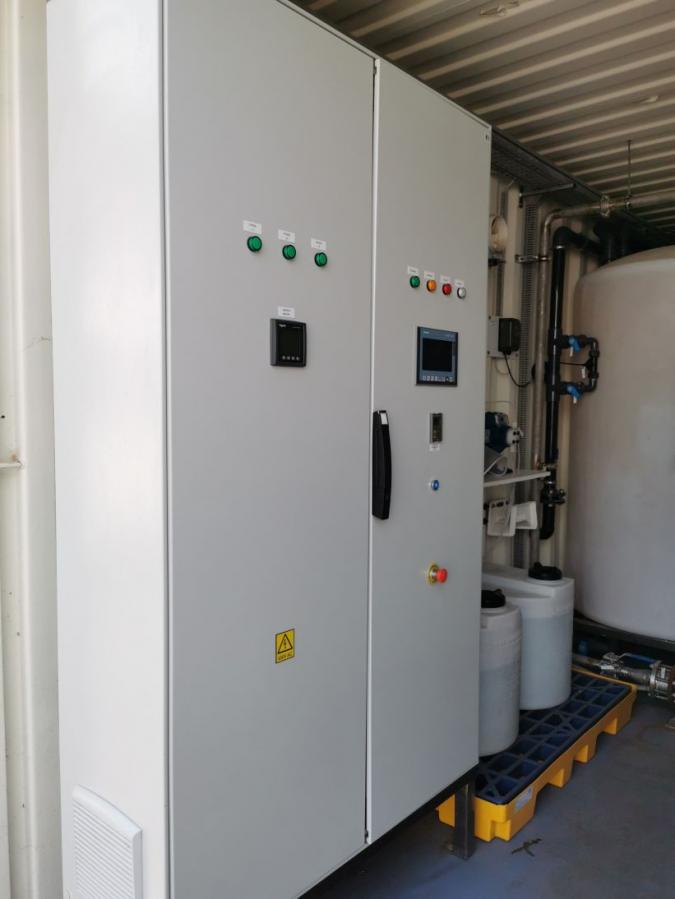

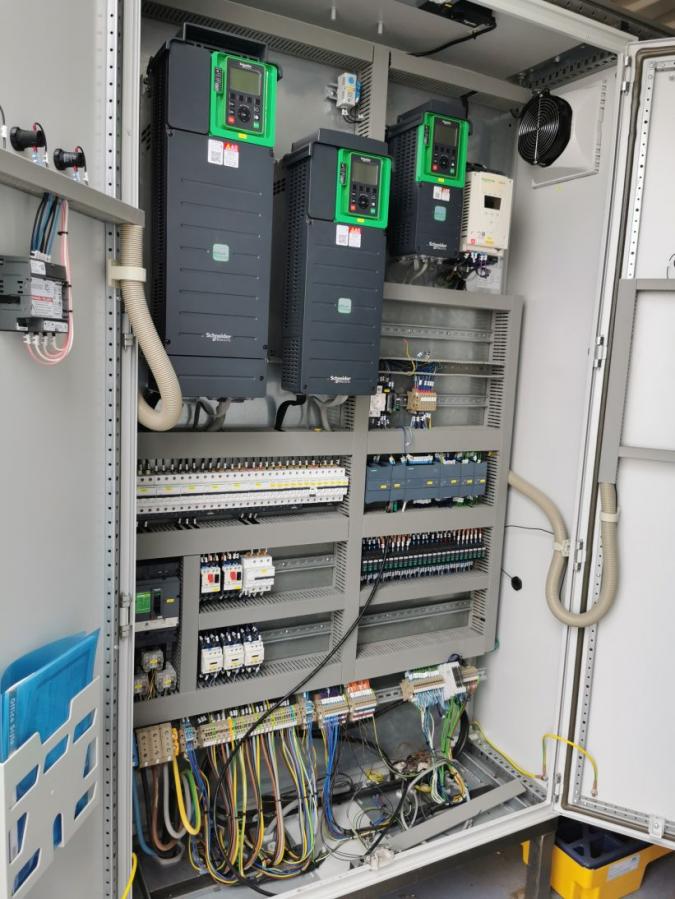

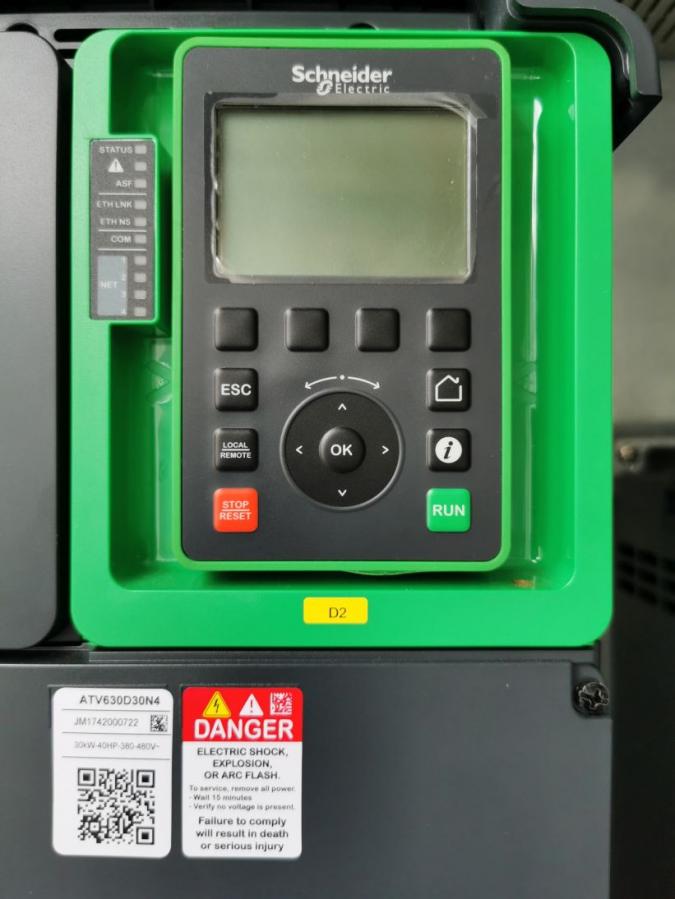

• Electric switching and control cabinet

Producer:	Highdro Systems G.P
Typ:	HIG - 3 Pass RO 3.5 Net
Year of manufacture:	2018
Pieces:	1

technical data

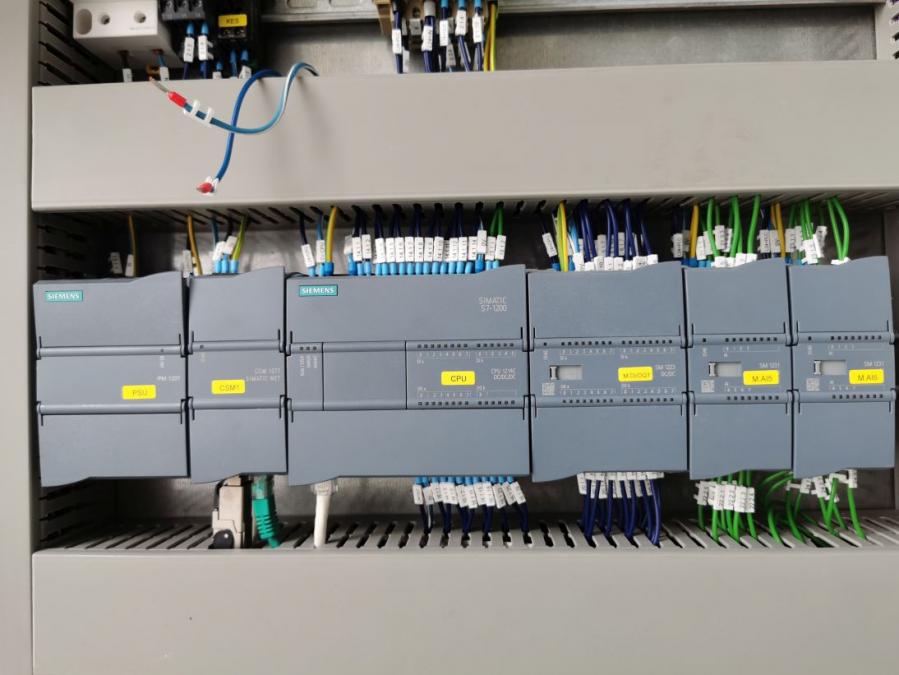

Steering	Simatic S7-1200 CPU 1214C

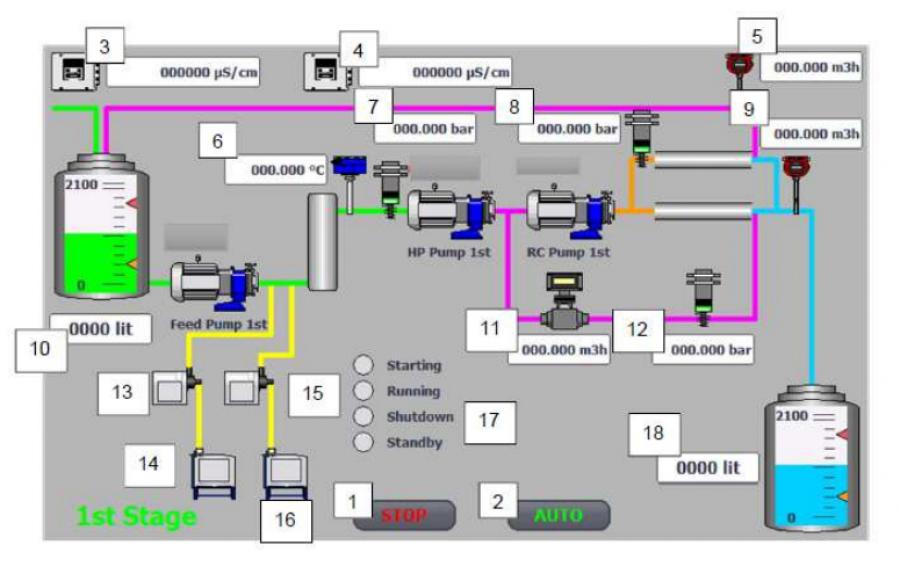

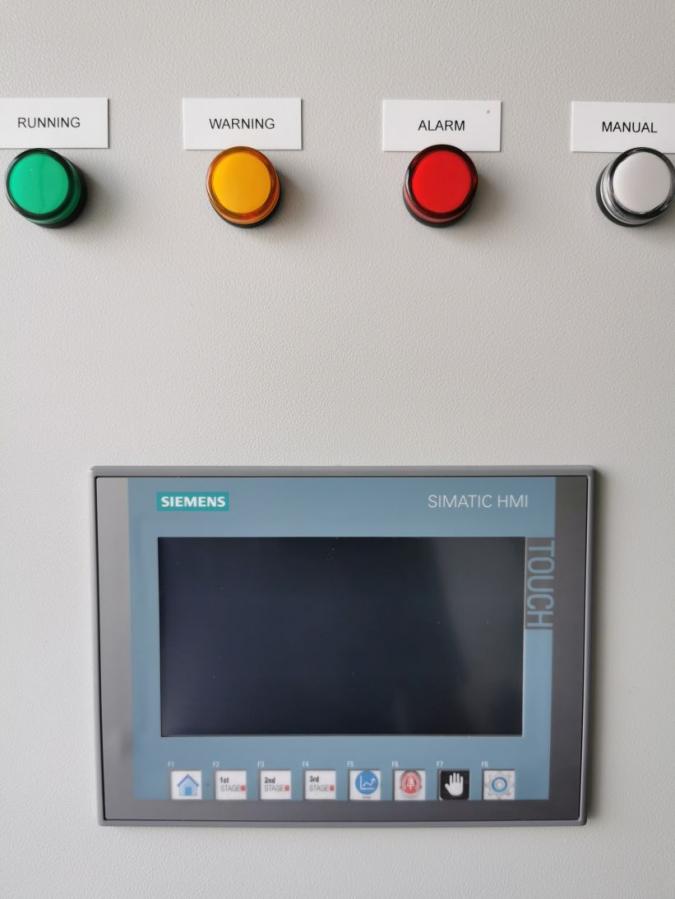

Steering	SIMATIC Basic Panel Siemens KTP700

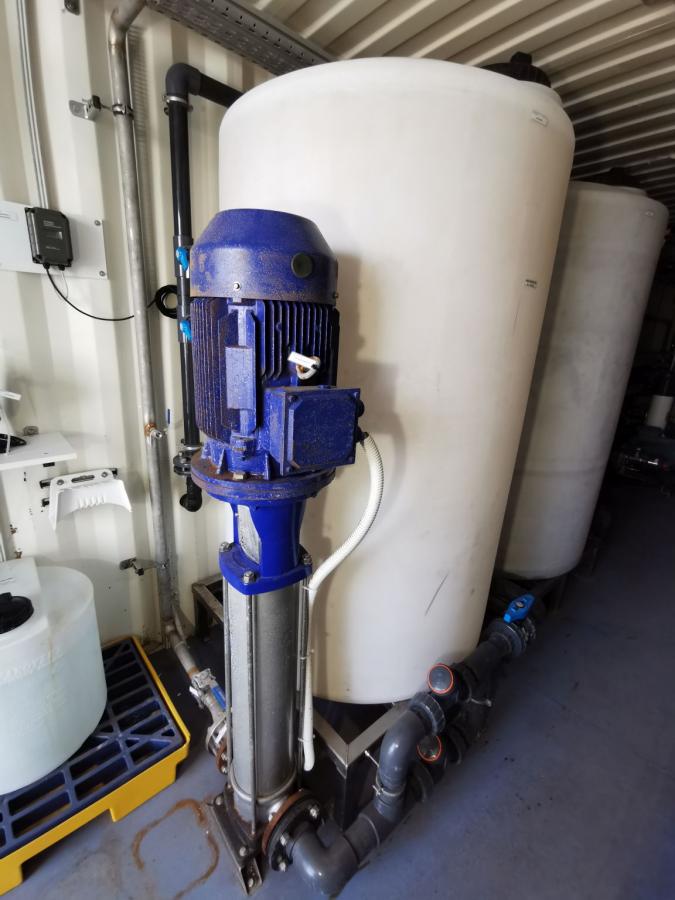

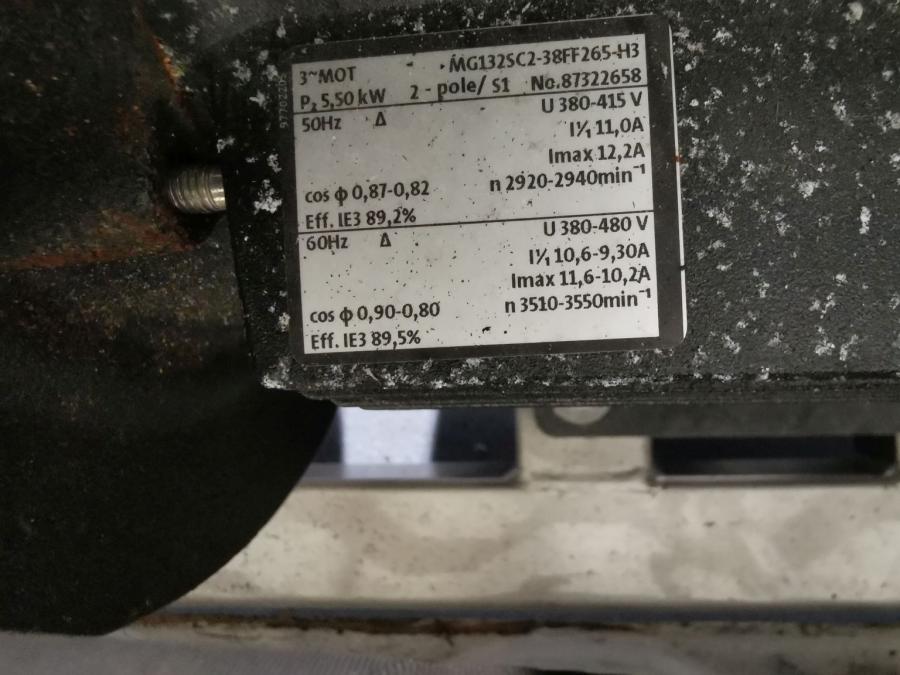

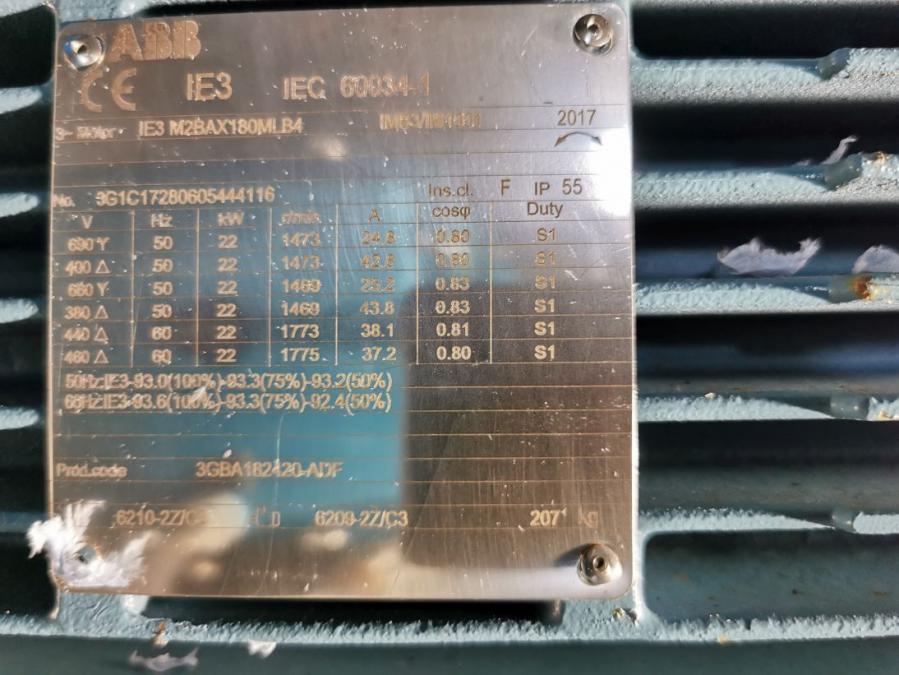

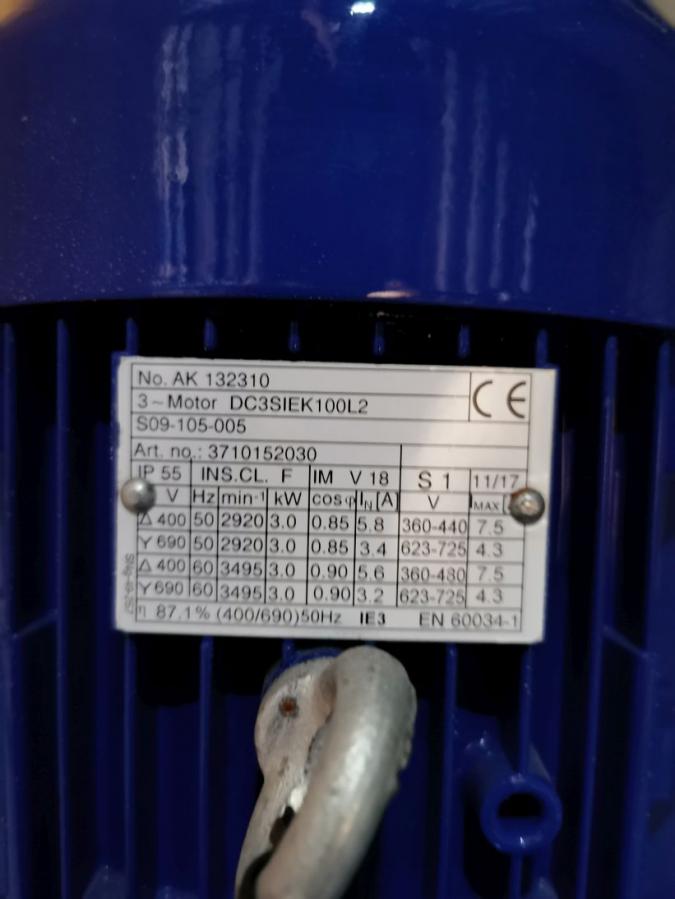

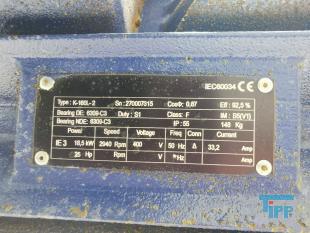

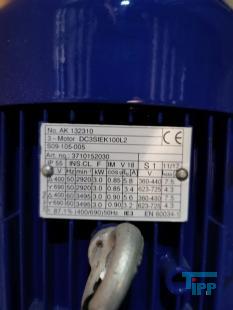

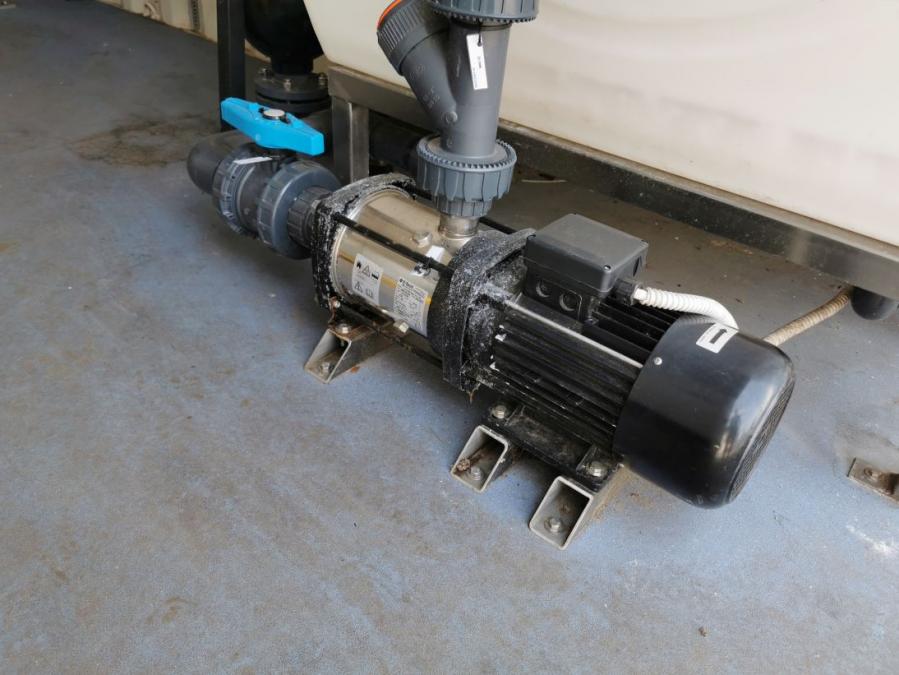

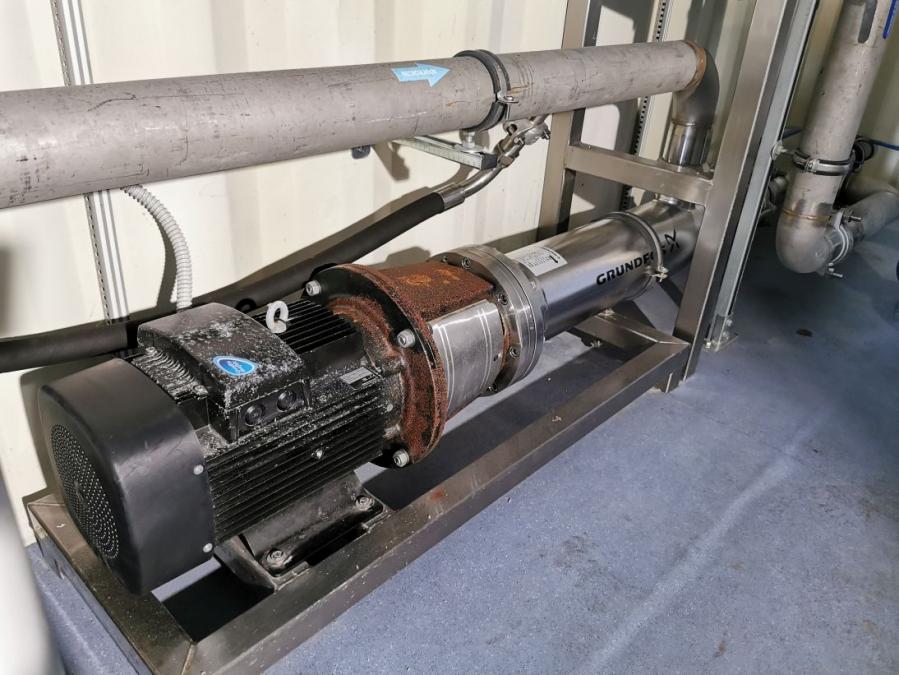

-	(pumps:)

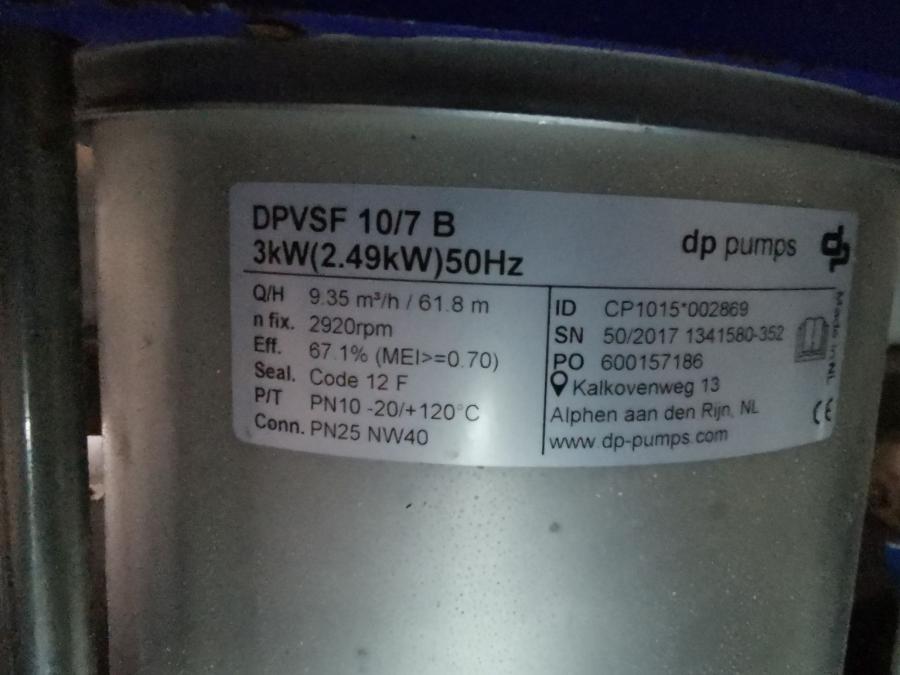

-	DPVSF 10/7(11.5m3/h 5bar)

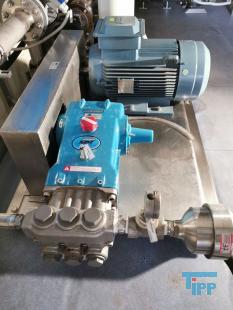

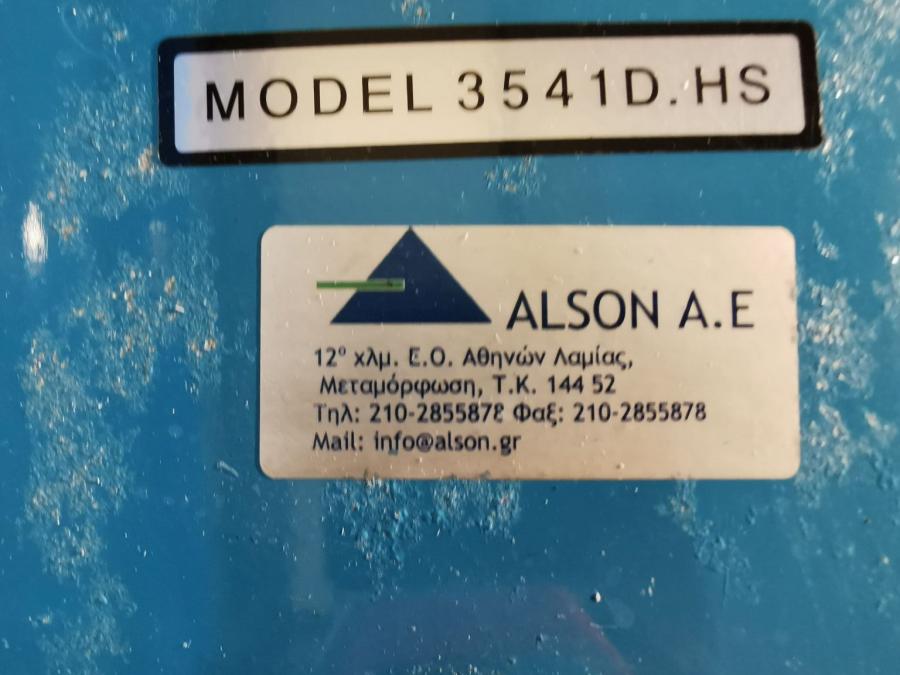

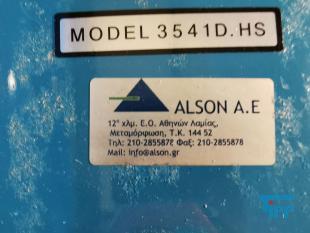

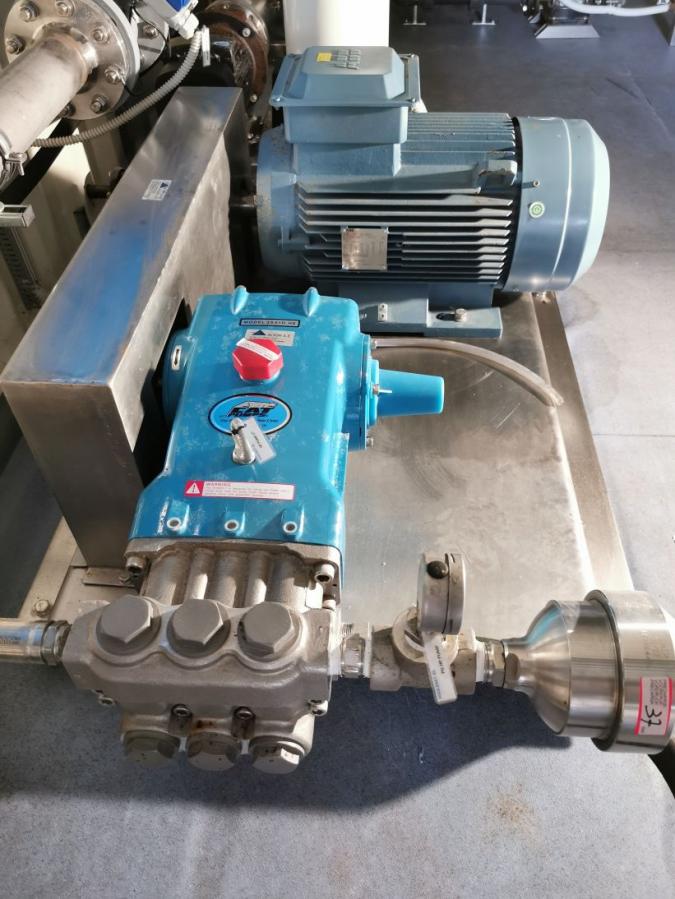

-	CAT 3541(9m3/h 60bar)

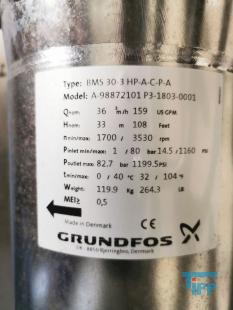

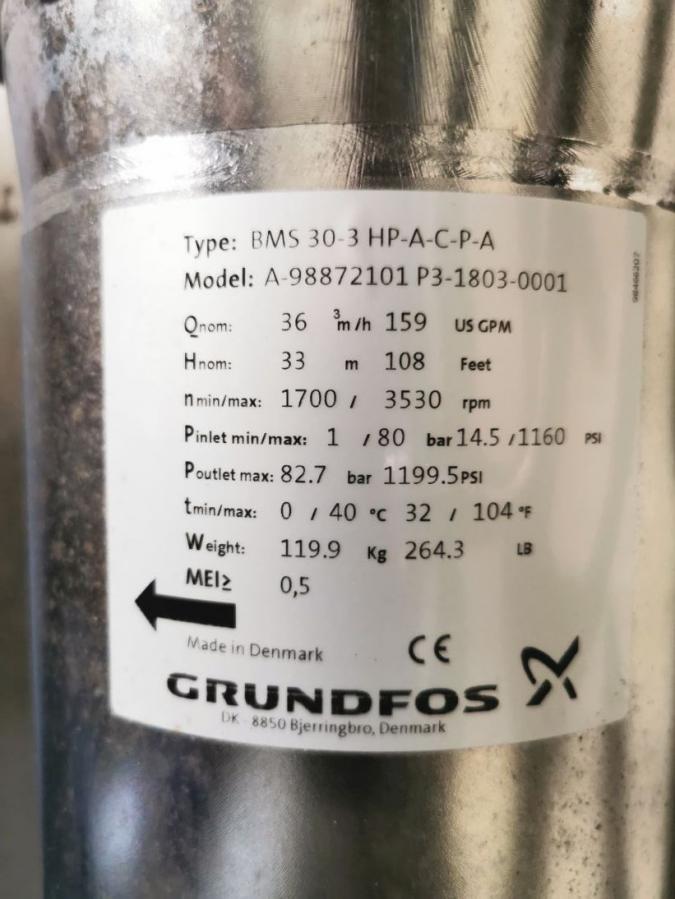

-	BMS 30-3(40m3/h 2.8 bar)

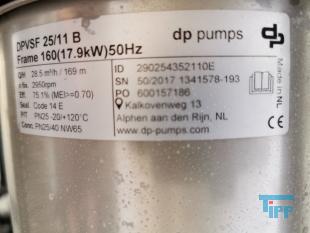

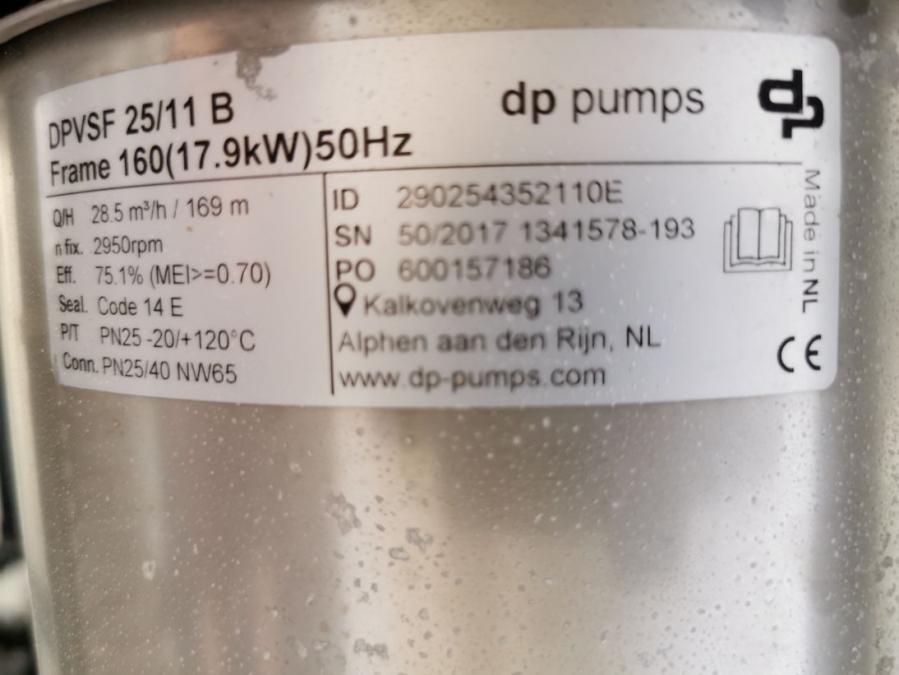

-	DPVSF 25/11(17m3/h 20bar)

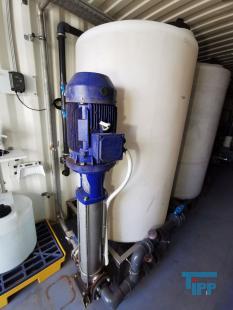

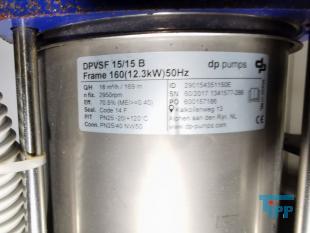

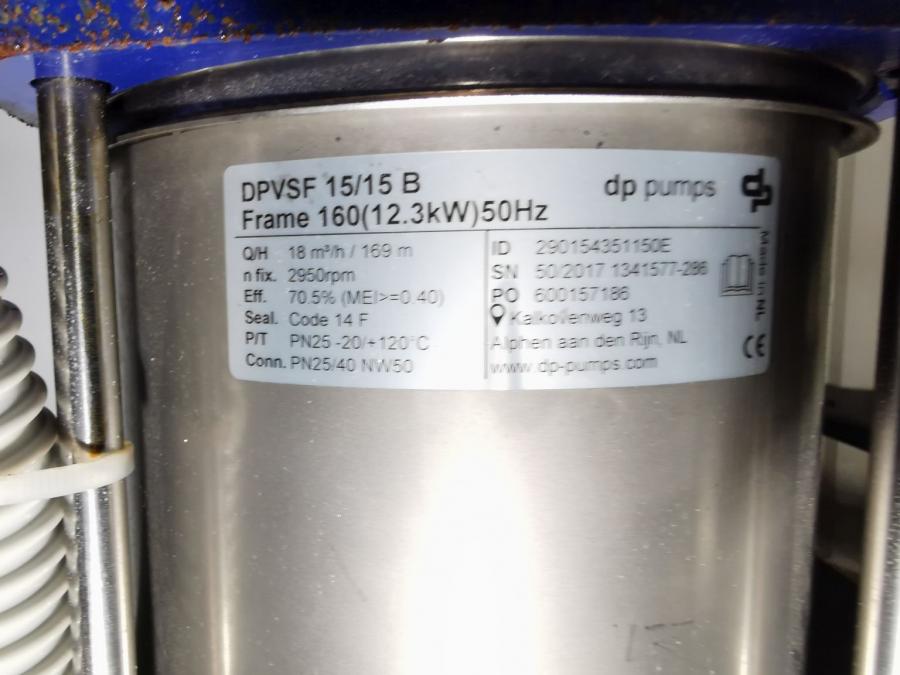

-	DPVSF15/15(17m3/h 15bar)

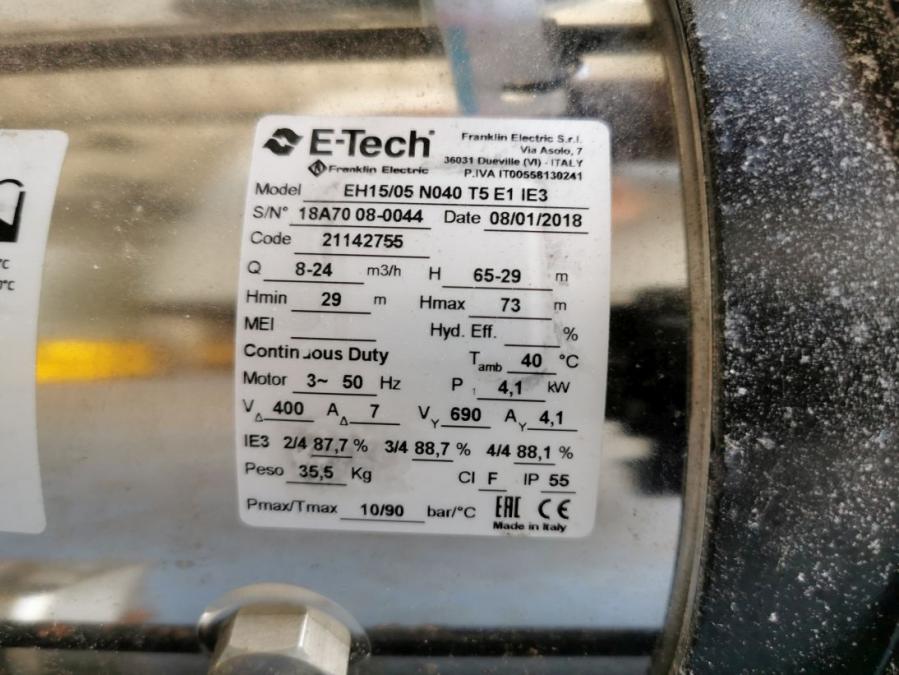

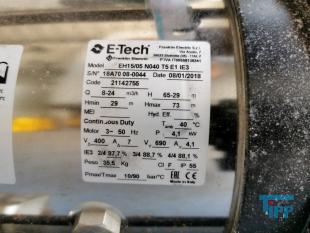

-	EH 15/5 (20m3/h 4.5bar)

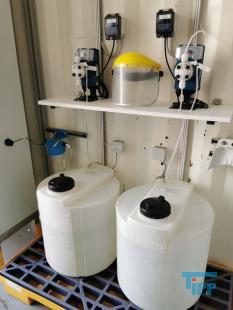

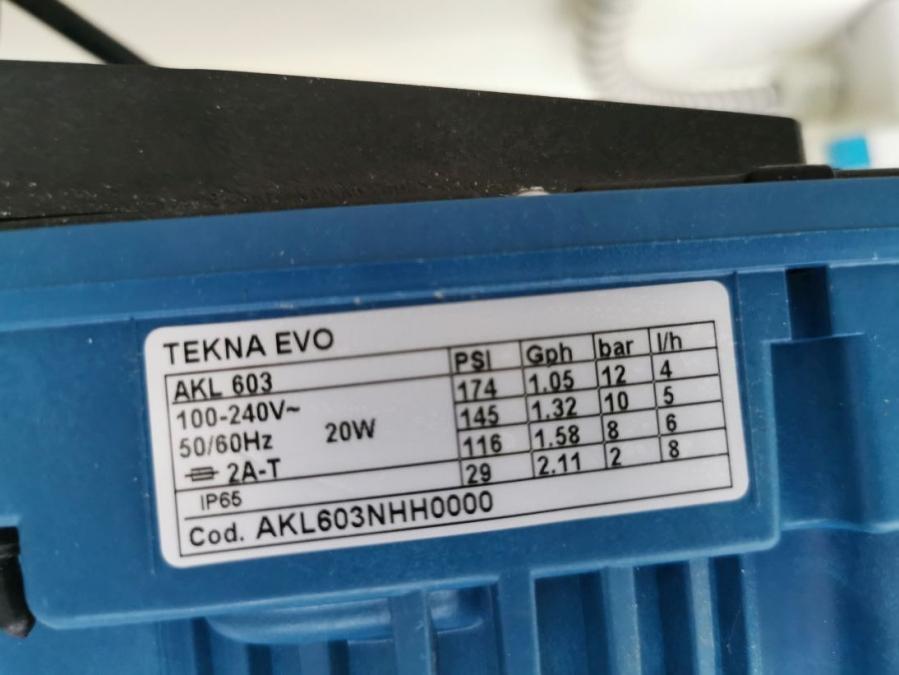

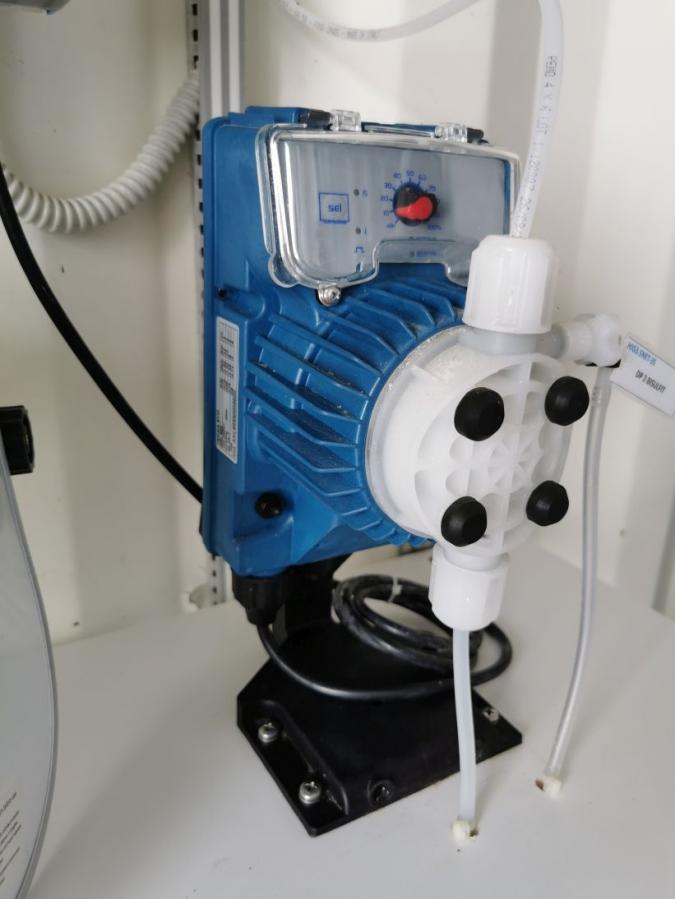

-	2 X SEKO TEKNA AKL 603

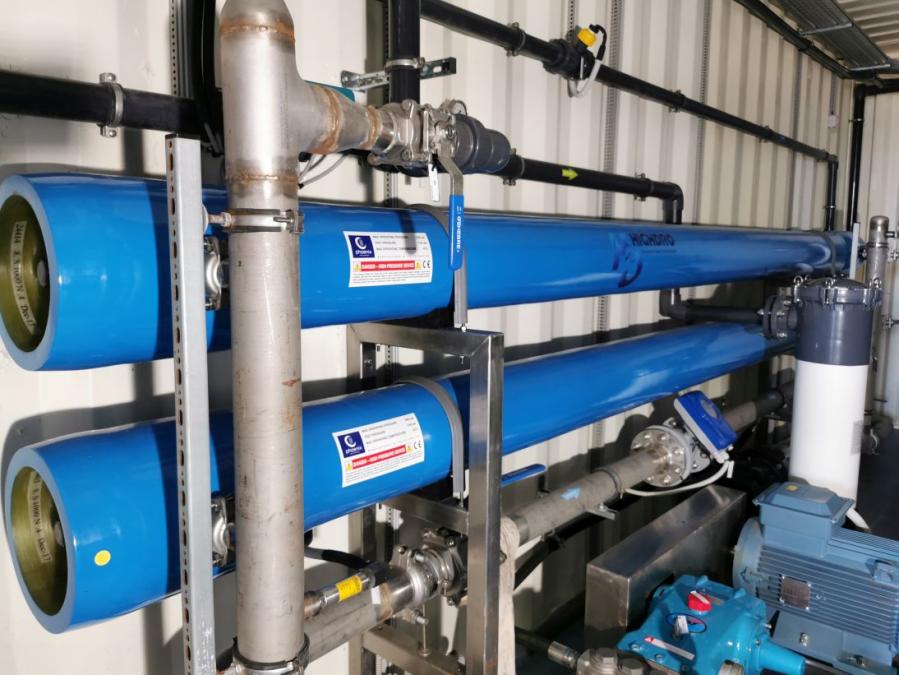

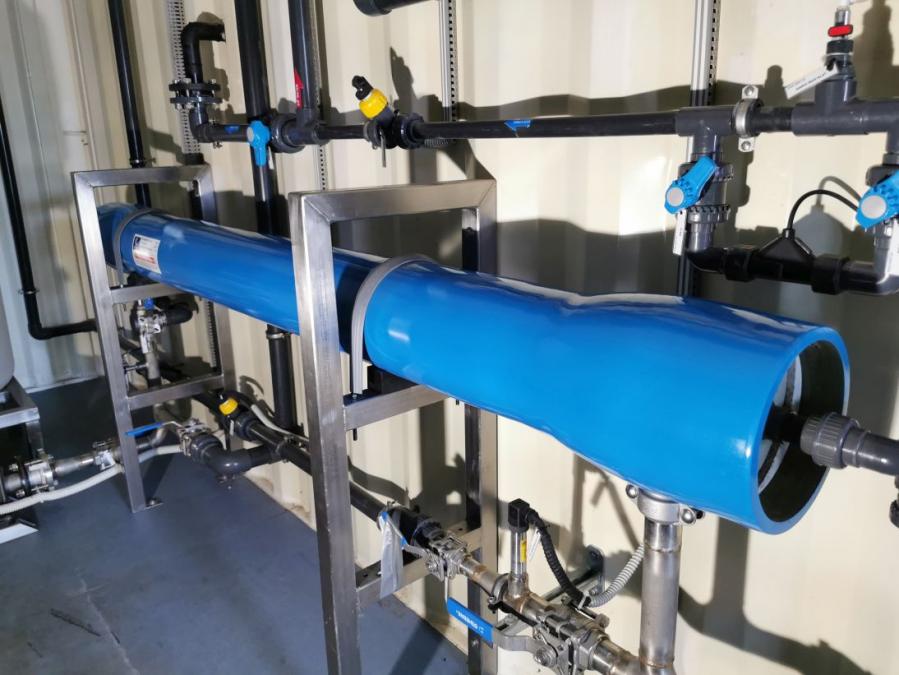

-	(stage 1 - Filmtec SW30HRLE-440 / Phoenix 8 Zoll 1000psi)
-	(stage 2 - Filmtec BW30-400 / Phoenix 8 Zoll 450psi)
-	(stage 3 - Filmtec BW30-400 / Phoenix 8 Zoll 300psi)
Weight	11000 kg
