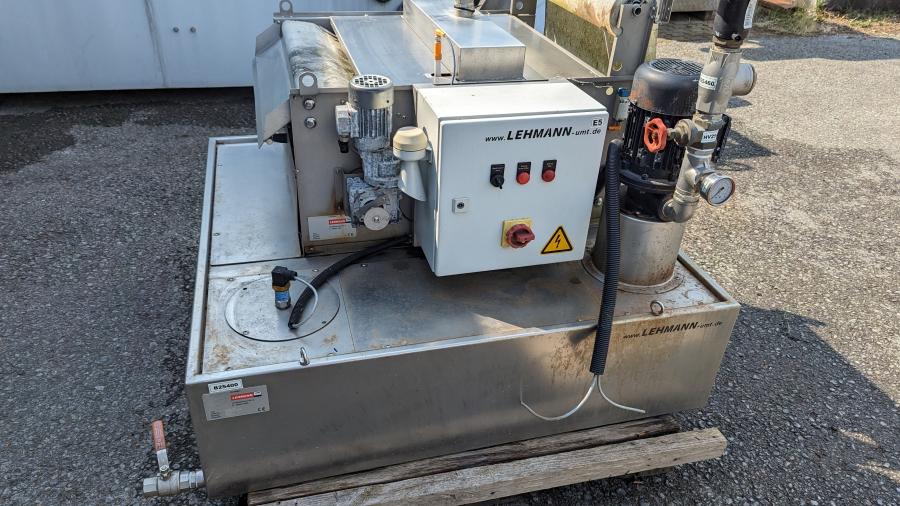

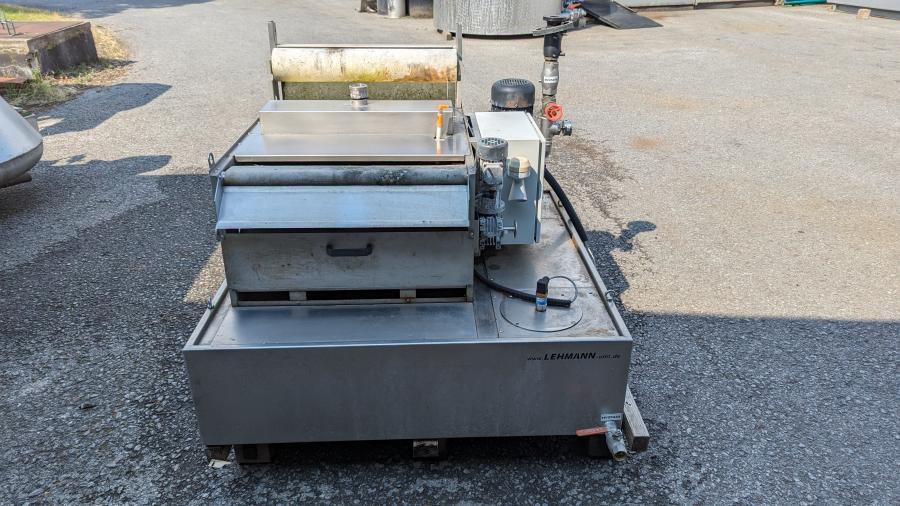

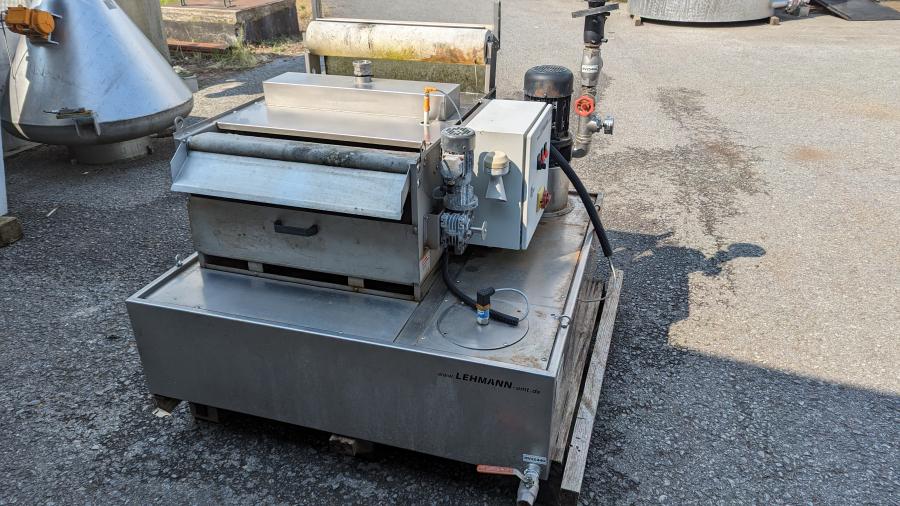

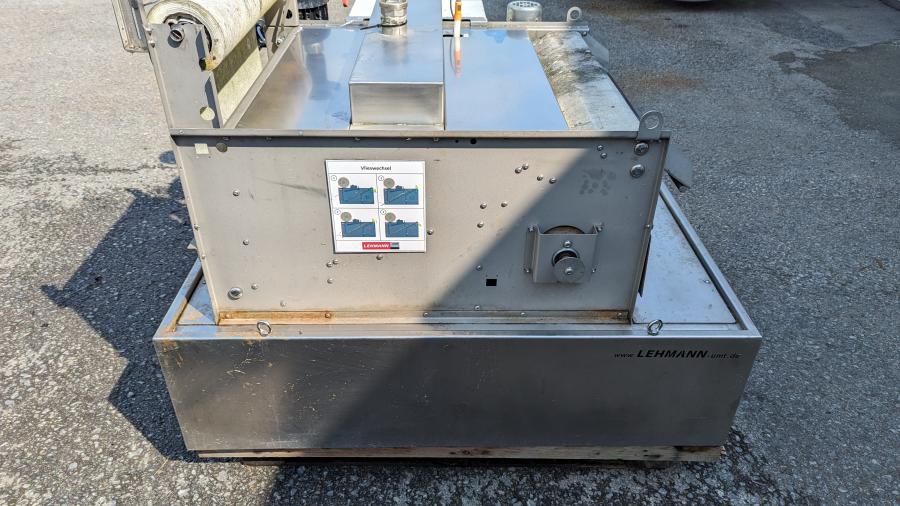

used belt filter with woven filtermedium / filter plant for separatin of solids in water

details to article: 30117

description: The contaminated medium is routed from the machine to the filter system. The filter system includes a fleece filter system in which the cooling lubricant is separated from the impurities. The achievable filter fineness and discharge rate depends on the filtration process used. The cleaned cooling lubricant is stored in a tank and pumped to the machine promoted back.

Producer:	Lehmann
Typ:	KSS 178
Year of manufacture:	2018
Pieces:	1

technical data
Power	200 l/min (at 30µ filter fineness)
Volume	400 l (max filling volume)
Pressure	0.5 bar (max)
Power	1 kW

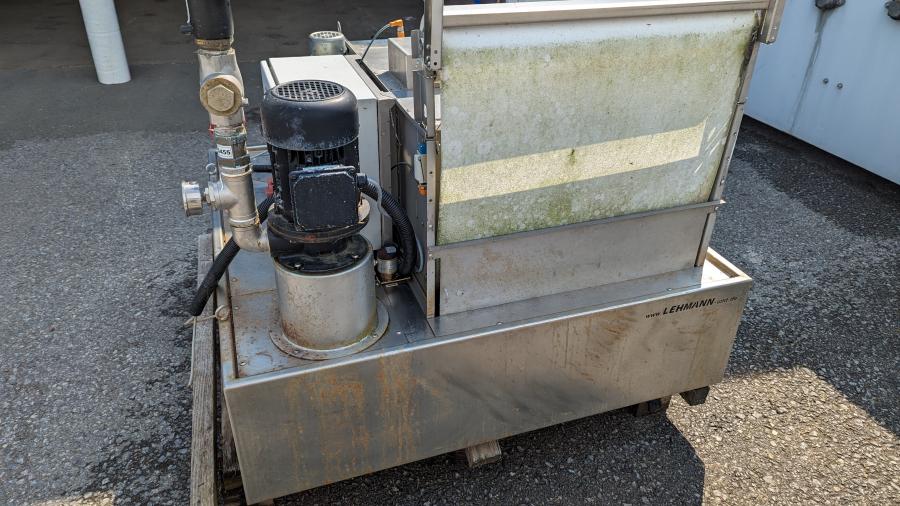

-	(Submersible pump Lehmann KMP220/490)
Length	1250 mm
Width	1250 mm
Height	1100 mm
Weight	kg ()

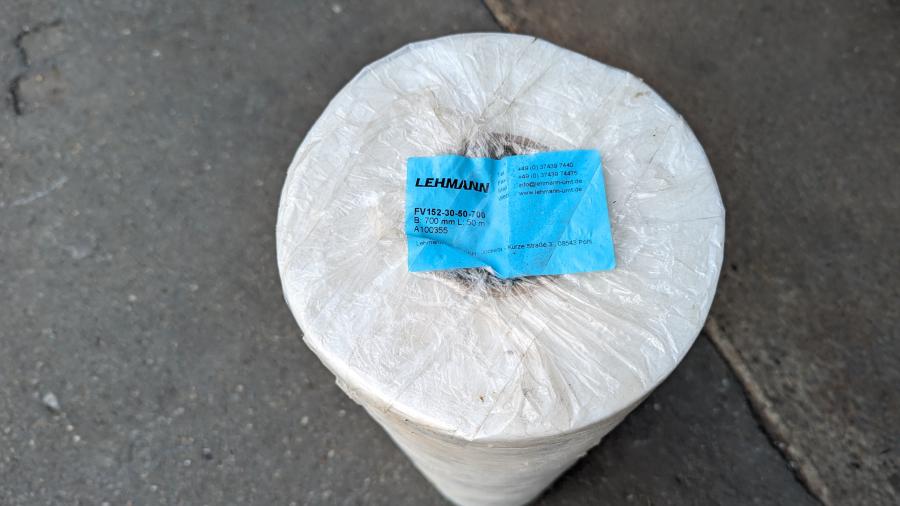

Accessories	(3 Rolls of Filter Fleece)
