used activated carbon filter / exhaust air treatment

details to article: 30157

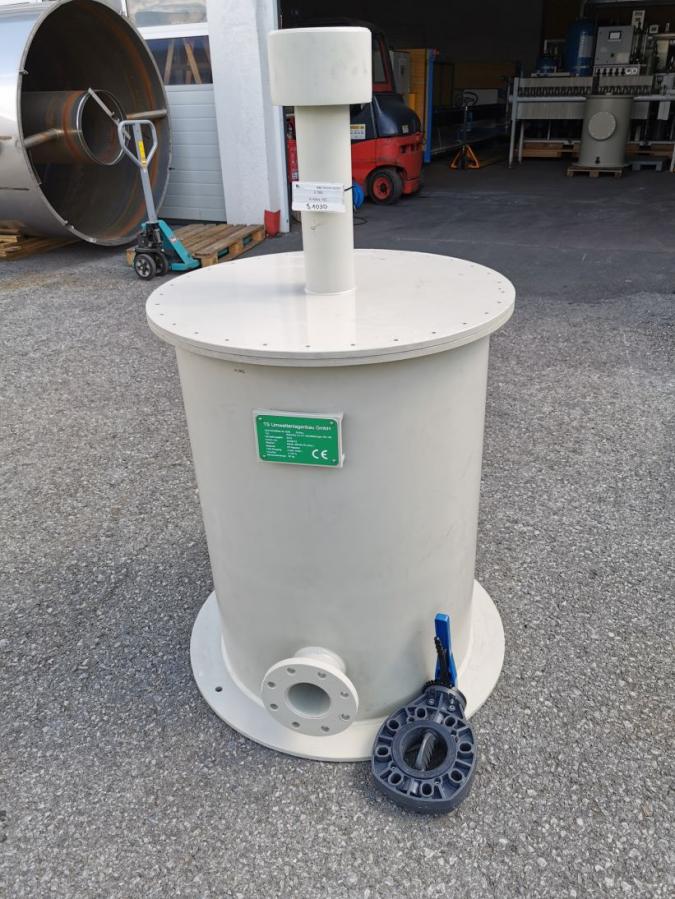

description: PP adsorber
Previous use for H2S.
Can be filled with approx. 60kg activated carbon.
PP grid plate for a fleece (not available) as separating layer.
Chimney with weather bonnet.

Producer:	TS Umweltanlagenbau GmbH
Year of manufacture:	2019
Pieces:	1

technical data
Diameter	700 mm (outside)
Diameter	680 mm (inside)
Width	900 mm (With connectors)
Height	1000 mm (Tank)
Height	1500 mm (with chimney)
Connections	DN 100 (Exhaust air inlet - fixed flange)
Connections	DN 25 (Condensate outlet)
Connections	DA 300 (Filling hole on the side)
Connections	100 mm (Exhaust air outlet inside)
Accessories	DN 100 (Shut-off valve)
