used wastewater treatment plant

details to article: 30255

description: Plant for the treatment of wastewater.

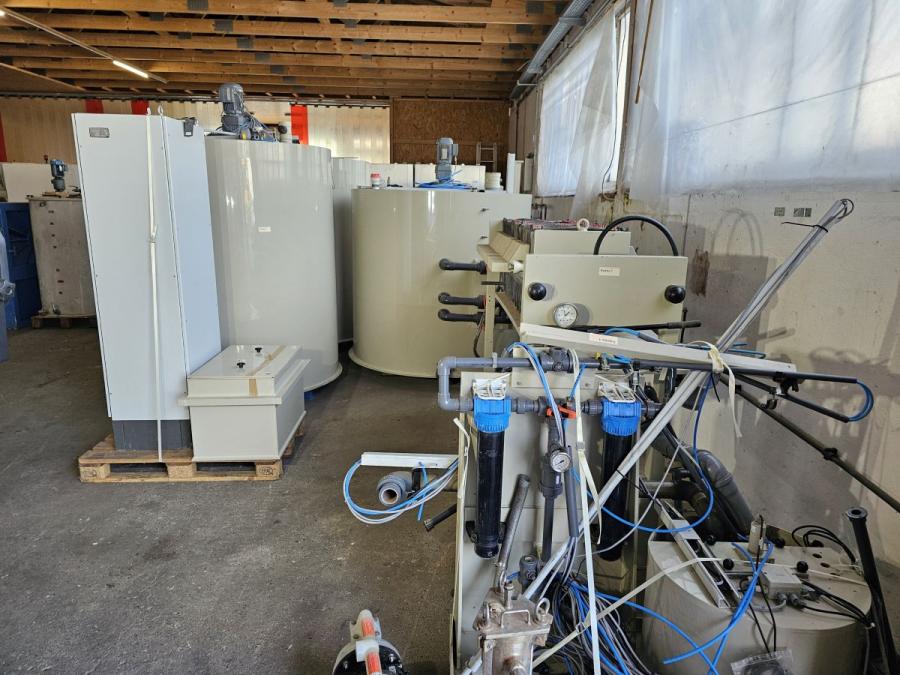

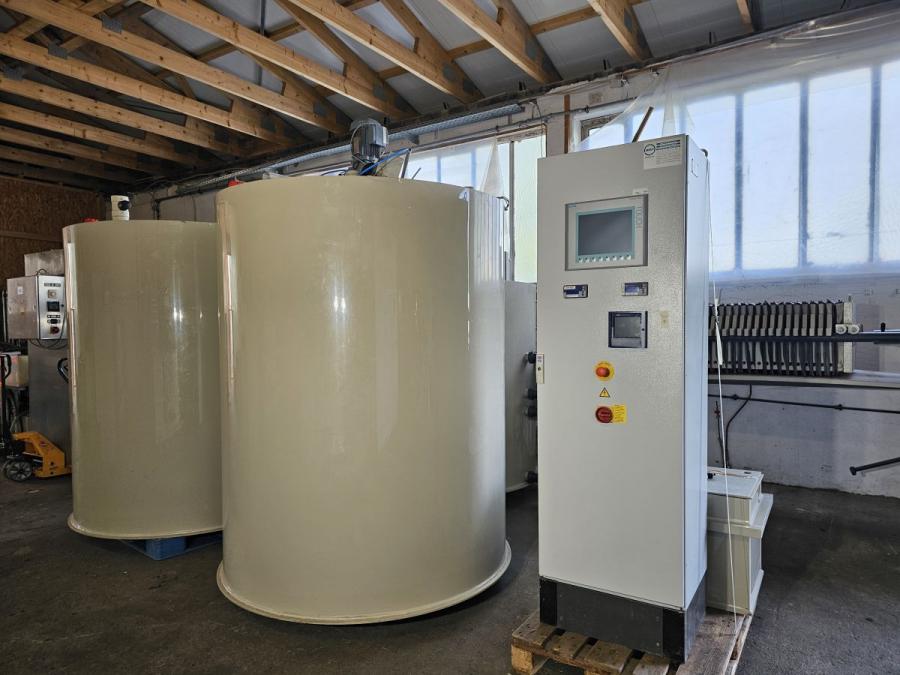

The system essentially consists of:

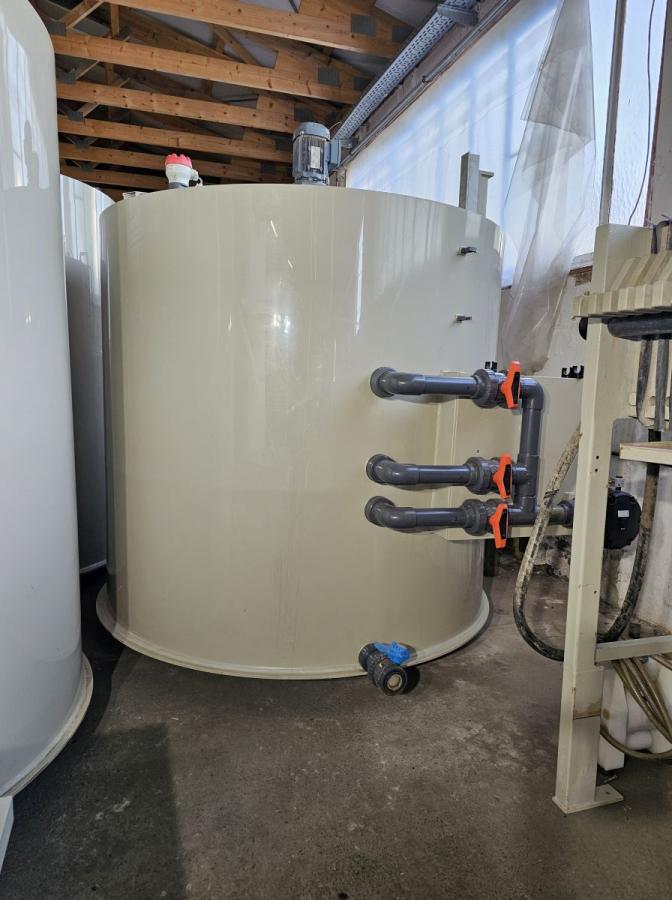

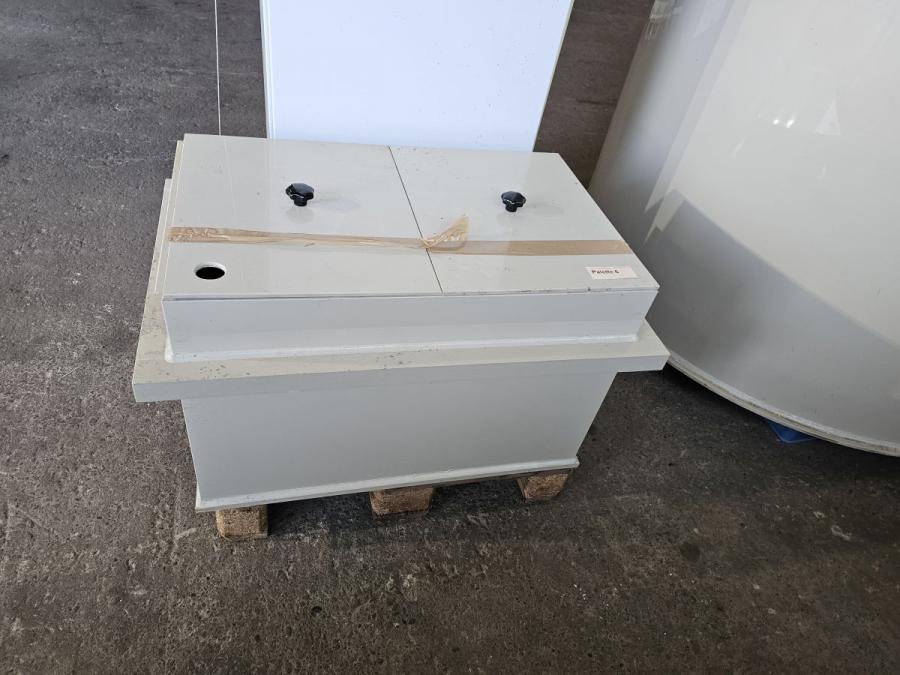

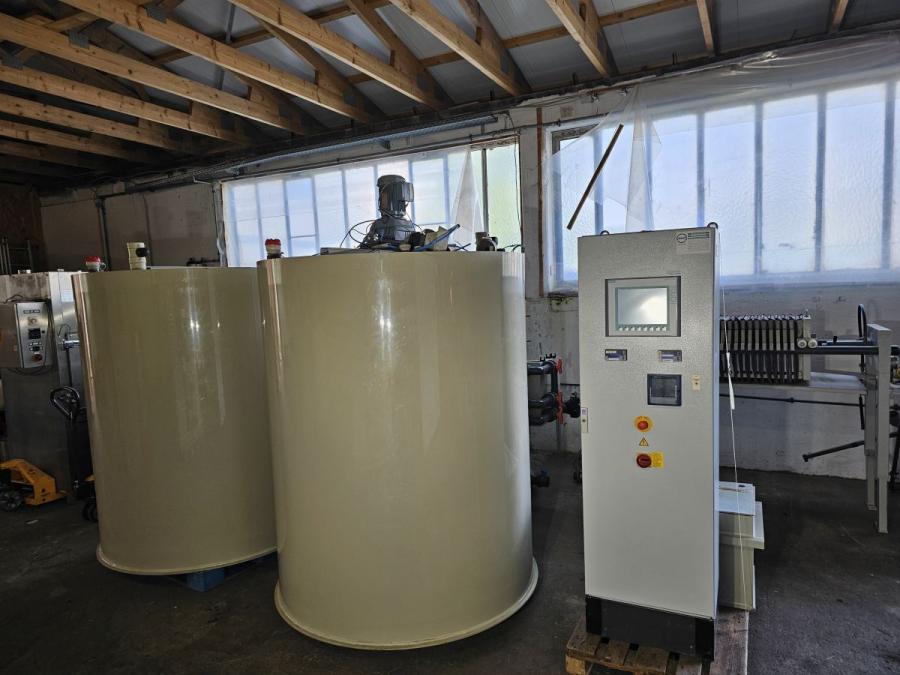

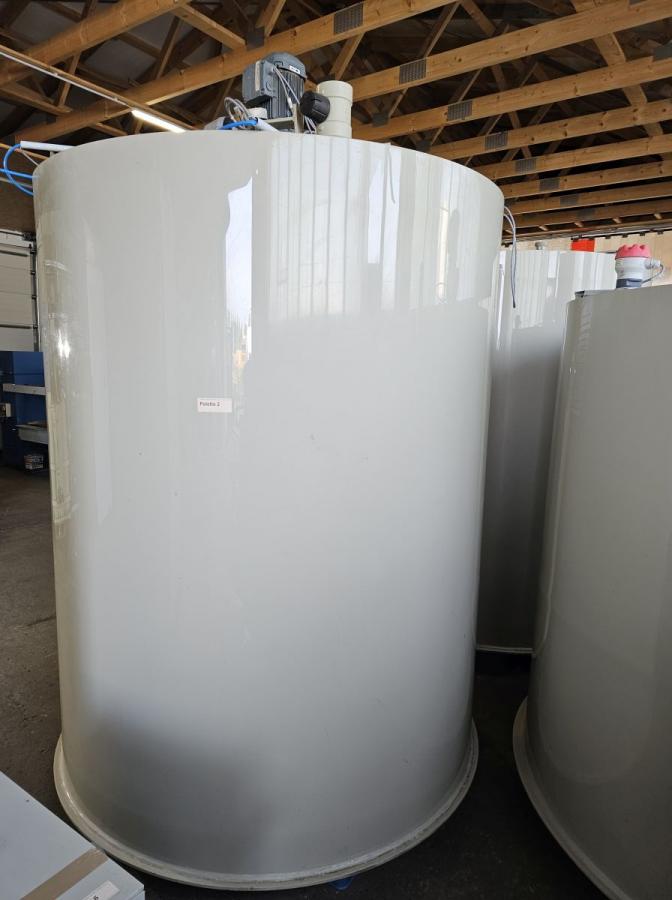

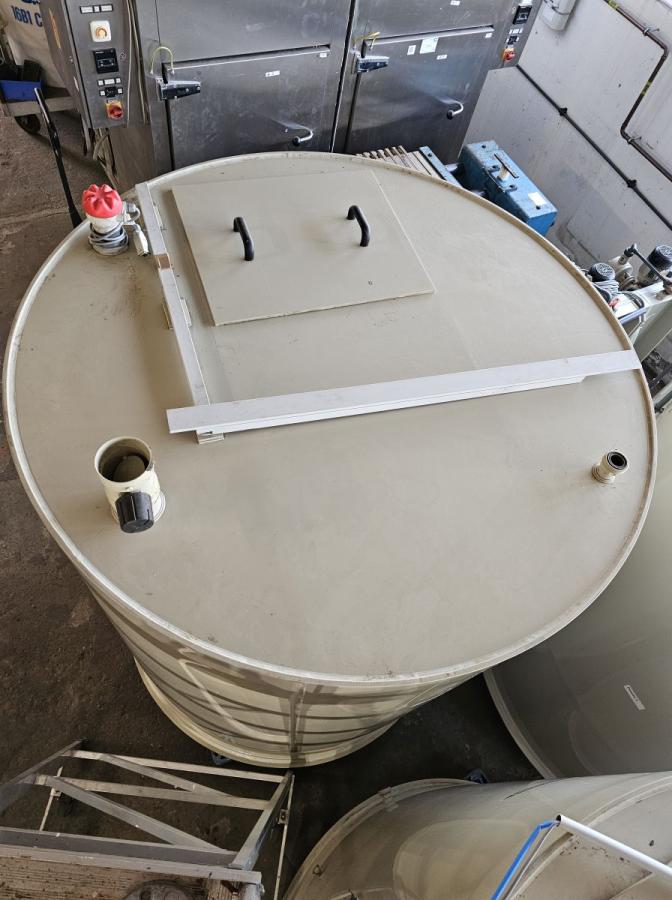

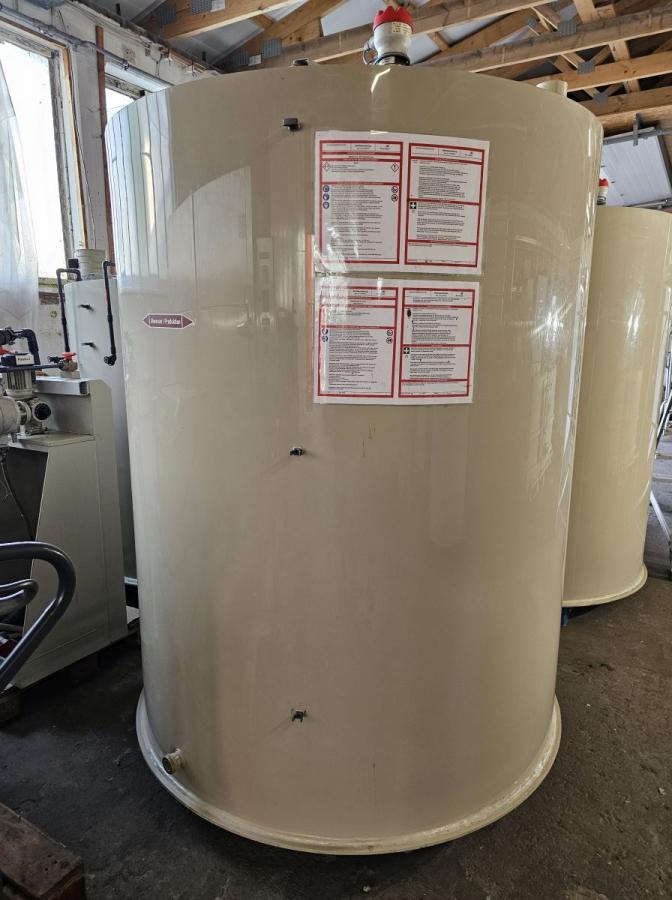

- 2 storage containers, 1 x with agitator

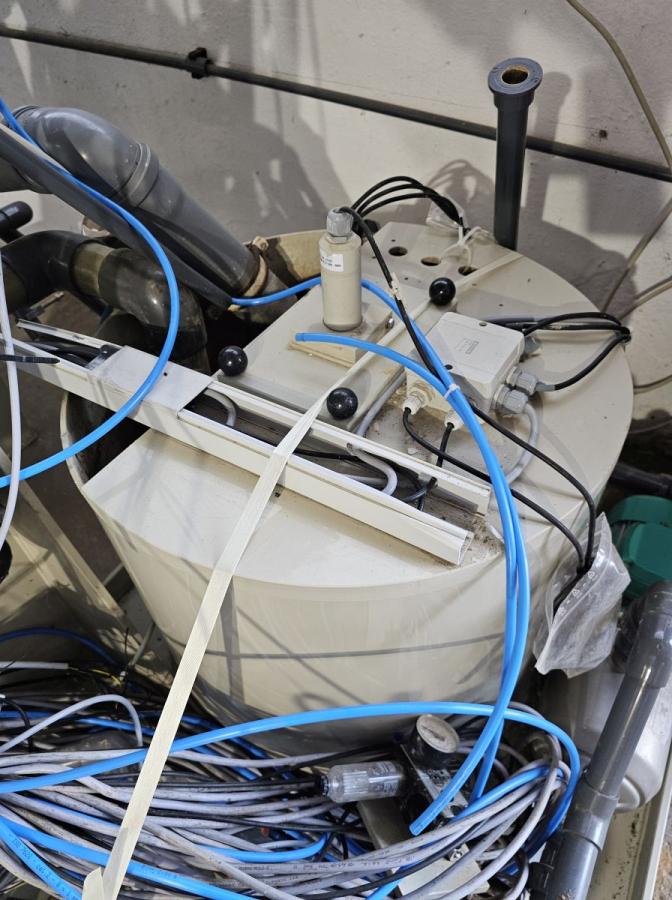

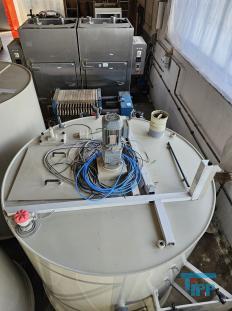

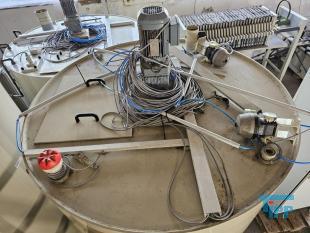

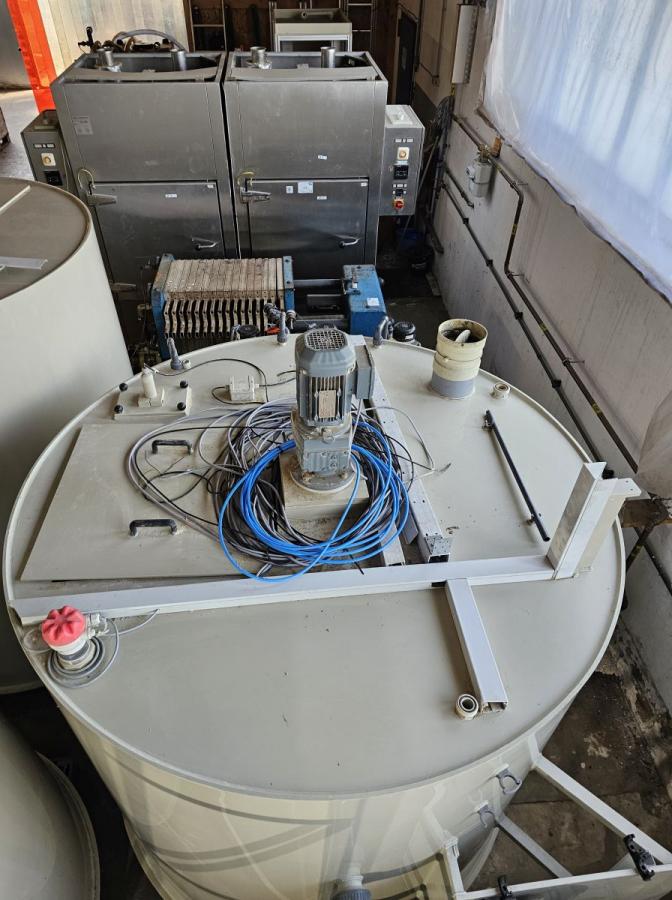

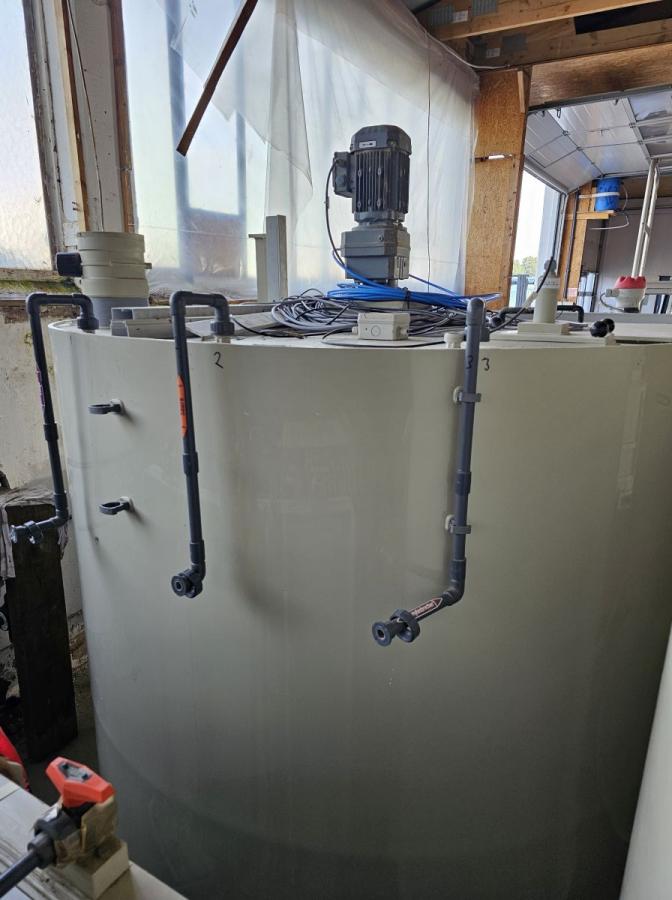

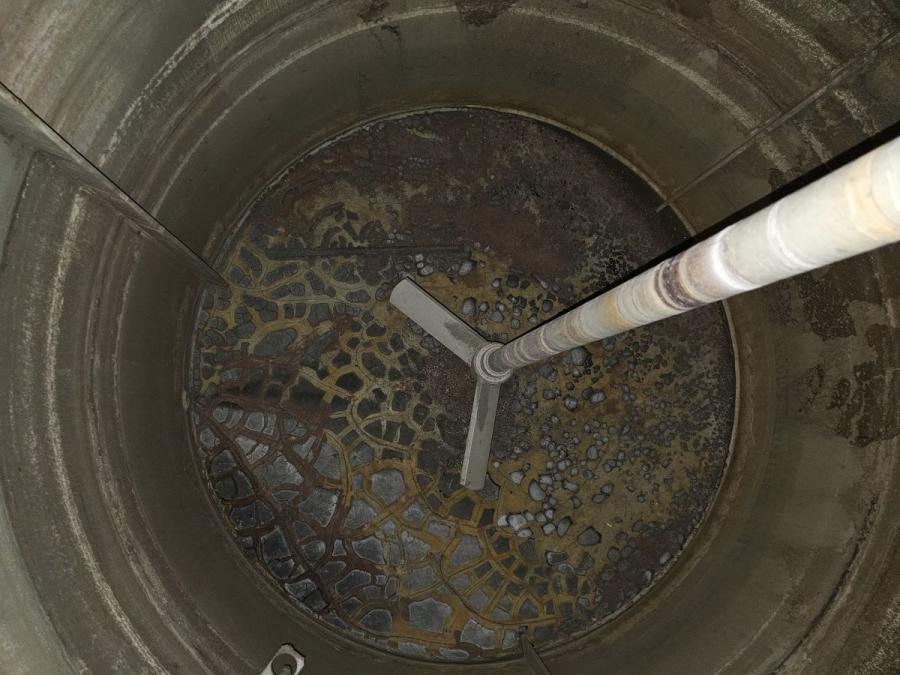

- 1 piece reaction container with agitator

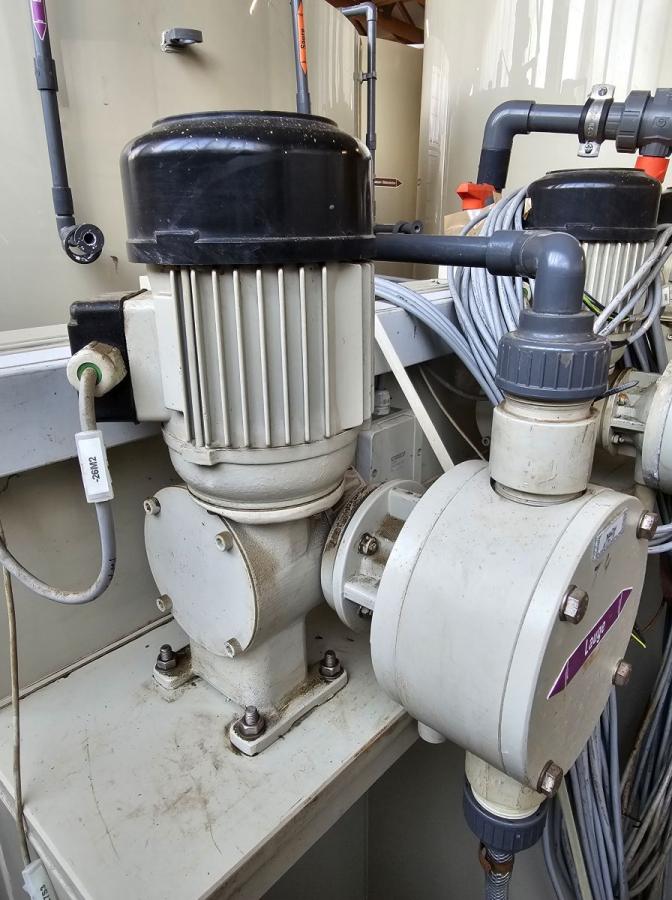

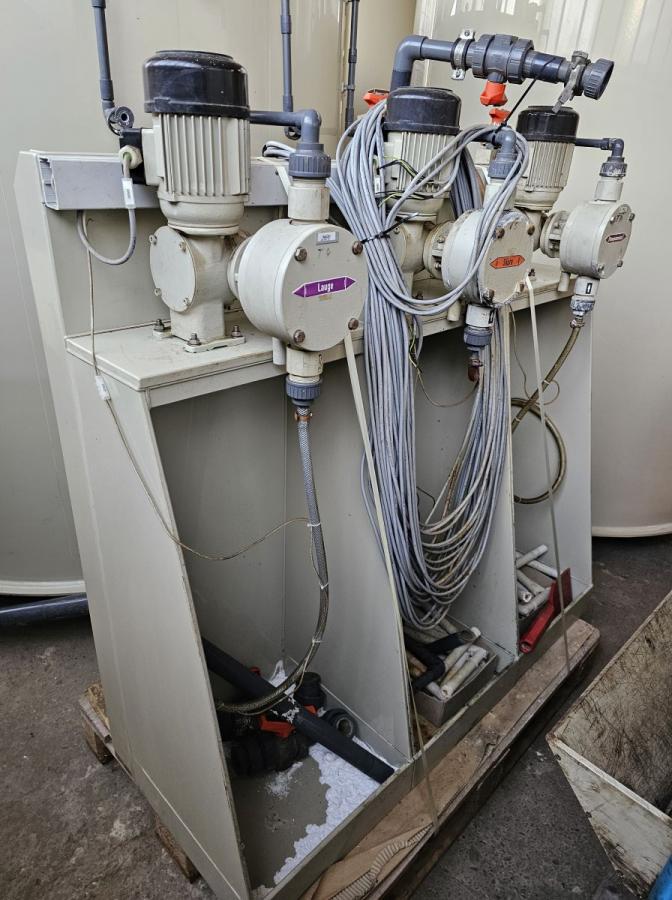

- 1 dosing station with 3 Jesco pumps

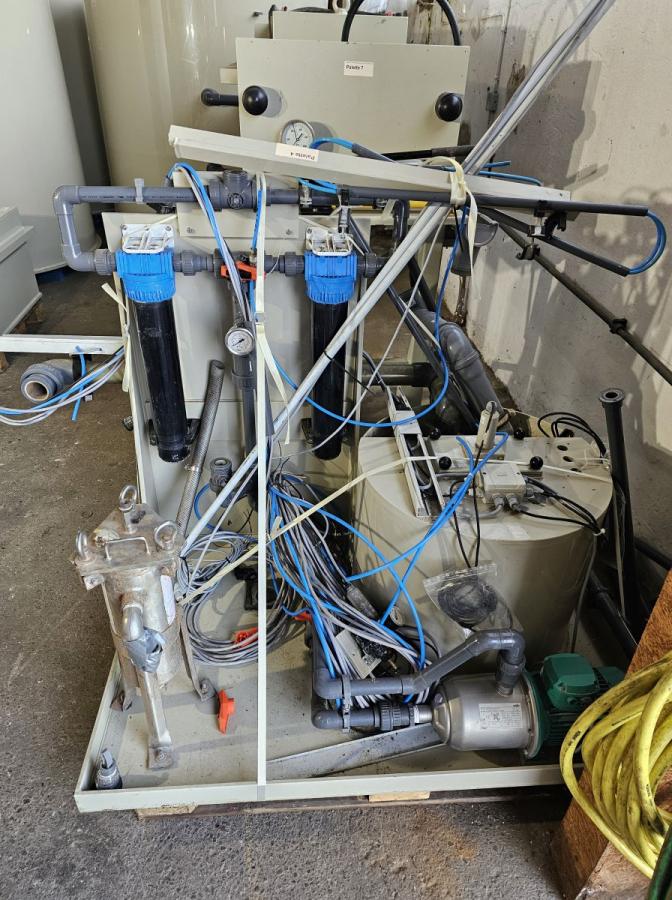

- 1 piece pre-filter system

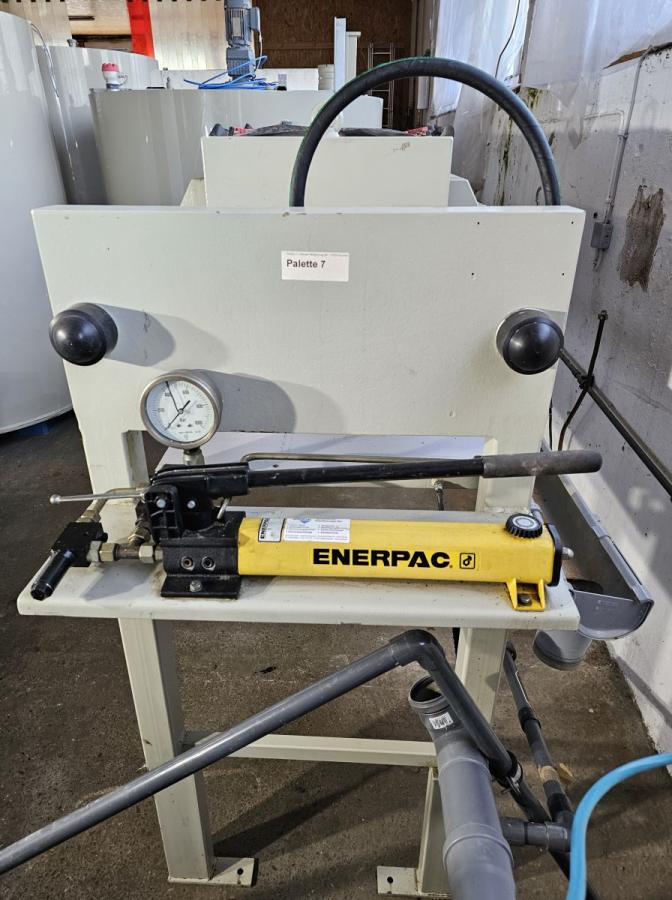

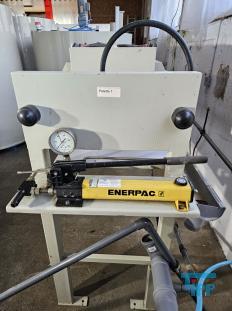

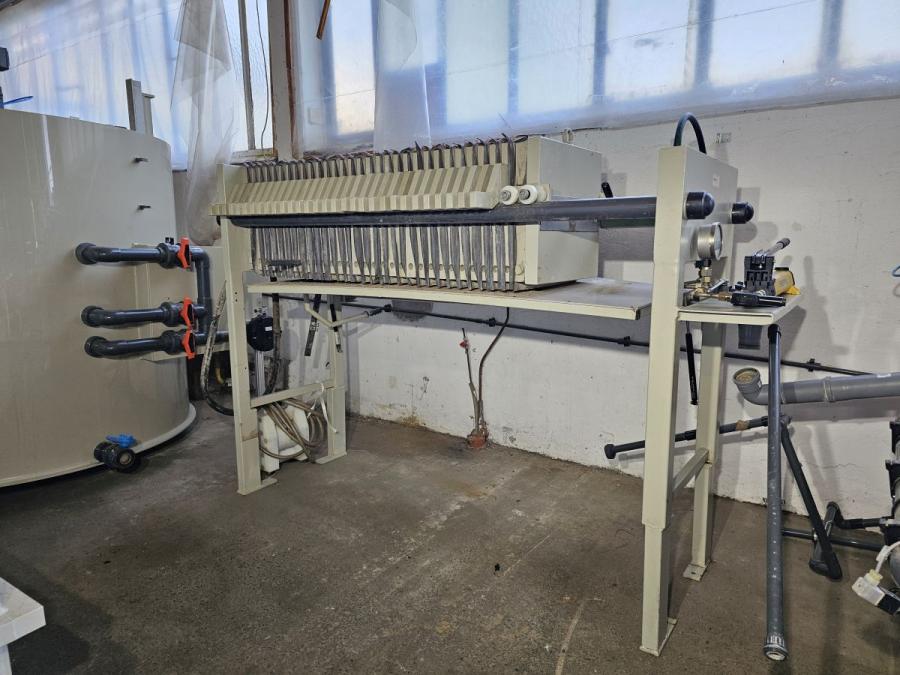

- 1 pc. Chamber filter press with 30 plates 470

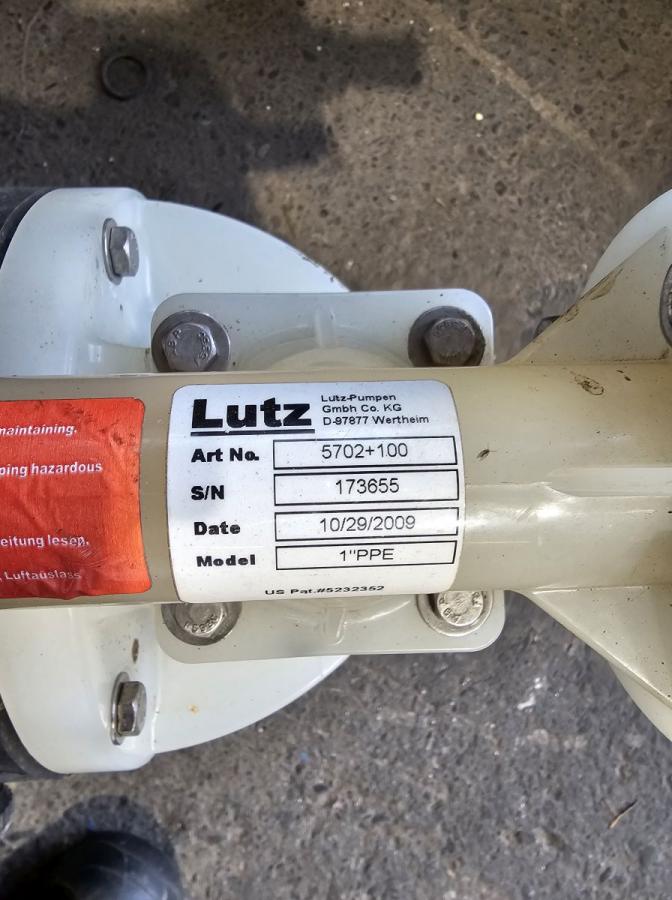

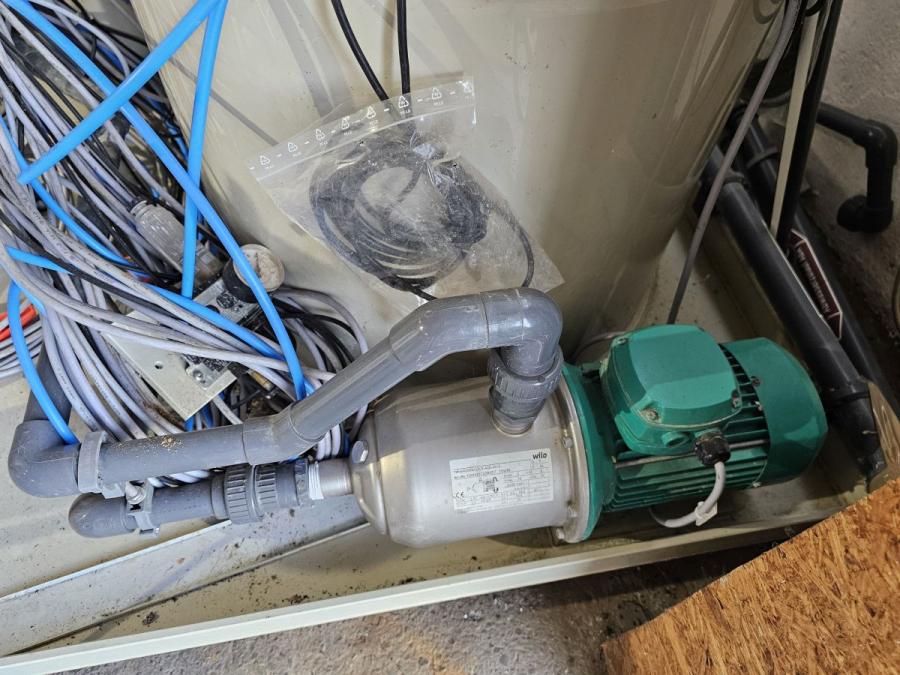

- Various pump

The complete piping and cabling is in place so that the system
can be rebuilt ready for operation.

Producer:	AWA
Year of manufacture:	2014
Pieces:	1

technical data
Volume flow rate	1.2 m³ (batch volume)
Dimensions	(installation surface approx. 4x8m)

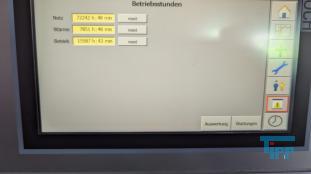

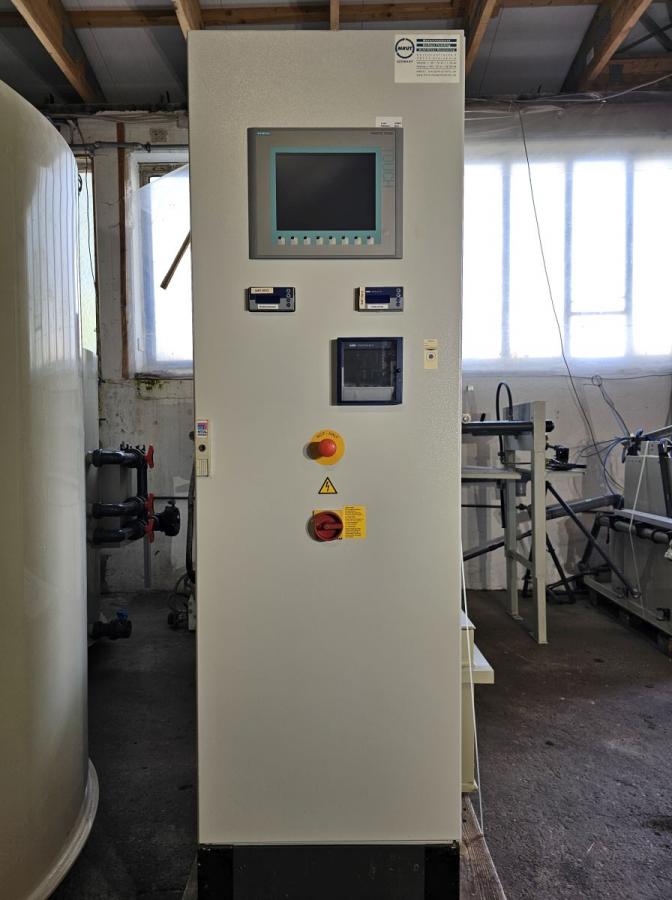

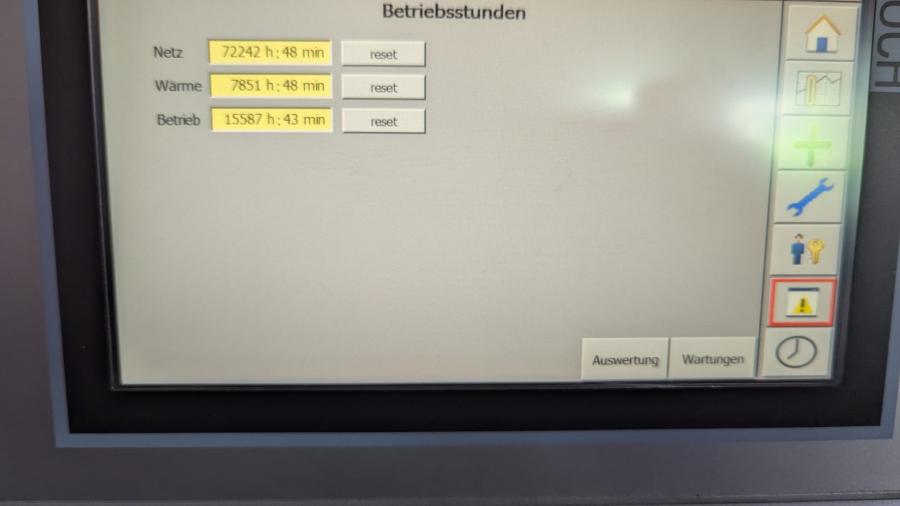

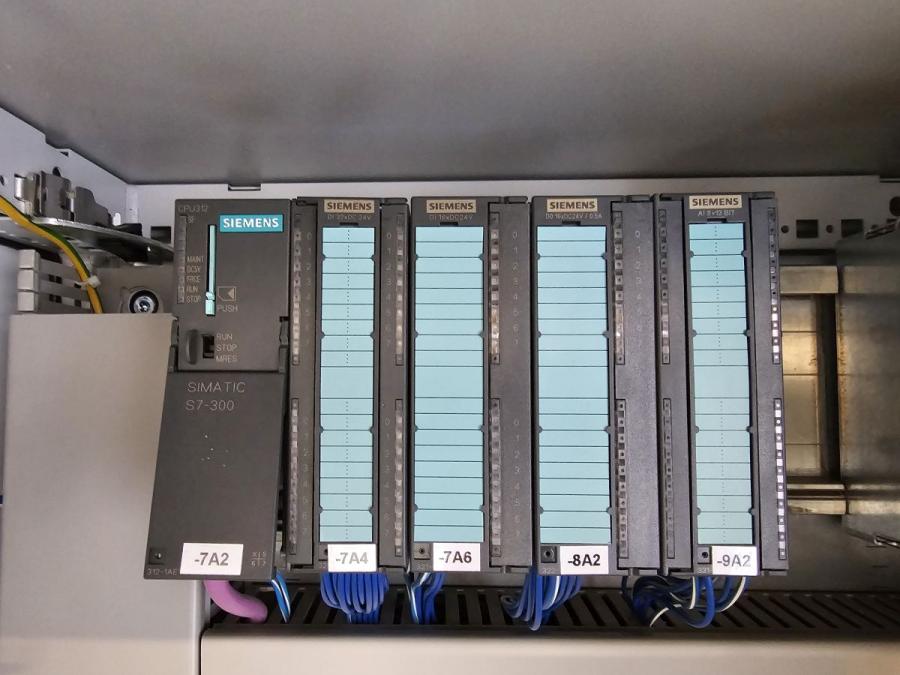

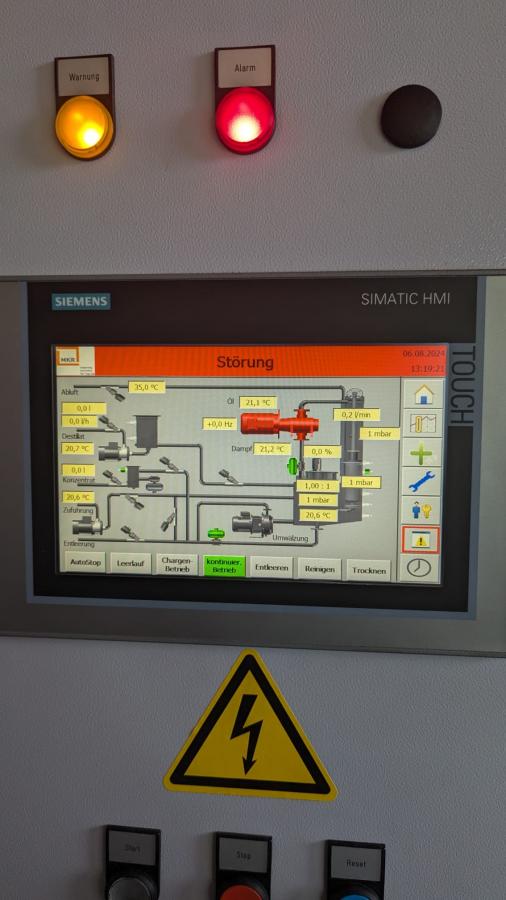

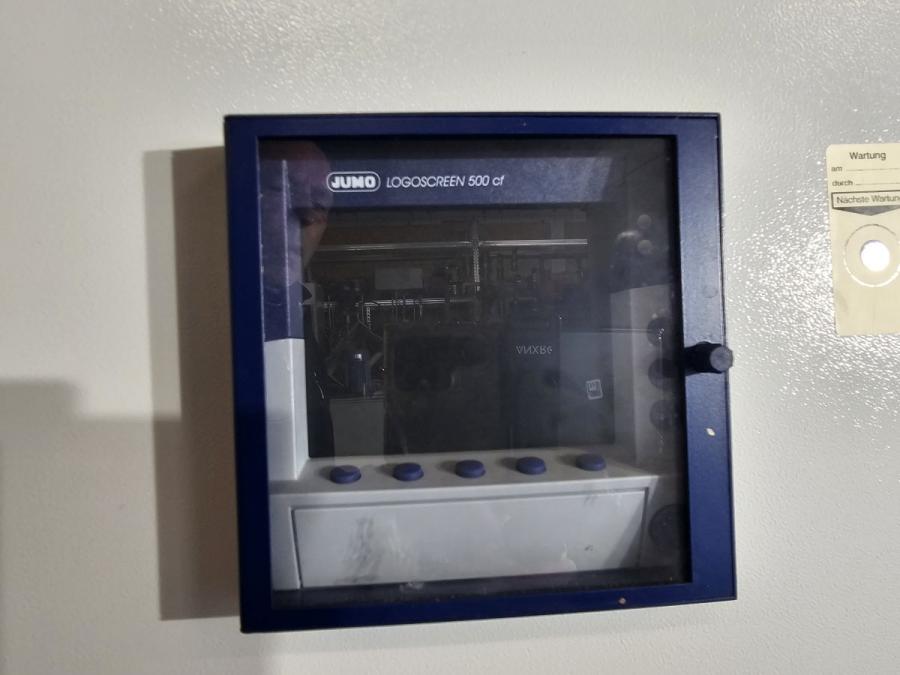

Steering	CPU S7 312, KTP 1000 DP TFT, Jumo 500 Logoprint

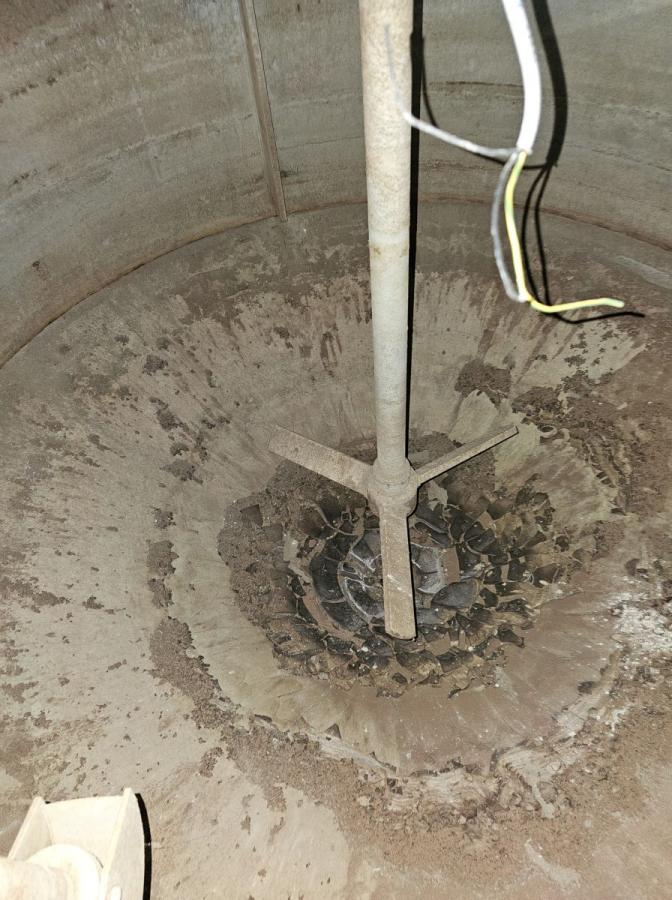

Rotations	74 1/min (agiator)
Delivery rate	80 l/h ()
Pressure	5 bar

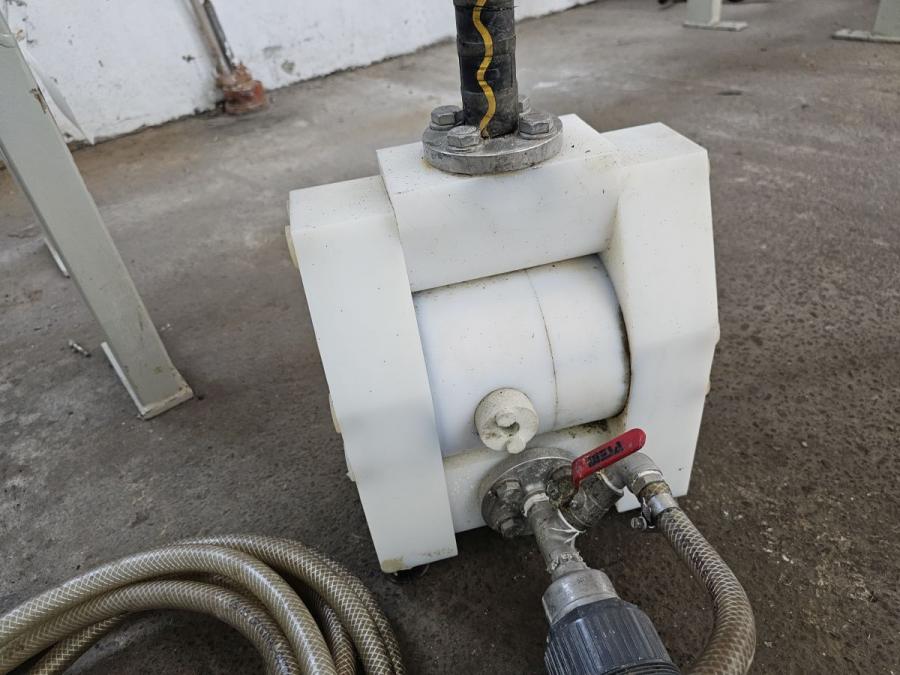

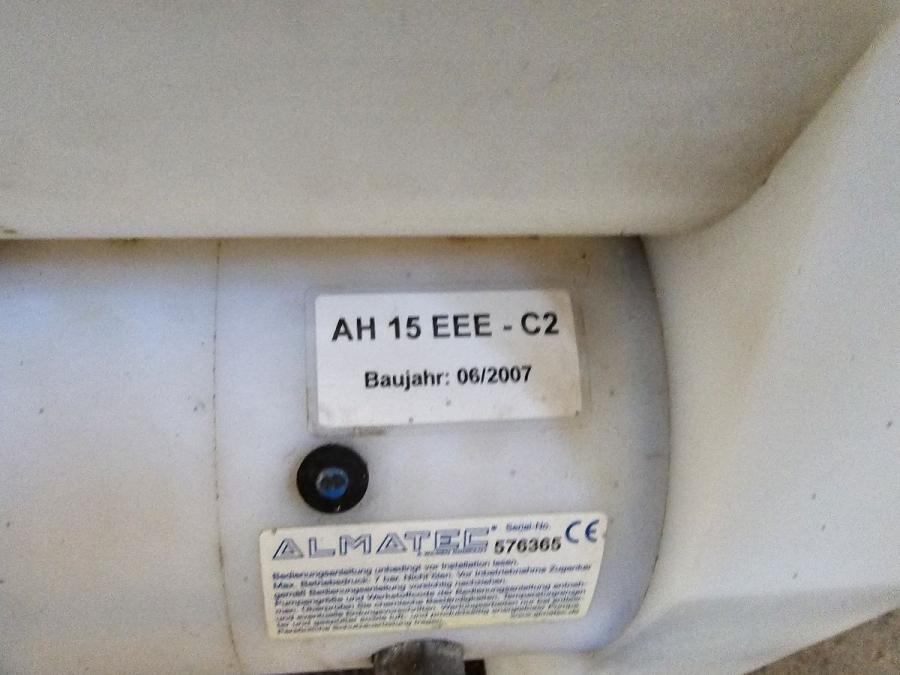

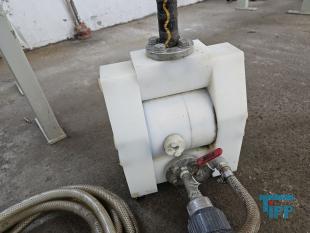

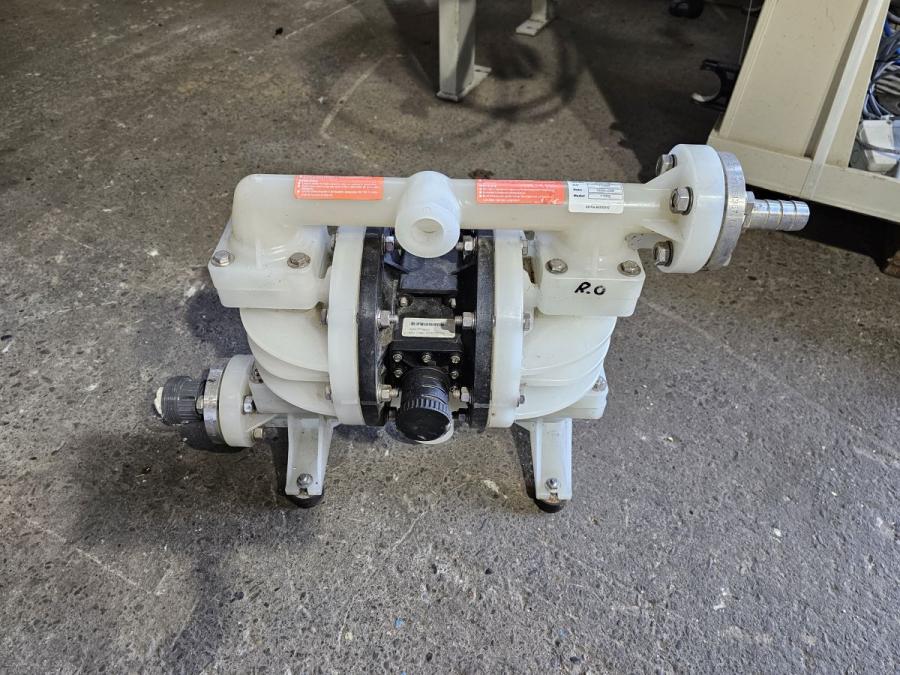

Delivery rate	4 m³/h (max. Almatec AH 15 - feeding pump)
Pressure	7 bar
Pressure	400 bar (closing pressure chamber filter press)
