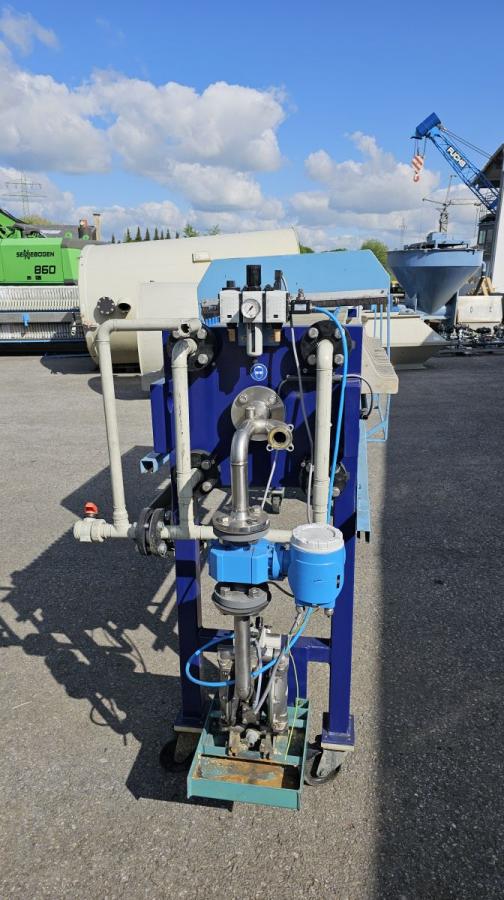

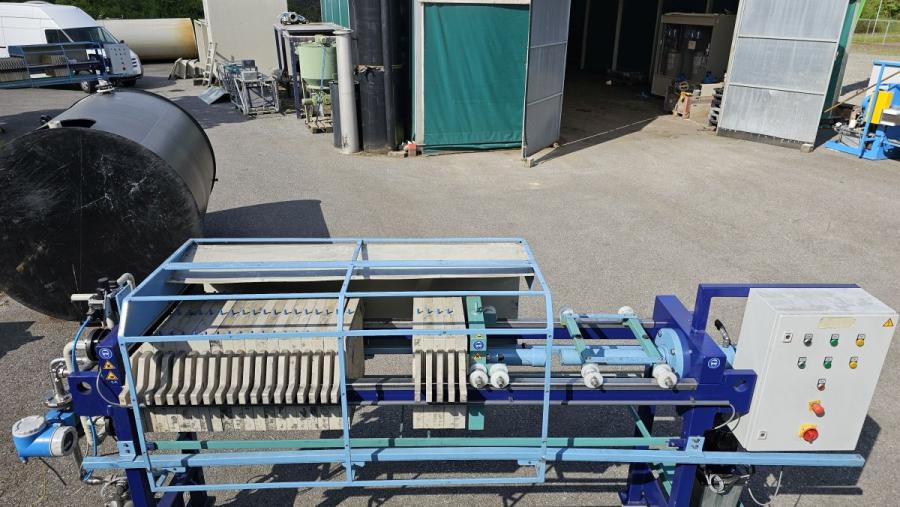

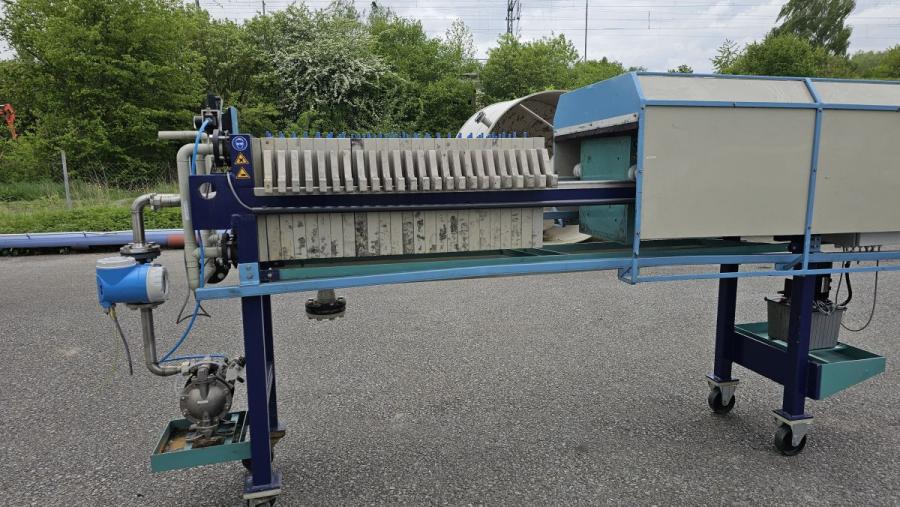

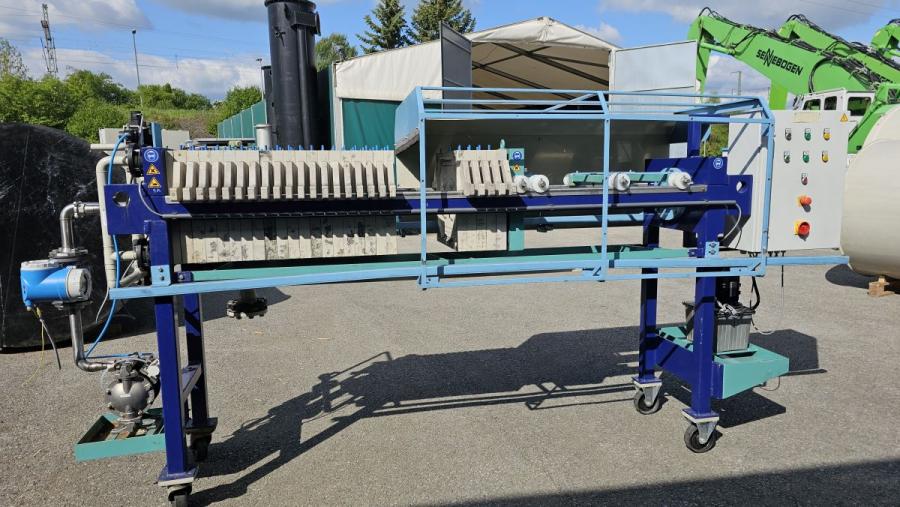

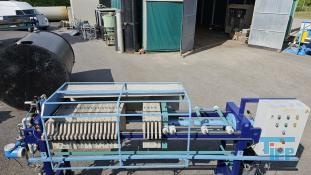

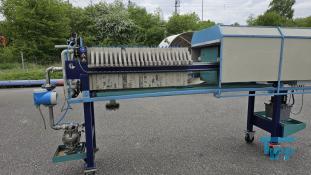

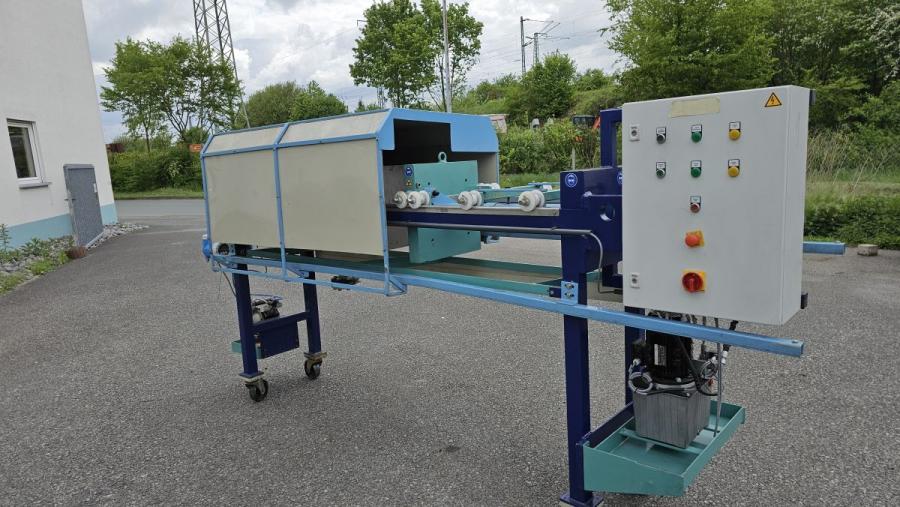

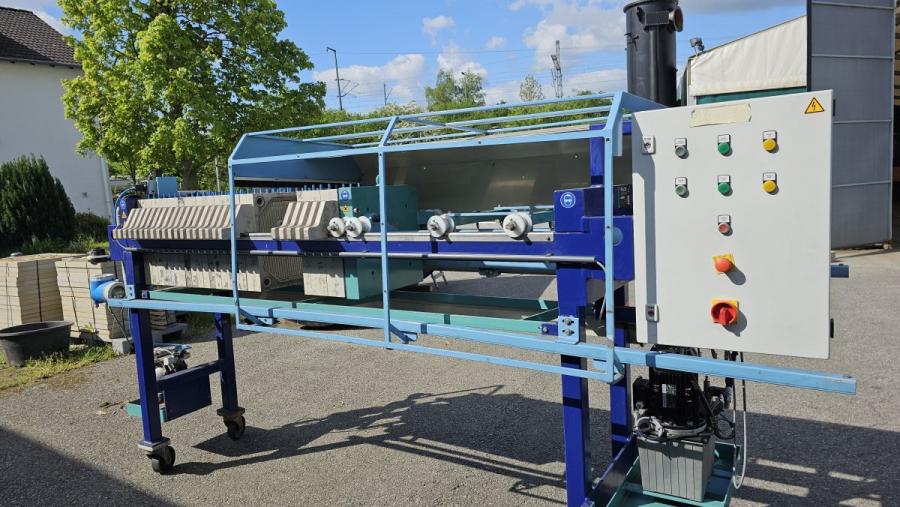

Chamber filter press with closed filtrate outlet
details to article: 30385

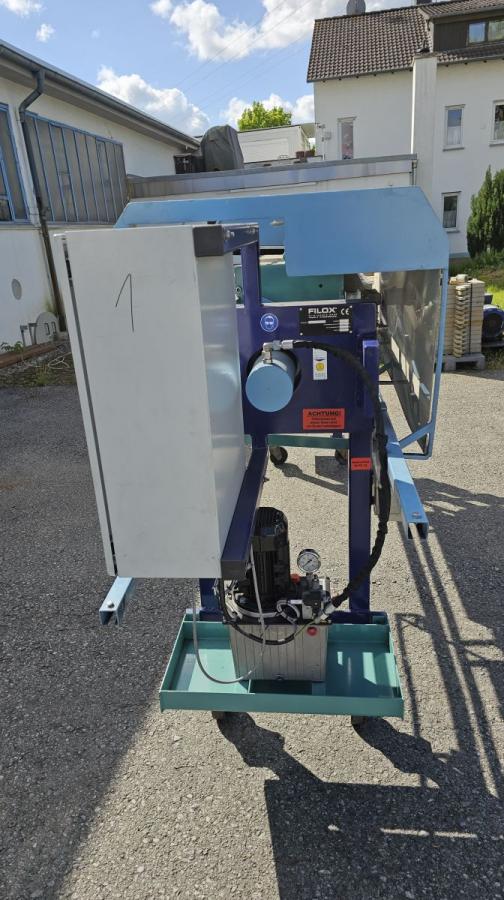

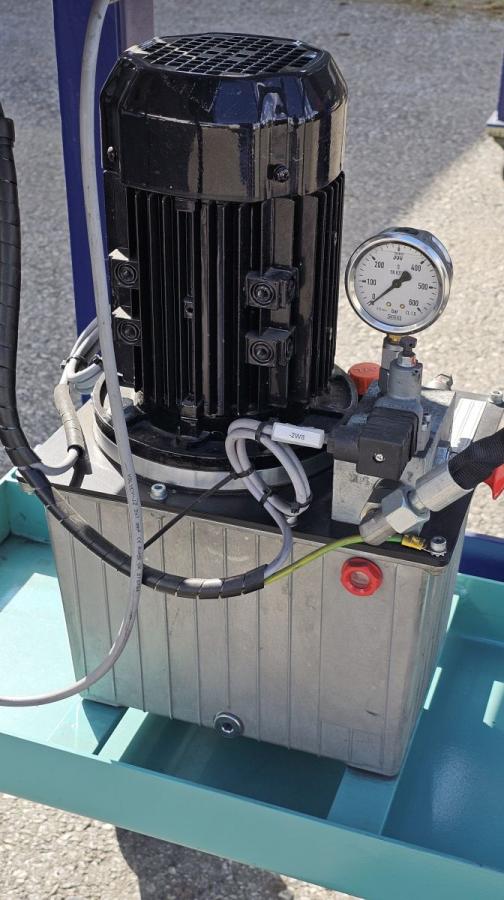

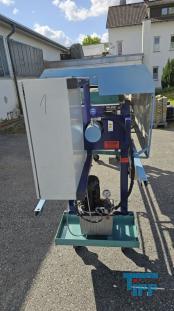

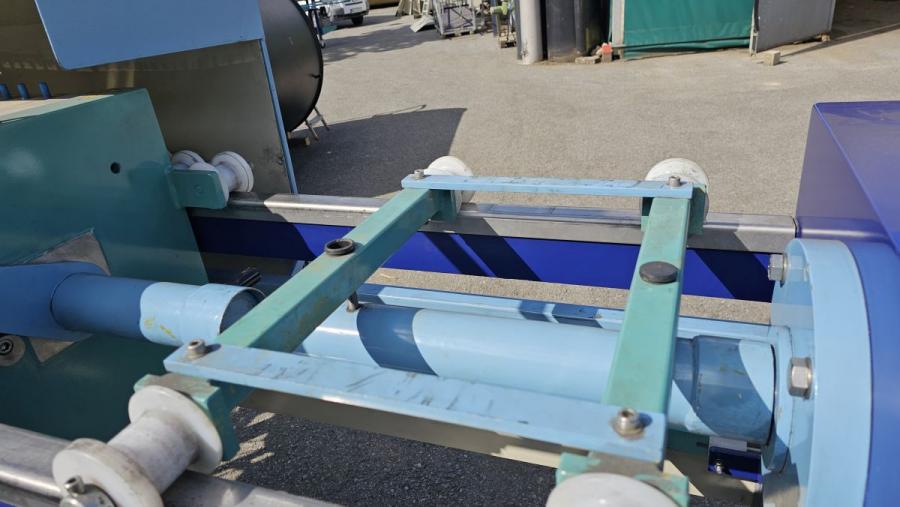

description: Hydraulic closure by means of single-acting cylinder (stroke length 150 mm), swivelling intermediate piece to enlarge the working opening and 1-stage motor pump.

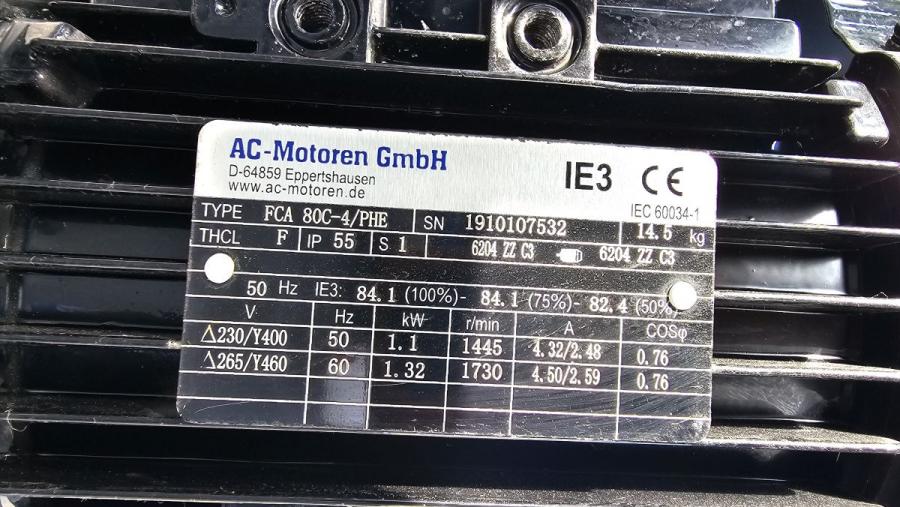

Maximum closing pressure 450 bar - Motor power 1.1 KW

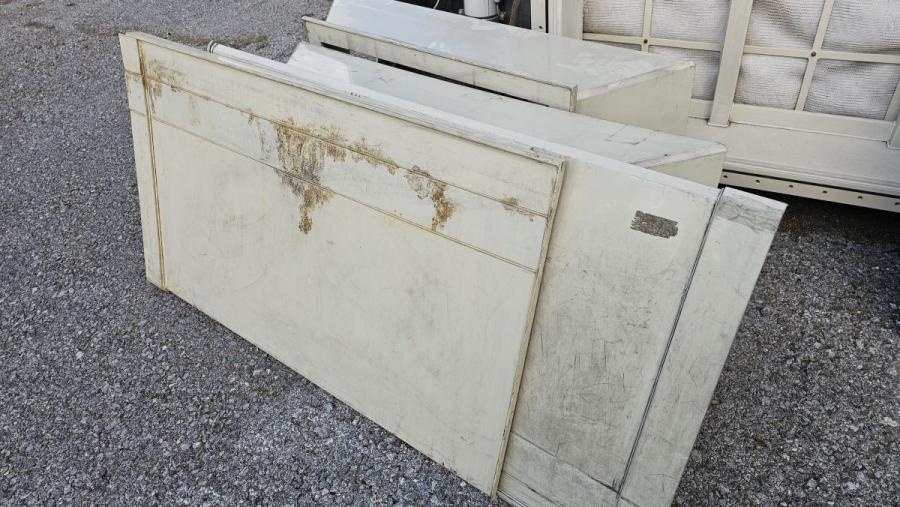

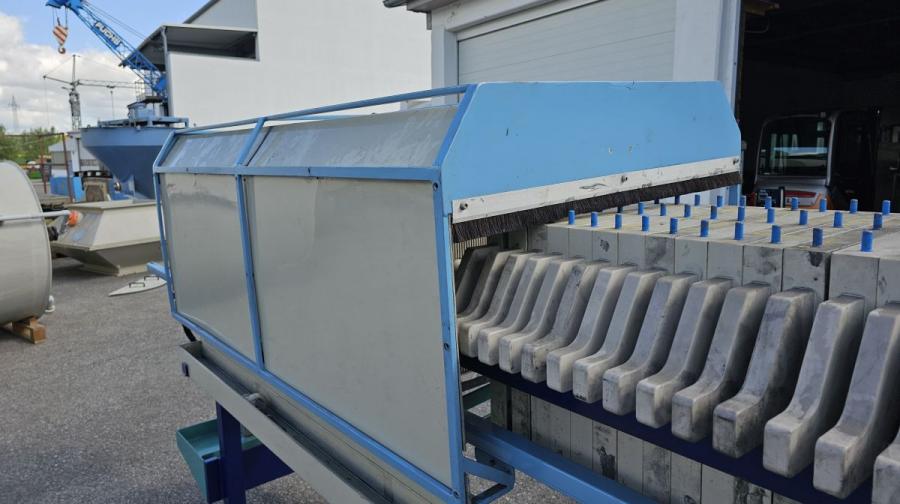

With sliding splash guard.

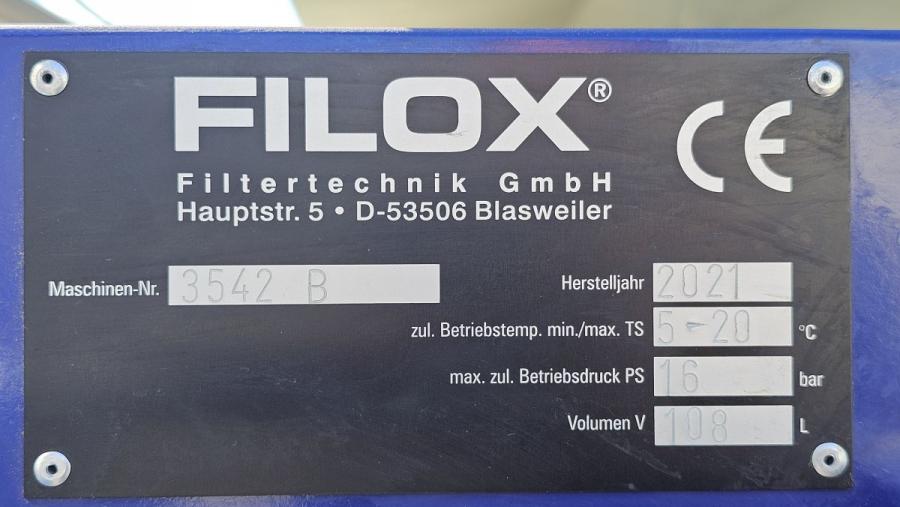

| Producer: | Filox |
| Typ: | KF047.030-040.025 FAG-1EH |
| Year of manufacture: | 2020 |
| Pieces: | 1 |
technical data |

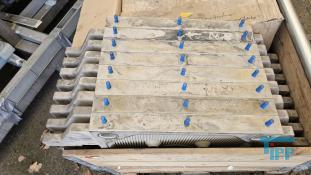

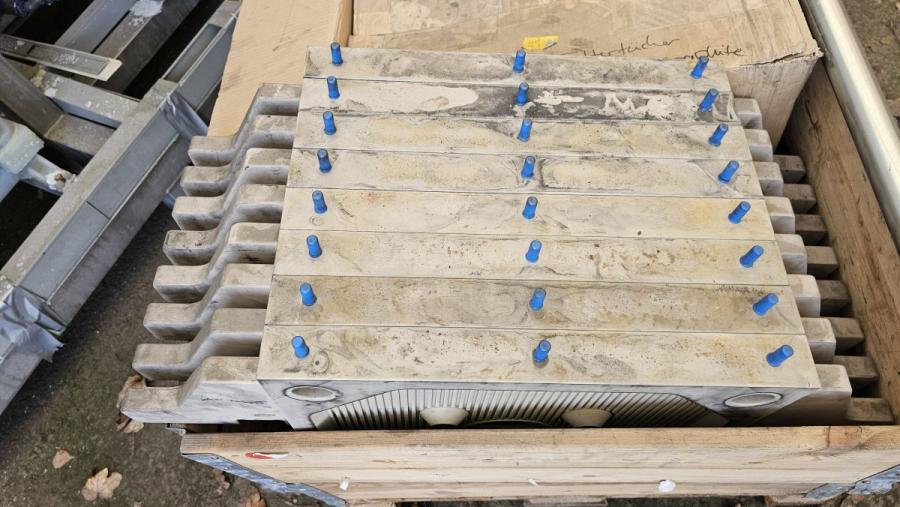

| Plate dimension | 470 mm | | Filter surface | 9.6 / 12.8 m² | | Volume | 108 / 144 l | | Pressure | 450 bar (max. closing pressure) | | Number of plates | 29+1+1 | | Pate thickness | xxx mm | | Cake strength | 25 mm | | expiration of filtrate | geschlossen | | Length | 3500 mm | | Length | 3900 mm (with pipework) | | Depth | 900 mm (overall with splash guard) | | Height | 1750 mm (with wheels) | | Height | 1820 mm (overall with splash guard) | | Weight | 935 kg |
|
|
