used waste water screening plant tank installation

details to article: 30389

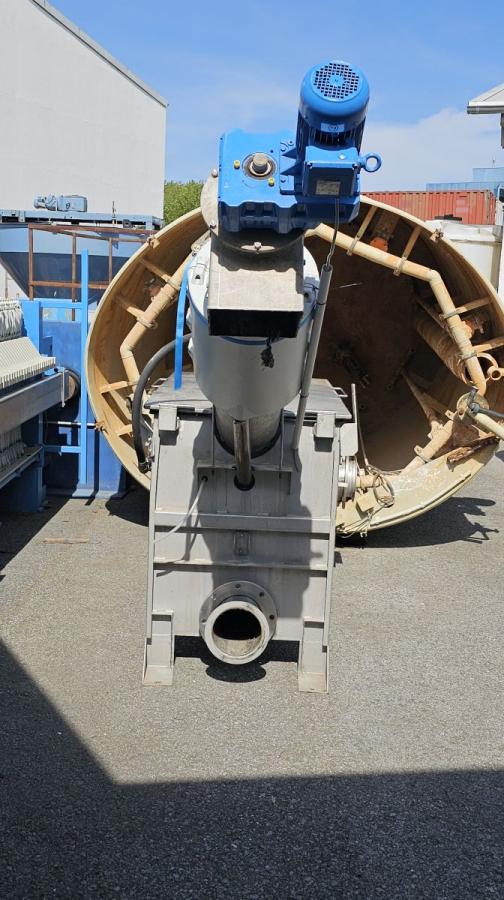

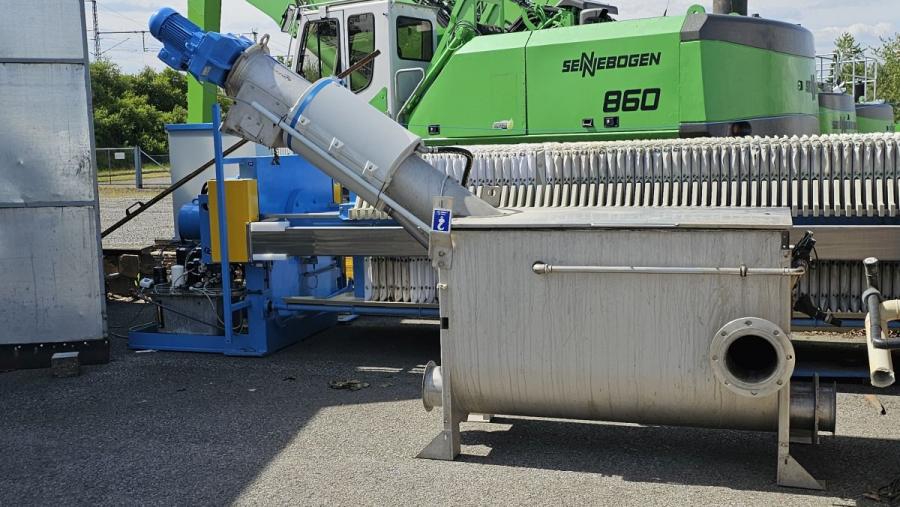

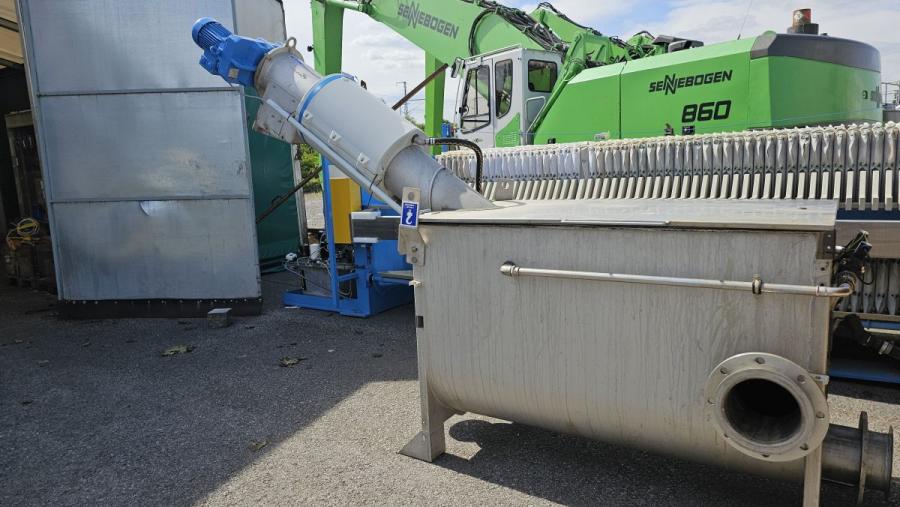

description: Huber Rotamat RO2 as fine screen version and EX protection with stainless steel tank.
Mechanical wastewater treatment by separating solids from wastewater, compacting and washing out the screenings.
Area of application: Waste water treatment plants, recycling industry

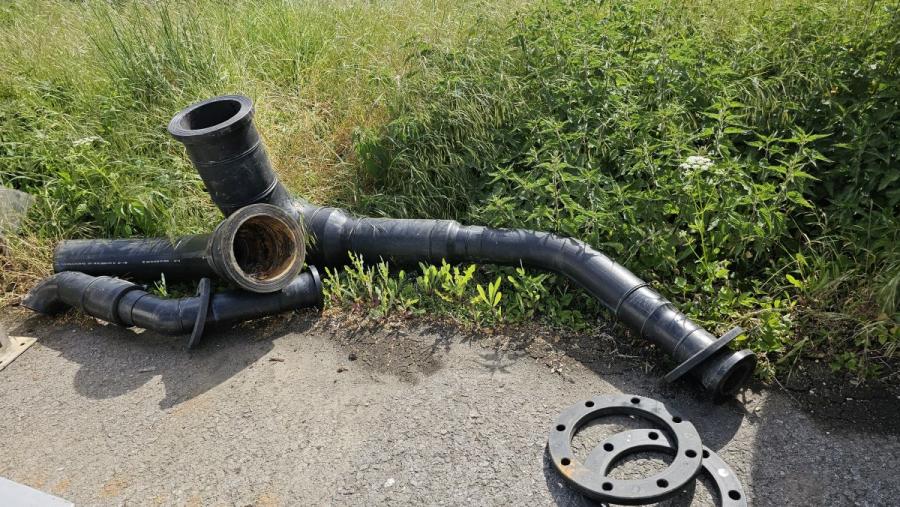

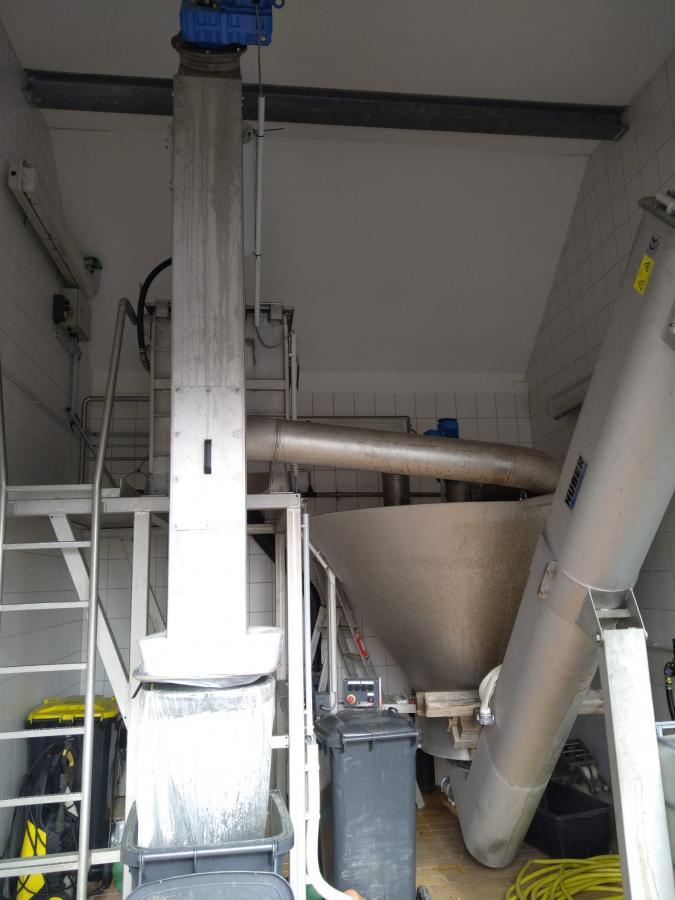

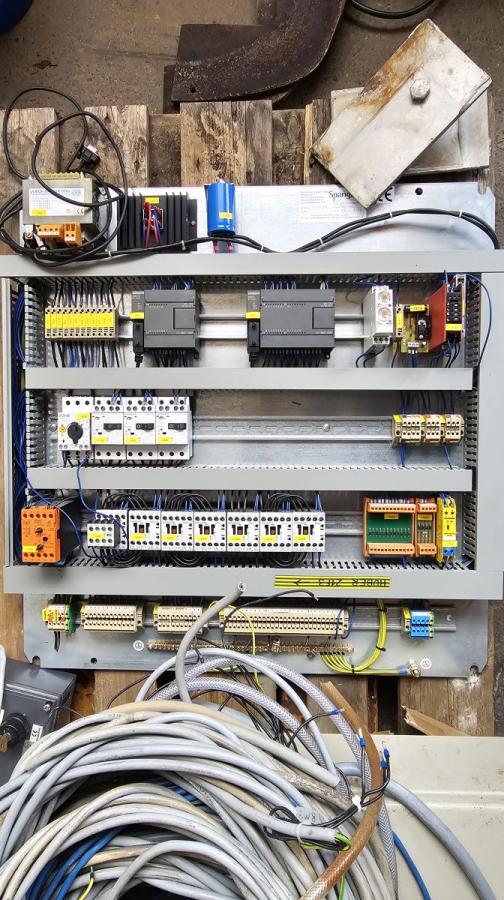

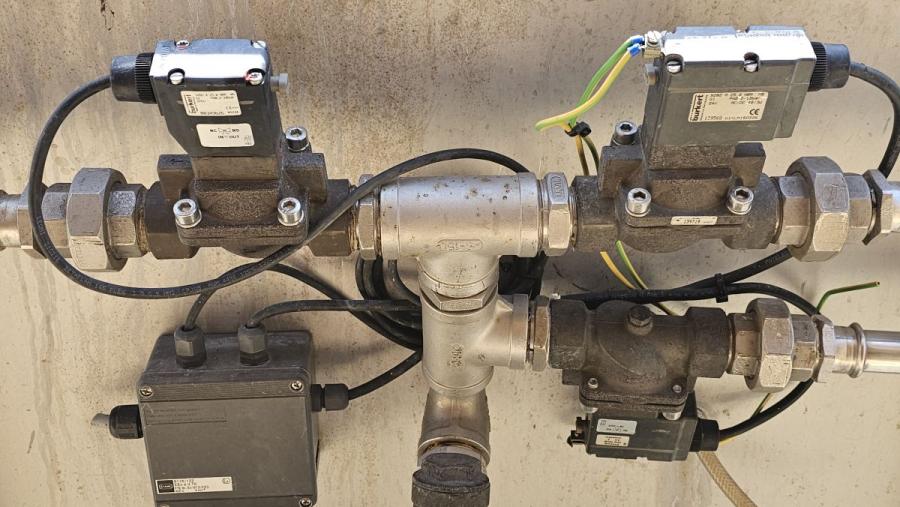

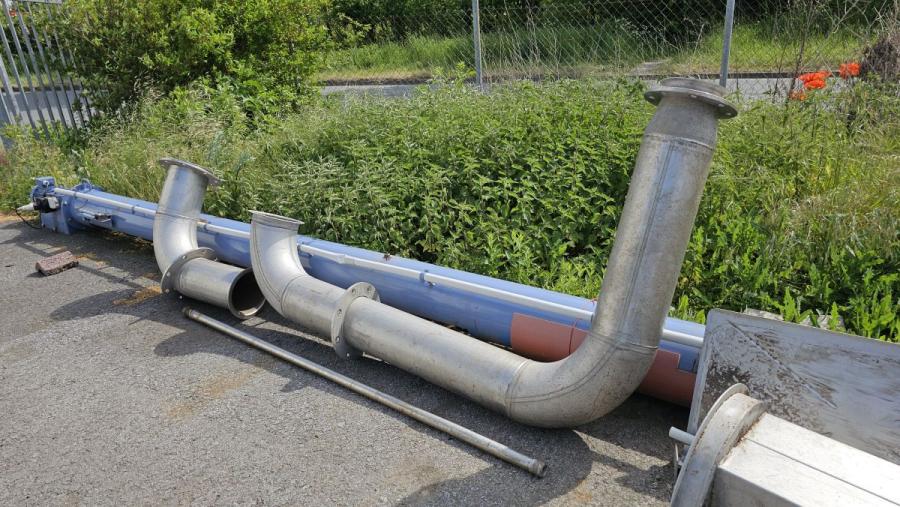

The system was operated together with a Huber COANDA sand washing system (see article number 30391). The corresponding pipework and a control panel with PLC control for this are available (see the last 4 pictures).

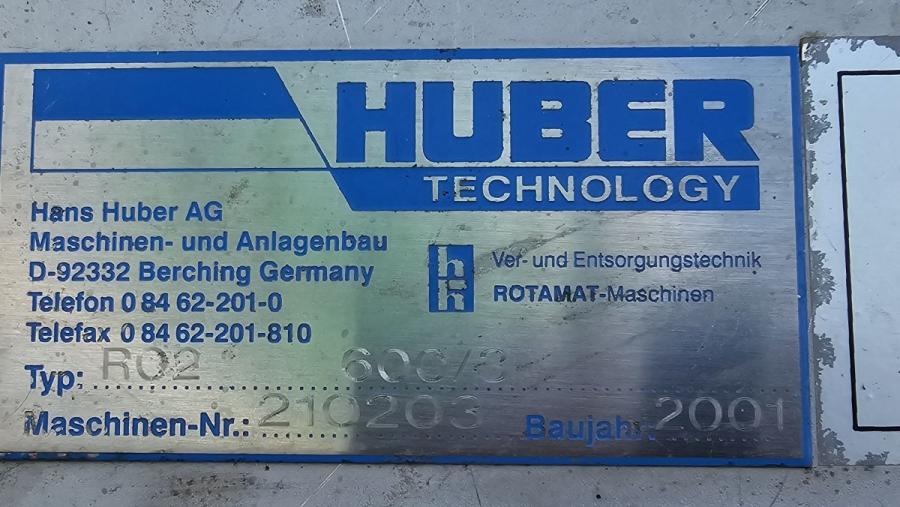

Producer:	HUBER Technology
Typ:	Rotamat Ro 2 600/3
Year of manufacture:	2001
Pieces:	1

technical data

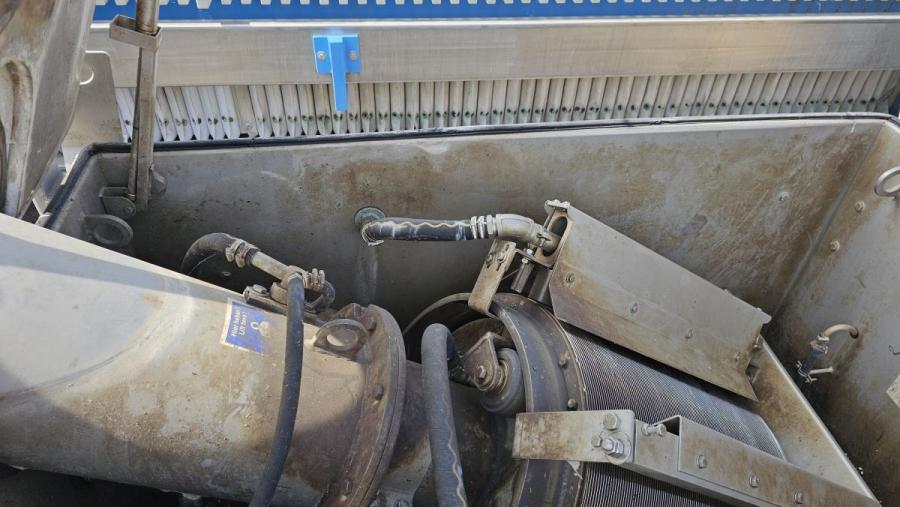

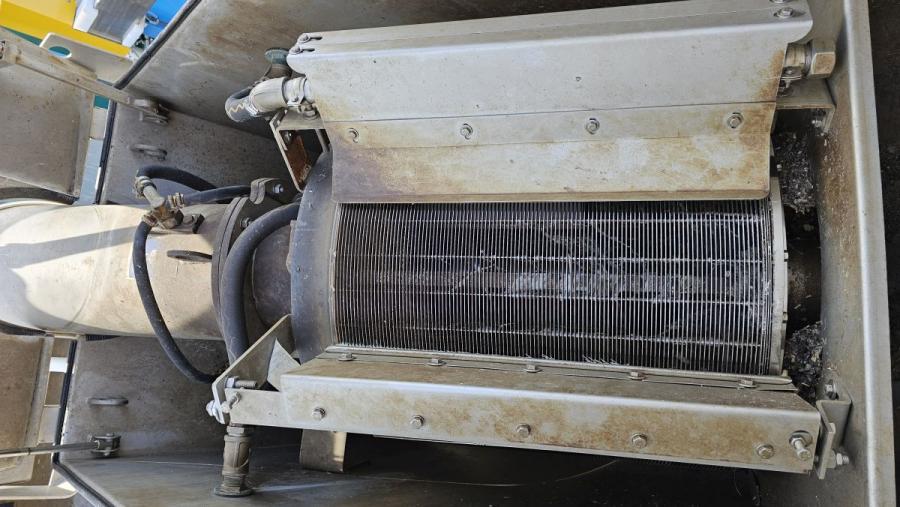

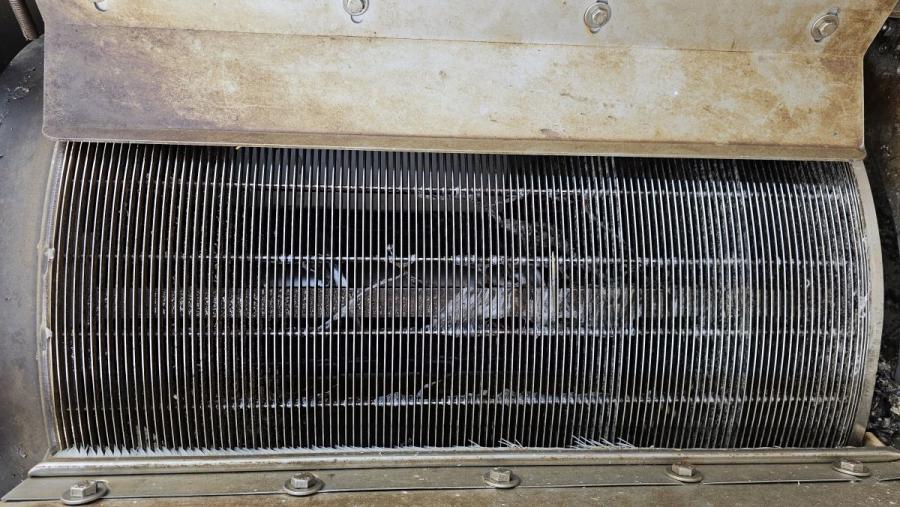

-	Siebrechen (RO2 600/3)
Gap width	3 mm
Diameter	600 mm (Screen drum)
Length	3420 mm (incl. motor)
Height	2260 mm (total)
Length	3450 mm (total)
Material	Edelstahl

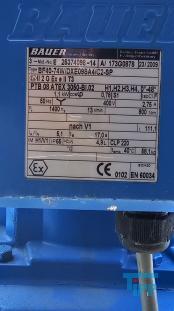

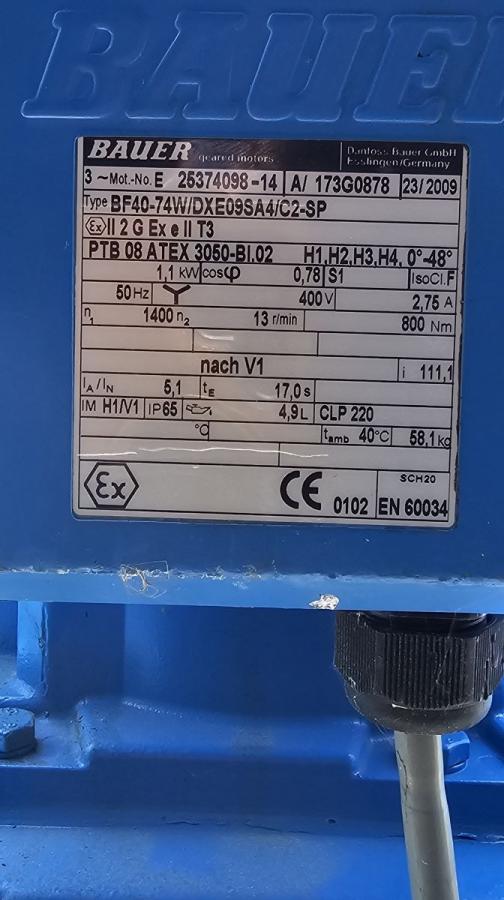

-	Engine (Bauer BF40-74W)
Power	1.1 kW
Voltage	400 V
Amperage	2.75 A
Revolutions per minute	n1 1400 / n2 13 1/min

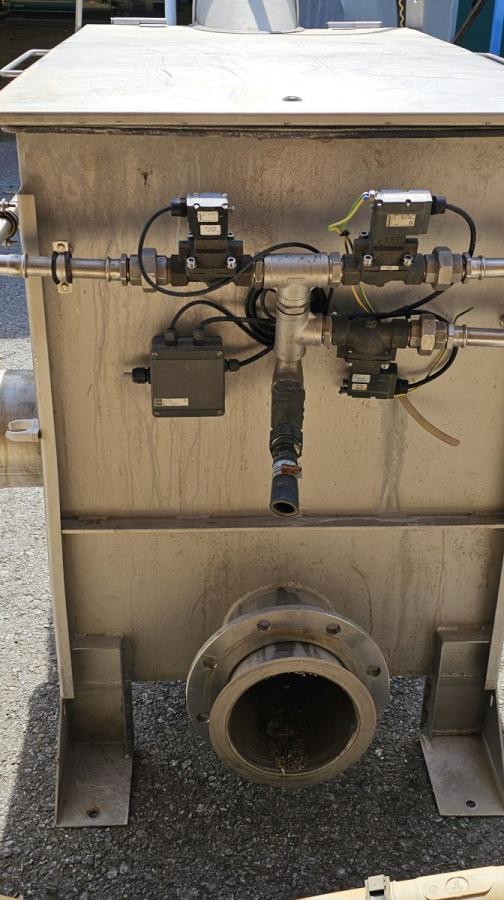

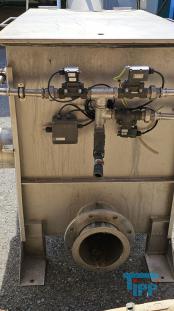

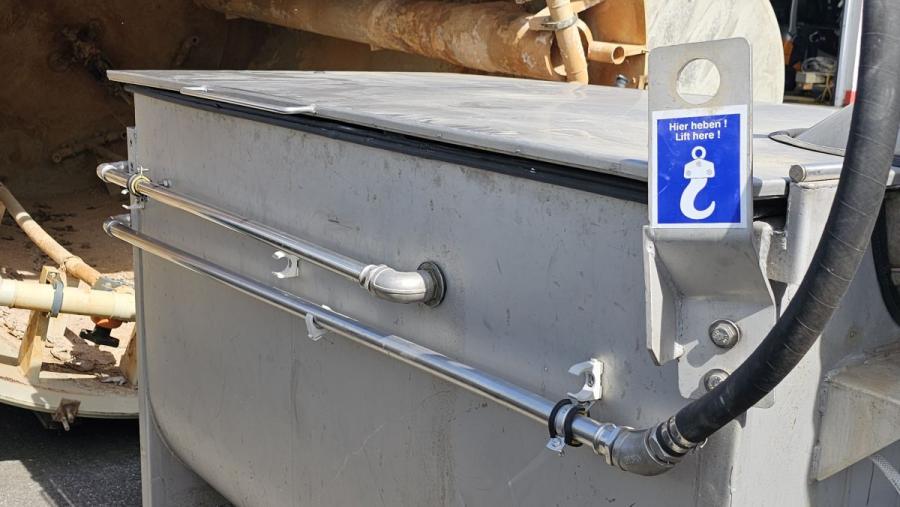

-	Wanne
Length	1600 mm
Width	1100 mm
Height	1170 mm

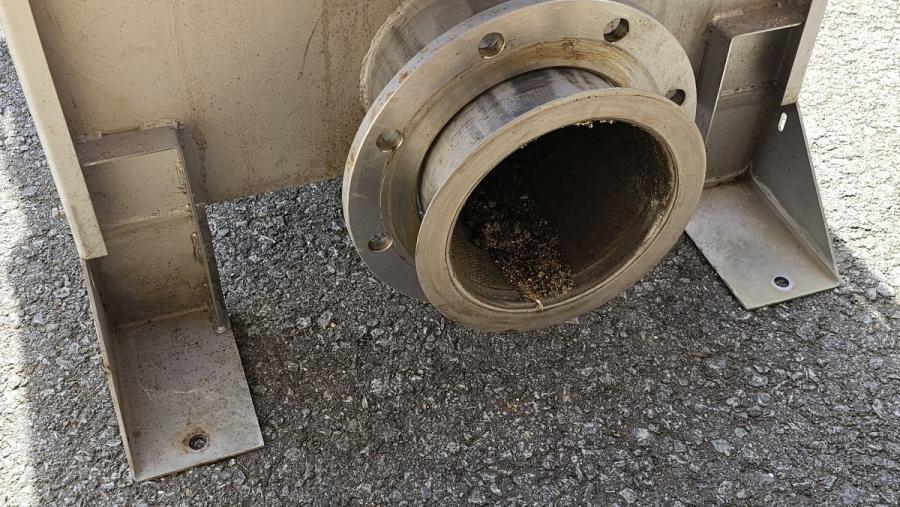

Connections	DN 200 (2 x front, 1 x side)
