used COANDA sand washer / sand classifier / sand washer classifier

details to article: 30391

description: System for grit dewatering and separation

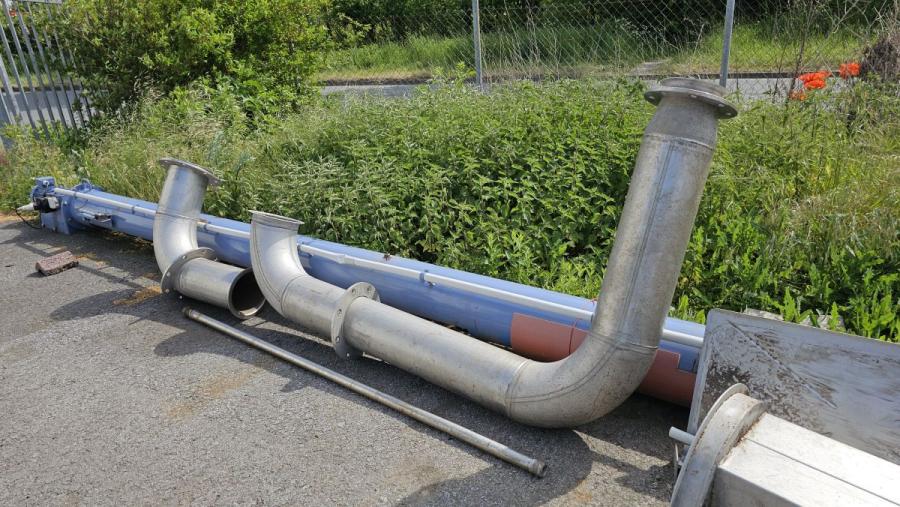

The system was operated together with a Huber wastewater screening plant (see article number 30389). The corresponding pipework and a control panel with PLC control for this are available (see the last 4 pictures).

Producer:	Huber
Typ:	ROSF4/2
Year of manufacture:	2001
Pieces:	1

technical data
Power	57 m³/h (Max. hydraulic supply volume)
Power	1,0 - 3,0 m³/h (Raw material)
Power	95 % (Separation performance of grain size 0.20 mm)
Engine	Danfoss Bauer (BF40Z-74-SP /DXE08MA4-D/C2 Agitator drive)
Engine	Danfoss Bauer (BF40-74 / DXE09SA4 / C2-SP Worm drive)
Height	3150 mm (built up)
Length	4700 mm (built up)
Diameter	2381 mm (COANDA tulip)
Length	4670 mm (Sand discharge screw)
Connections	DN 150 (Feed)
Connections	DN 200 (Outlet)
Connections	200 mm (further connection)
Connections	DN 100 (Organic discharge)
Weight	ca. 1400 kg kg
