used HERCO water softening system with piping and valves - 29053 - Typ: Duotrol 2000 SO - Producer Herco - TIPP Umwelt- und Verfahrenstechnik GmbH

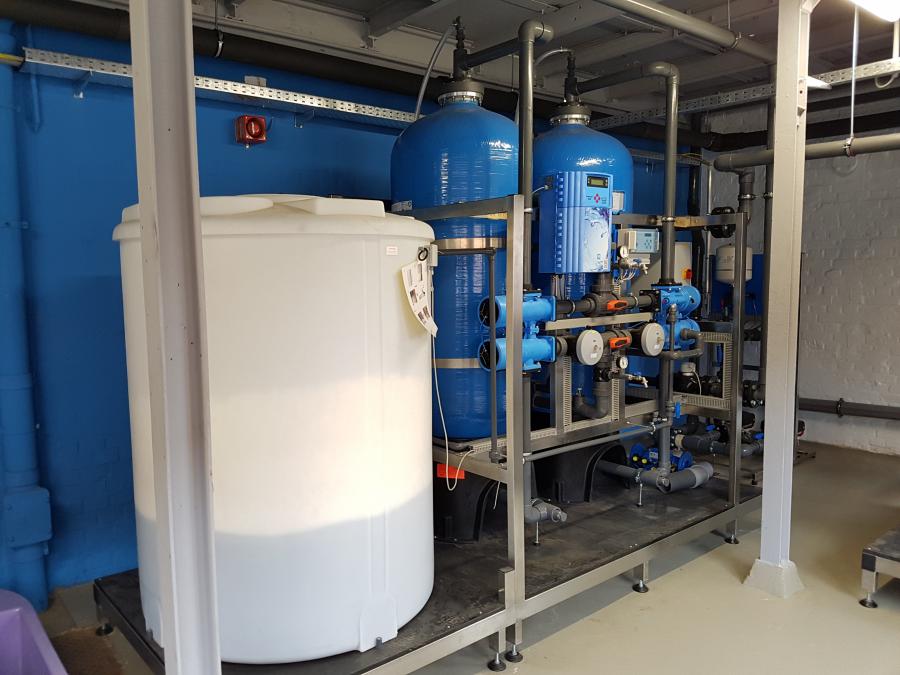

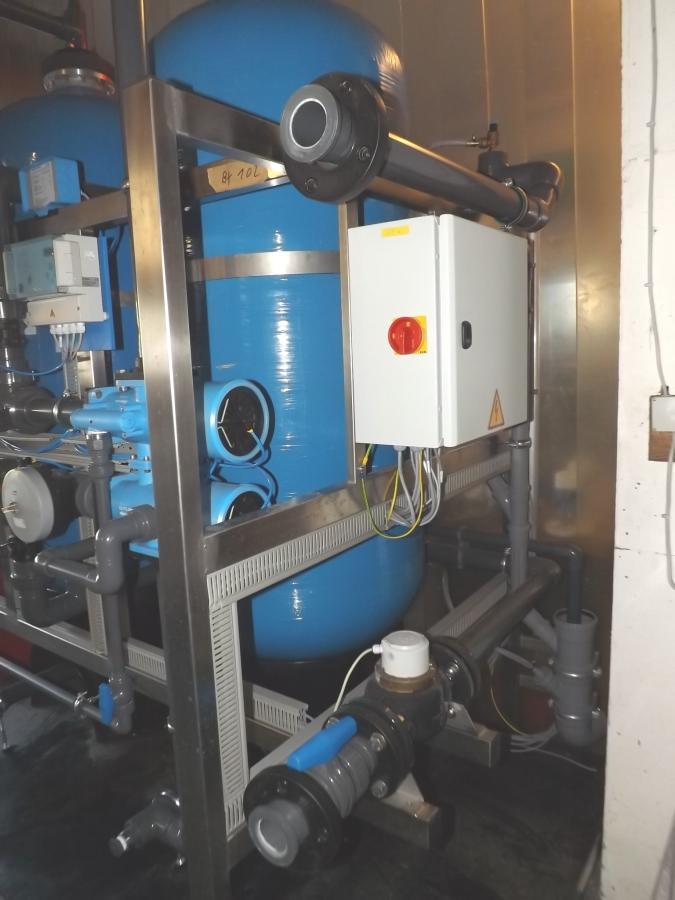

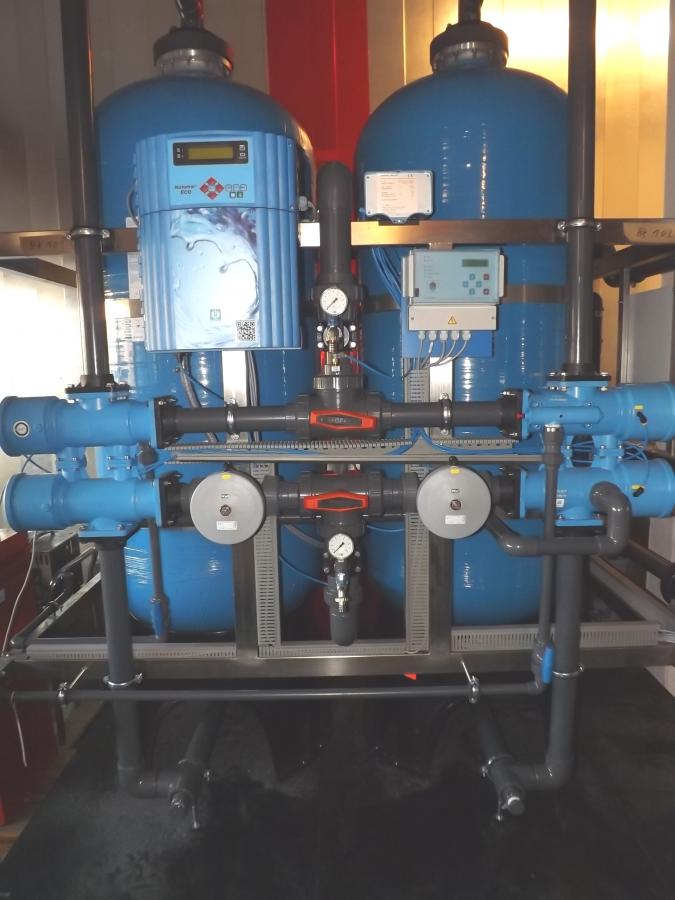

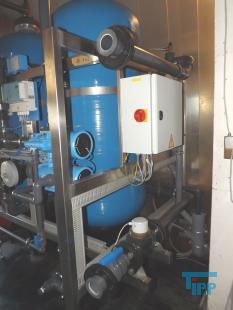

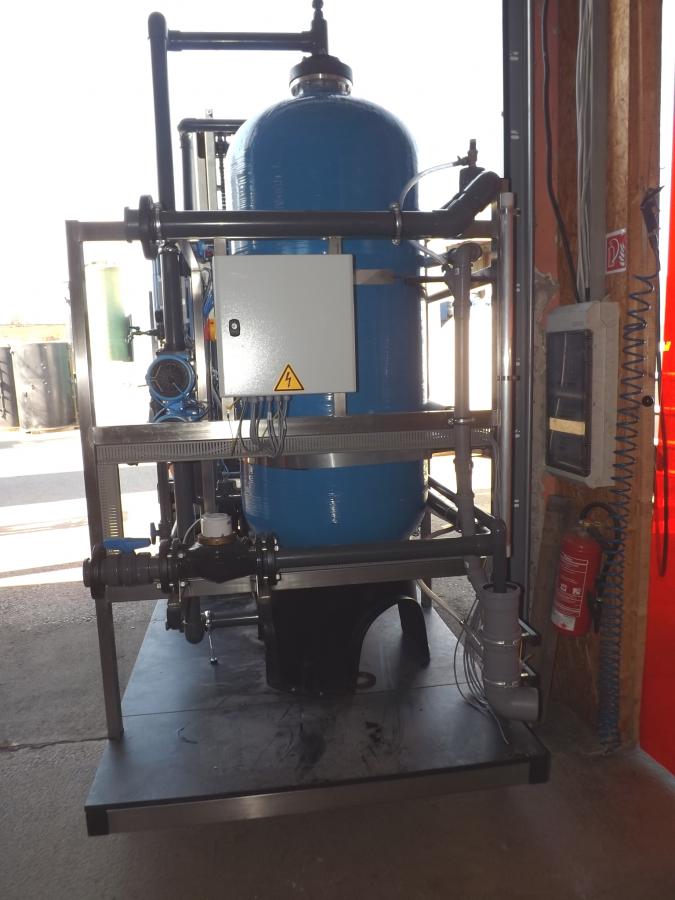

HERCO water softening system with piping and valves




details to article: 29053

HINWEIS: Dieser Artikel wurde bereits verkauft.
Klicken Sie hier um ähnliche Artikel anzuzeigen.

description: Automatic volume-controlled double softening system for the continuous production of soft water from raw water using the ion exchange process.

Producer:Herco

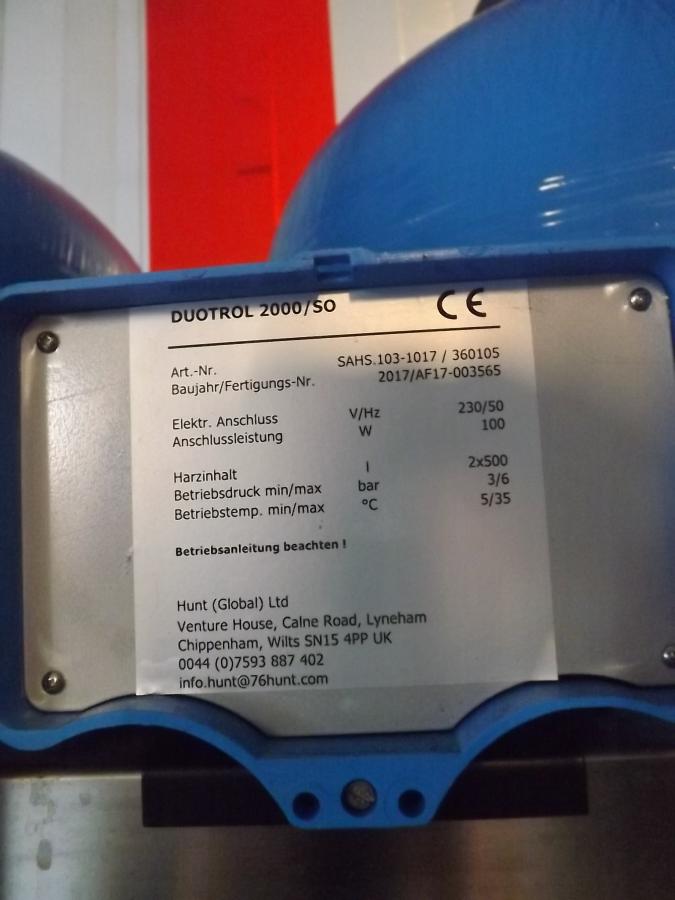

Typ:Duotrol 2000 SO
Year of manufacture:2017
Pieces:1
Condition:gebraucht / used / second hand



technical data

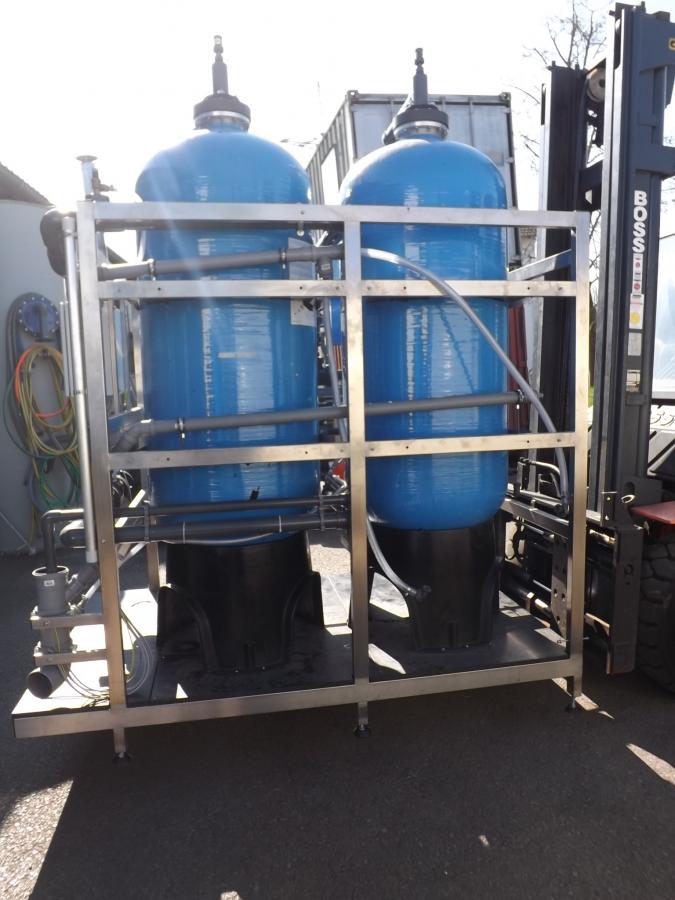

Description  - (Ion exchange tanks (C 3078))
Diameter  732 mm (inner diameter)
Height  2285 mm (Height (with foot))
Volume  710 l
Volume  500 l (Filling (per filter))
Weight  567 kg (Filling volume)
Delivery rate  2.5 / 20,0 m³/h (min / max (permissible flow))
Weight  1060 / 3050 kg (empty weigt / operating weight)

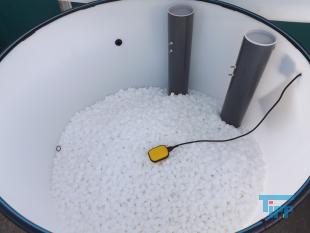

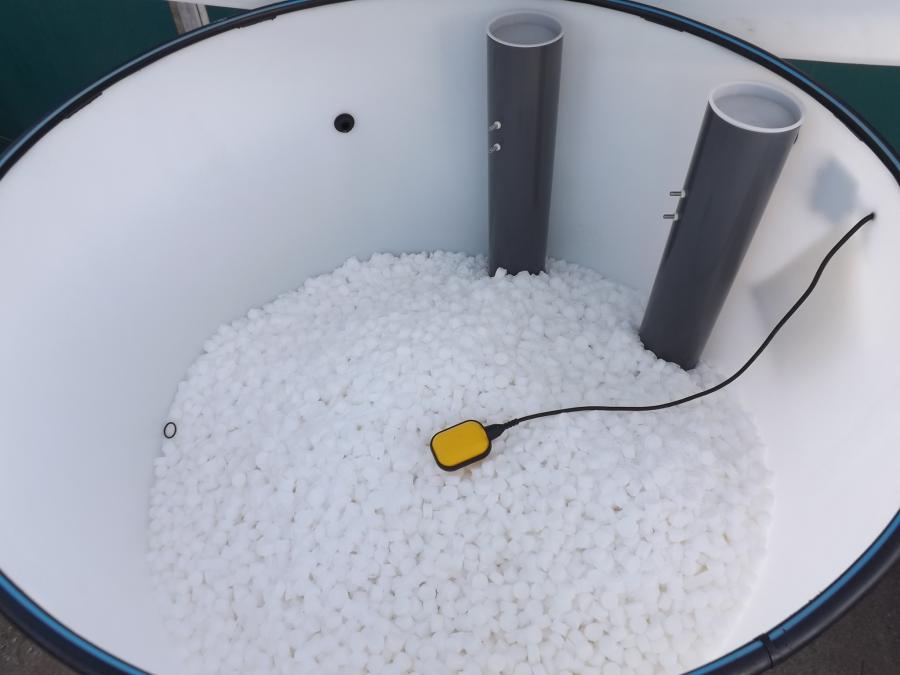

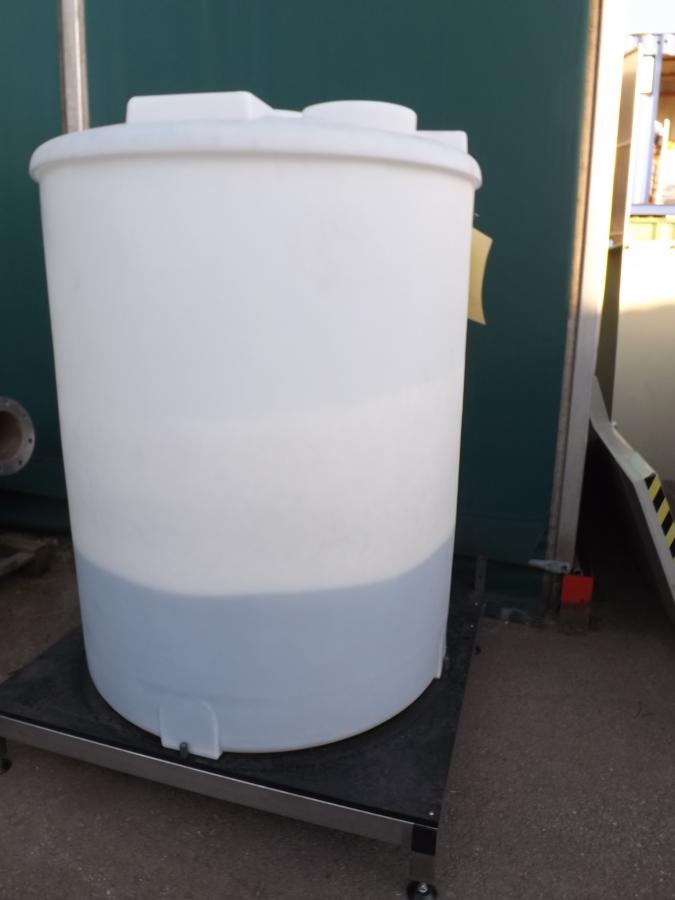

Description  - (Brine tank)
Volume  1750 l
Diameter  1290 mm
Height  1500 mm
Weight  100 kg (Salt consumption per regeneration)
Volume  335 l (Brine volume per regeneration)

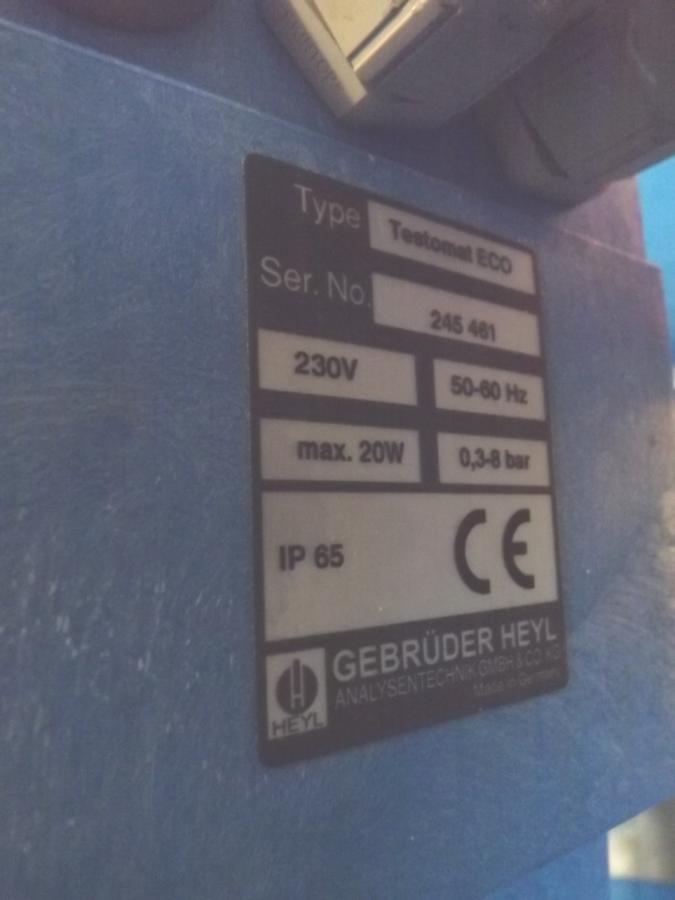

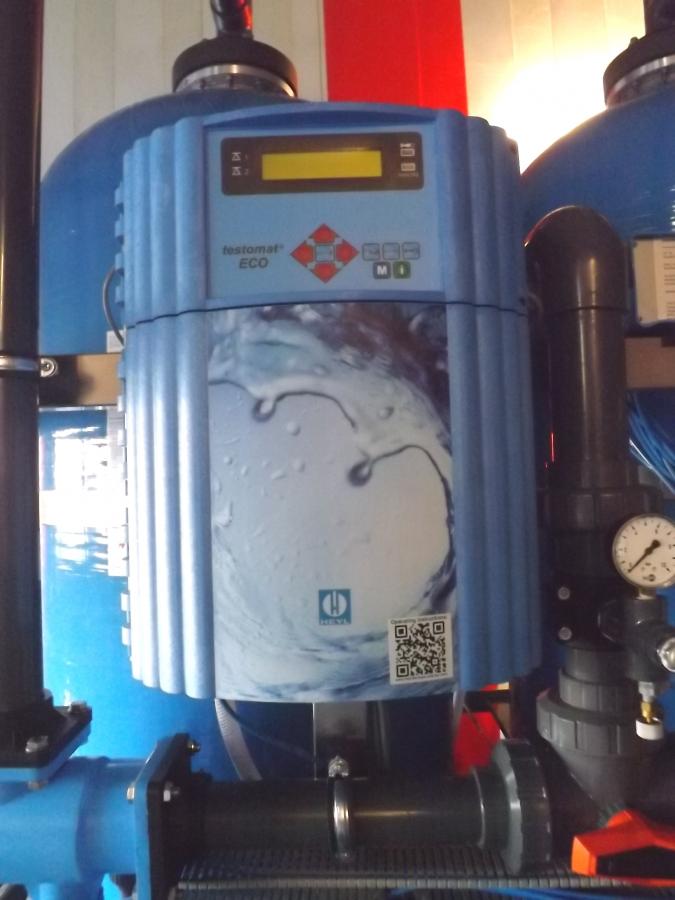

Accessories  - (Testomat Eco (measuring device for determining the hardness of water))

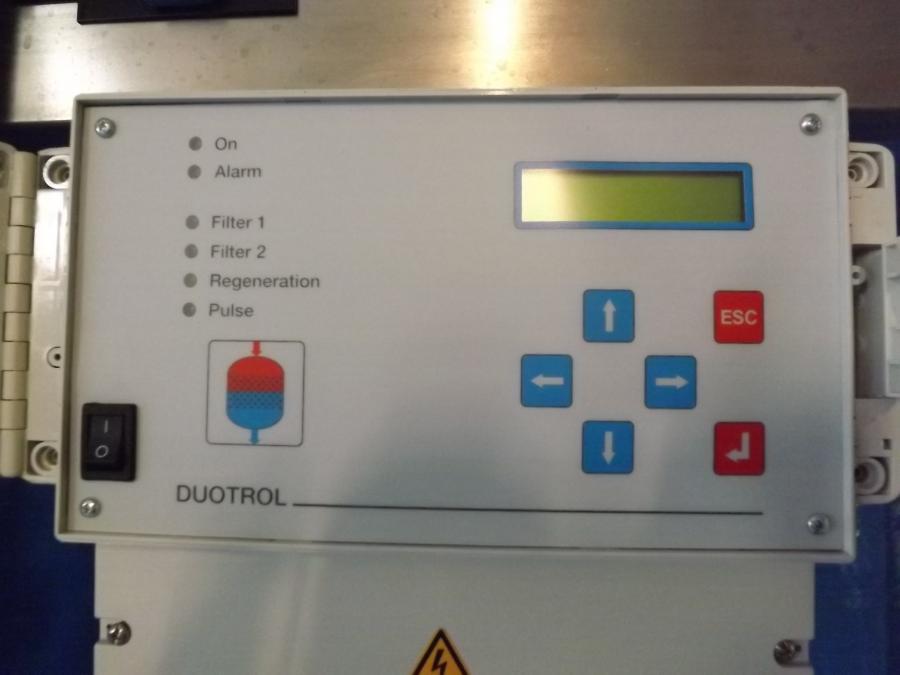

Accessories  - (Softrol controller)
Description  - (The option Change Filter is controlled step by step by the output of the cam drive. The activated cam drive starts)

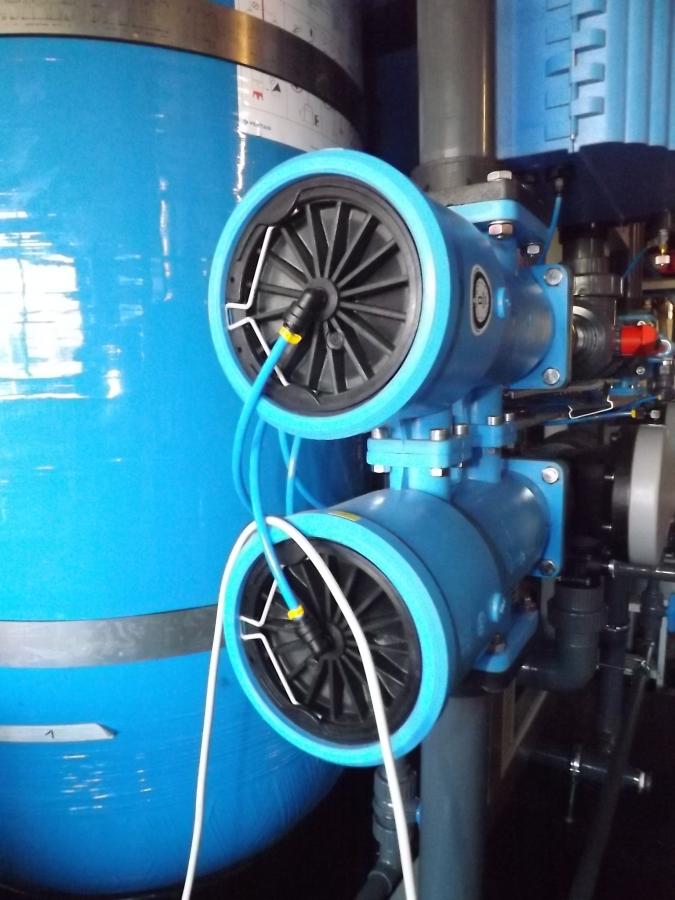

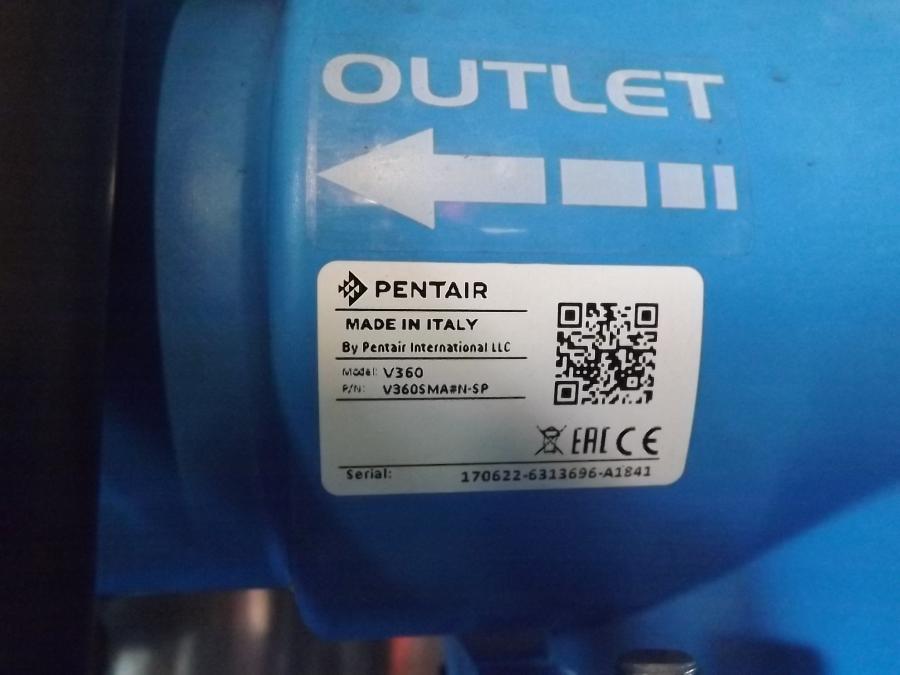

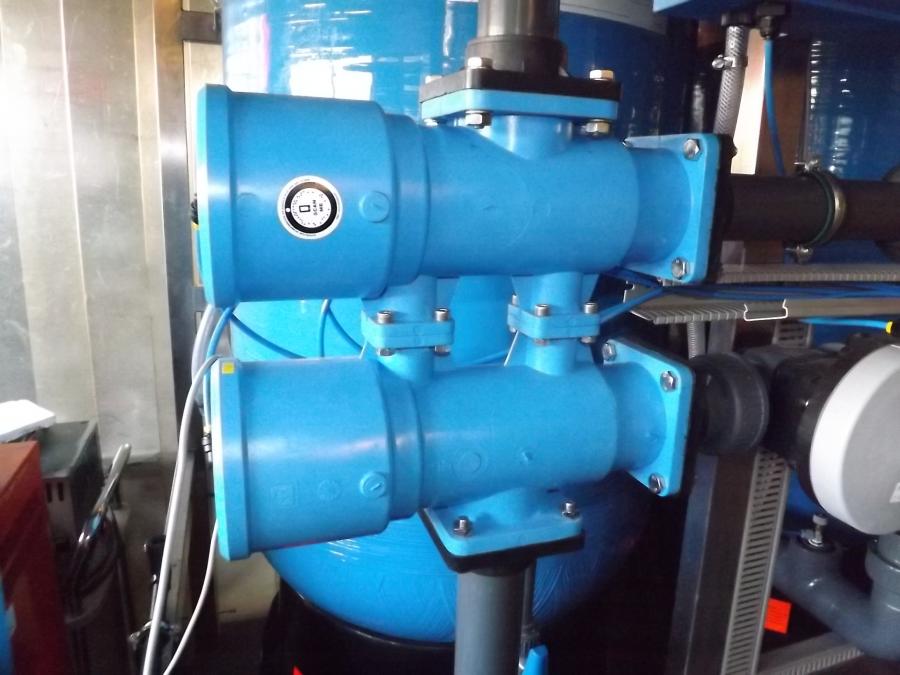

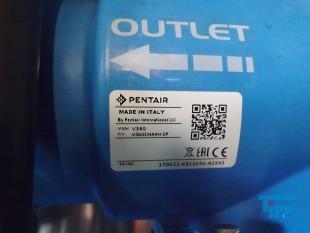

Accessories  - (2x Pentair V360)
Pressure  1,0 / 9,0 bar ()
Temperature  40 °C ()
Delivery rate  35 m³/h (Flow operation at 1 bar)
Delivery rate  16 m³/h (Backwash at 1 bar)
Dimensions  - (total)
Length  3600 mm
Width  1420 mm
Height  2950 mm (with pipe connection)
