used multi stage pump with frequency control - 29263 - Typ: CRNE 15-2 X-FGJ-G-V-HQQV - Producer Grundfos - TIPP Umwelt- und Verfahrenstechnik GmbH

multi stage pump with frequency control




details to article: 29263

HINWEIS: Dieser Artikel wurde bereits verkauft.
Klicken Sie hier um ähnliche Artikel anzuzeigen.

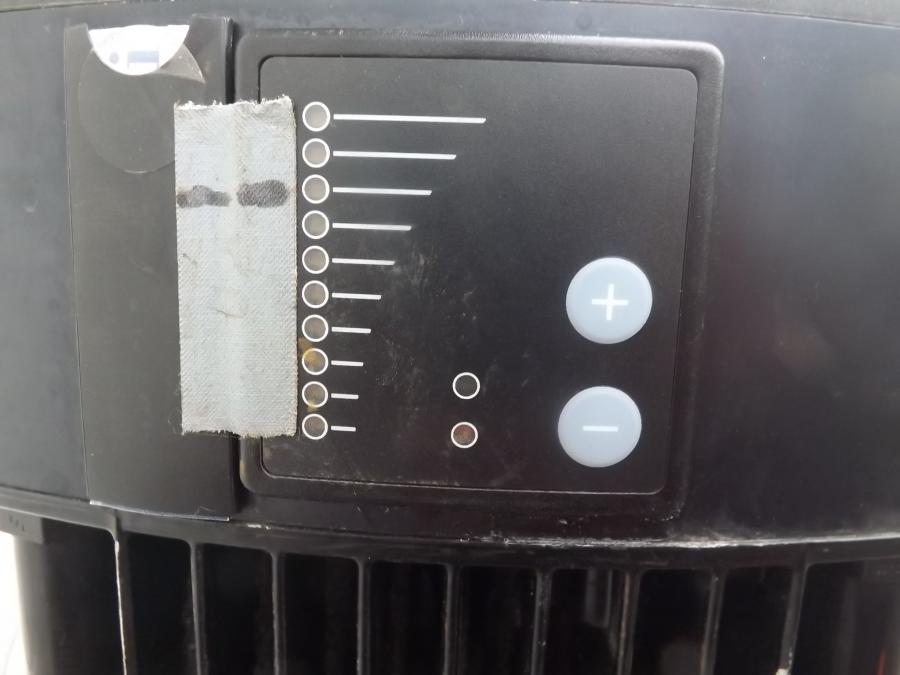

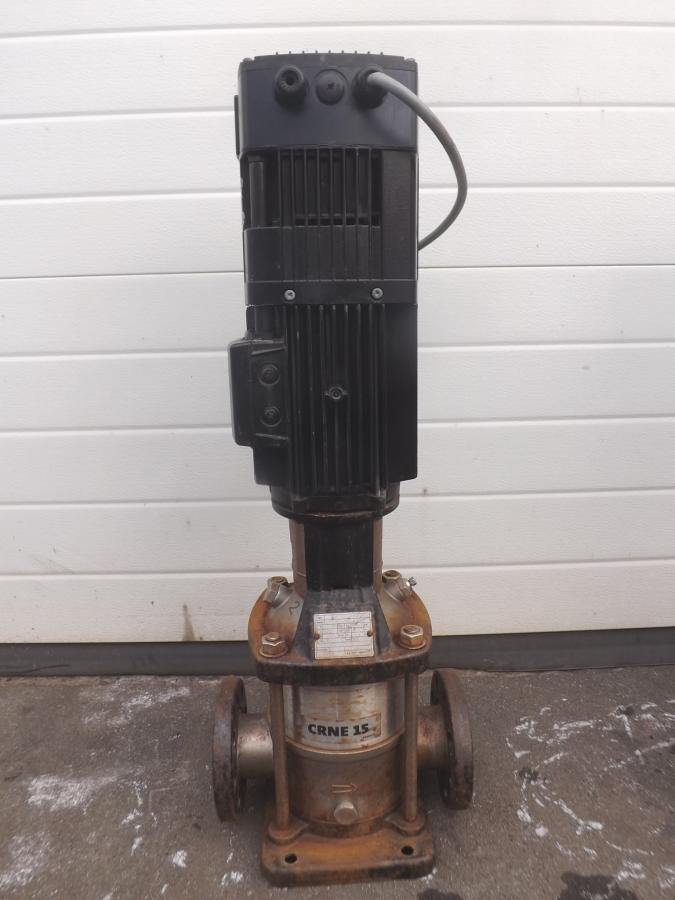

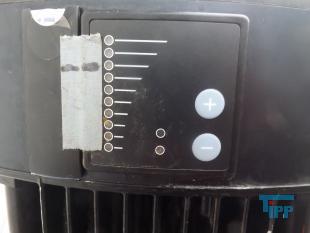

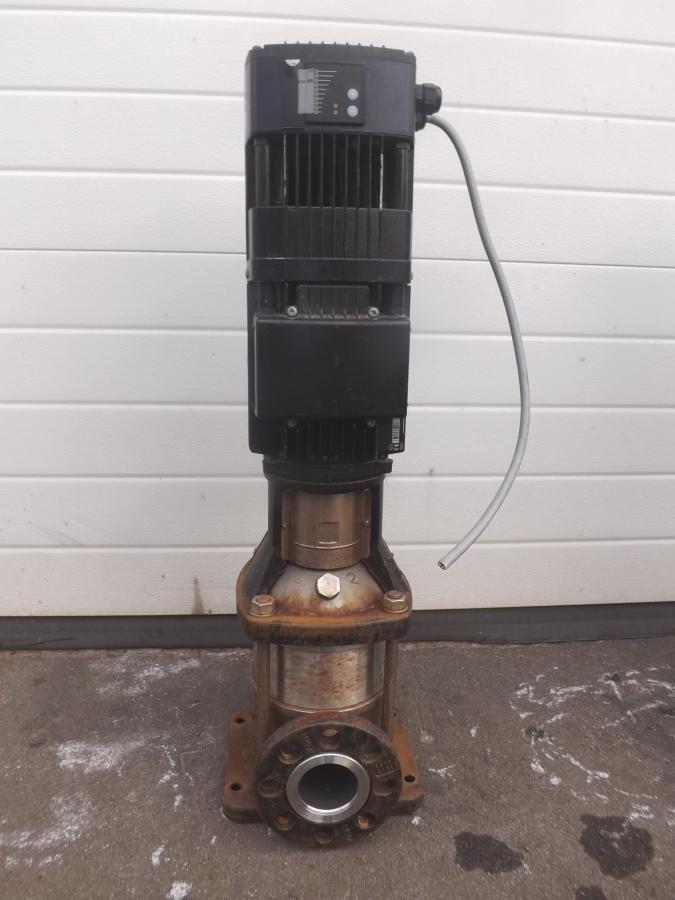

description: Vertical multi-stage centrifugal pump with integrated frequency converter

Producer:Grundfos

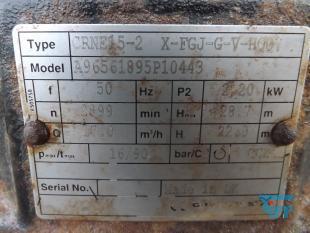

Typ:CRNE 15-2 X-FGJ-G-V-HQQV
Year of manufacture:ca 2004
Pieces:1
Condition:gebraucht / used / second hand



technical data

Power  2.2 kW ()
Delivery rate  17.0 m³/h ()
Lifting height  28.7 m ()
Pressure  16 bar (Max. operating pressure)
Temperature  90 °C (Max. Fluid temperature)
Pieces  2 (Steps / wheels)
Material  Edelstahl (pump head)

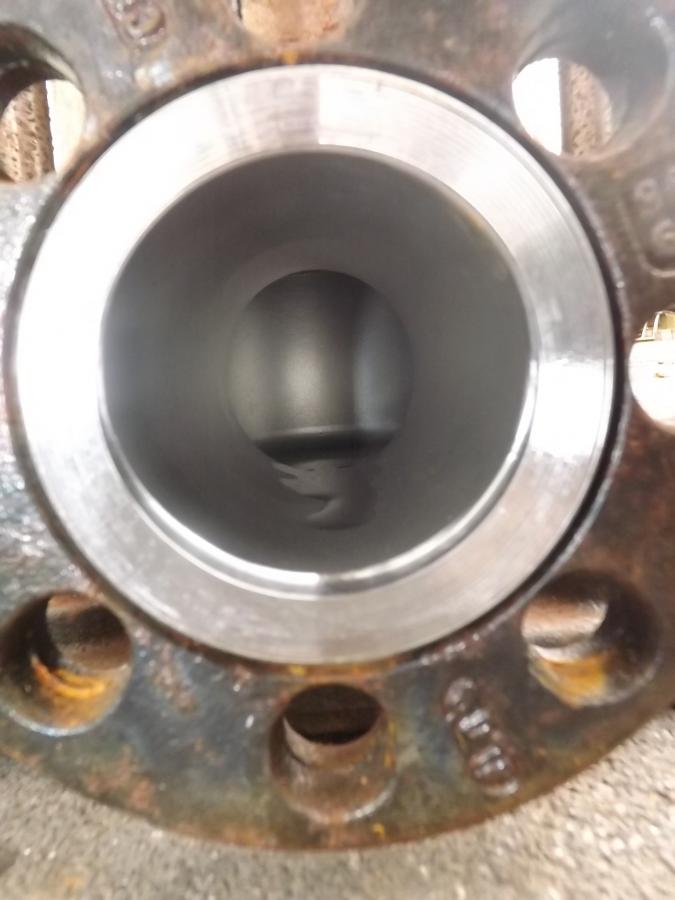

Connections  2x DN50 (flange)
Height  860 mm
Weight  55 kg


Artikel nicht mehr verfügbar

Einige, ähnliche Artikel aus unserem derzeitigen Lagerbestand

Nr.:28317
gebrauchte mehrstu...
Nr.:30361
gebrauchte einstuf...
Nr.:27433
gebrauchte Spiralg...
Nr.:23023
gebrauchte selbsta...
Nr.:23905
gebrauchte Kreisel...
Nr.:29079
gebrauchte Kunstst...
Nr.:16206
gebrauchte Chemika...
Nr.:26949
gebrauchte Edelsta...
Nr.:23213
gebrauchte Chemiep...

informations about: centrifugal pumps, radial pumps

A centrifugal pump is a rotodynamic pump that uses a rotating impeller to increase the pressure and flow rate of a fluid. Centrifugal pumps are the most common type of pump used to move liquids through a piping system. The fluid enters the pump impeller along or near to the rotating axis and is accelerated by the impeller, flowing radially outward or axially into a diffuser or volute chamber, from where it exits into the downstream piping system. Centrifugal pumps are typically used for large discharge through smaller heads.
Centrifugal pumps are most often associated with the radial flow type. However, the term "centrifugal pump" can be used to describe all impeller type rotodynamic pumps including the radial, axial and mixed flow variations.
