used used process water circulation system with dosing device, centrifuge for solids separation, buffer and clear water tank - 30083 - Typ: Z 800 K - Producer Rösler - TIPP Umwelt- und Verfahrenstechnik GmbH

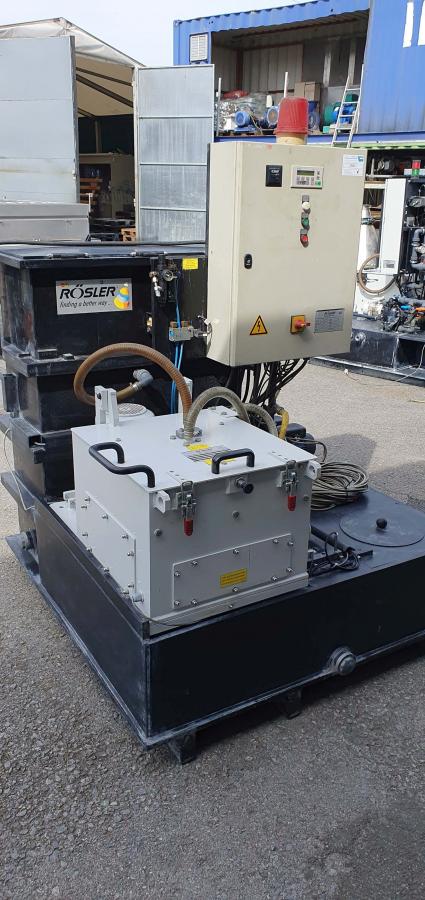

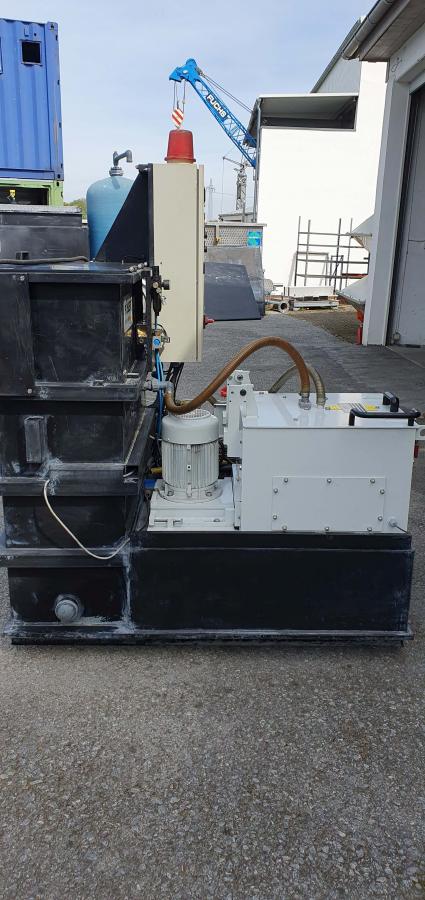

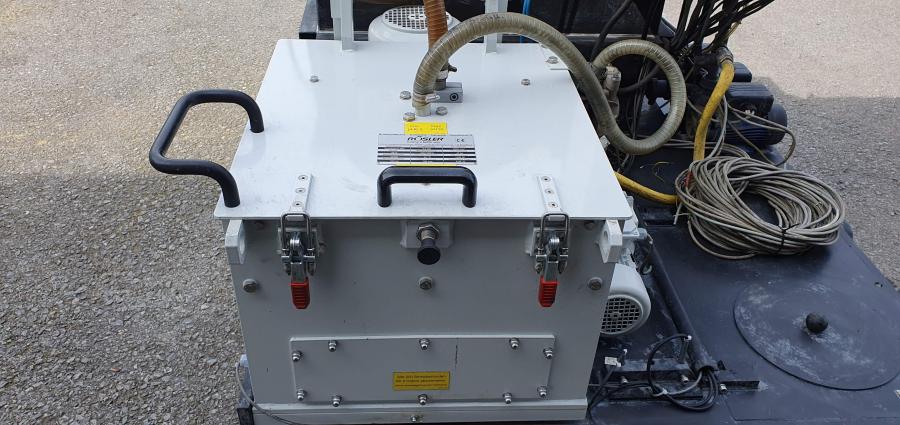

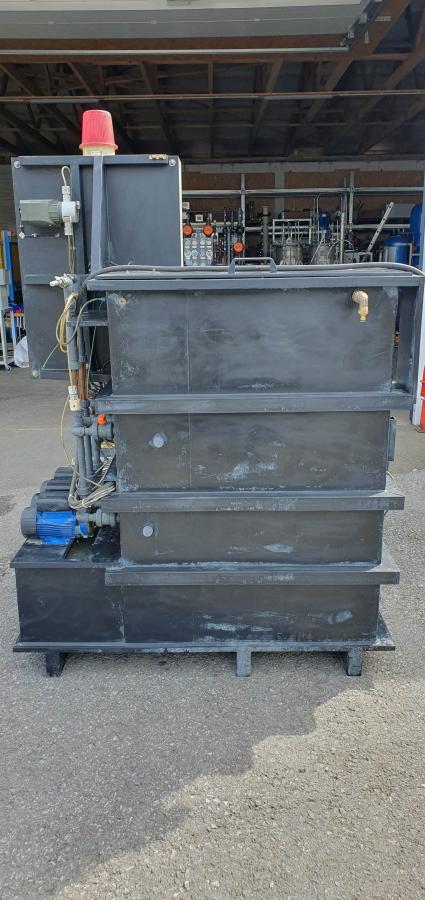

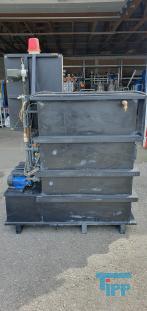

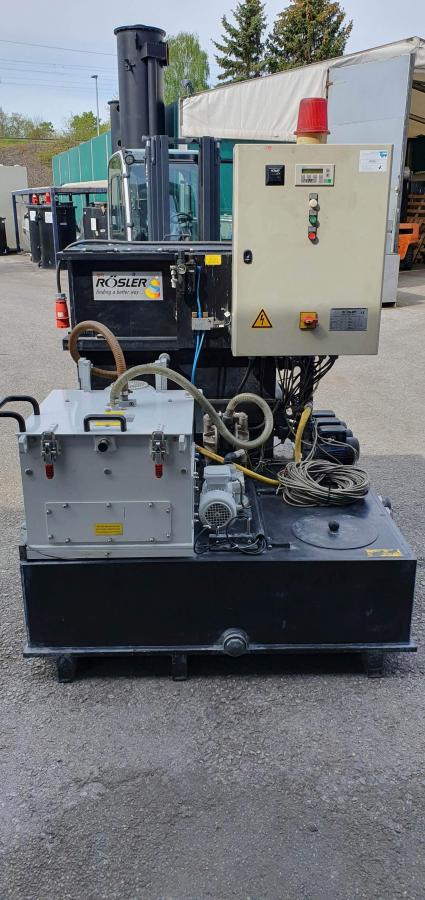

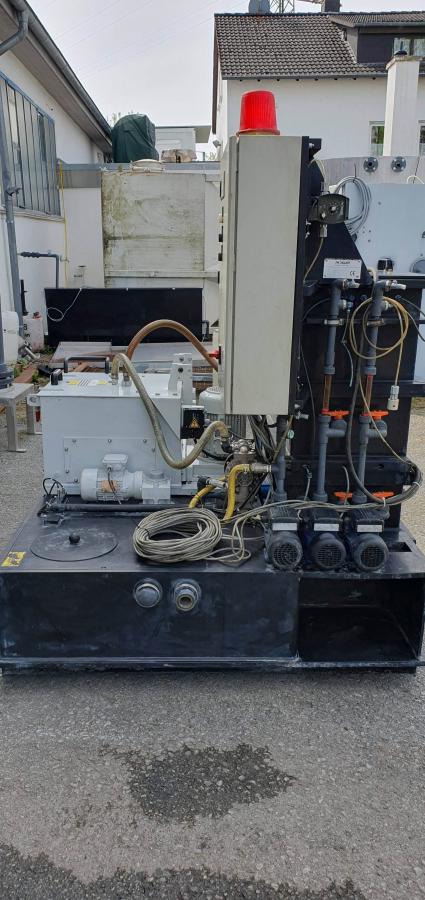

used process water circulation system with dosing device, centrifuge for solids separation, buffer and clear water tank




details to article: 30083

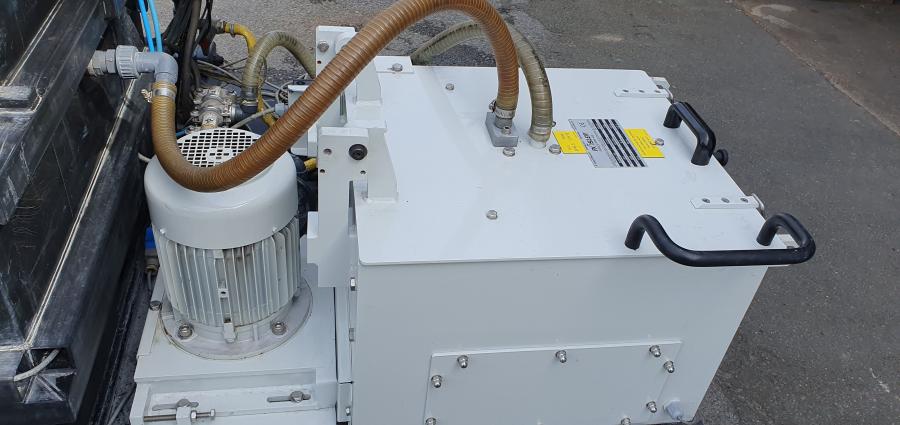

description: The centrifugal separation plant can only be used for process water with a pH value of 6.5 to 10. Depending on the desired degree of purification, the throughput capacity is up to 1200 l/h. Circuit diagram, machine, program and maintenance plan are available.

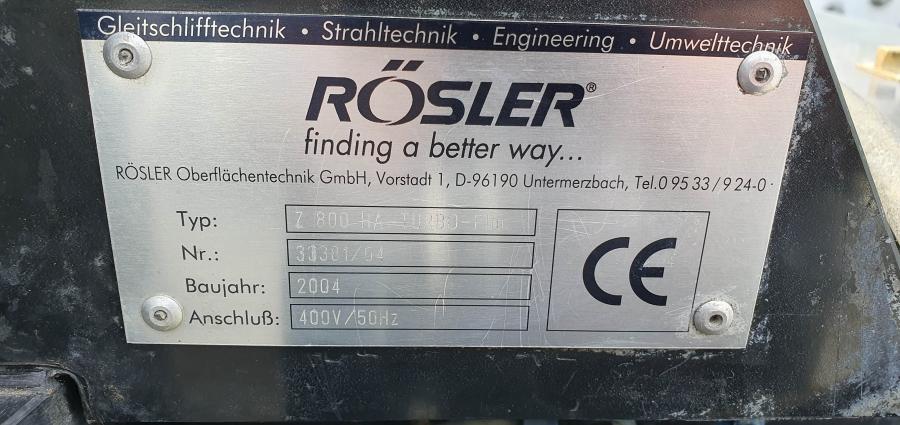

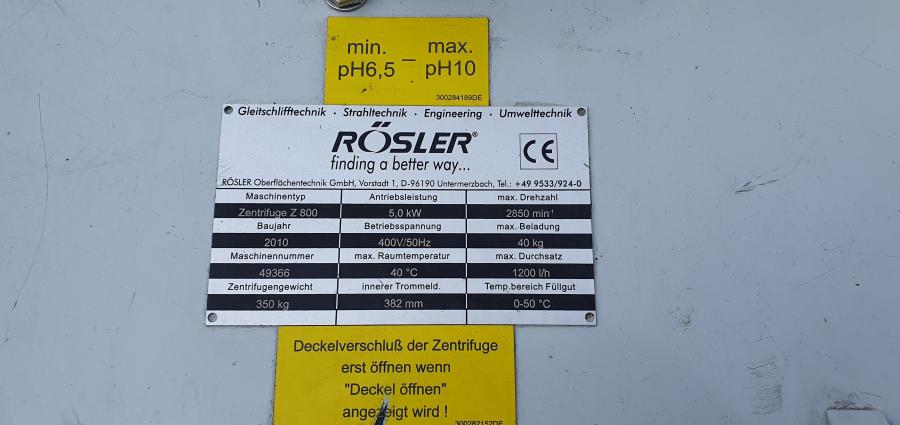

Producer:Rösler
Typ:Z 800 K
Year of manufacture:2010
Pieces:1
Condition:gebraucht / used / second hand

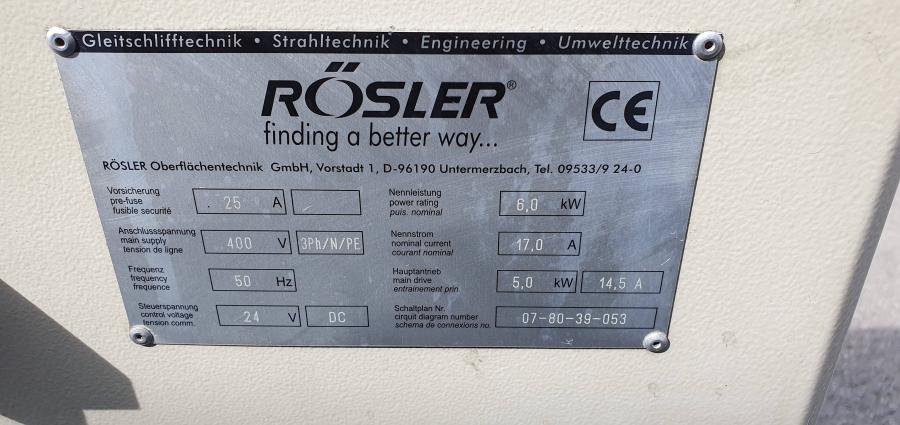

technical data

Voltage  3 x 400 V (Operating voltage)

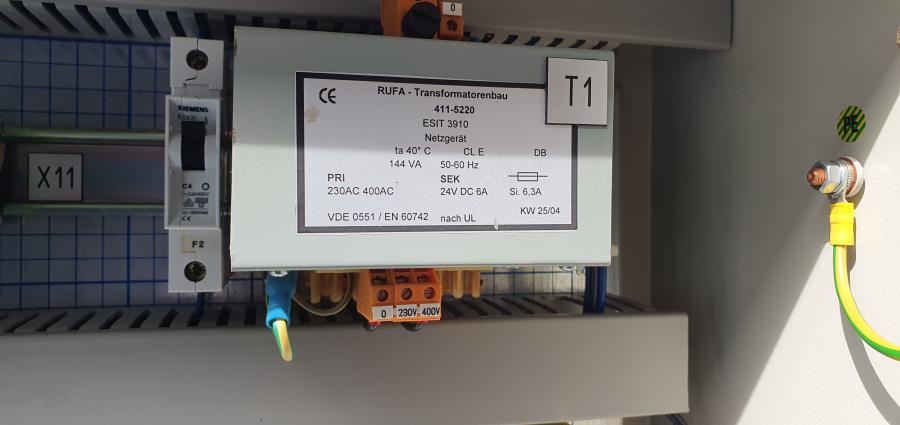

24 V (Control voltage)

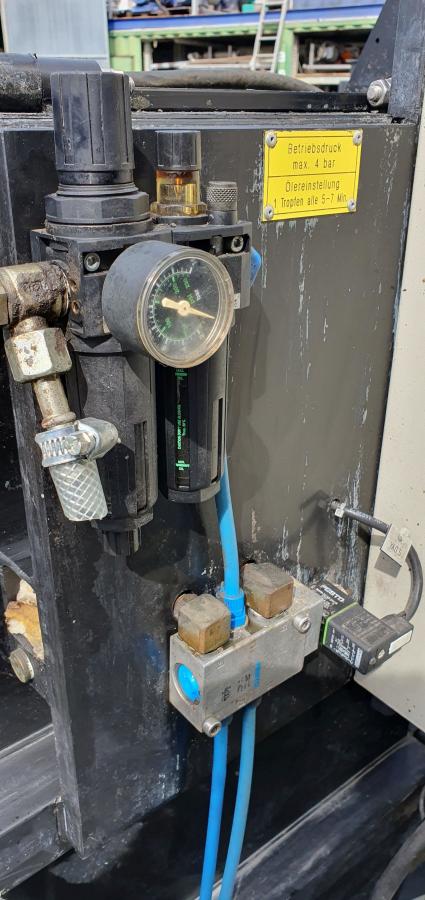

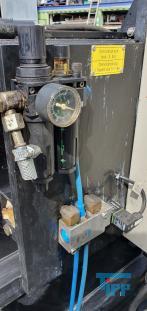

Pressure  4 bar (Compressed air connection value)
Power  6 kW (electrical connection value)
Frequency  50 Hz
Power  5 kW (Drive power)
Power  1200 l/h (Max. throughput)
Pressure  4 bar (Operating pressure)
Length  1530 mm
Width  1400 mm
Height  2000 mm
Weight  790 kg (Total weight)
Weight  350 kg (Centrifuge weight)
Trommel diameter  382 mm (inner drum diameter)
Capacity  30 kg (max. load)
Temperature  50 °C (Temp. range of filling material)

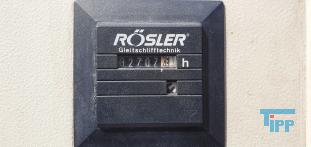

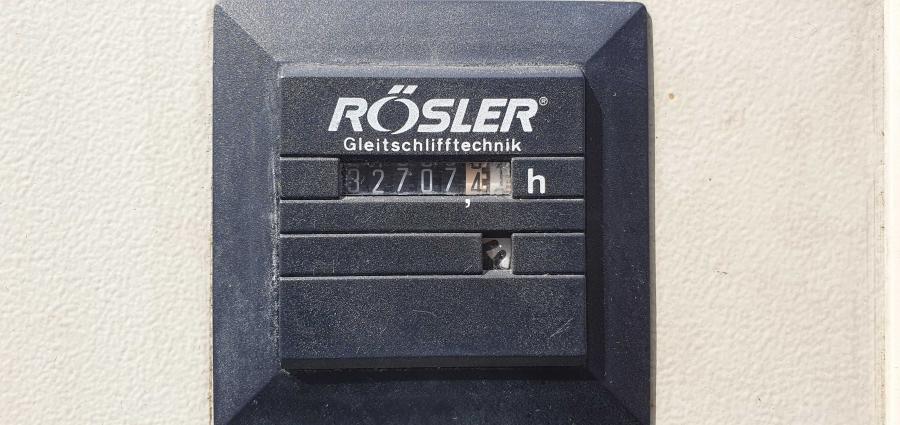

Hours of operation  32707 h
Further information  92681 (Machine number)

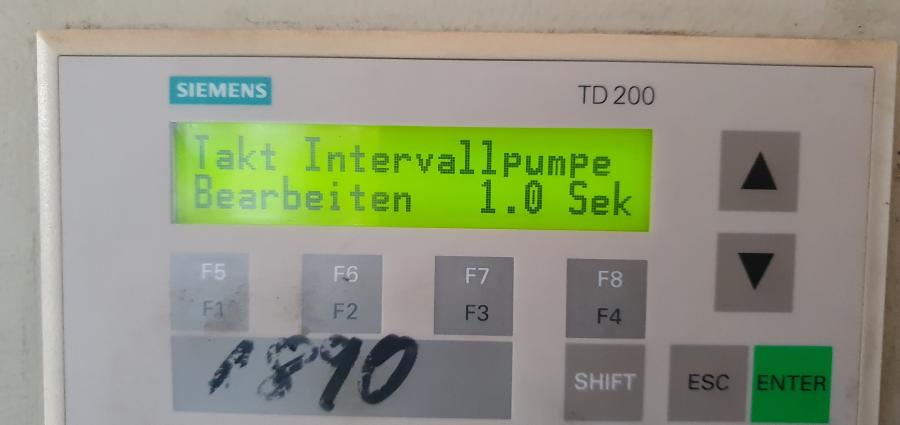

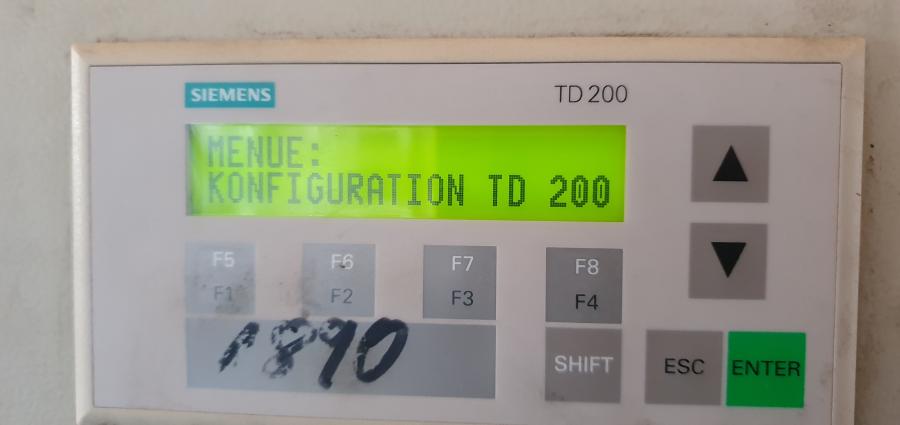

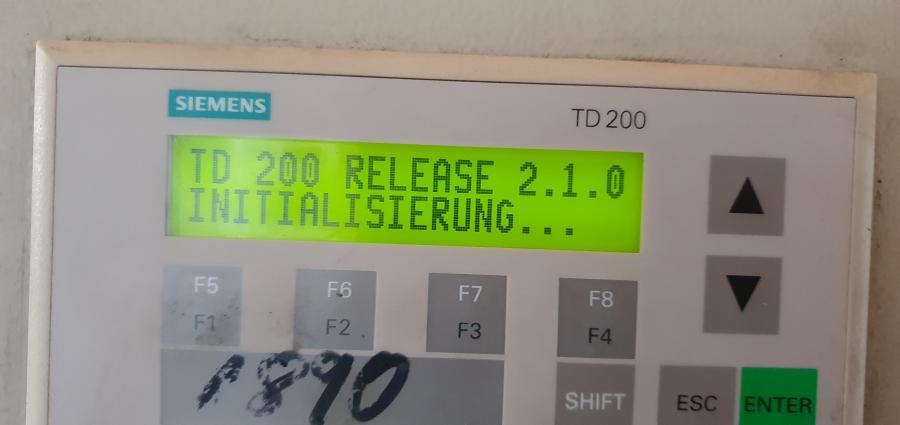

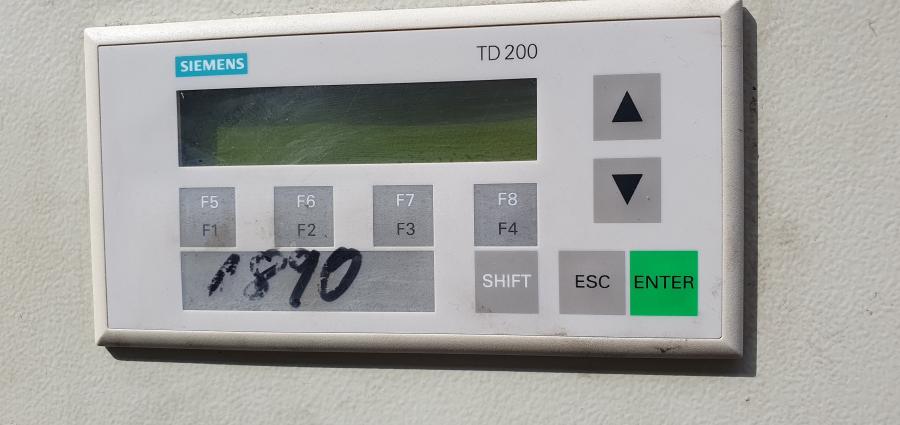

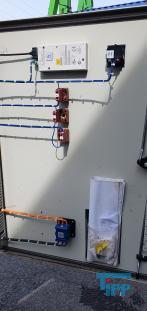

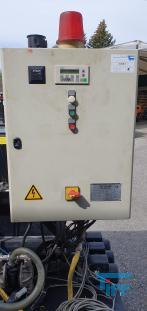

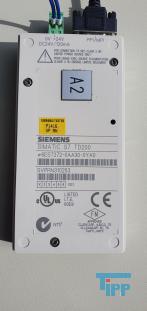

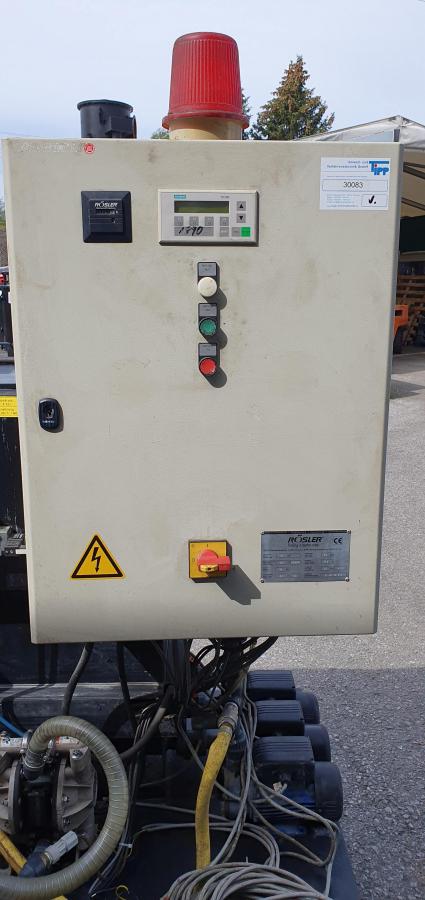

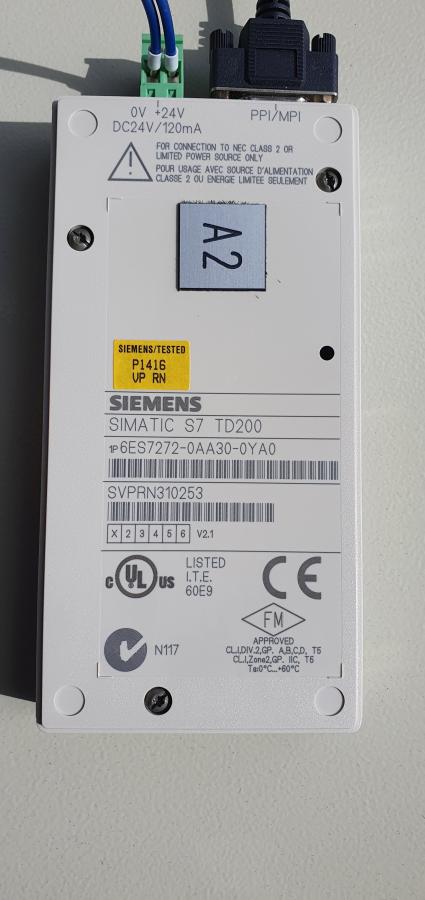

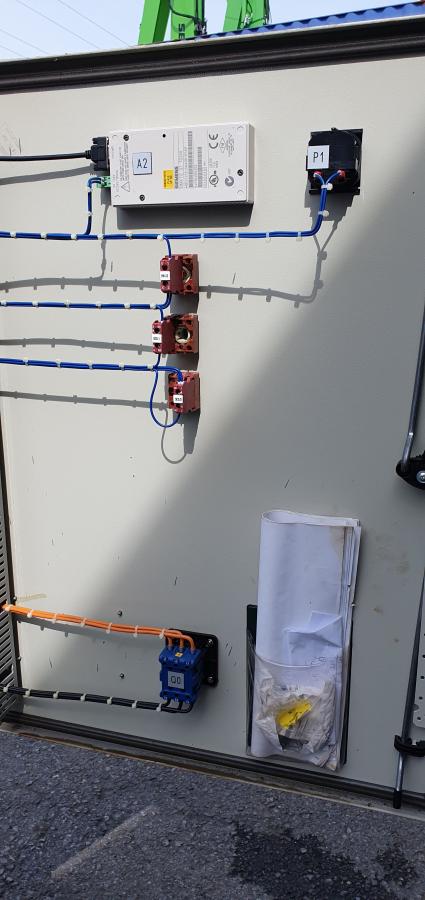

(Control unit Siemens TD 200)

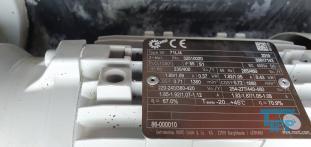

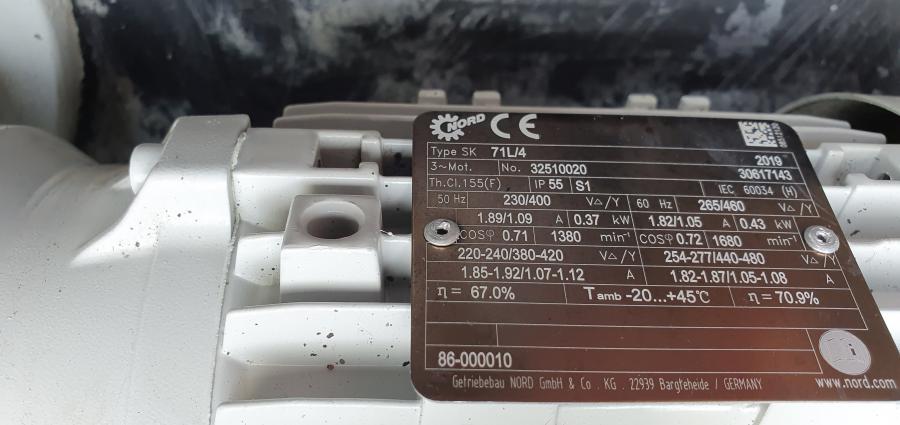

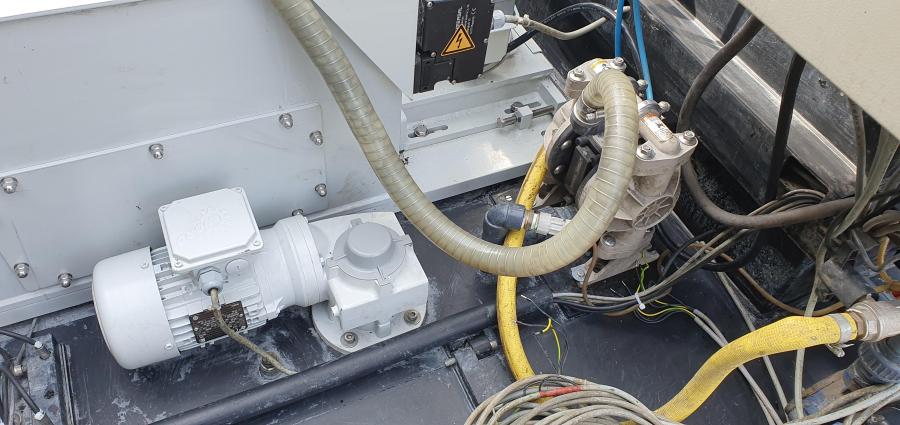

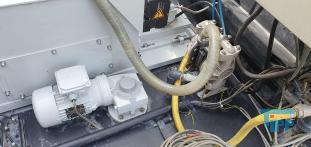

(Worm gear motor 0.37 kW ; 76 U/min for agitator)

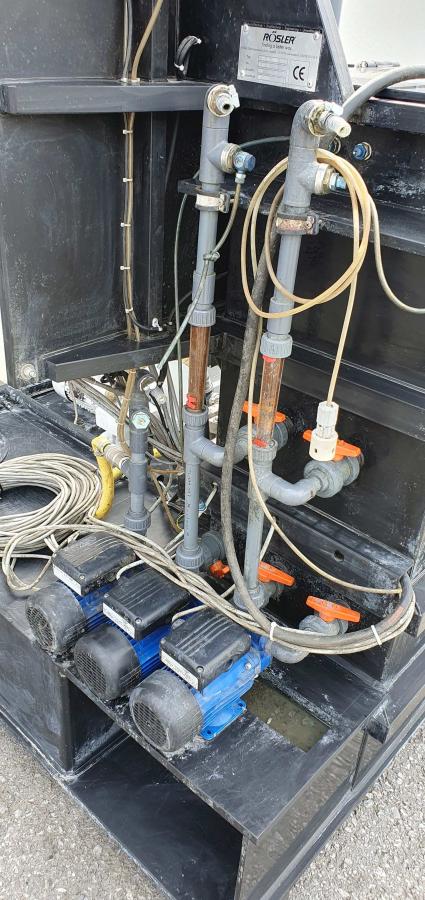

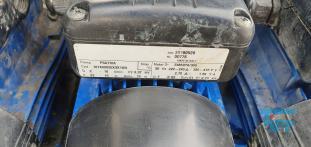

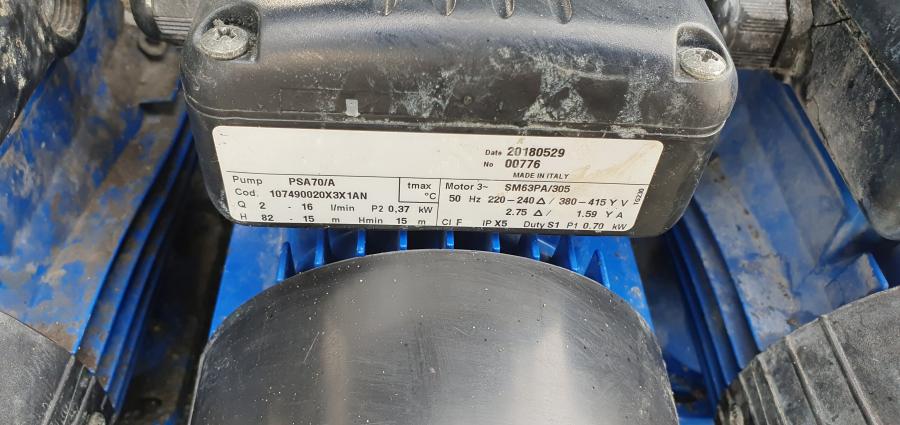

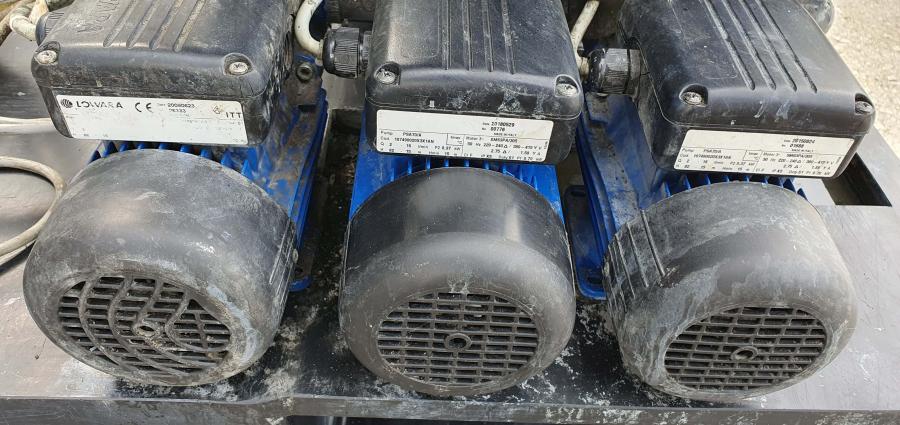

(3 x Centrifugal pump PSA 70 LOWARA)

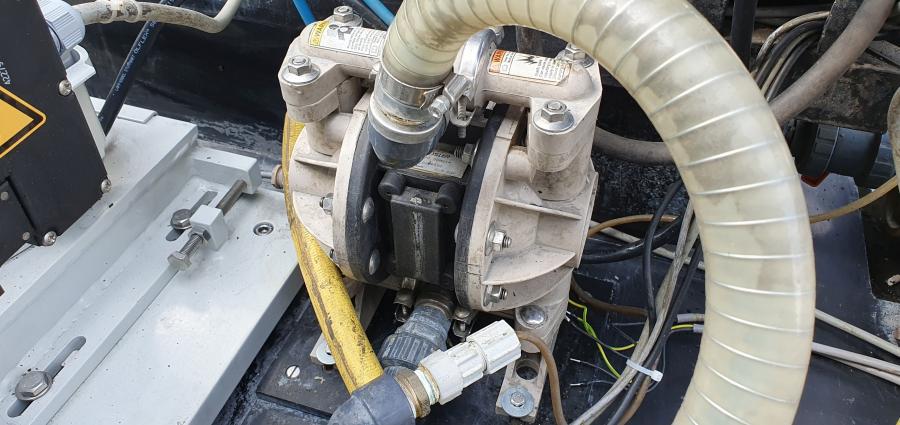

(Air operated diaphragm pump P3-1 cycle controlled)

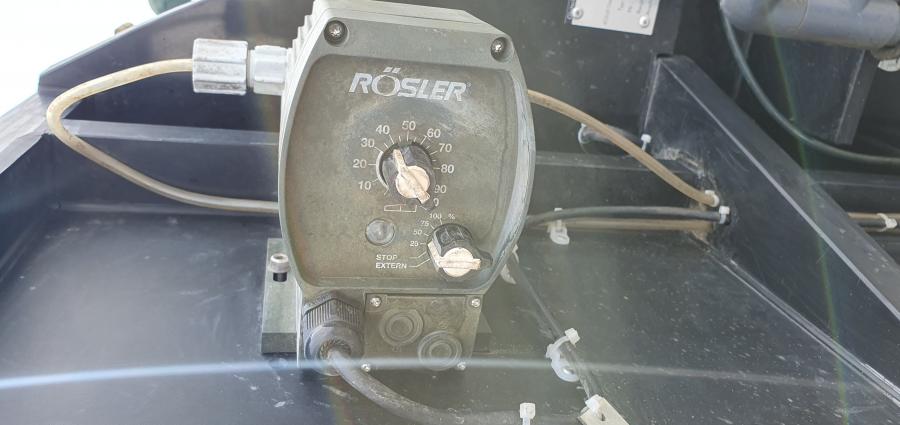

(Dosing pump RD-CN-PA ; 1 l/h ; for actuating medium)
(3 pcs sludge baskets)
Video


send request

print view


Alle Angaben, Bilder, Hinweise und Empfehlungen erfolgen nach bestem
Wissen, je- doch ohne Gewähr. Änderungen der technischen Angaben bleiben vorbehalten.


Einige, ähnliche Artikel aus unserem derzeitigen Lagerbestand

Nr.:27511
gebrauchter Separa...
Nr.:30083
gebrauchtes Prozes...
Nr.:29777
unbenutzte Zentrif...

informations about: centrifuges

A centrifuge is a piece of equipment, generally driven by an electric motor (some older models were spun by hand), that puts an object in rotation around a fixed axis, applying a force perpendicular to the axis. The centrifuge works using the sedimentation principle, where the centripetal acceleration causes more dense substances to separate out along the radial direction (the bottom of the tube). By the same token, lighter objects will tend to move to the top (of the tube; in the rotating picture, move to the centre).

In the picture shown, the rotating unit, called the rotor, has fixed holes drilled at an angle (to the vertical). Test tubes are placed in these slots and the motor is spun. As the centripetal force is in the horizontal plane and the tubes are fixed at an angle, the particles have to travel only a little distance before they hit the wall and drop down to the bottom. These angle rotors are very popular in the lab for routine use.
There are at least six types of centrifuge:
preparative centrifuge
analytical centrifuge
angle fixed centrifuge
swing head centrifuge
haematocrit centrifuge
continuous tubular centrifuge

Industrial centrifuges may otherwise be classified according to the type of separation of the high density fraction from the low density one:

Screen centrifuges, where the centrifugal acceleration allows the liquid to pass through a screen of some sort, through which the solids cannot go (due to granulometry larger than the screen gap or due to agglomeration). Common types are:
Screen/scroll centrifuges
Pusher centrifuges
Peeler centrifuges
Decanter centrifuges, in which there is no physical separation between the solid and liquid phase, rather an accelerated settling due to centrifugal acceleration.
Continuous liquid; common types are:
Solid bowl centrifuges
Conical plate centrifuges
From Wikipedia, the free encyclopedia
